Heating & Air Conditioning - Control & Air Duct

21 part groups · 5 illustrations

Illustrations

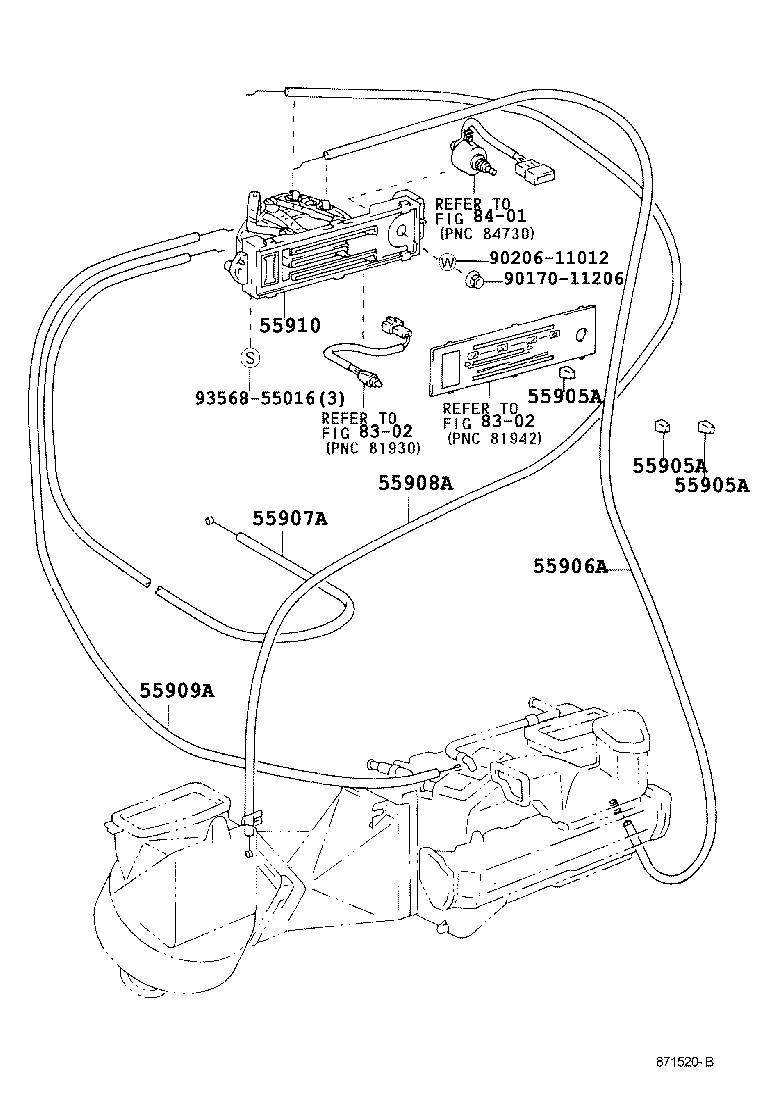

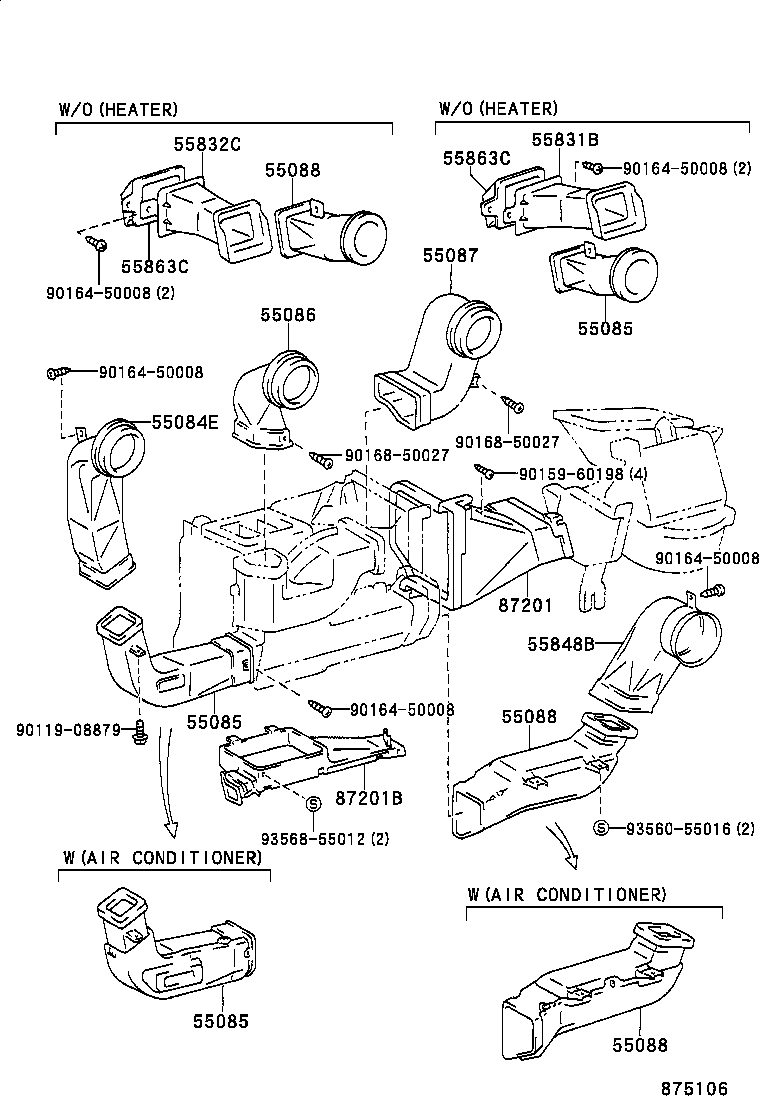

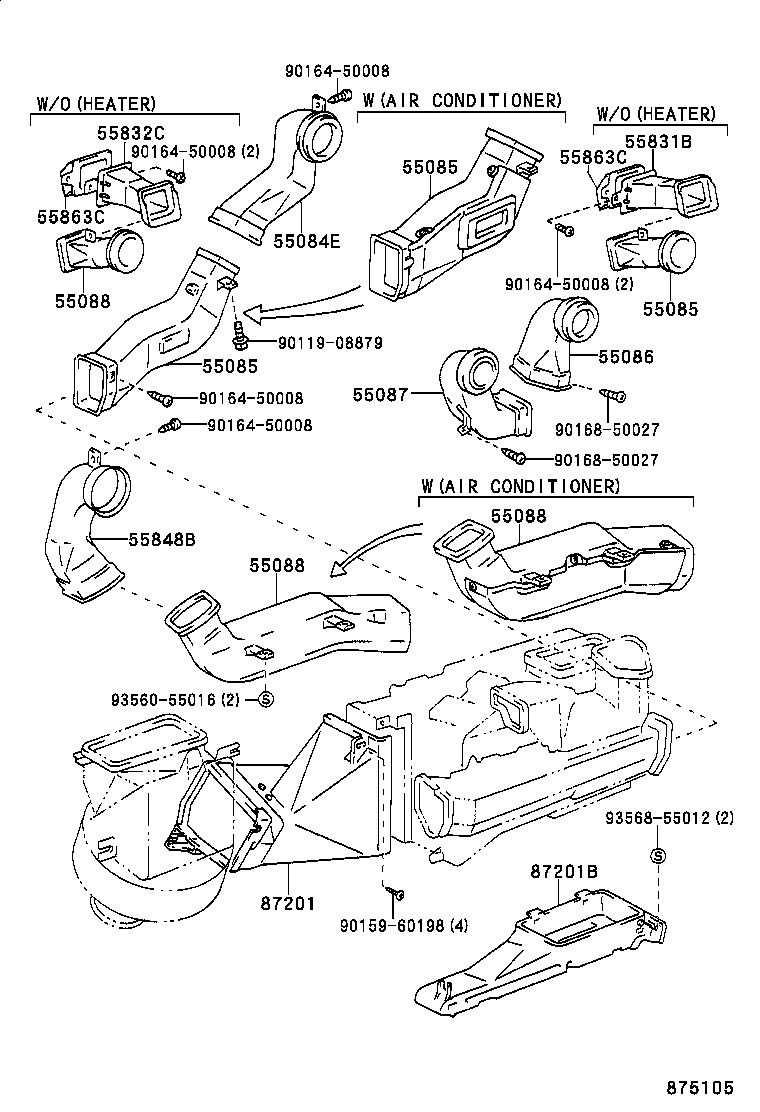

Figure 879155 879155 1990-01 → — Figure 871520B 871520B 1990-01 → — Figure 875106 875106 1990-01 → — Figure 875105 875105 1990-01 → — Figure 875107 875107 1990-01 → 1992-01

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55087 Duct Sub-assy, Heater TO Register, NO.4
55088 Duct Sub-assy, Heater TO Register, NO.5
55831B Connector, Instrument Panel Register, RH
55832C Connector, Instrument Panel Register, LH
55848B Duct, Heater TO Register, NO.6
55863C Boot, Side Ventilator Duct
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
88566B Duct, Cooler Air, NO.2
88566C Duct, Cooler Air, NO.3
88570E Grille Assy, Air Outlet
88571B Grille, Air Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
