Heating & Air Conditioning - Compressor

29 part groups · 9 illustrations

Illustrations

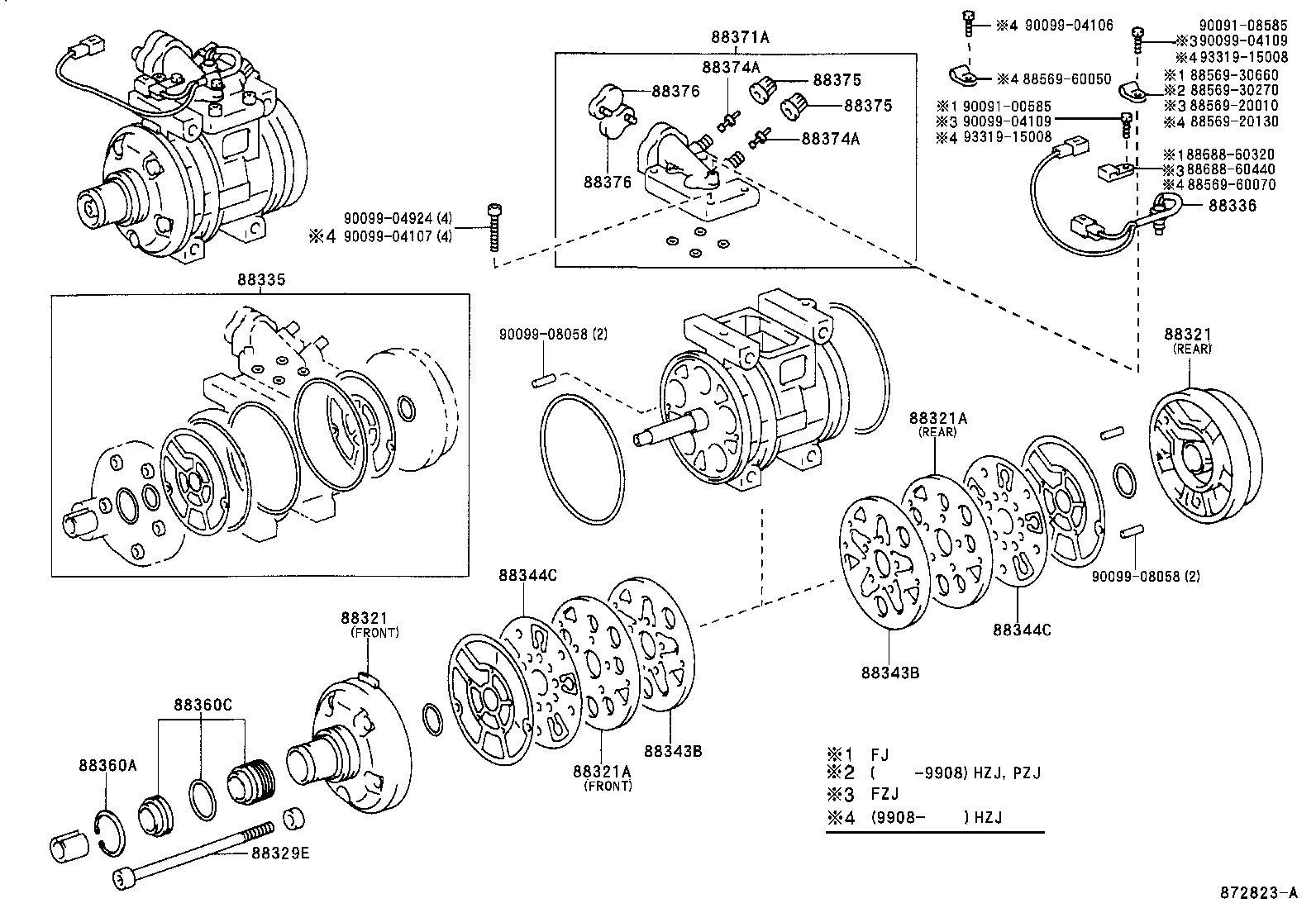

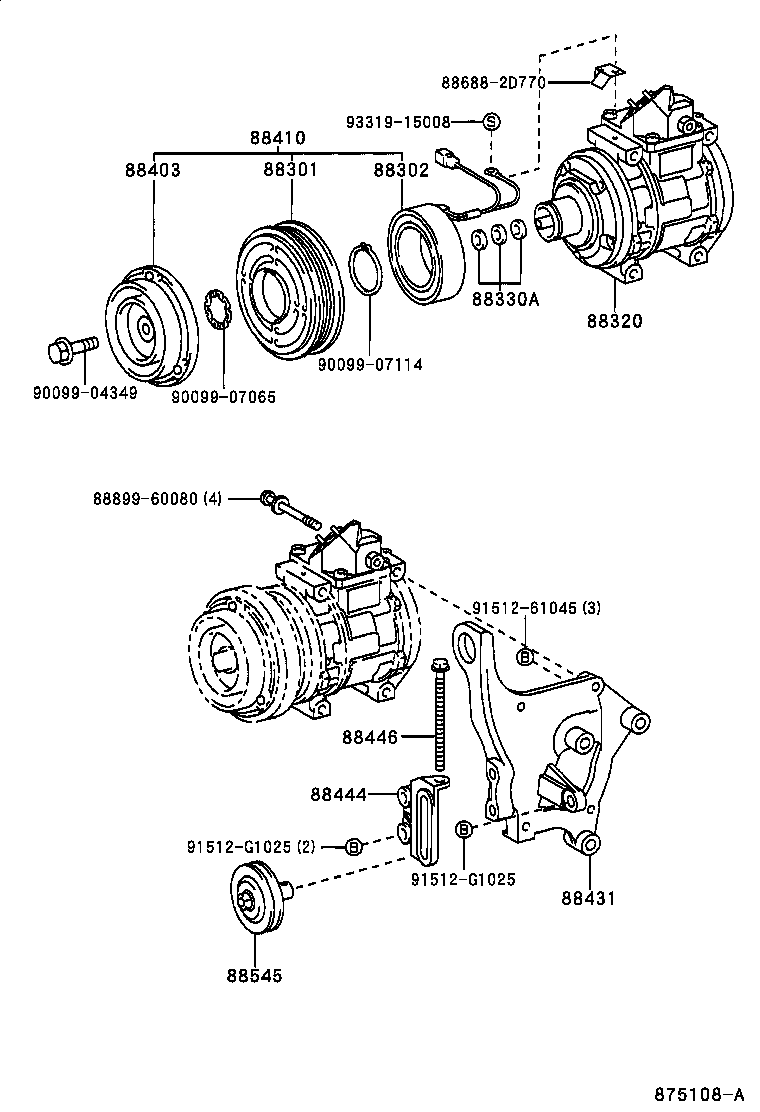

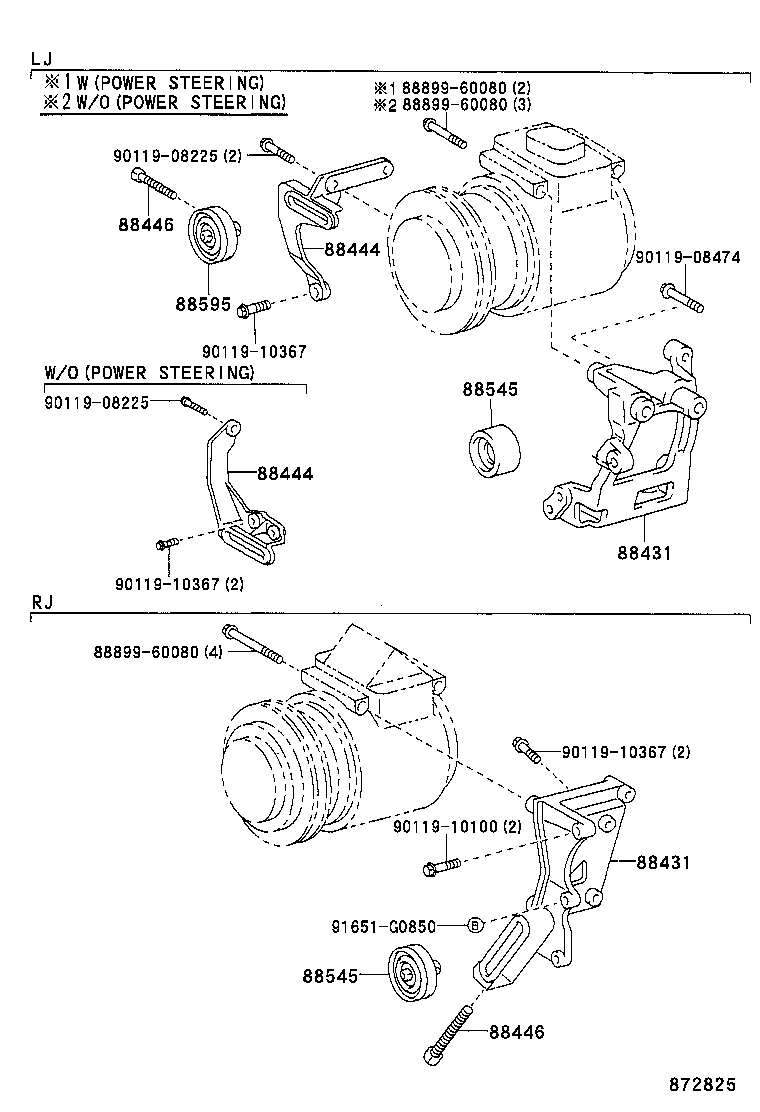

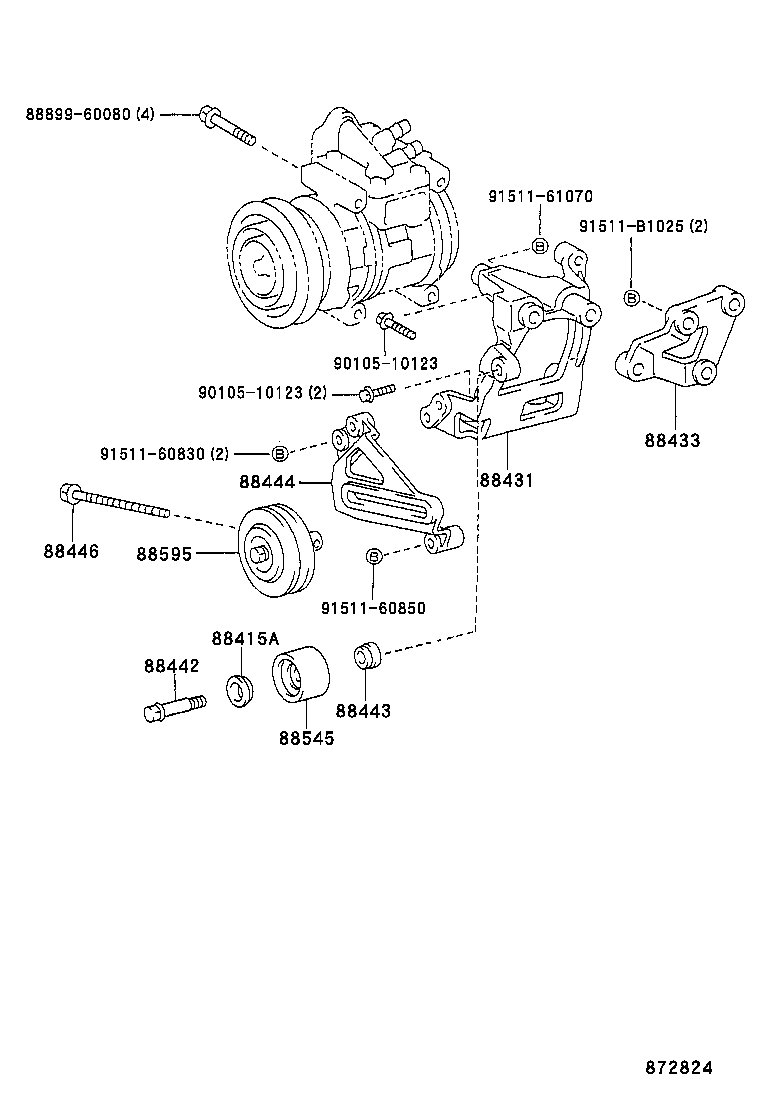

Figure 873536 873536 1990-01 → — Figure 875108A 875108A 2001-08 → — Figure 872824 872824 1990-01 → 1992-08 Figure 872634C 872634C 1990-01 → — Figure 872825 872825 1990-01 → 1996-04 Figure 87E572 87E572 1990-01 → 1996-04 Figure 872514B 872514B 1992-01 → — Figure 872826 872826 1993-05 → 1996-04 Figure 872823A 872823A 1990-01 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88321 Head, Cooler Compressor Cylinder
88321A Plate Sub-assy, Valve
88329E Bolt, Compressor, NO.1
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88336 Sensor, Compressor
88343B Reed, Suction Valve
88344C Reed, Discharge Valve
88360A Ring, Compressor Seal Plate Snap
88360C Seal Assy, Shaft
88371A Valve, Suction
88374A Valve, Service
88375 Cap, Cooler Compressor Service Valve
88376 Cap, Blind
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88415A Cover, Dust
88431 Bracket, Compressor Mounting, NO.1
88433 Bracket, Compressor Mounting, NO.3
88442 Shaft, Idle Pulley
88443 Collar, Idle Pulley
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88469B Collar
88545 Pulley Assy, Idle
88595 Pulley, Cooler Compressor Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
