Toyota Land Cruiser
2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States
Supported model
Data version 2024-10
Cylinder Head
80 part groups · 9 illustrations

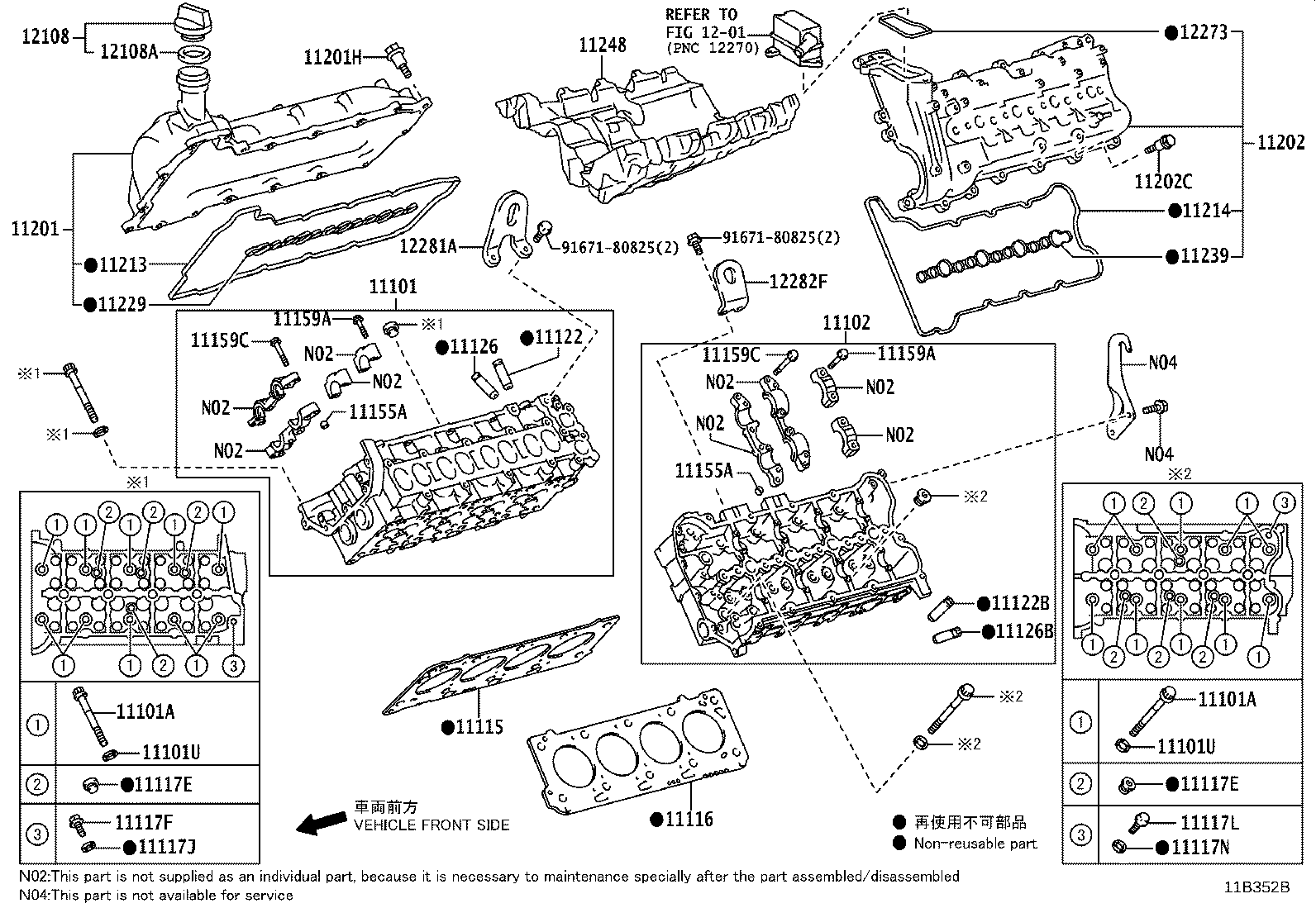

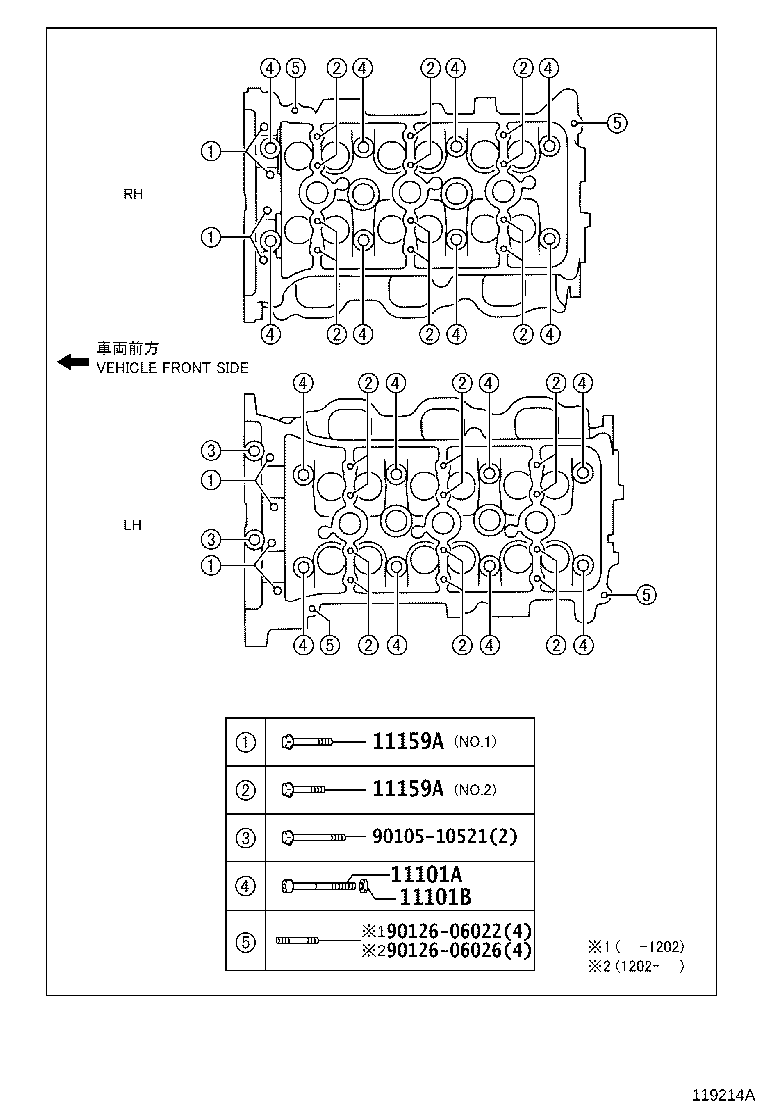

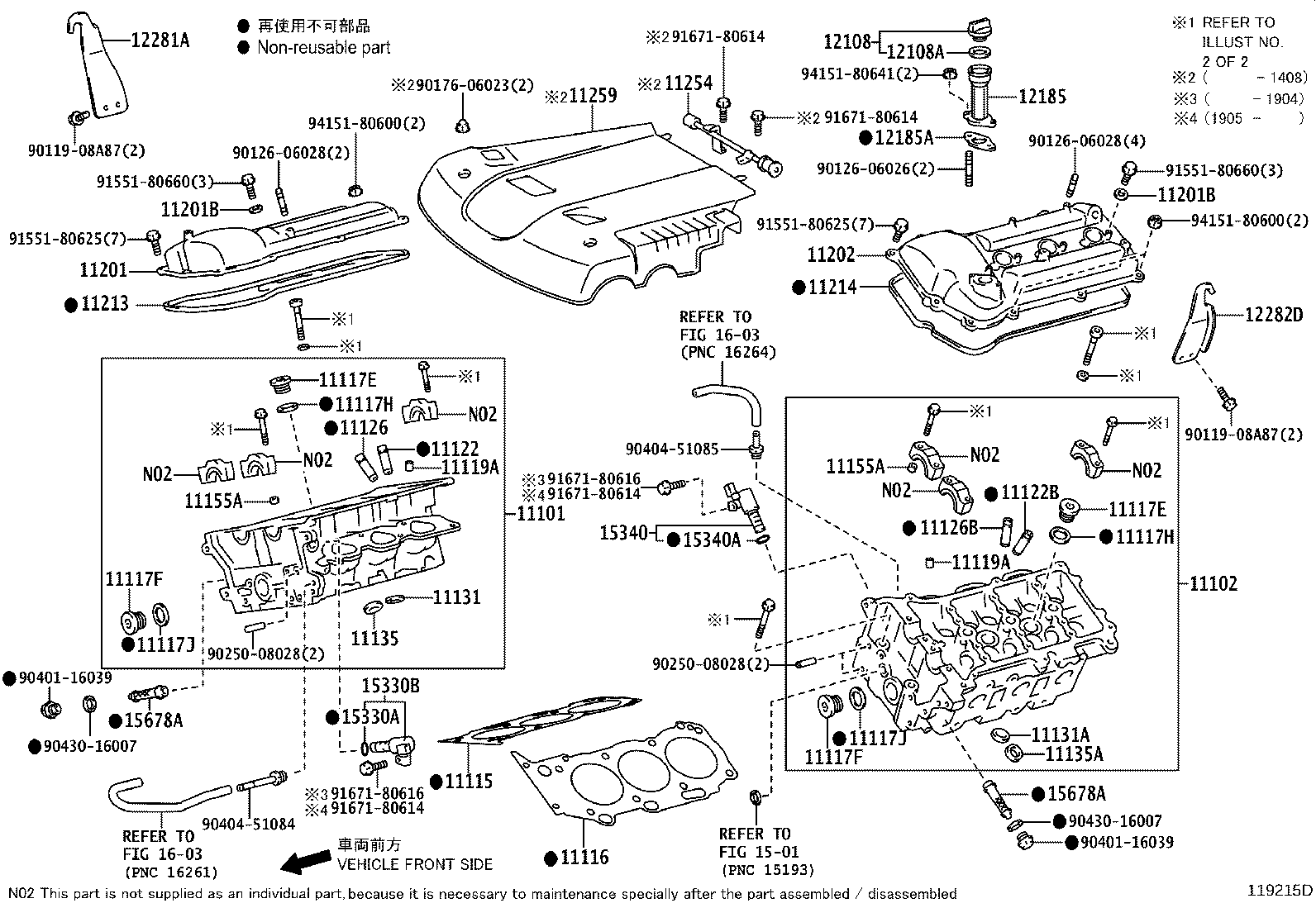

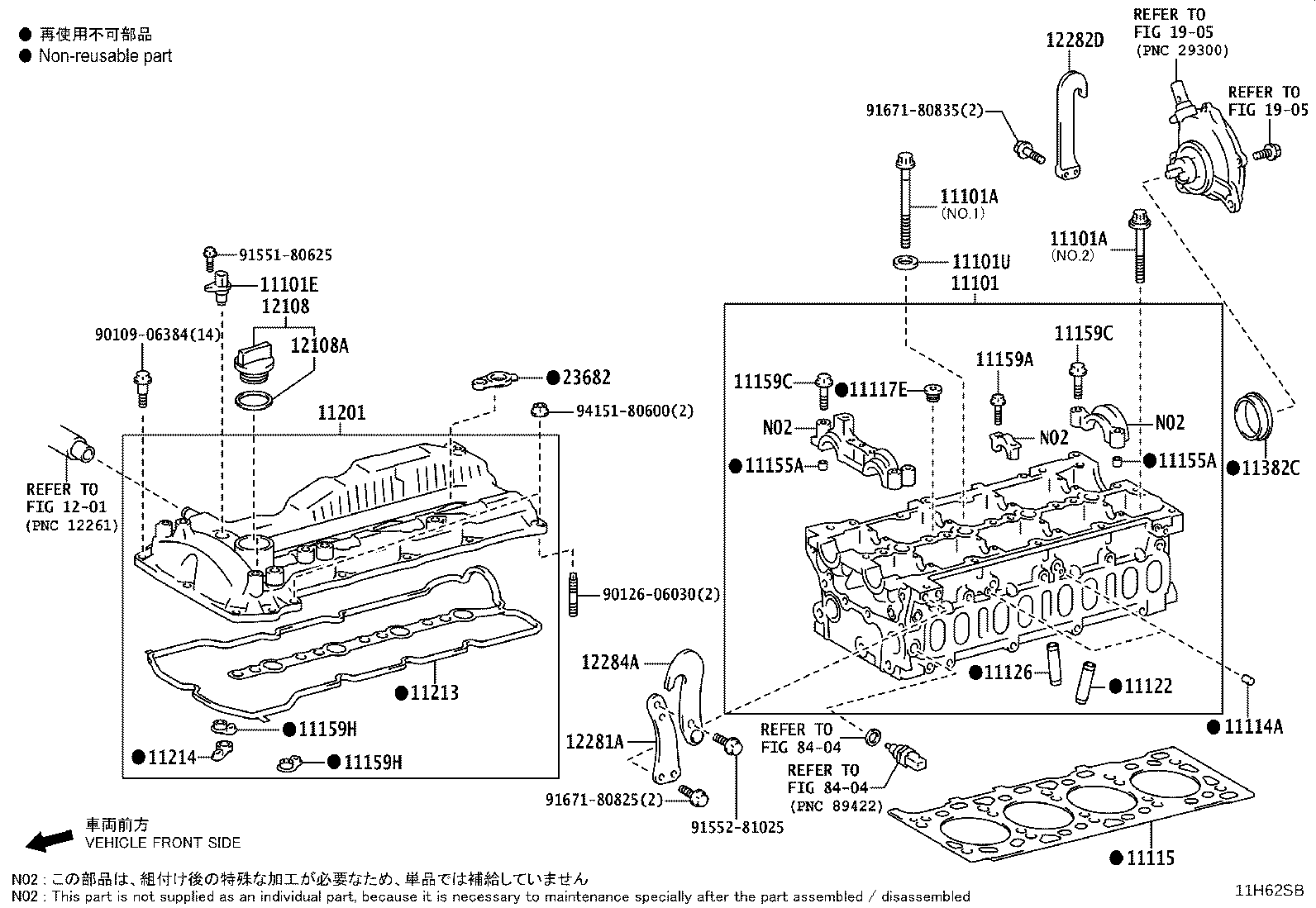

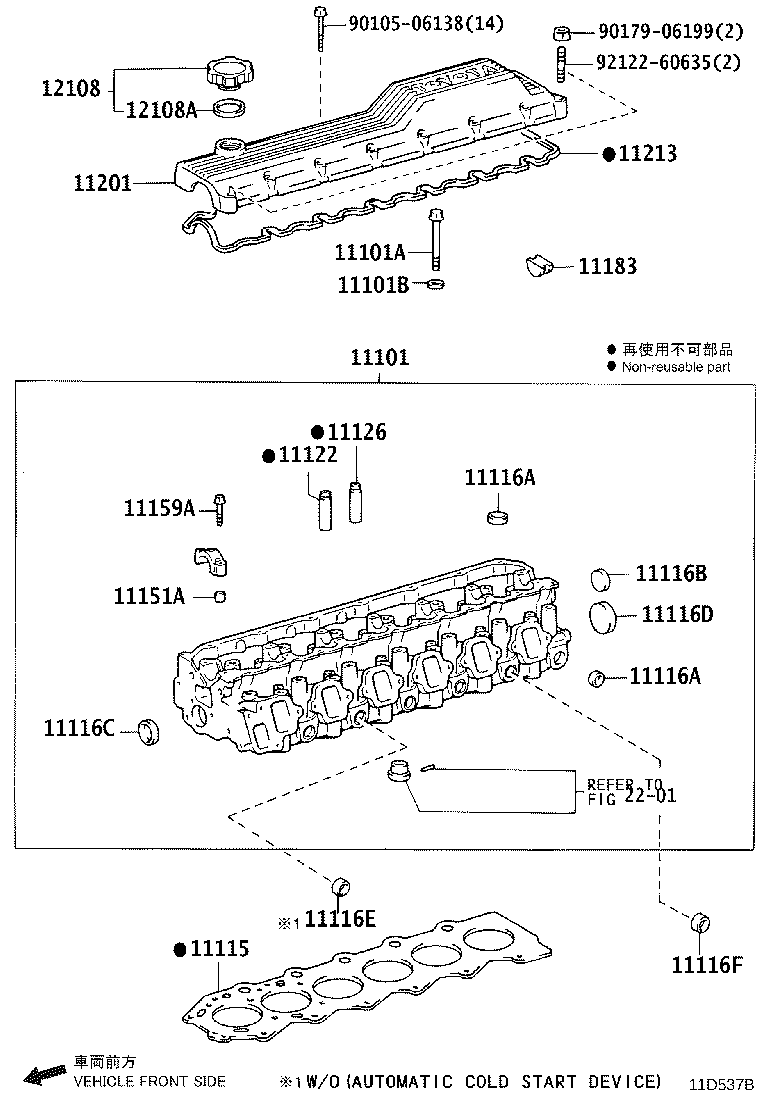

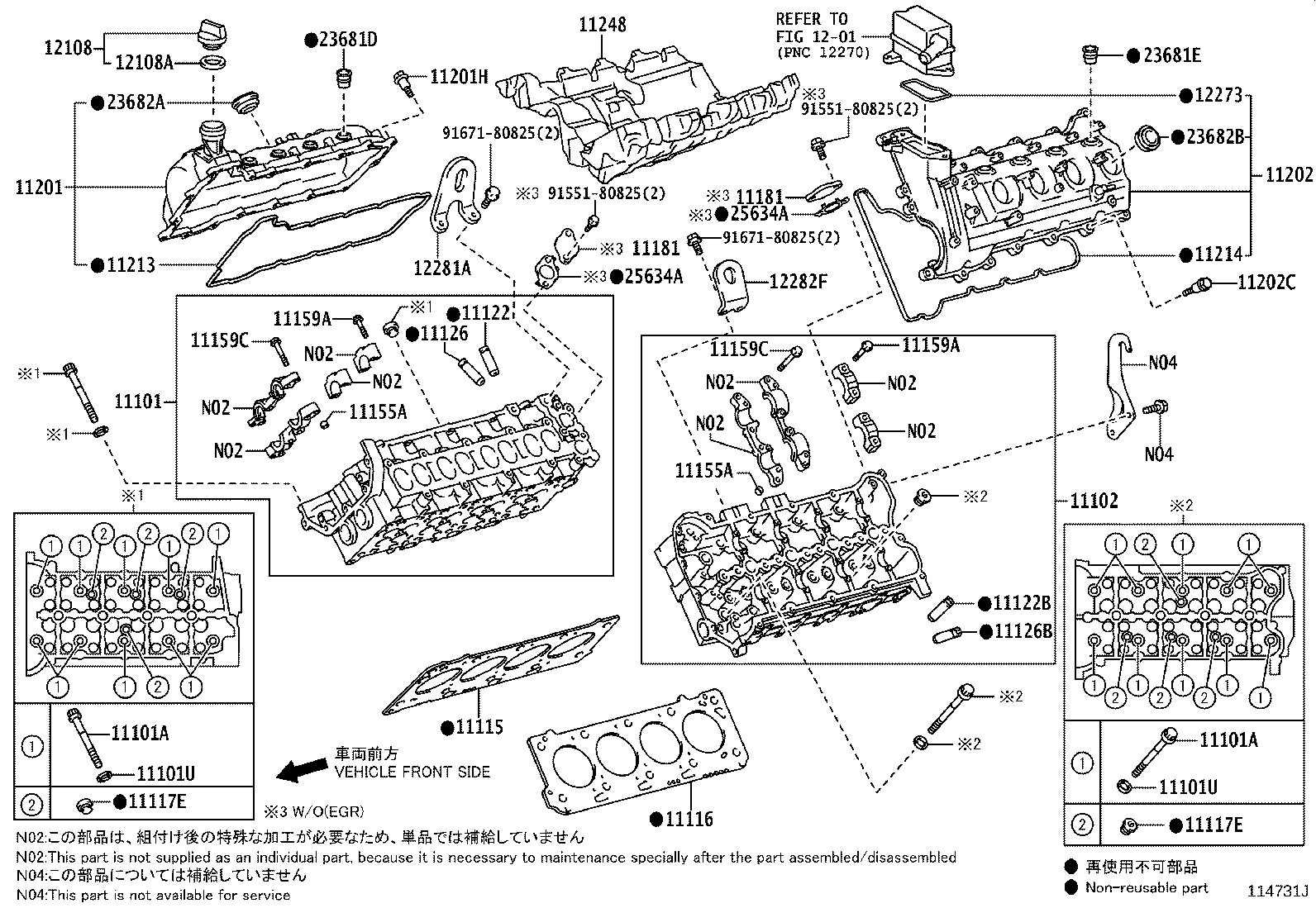

Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101D | Bolt, Stud(FOR WATER OUTLET) |
| 11101E | Sensor, Cam Position |
| 11101G | Union(FOR CYLINDER HEAD) |
| 11101H | Gasket(FOR CYLINDER HEAD SCREW PLUG) |
| 11101T | Plug, Heater Water |
| 11101U | Spacer(FOR CYLINDER HEAD SET BOLT) |
| 11101W | Sensor, Crank Position, NO.1 |
| 11102 | Head, Cylinder, LH |
| 11114A | Pin, Straight |
| 11115 | Gasket, Cylinder Head |
| 11116 | Gasket, Cylinder Head, NO.2 |
| 11116A | Plug, Tight, NO.1 |
| 11116B | Plug, Tight, NO.2 |
| 11116C | Plug, Tight, NO.3 |
| 11116D | Plug, Tight, NO.4 |
| 11116E | Plug, Tight, NO.5 |
| 11116F | Plug, Tight, NO.6 |
| 11117A | Plug, W/Head Taper Screw, NO.1 |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117F | Plug, W/Head Straight Screw, NO.2 |
| 11117G | Plug, W/Head Straight Screw, NO.3 |
| 11117H | Gasket(FOR WATER HOLE) |
| 11117J | Gasket(FOR CYLINDER HEAD SCREW PLUG) |
| 11117L | Plug, W/Head Straight Screw, LH NO.2 |
| 11117N | Gasket(FOR CYLINDER HEAD SCREW PLUG NO.2) |
| 11119A | Pin, Straight, NO.1 |
| 11122 | Bush, Intake Valve Guide |
| 11122B | Bush, Intake Valve Guide, NO.2 |
| 11126 | Bush, Exhaust Valve Guide |
| 11126B | Bush, Exhaust Valve Guide, NO.2 |
| 11131 | Seat, Intake Valve |
| 11131A | Seat, Intake Valve, NO.2 |
| 11135 | Seat, Exhaust Valve |
| 11135A | Seat, Exhaust Valve, NO.2 |
| 11151A | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) |
| 11155A | Pin, Ring W/Head |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159C | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159H | Gasket, Camshaft Bearing Cap Oil Hole |
| 11181 | Plate, Cylinder Head, Rear |
| 11183 | Plug, Semicircular |
| 11193 | Gasket, Spark Plug Tube |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11201H | Bolt(FOR CYLINDER HEAD COVER) |
| 11202 | Cover Sub-assy, Cylinder Head, LH |
| 11202C | Bolt(FOR CYLINDER HEAD COVER LH) |
| 11212 | Cover, Cylinder Head, NO.2 |
| 11213 | Gasket, Cylinder Head Cover |
| 11214 | Gasket, Cylinder Head Cover, NO.2 |
| 11219 | Cover, Cylinder Head, NO.3 |
| 11229 | Gasket, Cylinder Head Cover, NO.3 |
| 11239 | Gasket, Clinder Head Coner, NO.4 |
| 11248 | Silencer, V-bank |
| 11254 | Bracket, V-bank Cover, NO.1 |
| 11259 | Cover, V-bank |
| 11382C | Retainer, Camshaft Oil Seal |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12185 | Housing, Oil Filler Cap |
| 12185A | Gasket, Oil Filler Cap Housing |
| 12273 | Gasket, Oil Separator |
| 12281A | Hanger, Engine, NO.1 |
| 12282D | Hanger, Engine, NO.2 |
| 12282F | Hanger, Engine, NO.2 |
| 12284A | Hanger, Engine, NO.1 Upper |
| 15330A | Ring, O(FOR CAM TIMING OIL CONTROL VALVE) |
| 15330B | Valve Assy, Cam Timing Oil Control, RH |
| 15340 | Valve Assy, Cam Timing Oil Control, LH |
| 15340A | Ring, O(FOR CAM TIMING OIL CONTROL VALVE) |
| 15678A | Filter, Oil Control Valve |
| 23681D | Seal, Nozzle Holder, RH |
| 23681E | Seal, Nozzle Holder, LH |
| 23682 | Gasket, Nozzle Holder |
| 23682A | Gasket, Nozzle Holder, RH |
| 23682B | Gasket, Nozzle Holder, LH |
| 25634A | Gasket, Egr Pipe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
