Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

14 part groups · 8 illustrations

Illustrations

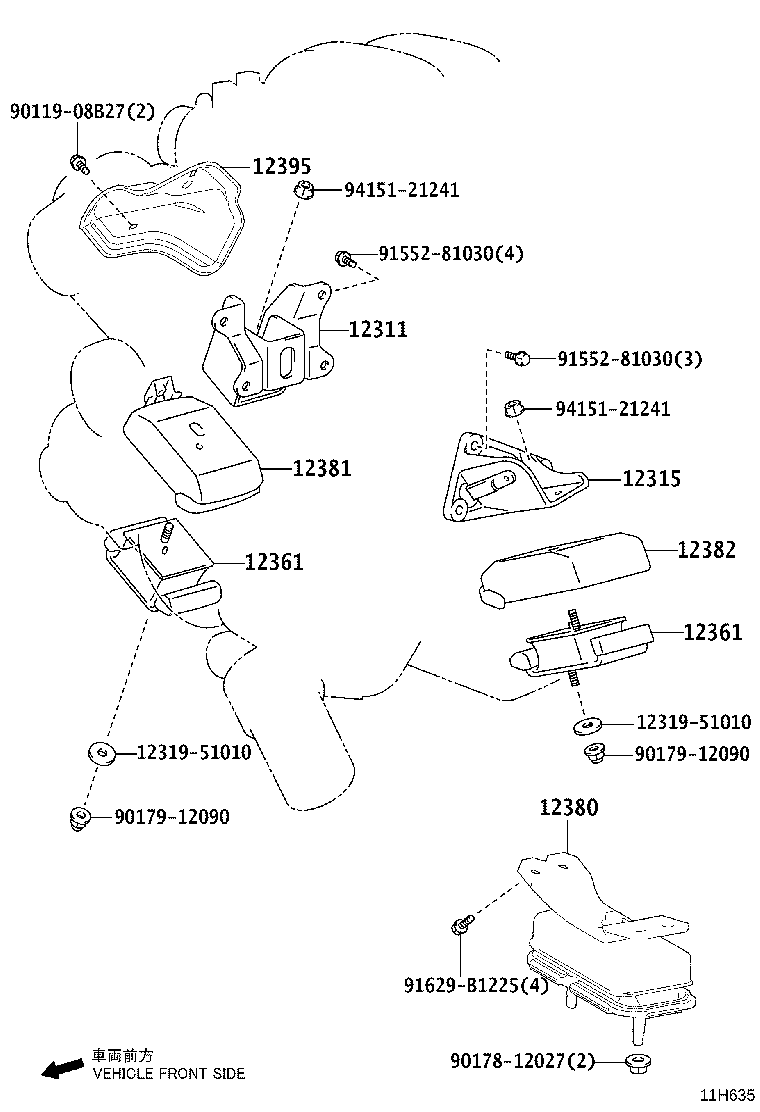

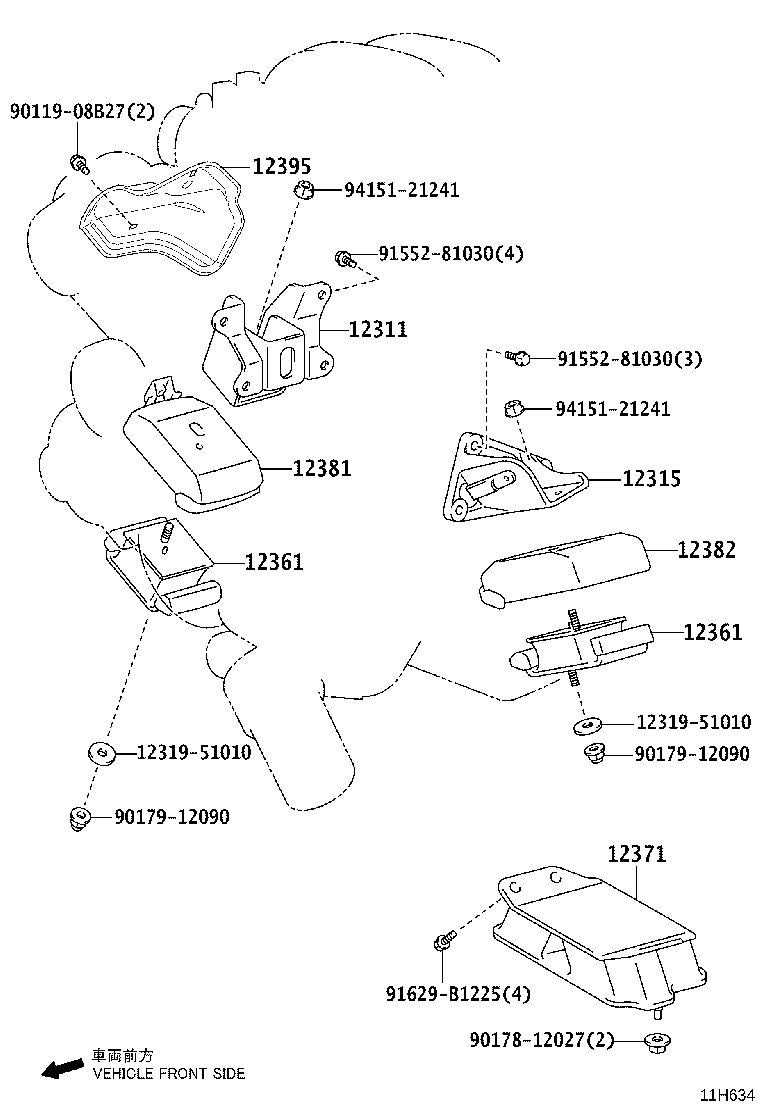

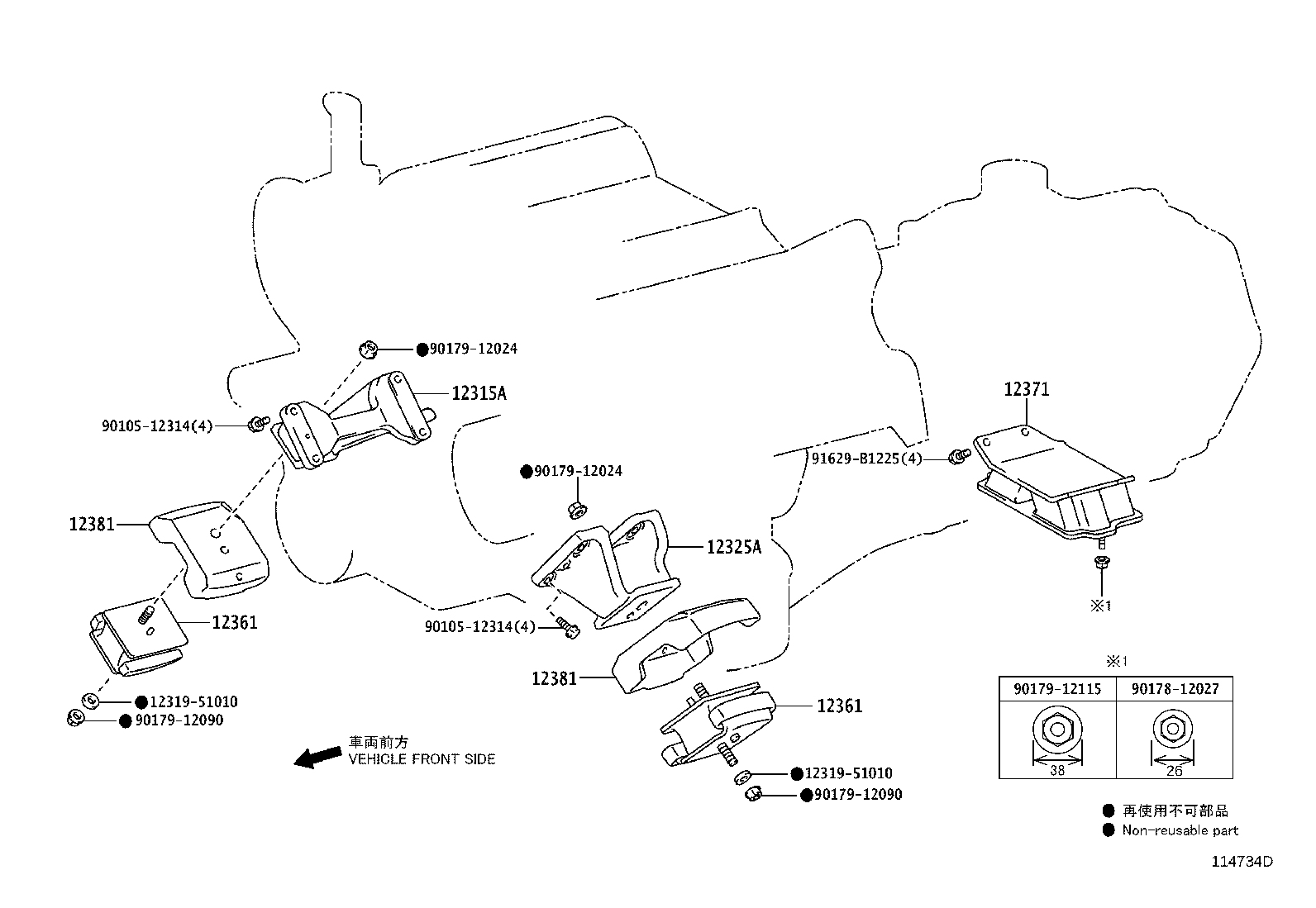

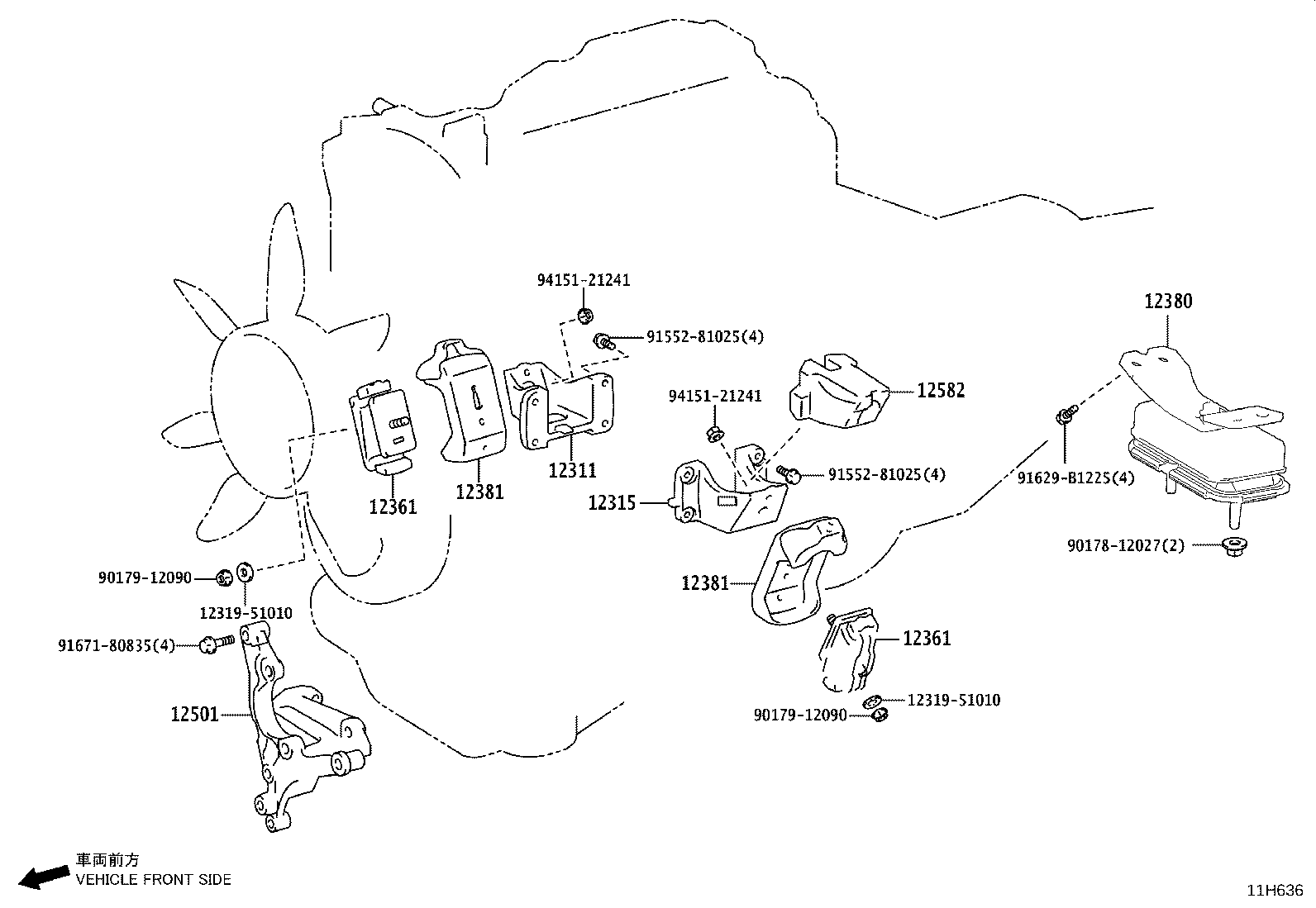

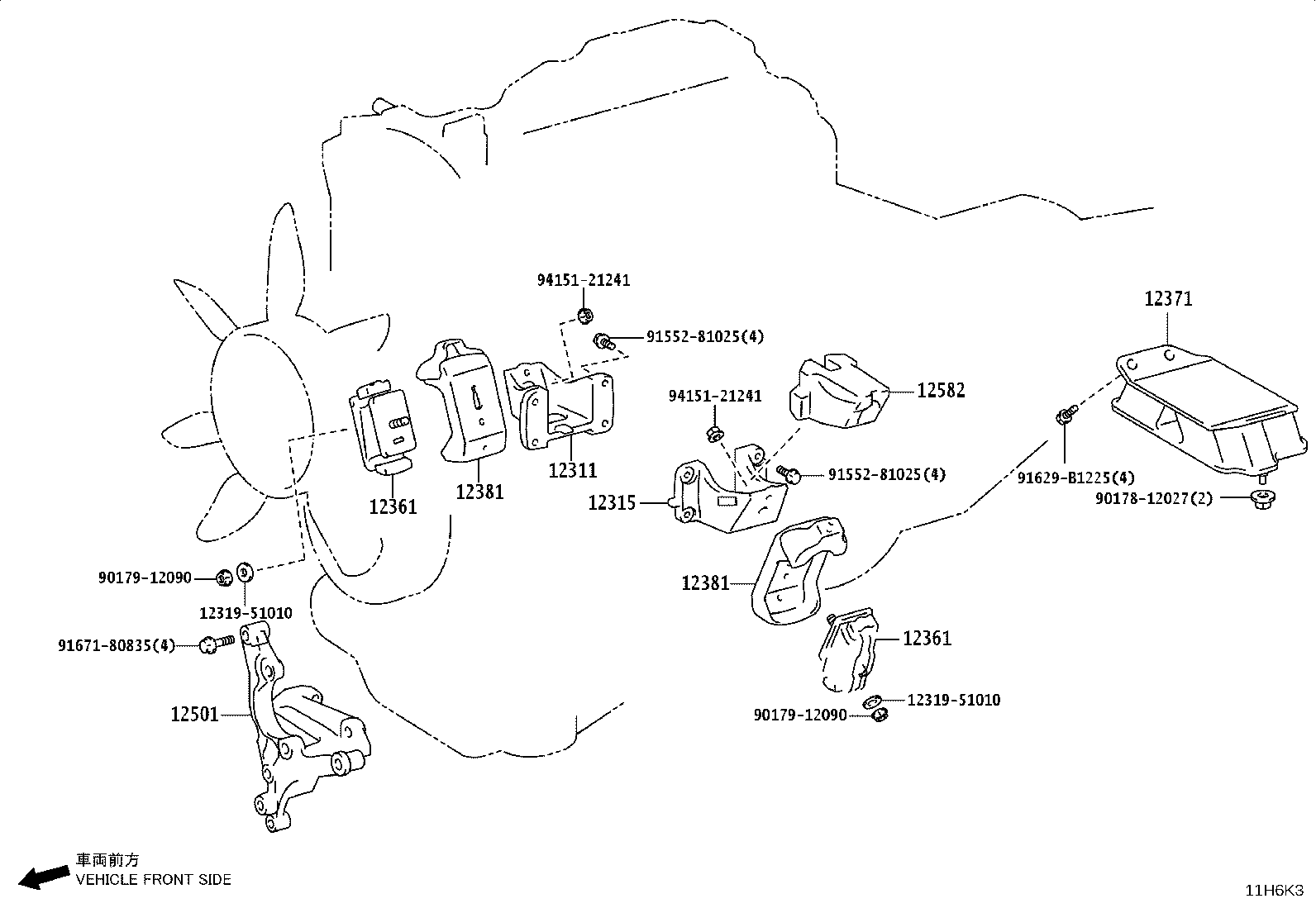

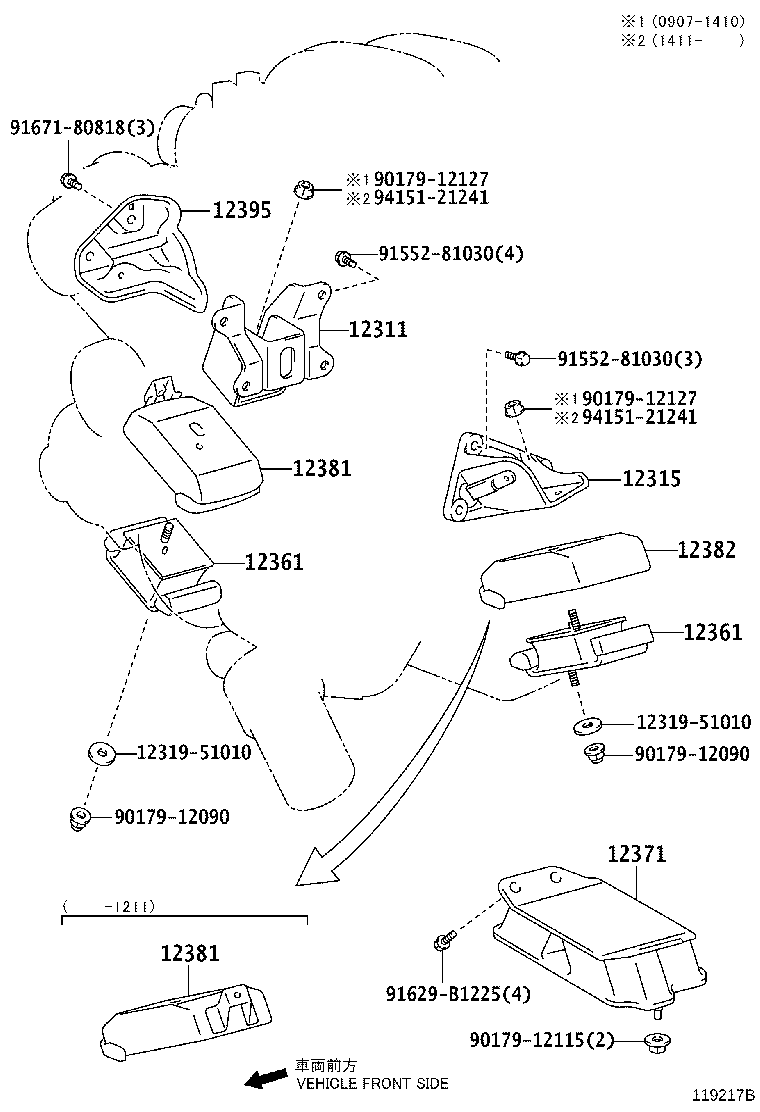

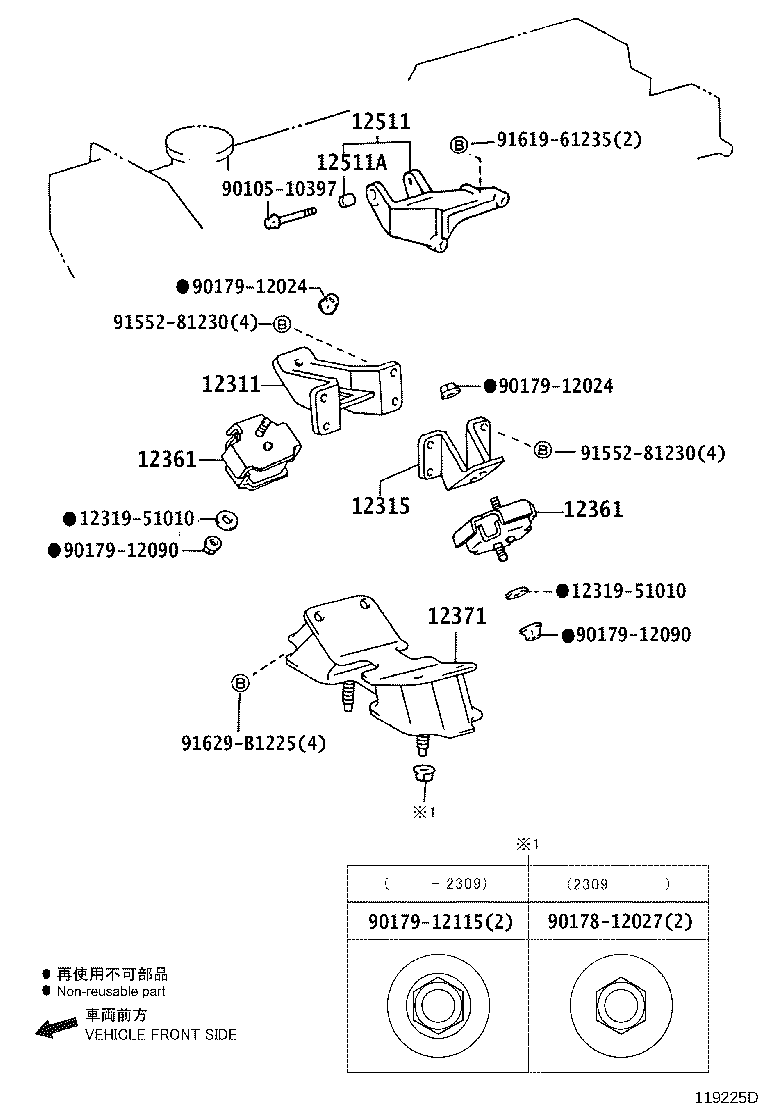

Figure 119224B 119224B 2007-01 → — Figure 119217B 119217B 2009-07 → 2023-09 Figure 11H634 11H634 2023-09 → — Figure 11H635 11H635 2023-09 → — Figure 11H636 11H636 2023-09 → — Figure 11H6K3 11H6K3 2024-09 → — Figure 119225D 119225D 2007-01 → — Figure 114734D 114734D 2007-01 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12380 Insulator Assy, Engine Mounting, Rear
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12395 Insulator, Engine Mounting Bracket Heat
12501 Bracket Sub-assy, Alternator
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12582 Insulator, Cylinder Block, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
