Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

13 part groups · 5 illustrations

Illustrations

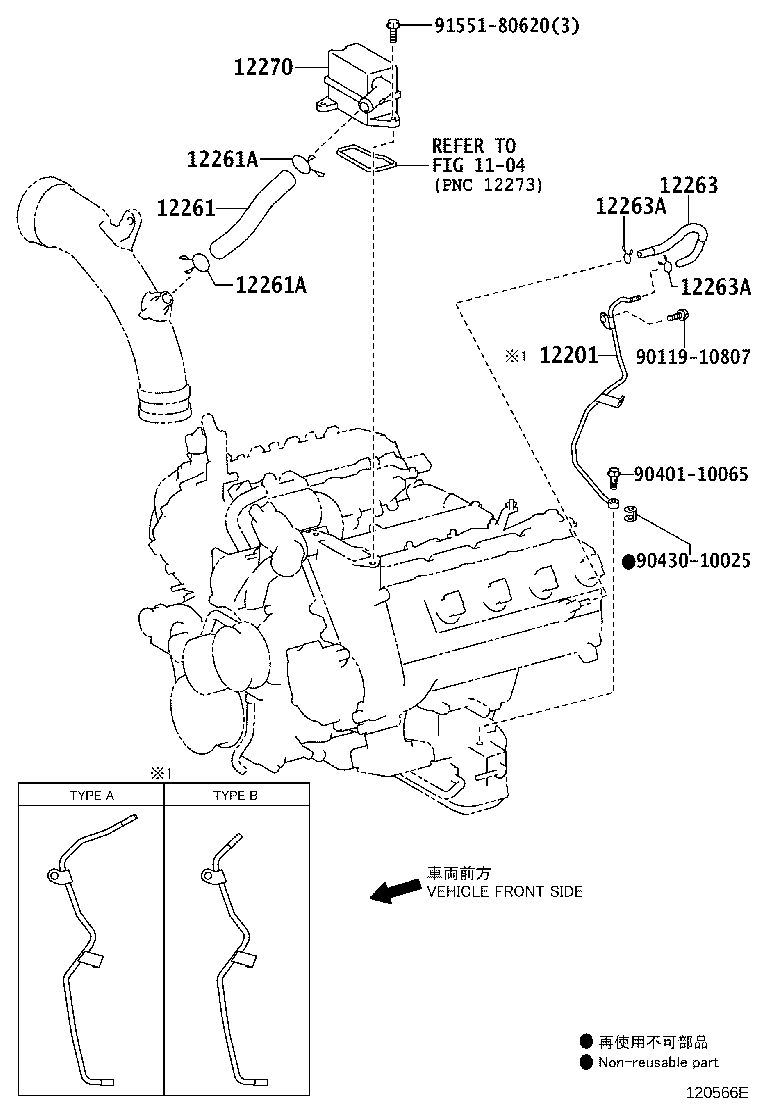

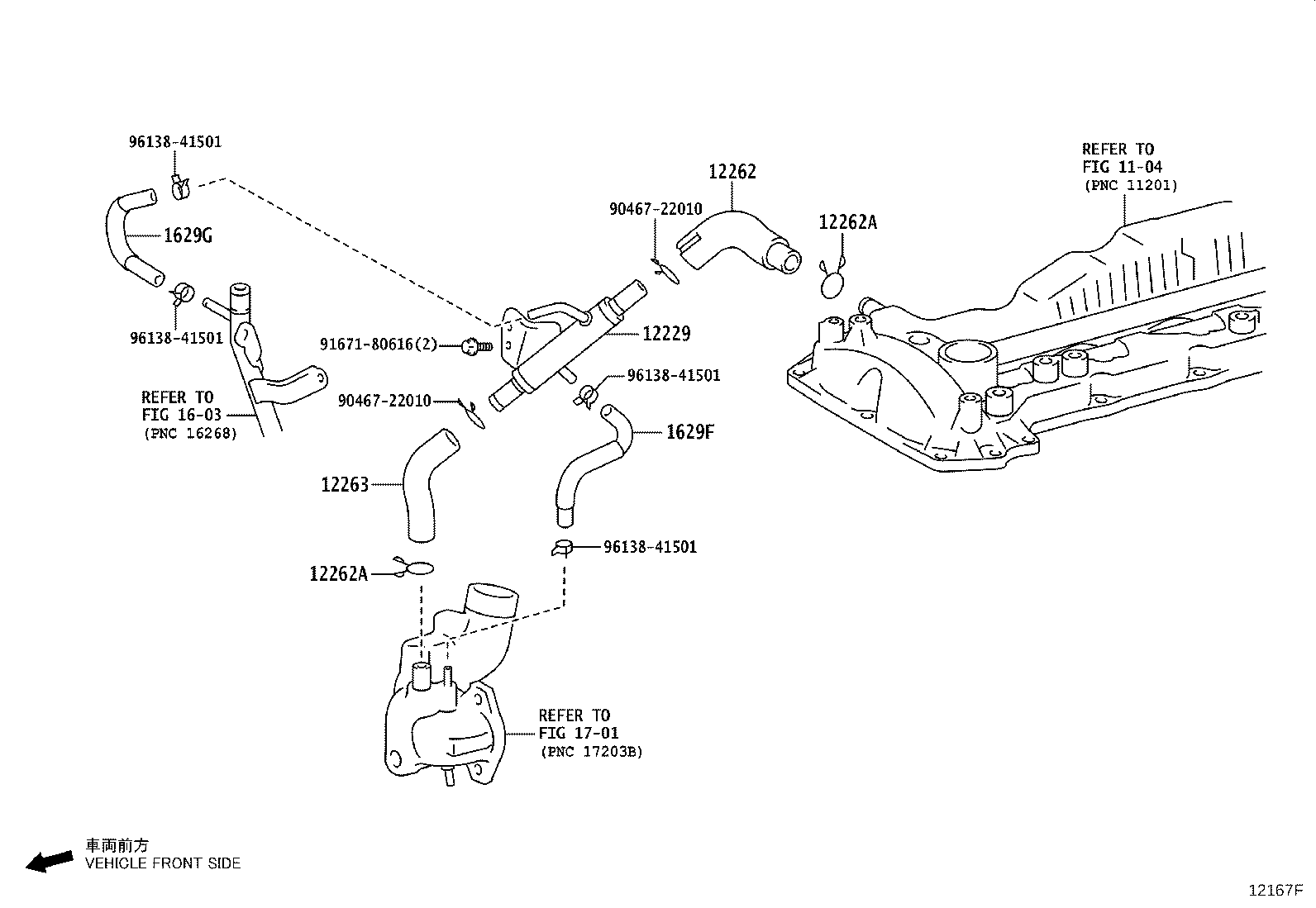

Figure 121229 121229 2007-01 → — Figure 120958A 120958A 2009-07 → — Figure 12167F 12167F 2023-09 → — Figure 121227 121227 2007-01 → — Figure 120566E 120566E 2007-01 → —

Part groups

PNCDescription
12201 Tube Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12229 Pipe, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12270 Separator Assy, Oil
1629F Hose, Water By-pass, NO.19
1629G Hose, Water By-pass, NO.20
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
