Exhaust Pipe

43 part groups · 32 illustrations

Illustrations

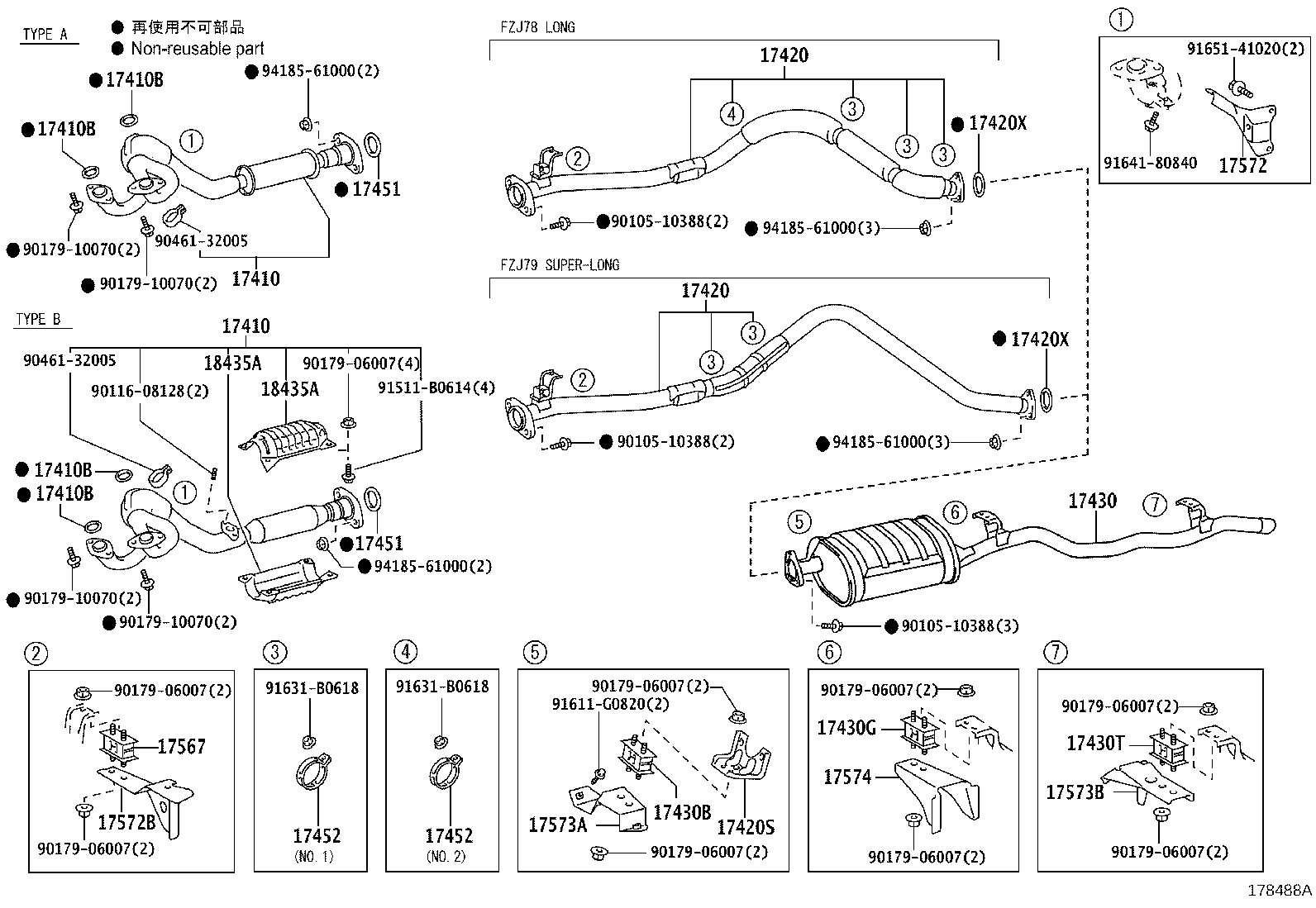

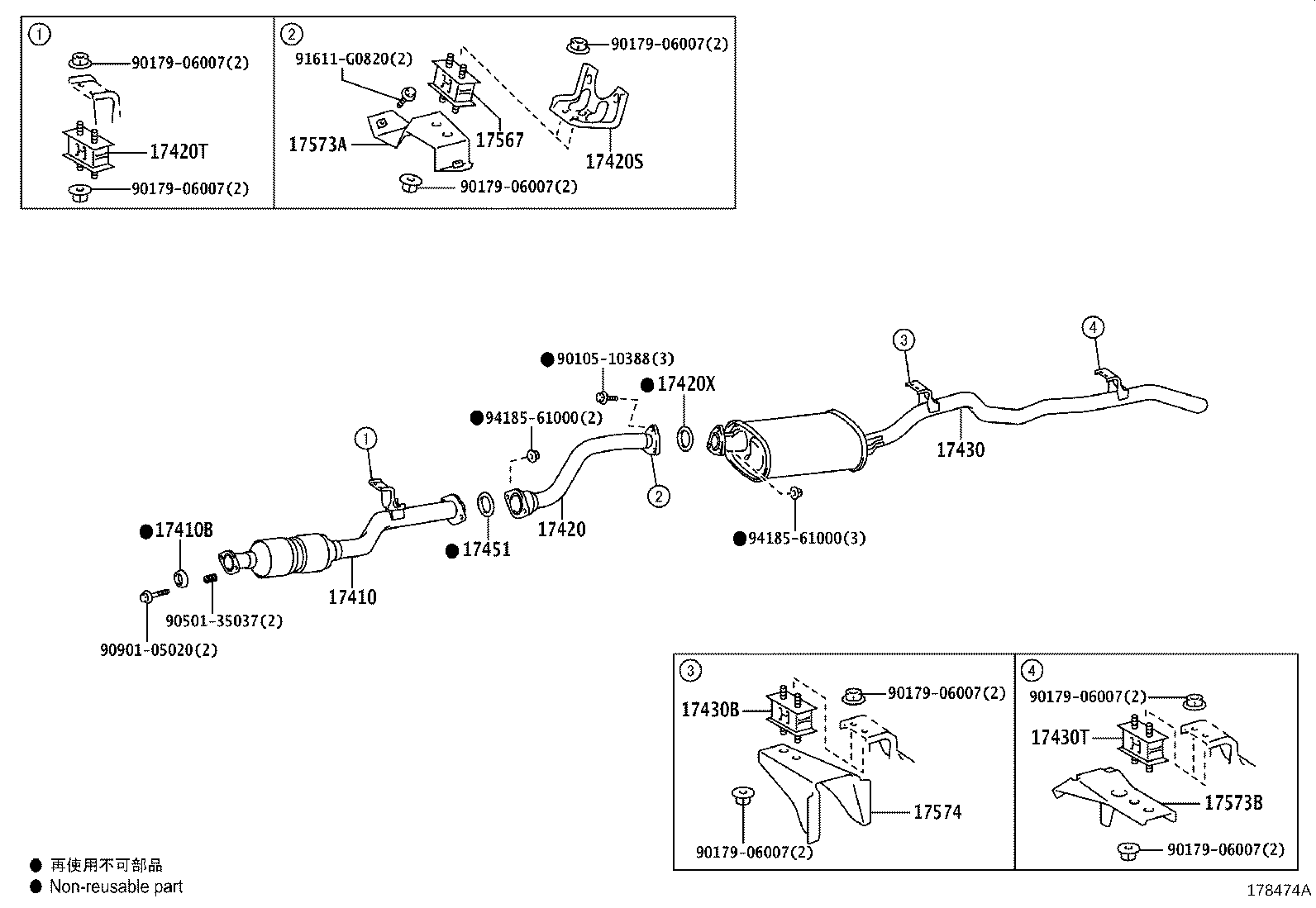

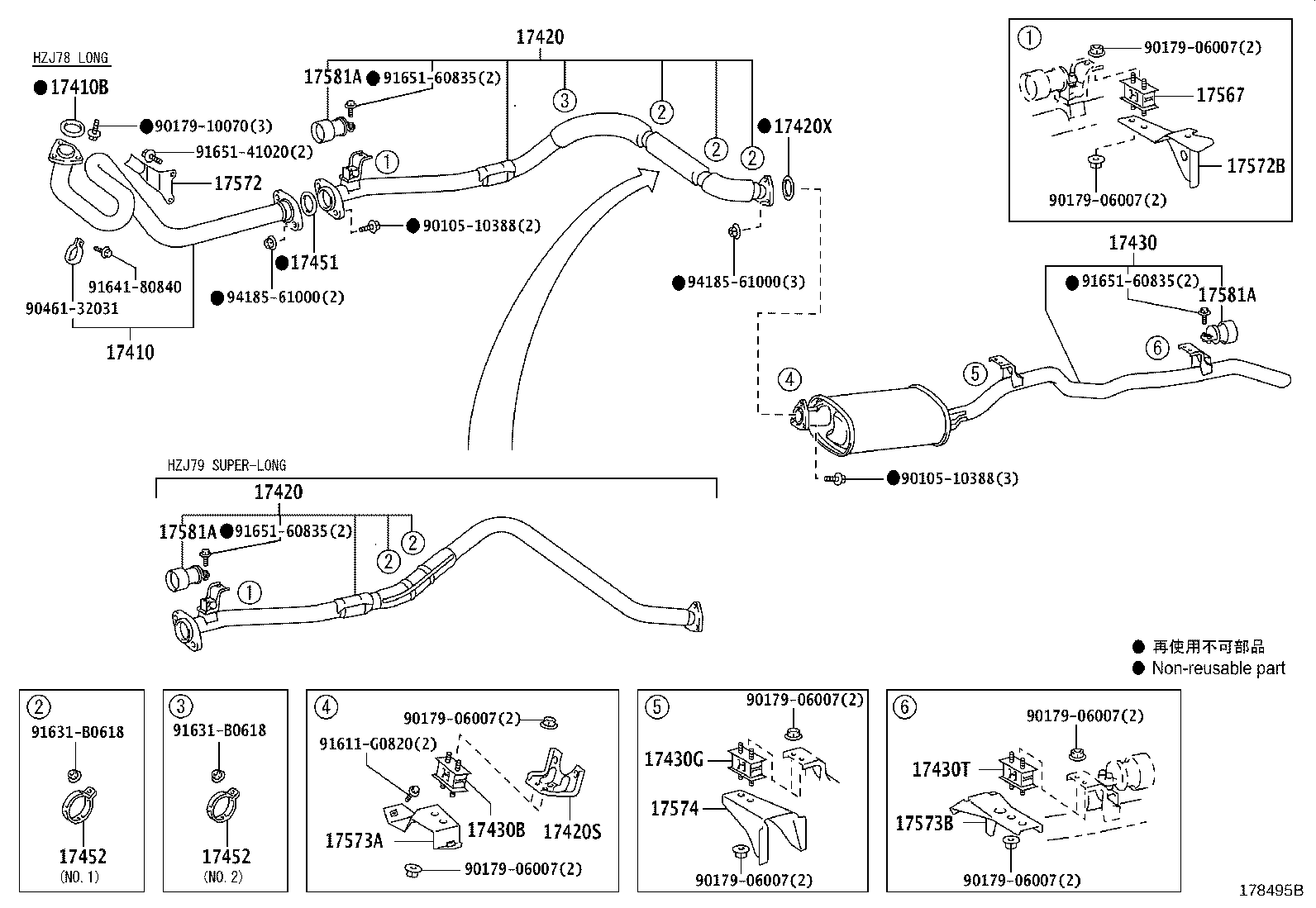

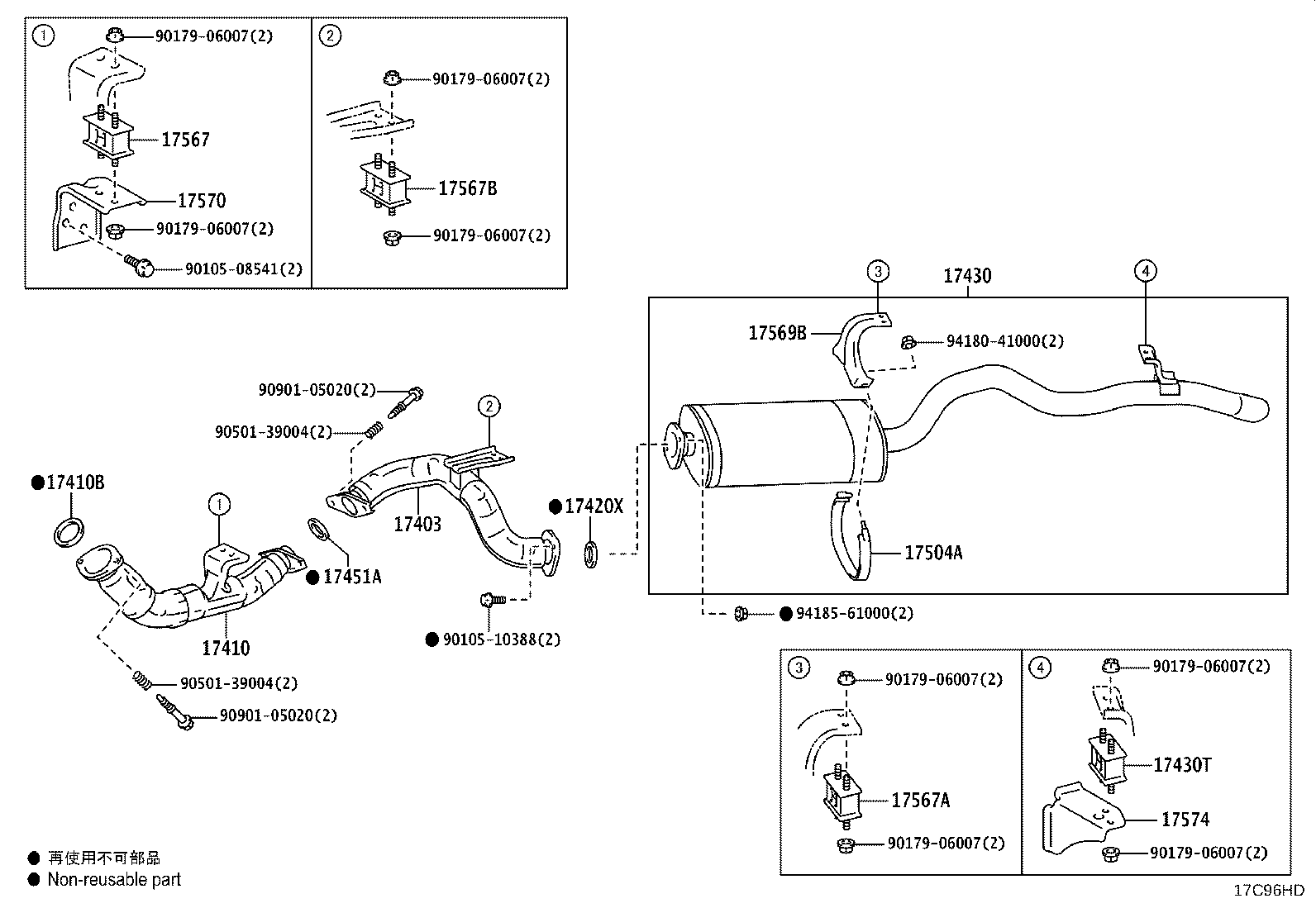

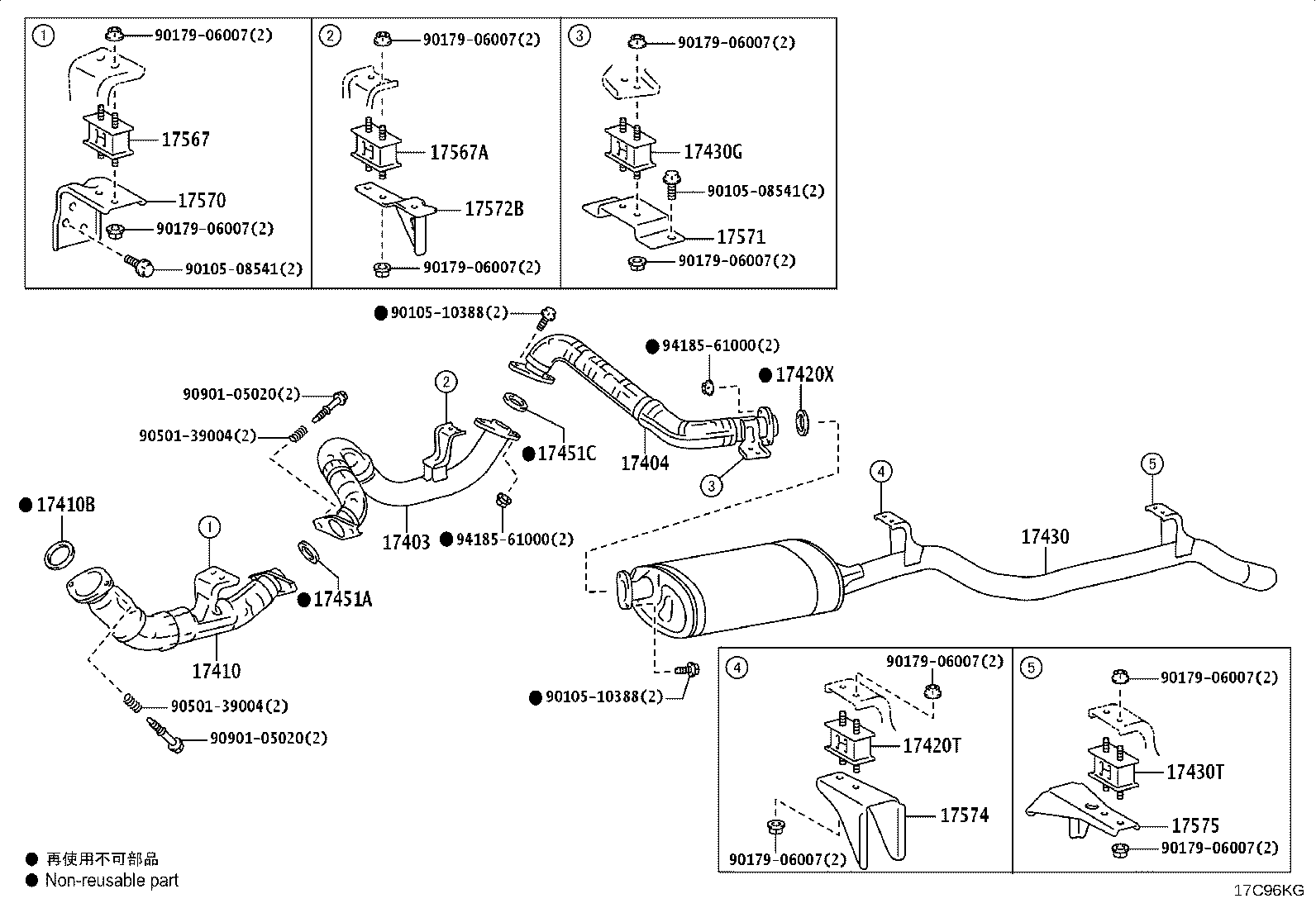

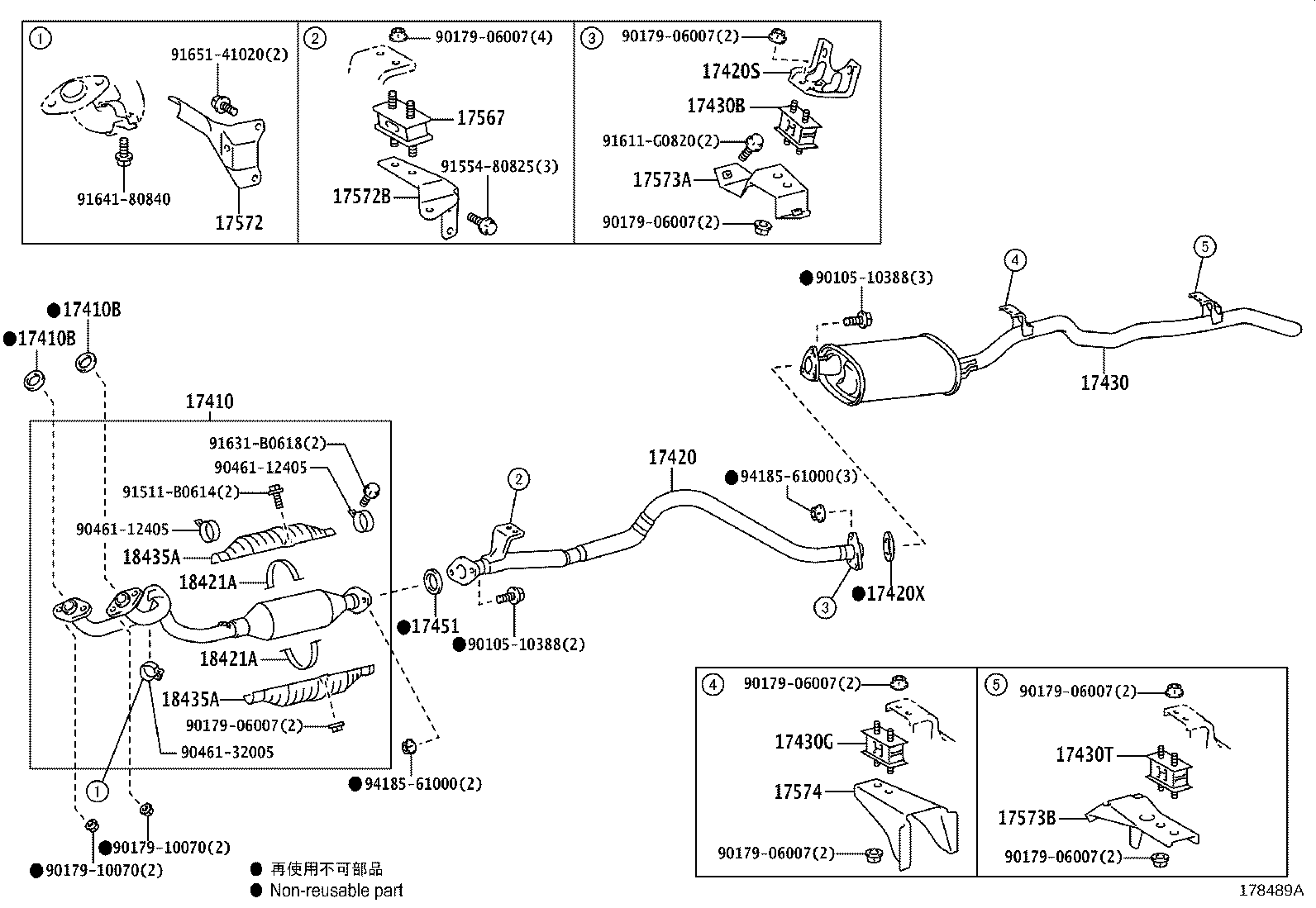

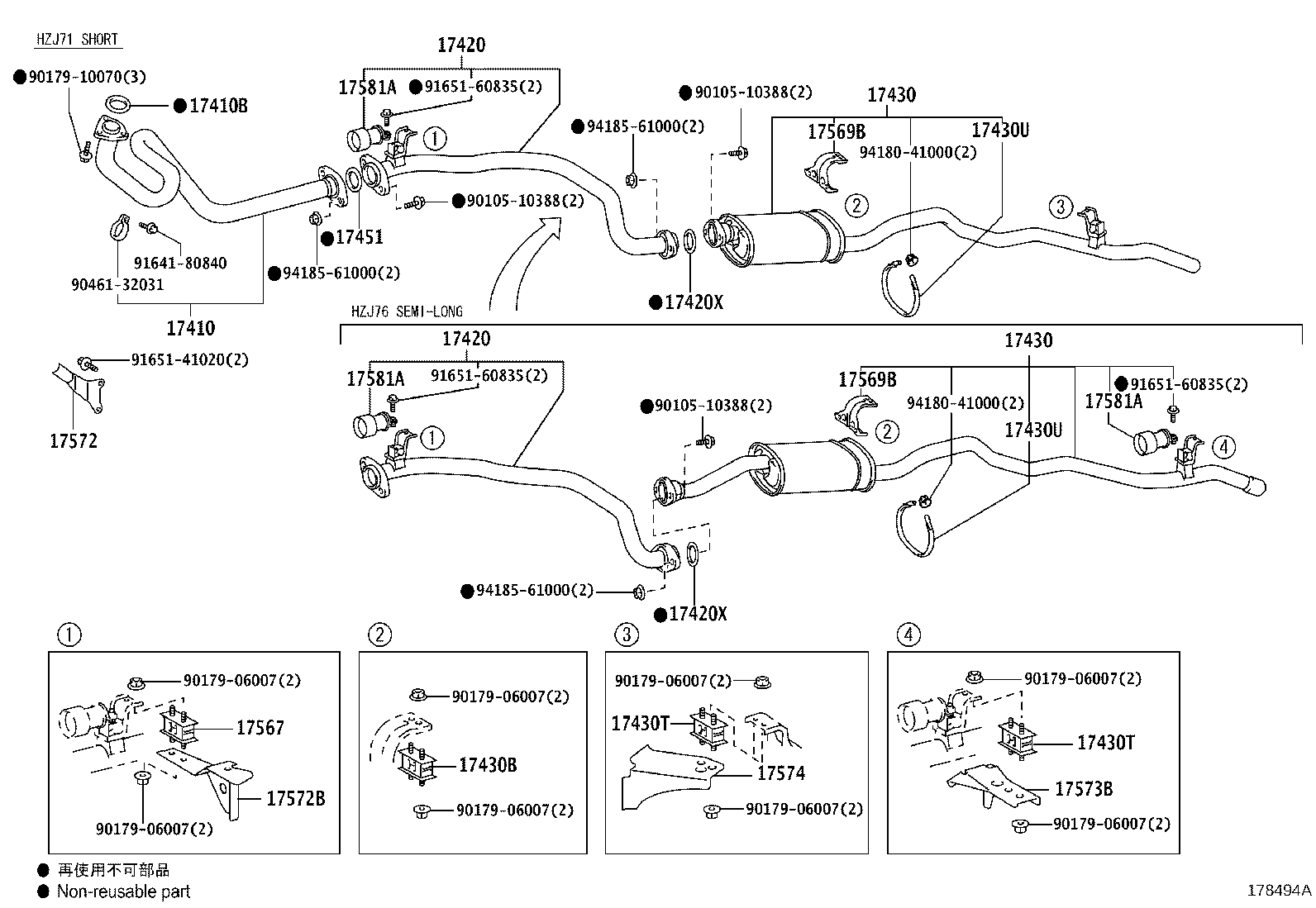

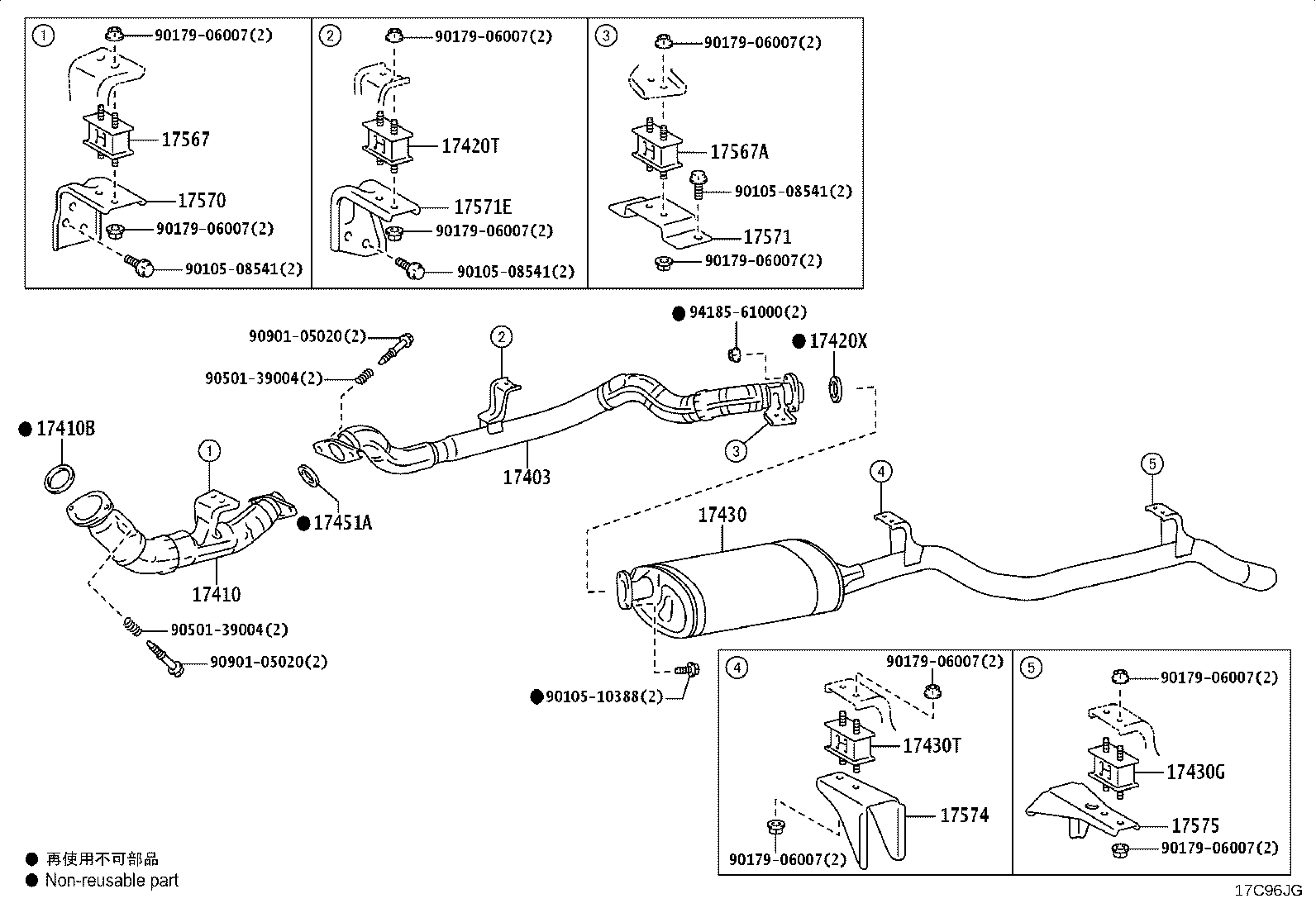

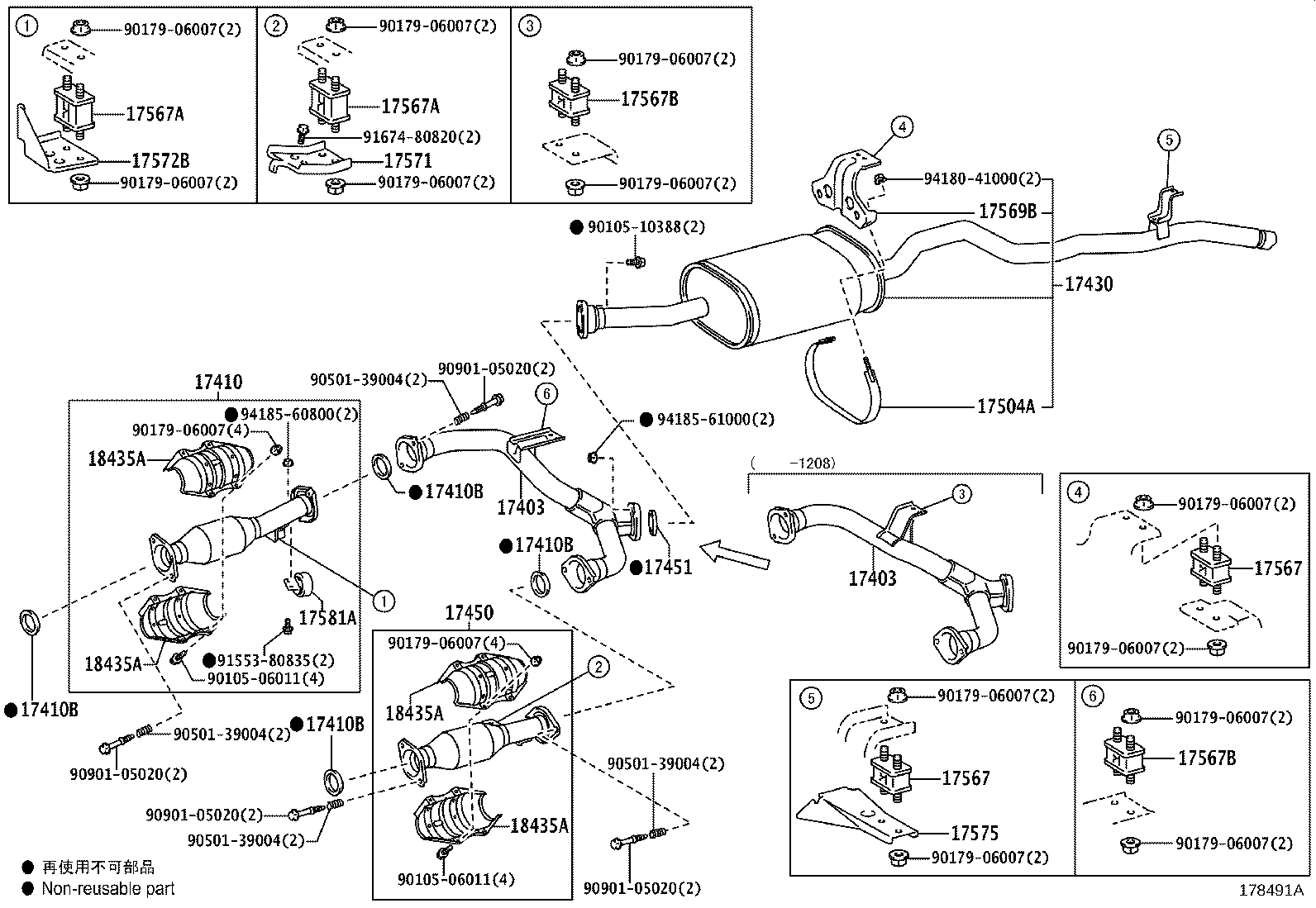

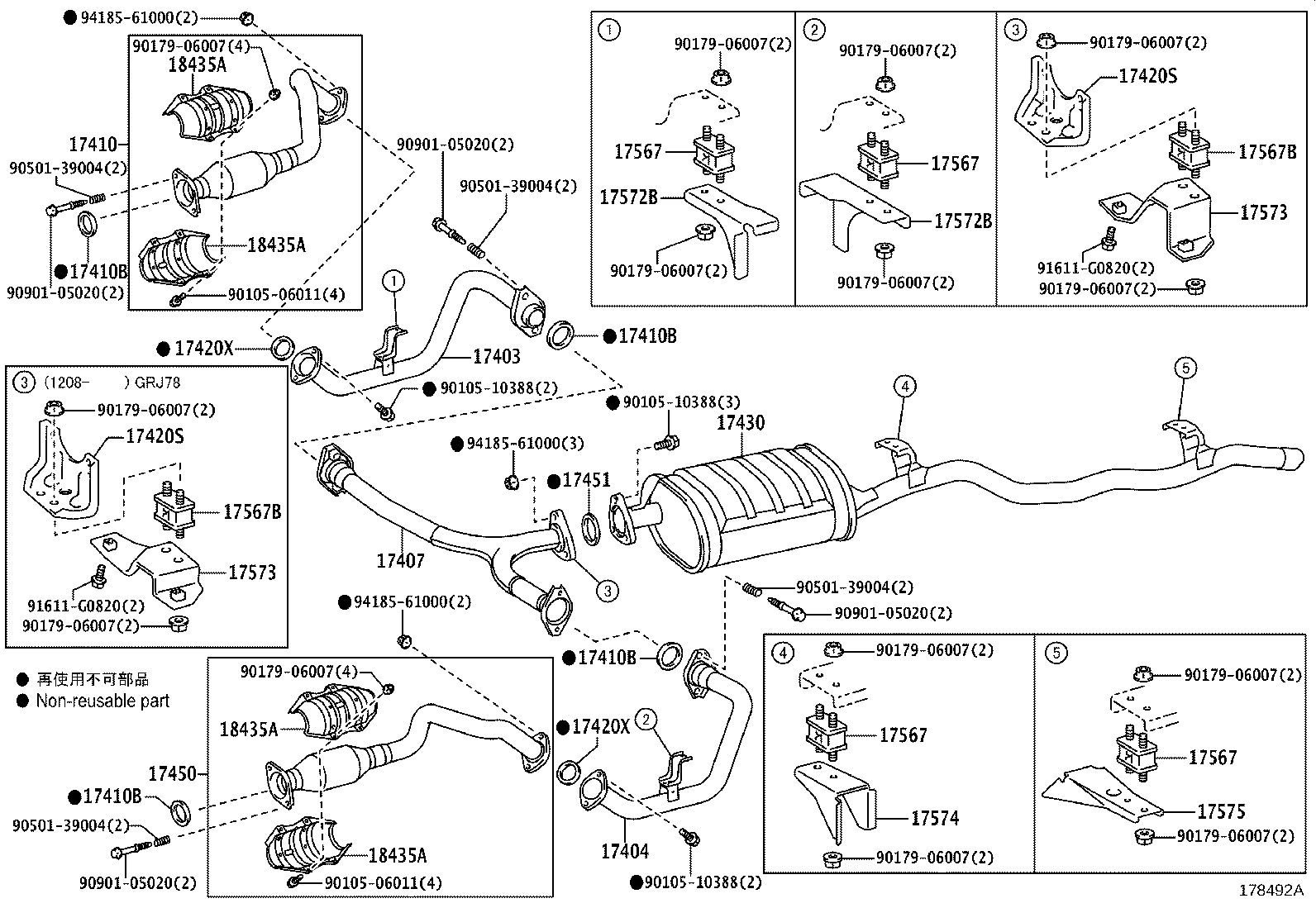

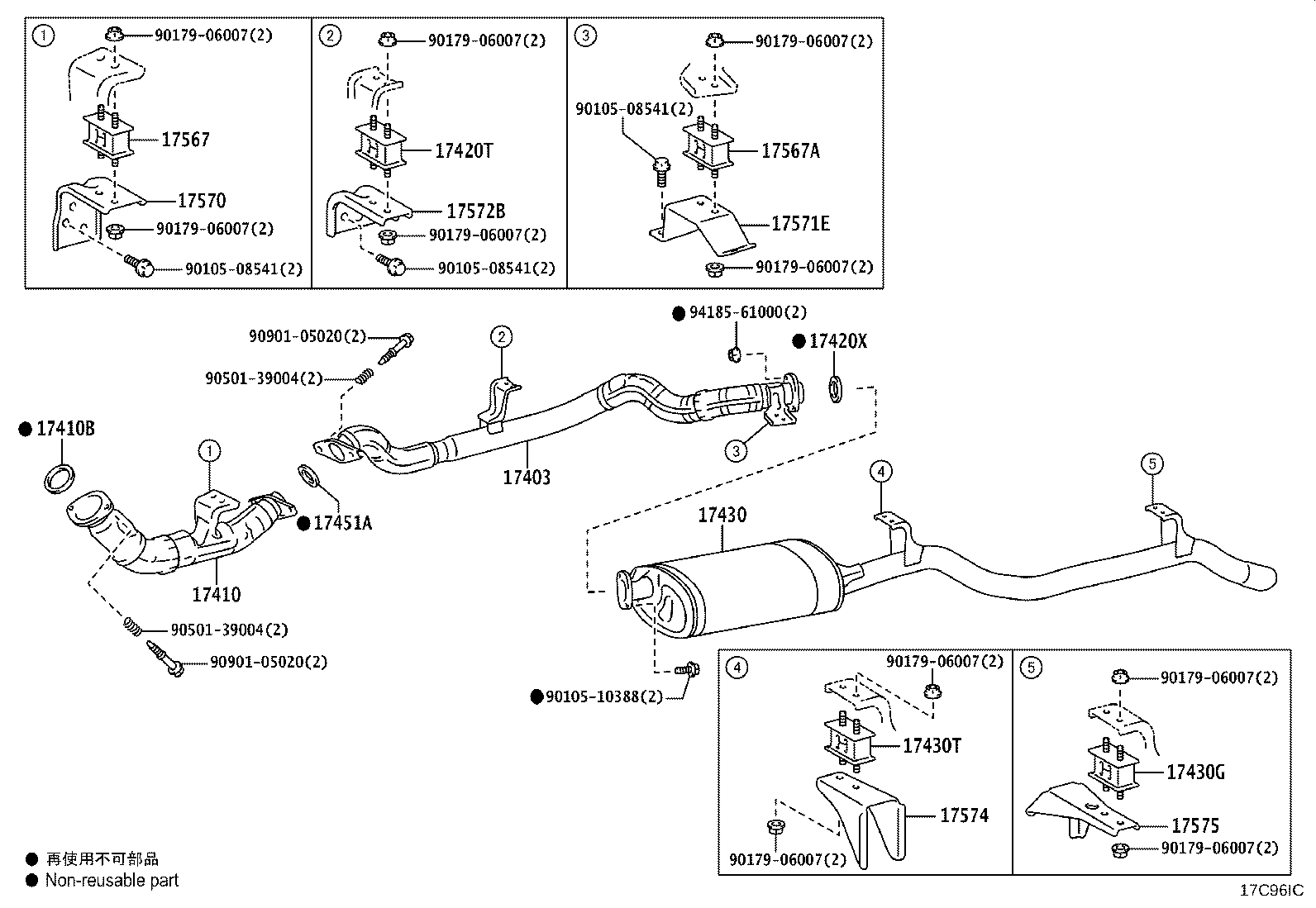

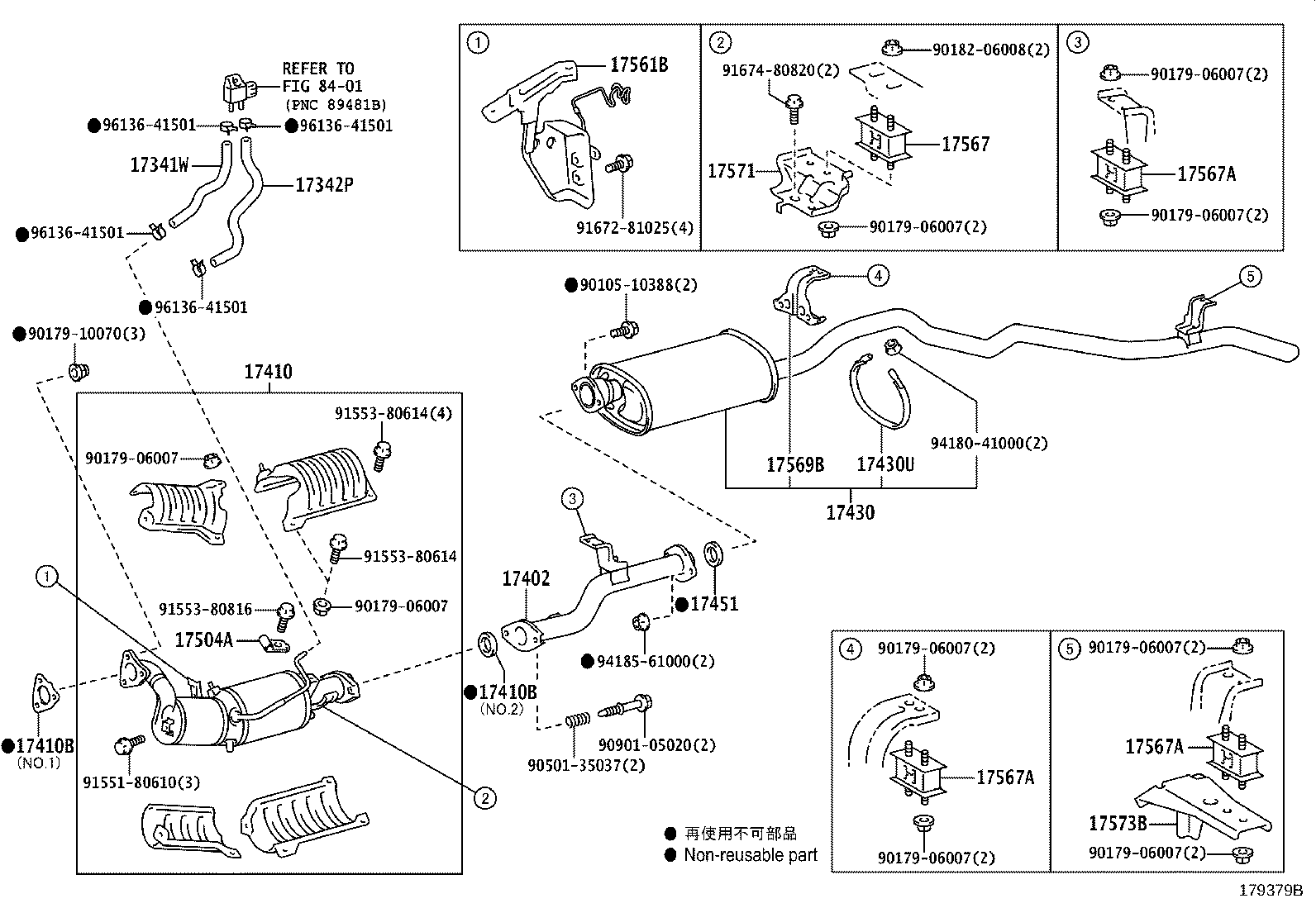

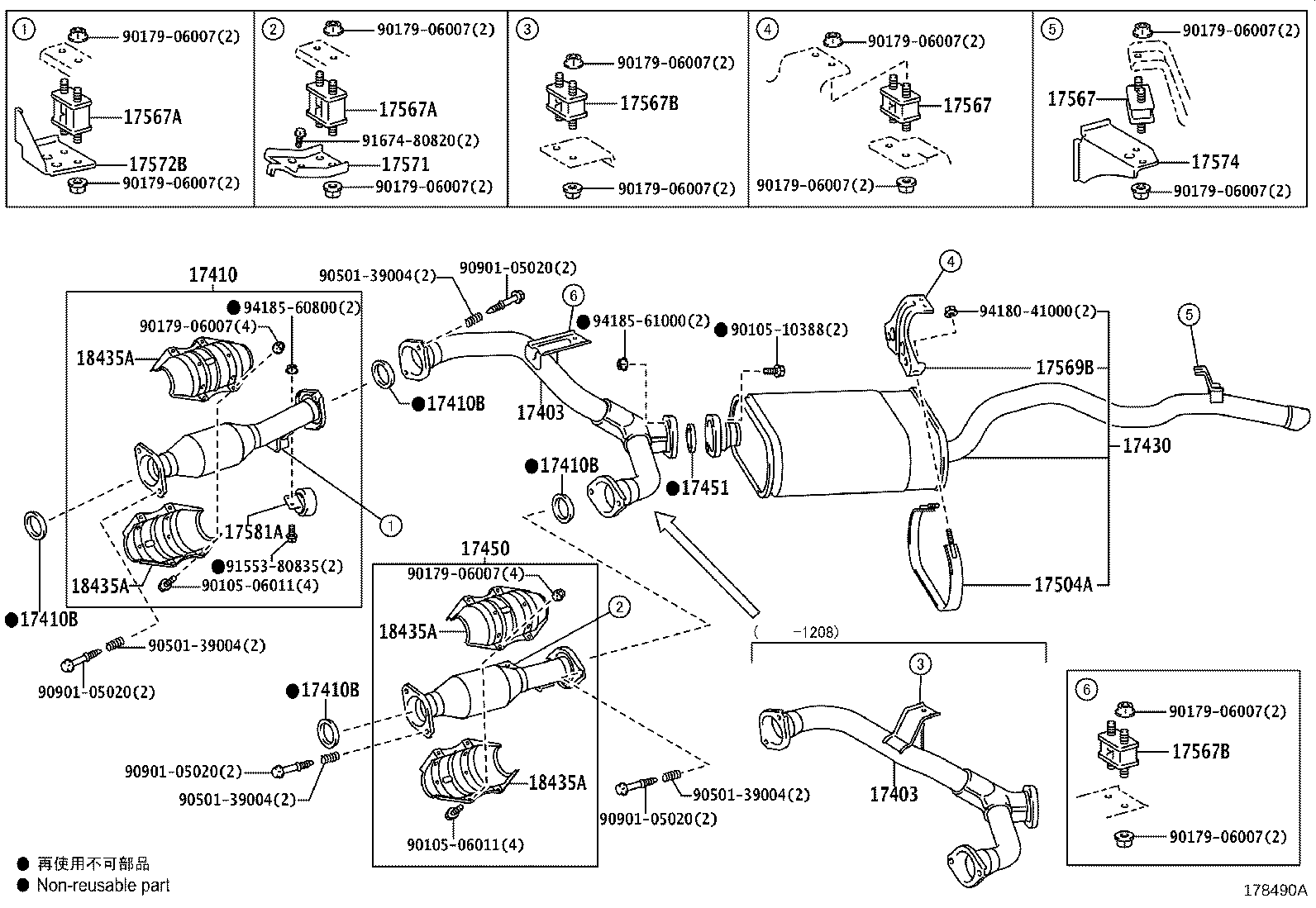

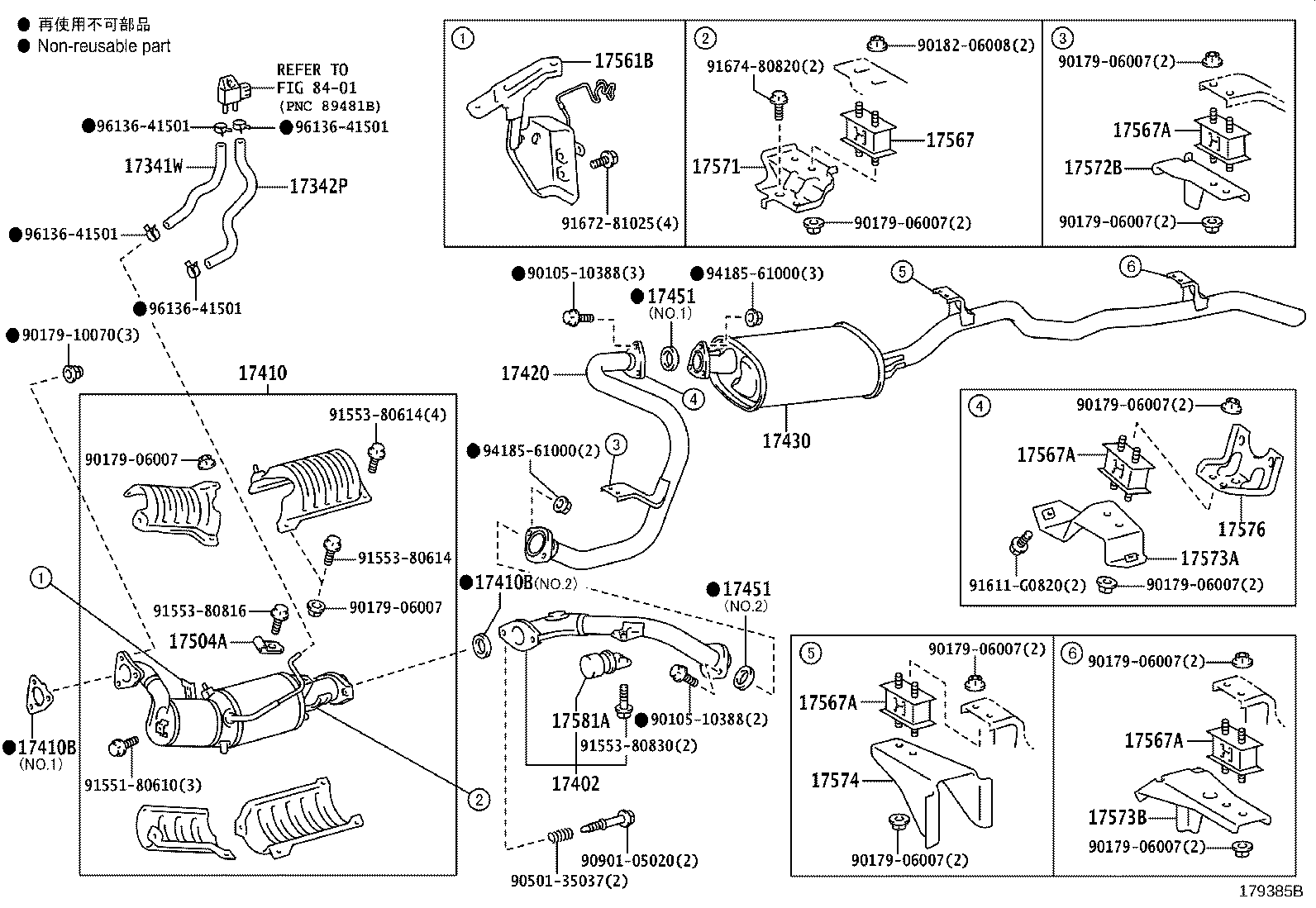

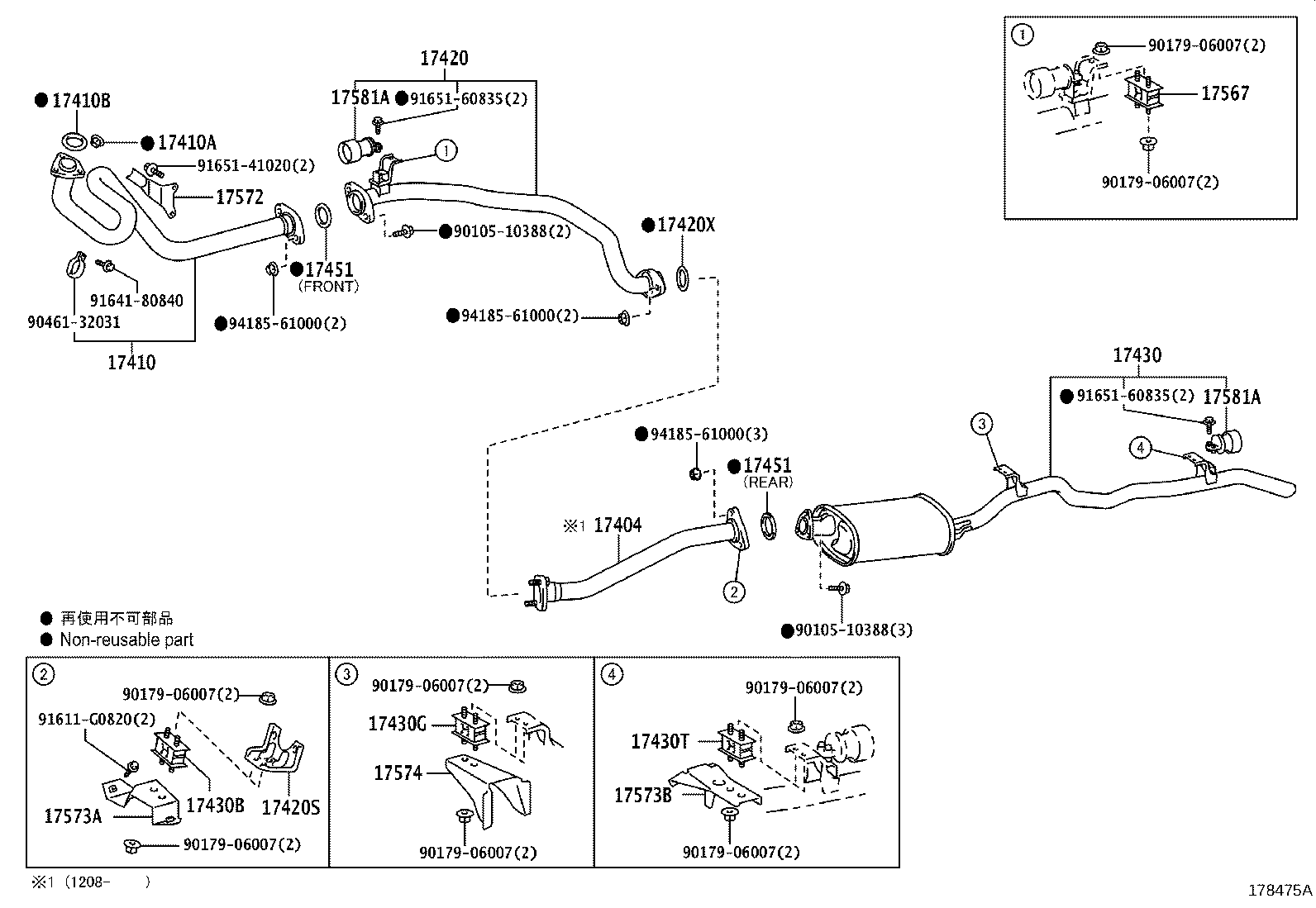

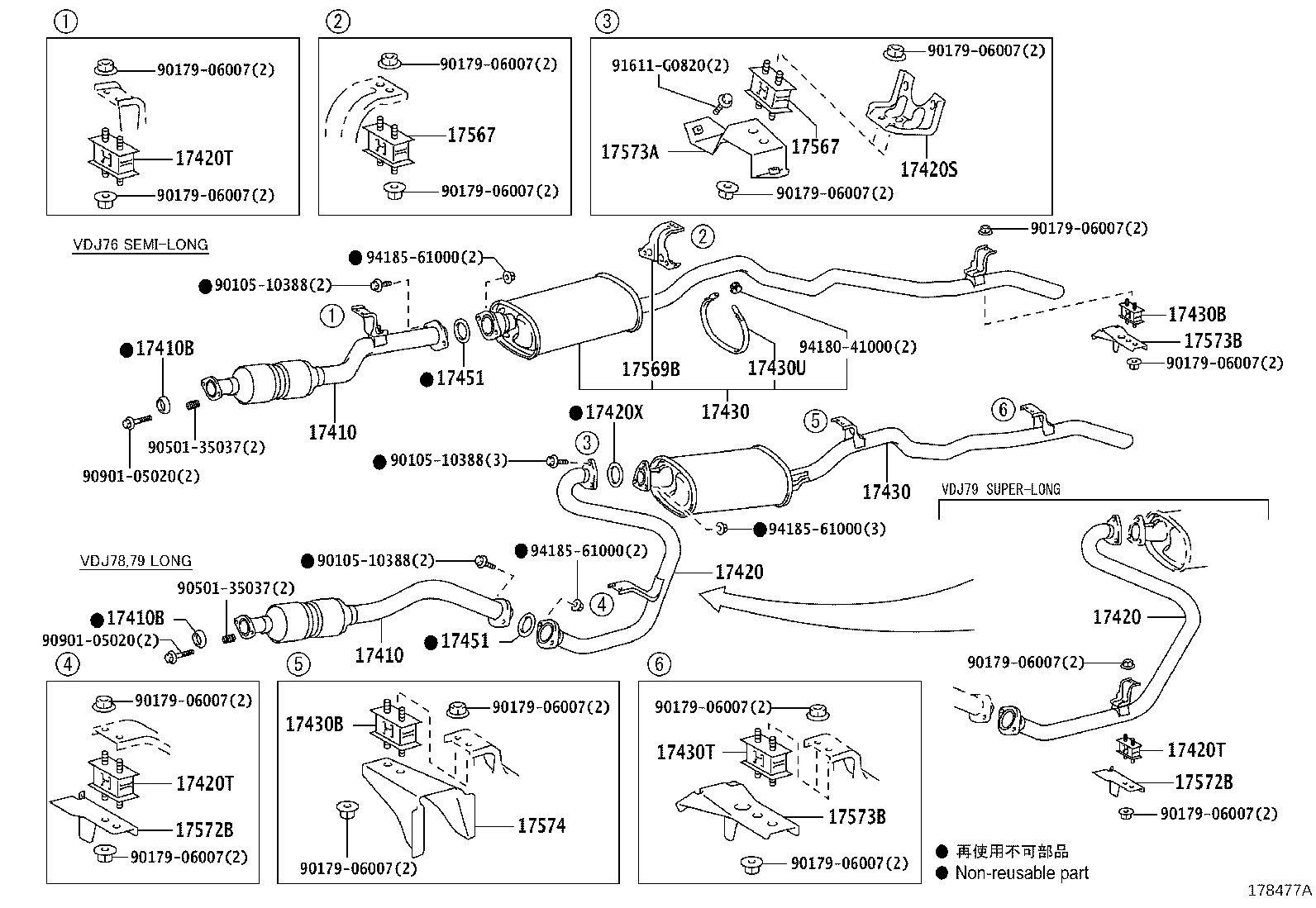

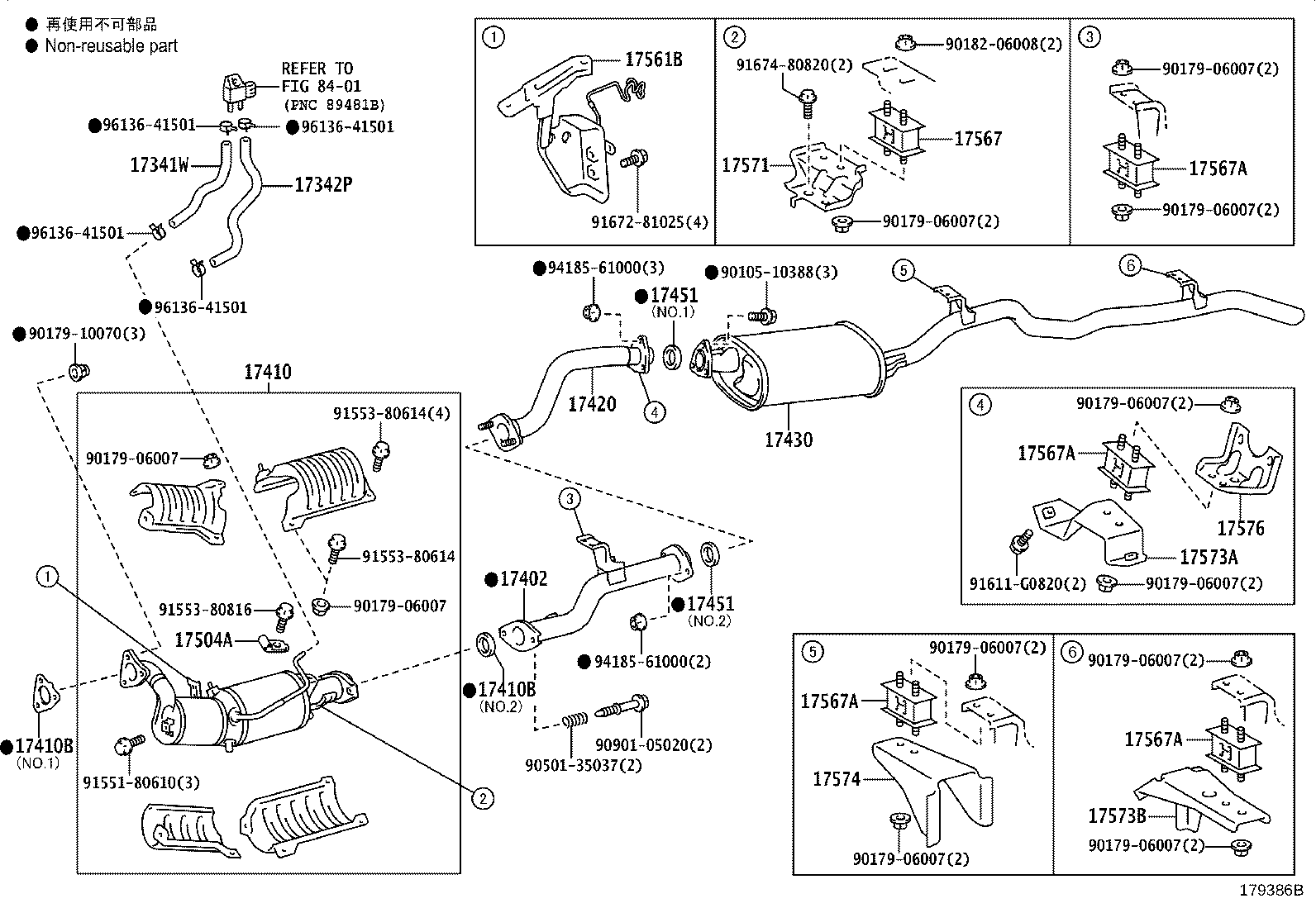

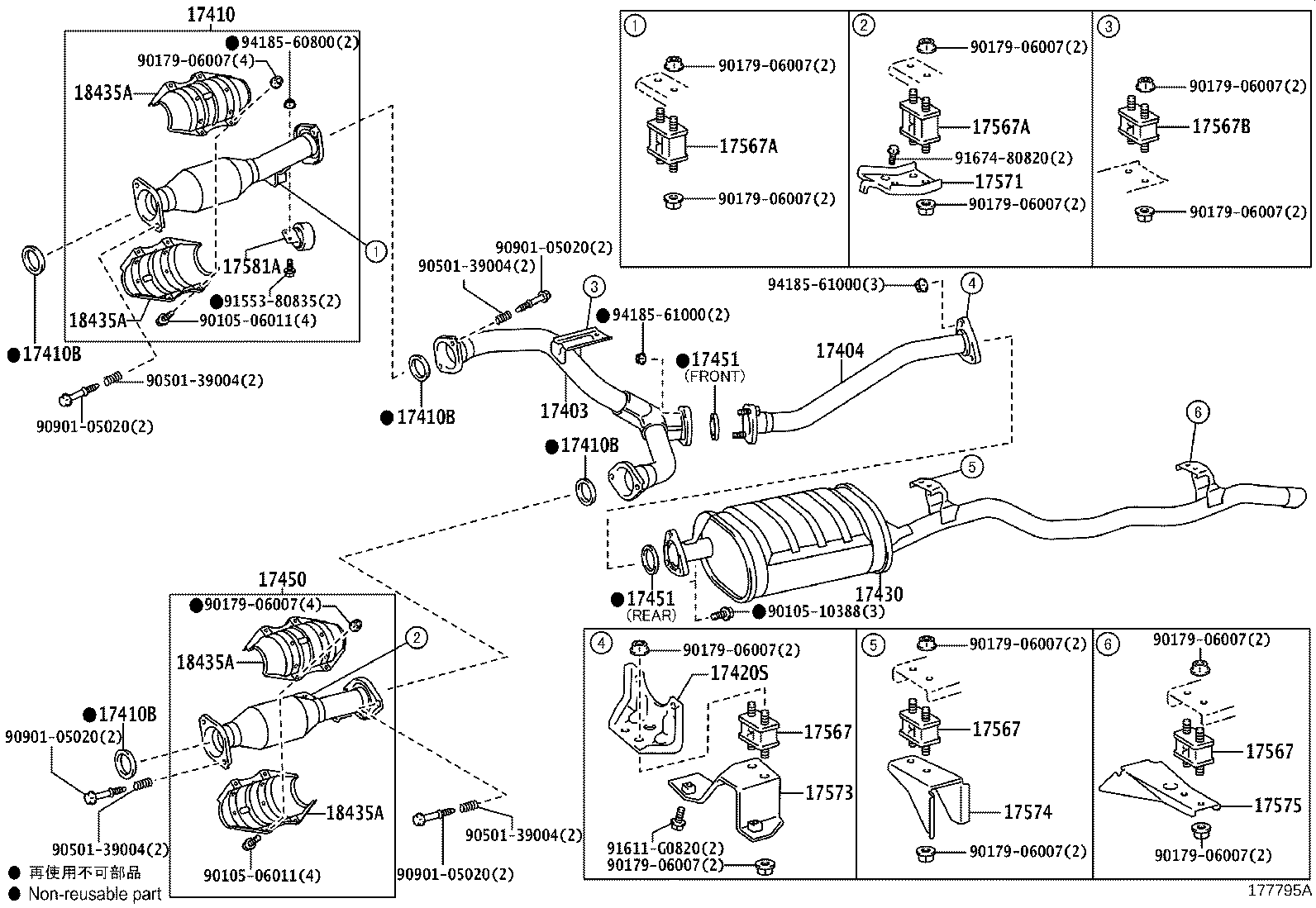

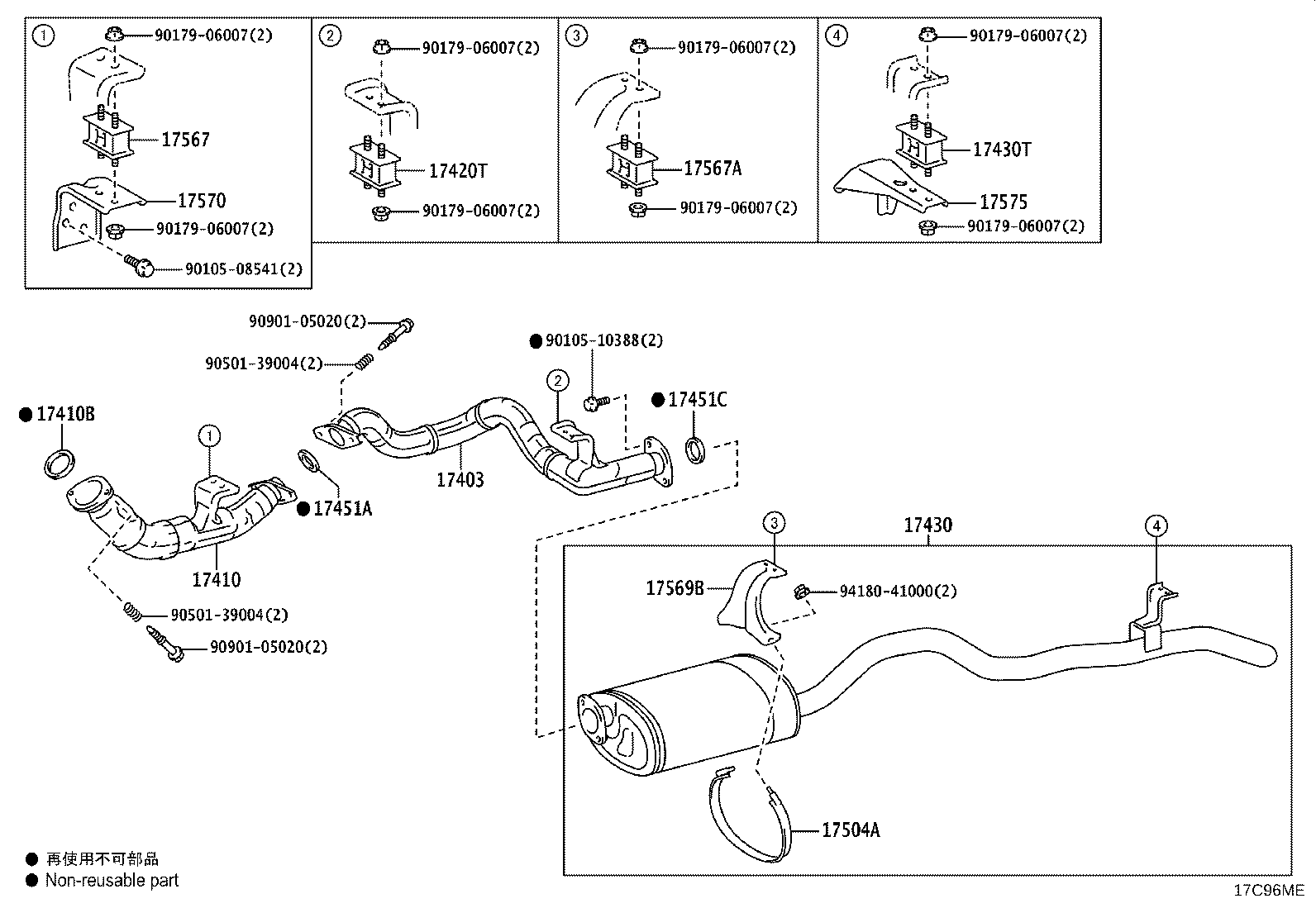

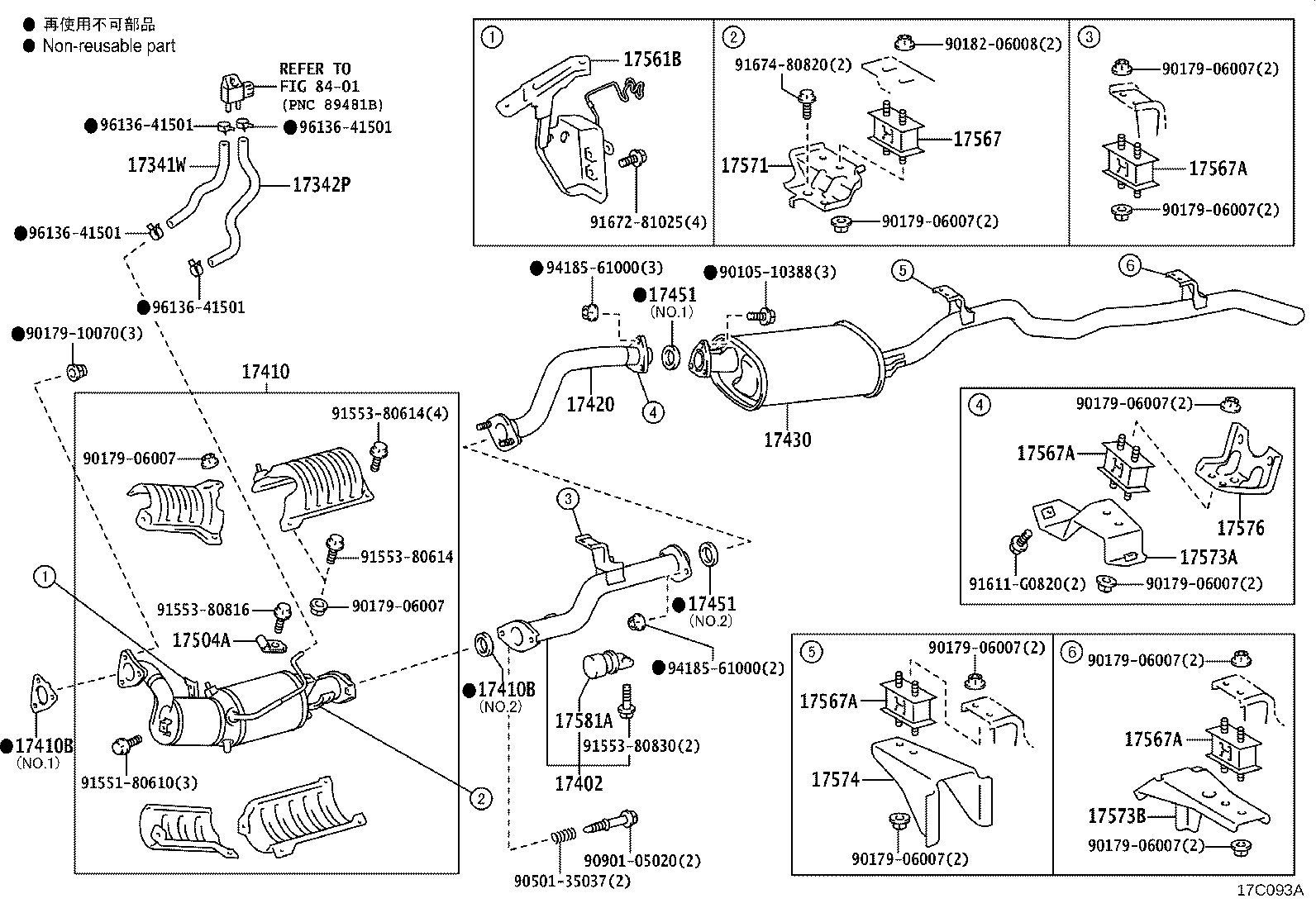

Figure 178486A 178486A 2007-01 → — Figure 178488A 178488A 2007-01 → — Figure 178489A 178489A 2007-12 → 2009-07 Figure 17C96HD 17C96HD 2023-09 → — Figure 17C96ME 17C96ME 2023-09 → — Figure 17C96IC 17C96IC 2023-09 → — Figure 17C96JG 17C96JG 2023-09 → — Figure 17C96KG 17C96KG 2023-09 → — Figure 178490A 178490A 2009-07 → — Figure 178491A 178491A 2009-07 → — Figure 178491A 178491A 2023-09 → — Figure 178492A 178492A 2009-07 → — Figure 177795A 177795A 2012-08 → — Figure 177795A 177795A 2023-09 → — Figure 178494A 178494A 2007-01 → — Figure 178494A 178494A 2023-09 → — Figure 178495B 178495B 2007-01 → — Figure 178495B 178495B 2023-09 → — Figure 178475A 178475A 2012-08 → — Figure 178475A 178475A 2023-09 → — Figure 178477A 178477A 2007-01 → 2016-08 Figure 178477A 178477A 2007-01 → — Figure 178477A 178477A 2013-04 → — Figure 178477A 178477A 2023-09 → — Figure 178474A 178474A 2012-08 → 2016-08 Figure 178474A 178474A 2012-08 → — Figure 178474A 178474A 2012-08 → — Figure 179379B 179379B 2016-08 → — Figure 179385B 179385B 2016-08 → — Figure 17C093A 17C093A 2022-09 → — Figure 179386B 179386B 2016-08 → — Figure 179386B 179386B 2023-09 → —

Part groups

PNCDescription
17341W Hose, Air, NO.1
17342P Hose, Air, NO.2
17402 Pipe Sub-assy, Exhaust, Front NO.2
17403 Pipe Sub-assy, Exhaust, Front NO.3
17404 Pipe Sub-assy, Exhaust Forked
17407 Pipe Sub-assy, Exhaust, Center NO.3
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420S Bracket, Exhaust Pipe Center, Rear
17420T Cushion, Exhaust Pipe Center, Rear
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430U Clamp NO.1, Exhaust Tailpipe (FOR REAR)
17450 Pipe Assy, Exhaust, NO.5
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17451C Gasket, Exhaust Pipe, NO.3
17452 Clamp, Exhaust Pipe
17504A Clamp Sub-assy, Exhaust Pipe
17561B Support, Exhaust Pipe, NO.1
17567 Cushion, Exhaust Pipe Support
17567A Cushion, Exhaust Pipe Support, NO.2
17567B Cushion, Exhaust Pipe Support, NO.3
17569B Stay, Exhaust Pipe Support, NO.2
17570 Bracket Assy, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17571E Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17573A Bracket, Exhaust Pipe Support, NO.3
17573B Bracket, Exhaust Pipe Support, NO.5
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17576 Bracket, Muffler Clamp
17581A Damper, Exhaust Pipe
18421A Stay, Converter Protector, LH
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
