Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

64 part groups · 17 illustrations

Illustrations

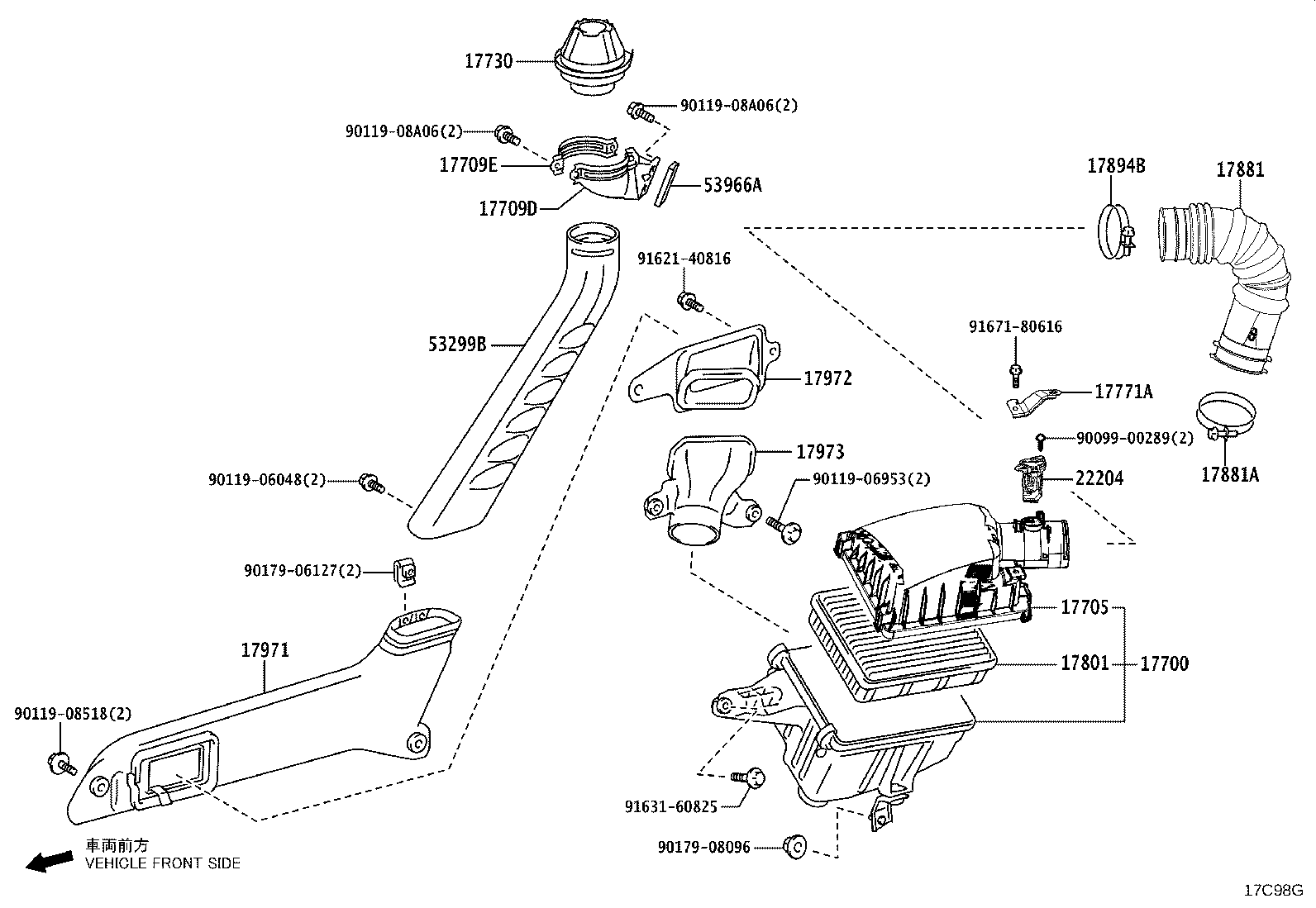

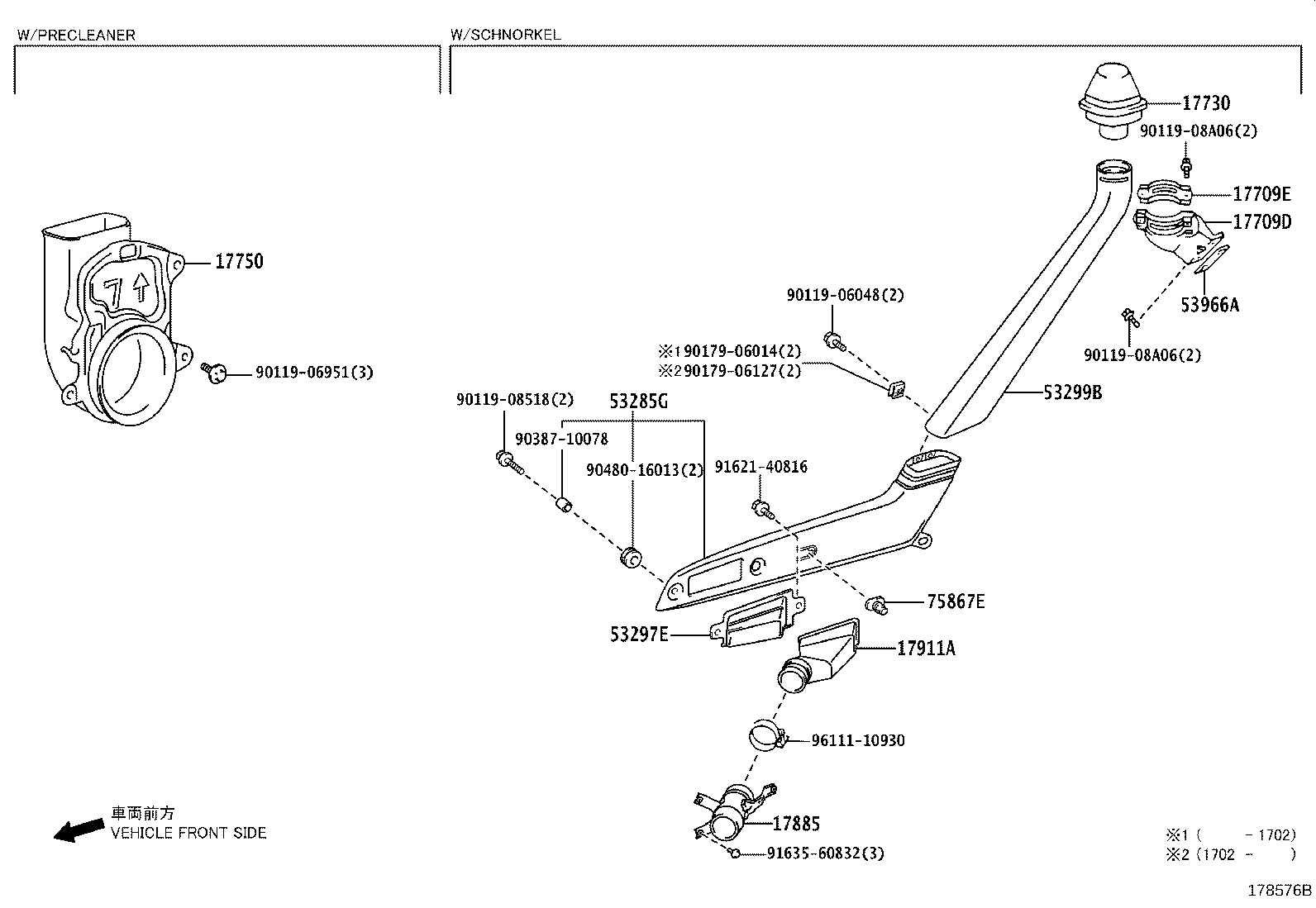

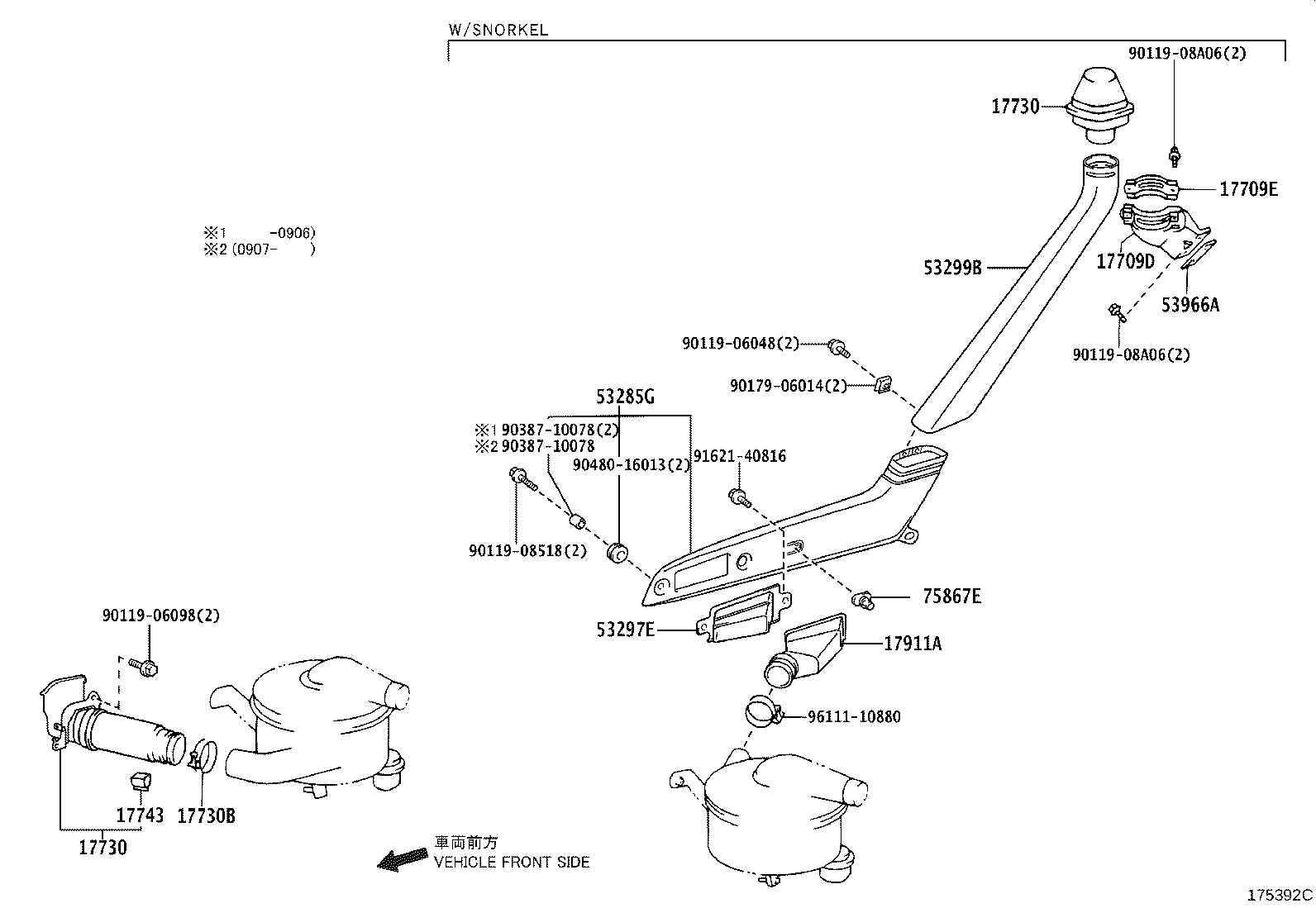

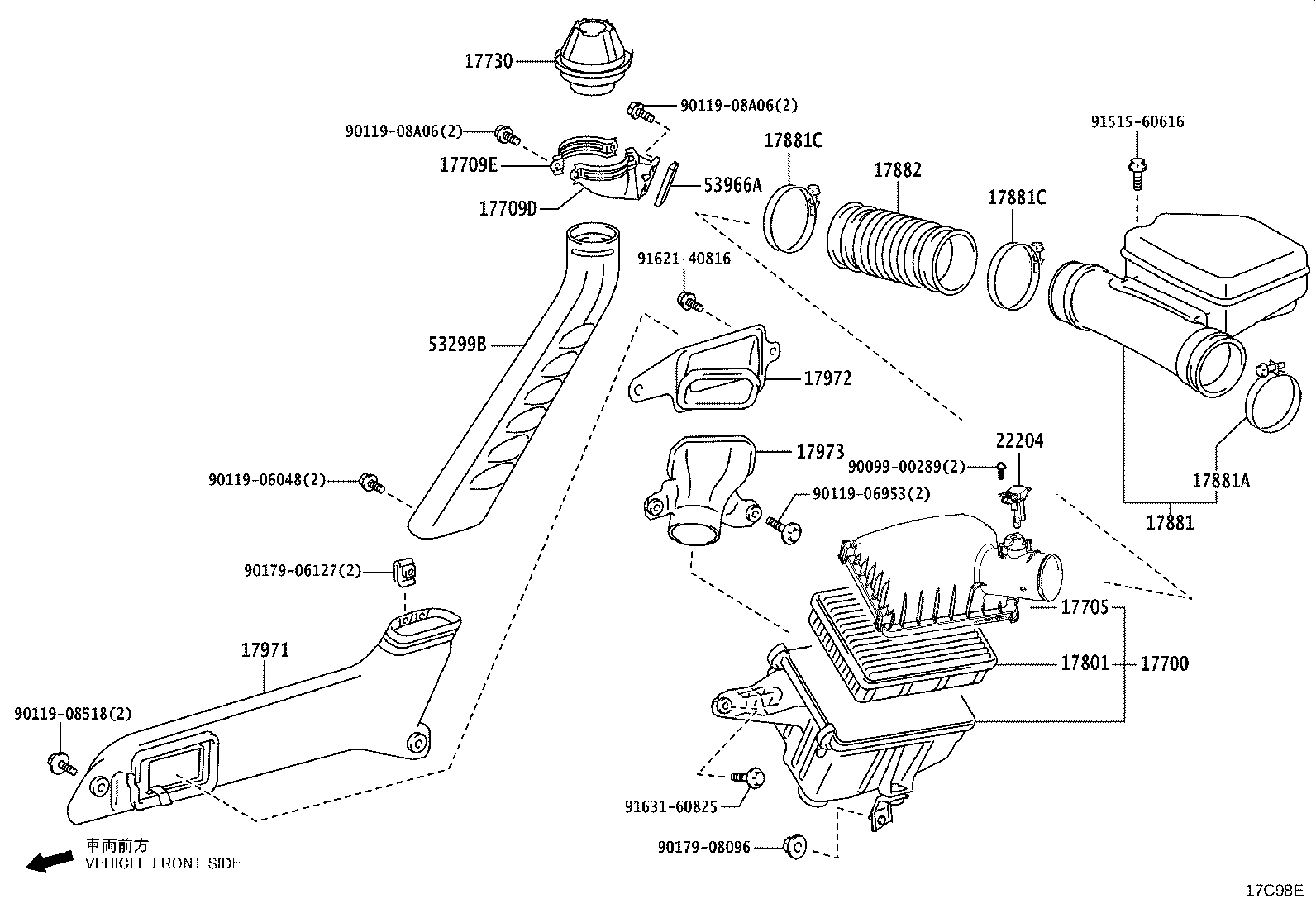

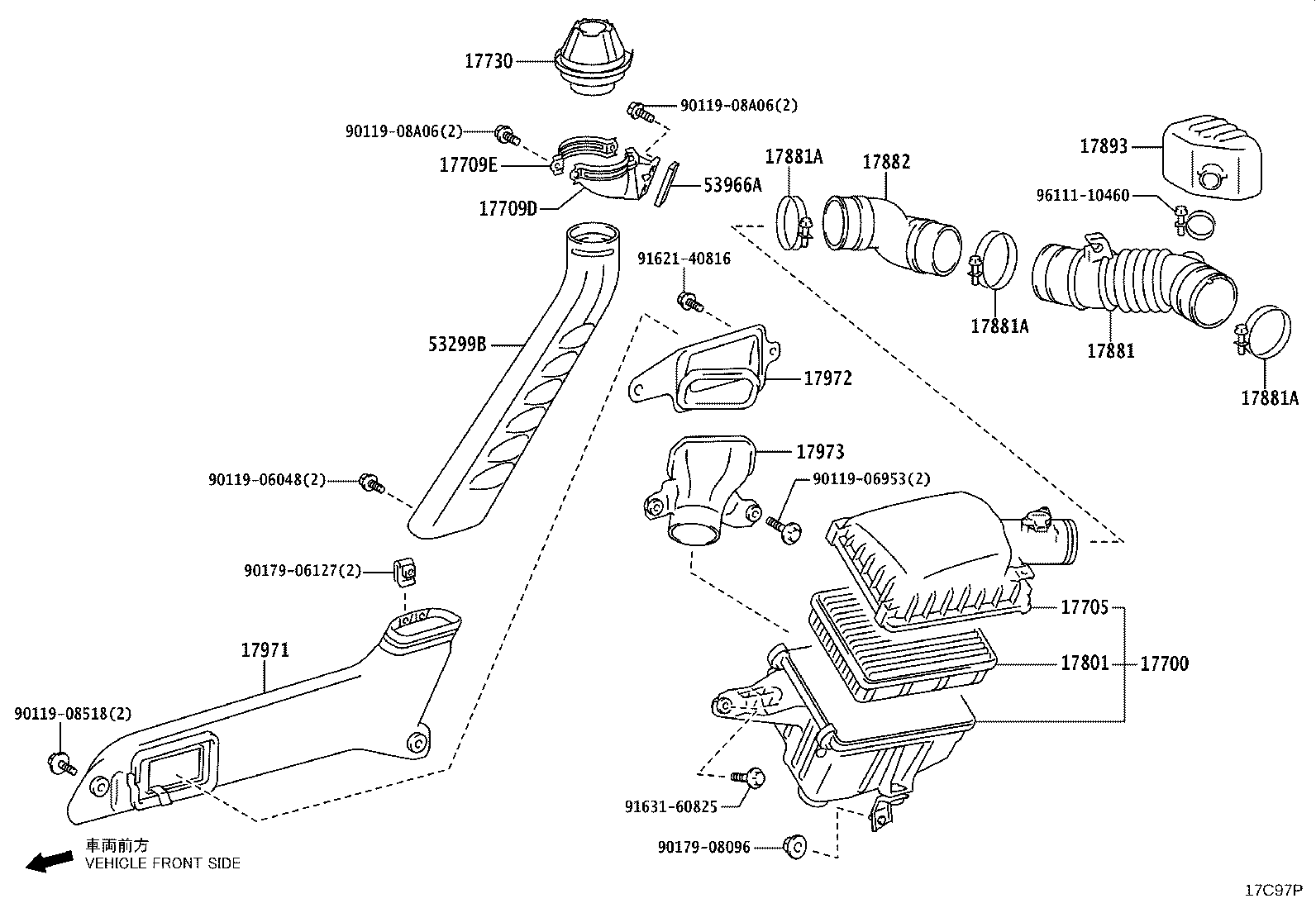

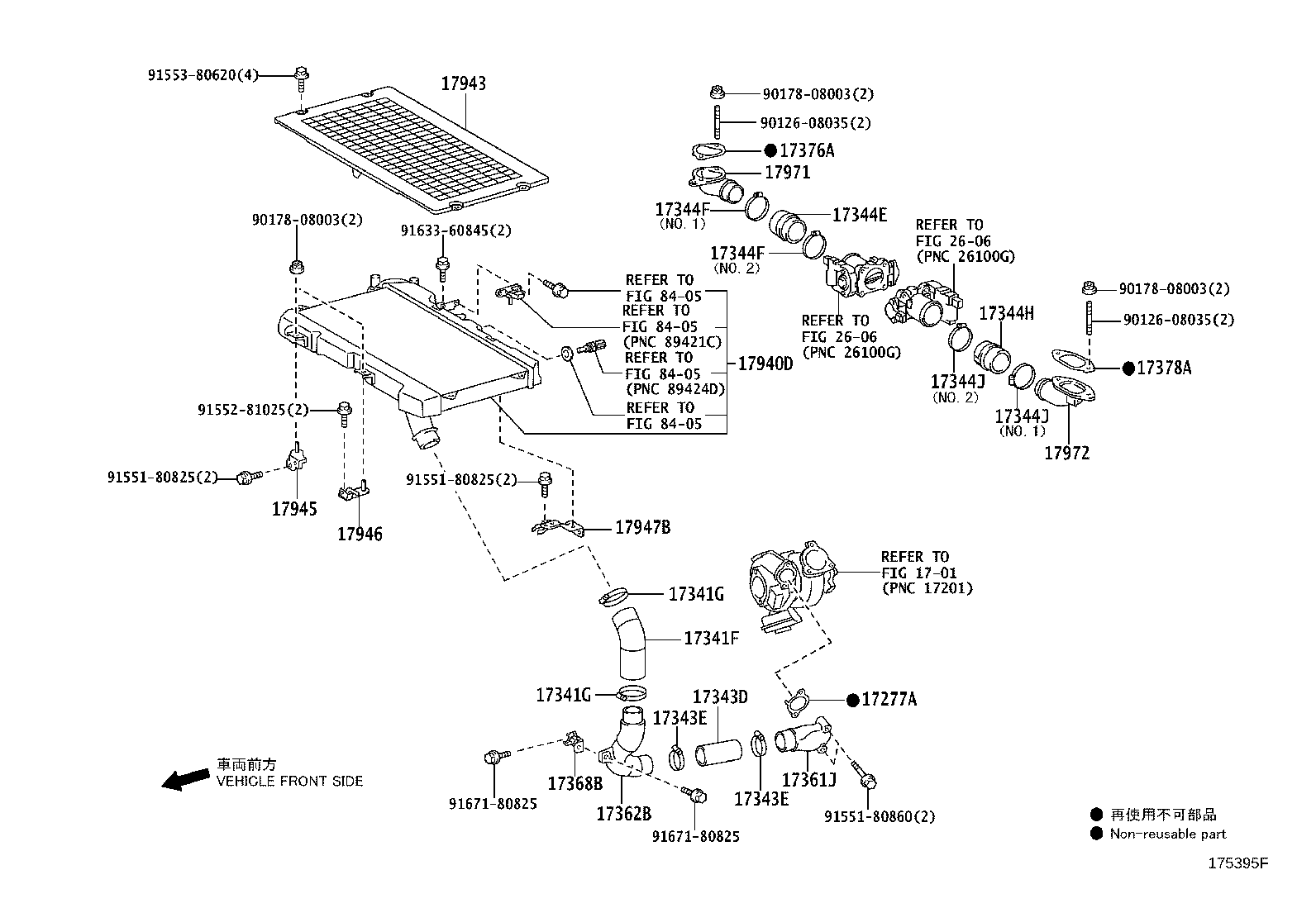

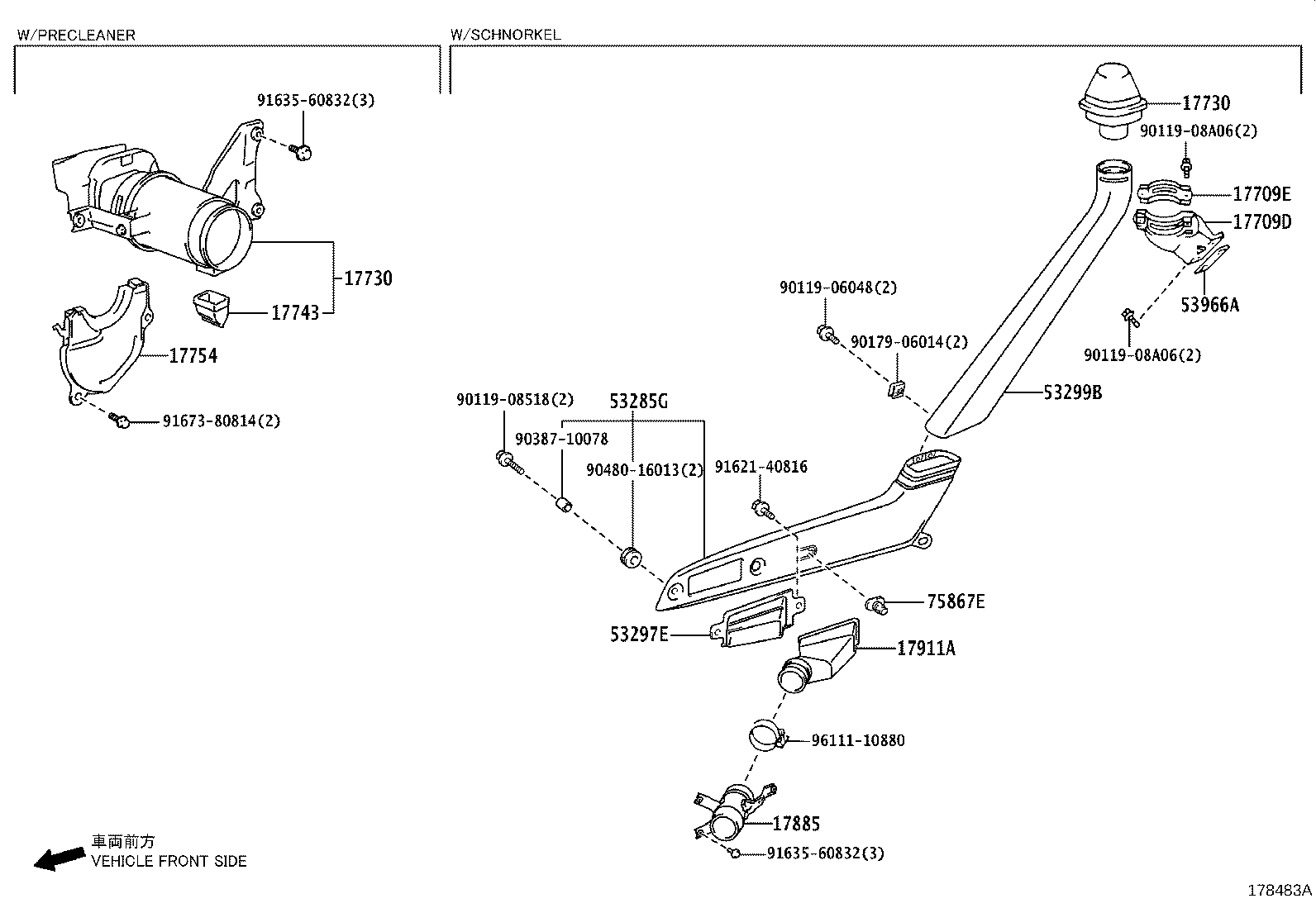

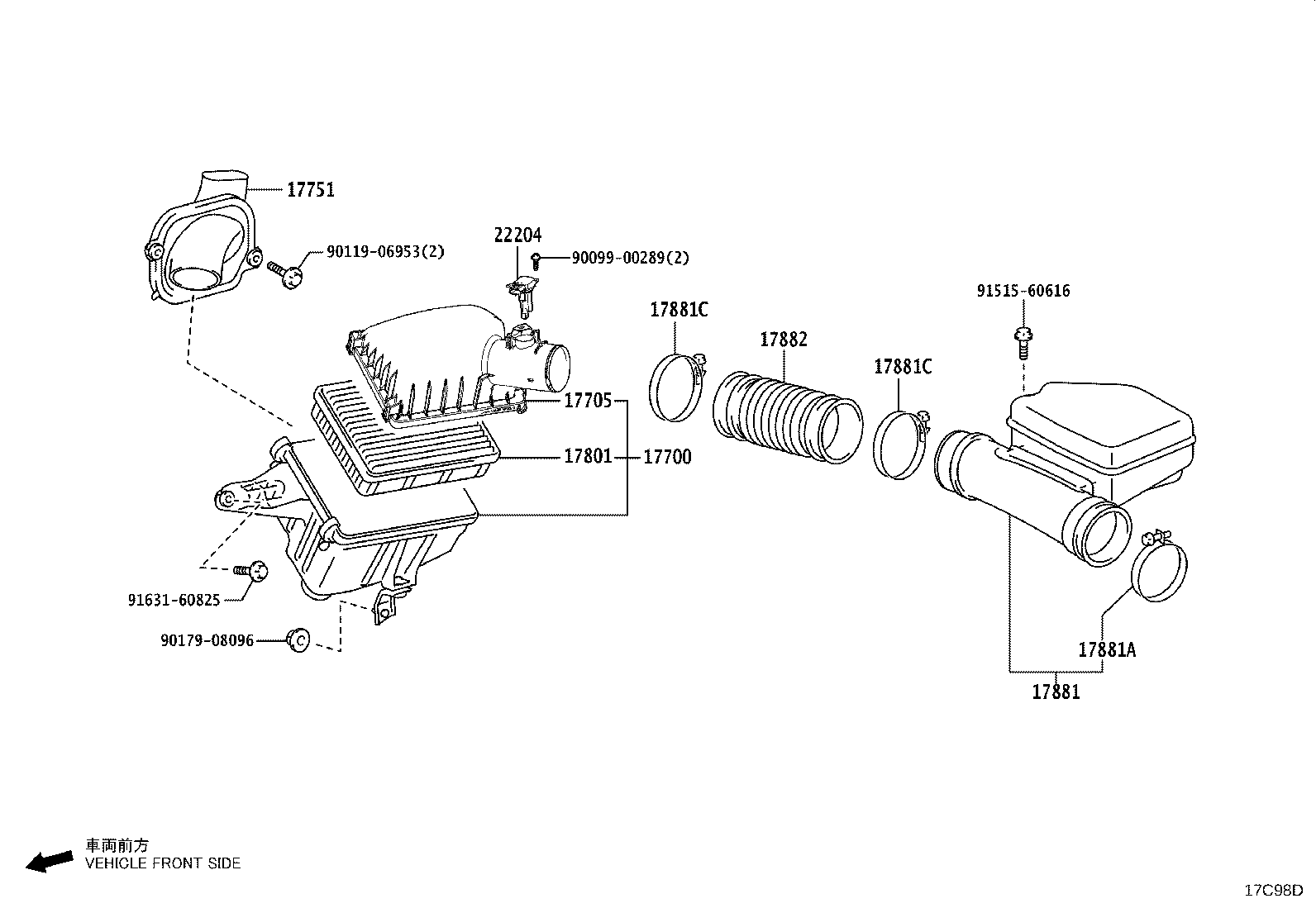

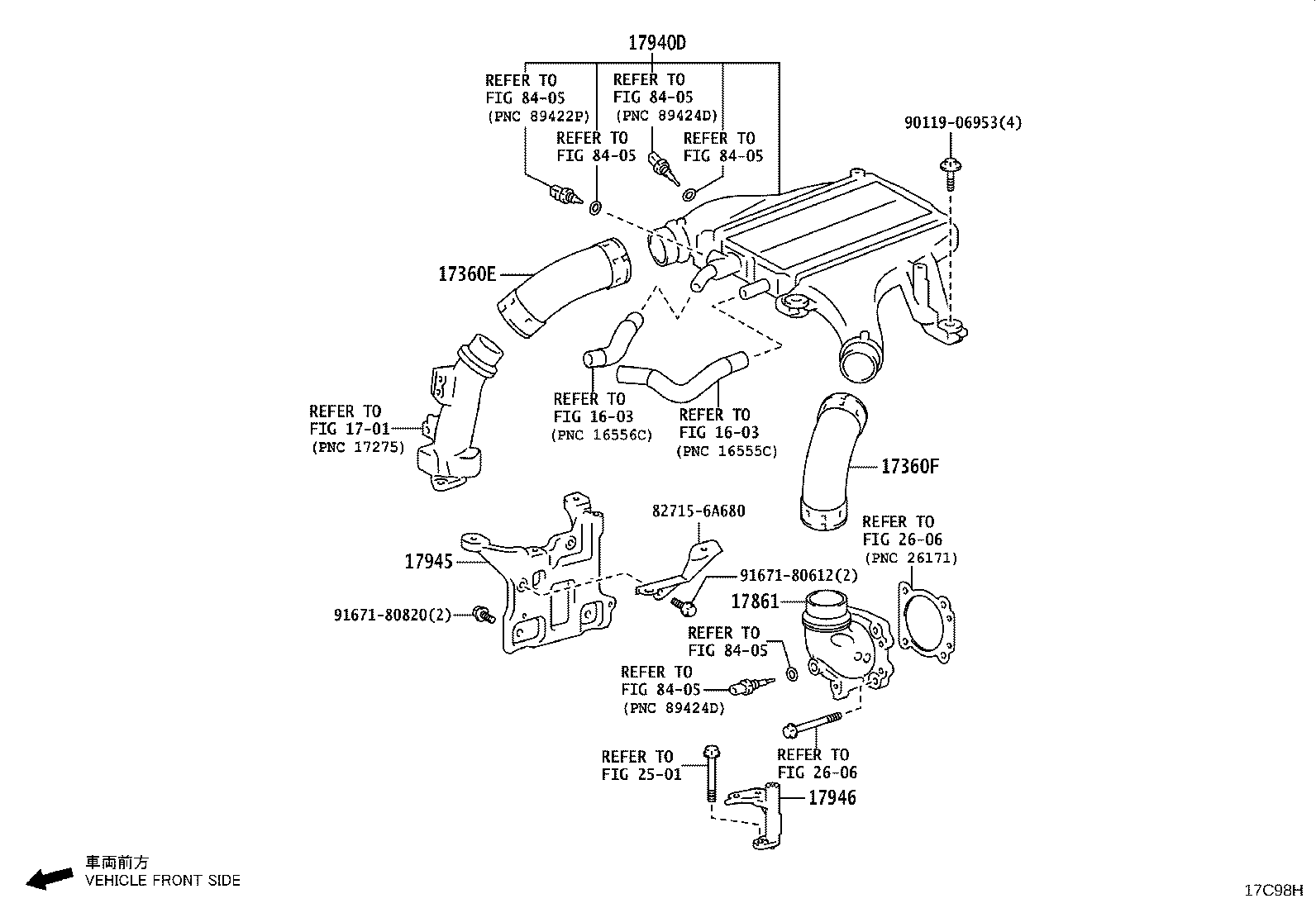

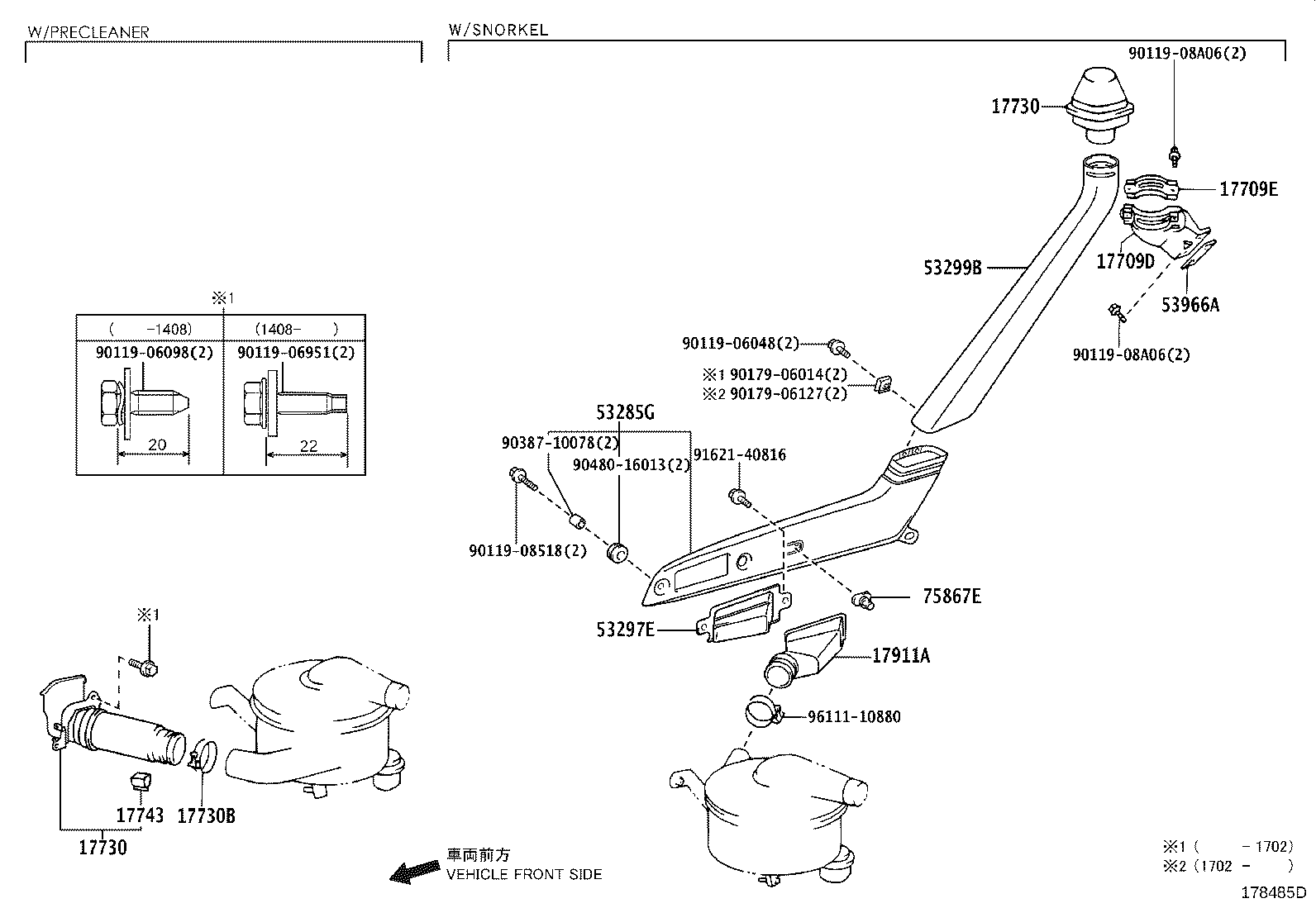

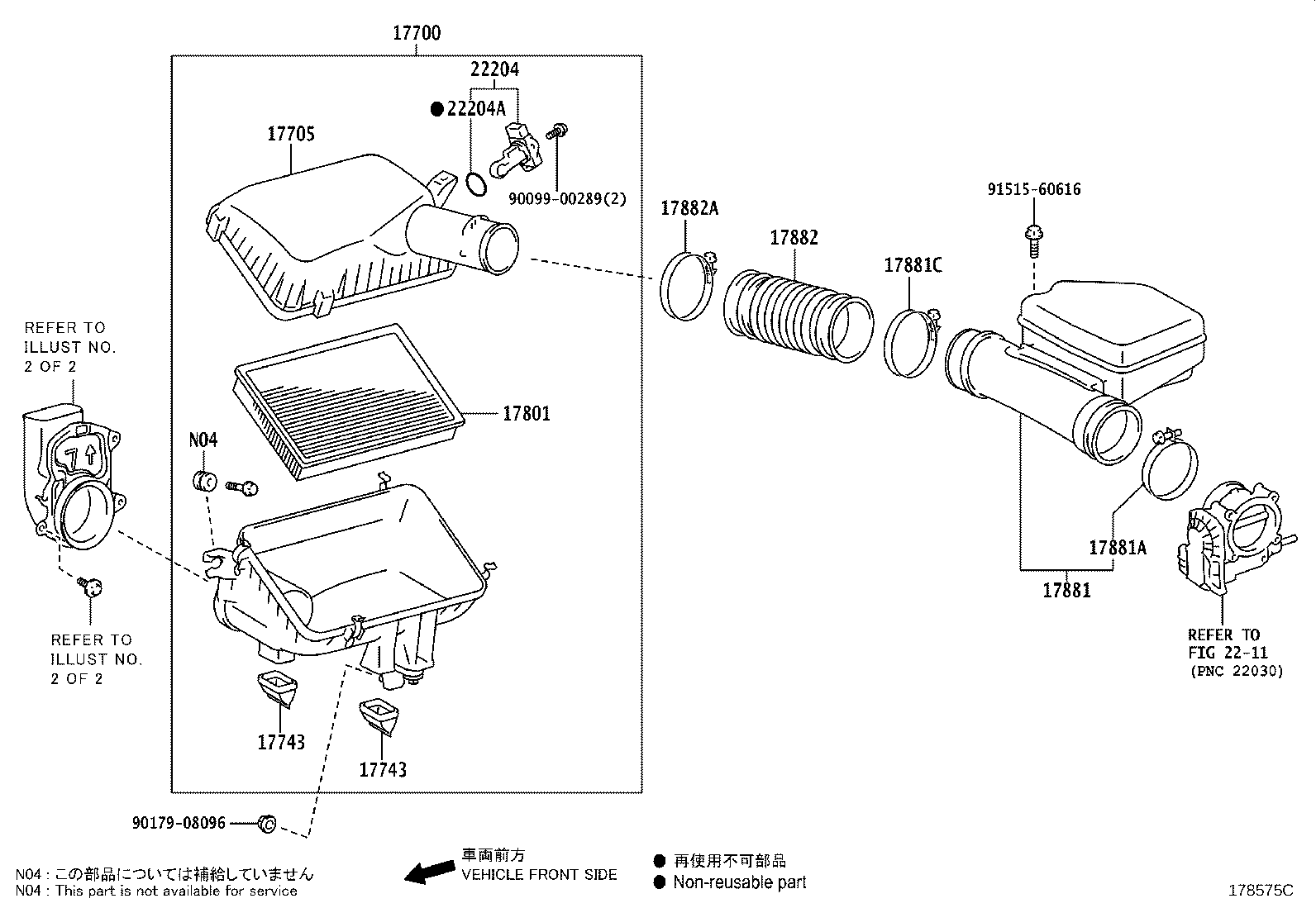

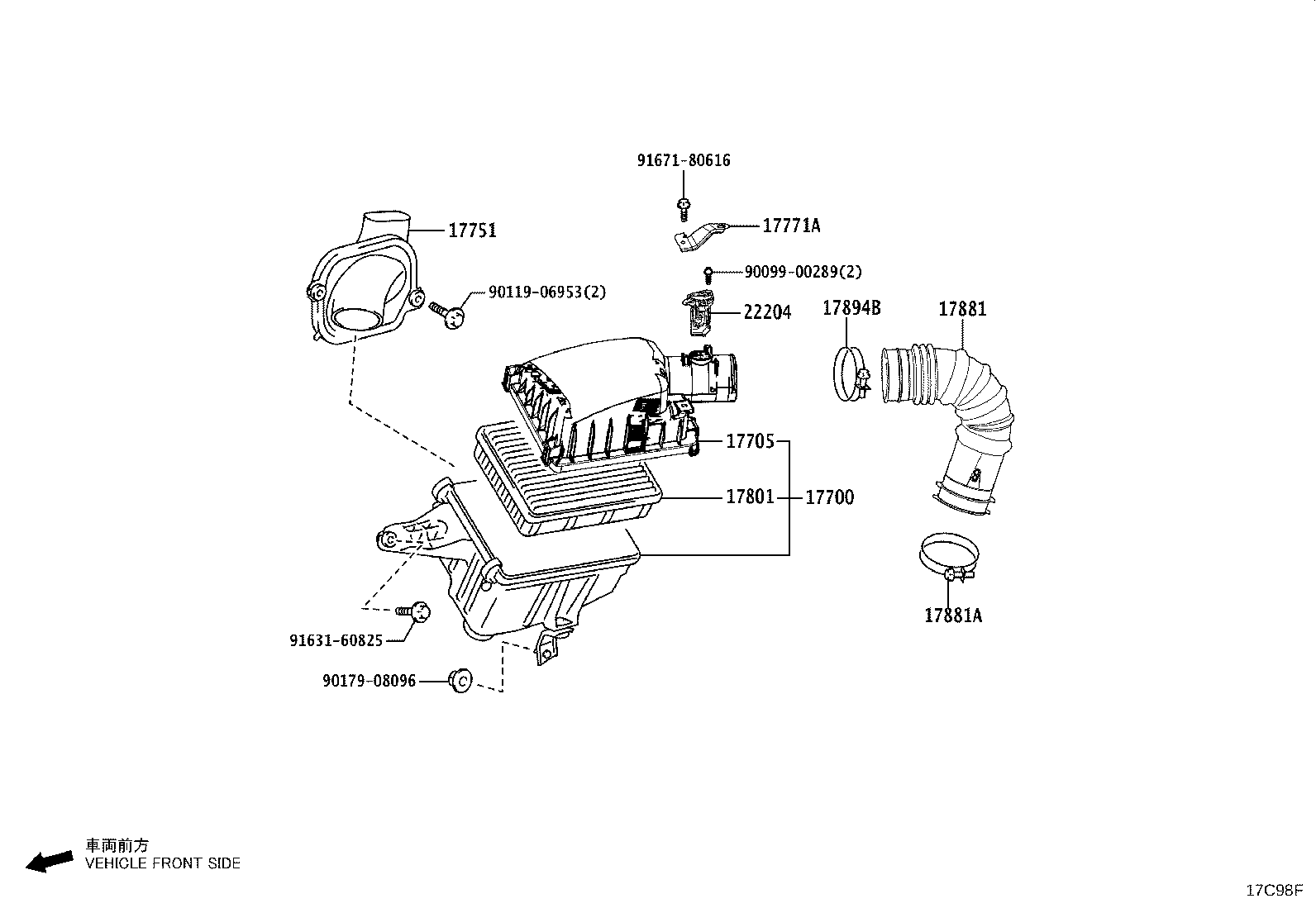

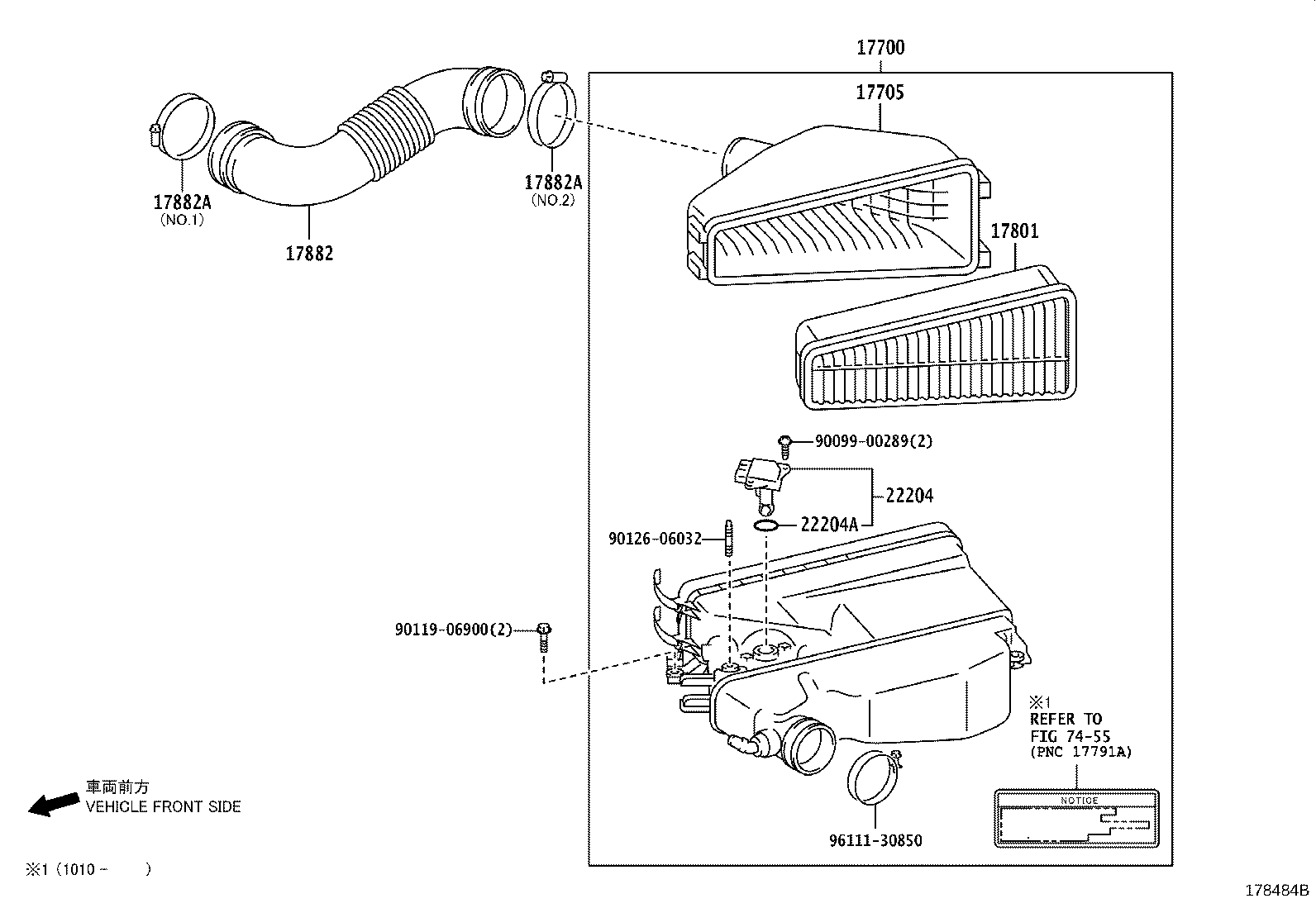

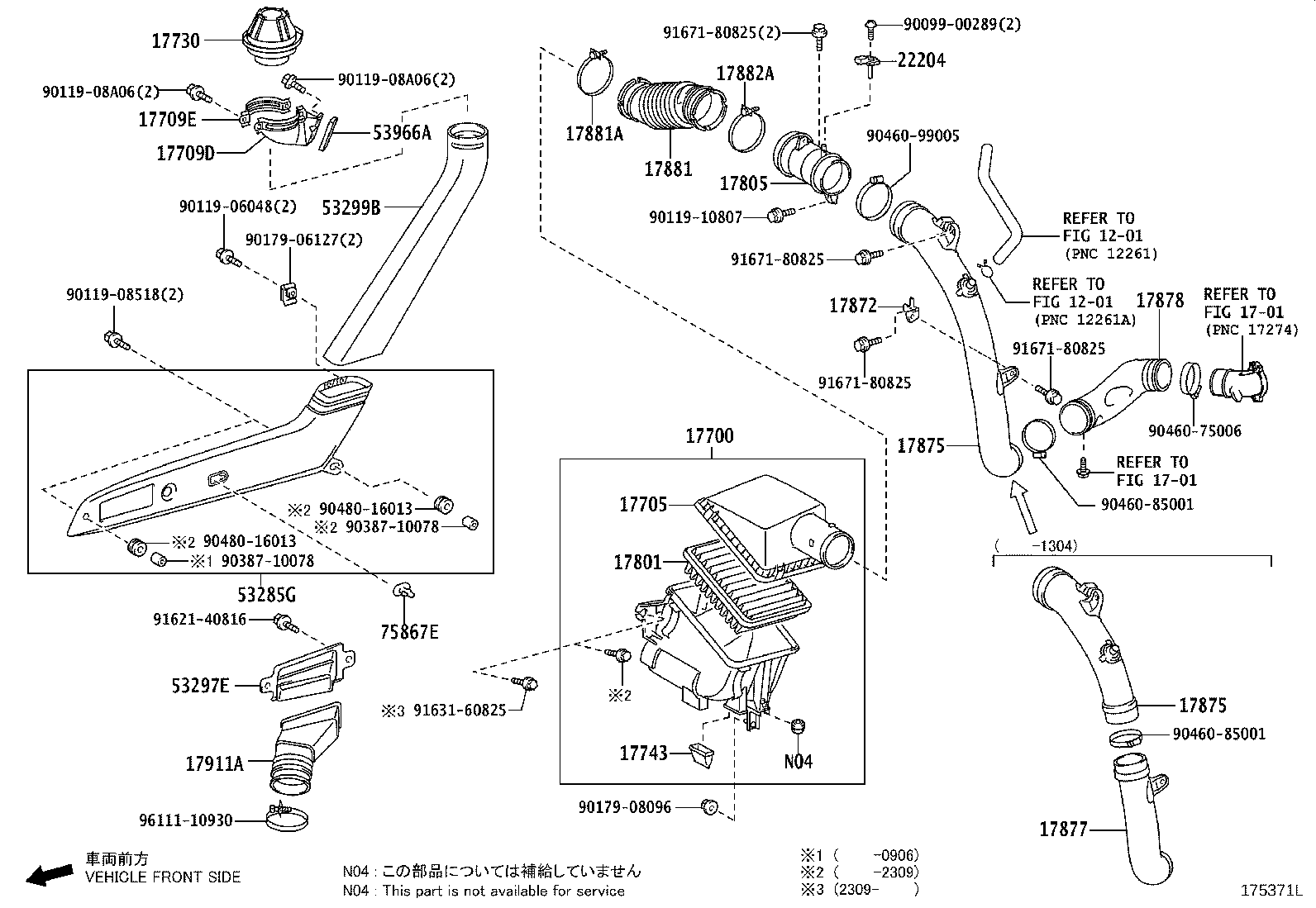

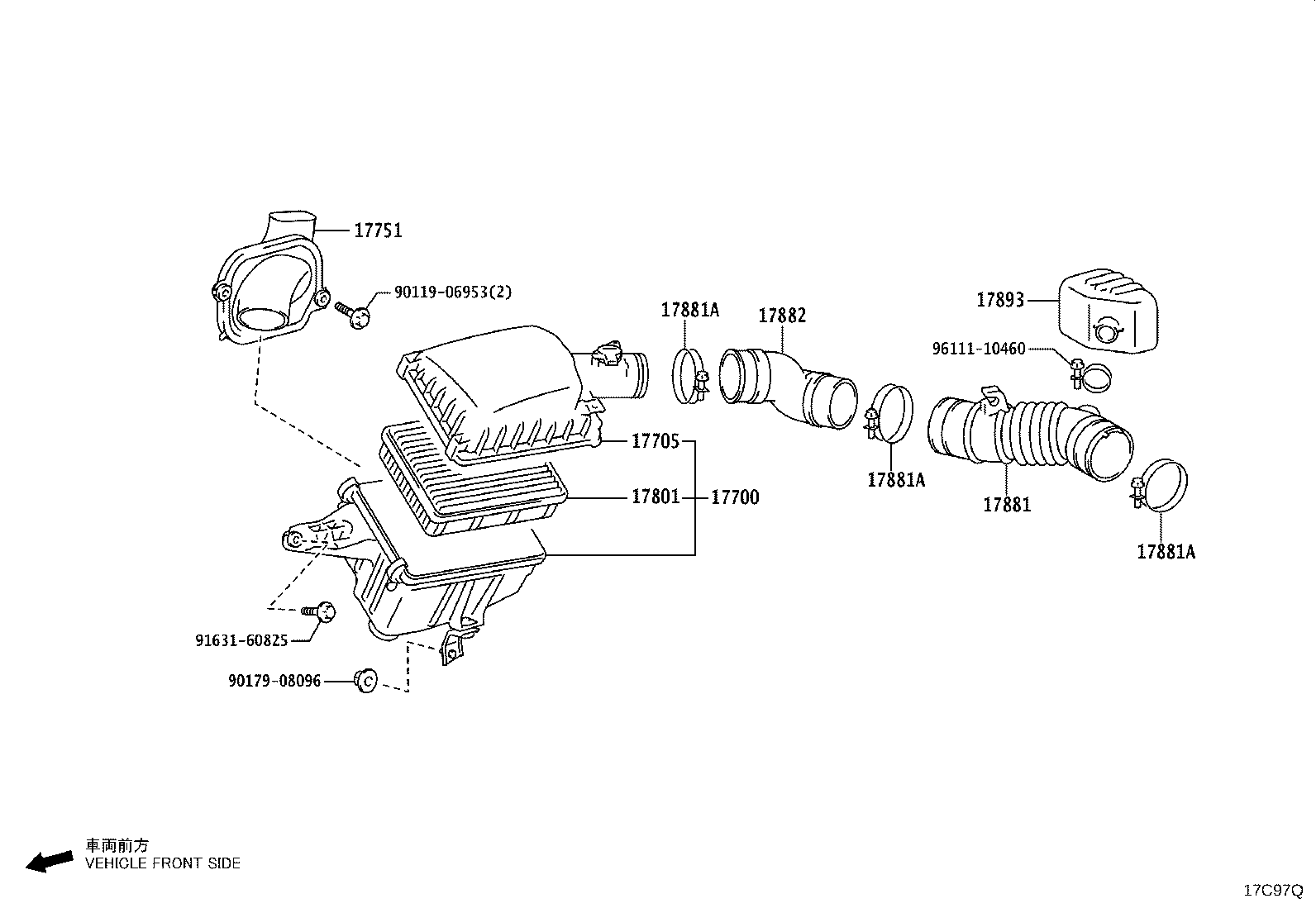

Figure 175391B 175391B 2007-01 → — Figure 175392C 175392C 2007-01 → — Figure 178484B 178484B 2009-07 → 2014-08 Figure 178483A 178483A 2009-07 → 2014-08 Figure 178575C 178575C 2014-08 → 2023-09 Figure 178576B 178576B 2014-08 → 2023-09 Figure 17C98E 17C98E 2023-09 → — Figure 17C98D 17C98D 2023-09 → — Figure 17C98G 17C98G 2023-09 → — Figure 17C98F 17C98F 2023-09 → — Figure 17C98H 17C98H 2023-09 → — Figure 178480A 178480A 2007-01 → 2023-09 Figure 178485D 178485D 2007-01 → 2023-09 Figure 17C97P 17C97P 2023-09 → — Figure 17C97Q 17C97Q 2023-09 → — Figure 175371L 175371L 2007-01 → — Figure 175395F 175395F 2007-01 → —

Part groups

PNCDescription
17277A Gasket, Compressor Outlet
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17344H Hose, Air, NO.4(FOR INTERCOOLER)
17344J Clamp, Hose, NO.4(FOR INTERCOOLER)
17360E Tube Assy, Air, NO.1
17360F Tube Assy, Air, NO.2
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17368B Support, Air Tube
17376A Gasket, Air Tube
17378A Gasket, Air Tube, NO.3
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17703A Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
17703C Cap Sub-assy, Dust
17705 Cap Sub-assy, Air Cleaner
17709D Bracket, Air Cleaner Inlet, NO.1
17709E Bracket, Air Cleaner Inlet, NO.2
17730 Precleaner Assy, Air W/Hose
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17743 Valve, Dust Relief
17750 Cover Assy, Air Cleaner Inlet, Seal
17751 Inlet, Air Cleaner, NO.1
17754 Stay, Air Cleaner Inlet
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17855 Gasket, Air Inlet Duct, NO.1
17861 Connector, Intake Air
17872 Bracket, Intake Air Connector
17875 Pipe, Intake Air Connector
17877 Pipe, Intake Air Connector, NO.2
17878 Pipe, Intake Air Connector, NO.3
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17885 Pipe, Air Cleaner
17893 Resonator, Intake Air
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17911A Hose, Cool Air Intake, NO.1
17940D Intercooler Assy
17943 Protector, Intercooler
17945 Bracket, Intercooler Support
17946 Bracket, Intercooler Support, NO.2
17947B Bracket, Intercooler Support, NO.3
17971 Inlet, Cool Air, NO.1
17972 Inlet, Cool Air, NO.2
17973 Inlet, Cool Air, NO.3
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
53285G Duct, Cool Air Intake, NO.2
53297E Pipe, Cool Air Intake
53299B Duct, Cool Air Intake
53966A Pad, Precleaner
75867E Clip, Rocker Panel Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
