Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

62 part groups · 10 illustrations

Illustrations

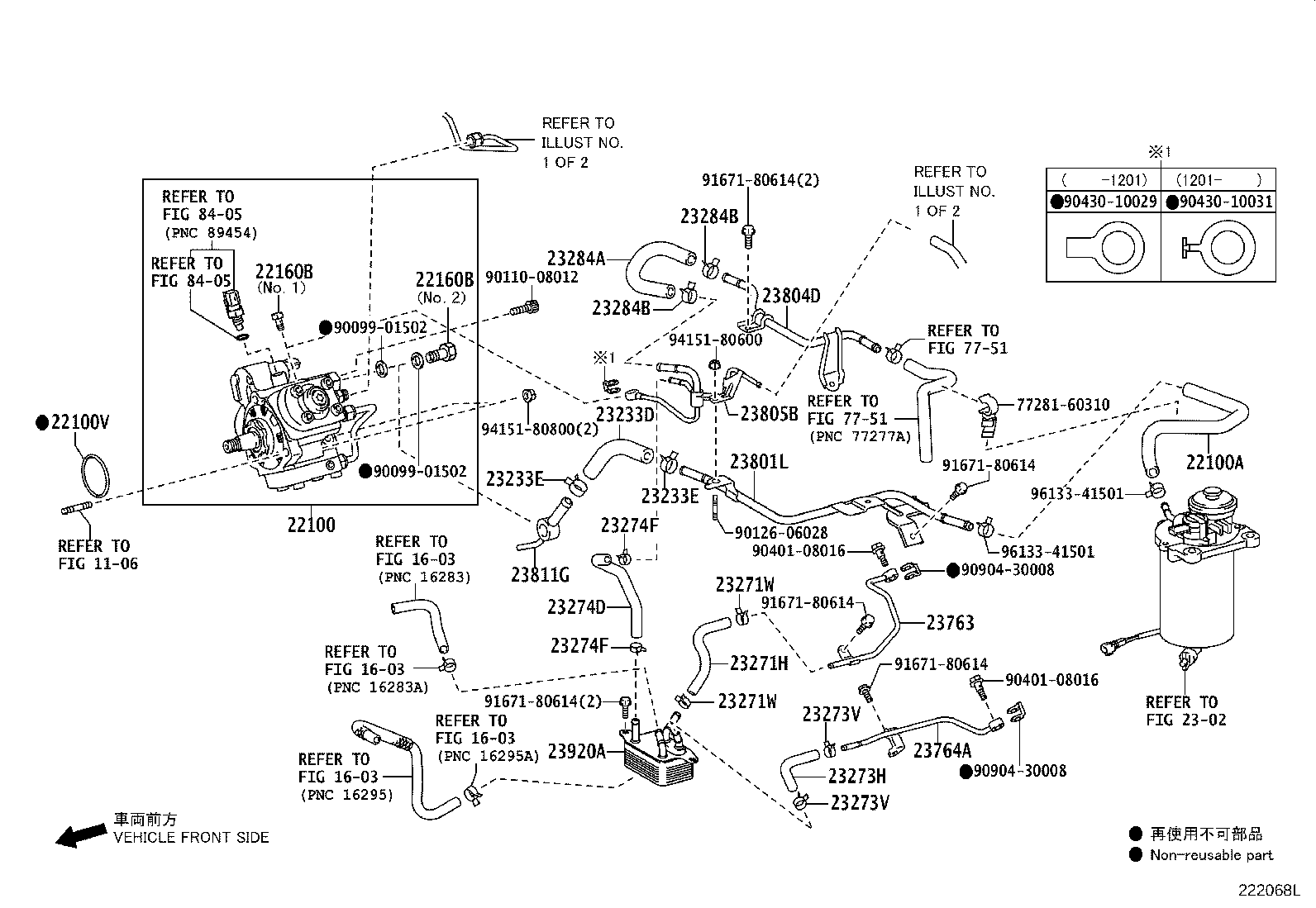

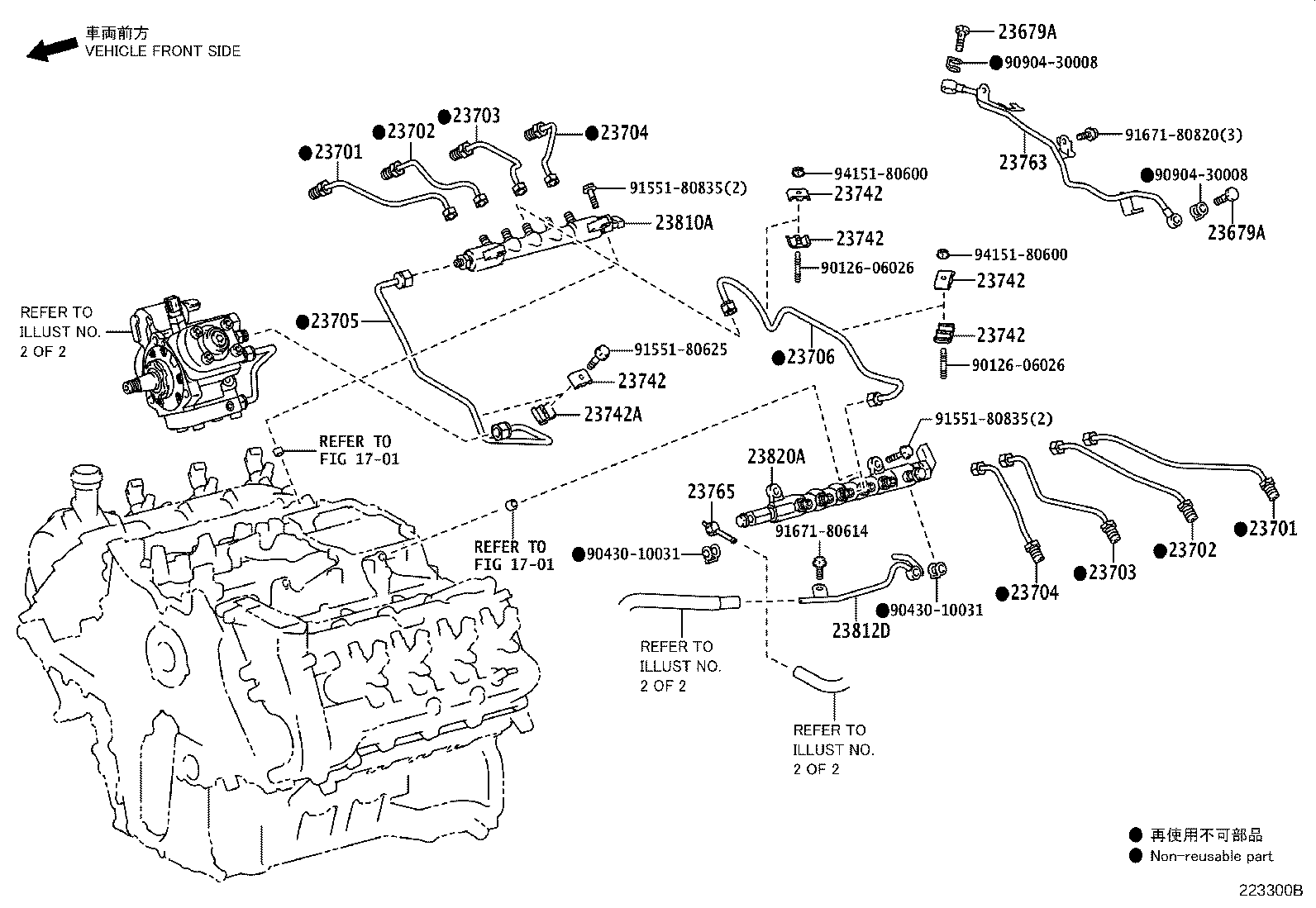

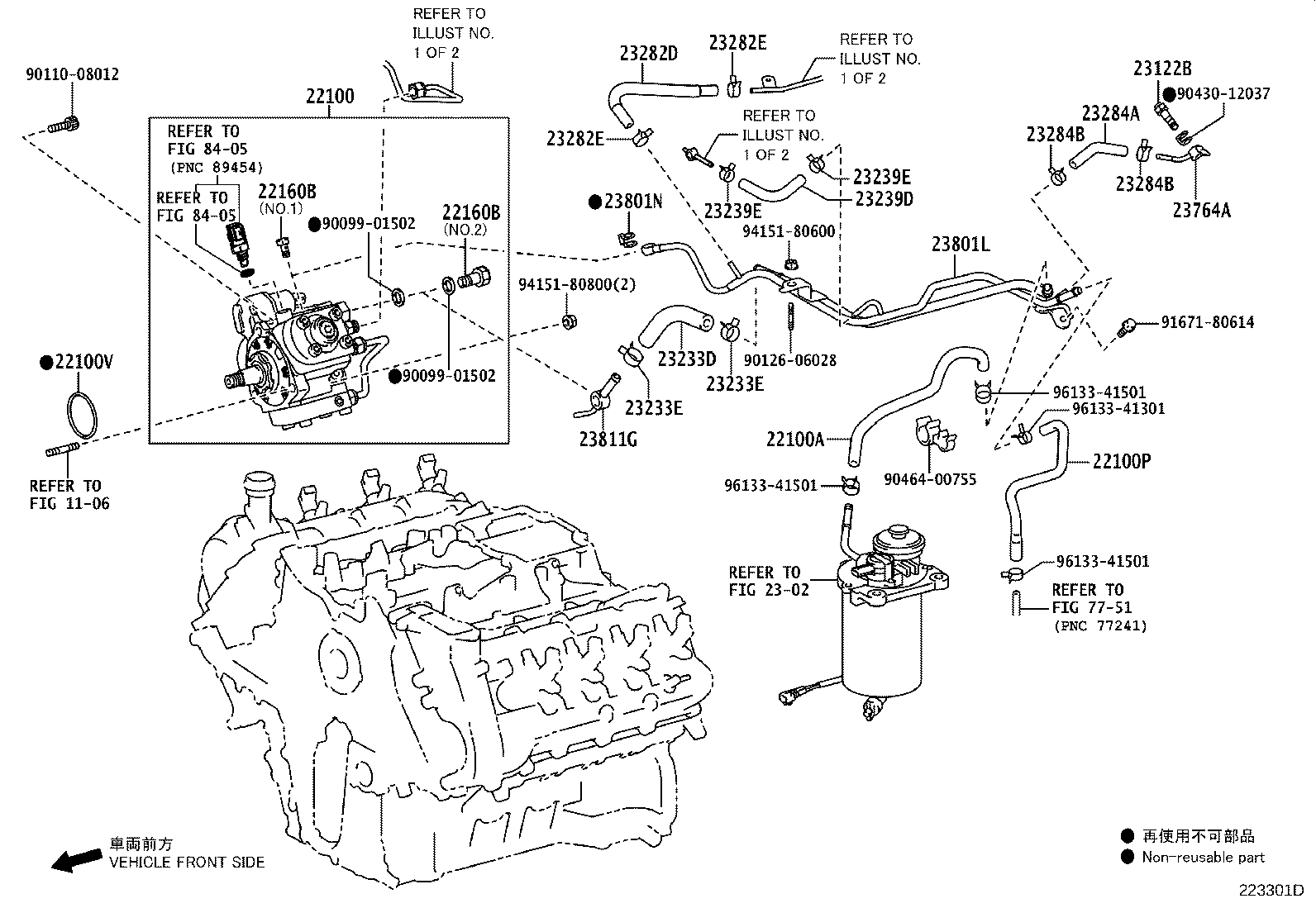

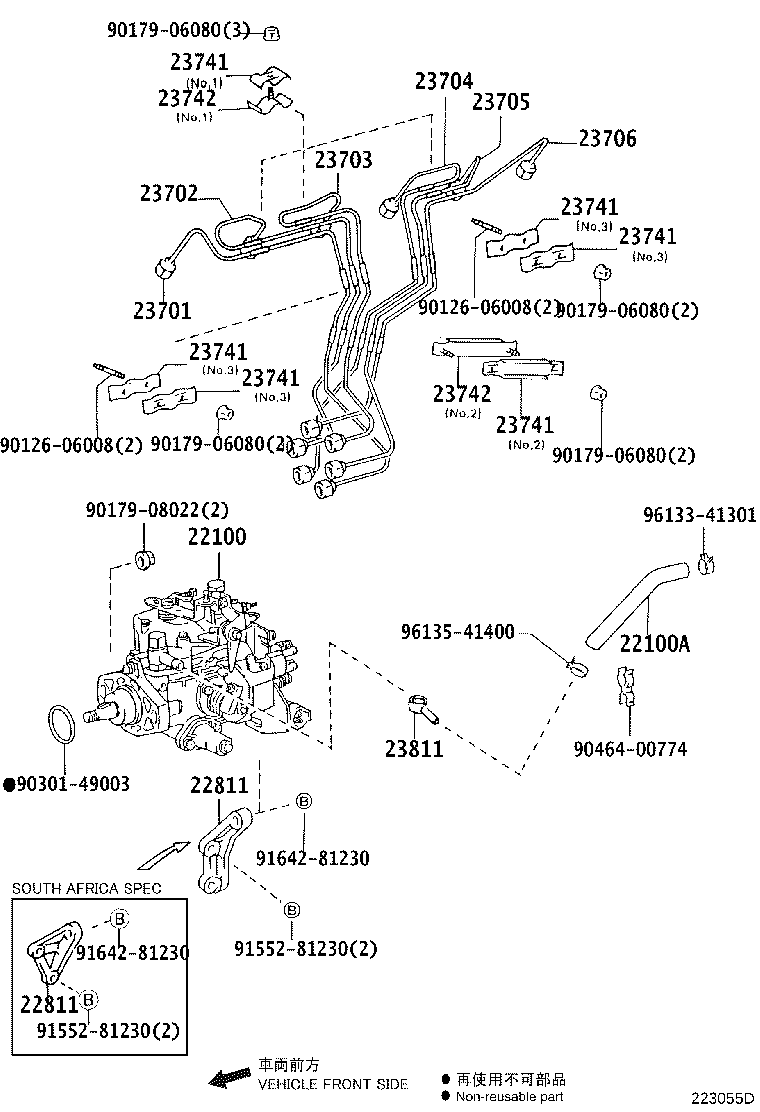

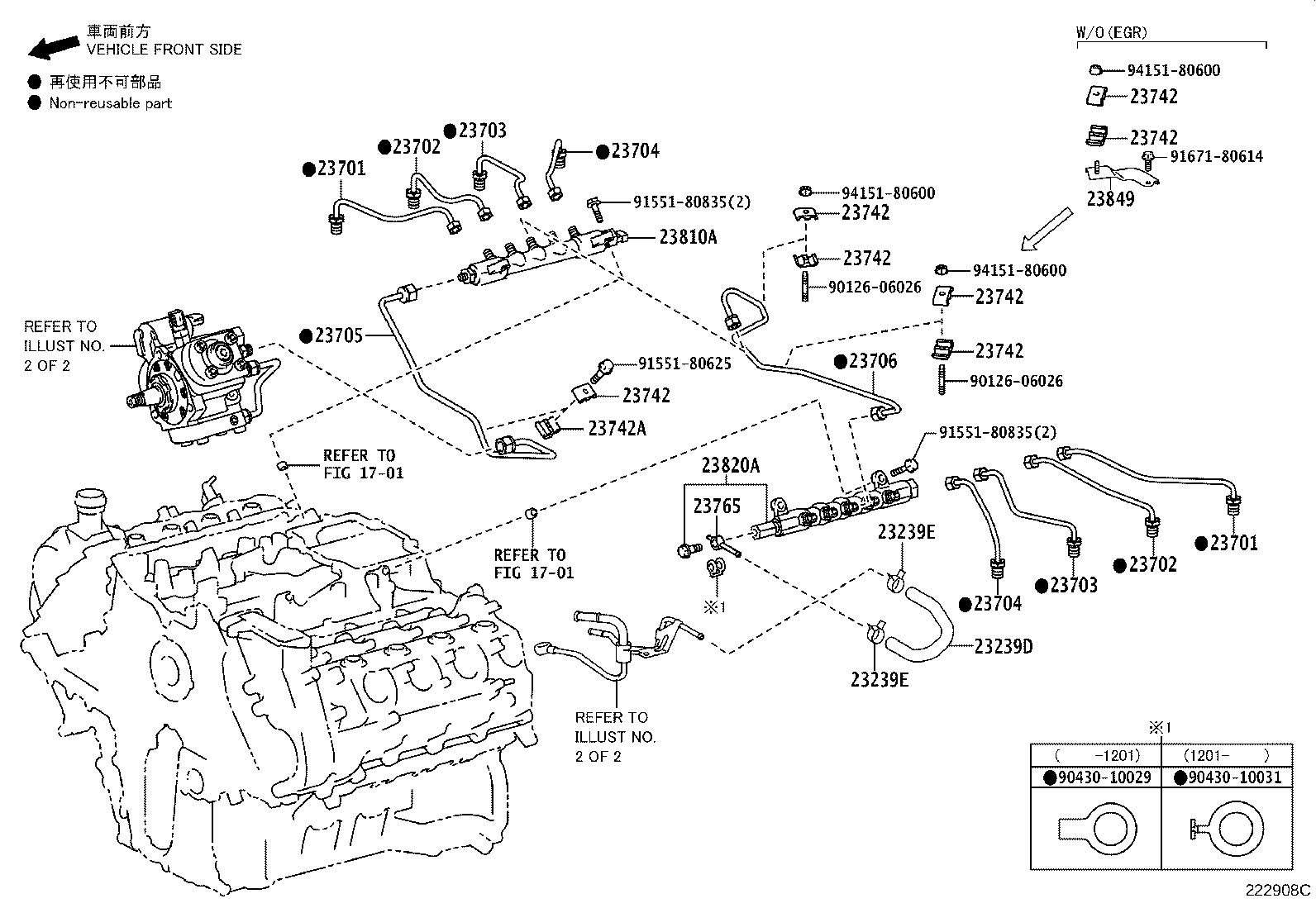

Figure 22437SA 22437SA 2023-09 → — Figure 223055D 223055D 2007-01 → — Figure 222908C 222908C 2007-01 → 2016-08 Figure 222908C 222908C 2016-08 → — Figure 223300B 223300B 2016-08 → — Figure 223300B 223300B 2022-09 → — Figure 222068L 222068L 2007-01 → 2016-08 Figure 222068L 222068L 2016-08 → — Figure 223301D 223301D 2016-08 → — Figure 223301D 223301D 2022-09 → —

Part groups

PNCDescription
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100P Hose, Fuel(FOR FUEL PIPE TO FUEL TUBE)
22100V Ring, O(FOR INJECTION PUMP)
22160B Screw
22569B Screw, Supply Pump Hollow
22811 Stay, Injection Pump, NO.1
22815A Insulator, Injection Pump
23122B Valve, Check
23233D Hose, Fuel Pump
23233E Clip, Hose(FOR FUEL PUMP HOSE)
23239D Hose, Fuel, NO.1
23239E Clip, Fuel Hose, NO.1
23243B Wire, Fuel Pump Motor
23265D Bracket, Fuel Pump, NO.1
23271H Hose, Fuel, NO.1
23271M Hose, Fuel
23271N Clip, Hose
23271W Clip(FOR FUEL HOSE NO.1)
23271Y Hose, Fuel
23273H Hose, Fuel, NO.2
23273V Clip(FOR FUEL HOSE NO.2)
23274D Hose, Fuel, NO.3
23274F Clip(FOR FUEL HOSE NO.3)
23282D Hose, Fuel, NO.4
23282E Clip(FOR FUEL HOSE NO.4)
23284A Hose, Fuel, NO.5
23284B Clip(FOR FUEL HOSE NO.5)
23679A Screw, Injector Follow
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23705 Pipe Sub-assy, Injection, NO.5
23706 Pipe Sub-assy, Injection, NO.6
23741 Clamp, Injection Pipe, NO.1
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23742A Clamp, Injection Pipe, NO.3
23763 Pipe, Nozzle Leakage, NO.3
23764A Pipe, Nozzle Leakage, NO.4
23765 Pipe, Nozzle Leakage, NO.5
23801L Pipe Sub-assy, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23801N Gasket
23804C Pipe Sub-assy, Fuel Inlet
23804D Pipe Sub-assy, Fuel, NO.4
23804G Bolt, Union(FOR FUEL PIPE NO.4)
23804H Gasket(FOR FUEL PIPE)
23805B Pipe Sub-assy, Fuel, NO.5
23810A Rail Assy, Common
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23811G Pipe, Fuel, NO.1
23812D Pipe, Fuel, NO.2
23815D Pipe, Fuel, NO.3
23820A Rail Assy, Common
23842C Clamp, Fuel Pipe, NO.2(FOR INJECTION PUMP)
23849 Support, Fuel
23920A Cooler Assy, Fuel
27148A Wire, Connecting
77246E Support, Fuel Main Tube
82716M Bracket, Wiring Harness Clamp, NO.1
82716N Bracket, Wiring Harness Clamp, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
