Exhaust Gas Recirculation System

26 part groups · 13 illustrations

Illustrations

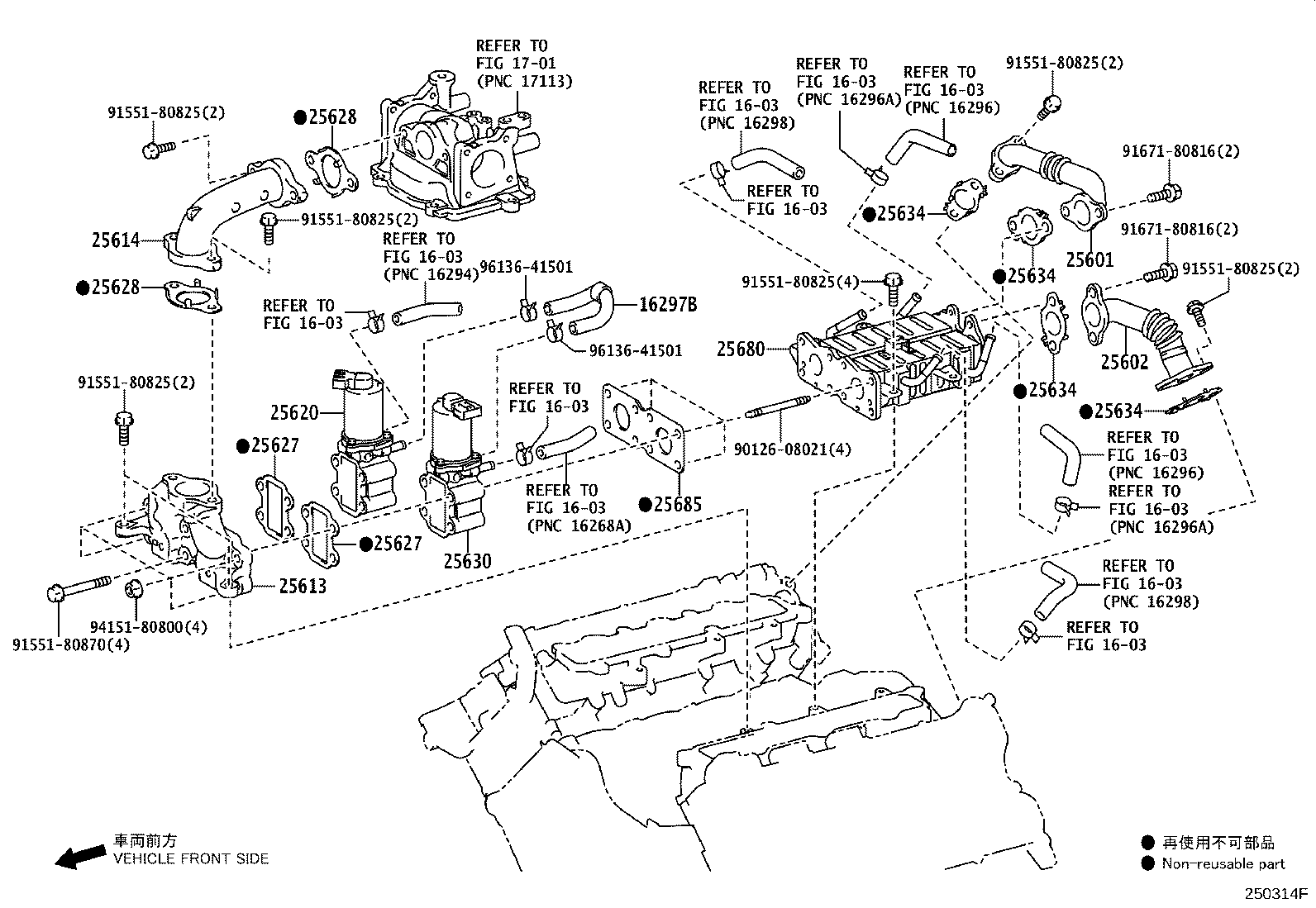

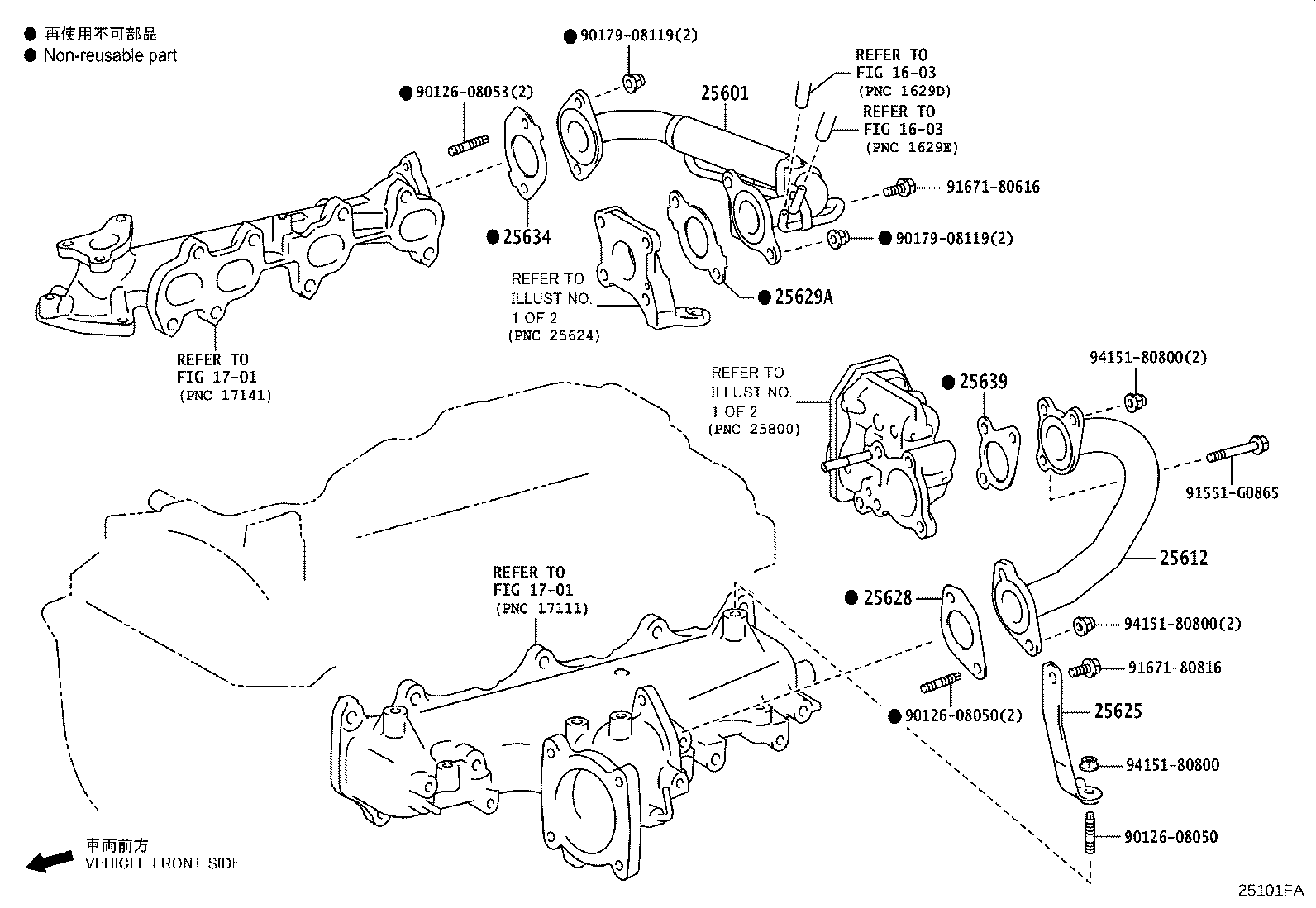

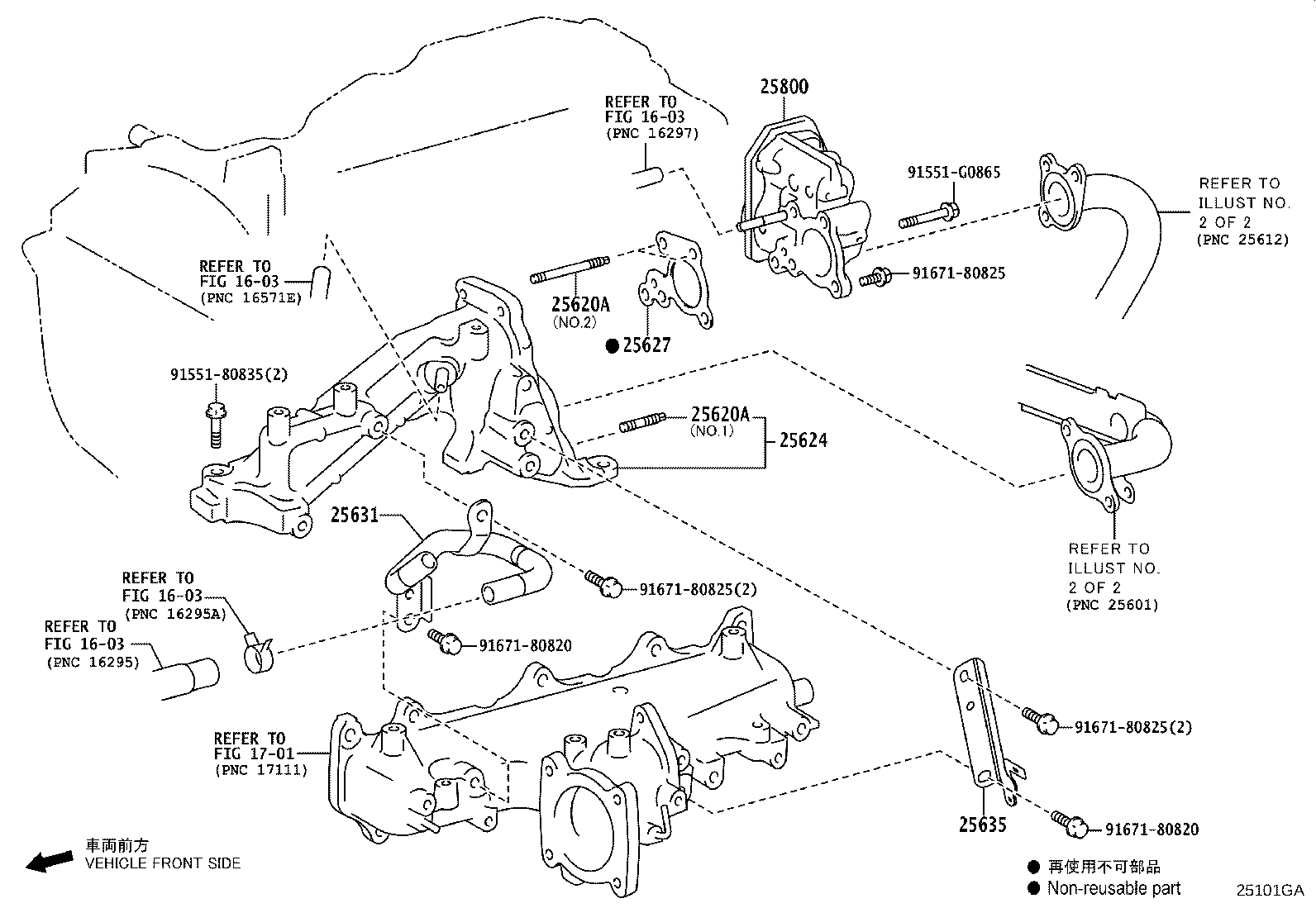

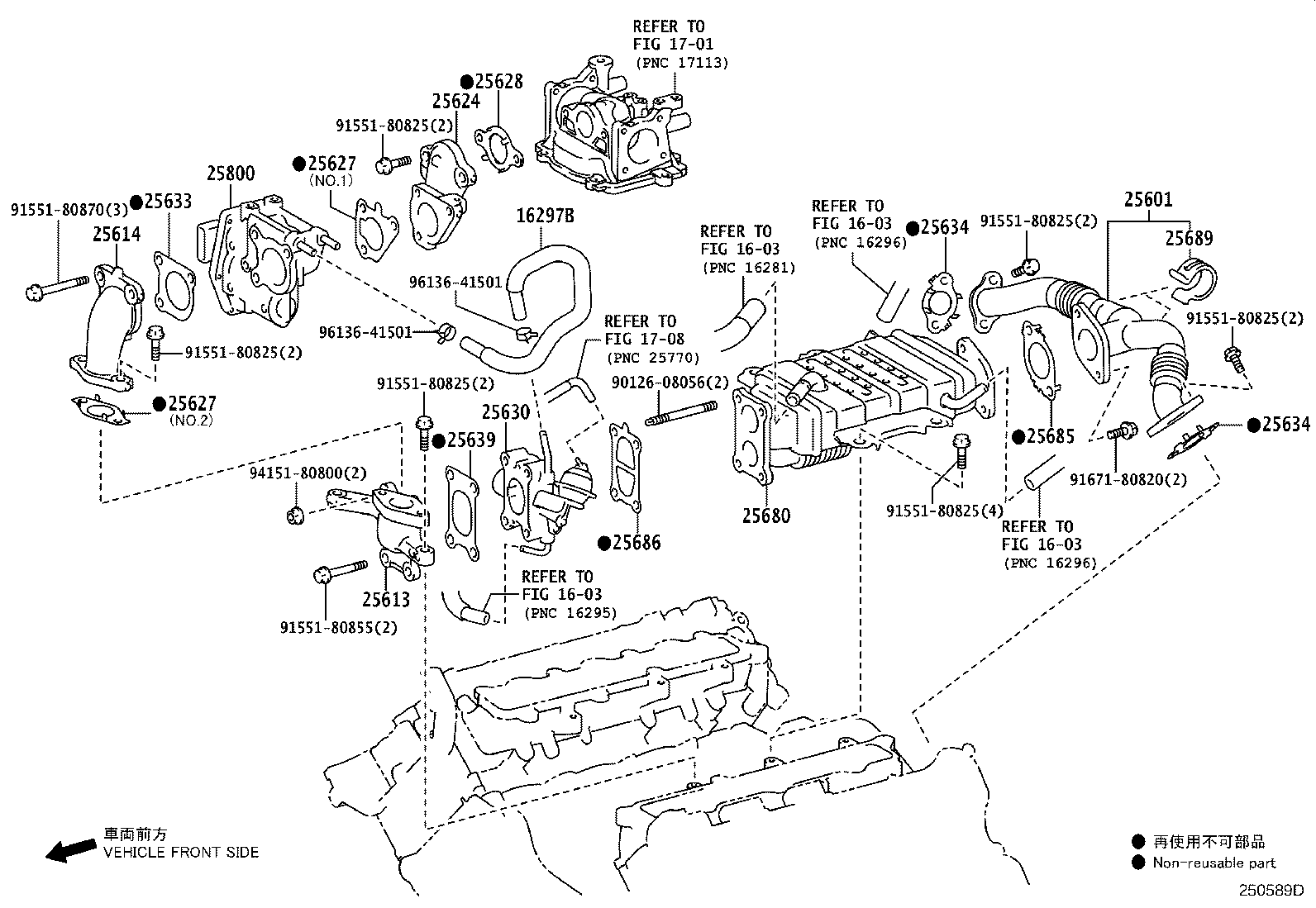

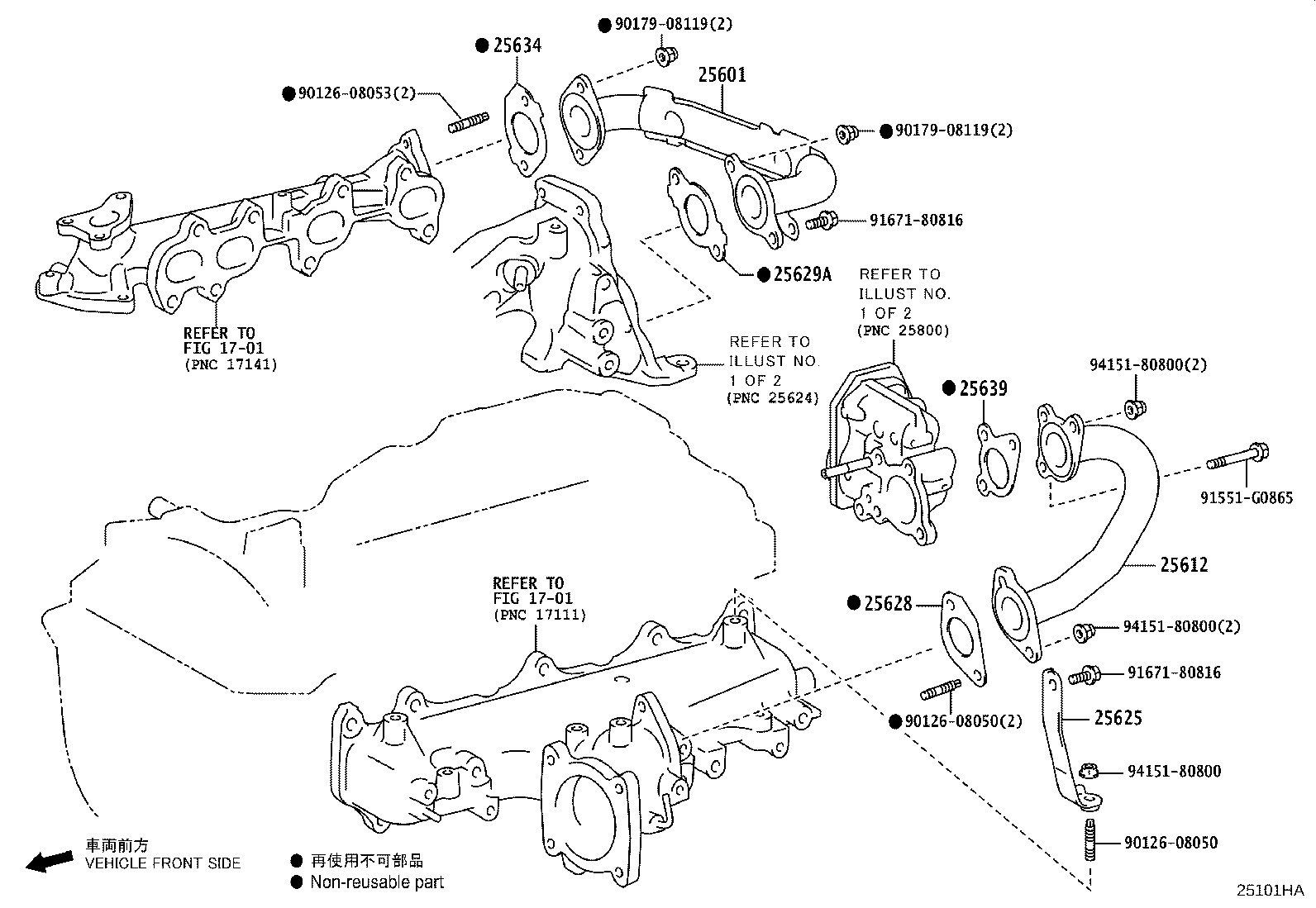

Figure 25101EA 25101EA 2023-09 → — Figure 25101FA 25101FA 2023-09 → — Figure 25101GA 25101GA 2023-09 → — Figure 25101HA 25101HA 2023-09 → — Figure 250652A 250652A 2007-01 → — Figure 250314F 250314F 2007-01 → 2016-08 Figure 250314F 250314F 2016-08 → — Figure 250314F 250314F 2017-09 → — Figure 250314F 250314F 2017-09 → — Figure 250314F 250314F 2017-09 → — Figure 250589D 250589D 2016-08 → — Figure 250589D 250589D 2022-09 → — Figure 250589D 250589D 2022-09 → —

Part groups

PNCDescription
16297B Hose, Water By-pass, NO.9
25601 Pipe Sub-assy, Egr, NO.1
25601J Gasket(FOR EGR PIPE, NO.1)
25602 Pipe Sub-assy, Egr, NO.2
25612 Pipe, Egr, NO.2
25613 Pipe, Egr, NO.3
25614 Pipe, Egr, NO.4
25620 Valve Assy, Egr
25620A Bolt, Stud(FOR EGR VALVE)
25624 Adapter, Egr Valve
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25629A Gasket, Egr Pipe, NO.2
25630 Valve Assy, Egr, NO.2
25631 Stay, Egr Pipe, NO.1
25633 Gasket, Egr Valve
25634 Gasket, Egr Pipe
25635 Bracket, Egr Pipe, NO.1
25639 Gasket, Egr Pipe, NO.3
25680 Cooler Assy, Egr
25681 Cooler, Egr, NO.1
25685 Gasket, Egr Cooler, NO.1
25686 Gasket, Egr Cooler, NO.2
25689 Insulator, Egr Cooler
25800 Valve Assy, Electric Egr Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
