Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

31 part groups · 32 illustrations

Illustrations

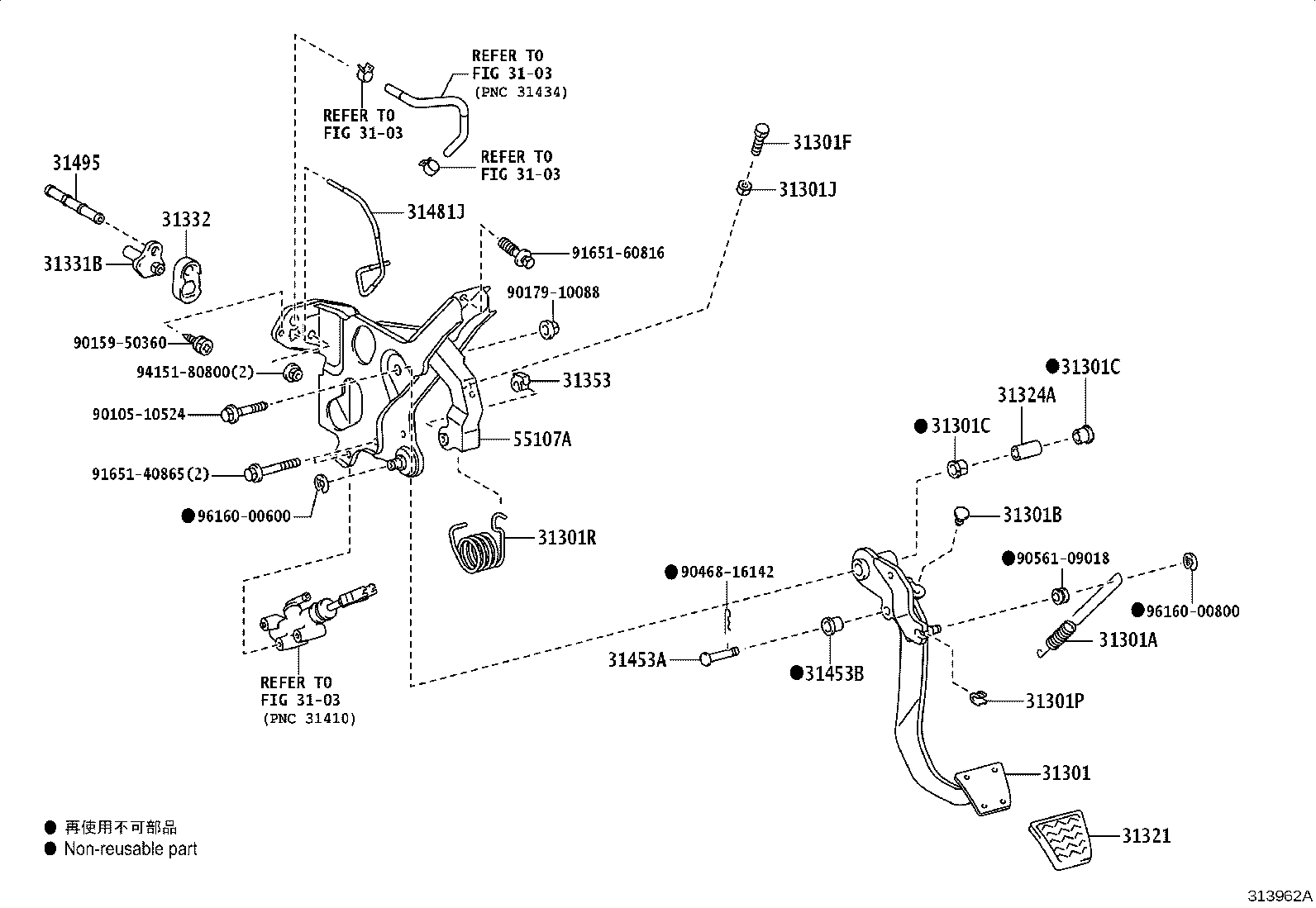

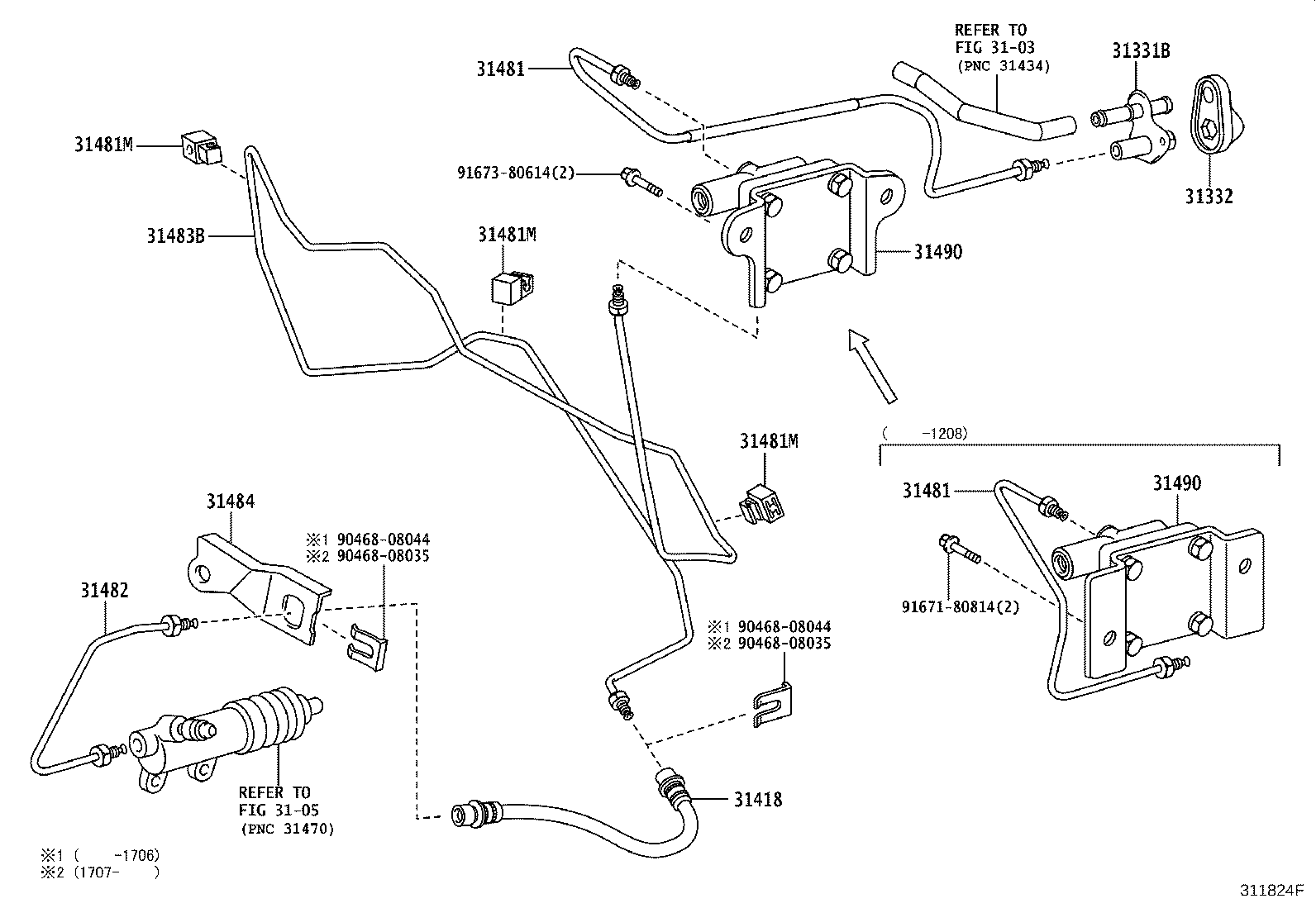

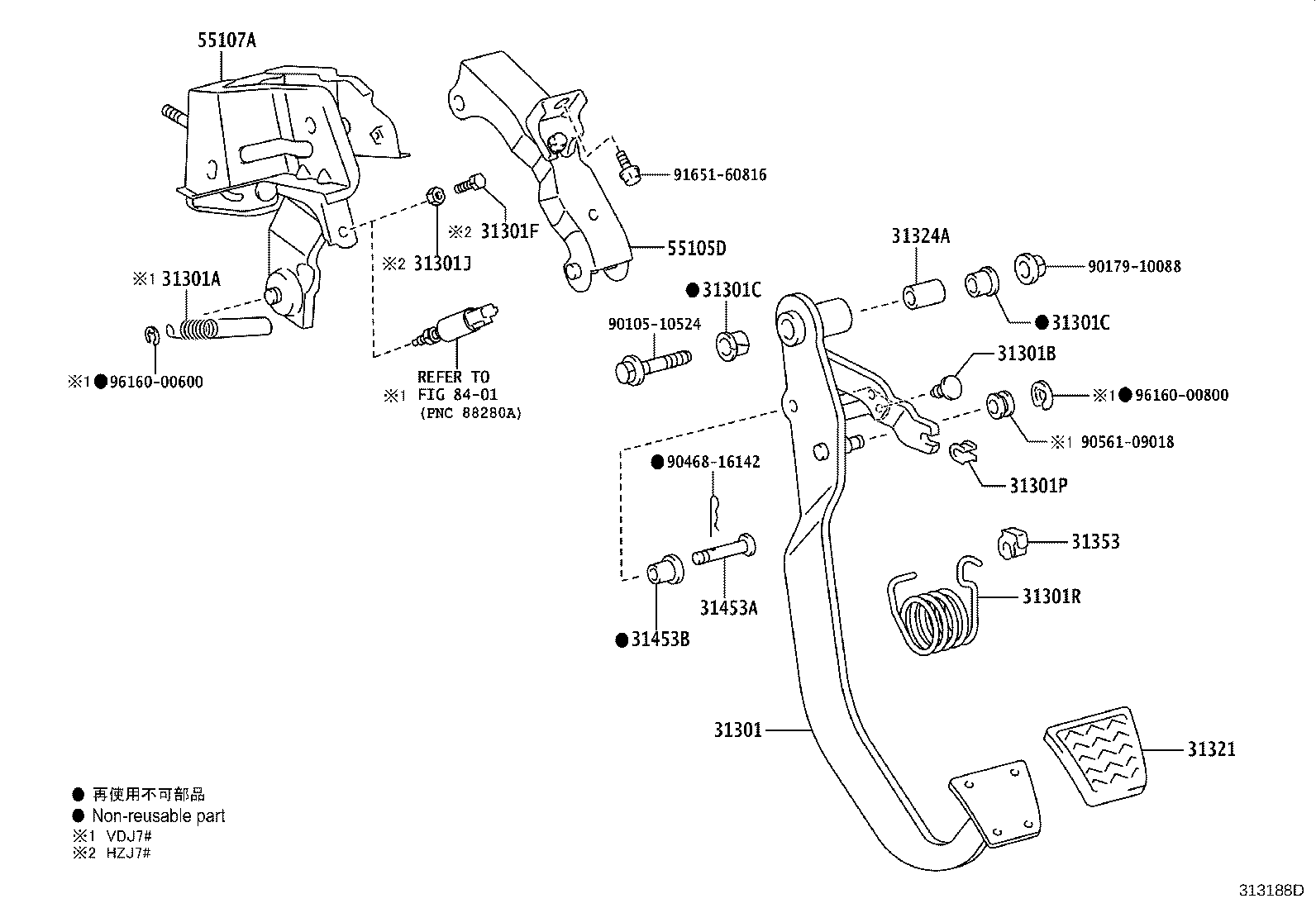

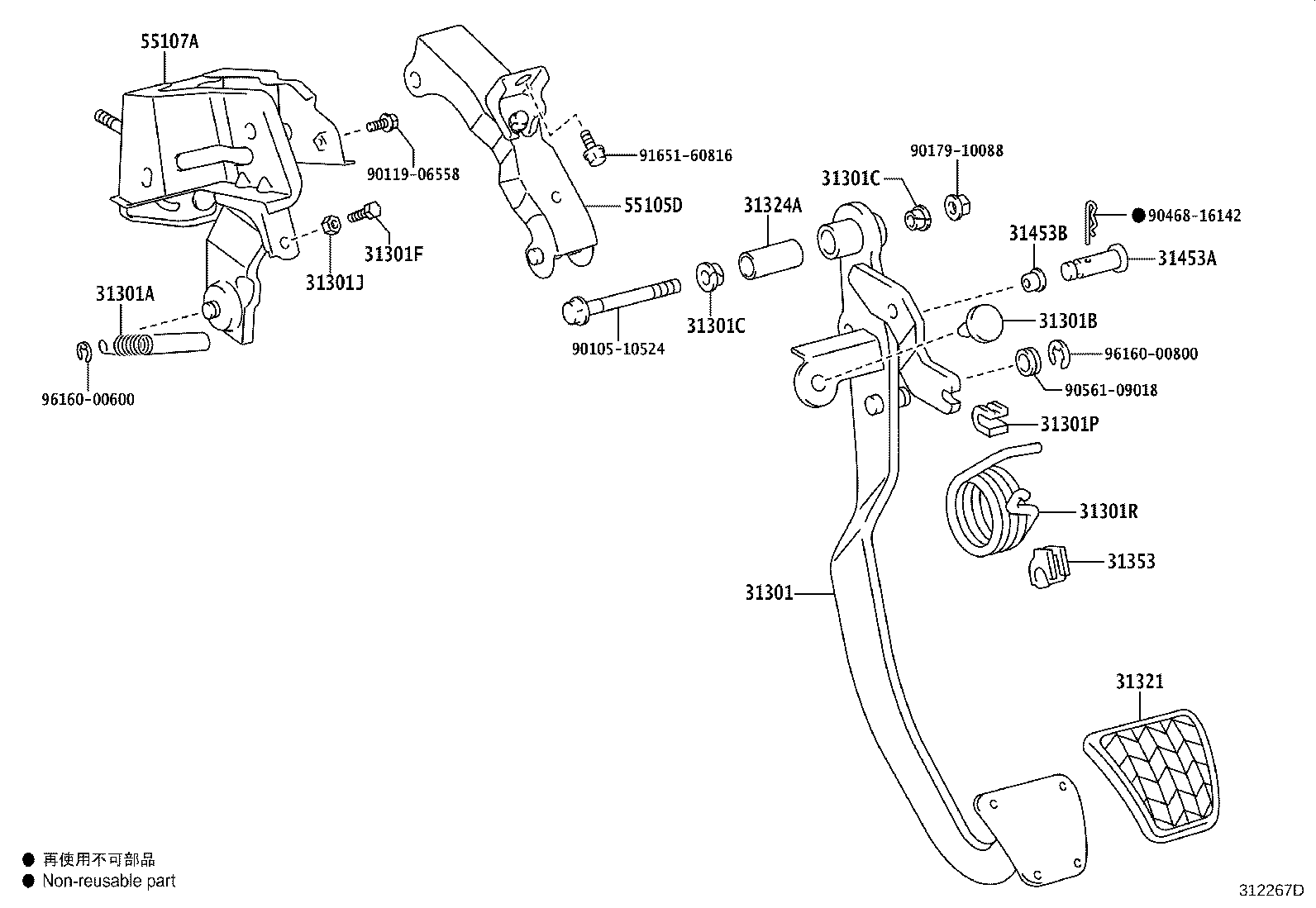

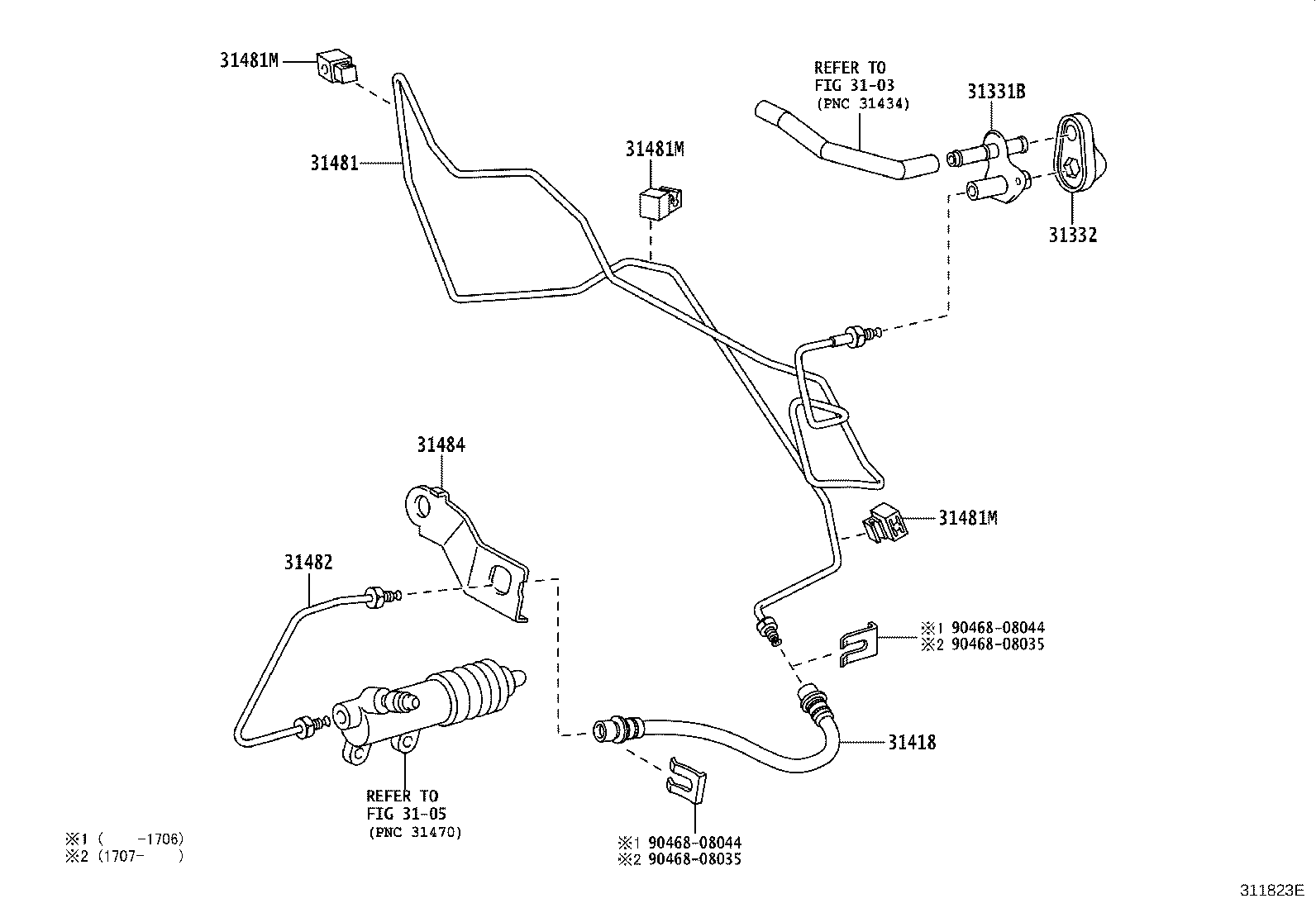

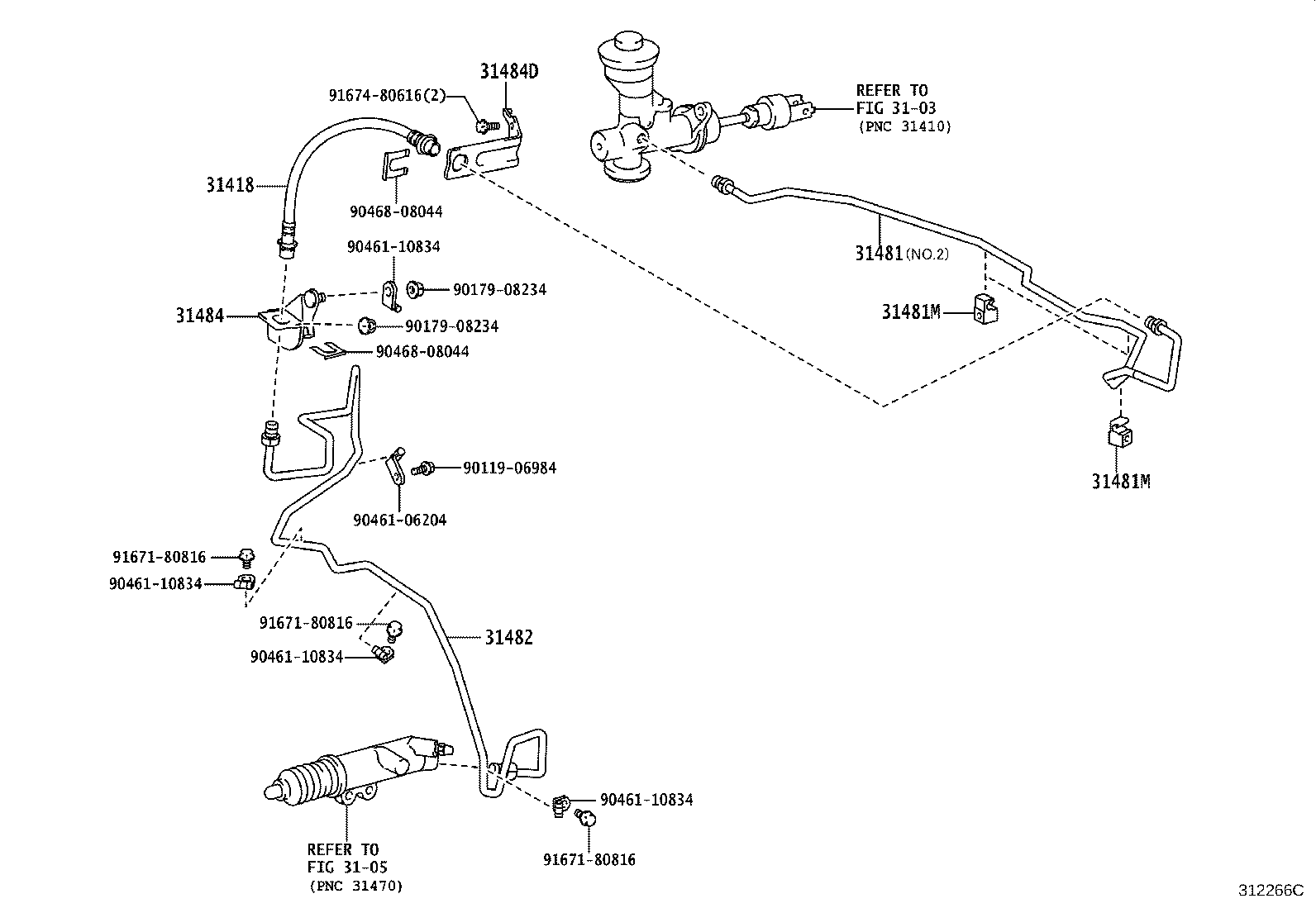

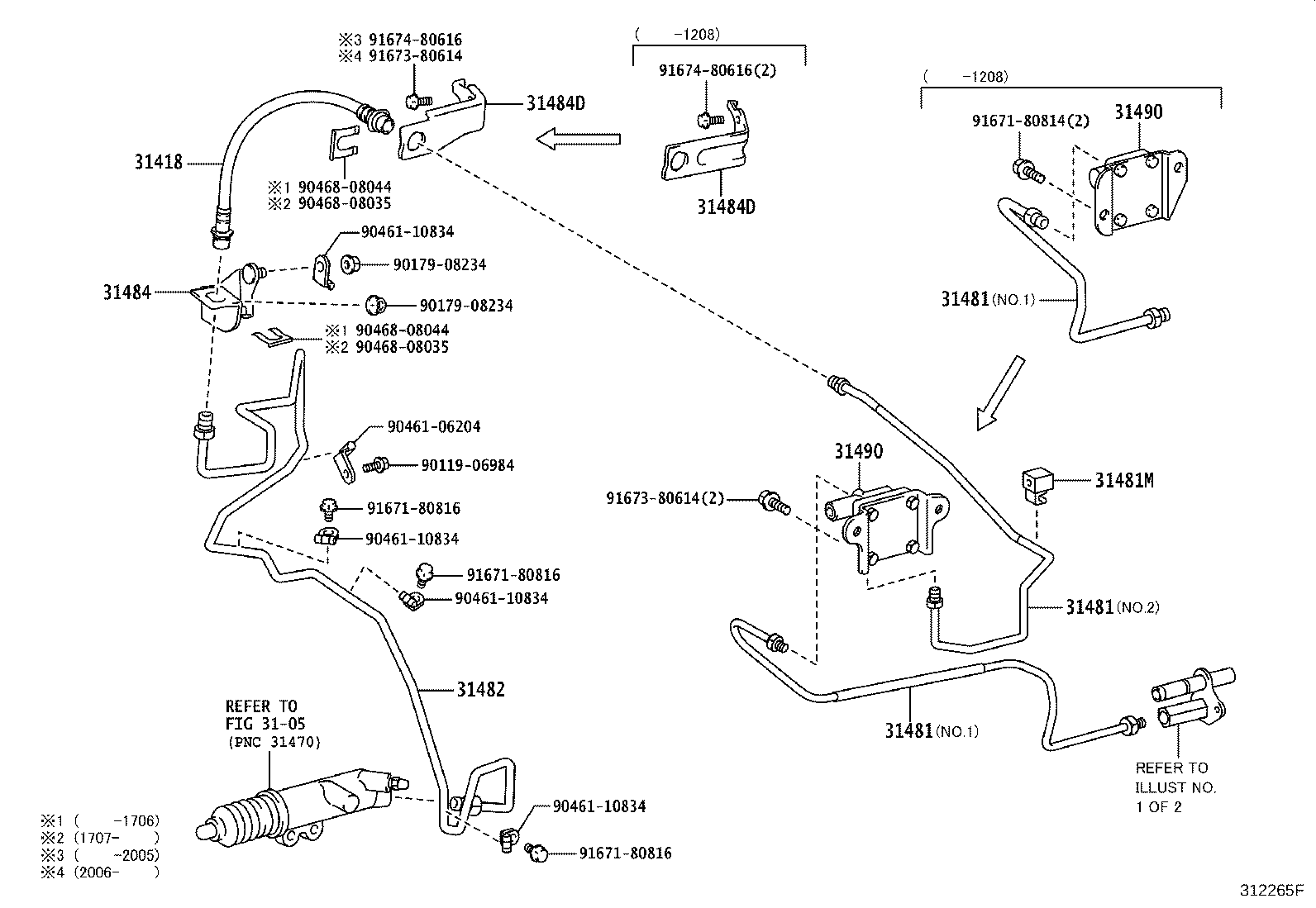

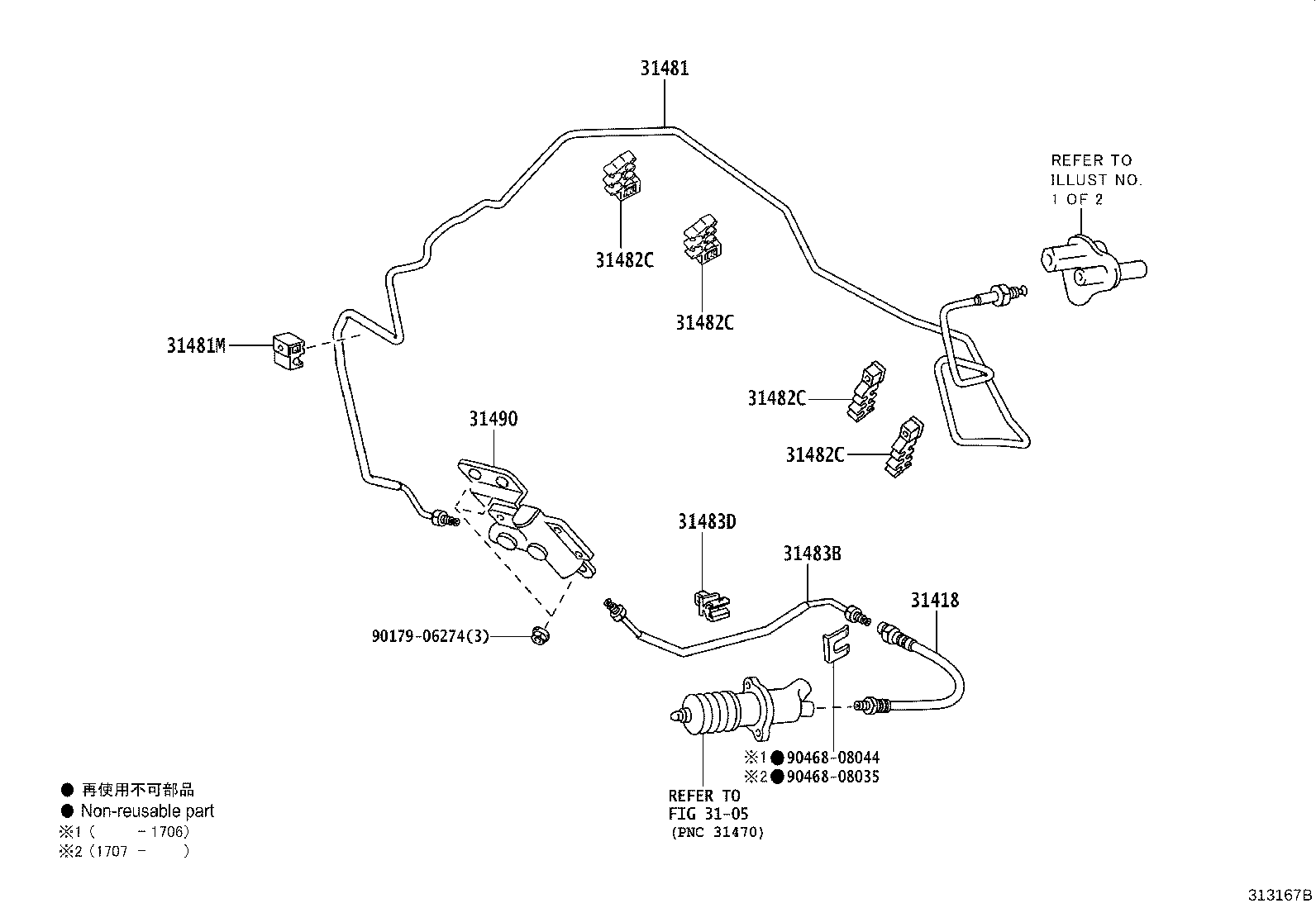

Figure 311819E 311819E 2007-01 → 2009-07 Figure 311819E 311819E 2007-01 → — Figure 311820G 311820G 2007-01 → — Figure 311820G 311820G 2023-09 → — Figure 311820G 311820G 2023-09 → — Figure 313188D 313188D 2009-07 → — Figure 313188D 313188D 2009-07 → — Figure 313188D 313188D 2023-09 → — Figure 312267D 312267D 2009-07 → — Figure 312267D 312267D 2024-10 → — Figure 312268C 312268C 2009-07 → — Figure 312268C 312268C 2009-07 → — Figure 312268C 312268C 2023-09 → — Figure 312268C 312268C 2024-10 → — Figure 313962A 313962A 2024-10 → — Figure 311822C 311822C 2007-01 → — Figure 313167B 313167B 2017-01 → — Figure 313167B 313167B 2023-09 → — Figure 313167B 313167B 2023-09 → — Figure 311821E 311821E 2007-01 → — Figure 311821E 311821E 2007-01 → — Figure 311821E 311821E 2023-09 → — Figure 311823E 311823E 2007-01 → — Figure 311824F 311824F 2007-01 → — Figure 312266C 312266C 2009-07 → 2012-08 Figure 312646D 312646D 2012-08 → — Figure 312265F 312265F 2009-07 → — Figure 312265F 312265F 2023-09 → — Figure 312265F 312265F 2023-09 → — Figure 312265F 312265F 2024-10 → — Figure 313963 313963 2024-10 → — Figure 313964 313964 2024-10 → —

Part groups

PNCDescription

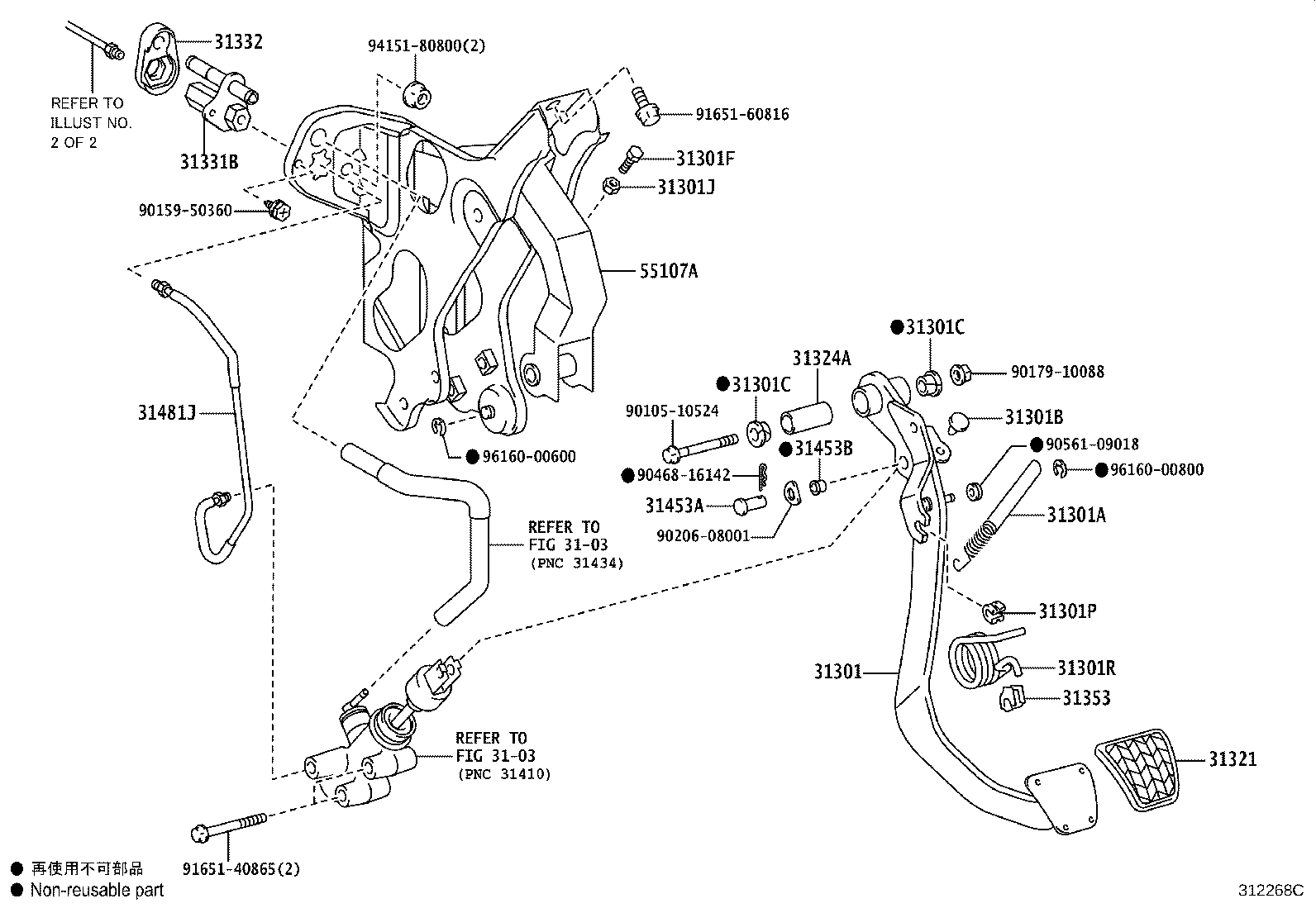

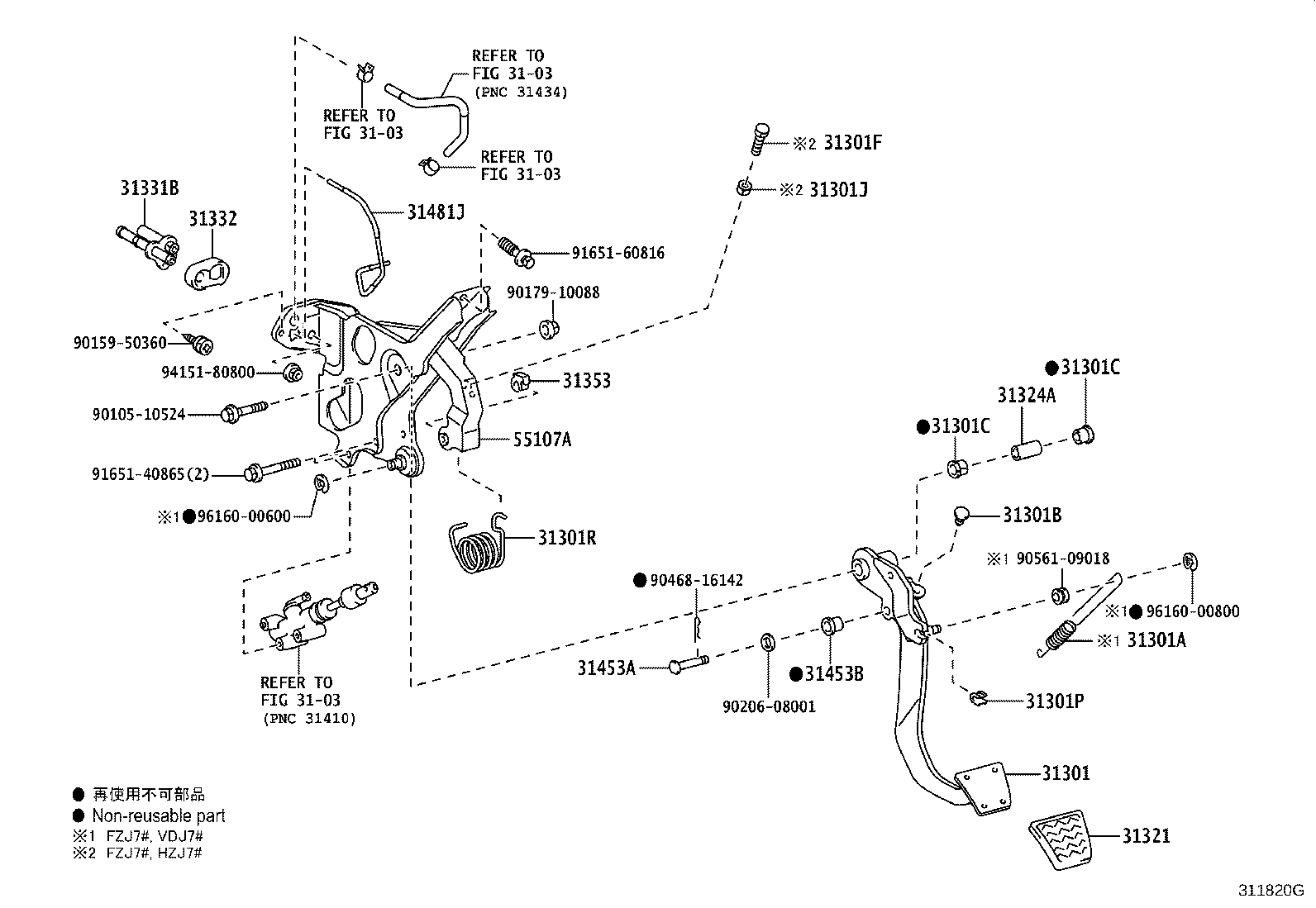

31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301J Nut(FOR CLUTCH PEDAL STOPPER)
31301P Bush(FOR CLUTCH PEDAL TURNOVER)
31301R Spring, Compression(FOR TURNOVER SPRING SEAT)
31321 Pad, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31331B Way, Clutch Pedal Support
31332 Grommet, Clutch Pedal Support
31353 Holder, Clutch Pedal Spring

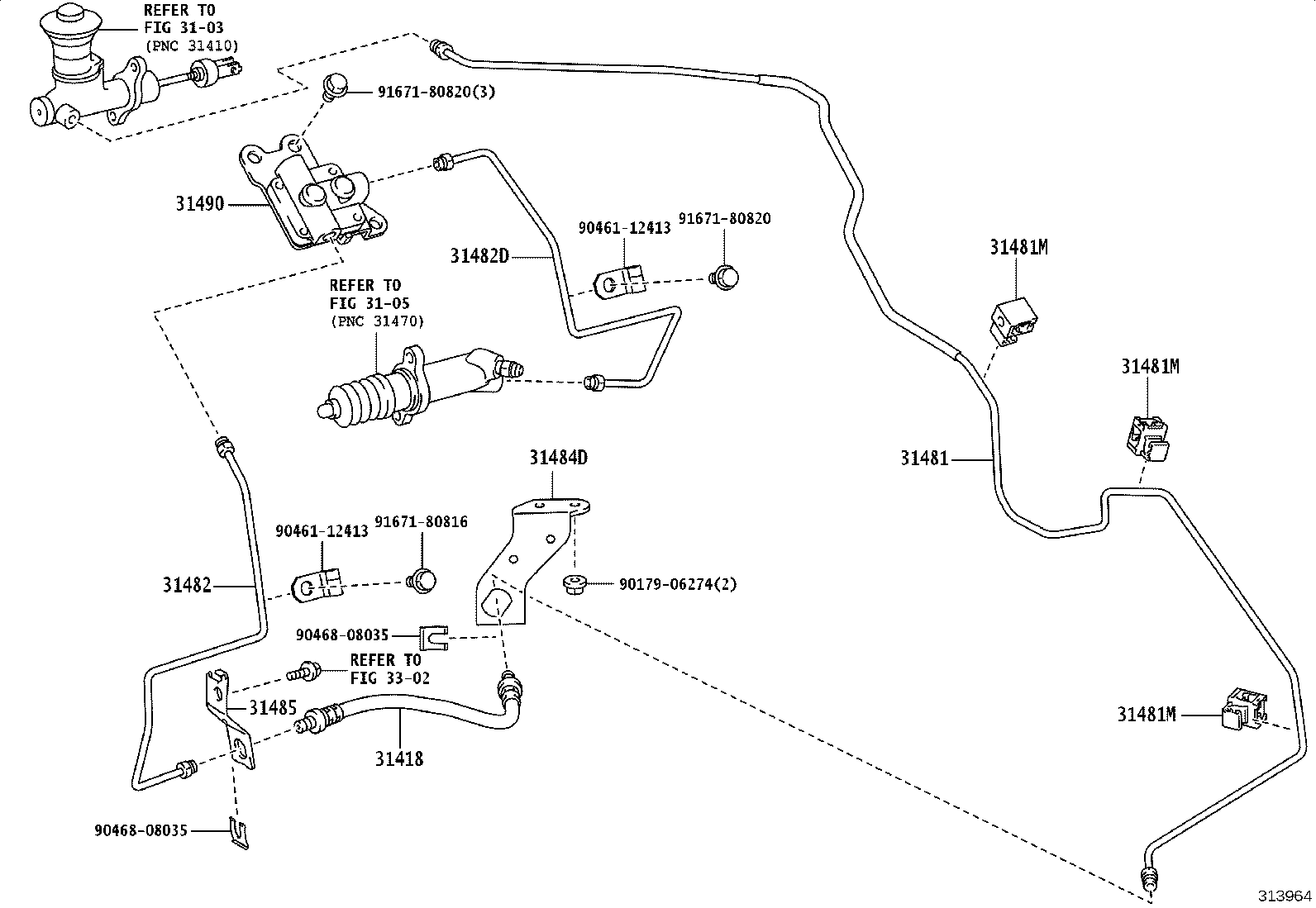

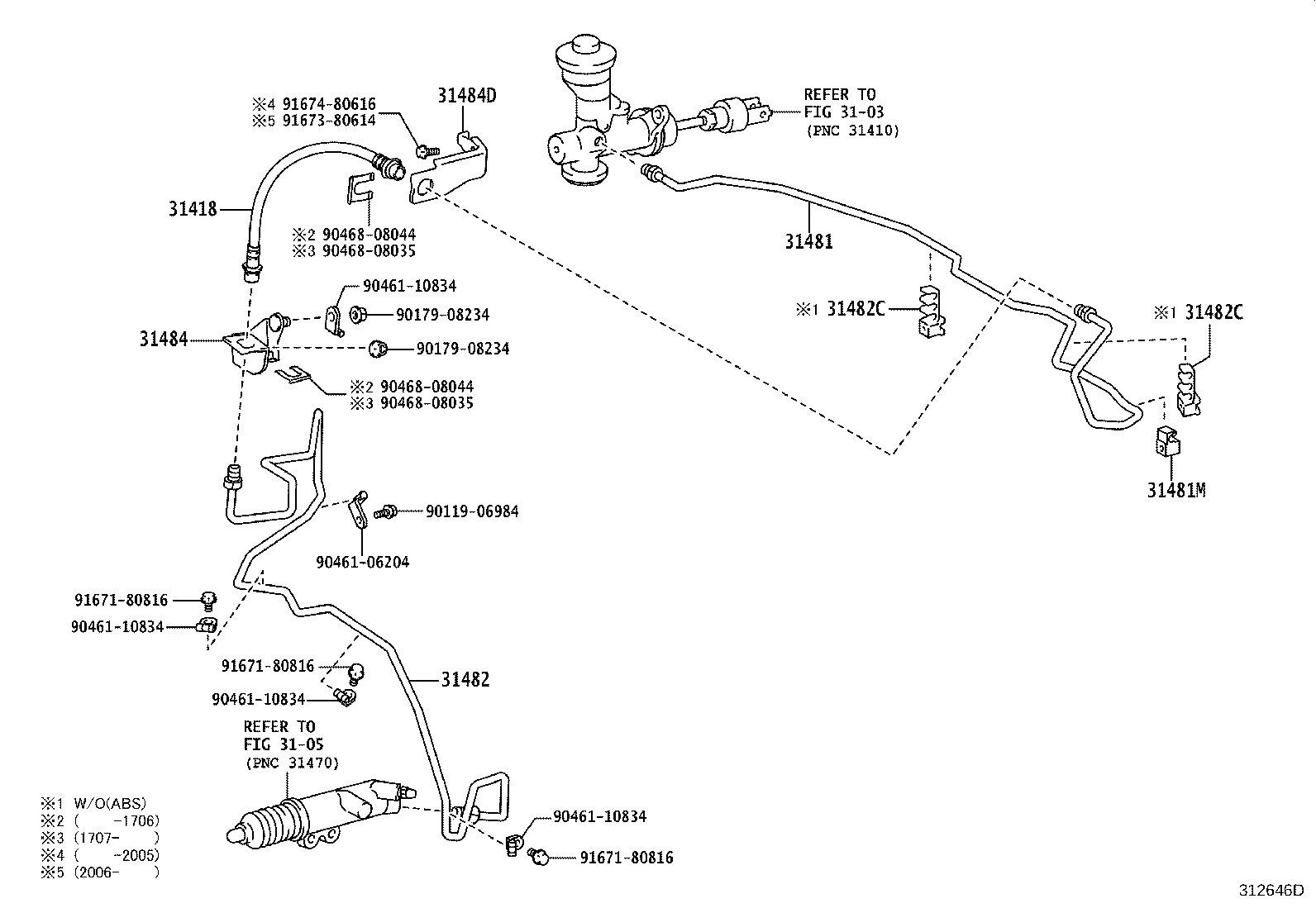

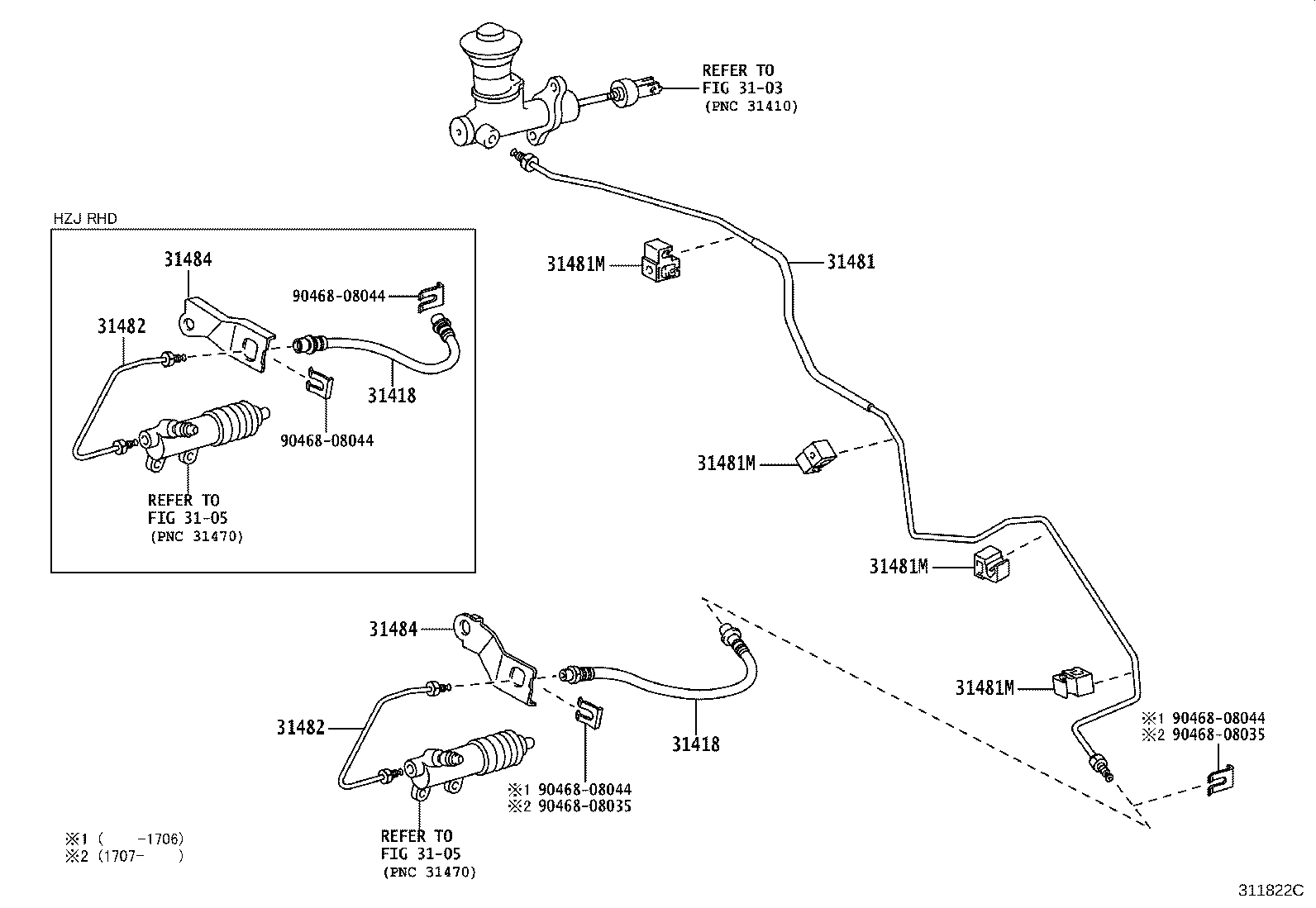

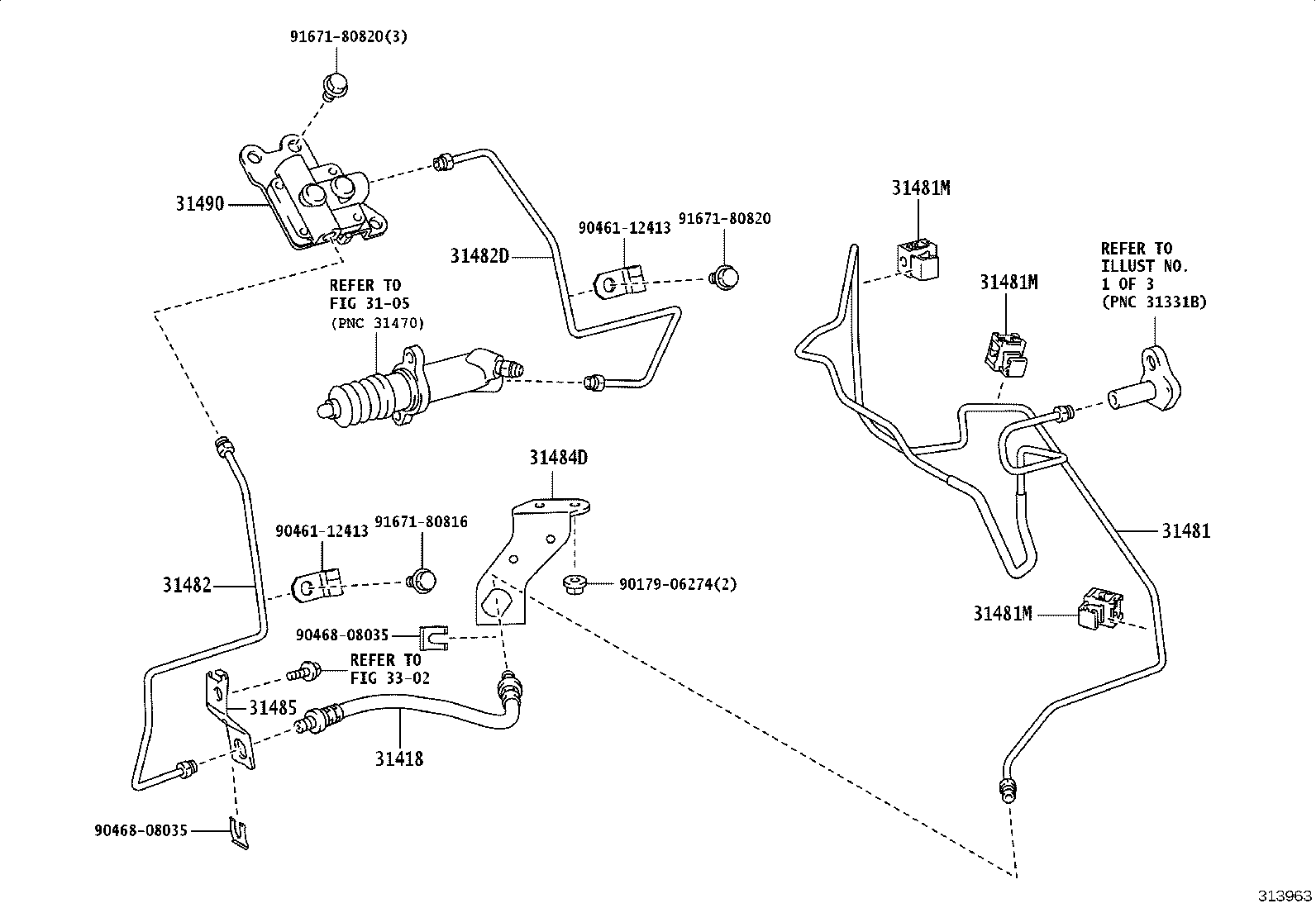

31418 Hose, Clutch
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481J Tube, Clutch Master Cylinder TO 2 Way
31481M Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31482C Clamp(FOR CLUTCH TUBE)
31482D Tube, Clutch Release Cylinder TO Accumulator
31483B Tube, Accumulator TO Flexible Hose
31483D Clamp(FOR ACCUMULATOR TO FLEXIBLE HOSE TUBE)
31484 Bracket, Flexible Hose(FOR CLUTCH)
31484D Bracket, Clutch Tube, NO.2
31485 Bracket, Flexible Hose, NO.2(FOR CLUTCH)

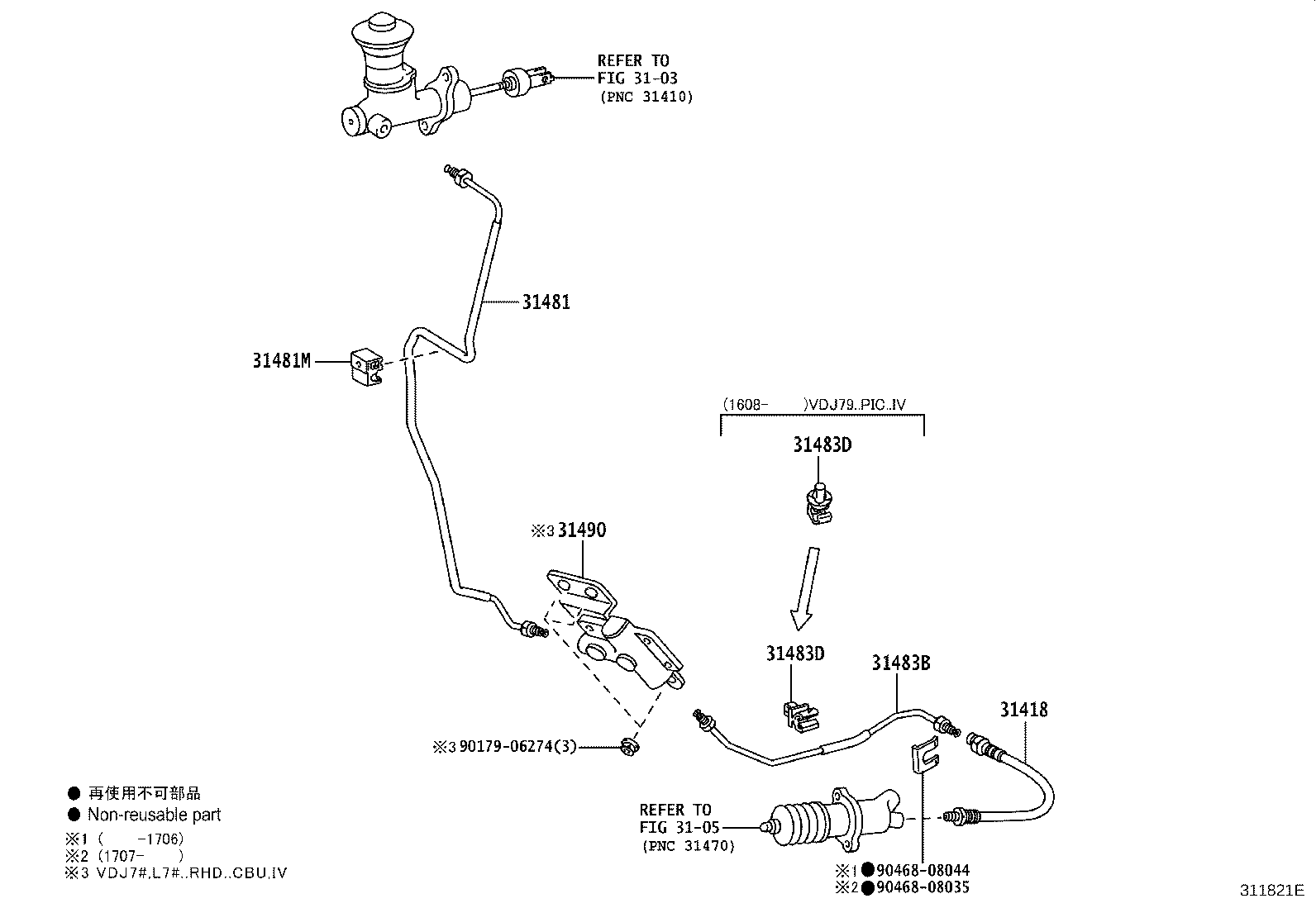

31490 Accumulator Assy, Clutch
31495 Way, Clutch Tube
55105D Bracket Sub-assy, Clutch Pedal
55107A Support Sub-assy, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
