Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

13 part groups · 11 illustrations

Illustrations

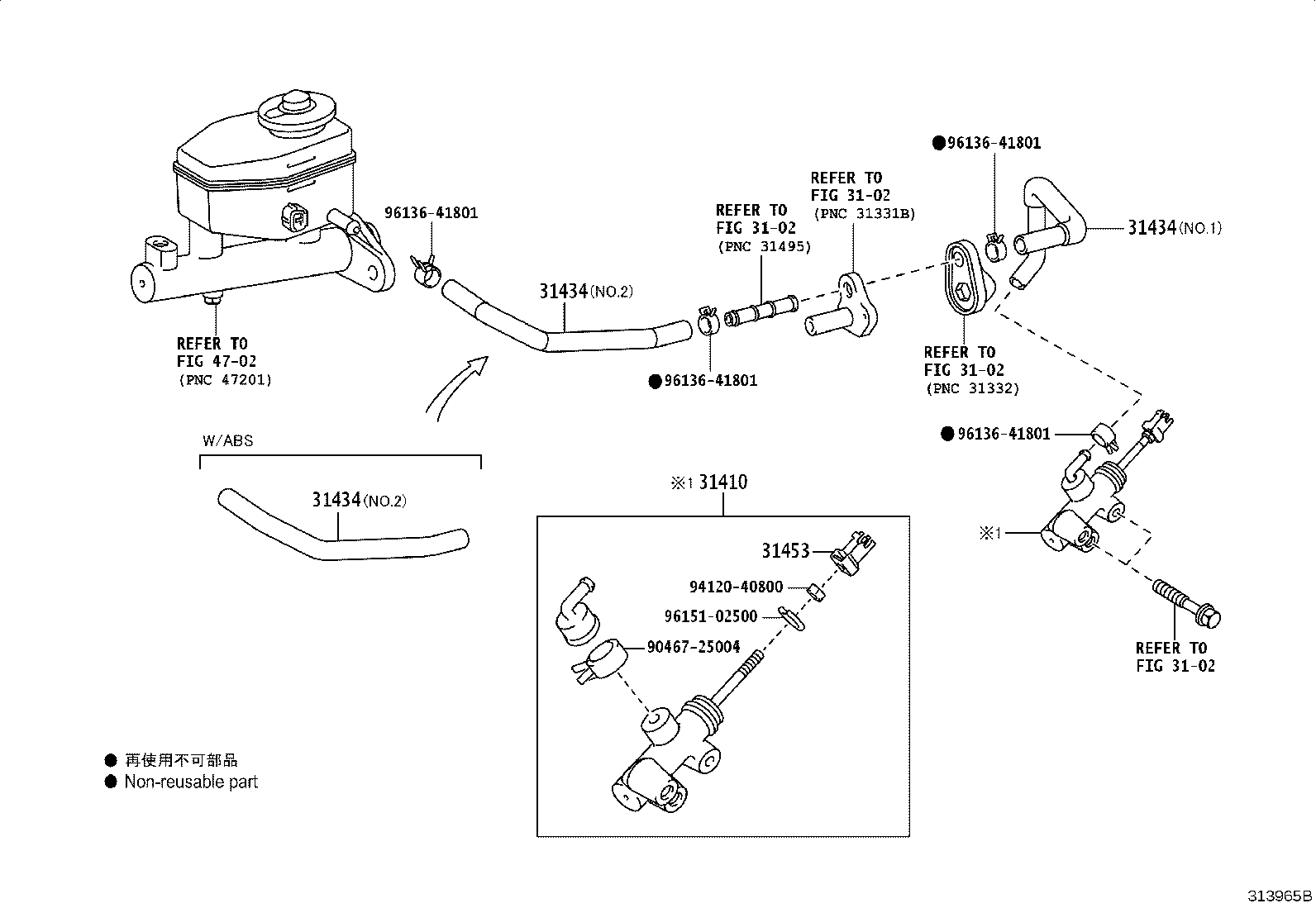

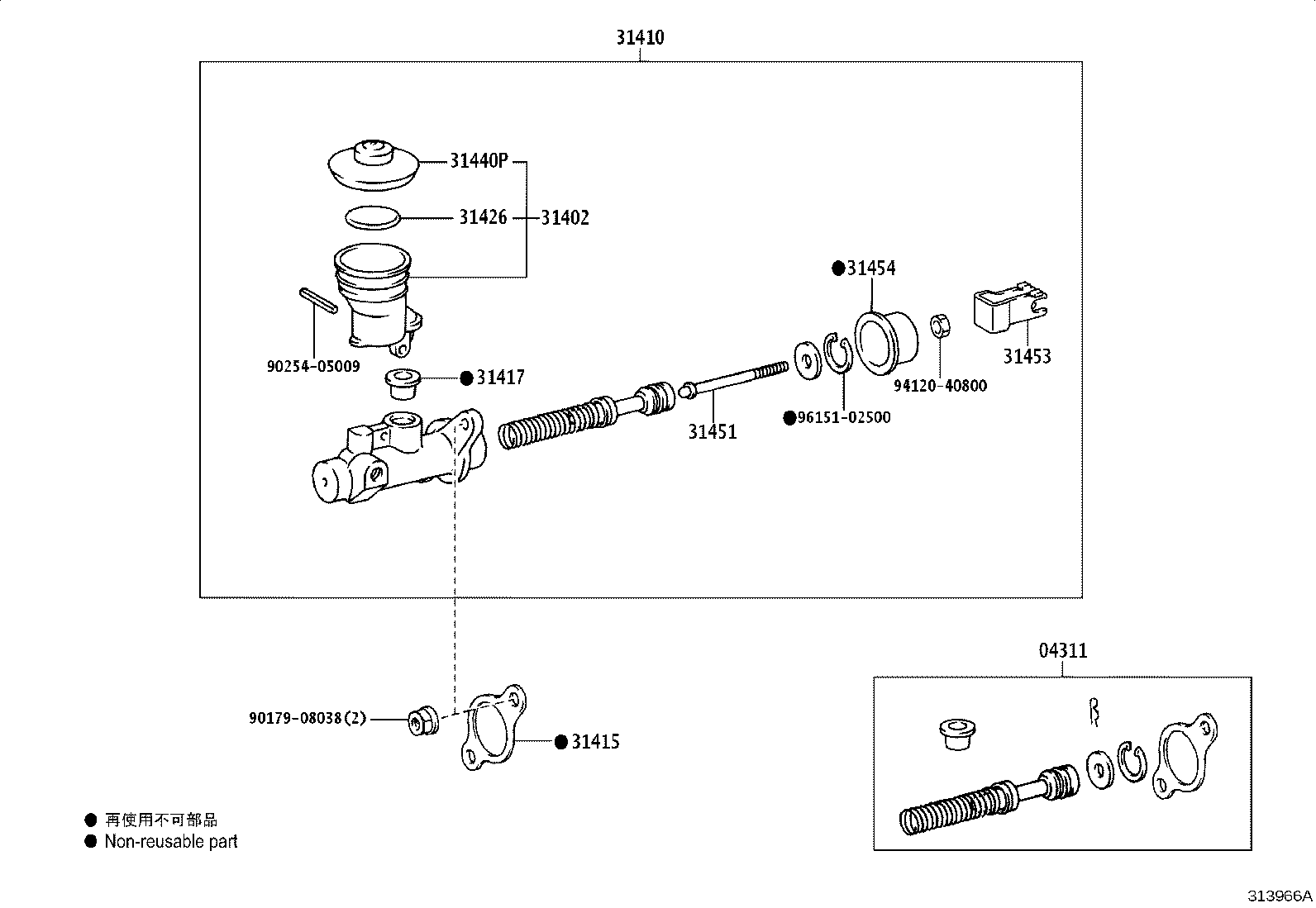

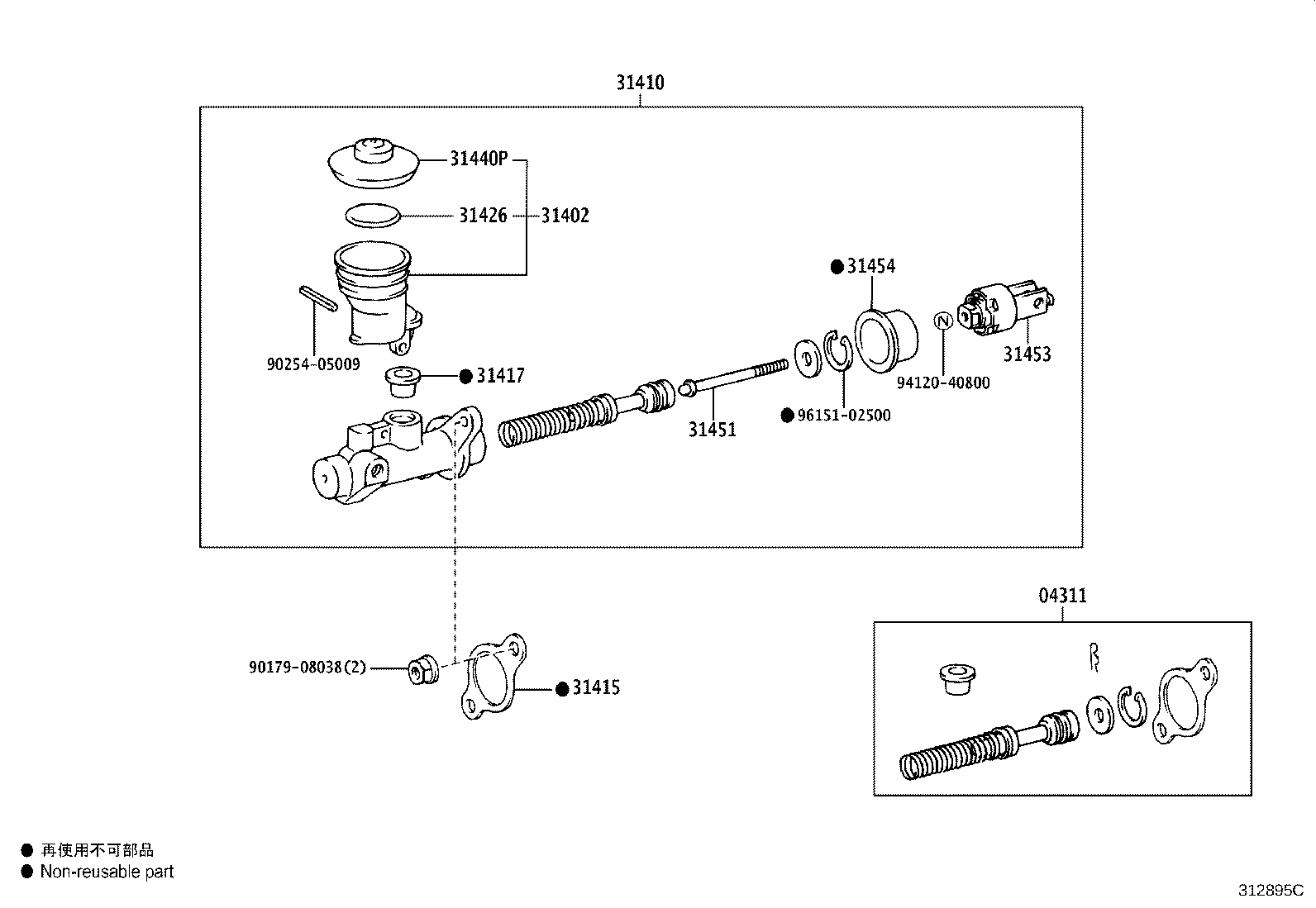

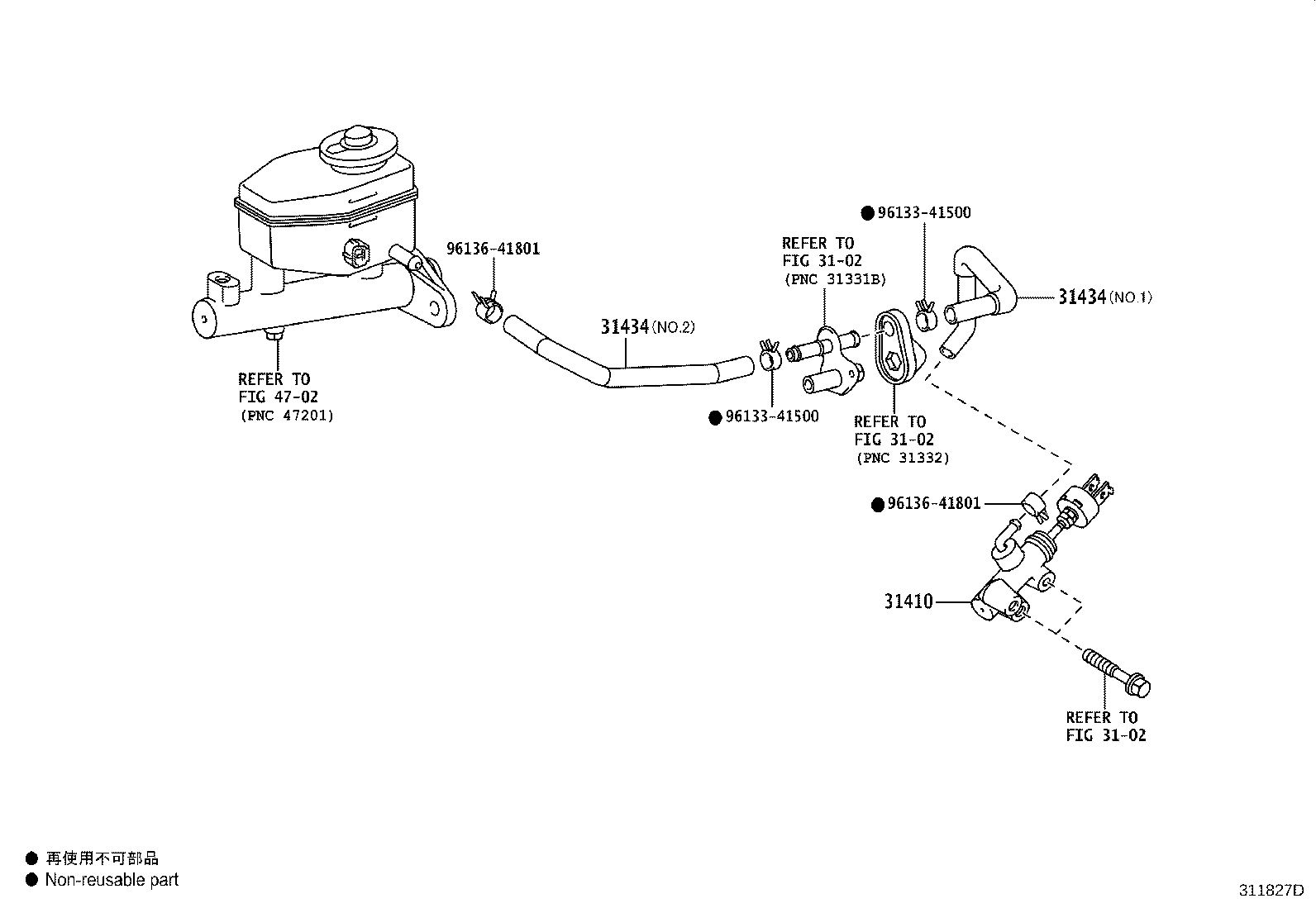

Figure 312894C 312894C 2007-01 → — Figure 312895C 312895C 2007-01 → — Figure 312895C 312895C 2007-01 → — Figure 312895C 312895C 2023-09 → — Figure 313966A 313966A 2024-10 → — Figure 311827D 311827D 2007-01 → — Figure 311827D 311827D 2007-01 → — Figure 311827D 311827D 2023-09 → — Figure 311827D 311827D 2023-09 → — Figure 311827D 311827D 2024-10 → — Figure 313965B 313965B 2024-10 → —

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
31402 Reservoir Sub-assy, Clutch Master Cylinder
31410 Cylinder Assy, Clutch Master
31415 Gasket, Clutch Master Cylinder
31417 Grommet, Clutch Reservoir
31426 Float, Clutch Master Cylinder Reservoir
31434 Tube, Clutch Reservoir
31440P Cap Assy, Clutch Master Cylinder Reservoir Filler
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
31490F Accumulator Assy, Master Cylinder
31490G Gasket(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
