Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Release Cylinder

7 part groups · 8 illustrations

Illustrations

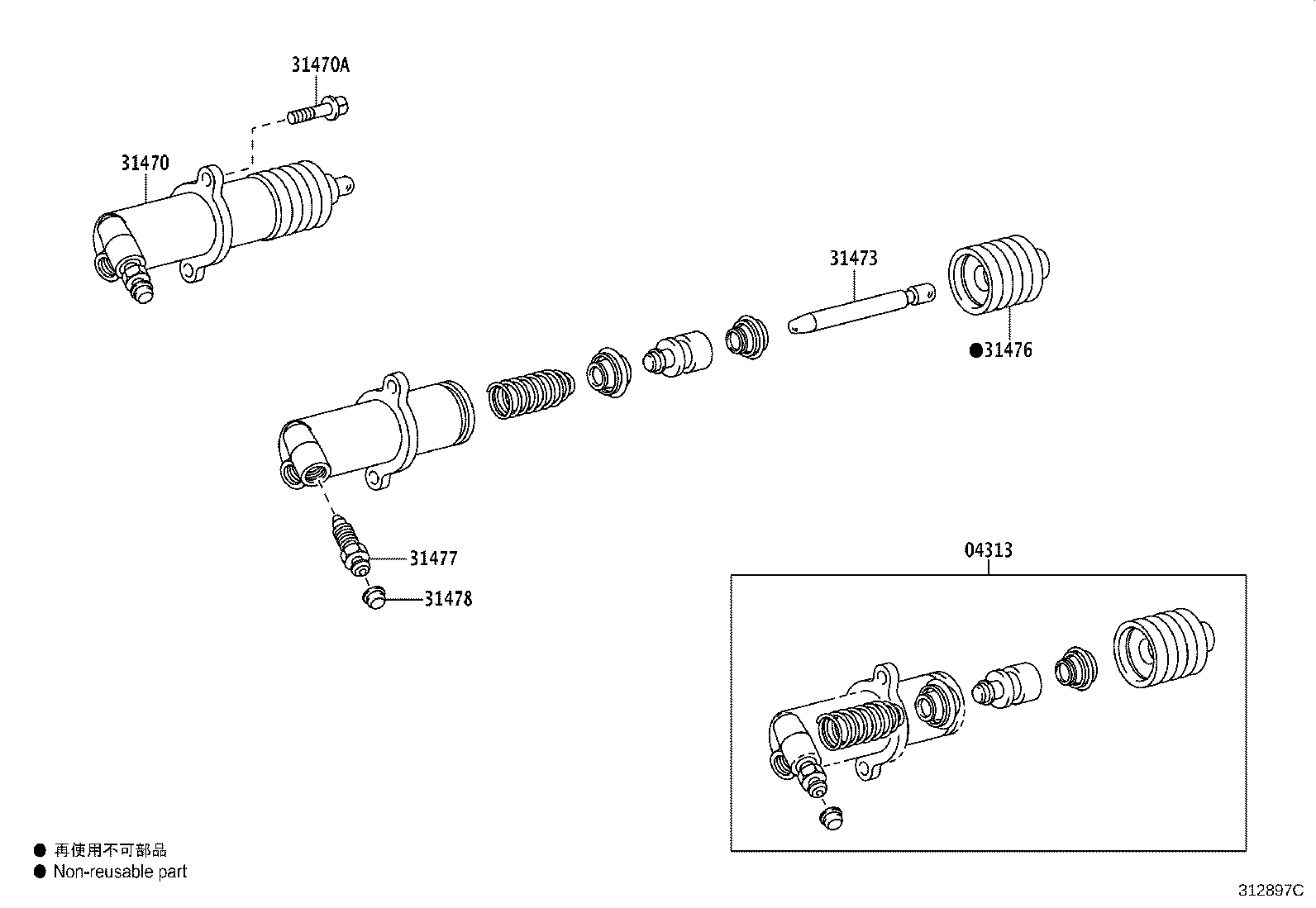

Figure 312896C 312896C 2007-01 → — Figure 312897C 312897C 2007-01 → — Figure 312897C 312897C 2007-01 → — Figure 312897C 312897C 2023-09 → — Figure 312898C 312898C 2009-07 → — Figure 312898C 312898C 2023-09 → — Figure 312898C 312898C 2024-10 → — Figure 313967A 313967A 2024-10 → —

Part groups

PNCDescription
04313 Cylinder Kit, Clutch Release
31470 Cylinder Assy, Clutch Release
31470A Bolt(FOR CLUTCH RELEASE CYLINDER SETTING)
31473 Rod, Clutch Release Cylinder Push, NO.1
31476 Boot, Clutch Release Cylinder
31477 Plug, Bleeder(FOR RELEASE CYLINDER)
31478 Cap, Bleeder Plug(FOR RELEASE CYLINDER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
