Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 6 illustrations

Illustrations

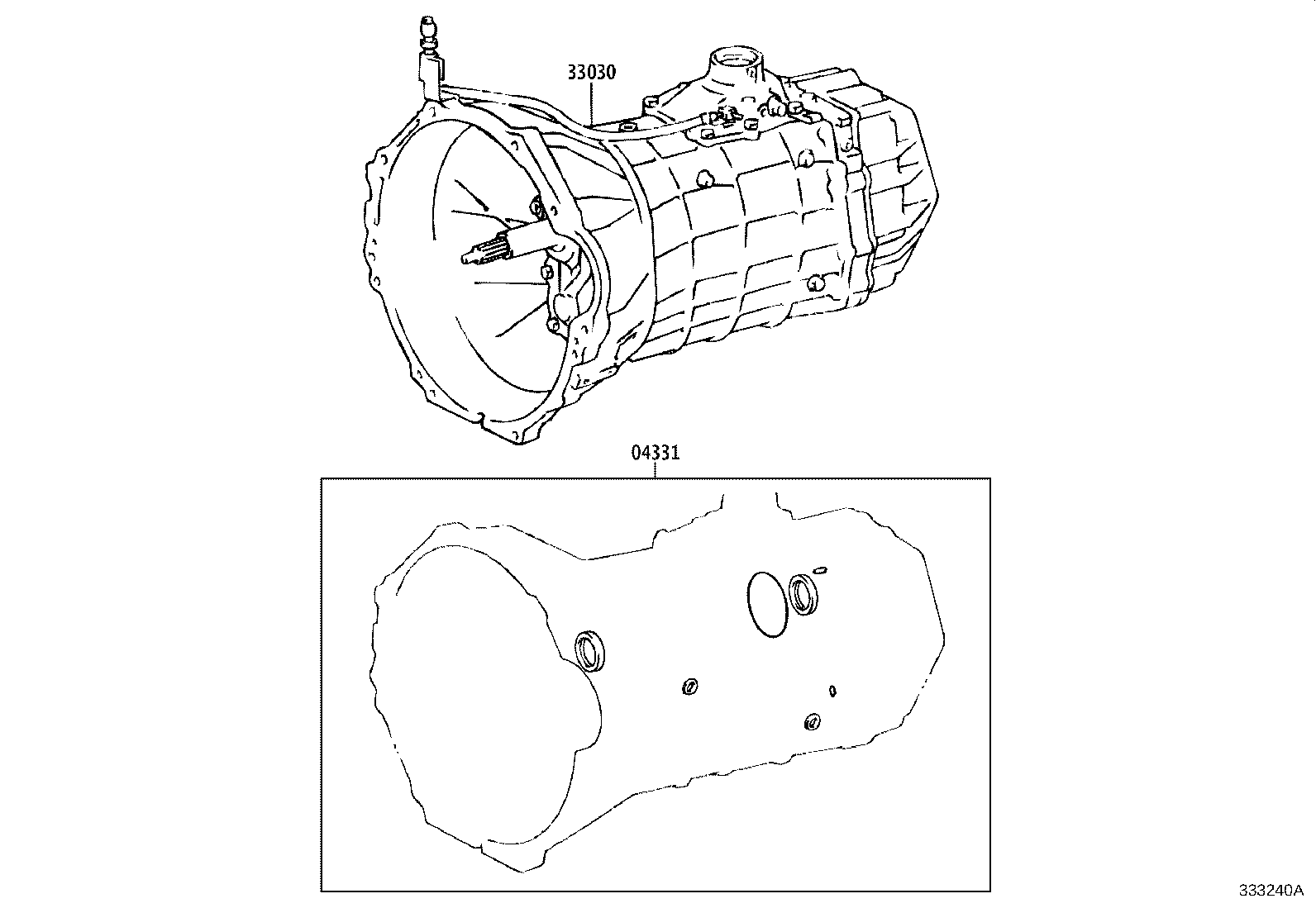

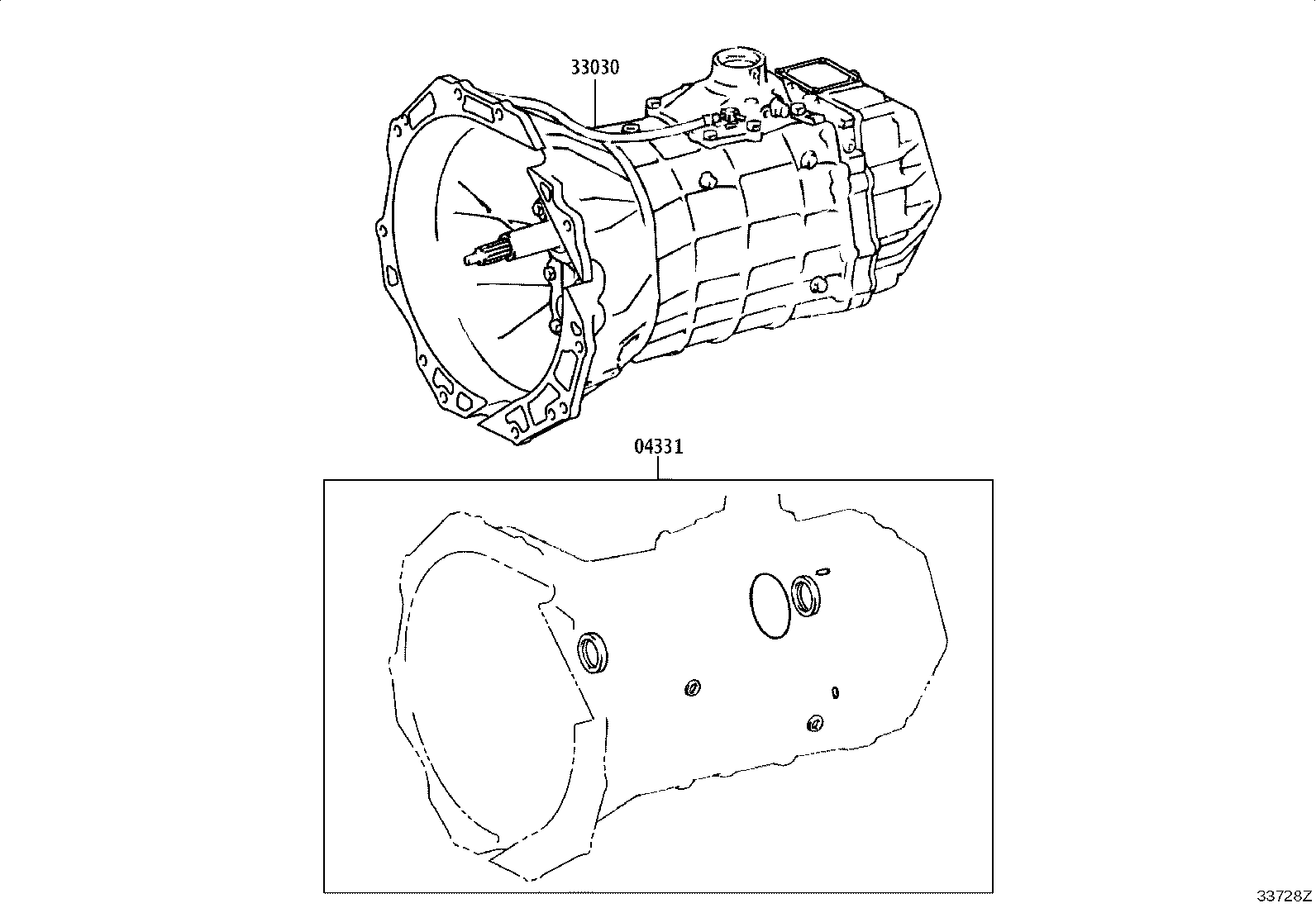

Figure 331106B 331106B 2007-01 → — Figure 333240A 333240A 2007-01 → — Figure 333240A 333240A 2007-01 → — Figure 333240A 333240A 2023-09 → — Figure 333240A 333240A 2024-10 → — Figure 33728Z 33728Z 2024-10 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
