Toyota Land Cruiser
2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States
Supported model
Data version 2024-10

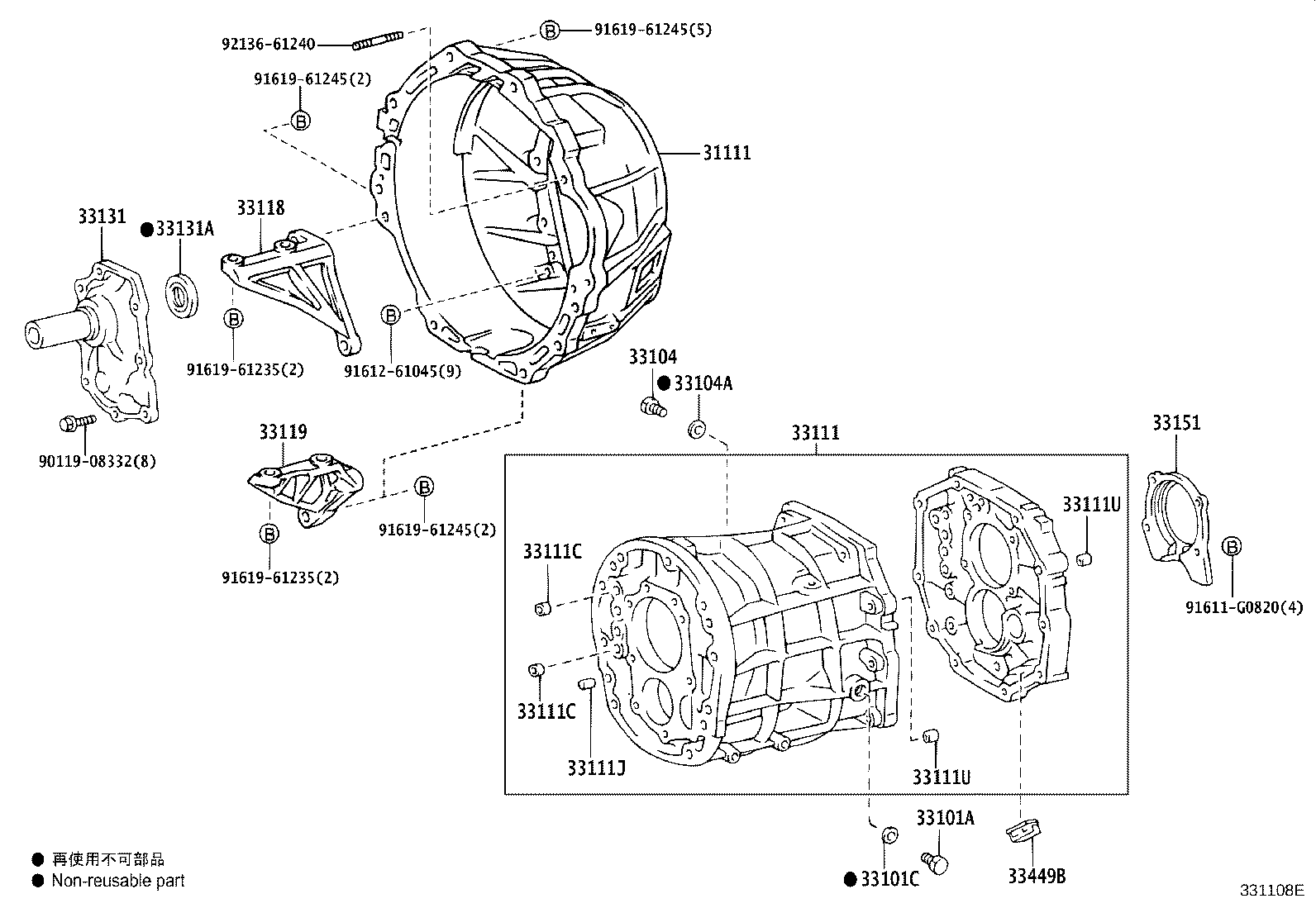

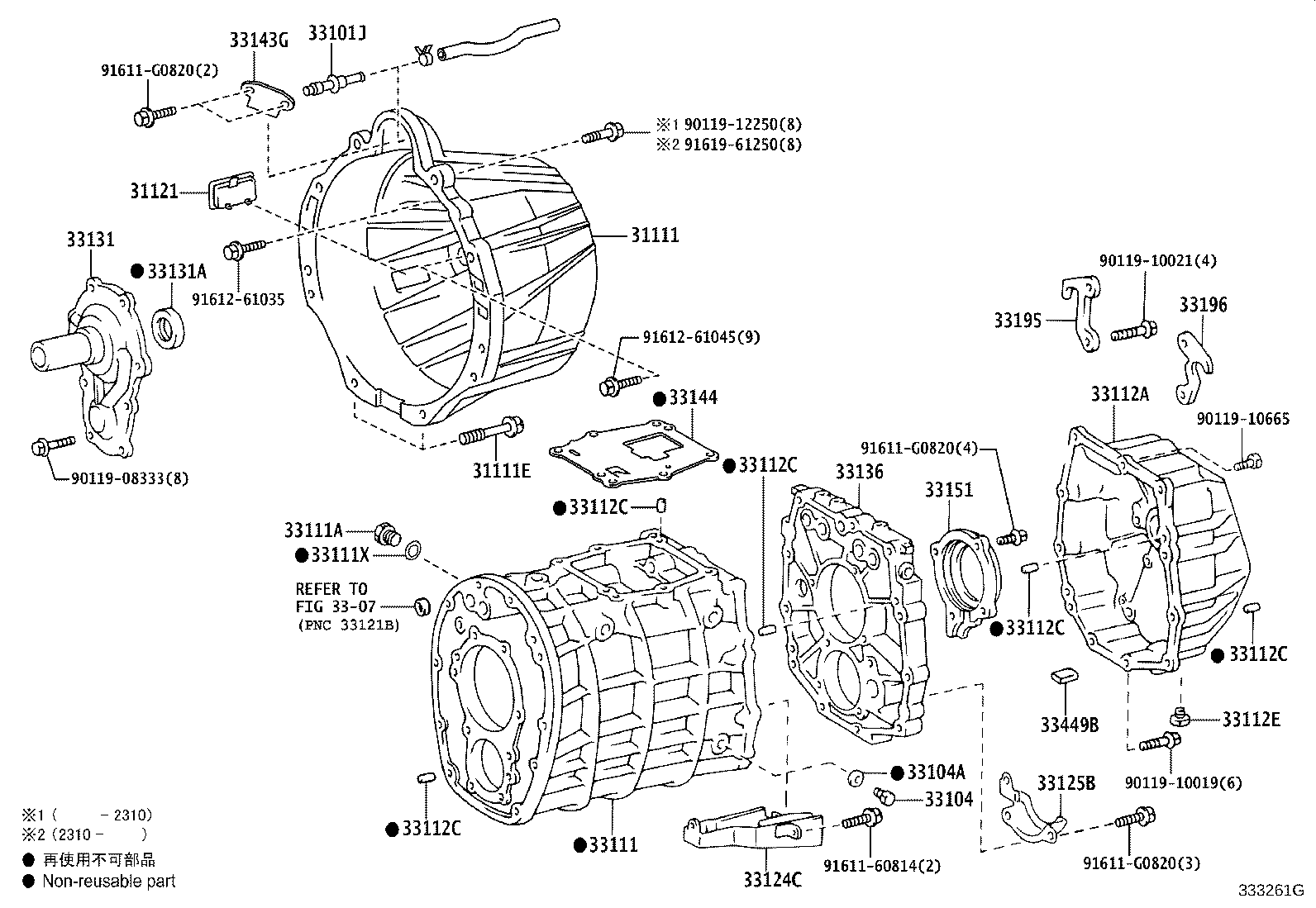

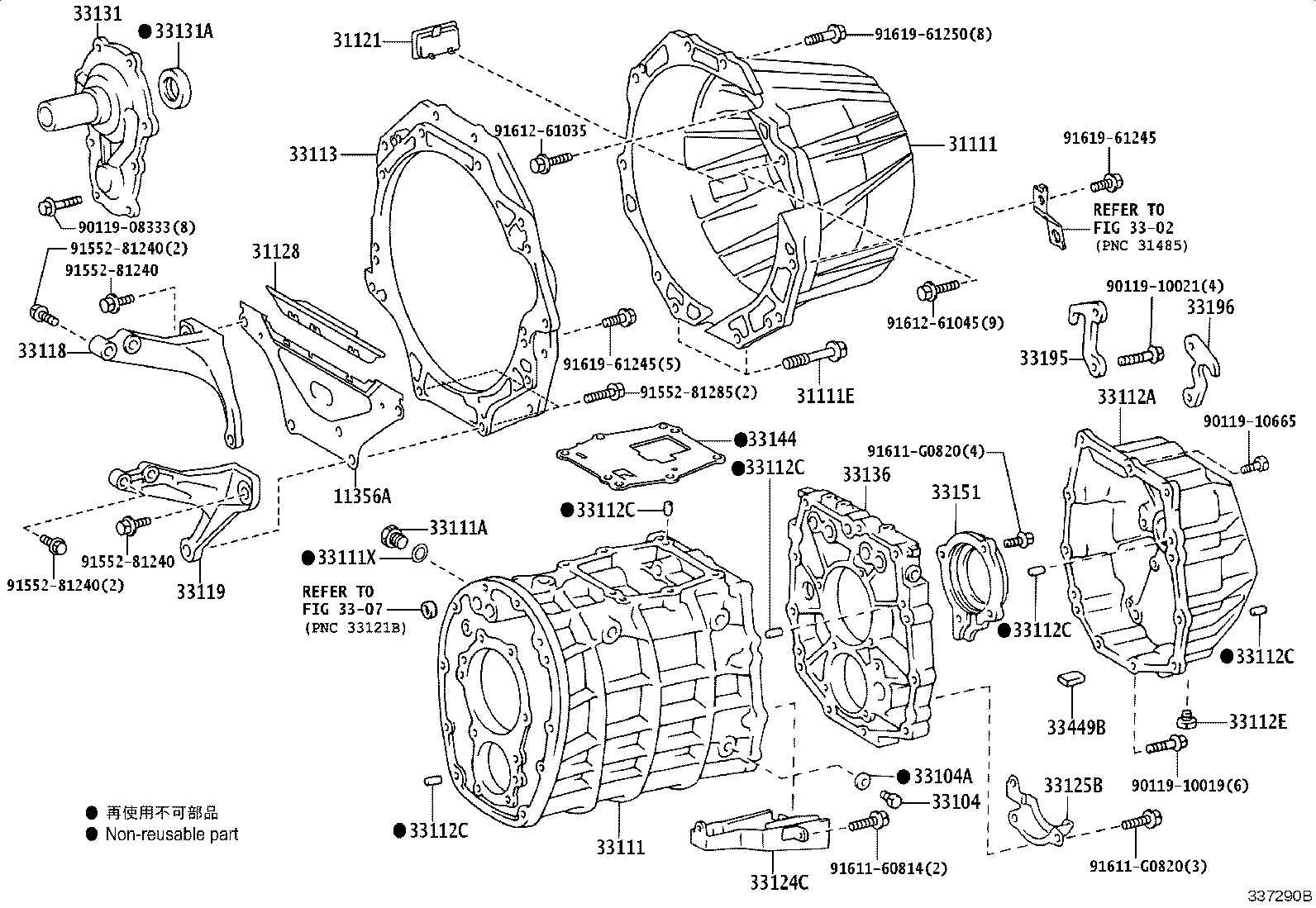

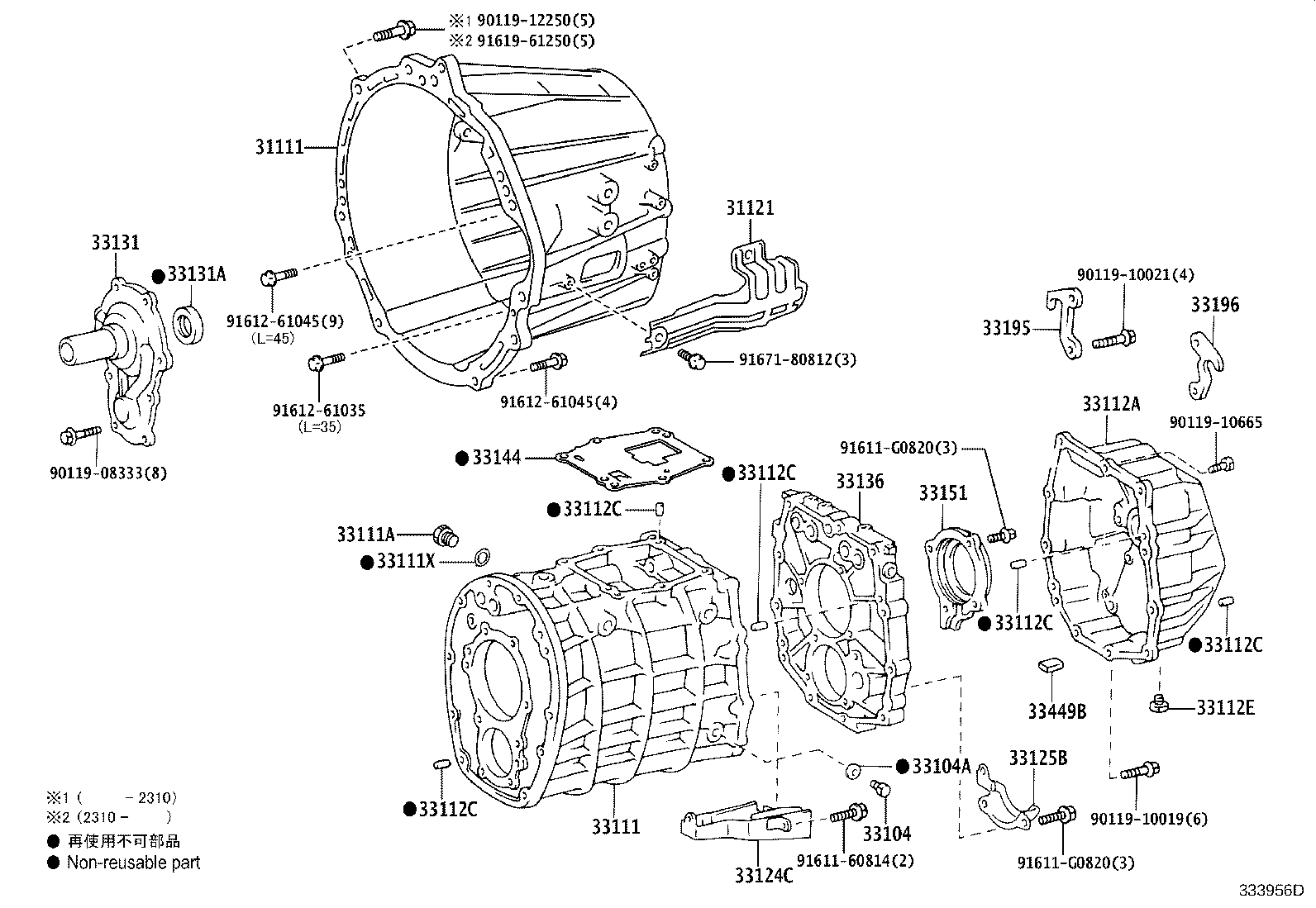

Clutch Housing & Transmission Case (MTM)
33 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 11356A | Plate, Rear End, NO.2 |
| 31111 | Housing, Clutch |
| 31111E | Bolt(FOR TRANSAXLE & ENGINE SETTING) |
| 31121 | Cover, Clutch Housing, NO.1 |
| 31128 | Cover, Clutch Housing Under |
| 33101A | Plug(FOR MANUAL TRANSMISSION FILLER) |
| 33101C | Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) |
| 33101J | Plug, Breather |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33104A | Gasket, Drain Plug(MTM) |
| 33111 | Case, Manual Transmission |
| 33111A | Plug, Manual Transmission Case |
| 33111C | Plug(FOR TRANSMISSION CASE) |
| 33111J | Pin, Straight(FOR MANUAL TRANSMISSION CASE) |
| 33111U | Pin, Ring(FOR MANUAL TRANSMISSION CASE) |
| 33111X | Gasket, Transmission Case Plug |
| 33112A | Adapter, Transfer |
| 33112C | Pin, Straight(FOR TRANSFER ADAPTER) |
| 33112E | Plug, W/Head Straight Screw(FOR TRANSFER ADAPTER) |
| 33113 | Adapter, Transmission Case, Front |
| 33118 | Plate, Stiffener, RH(MTM) |
| 33119 | Plate, Stiffener, LH(MTM) |
| 33124C | Pipe, Oil Receiver, NO.1(MTM) |
| 33125B | Receiver, Manual Transmission Case |
| 33131 | Retainer, Bearing, Front(MTM) |
| 33131A | Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) |
| 33136 | Plate, Transmission Intermediate |
| 33143G | Baffle, Transmission Oil |
| 33144 | Deflector, Extension Housing Oil(MTM) |
| 33151 | Retainer, Output Shaft Rear Bearing(MTM) |
| 33195 | Hanger, Transmission Case, NO.1 |
| 33196 | Hanger, Transmission Case, NO.2 |
| 33449B | Magnet, Transmission |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
