Toyota Land Cruiser
2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States
Supported model
Data version 2024-10

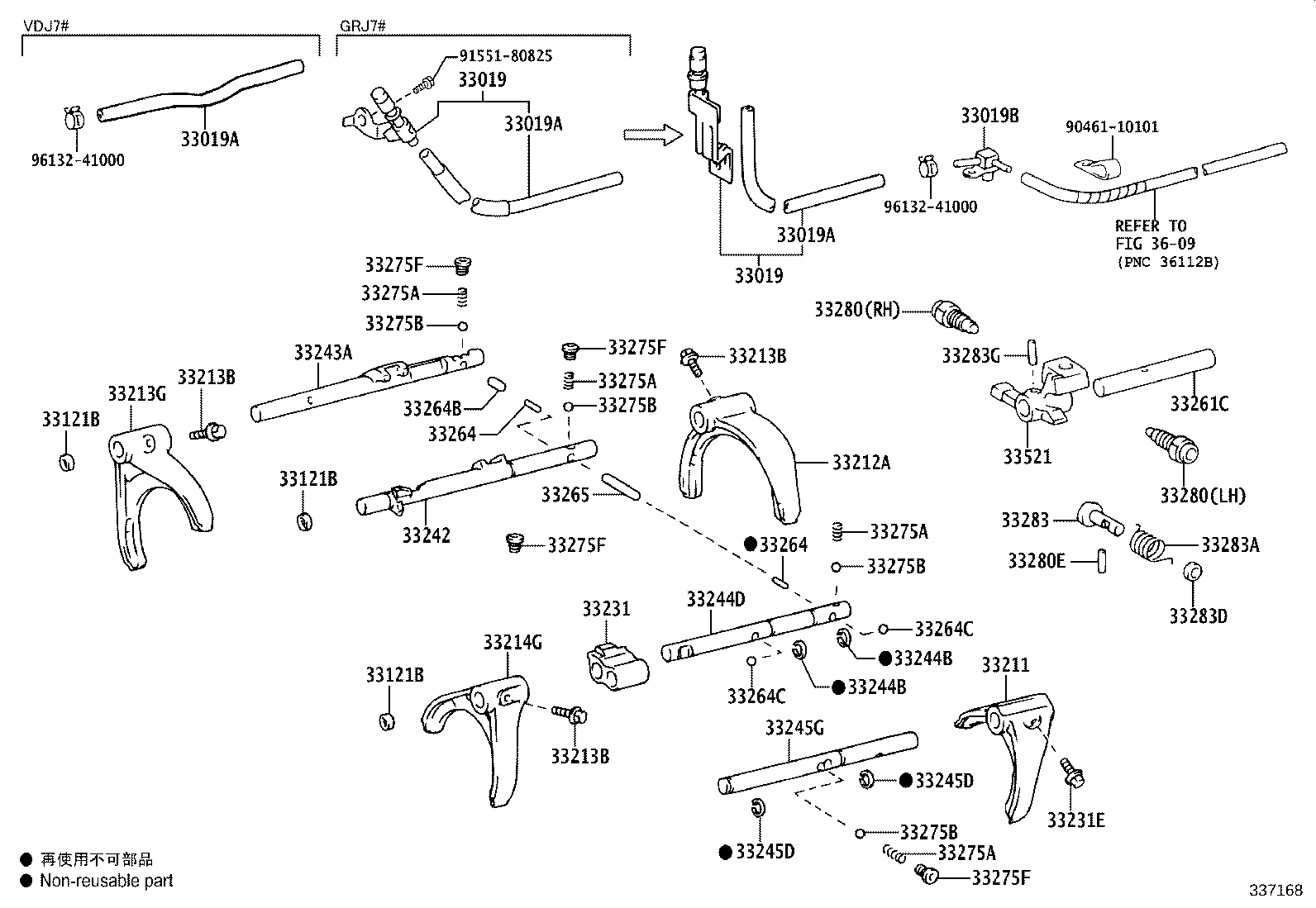

Gear Shift Fork & Lever Shaft (MTM)
42 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 33019 | Breather Sub-assy, Transmission |
| 33019A | Hose(FOR TRANSMISSION BREATHER) |
| 33019B | Way(FOR TRANSMISSION BREATHER HOSE) |
| 33121B | Plug, Expansion OR Tight(FOR TRANSMISSION CASE COVER) |
| 33211 | Fork, Reverse Shift |
| 33211C | Spring, Compression(FOR REVERSE SHIFT FORK RETURN) |
| 33211D | Ball(FOR REVERSE SHIFT FORK) |
| 33212A | Fork, Gear Shift, NO.1 |
| 33213A | Pin, Slotted Spring(FOR SHIFT FORK SET) |
| 33213B | Bolt(FOR SHIFT FORK SET) |
| 33213G | Fork, Gear Shift, NO.2 |
| 33214G | Fork, Gear Shift, NO.3 |
| 33221 | Arm, Reverse Shift |
| 33221E | Ring(FOR REVERSE SHIFT ARM END SHAFT) |
| 33228 | Bracket, Reverse Shift Arm |
| 33231 | Head, Reverse Shift |
| 33231E | Bolt(FOR REVERSE SHIFT HEAD) |
| 33241 | Shaft, Reverse Shift Fork |
| 33242 | Shaft, Gear Shift Fork, NO.1 |
| 33242E | Ring, Shaft Snap (FOR SHIFT FORK SHAFT) |
| 33243A | Shaft, Gear Shift Fork, NO.2 |
| 33244B | Ring, Shaft Snap (FOR SHIFT FORK SHAFT) |
| 33244D | Shaft, Gear Shift Fork, NO.3 |
| 33245D | Ring, Shaft Snap (FOR 3RD & 4TH SHIFT FORK SHAFT) |
| 33245G | Shaft, Gear Shift Fork, NO.4 |
| 33261C | Shaft, Shift & Select Lever |
| 33264 | Pin, OR Ball, Shift Interlock, NO.1 |
| 33264B | Roller, NO.1 (FOR SHIFT INTERLOCK ) |
| 33264C | Ball (FOR SHIFT INTERLOCK) |
| 33265 | Pin, Shift Interlock, NO.2 |
| 33275A | Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE) |
| 33275B | Ball, Shaft Detent |
| 33275F | Plug (FOR SHIFT DETENT BALL) |
| 33280 | Pin Assy, Reverse Restrict |
| 33280E | Pin, Slotted Spring (FOR REVERSE RESTRICT PIN) |
| 33280F | Pin Assy, Reverse Restrict |
| 33283 | Pin, Reverse Restrict, NO.1 |
| 33283A | Spring, Compression (FOR REVERSE RESTRICT PIN) |
| 33283D | Plug (FOR REVERSE RESTRICT PIN) |
| 33283G | Pin, Slotted Spring (FOR REVERSE RESTRICT PIN) |
| 33521 | Housing, Shift Lever |
| 33521F | Pin OR Bolt (FOR SHIFT LEVER HOUSING) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
