Toyota Land Cruiser
2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States
Supported model
Data version 2024-10

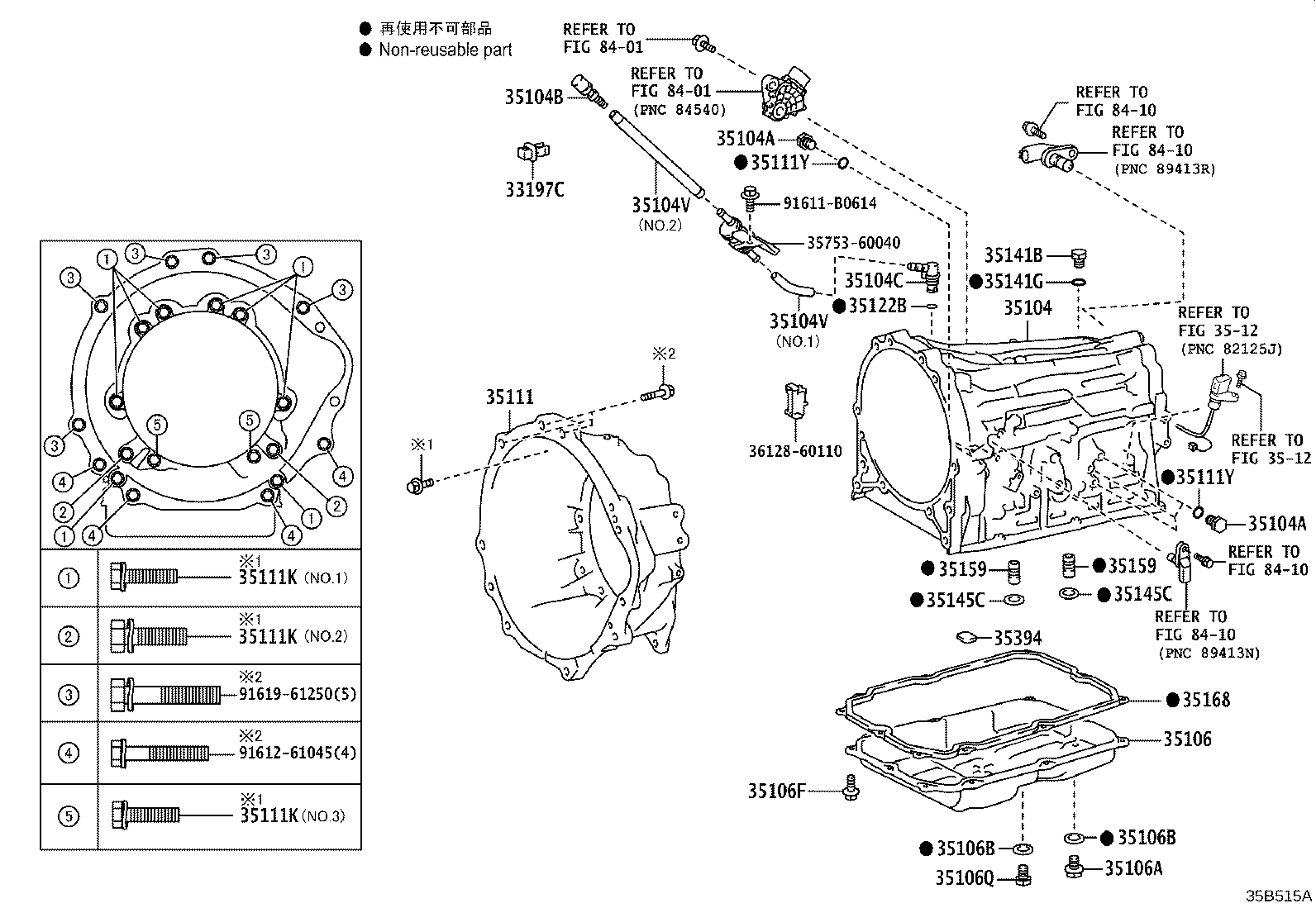

Transmission Case & Oil Pan (ATM)
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11356B | Plate, Rear End, NO.2 |
| 33118B | Plate, Stiffener, RH(ATM) |
| 33119B | Plate, Stiffener, LH(ATM) |
| 33197C | Clamp, Transmission Breather |
| 35104 | Case Sub-assy, Automatic Transmission |
| 35104A | Plug, Automatic Transmission Case |
| 35104B | Plug, Breather, NO.1 (ATM) |
| 35104C | Plug, Breather, NO.2 (ATM) |
| 35104V | Hose (FOR BREATHER PLUG) |
| 35106 | Pan Sub-assy, Automatic Transmission Oil |
| 35106A | Plug Sub-assy, Drain (ATM) |
| 35106B | Gasket, Drain Plug (ATM) |
| 35106F | Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN) |
| 35106Q | Plug (FOR AUTOMATIC TRANSMISSION OIL PAN) |
| 35111 | Housing, Automatic Transmission |
| 35111K | Bolt (FOR TRANSMISSION HOUSING & CASE SETTING) |
| 35111Y | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35122B | Ring, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) |
| 3512AD | Bracket, Transmission Breather |
| 35141B | Plug (FOR AUTOMATIC TRANSMISSION CASE) |
| 35141G | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35145C | Gasket, Transaxle Case |
| 35159 | Gasket, Brake Drum |
| 35168 | Gasket, Automatic Transmission Oil Pan |
| 35394 | Magnet, Oil Cleaner (FOR TRANSMISSION) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
