Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

8 part groups · 12 illustrations

Illustrations

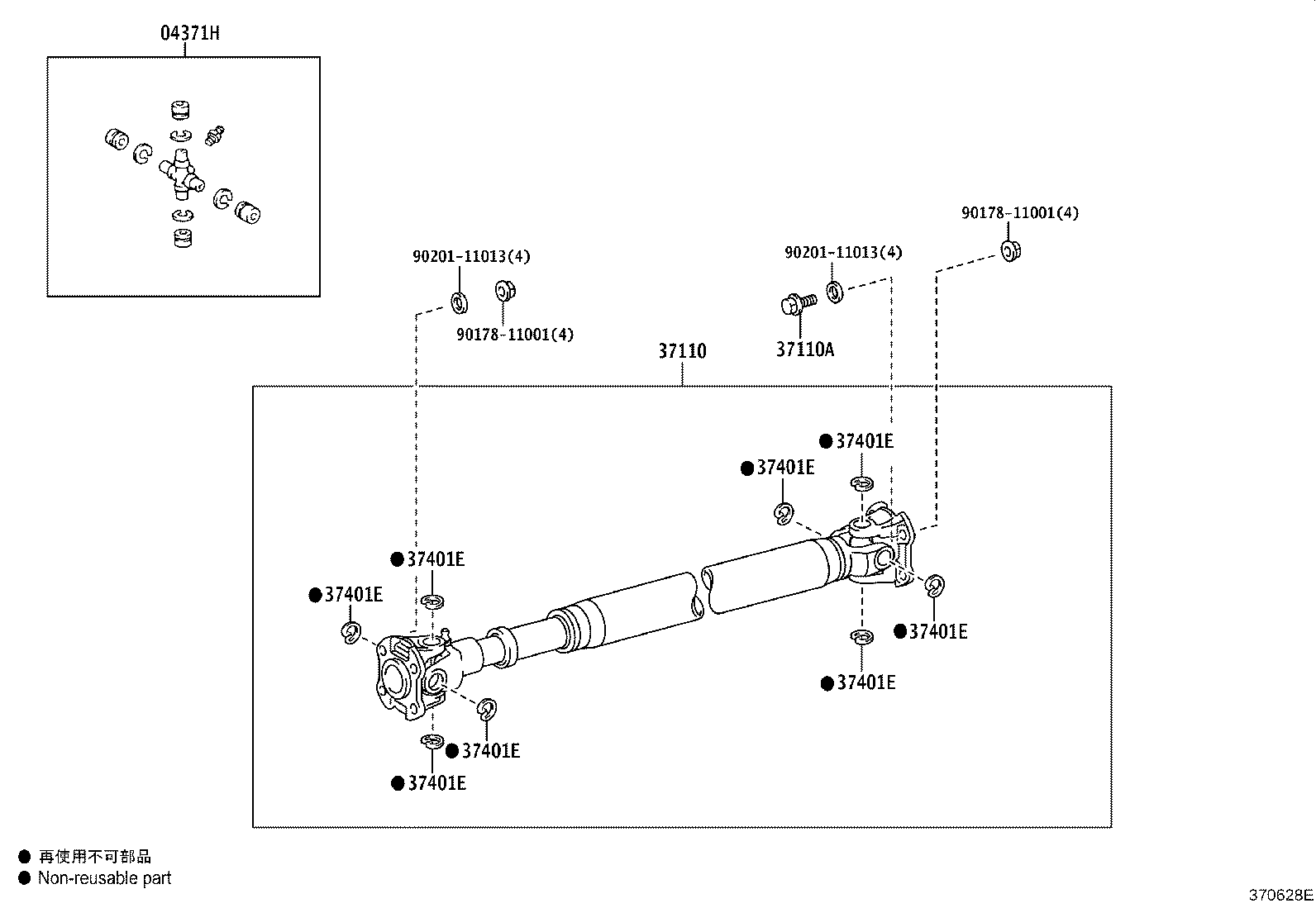

Figure 370627E 370627E 2007-01 → — Figure 370627E 370627E 2007-01 → — Figure 370627E 370627E 2007-01 → — Figure 370627E 370627E 2023-09 → — Figure 370627E 370627E 2023-09 → — Figure 370627E 370627E 2024-10 → — Figure 370628E 370628E 2007-01 → — Figure 370628E 370628E 2007-01 → — Figure 370628E 370628E 2007-01 → — Figure 370628E 370628E 2023-09 → — Figure 370628E 370628E 2023-09 → — Figure 370628E 370628E 2024-10 → —

Part groups

PNCDescription
04371G Spider Kit, Front Propeller Shaft Universal Joint
04371H Spider Kit, Rear Propeller Shaft Universal Joint
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37140 Shaft Assy, Propeller, Front
37140A Bolt (F0R FRONT PROPELLER SHAFT)
37401D Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
37401E Ring, Snap (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
