Toyota Land Cruiser
2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States
Supported model
Data version 2024-10
Rear Axle Housing & Differential
60 part groups · 12 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 04412 | Gasket Kit, Rear Differential Carrier |

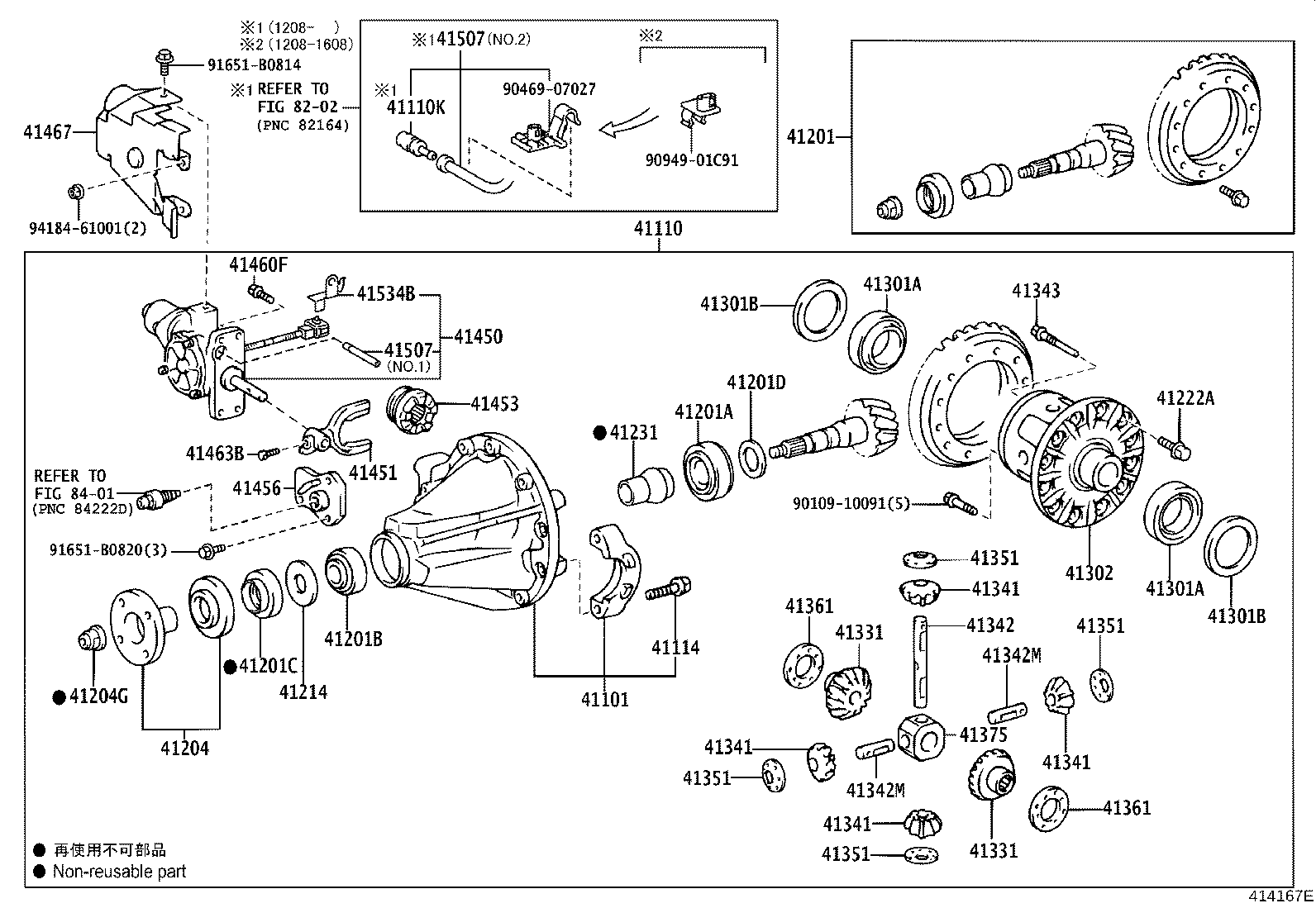

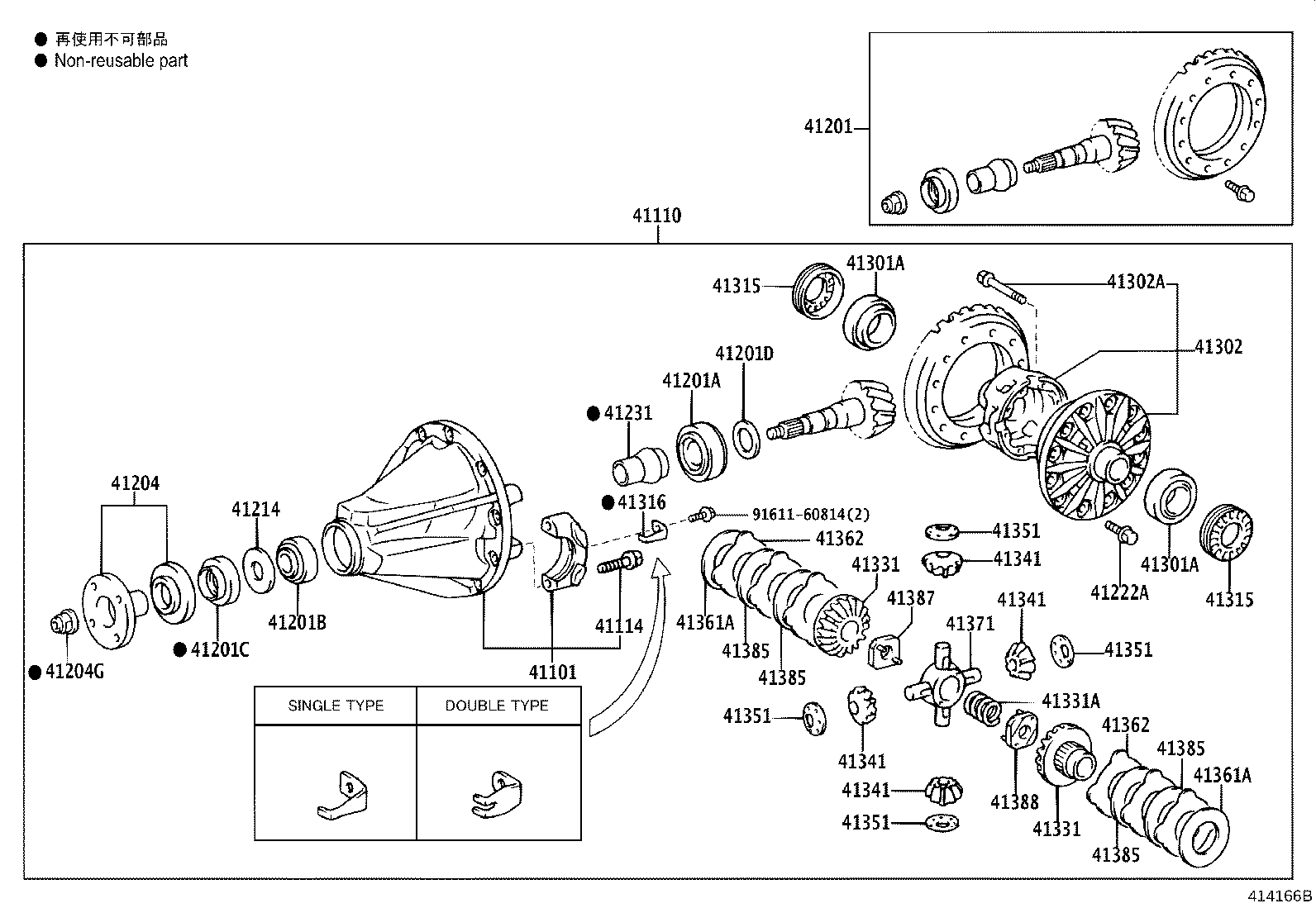

| 41101 | Carrier Sub-assy, Differential, Rear |
| 41110 | Carrier Assy, Differential, Rear |
| 41110A | Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) |
| 41110K | Plug, Breather (FOR REAR DIFFERENTIAL) |
| 41114 | Bolt, Rear Differential Bearing Cap |
| 41201 | Final Gear Kit, Differential, Rear |
| 41201A | Bearing (FOR REAR DRIVE PINION REAR) |
| 41201B | Bearing (FOR REAR DRIVE PINION FRONT) |
| 41201C | Seal, Oil (FOR REAR DIFFERENTIAL CARRIER) |
| 41201D | Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION) |
| 41204 | Flange Sub-assy, Rear Drive Pinion Companion, Rear |
| 41204G | Nut (FOR DRIVE PINION COMPANION FLANGE REAR) |
| 41214 | Slinger, Rear Differential Drive Pinion Oil |
| 41222A | Bolt (FOR REAR DIFFERENTIAL RING GEAR SET) |
| 41231 | Spacer, Rear Differential Drive Pinion Bearing |
| 41301A | Bearing(FOR REAR DIFFERENTIAL CASE) |
| 41301B | Washer(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING) |
| 41302 | Case Sub-assy, Rear Differential |
| 41302A | Bolt(FOR REAR DIFFERENTIAL CASE) |
| 41315 | Nut, Rear Differential Bearing Adjusting |
| 41316 | Lock, Rear Differential Bearing Adjusting Nut |
| 41331 | Gear, Rear Differential Side |
| 41331A | Spring, Compression |
| 41341 | Pinion, Rear Differential |
| 41342 | Shaft, Rear Differential Pinion |
| 41342M | Shaft, Rear Differential Pinion, NO.2 |
| 41343 | Pin, Rear Differential Pinion Shaft |
| 41351 | Washer, Rear Differential Pinion Thrust |
| 41361 | Washer, Rear Differential Side Gear Thrust, NO.1 |
| 41361A | Shim(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) |
| 41362 | Washer, Rear Differential Side Gear Thrust, NO.2 |
| 41371 | Spider, Rear Differential |
| 41375 | Holder, Rear Differential Pinion Shaft |
| 41385 | Plate, Clutch |
| 41387 | Retainer, Spring, RH |
| 41388 | Retainer, Spring, LH |
| 41450 | Actuator, Differential Lock Shift |
| 41451 | Fork, Rear Differential Lock Shift |
| 41453 | Sleeve, Rear Differential Lock |
| 41456 | Cover, Rear Differential Lock |
| 41460F | Bolt (FOR REAR DIFFERENTIAL LOCK CYLINDER SET) |
| 41463B | Bolt (FOR REAR DIFFERENTIAL LOCK SHIFT FORK SHAFT SET) |
| 41467 | Protector, Differential Lock Cylinder |
| 41507 | Tube, Rear Differential Lock Actuator Breather |
| 41534B | Bracket, Differential Breather |
| 41991 | Caution Plate, Rear Differential |

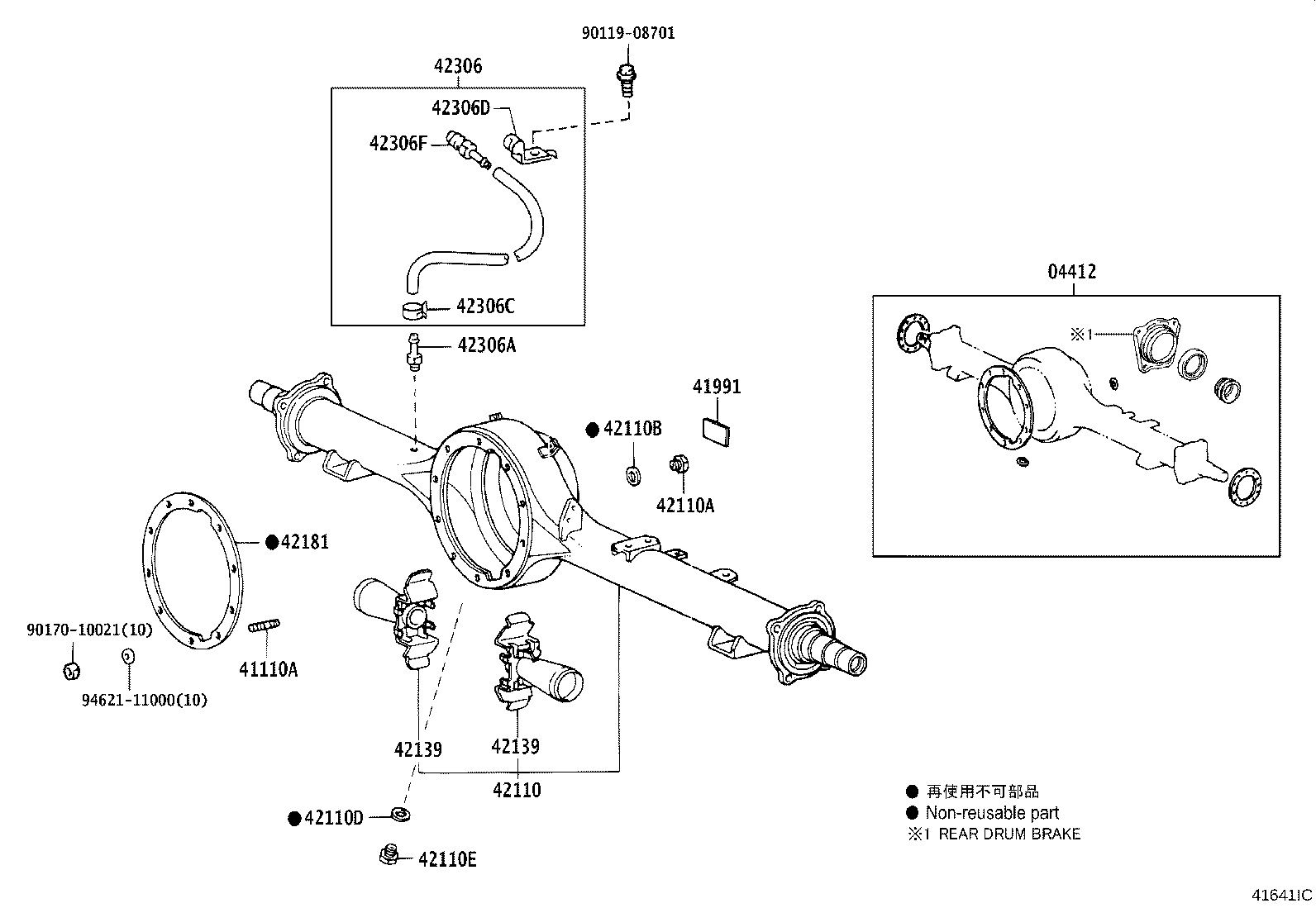

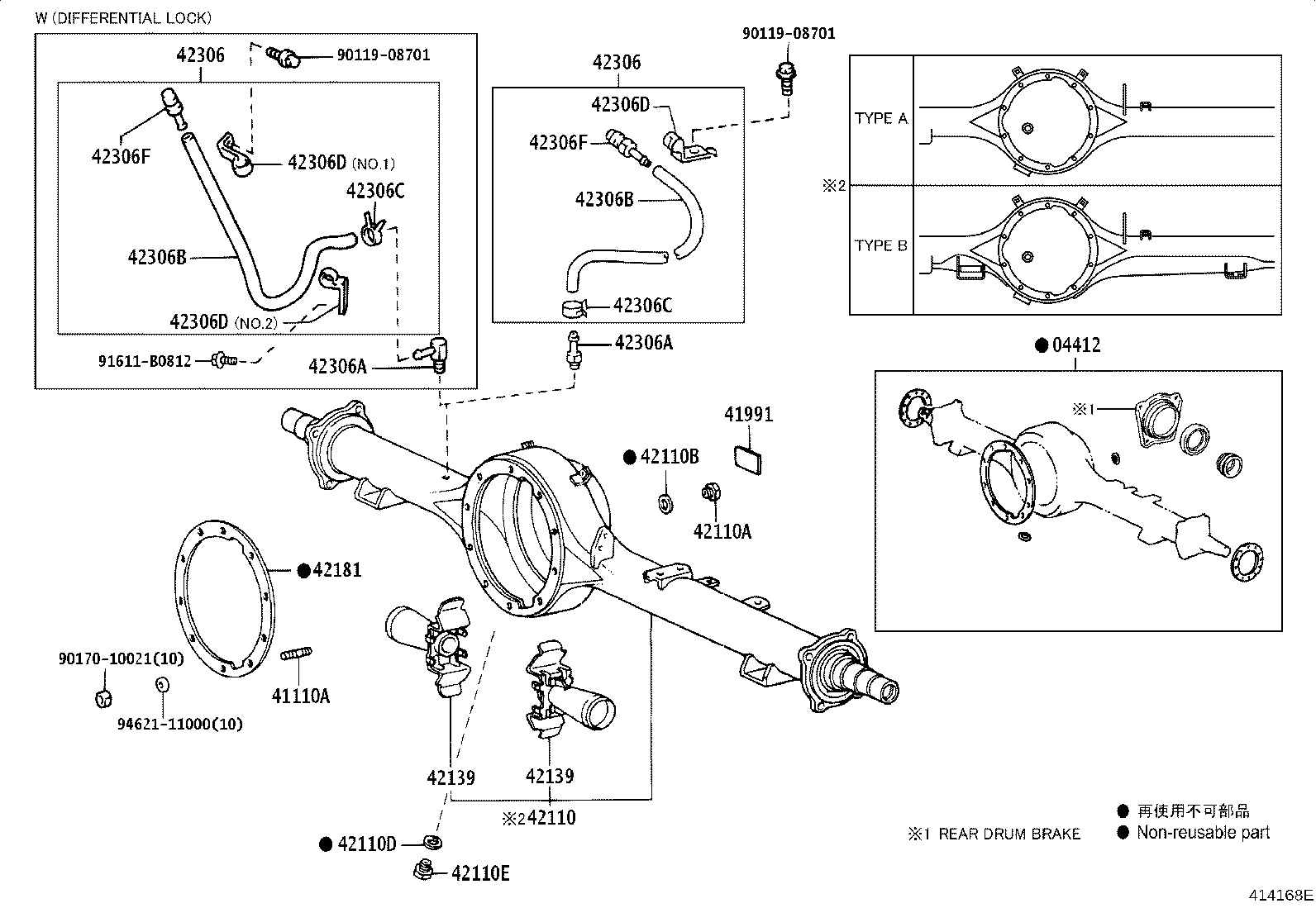

| 42110 | Housing Assy, Rear Axle |
| 42110A | Plug (FOR REAR AXLE HOUSING FILLER) |
| 42110B | Gasket (FOR REAR AXLE HOUSING FILLER PLUG) |
| 42110D | Gasket (FOR REAR AXLE HOUSING DRAIN PLUG) |
| 42110E | Plug (FOR REAR AXLE HOUSING DRAIN) |
| 42139 | Deflector, Rear Axle Housing Oil |
| 42181 | Gasket, Rear Differential Carrier |
| 42306 | Hose Sub-assy, Rear Axle Breather |
| 42306A | Union (FOR REAR AXLE BREATHER HOUSE) |
| 42306B | Hose (FOR REAR AXLE BREATHER) |
| 42306C | Clip, Hose (FOR REAR AXLE BREATHER HOSE) |
| 42306D | Clamp (FOR REAR AXLE BRATHER HOSE) |
| 42306F | Plug, Breather (FOR REAR AXLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
