Toyota Land Cruiser
2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States
Supported model
Data version 2024-10
Disc Wheel & Wheel Cap
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04423 | Fitting Kit, Tire Pressure Monitor OR Balancer Valve |
| 04423B | Fitting Kit, Tire Pressure Monitor OR Balancer Valve(SPARE) |

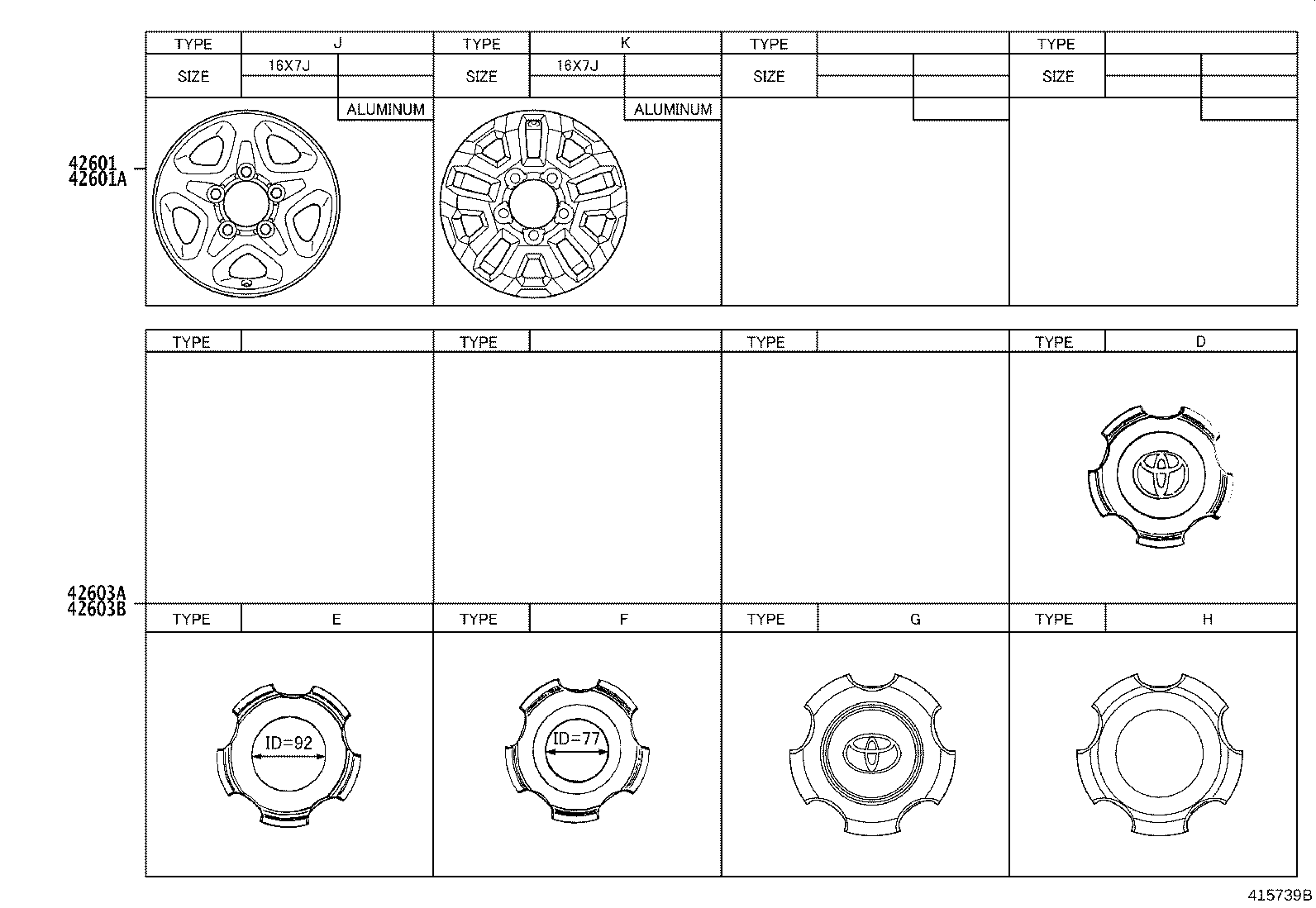

| 42601 | Wheel, Disc |
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |
| 42603A | Ornament Sub-assy, Wheel Hub(FOR FRONT) |
| 42603B | Ornament Sub-assy, Wheel Hub(FOR REAR) |
| 42607 | Valve Sub-assy, Tire Pressure Monitor |
| 42607A | Valve Sub-assy, Tire Pressure Monitor (FOR SPARE) |
| 42607D | Valve, Tire Pressure Monitor |
| 42607E | Valve, Tire Pressure Monitor (FOR SPARE) |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42611U | Cap, Tire Valve |
| 42611W | Cap, Tire Valve (FOR SPARE) |
| 42613A | Ring, Disc Wheel Side |
| 42652 | Tire |
| 42652A | Tire (FOR SPARE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
