Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

9 part groups · 13 illustrations

Illustrations

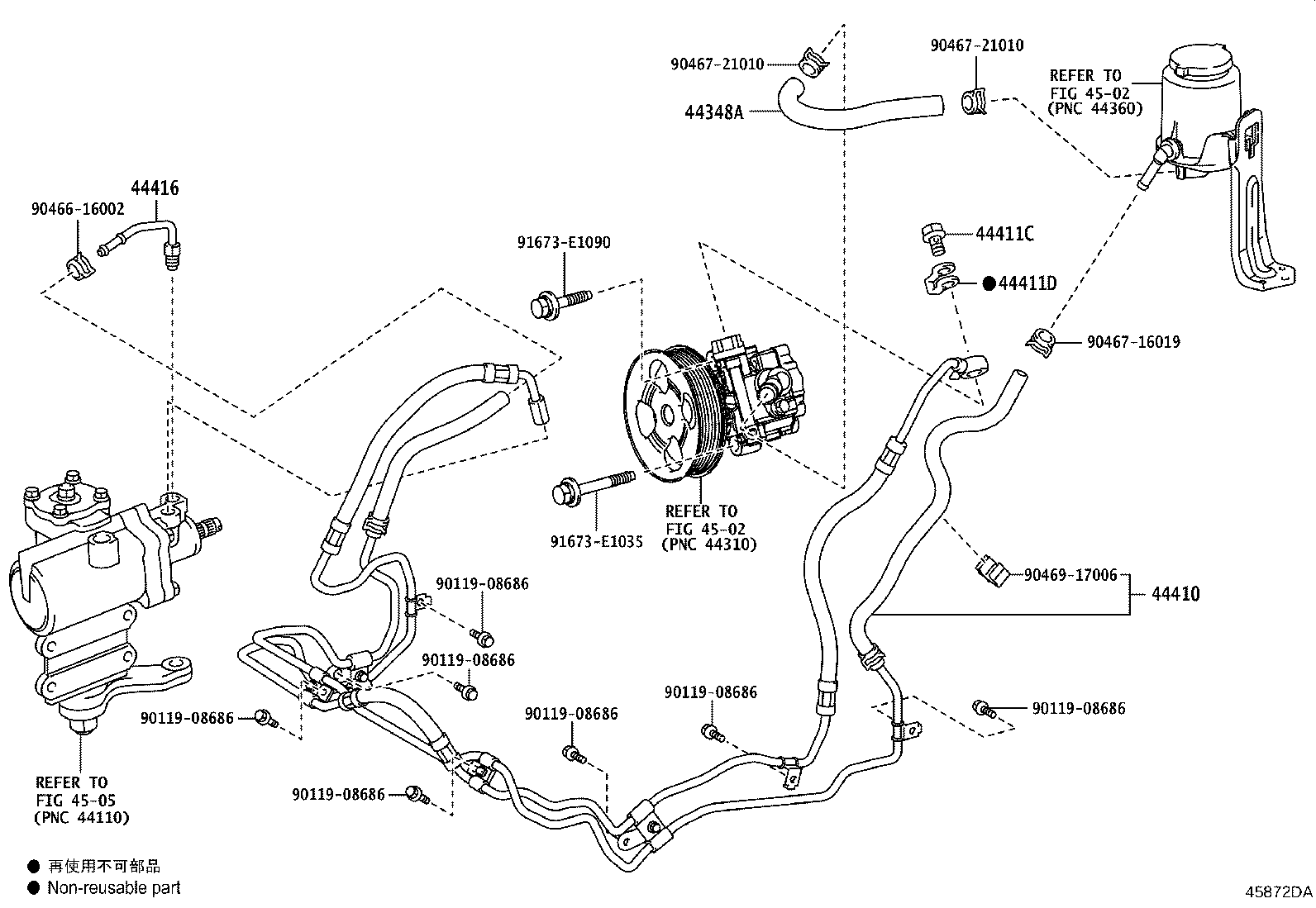

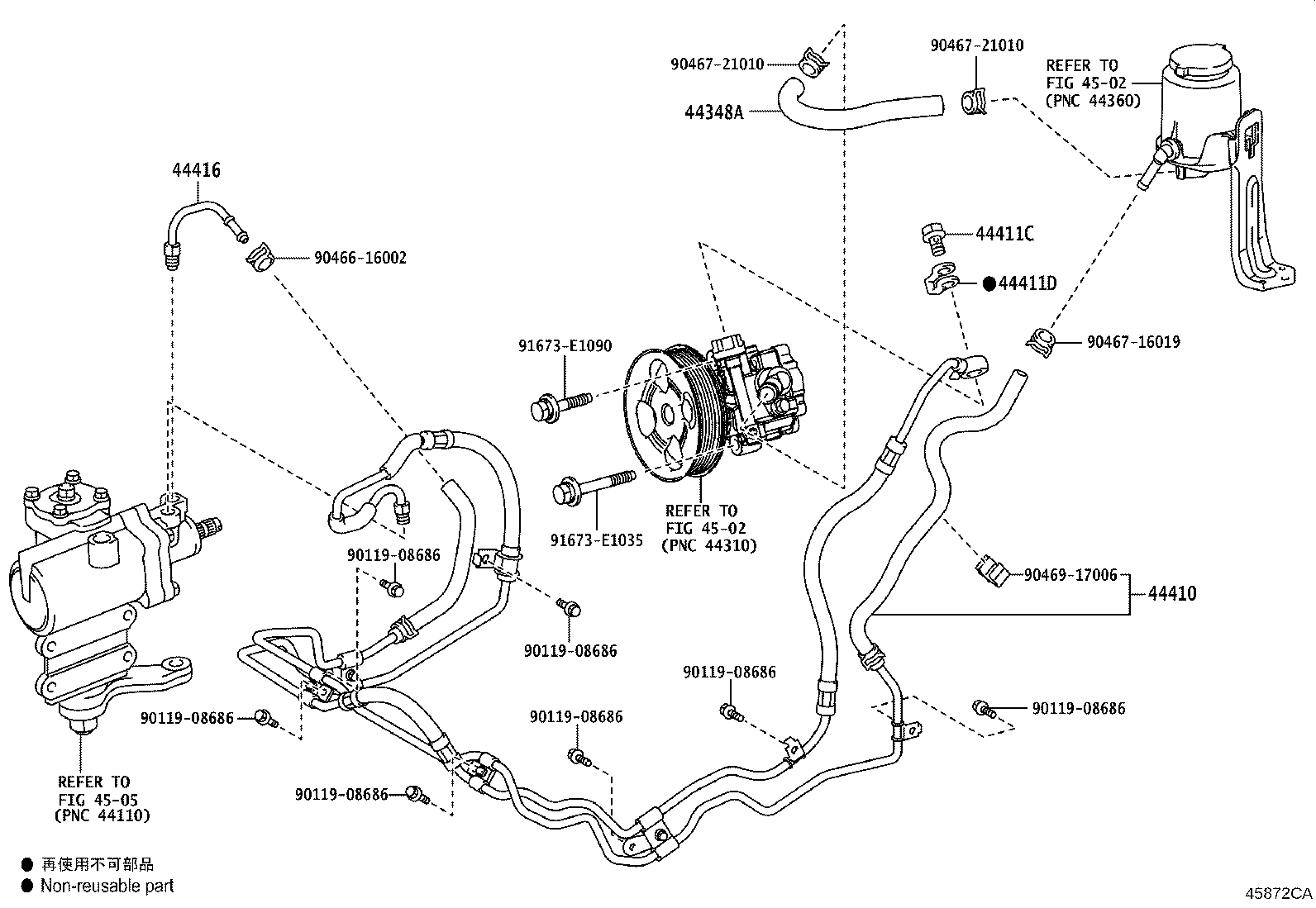

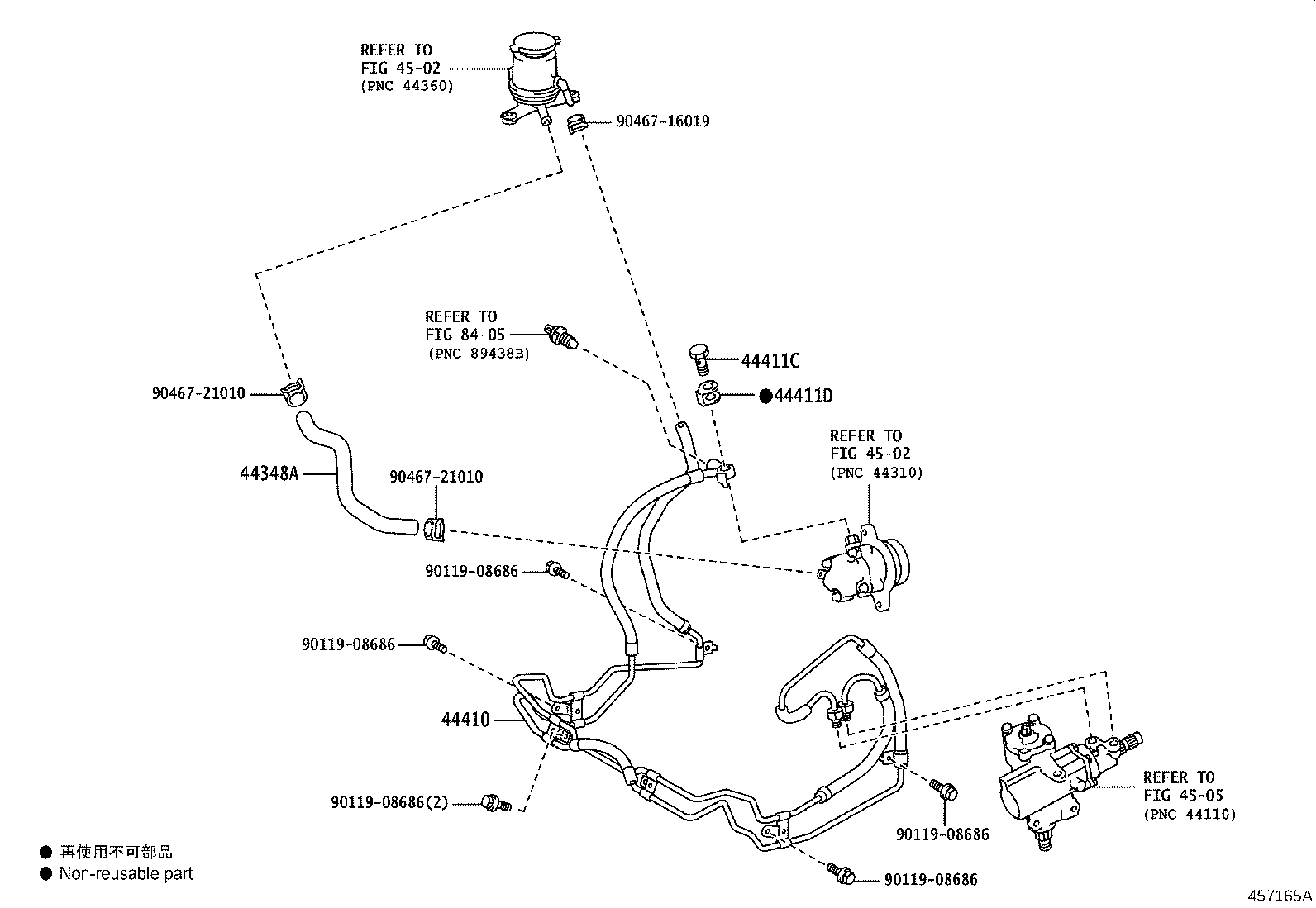

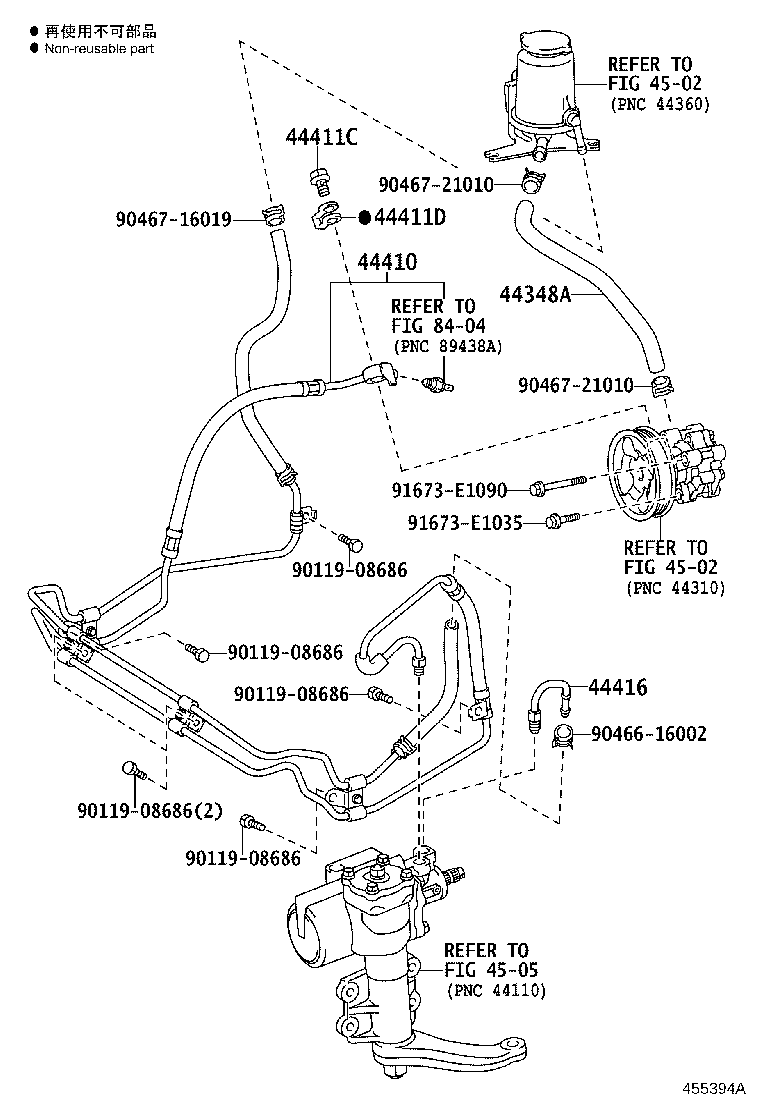

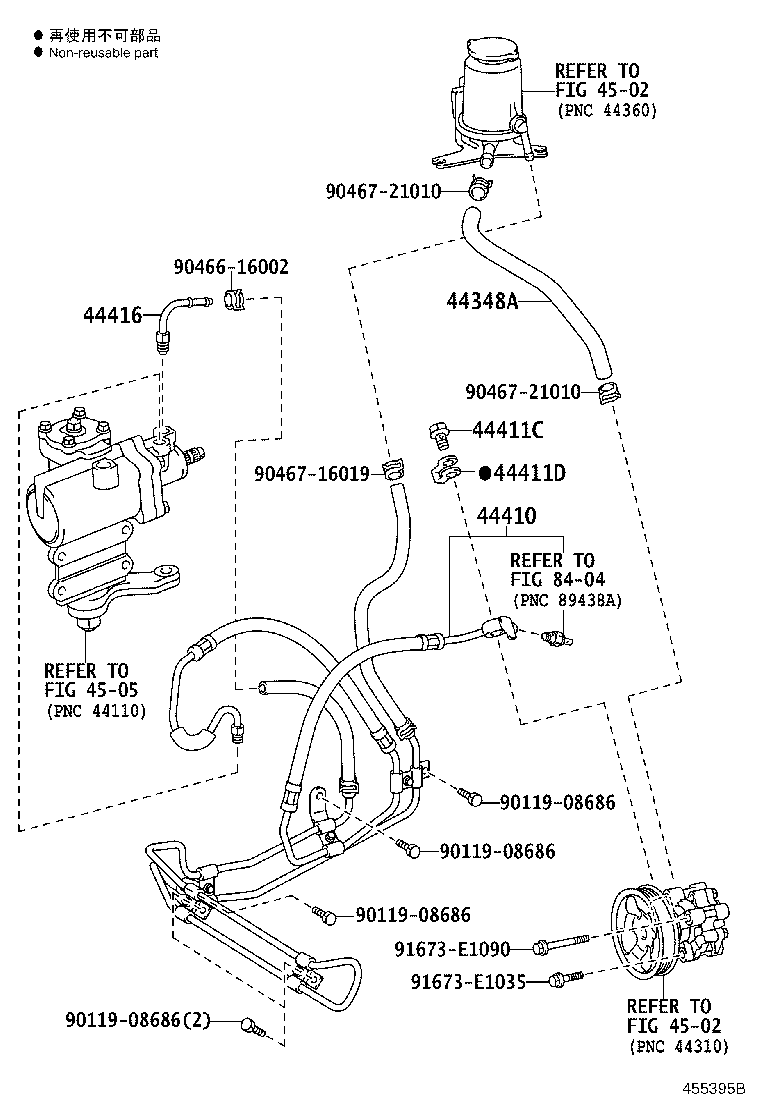

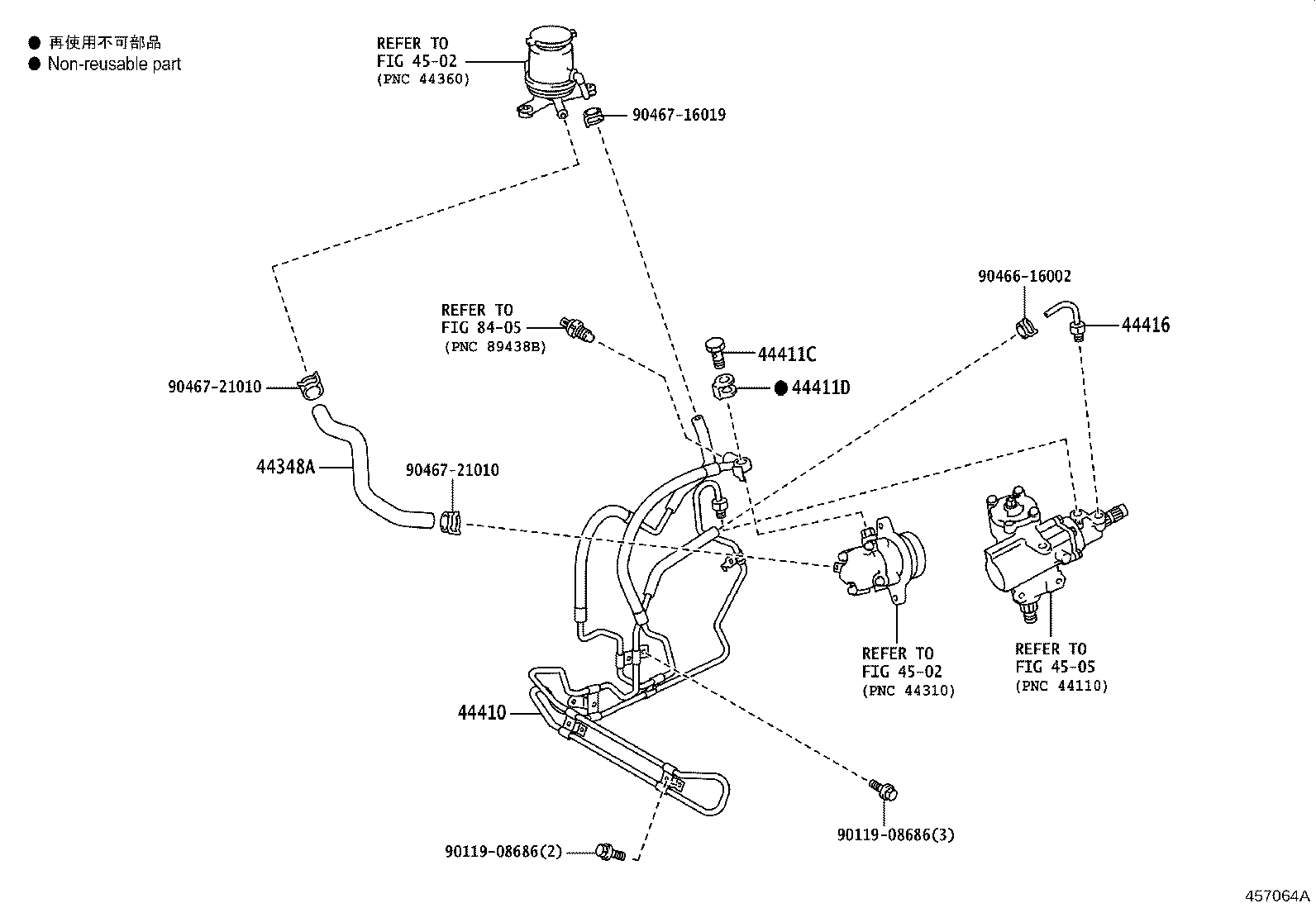

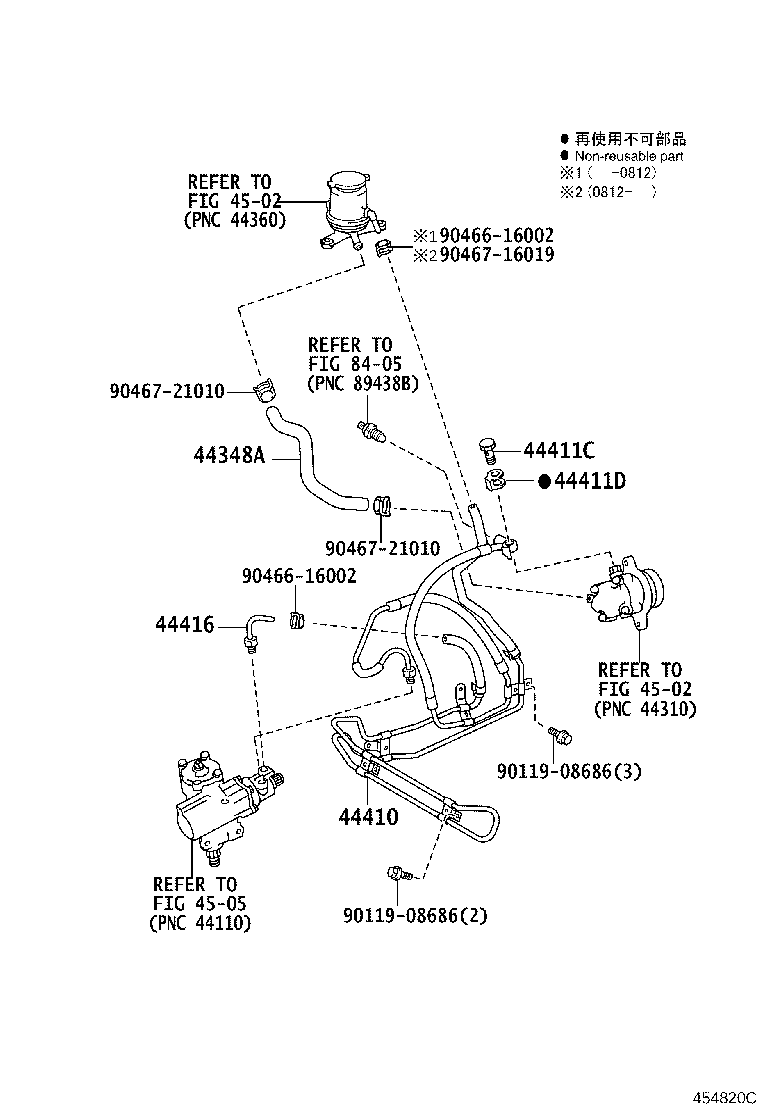

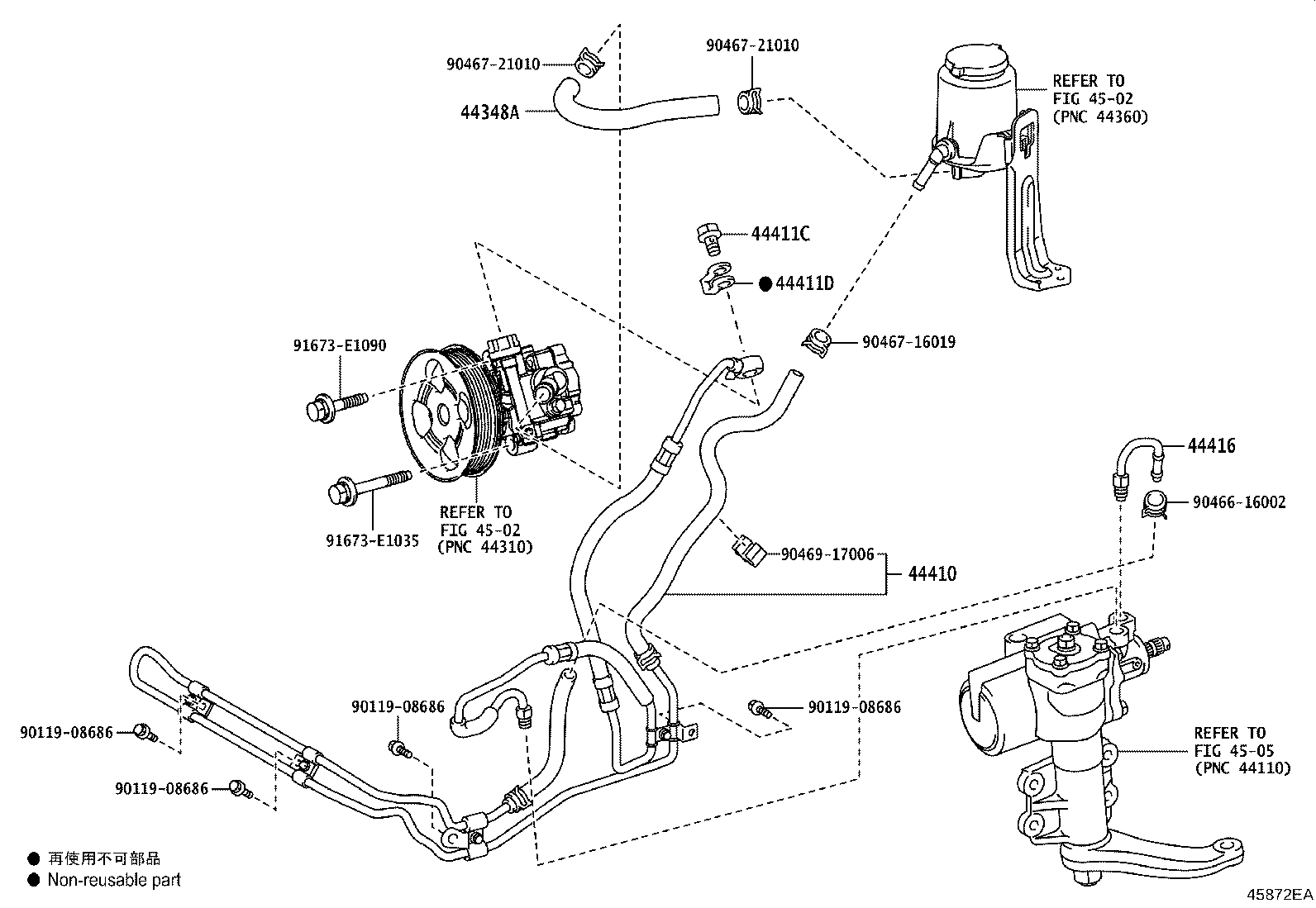

Figure 454816C 454816C 2007-01 → — Figure 454817C 454817C 2007-01 → — Figure 454818C 454818C 2007-01 → — Figure 454819C 454819C 2007-01 → — Figure 454820C 454820C 2007-01 → 2016-08 Figure 454820C 454820C 2007-01 → — Figure 457064A 457064A 2016-08 → — Figure 457165A 457165A 2017-01 → — Figure 455394A 455394A 2009-07 → — Figure 455395B 455395B 2009-07 → — Figure 45872CA 45872CA 2023-09 → — Figure 45872DA 45872DA 2023-09 → — Figure 45872EA 45872EA 2023-09 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420 Cooler Assy, Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
