Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

15 part groups · 7 illustrations

Illustrations

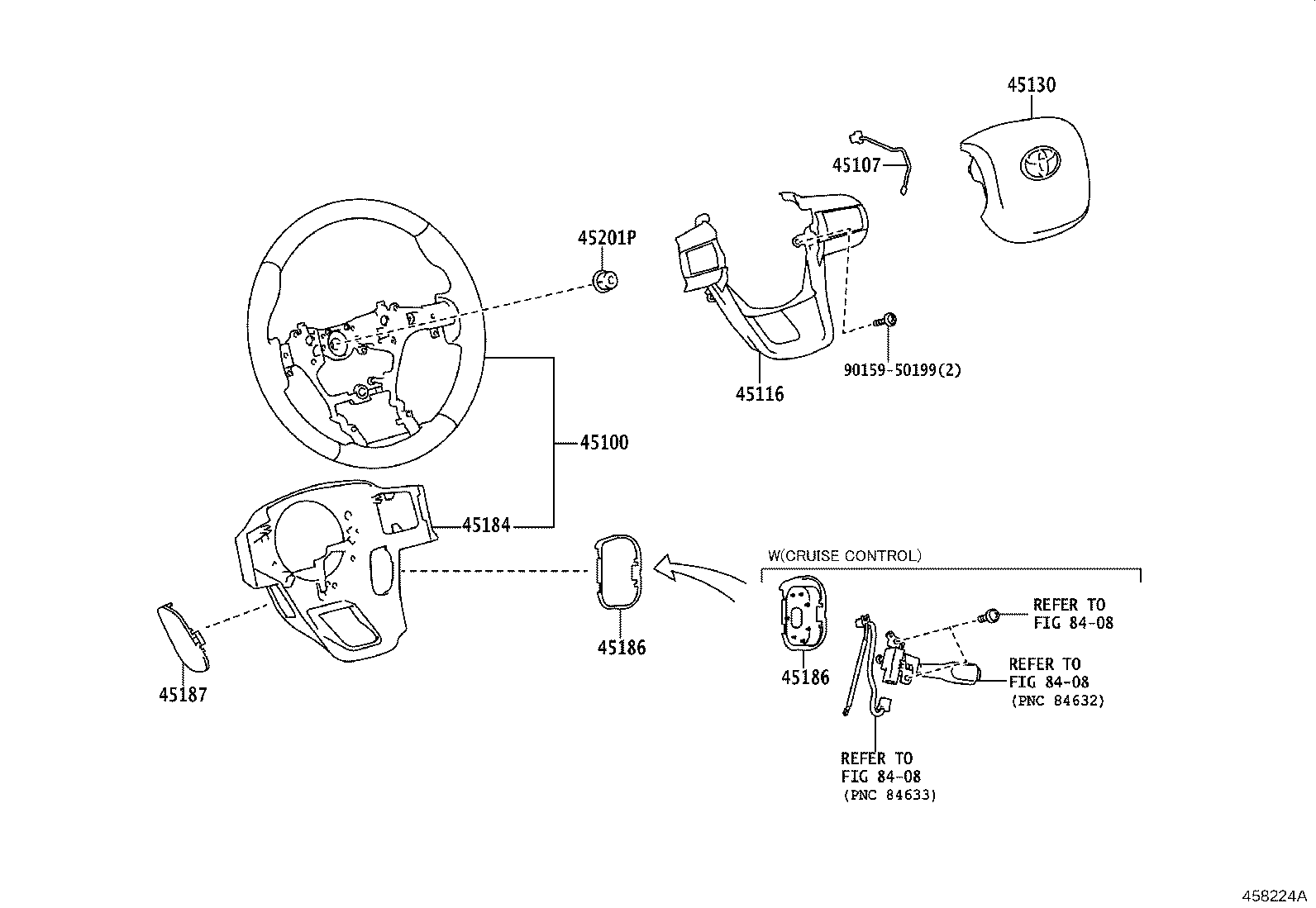

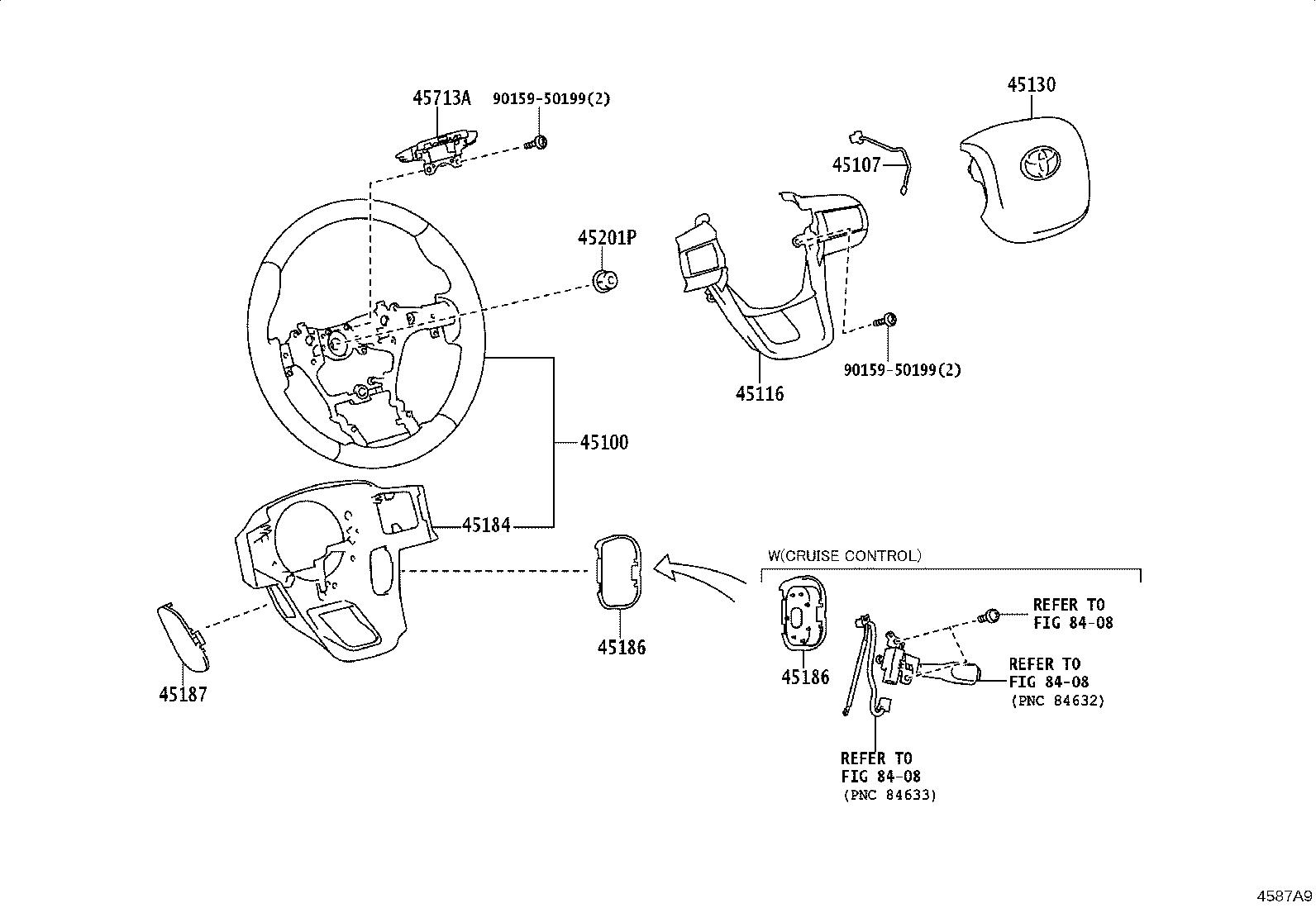

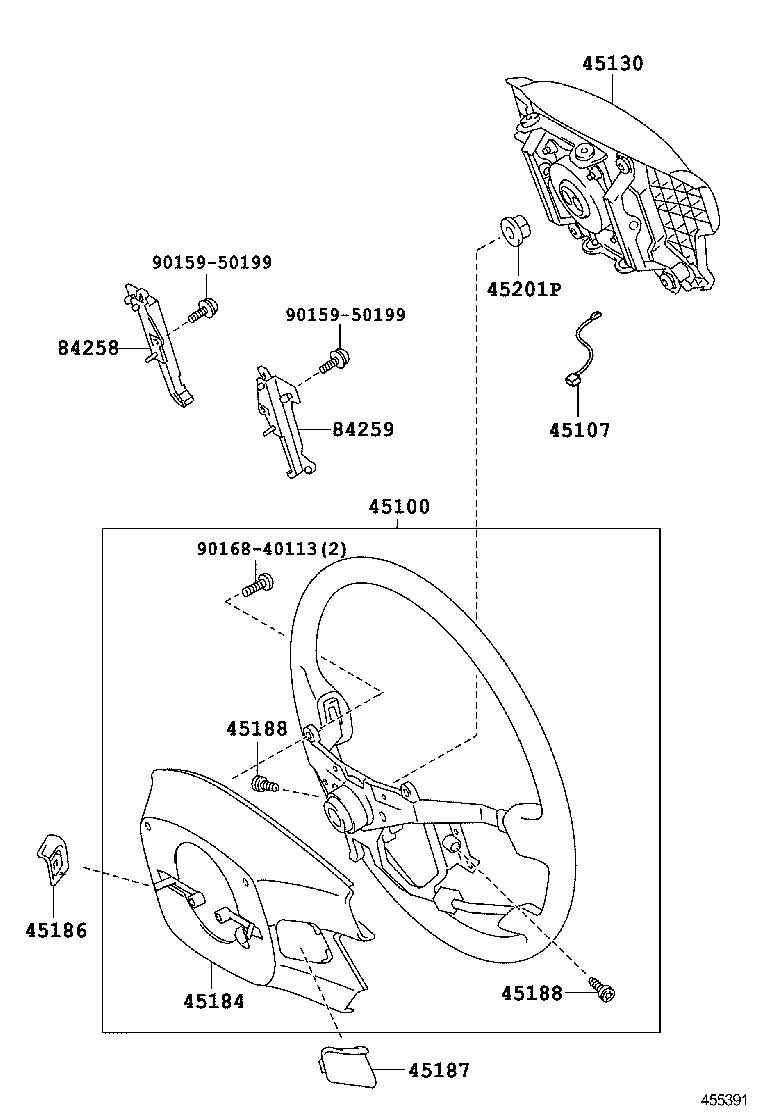

Figure 456618 456618 2007-01 → 2009-07 Figure 451833B 451833B 2007-01 → 2009-07 Figure 455391 455391 2009-07 → — Figure 455391 455391 2009-07 → — Figure 458224A 458224A 2021-07 → — Figure 458224A 458224A 2021-07 → — Figure 4587A9 4587A9 2024-10 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45107 Wire Sub-assy, Horn Button
45116 Ornament, Steering Wheel, NO.1
45130 Button Assy, Horn
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
45713A Damper, Steering Shake
84258 Cover, Steering Pad, RH
84259 Cover, Steering Pad, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
