Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

19 part groups · 8 illustrations

Illustrations

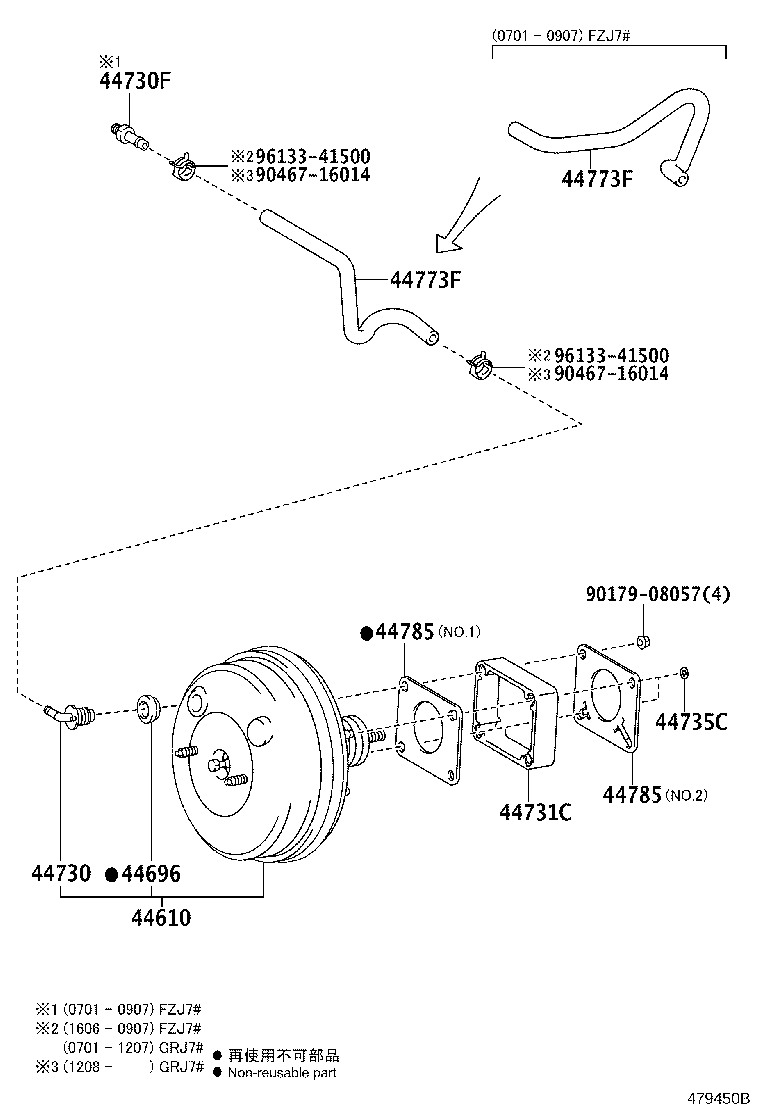

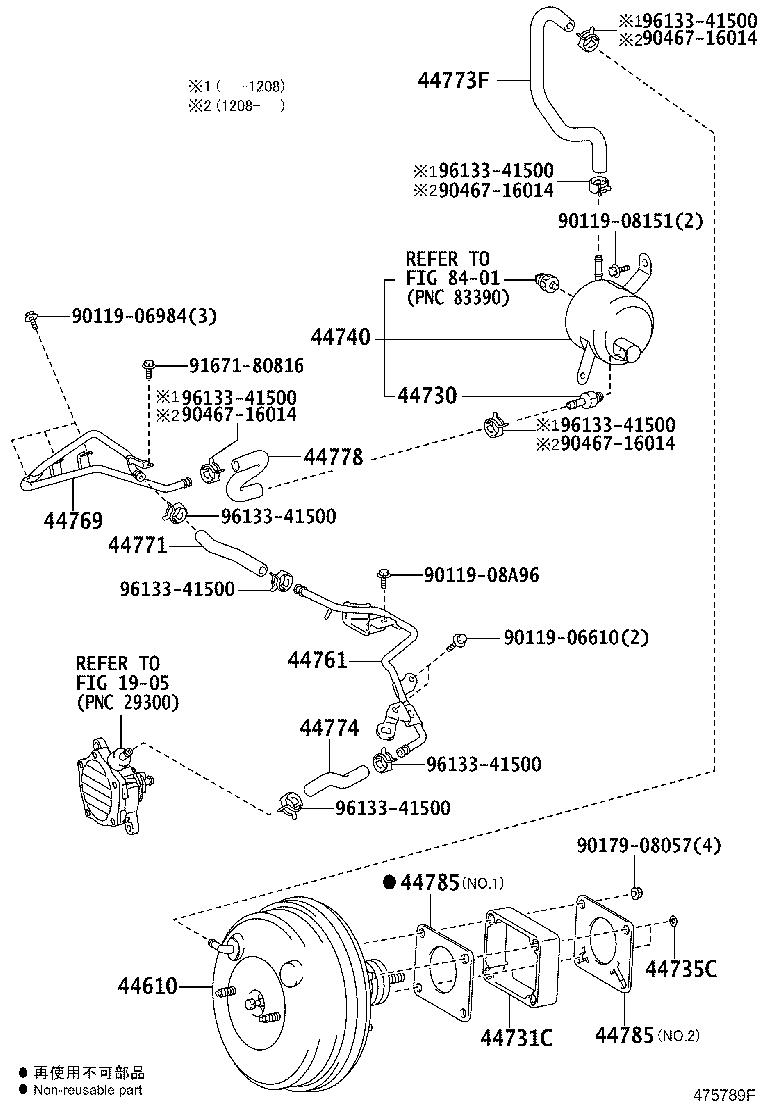

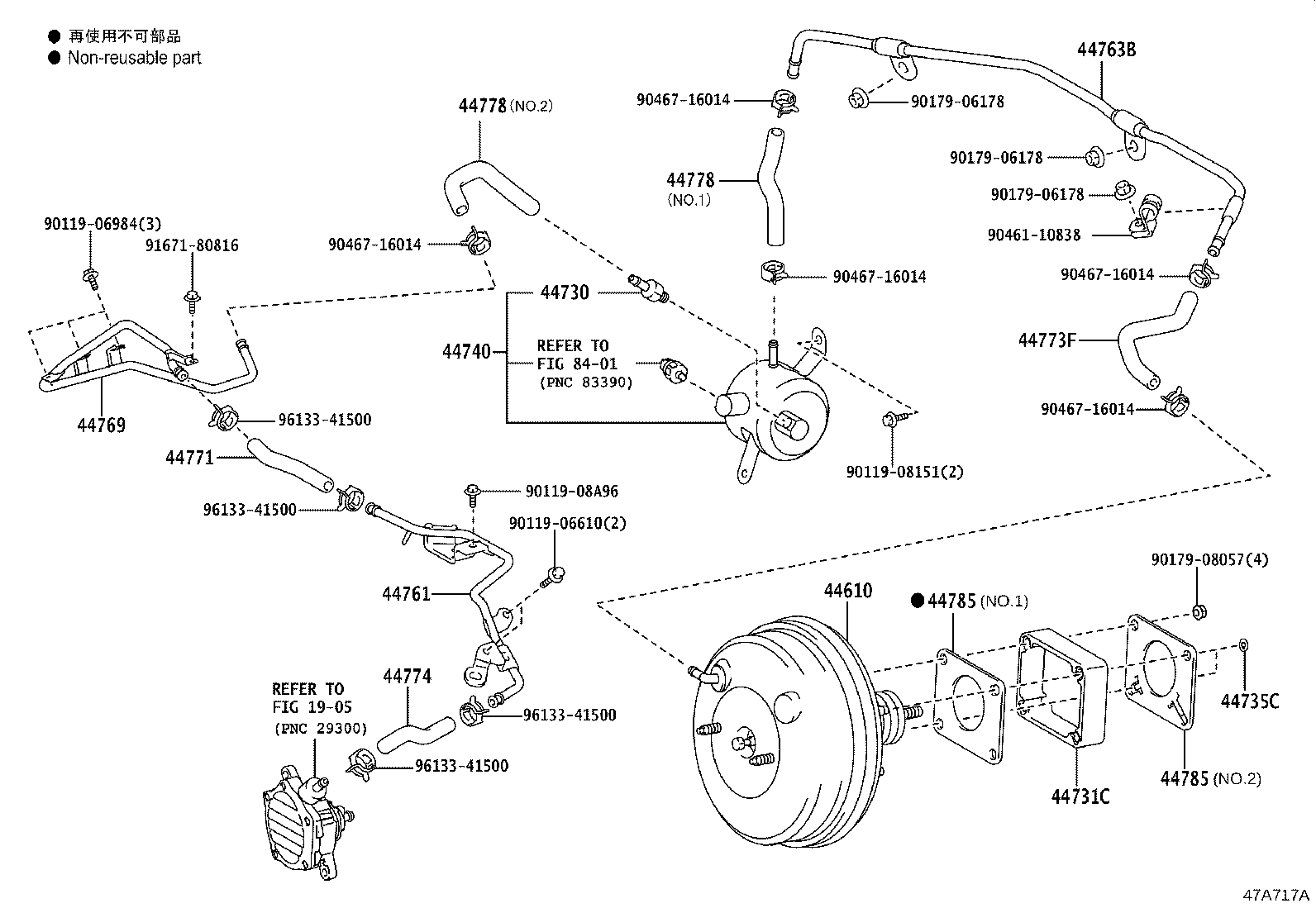

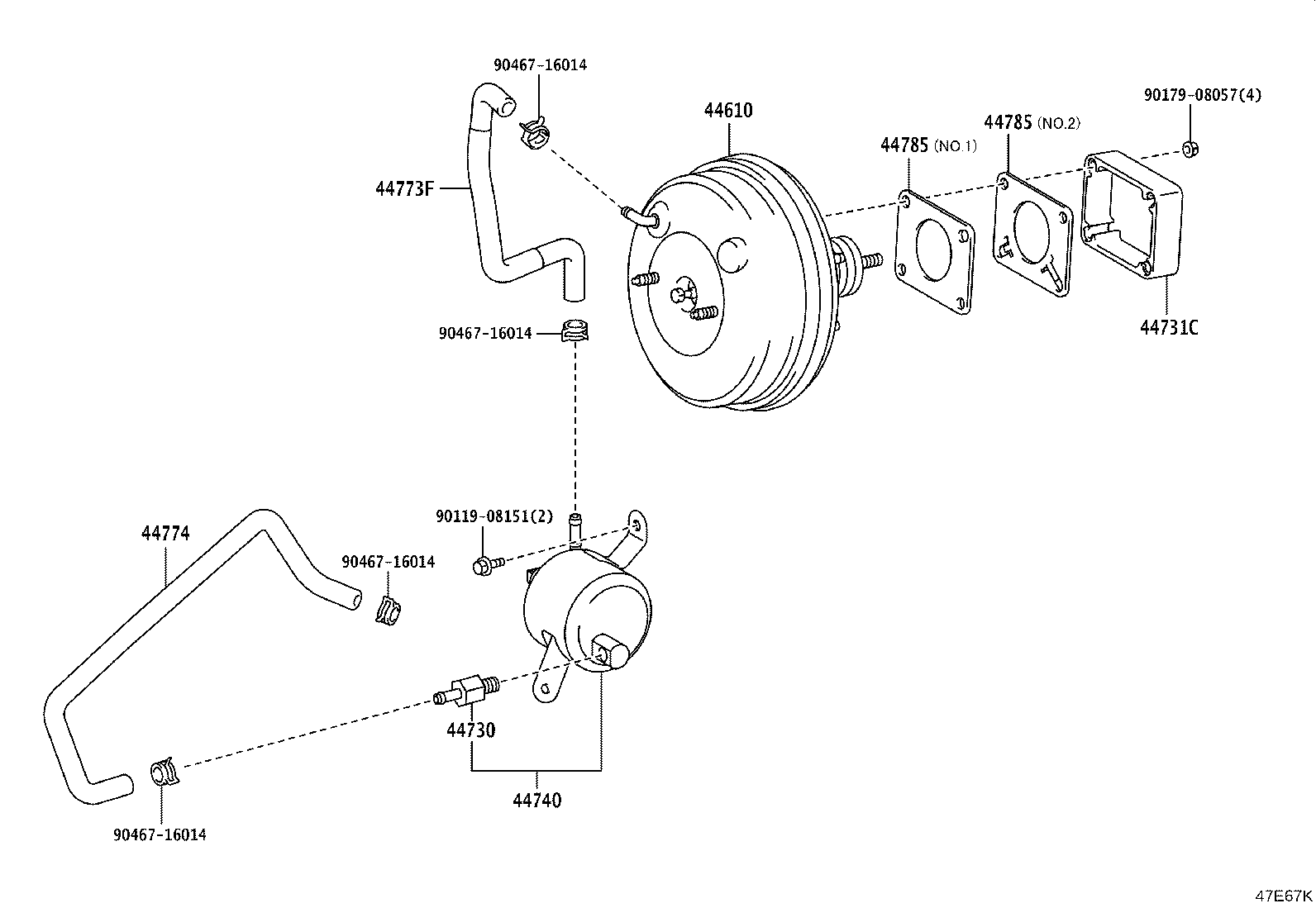

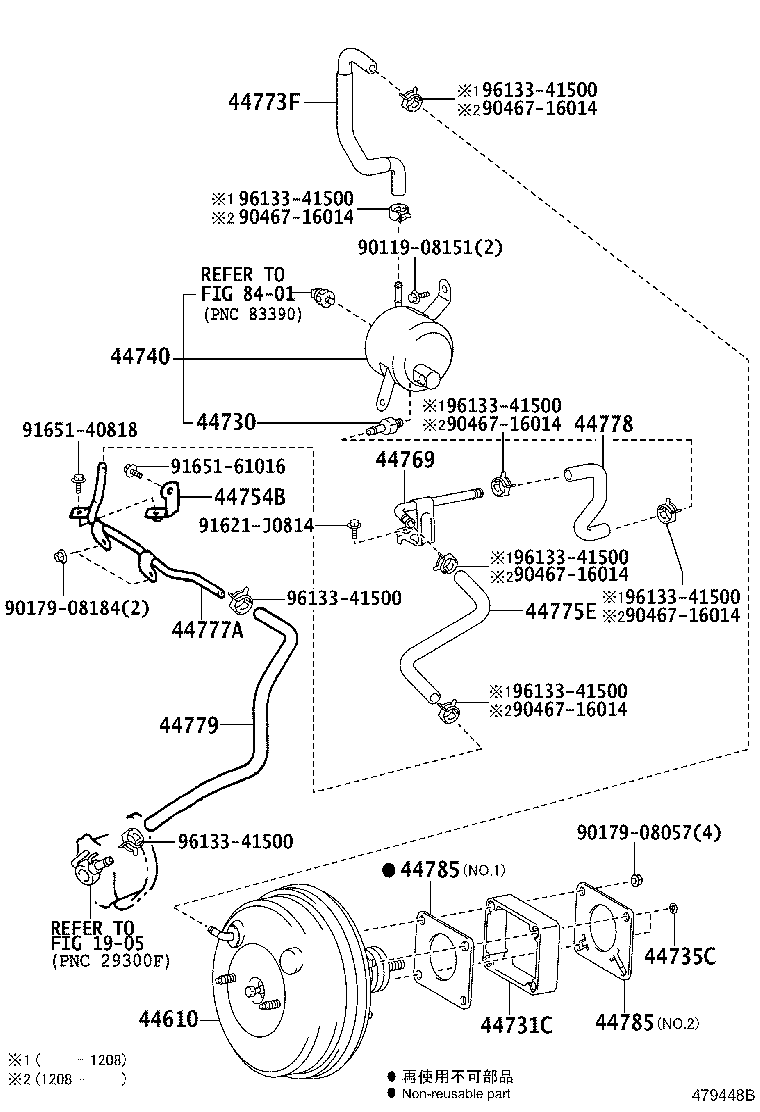

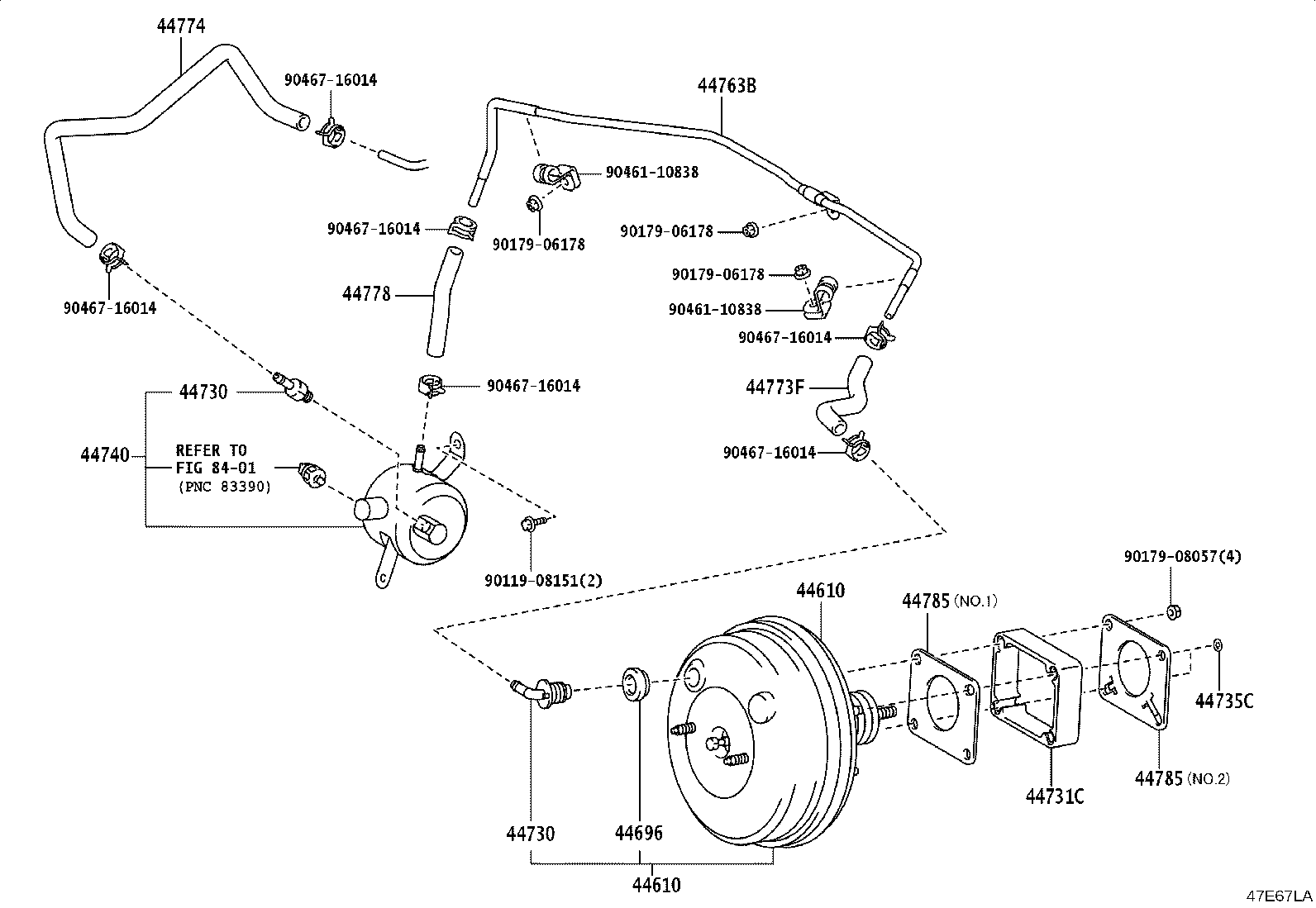

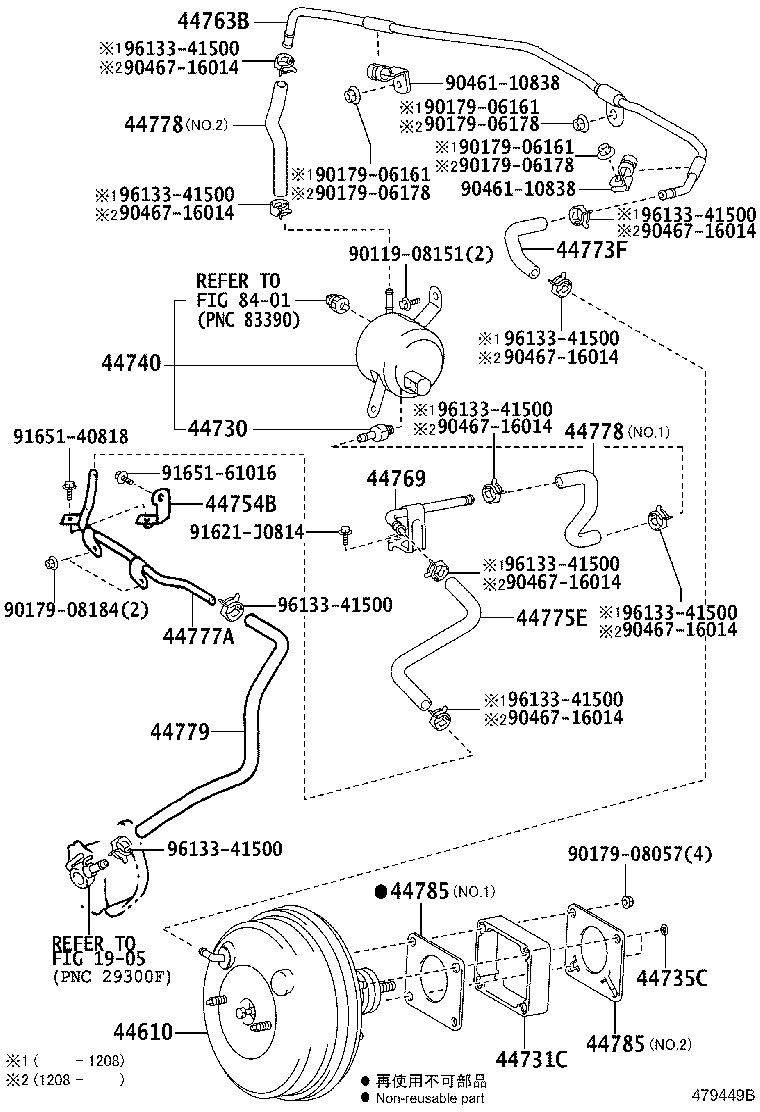

Figure 479451A 479451A 2007-01 → — Figure 479450B 479450B 2007-01 → — Figure 47E67K 47E67K 2023-09 → — Figure 47E67LA 47E67LA 2023-09 → — Figure 479448B 479448B 2007-01 → — Figure 479449B 479449B 2007-01 → — Figure 475789F 475789F 2007-01 → — Figure 47A717A 47A717A 2017-01 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44731C Bracket, Brake Booster
44735C Ring, Booster Bracket Stopper
44740 Reservoir Assy, Vacuum
44754B Bracket, Vacuum Tube
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44763B Tube, Tube Connector TO Tube Connector
44769 Tube, Vacuum Reservoir Connect
44771 Hose, Vacuum Tube Connector
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44775E Hose, Way TO Connector
44777A Connector, Vacuum Hose, NO.2
44778 Hose, Connector TO Check Valve
44779 Hose, Union TO Connector
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
