Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

83 part groups · 70 illustrations

Illustrations

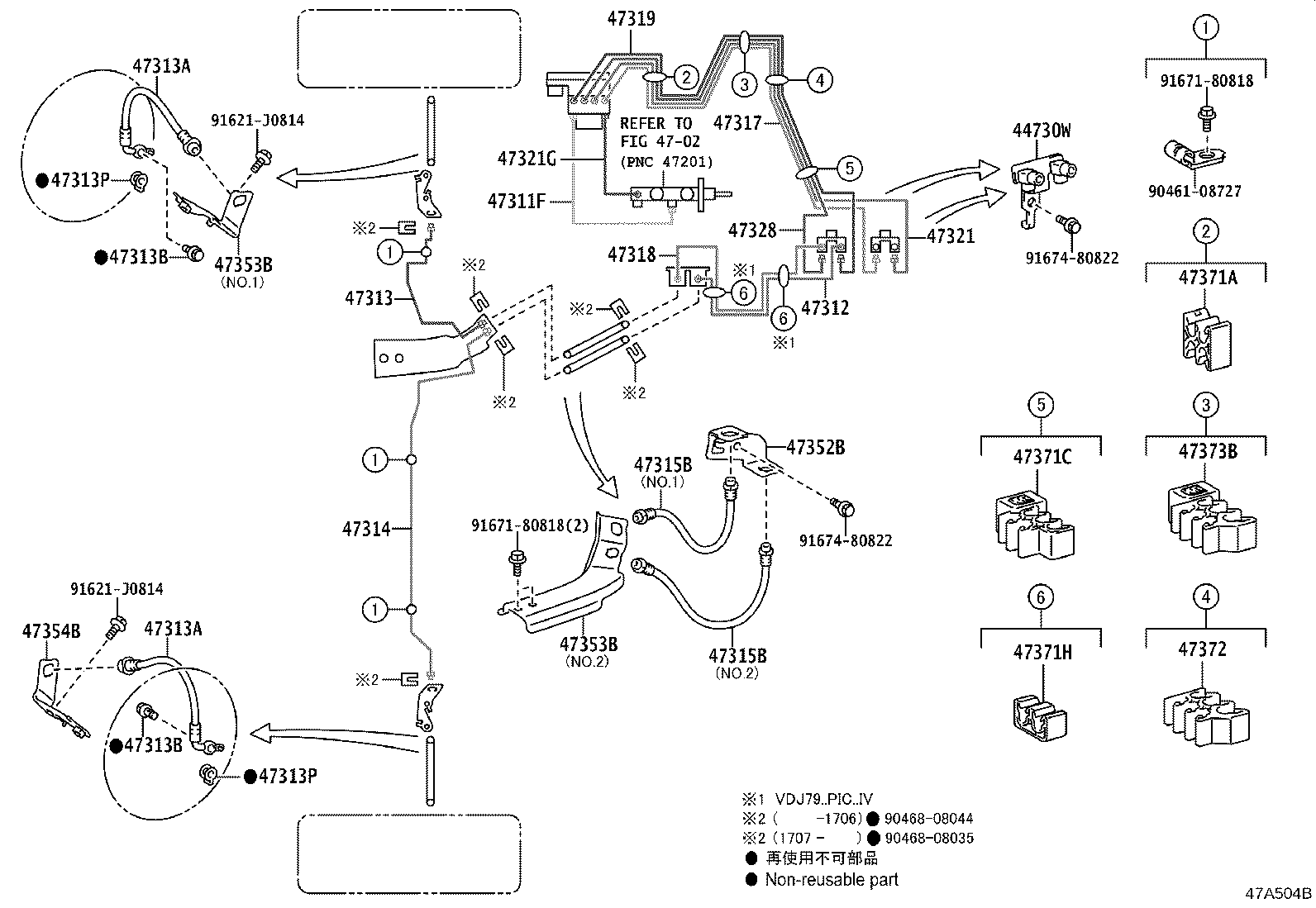

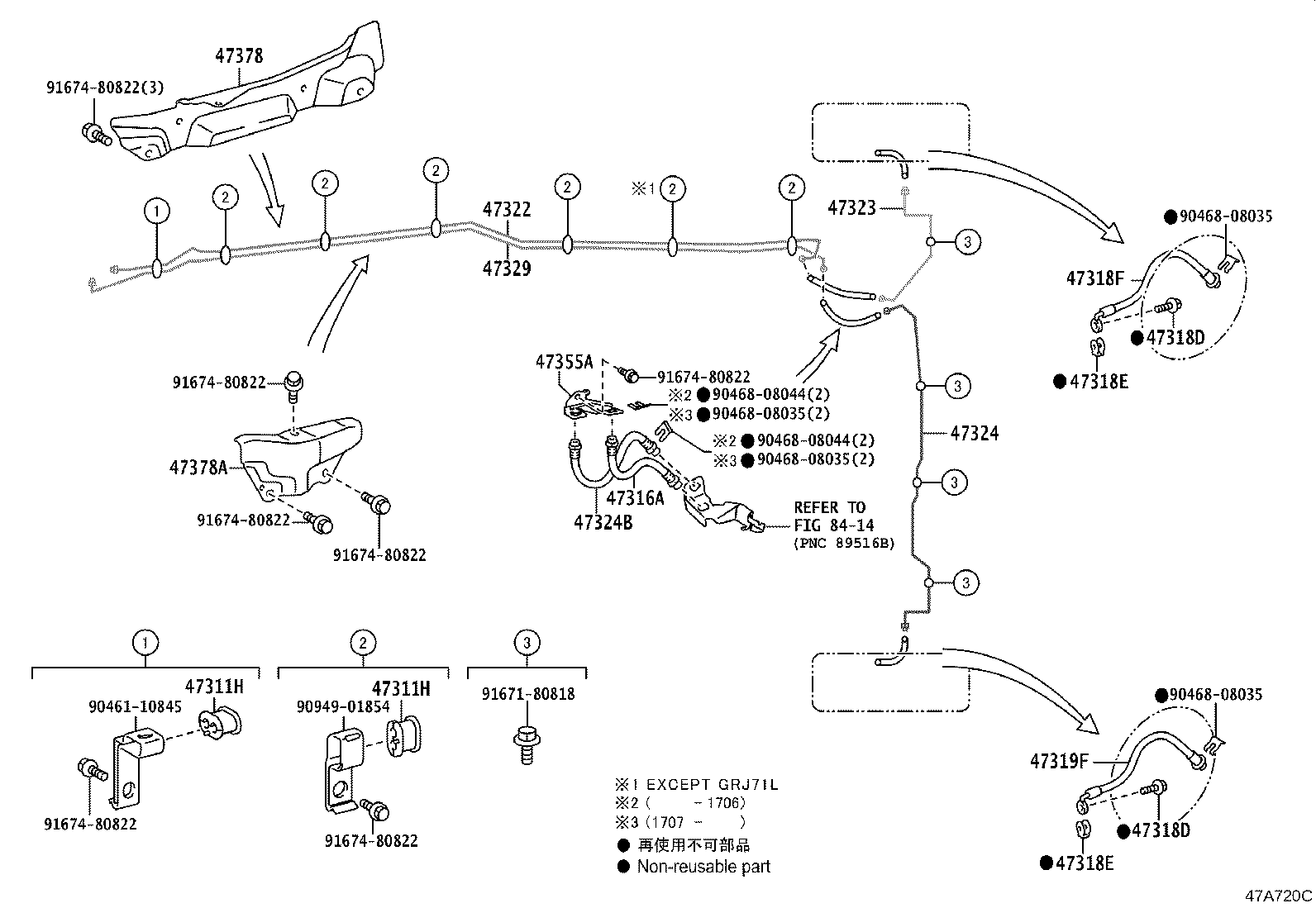

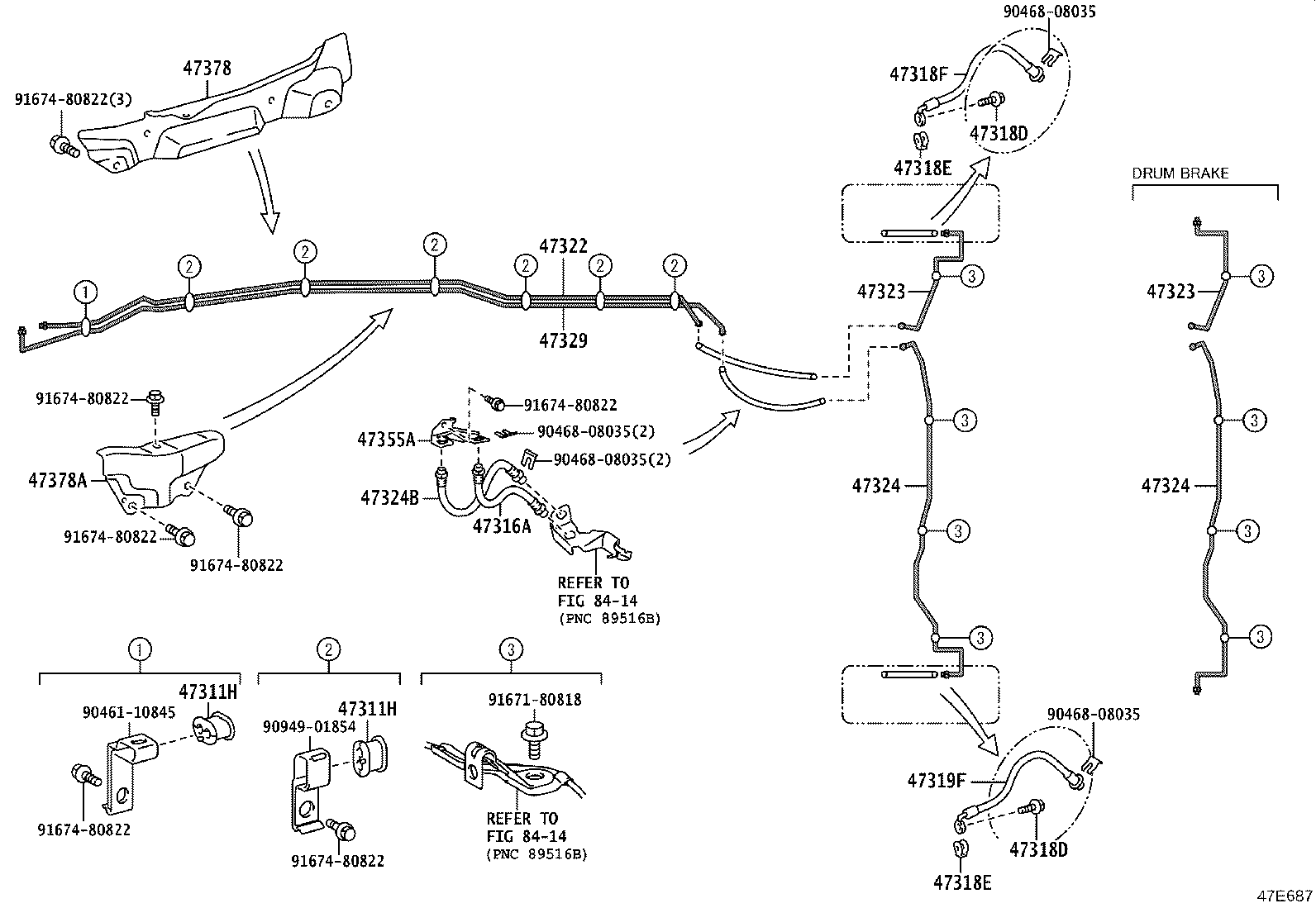

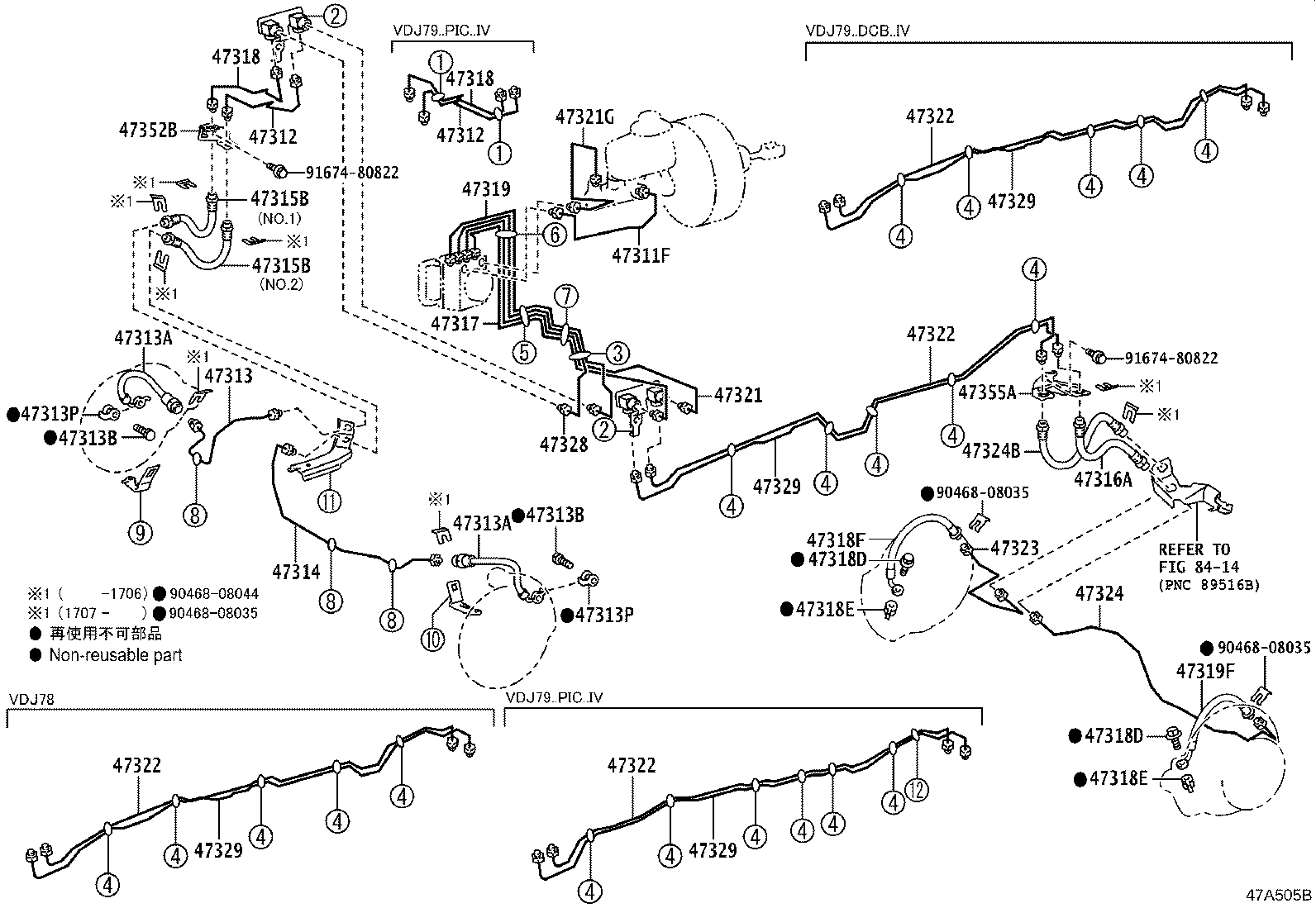

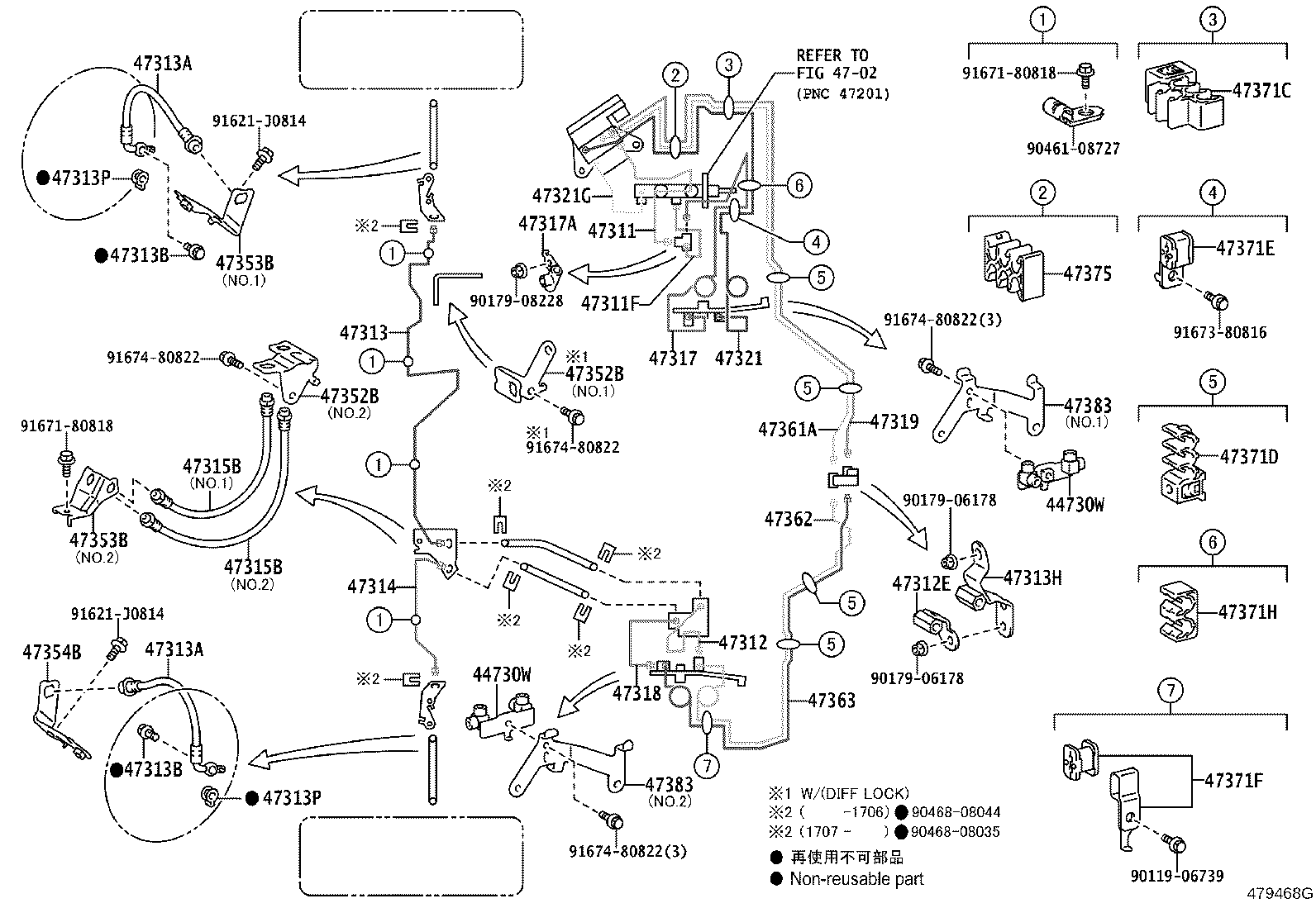

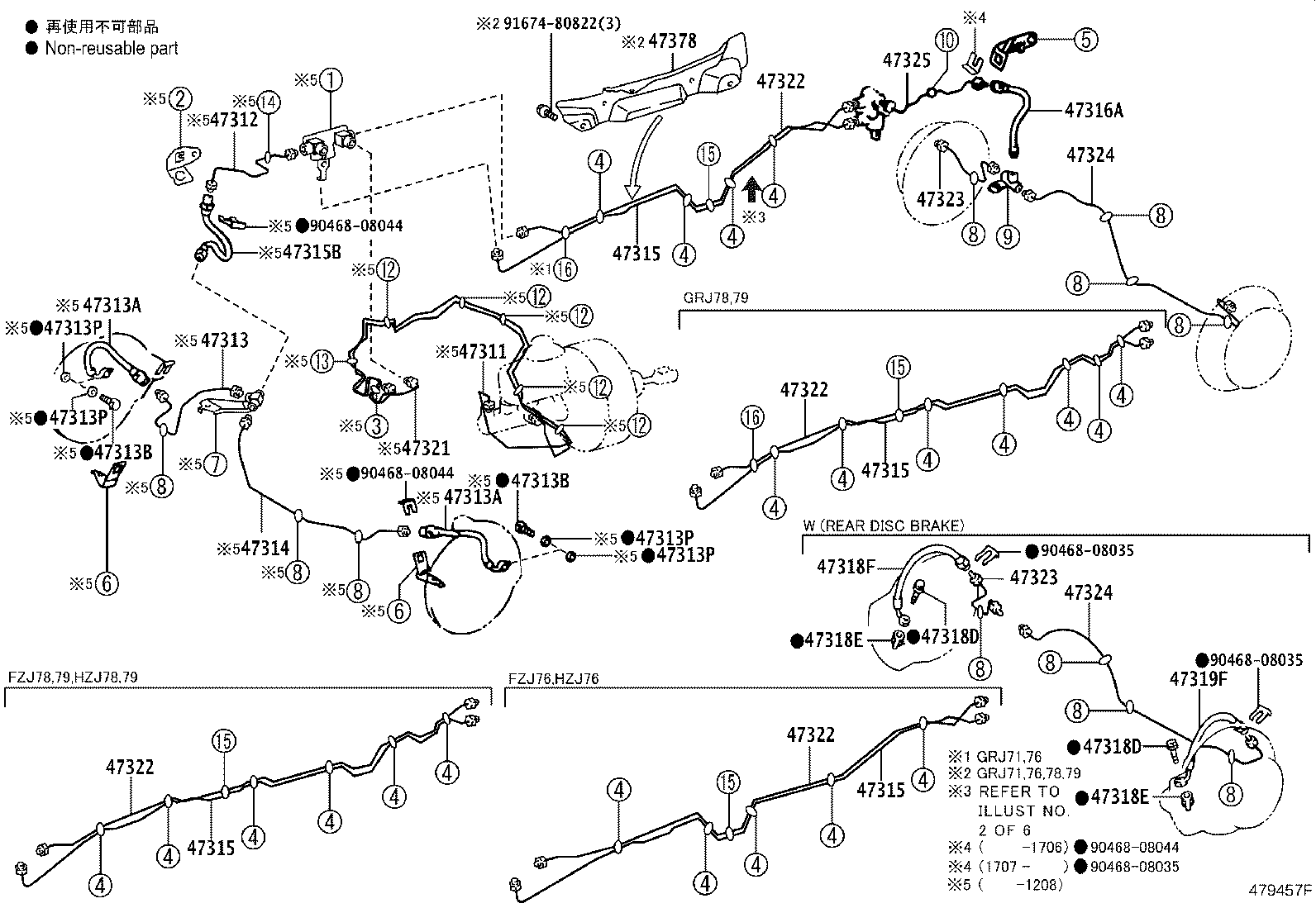

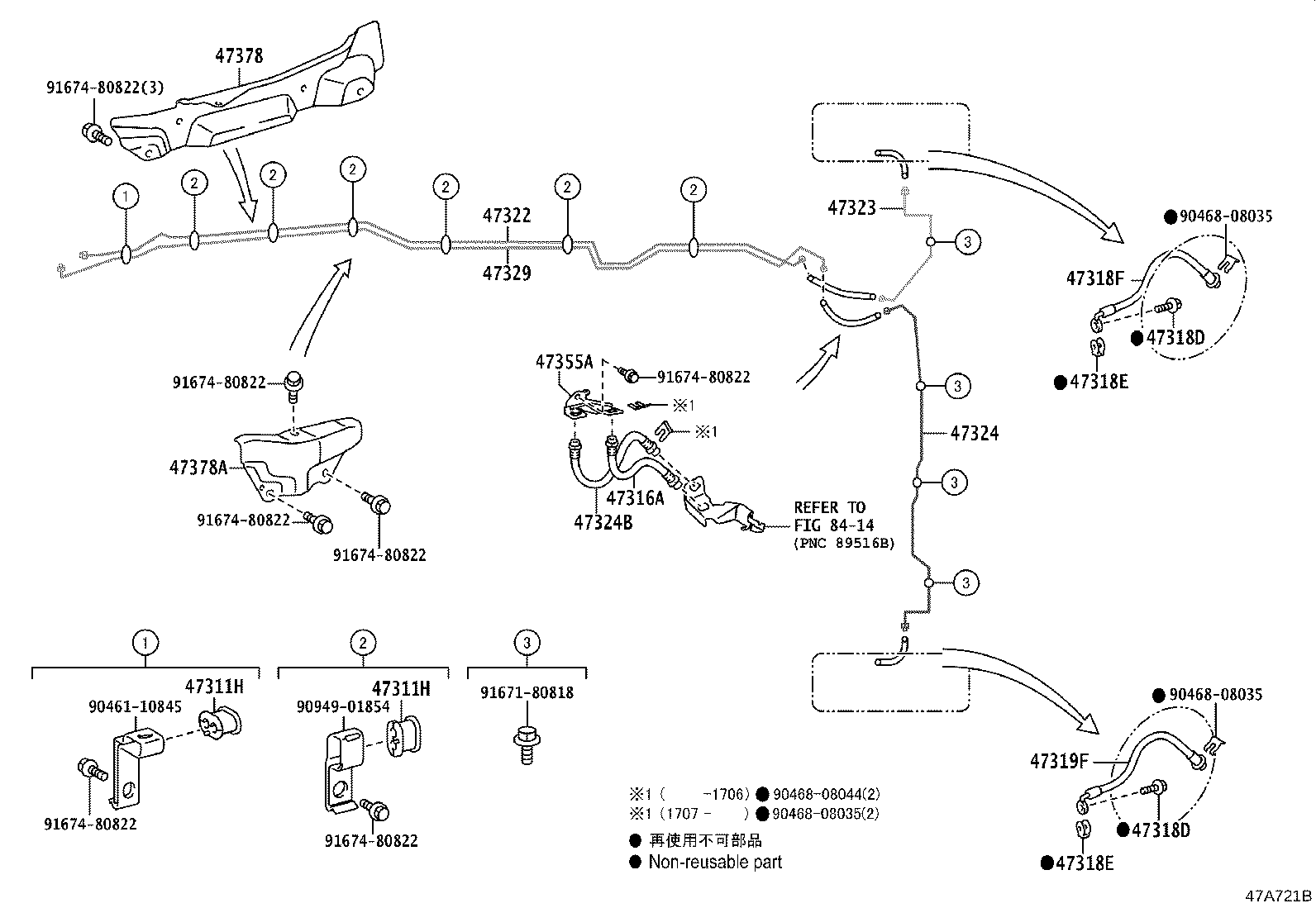

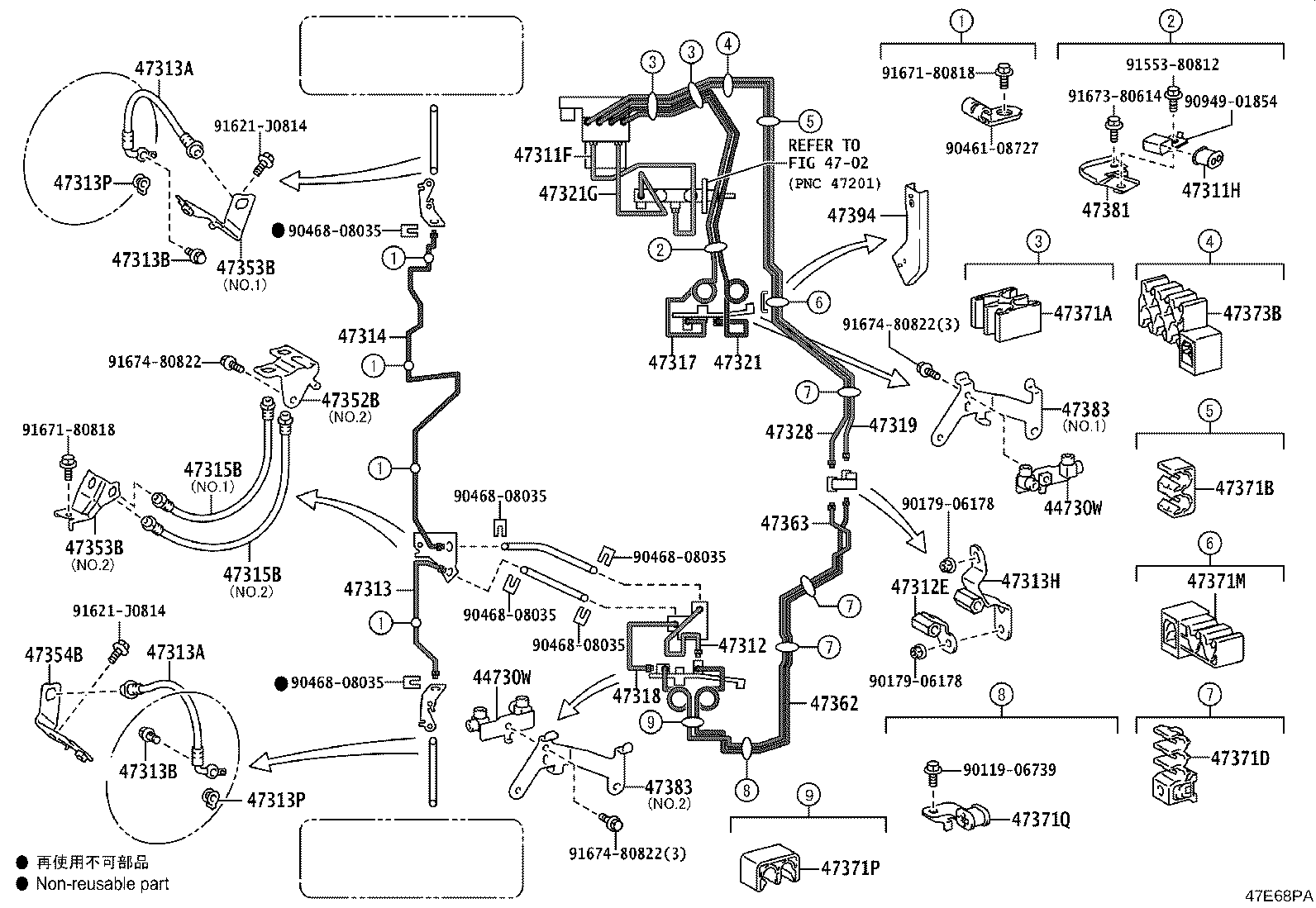

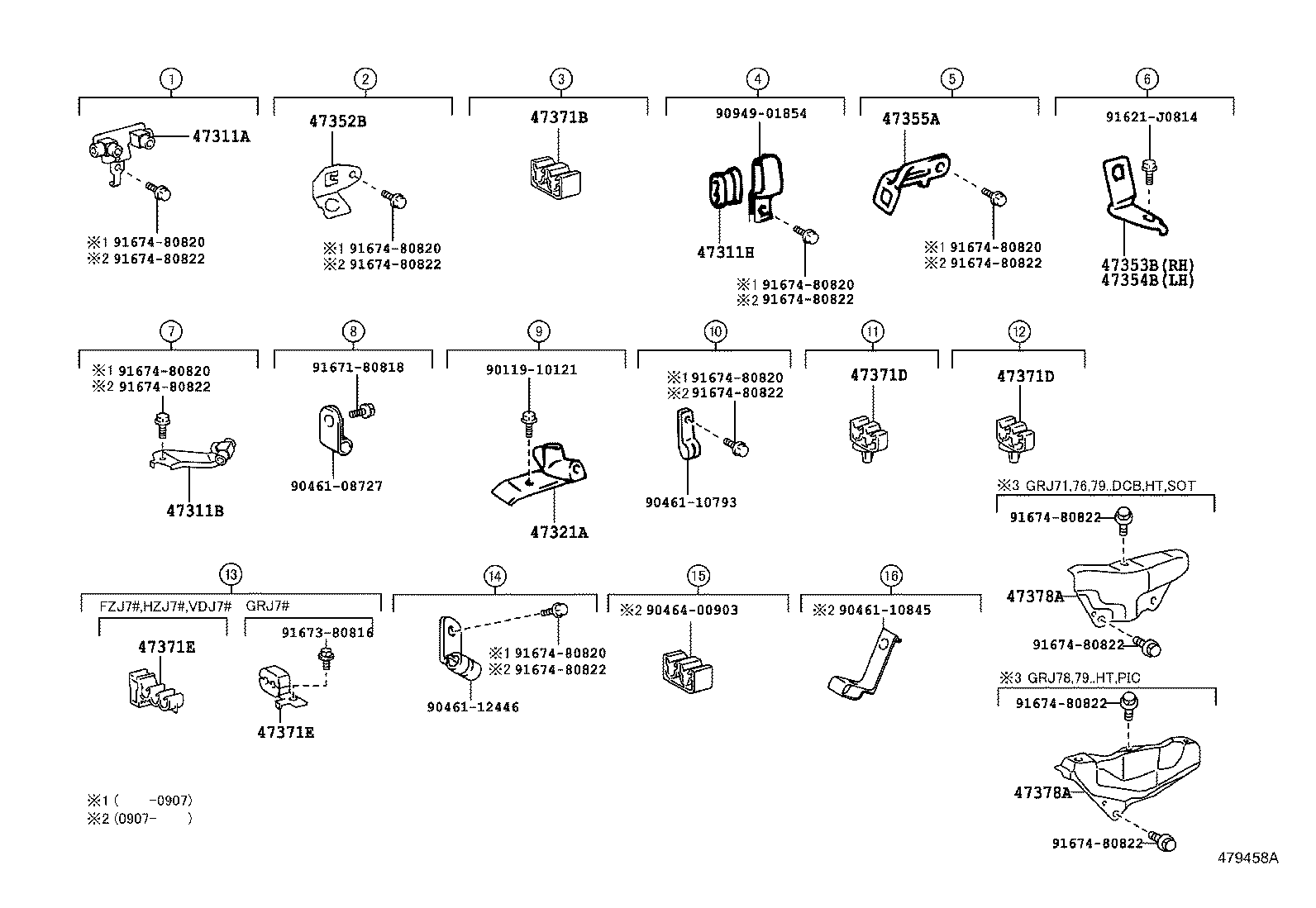

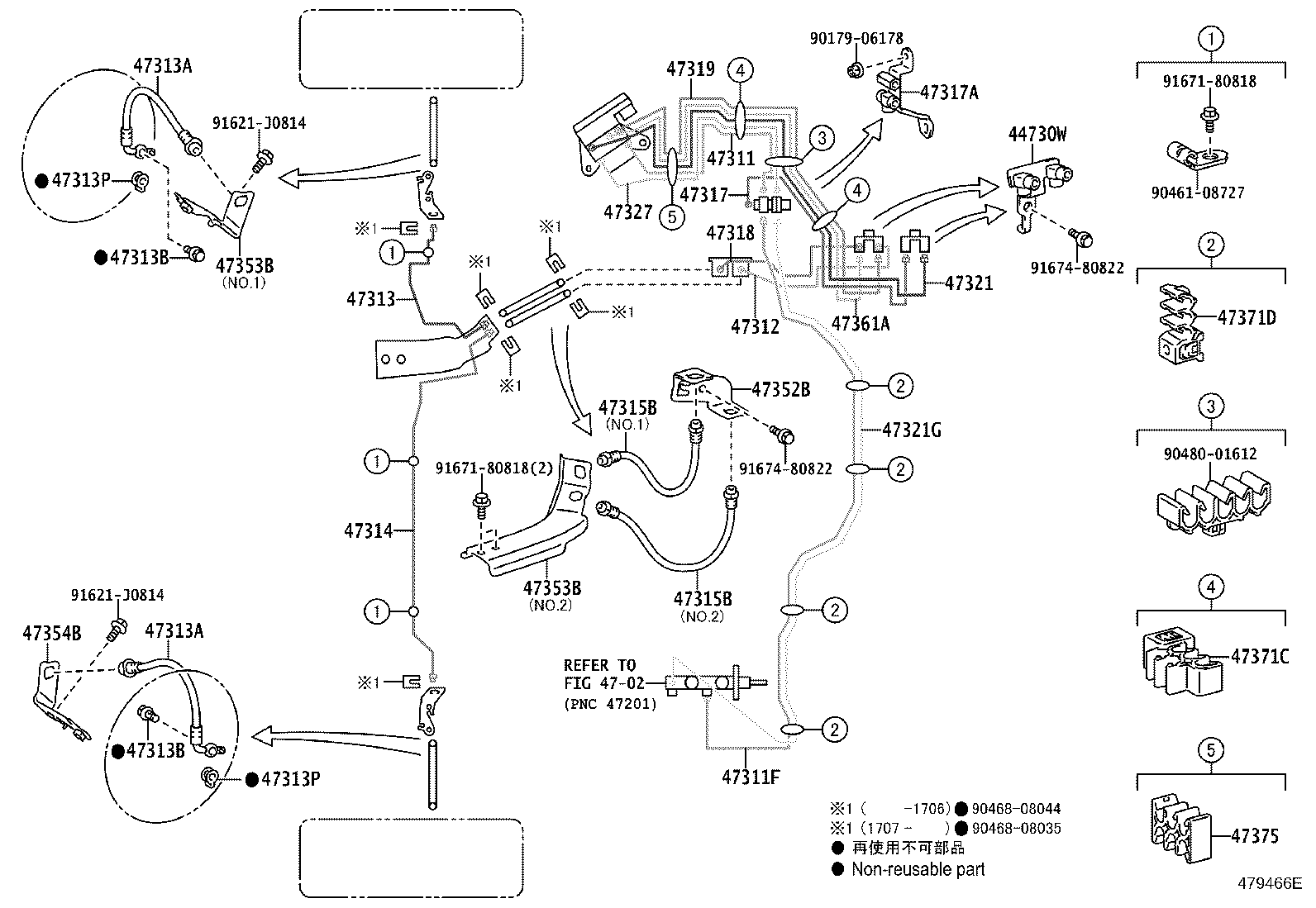

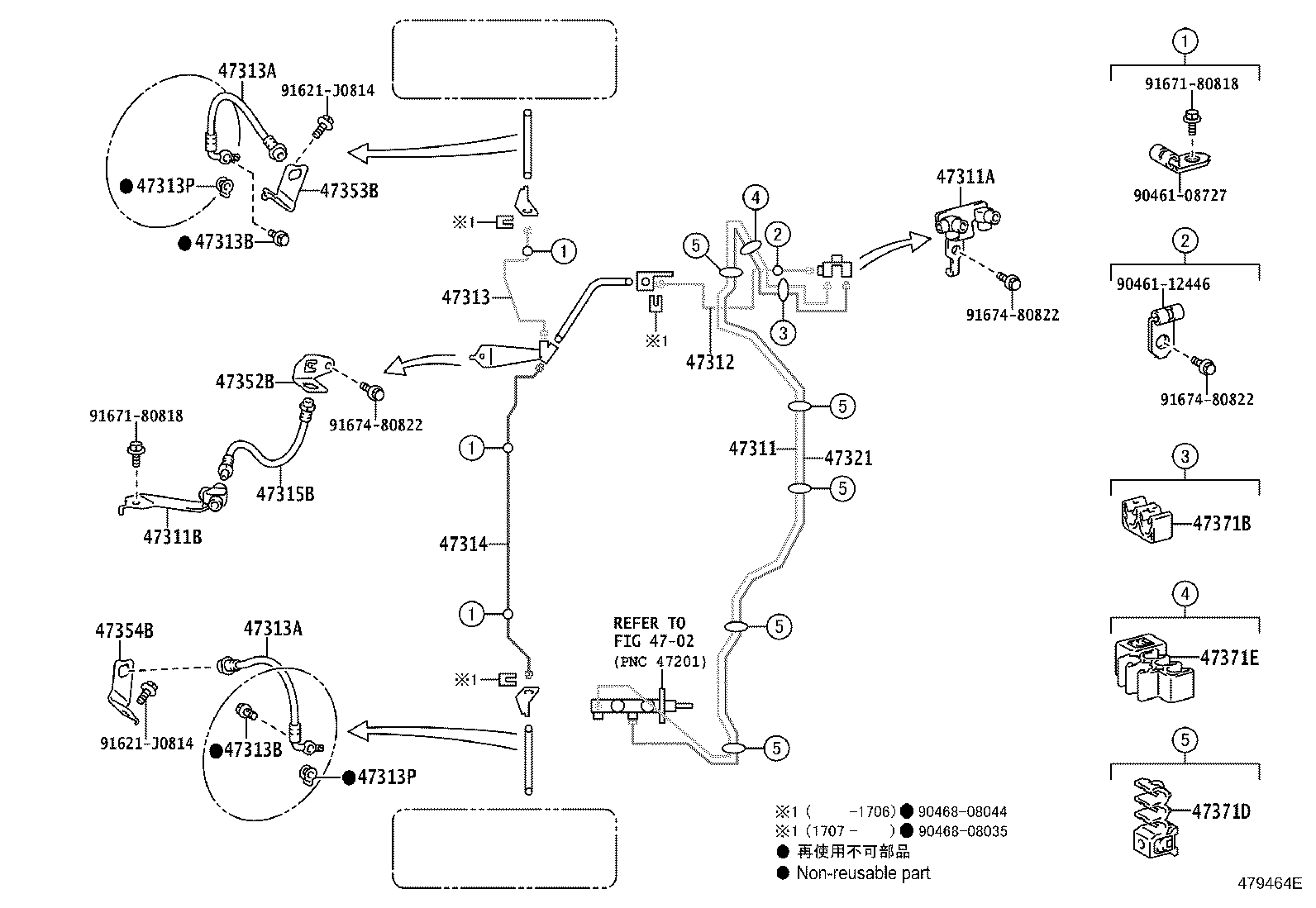

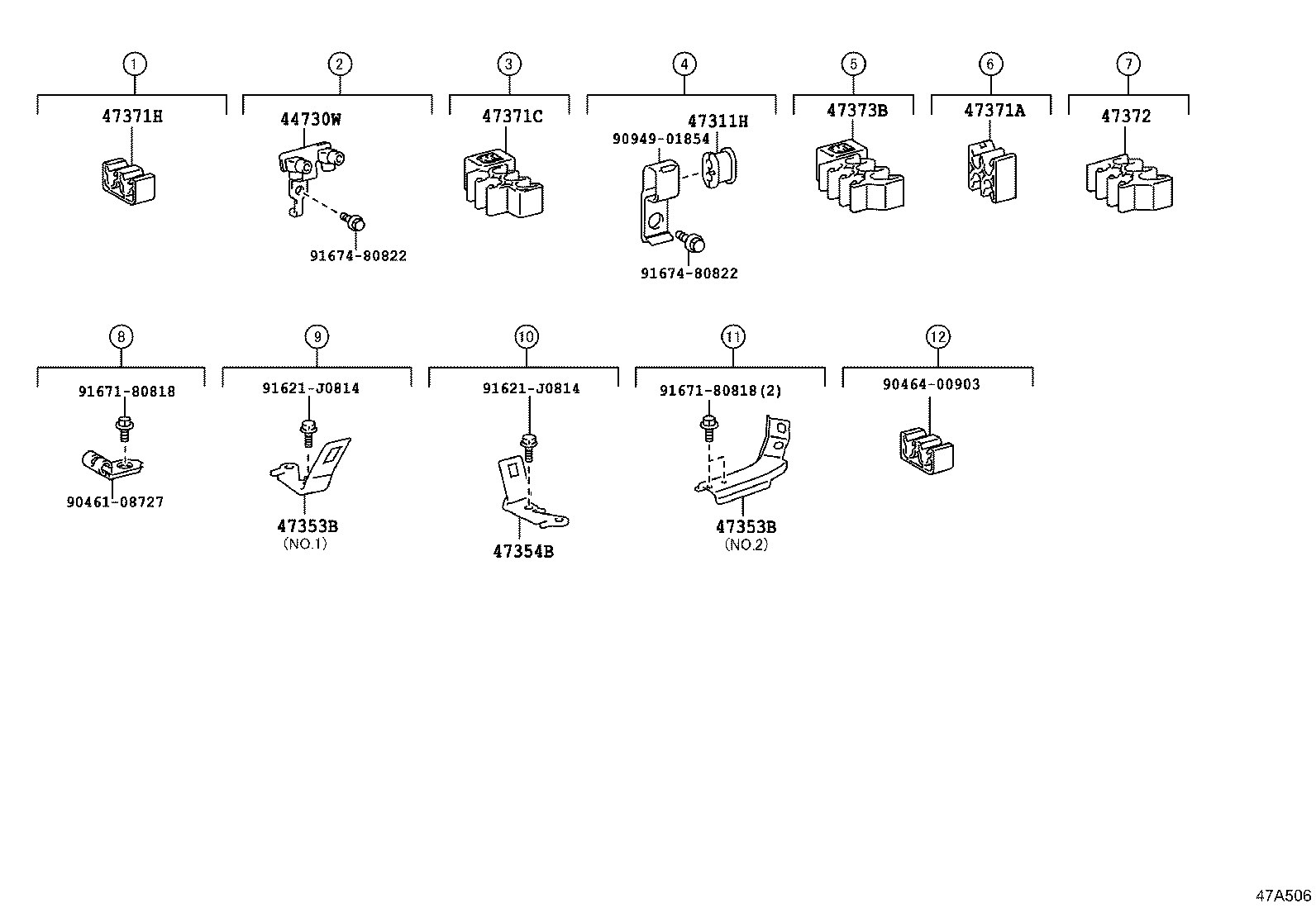

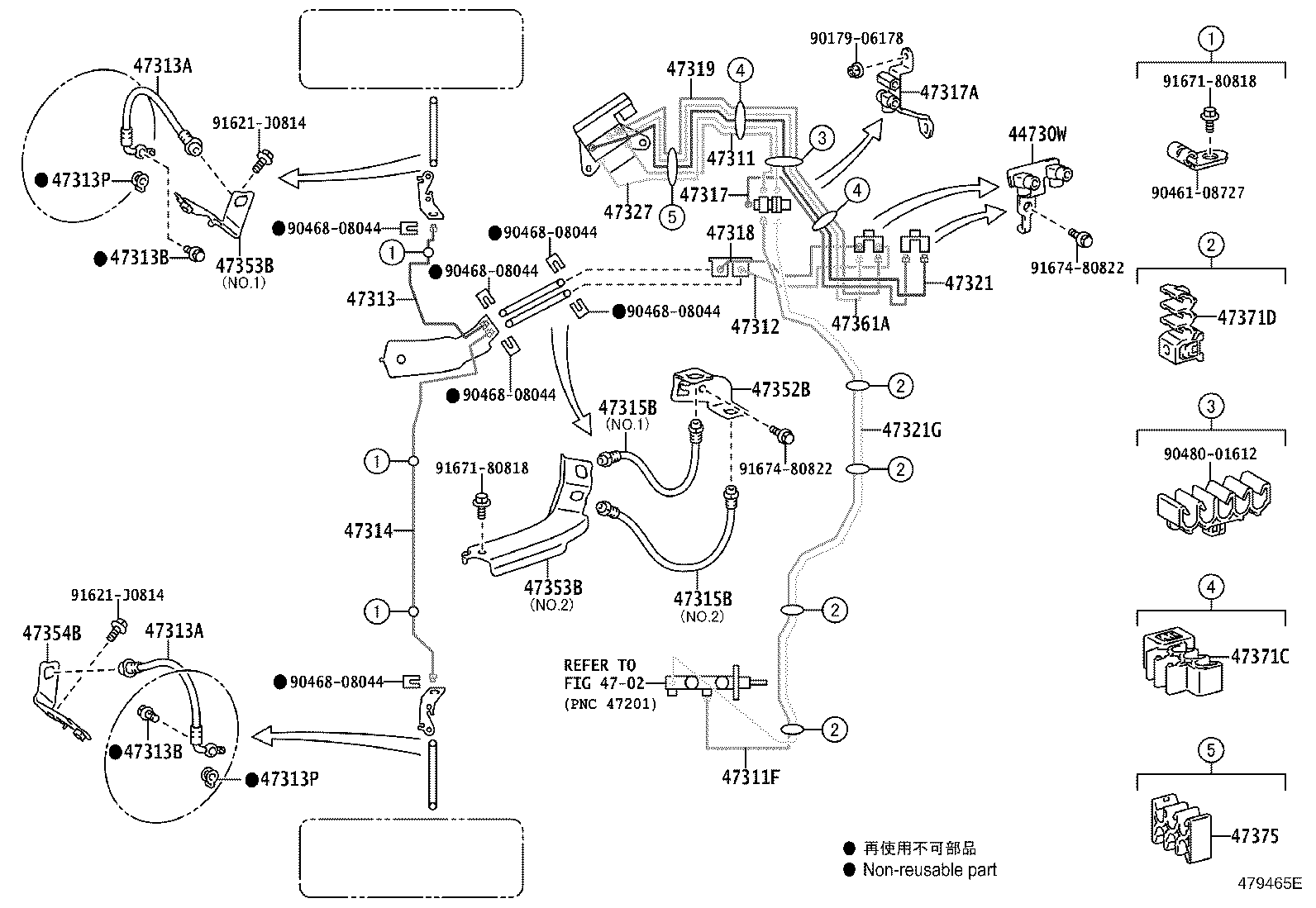

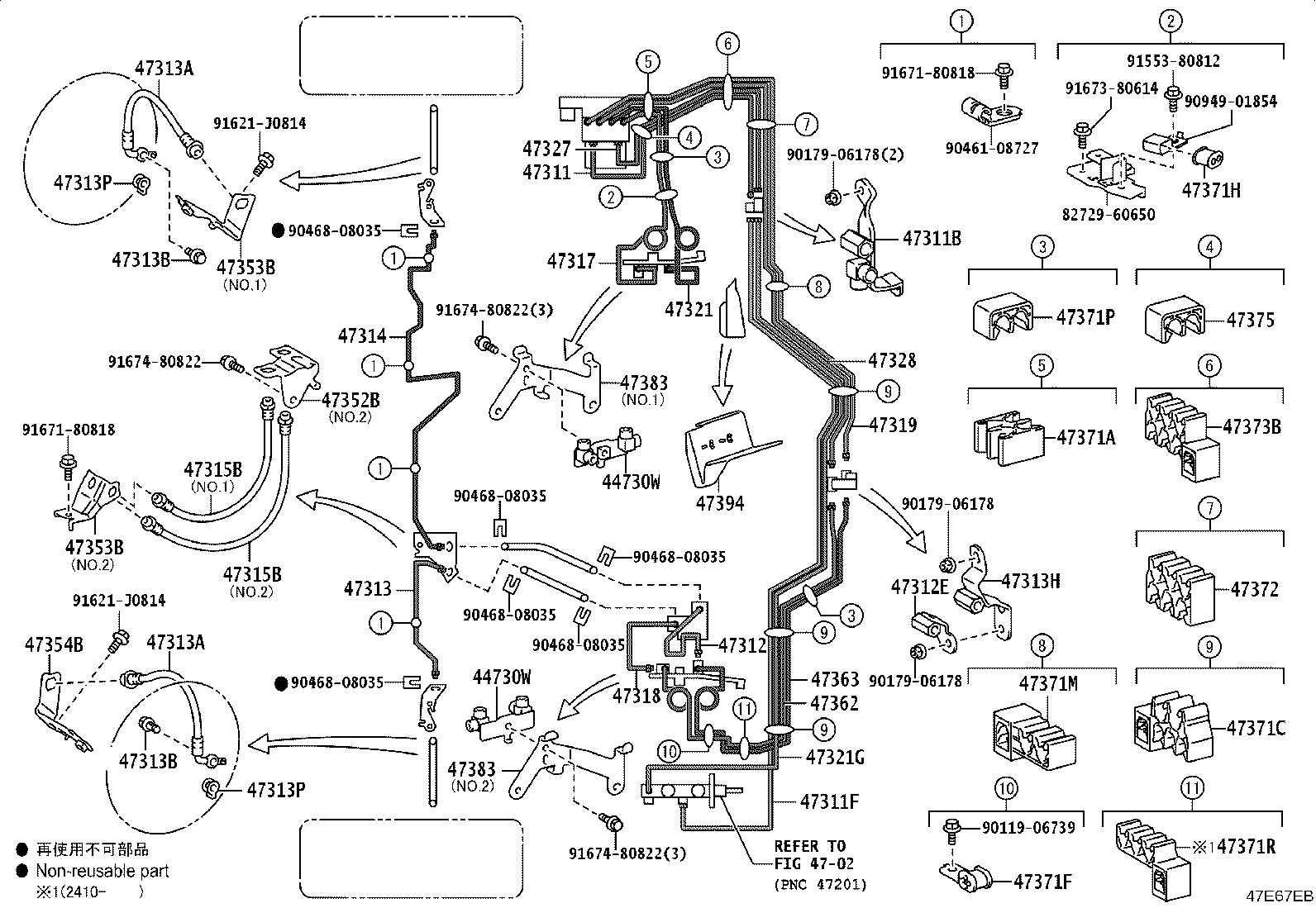

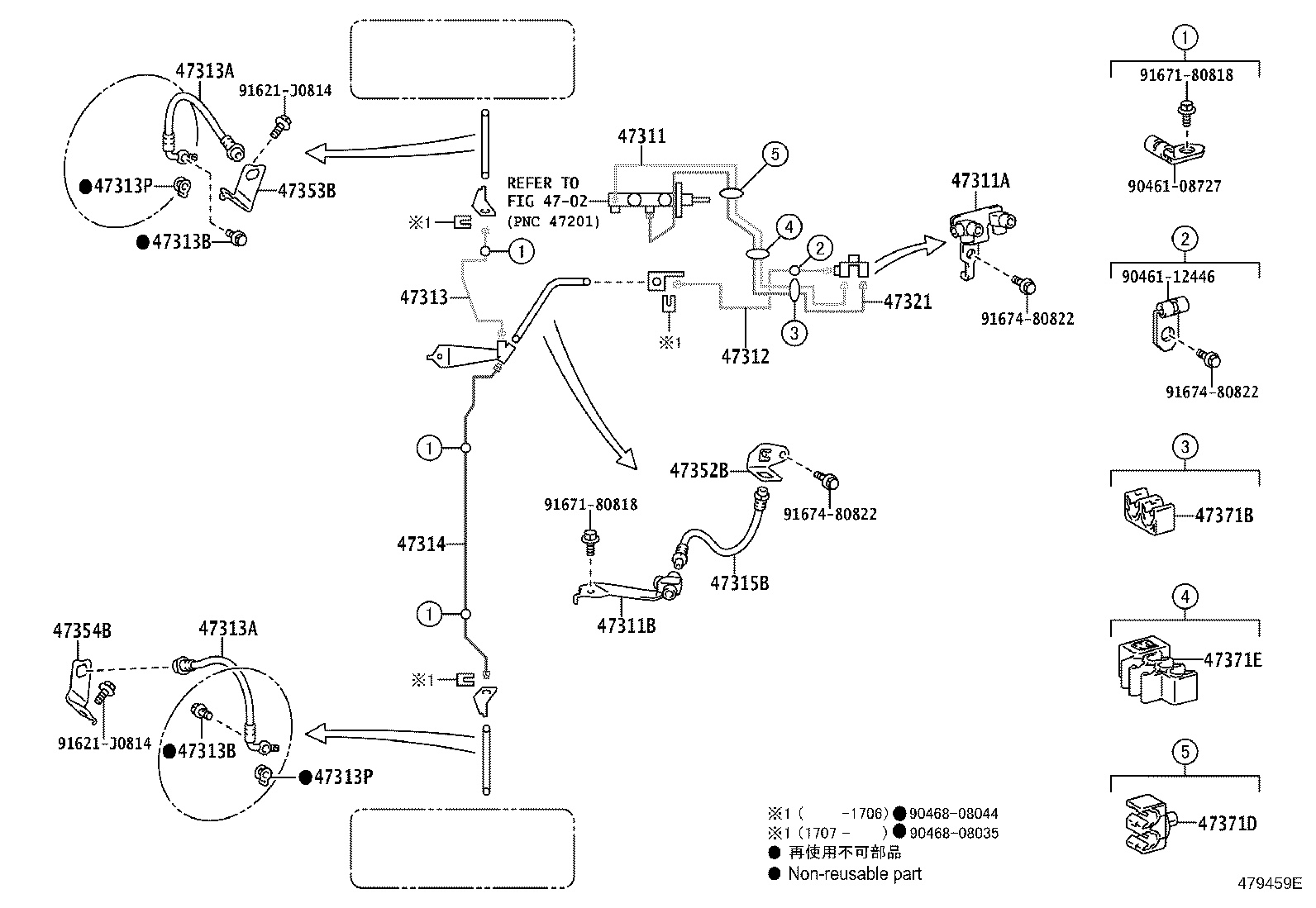

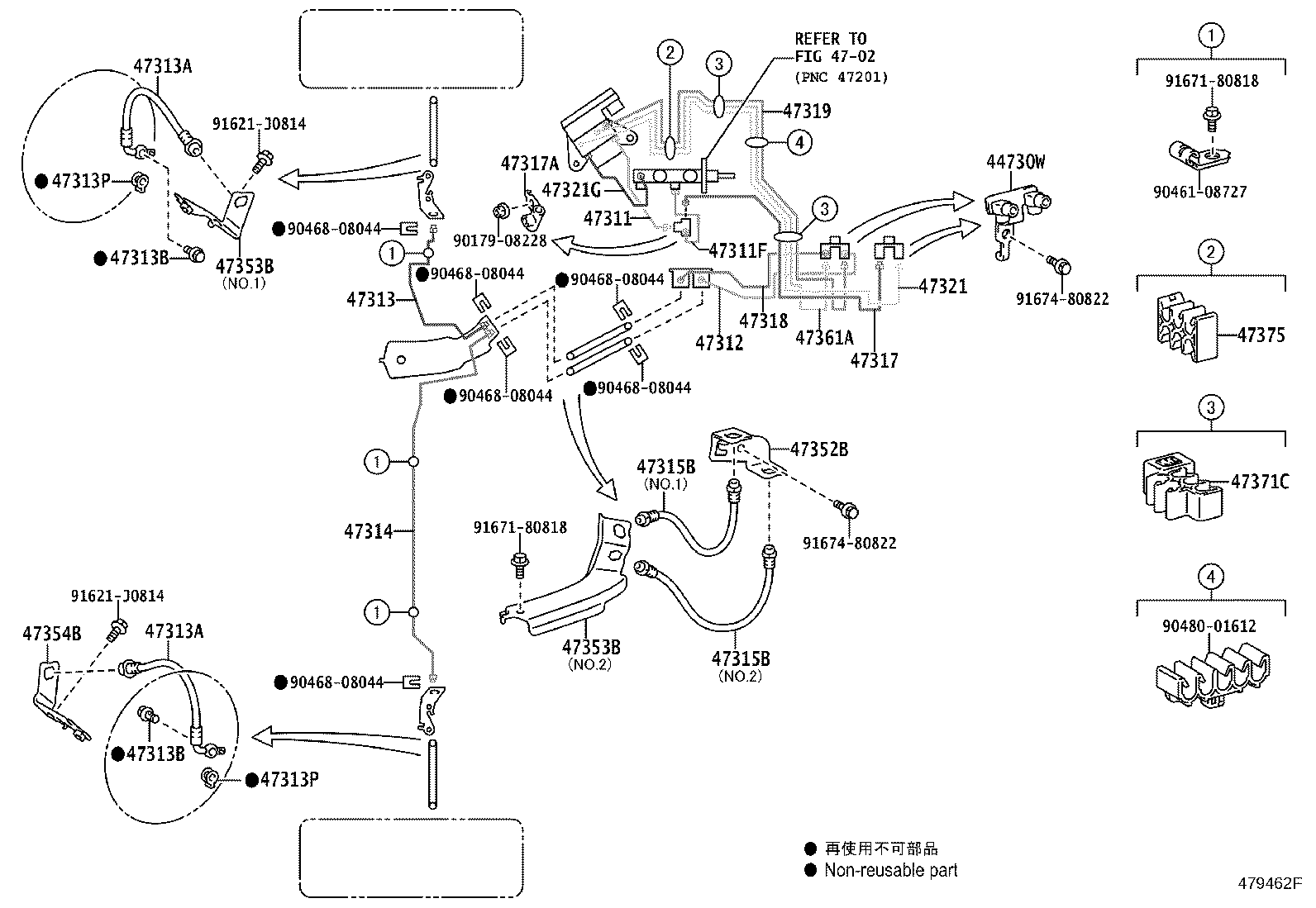

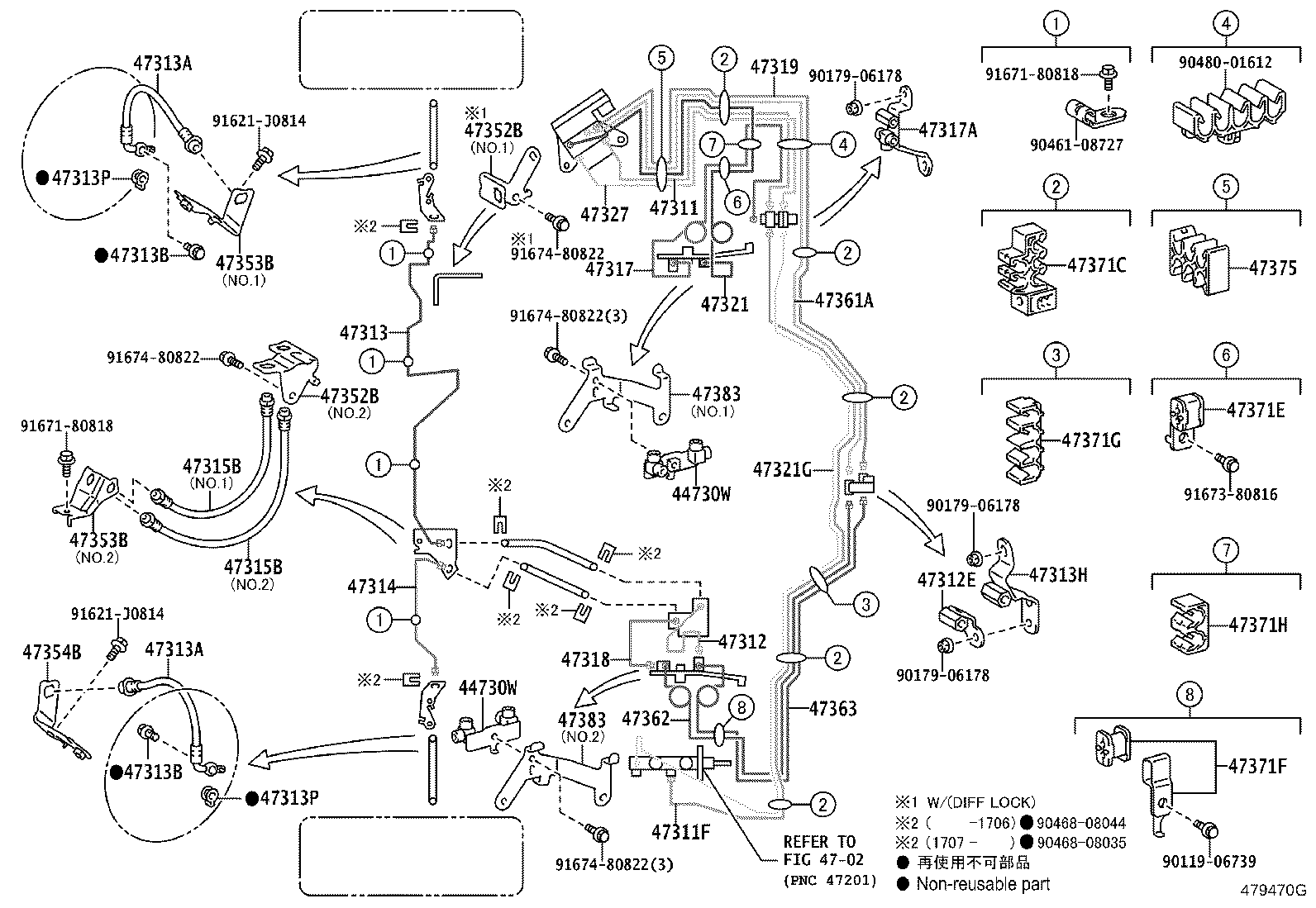

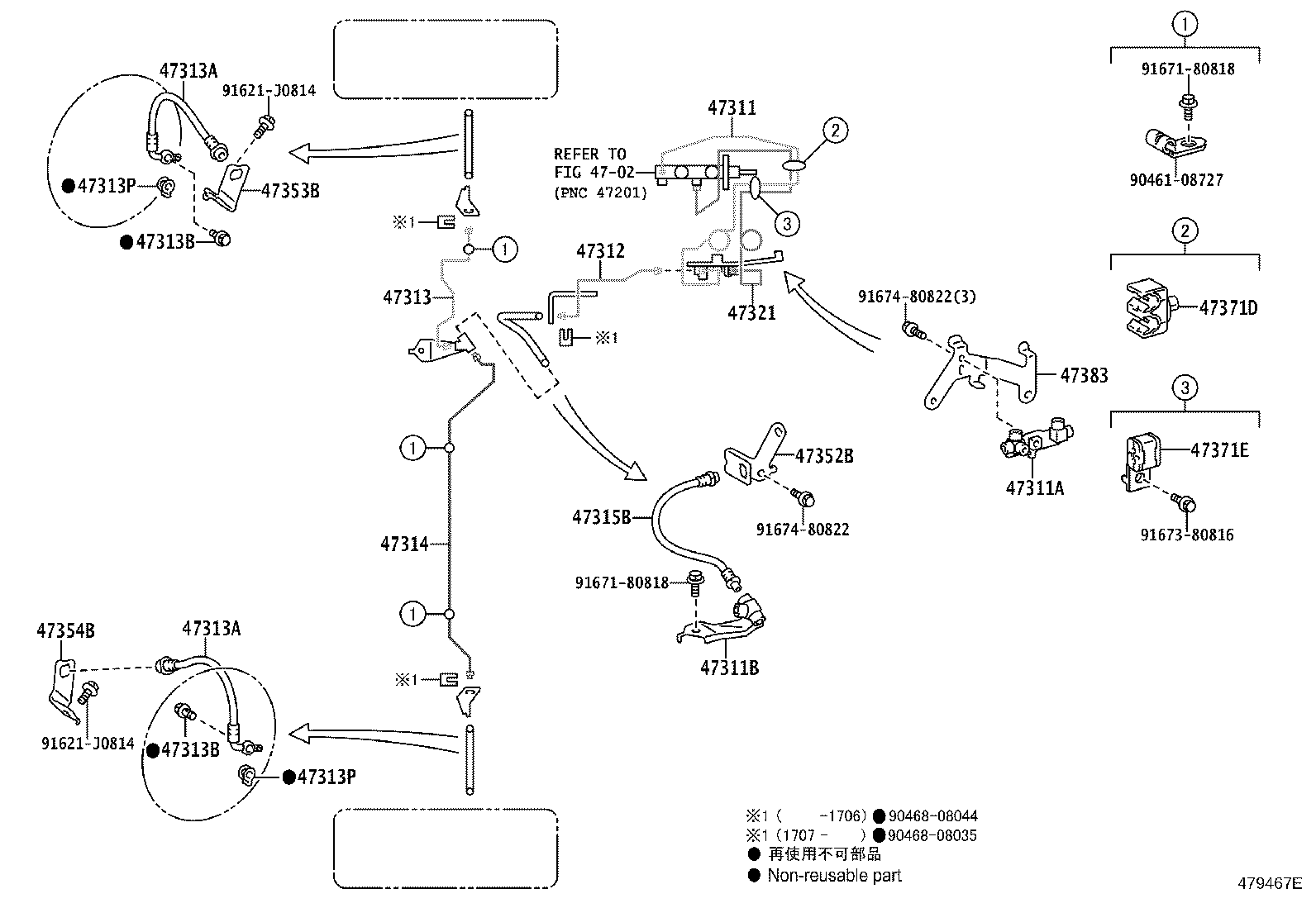

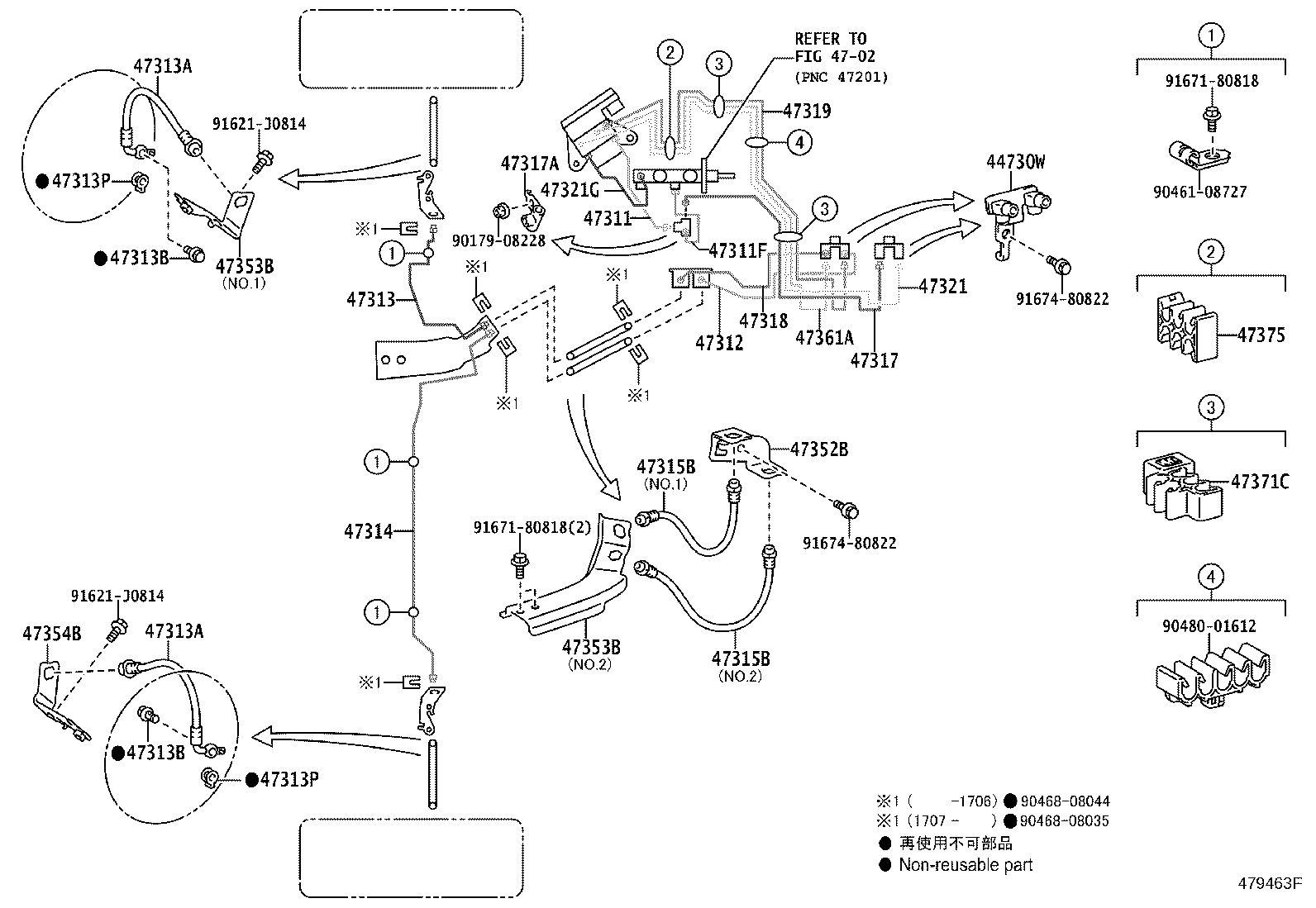

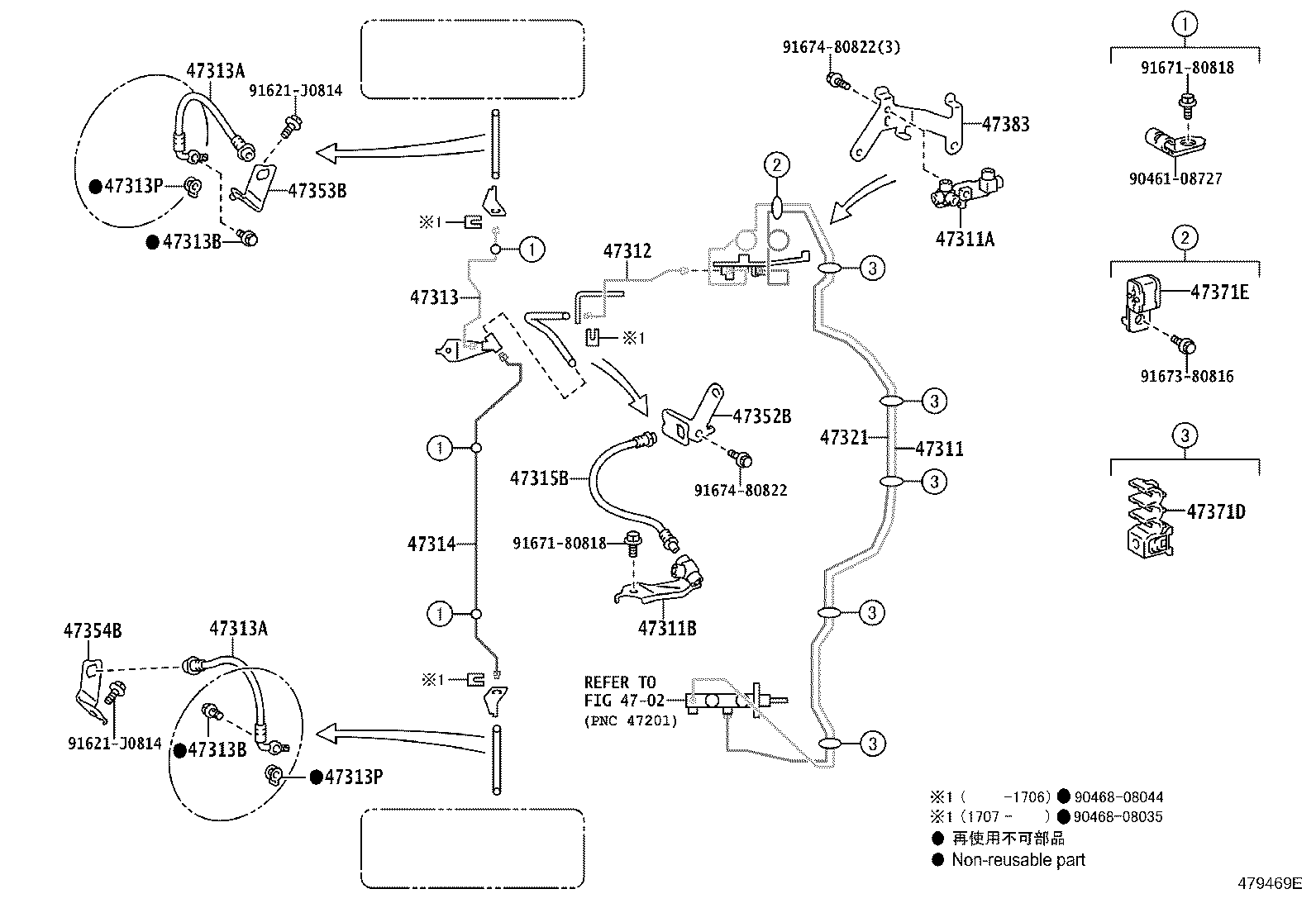

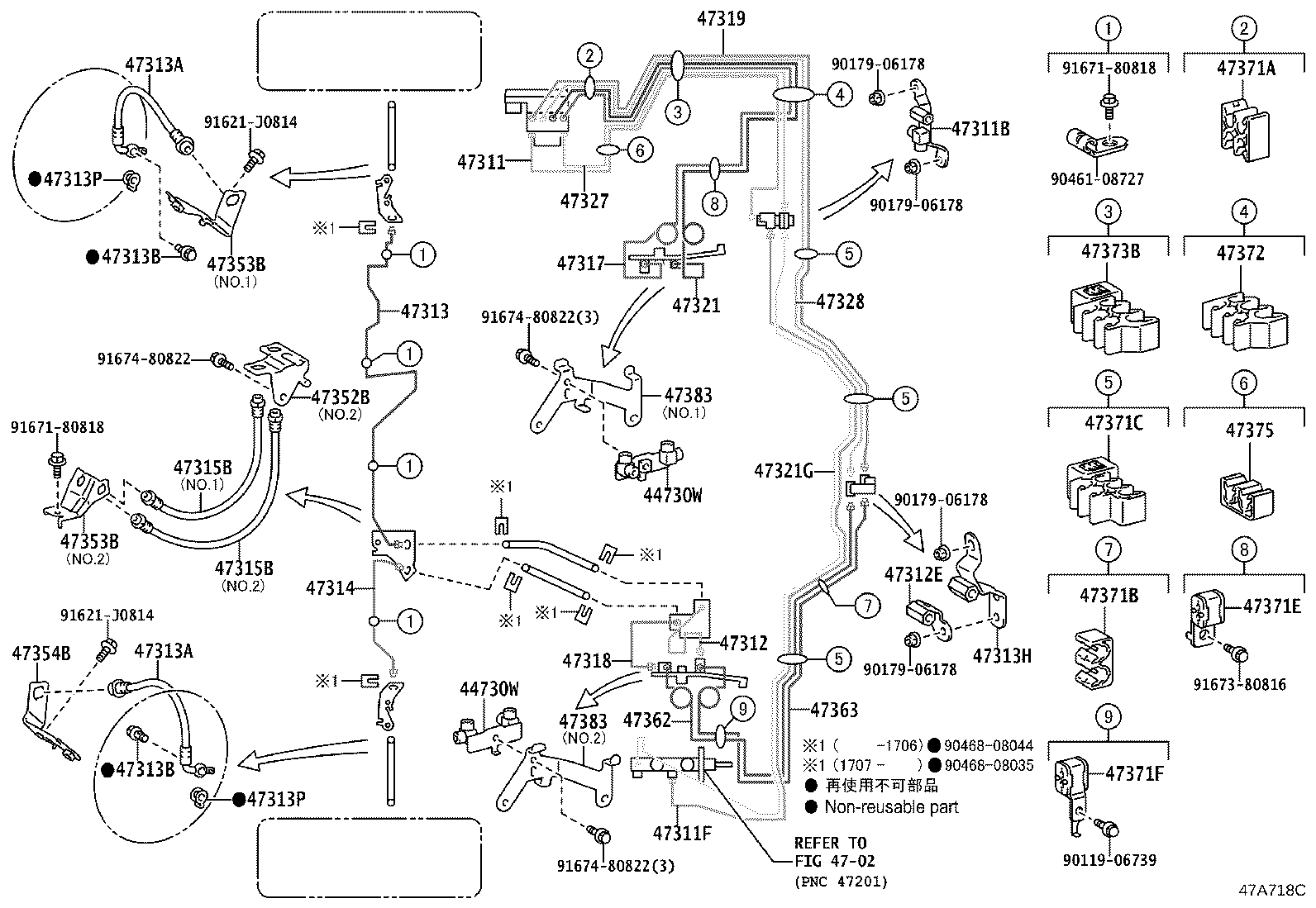

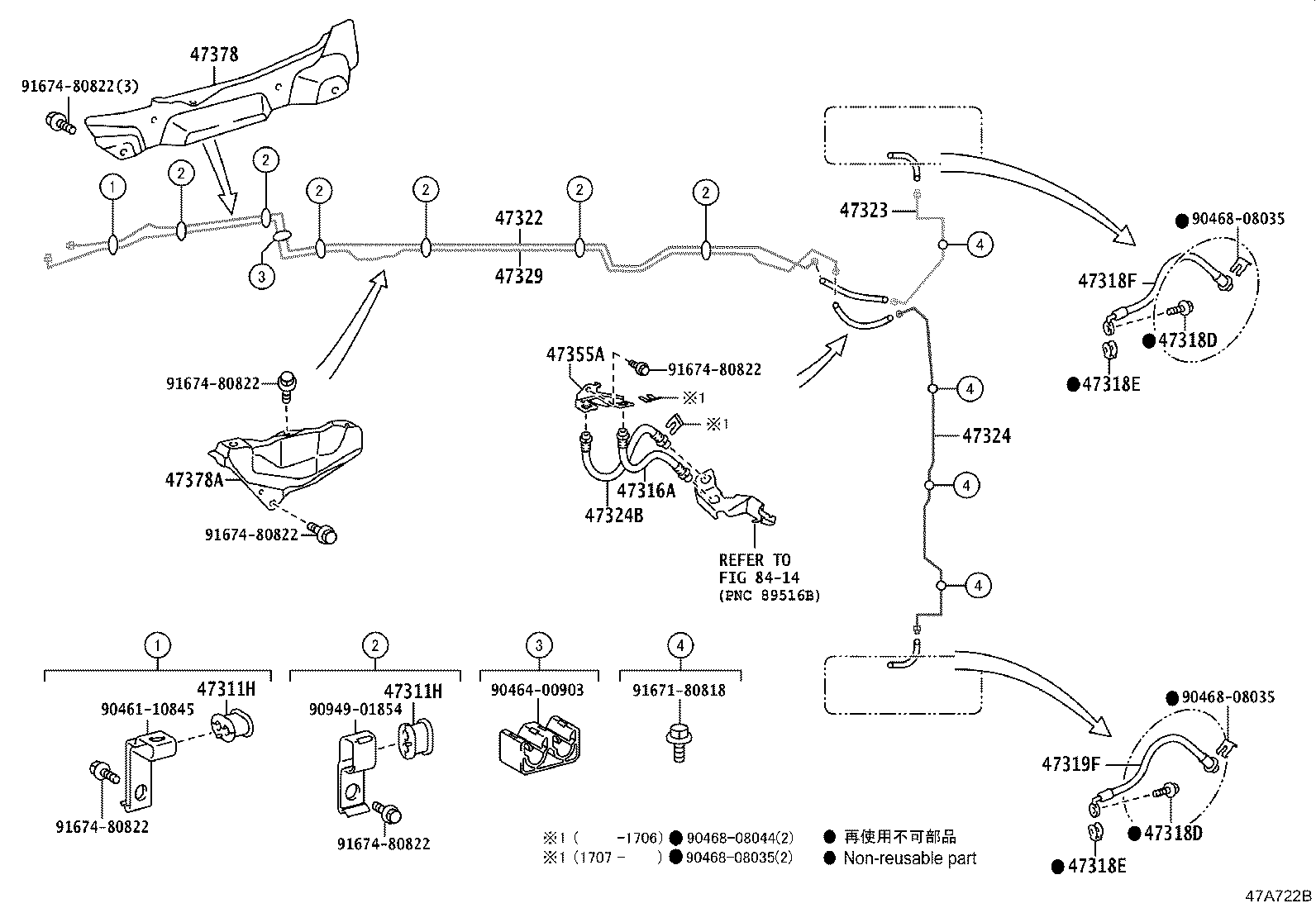

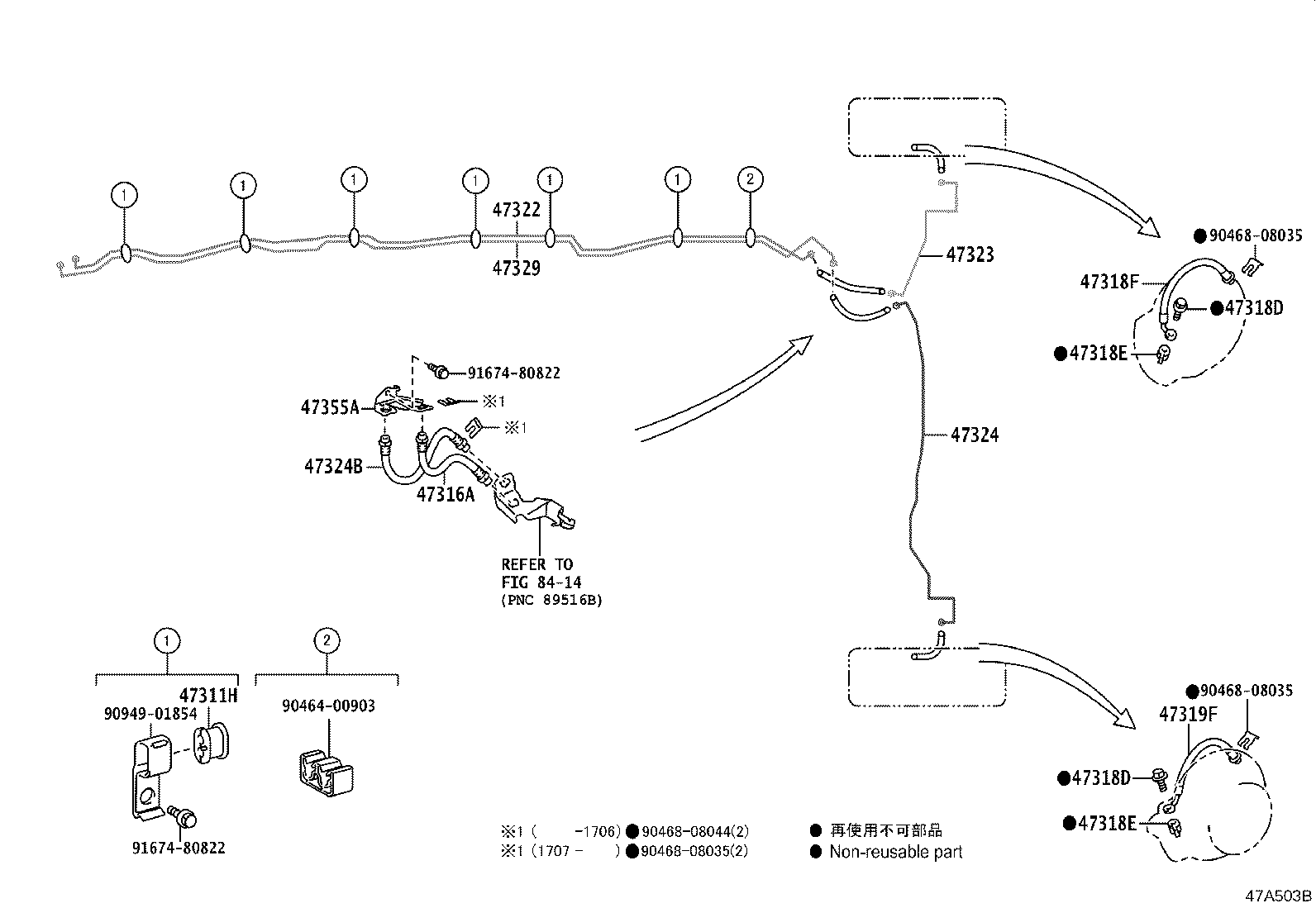

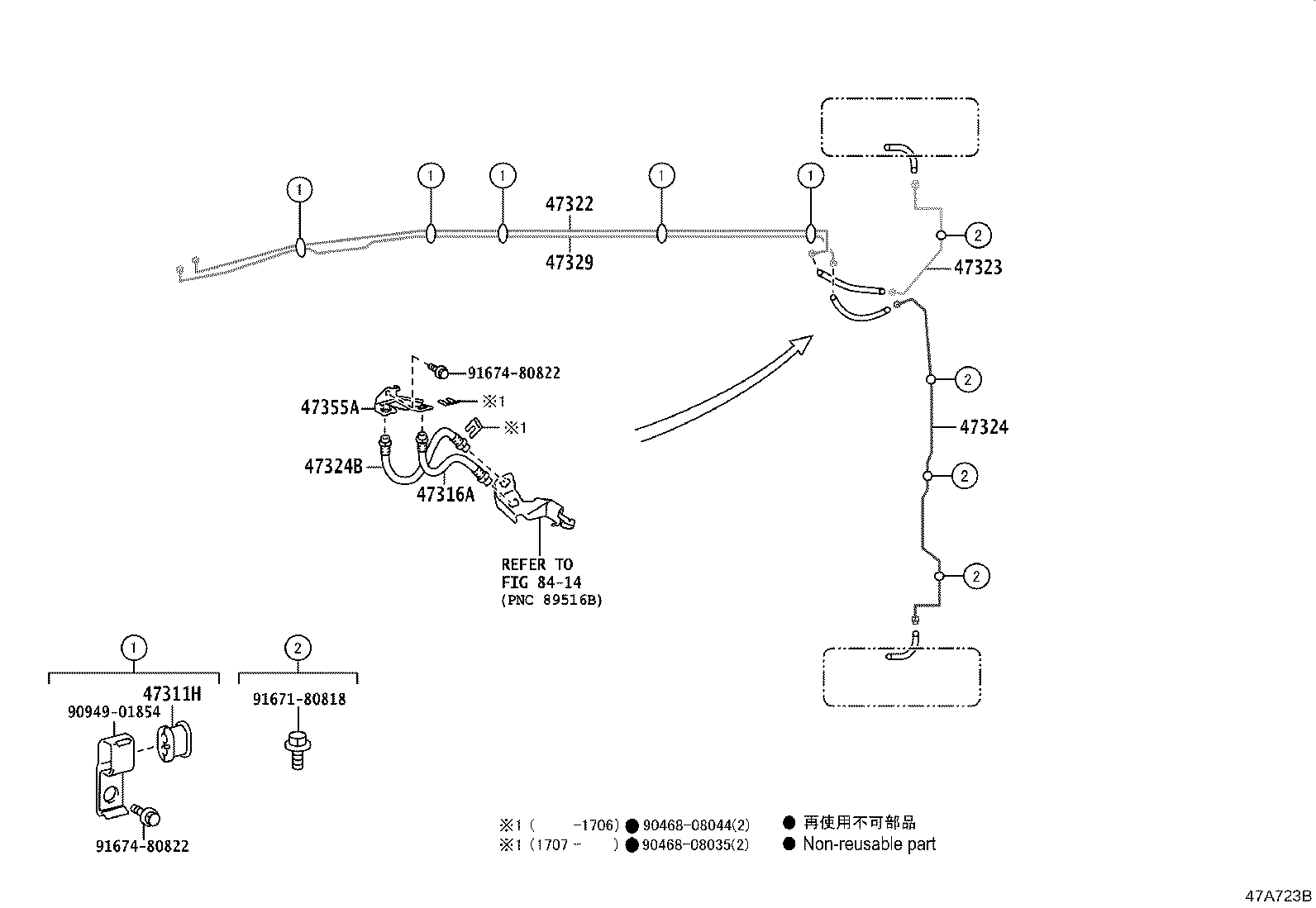

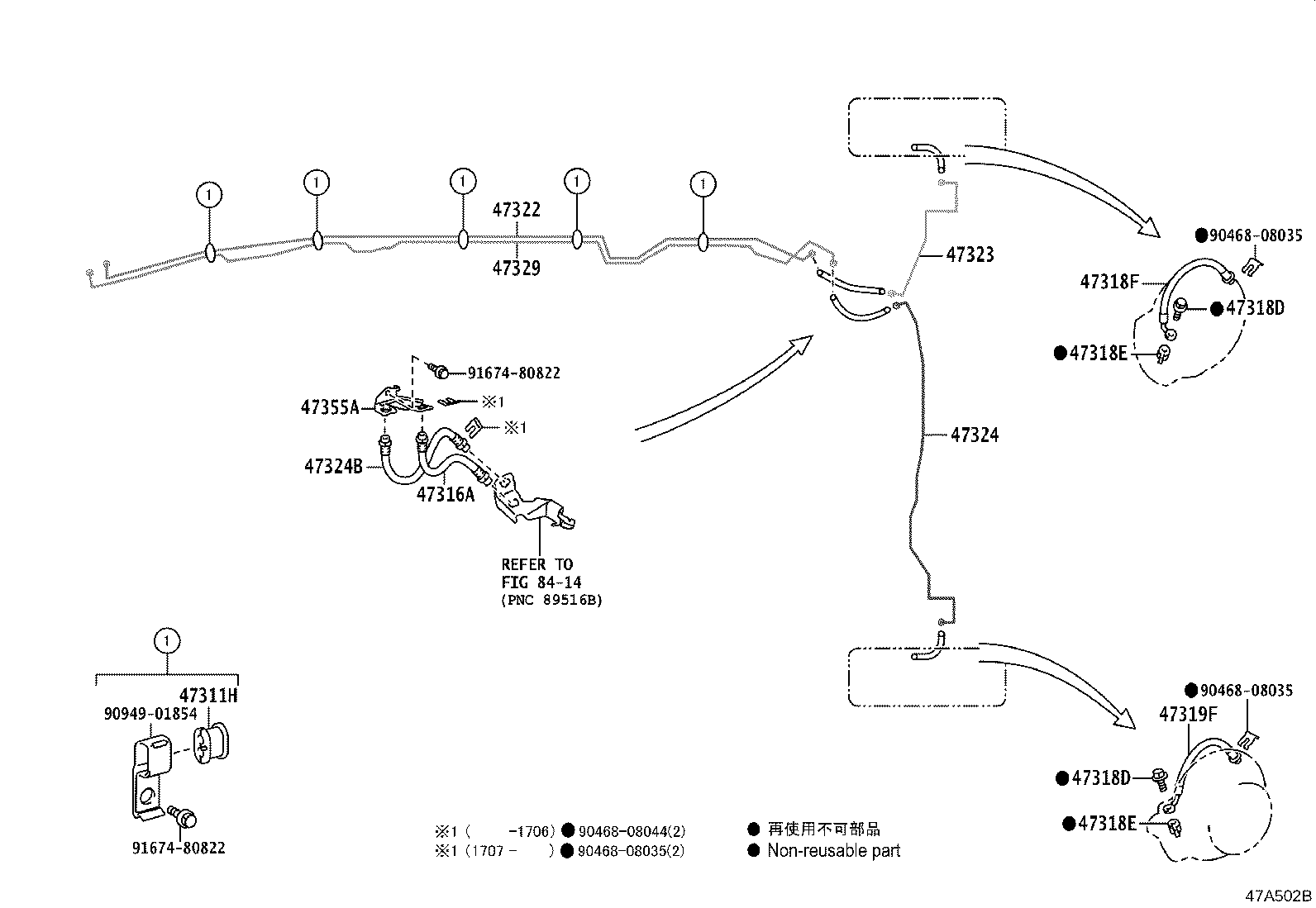

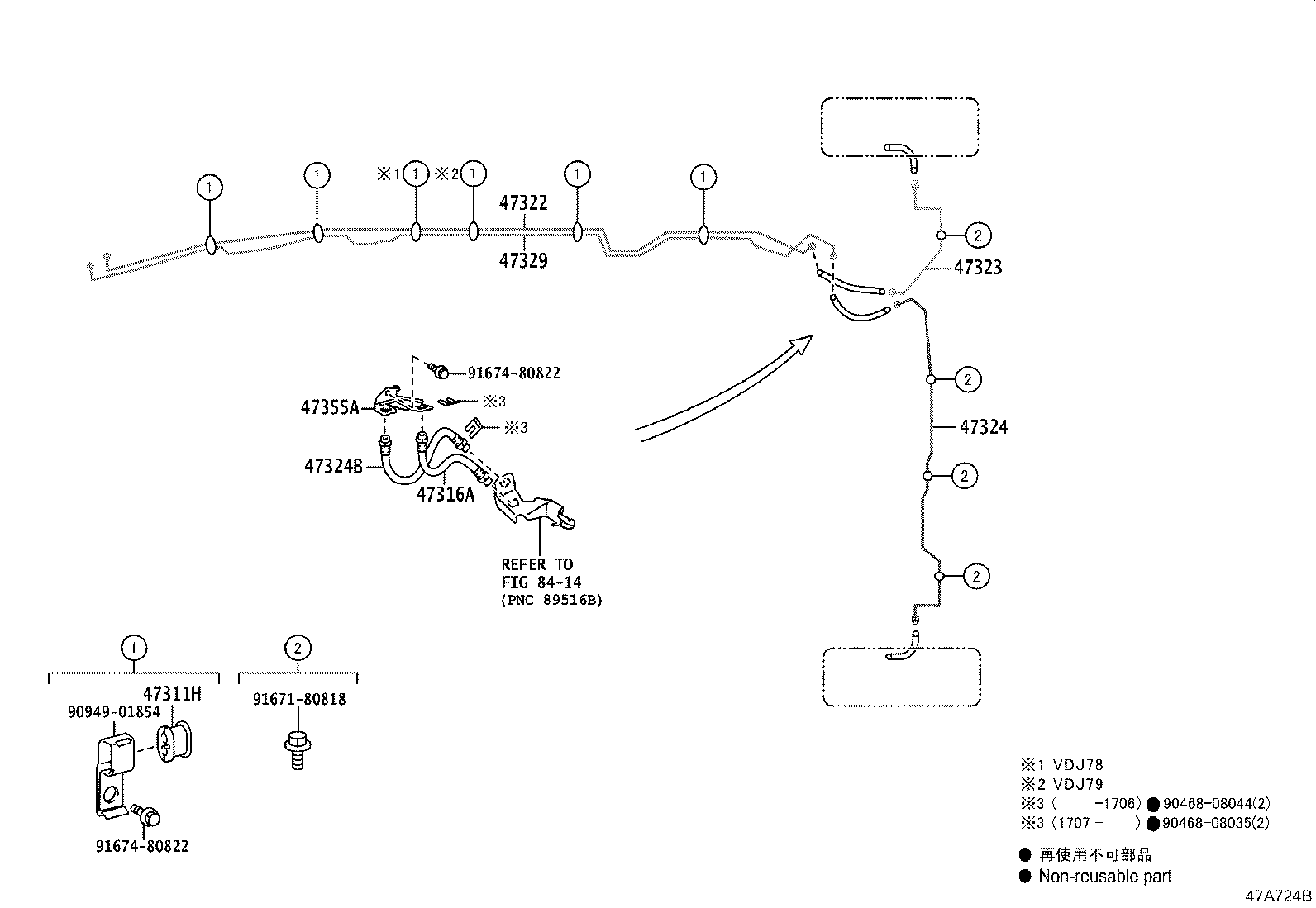

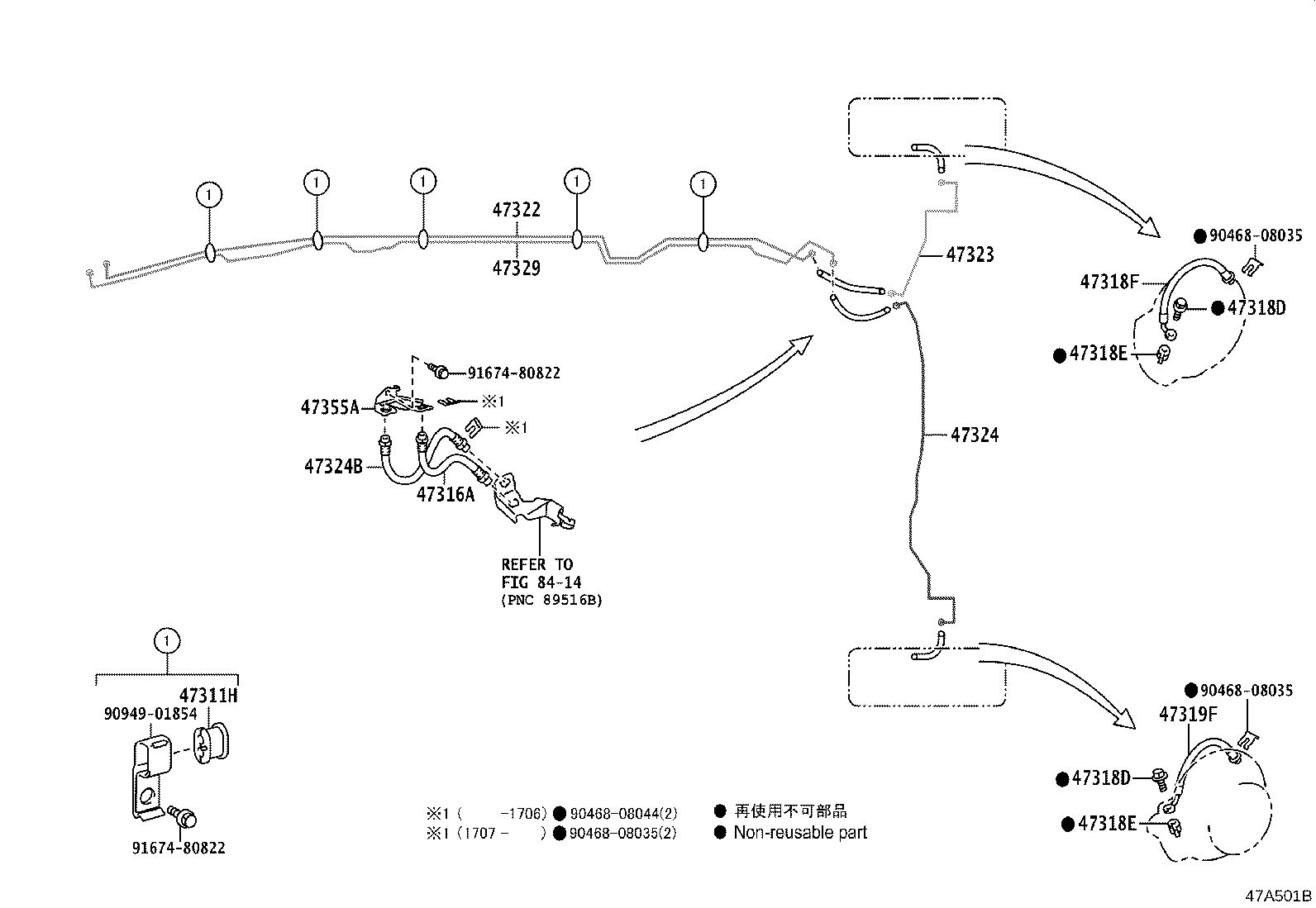

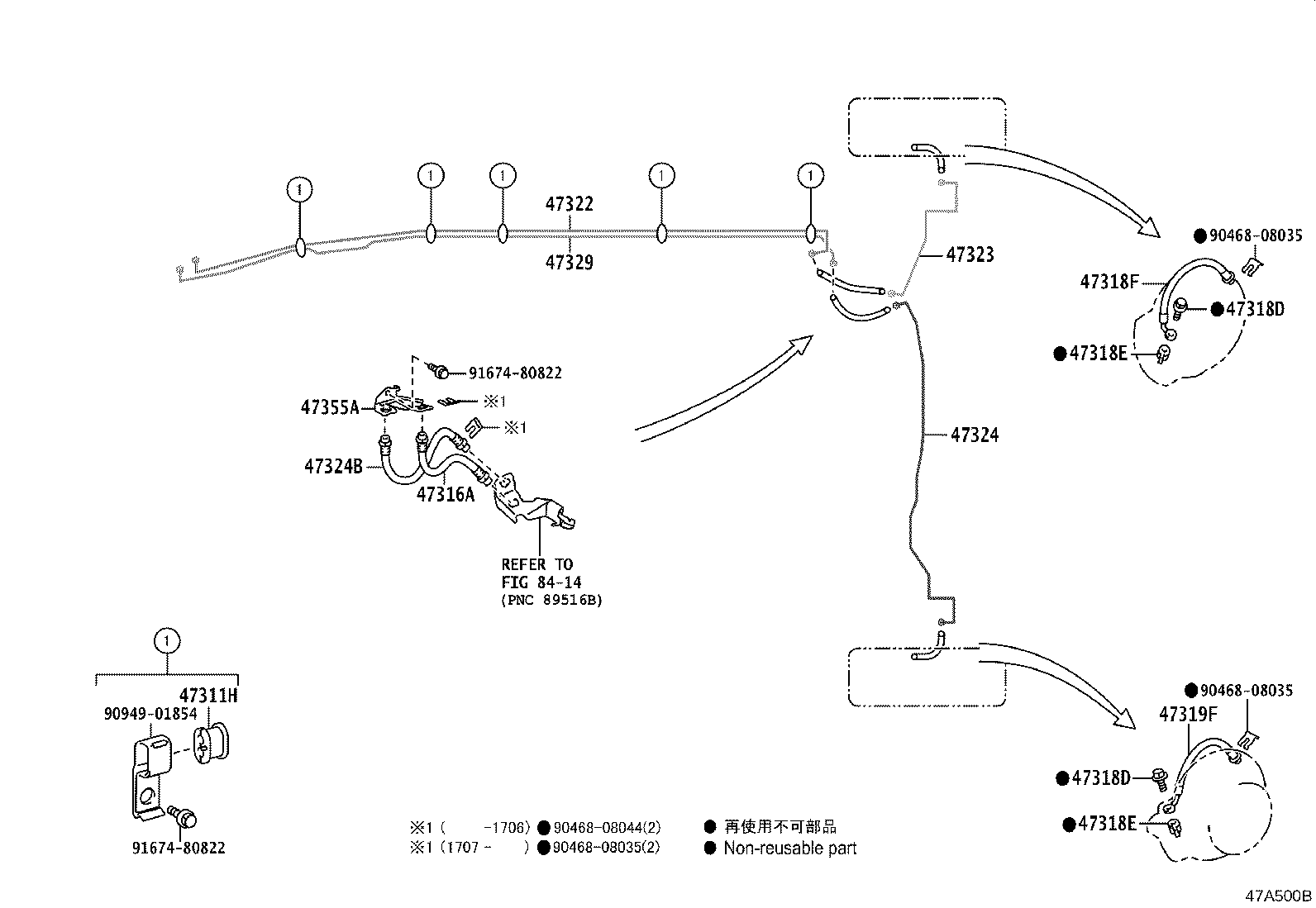

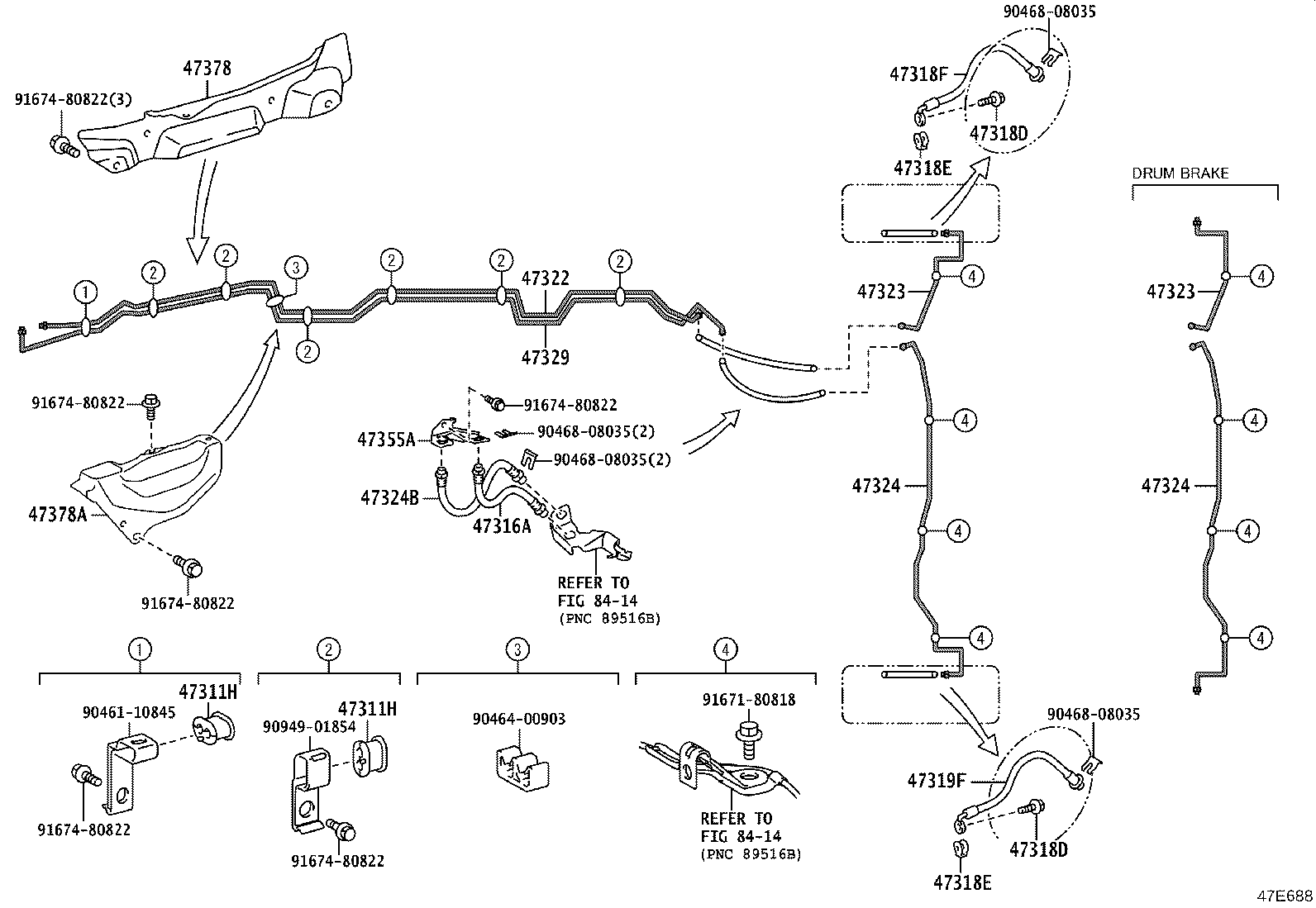

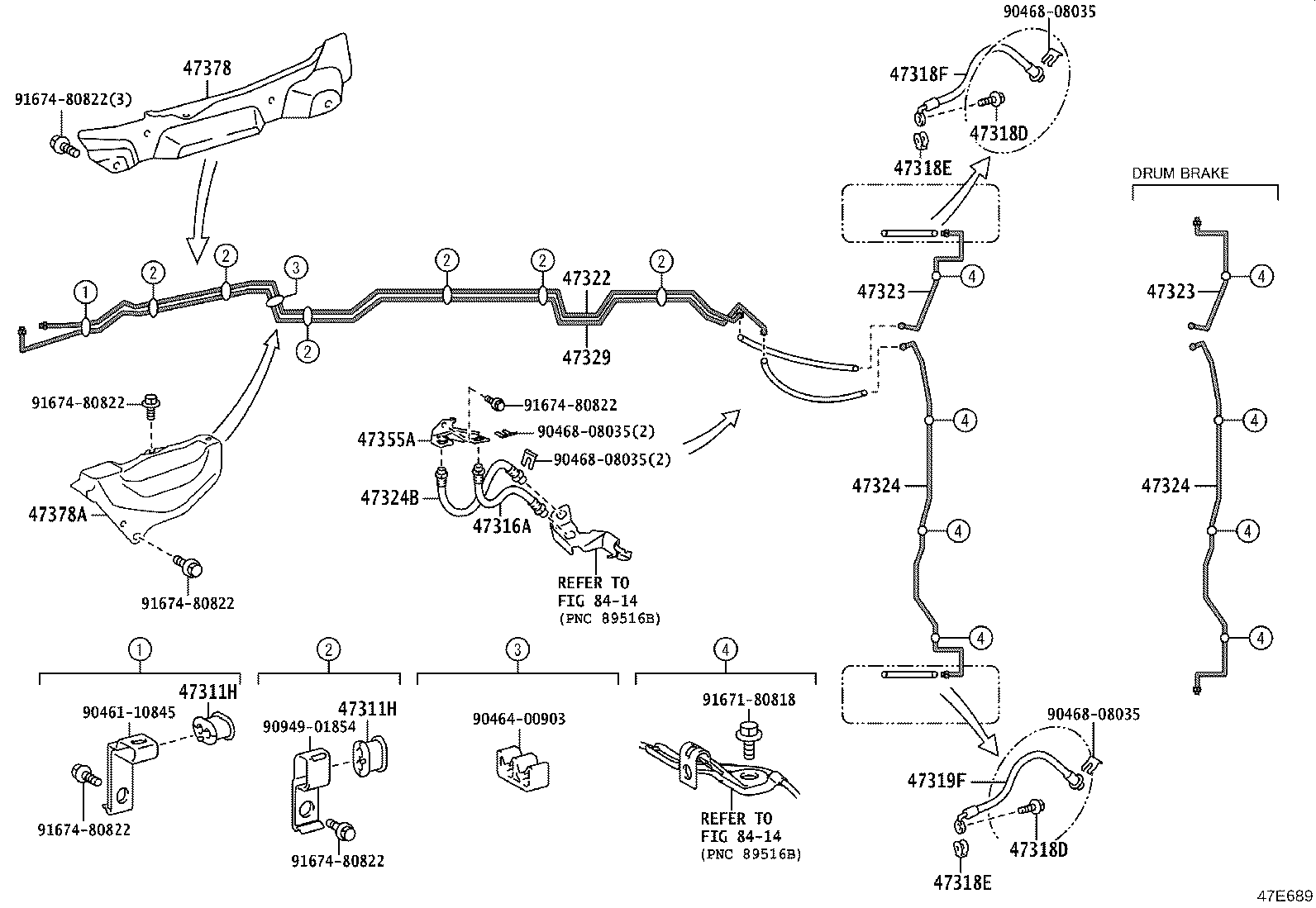

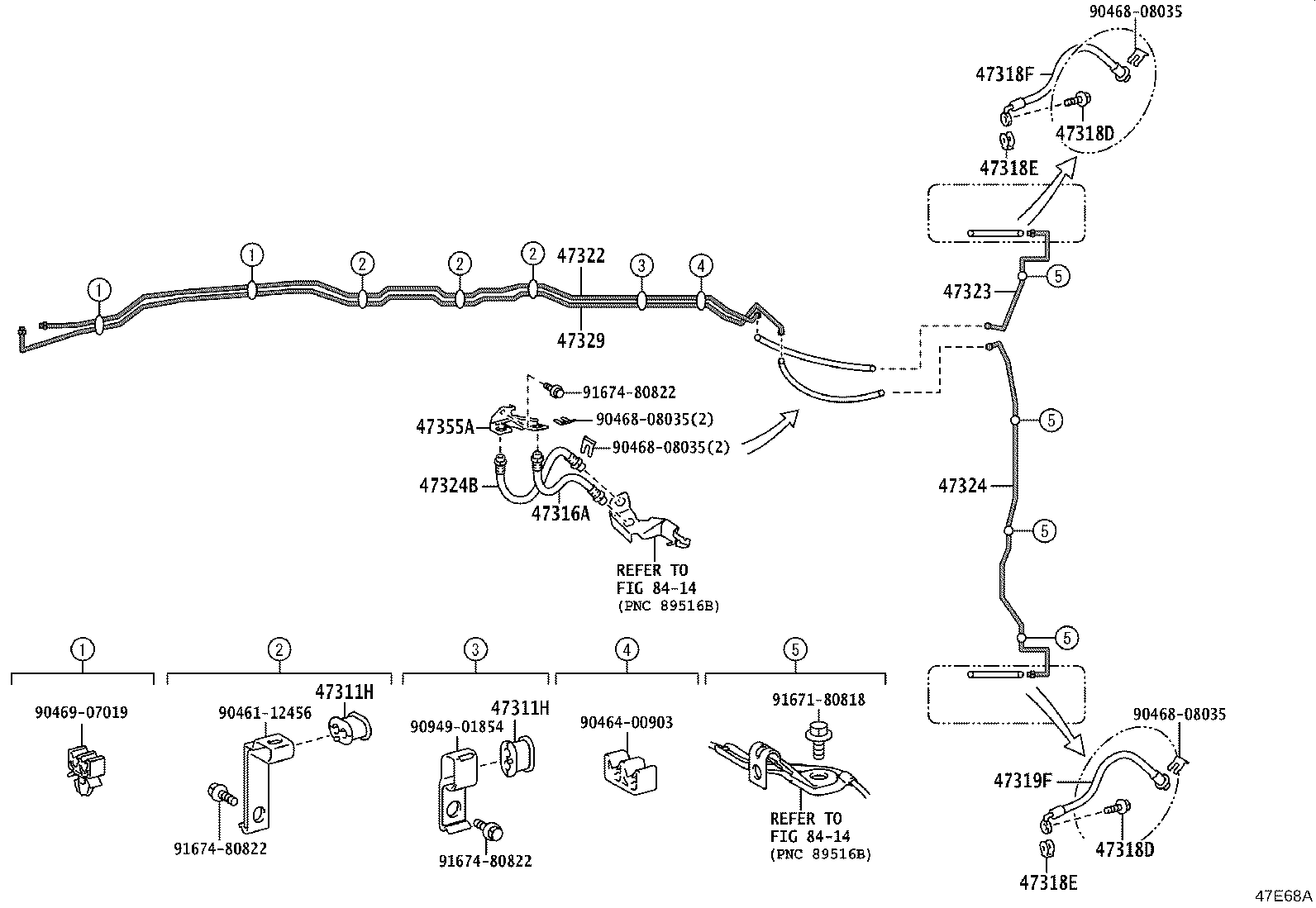

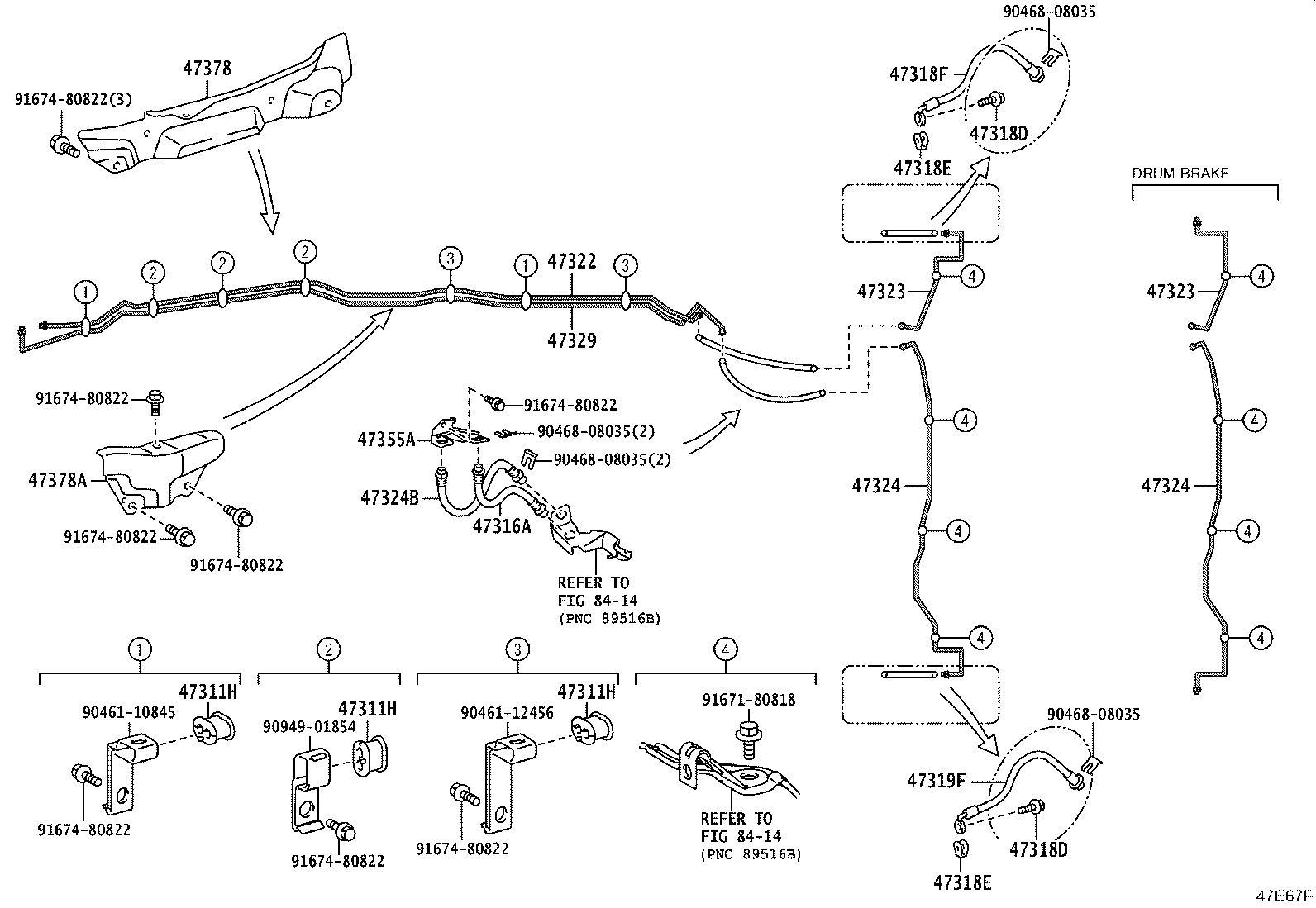

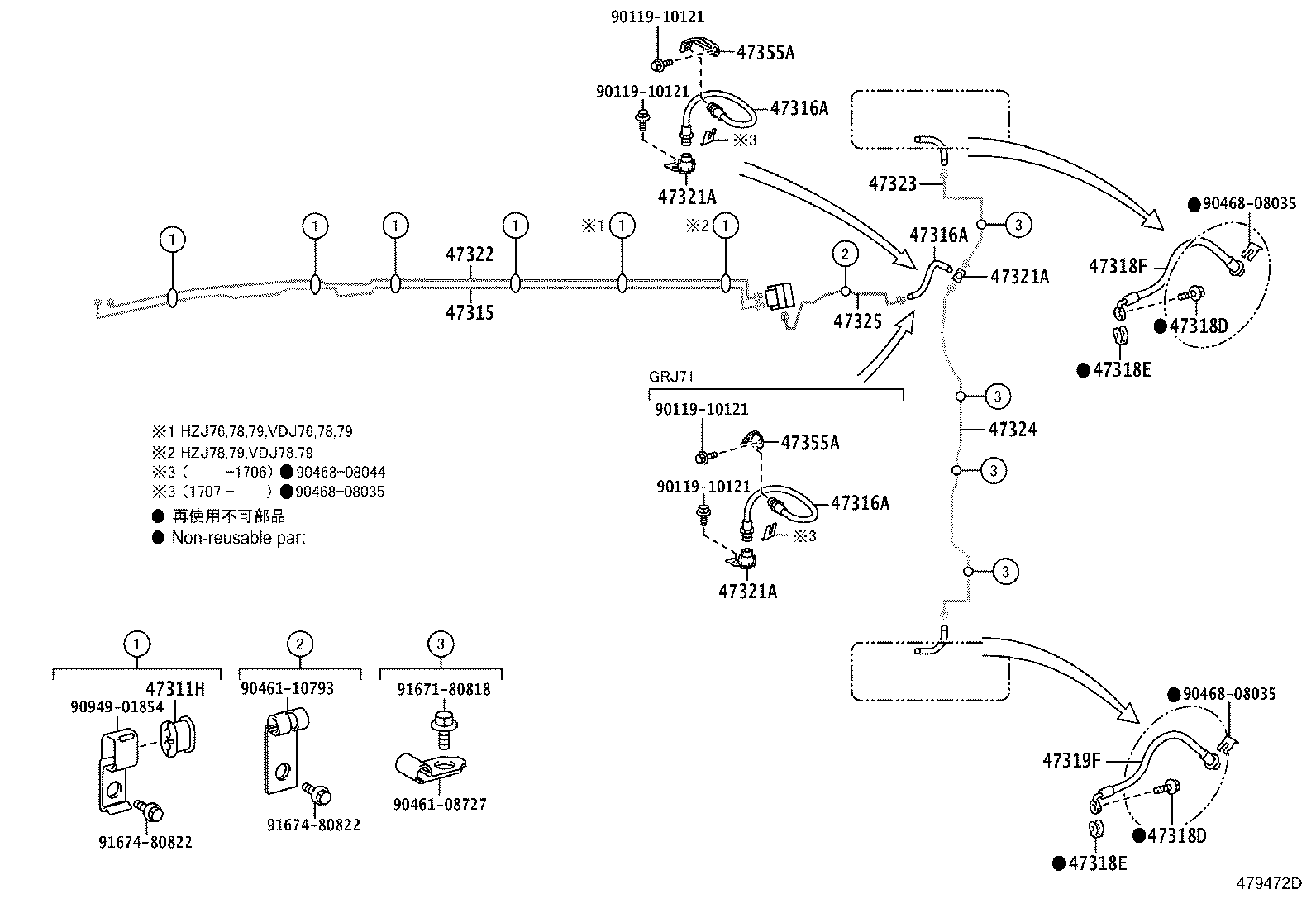

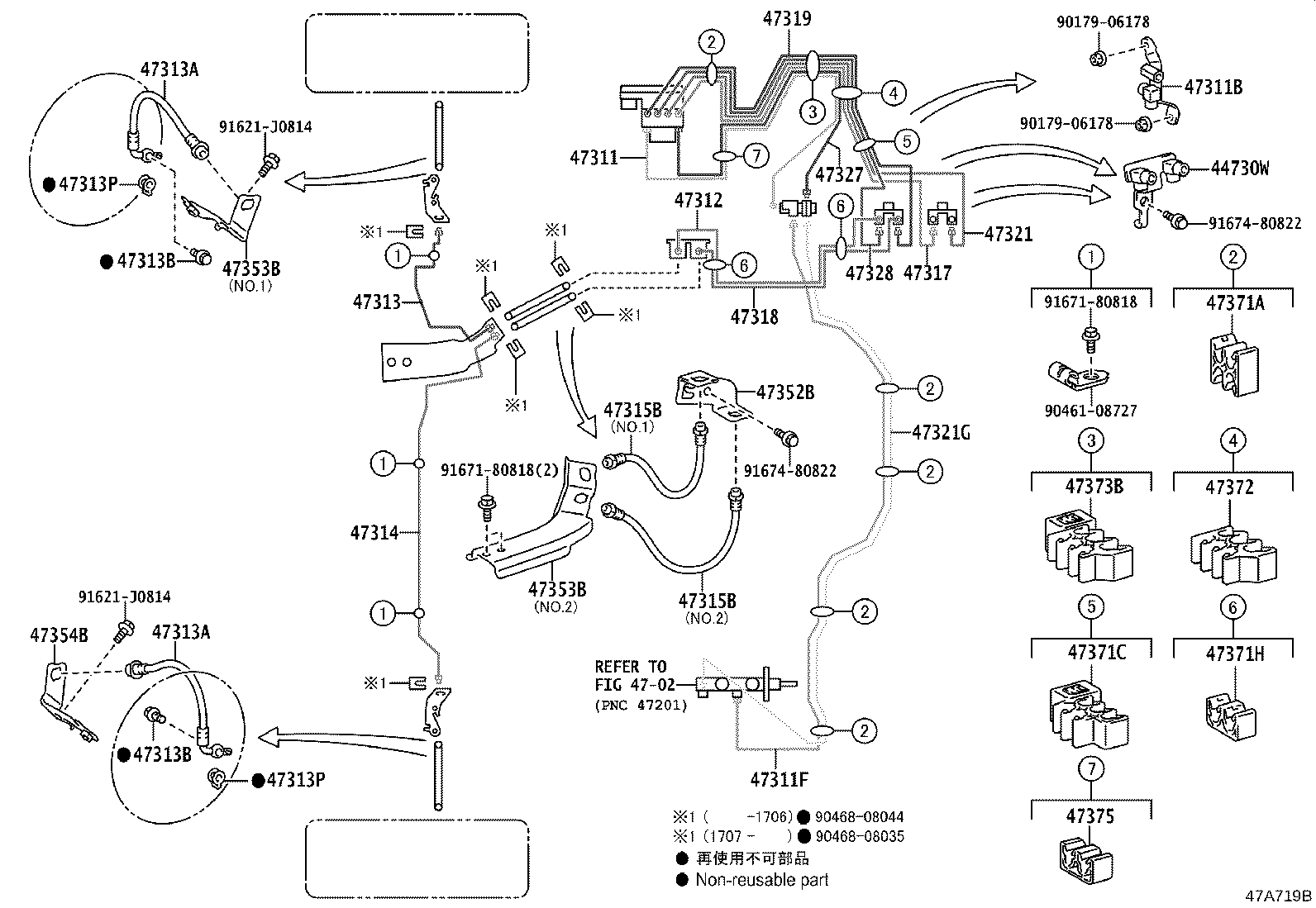

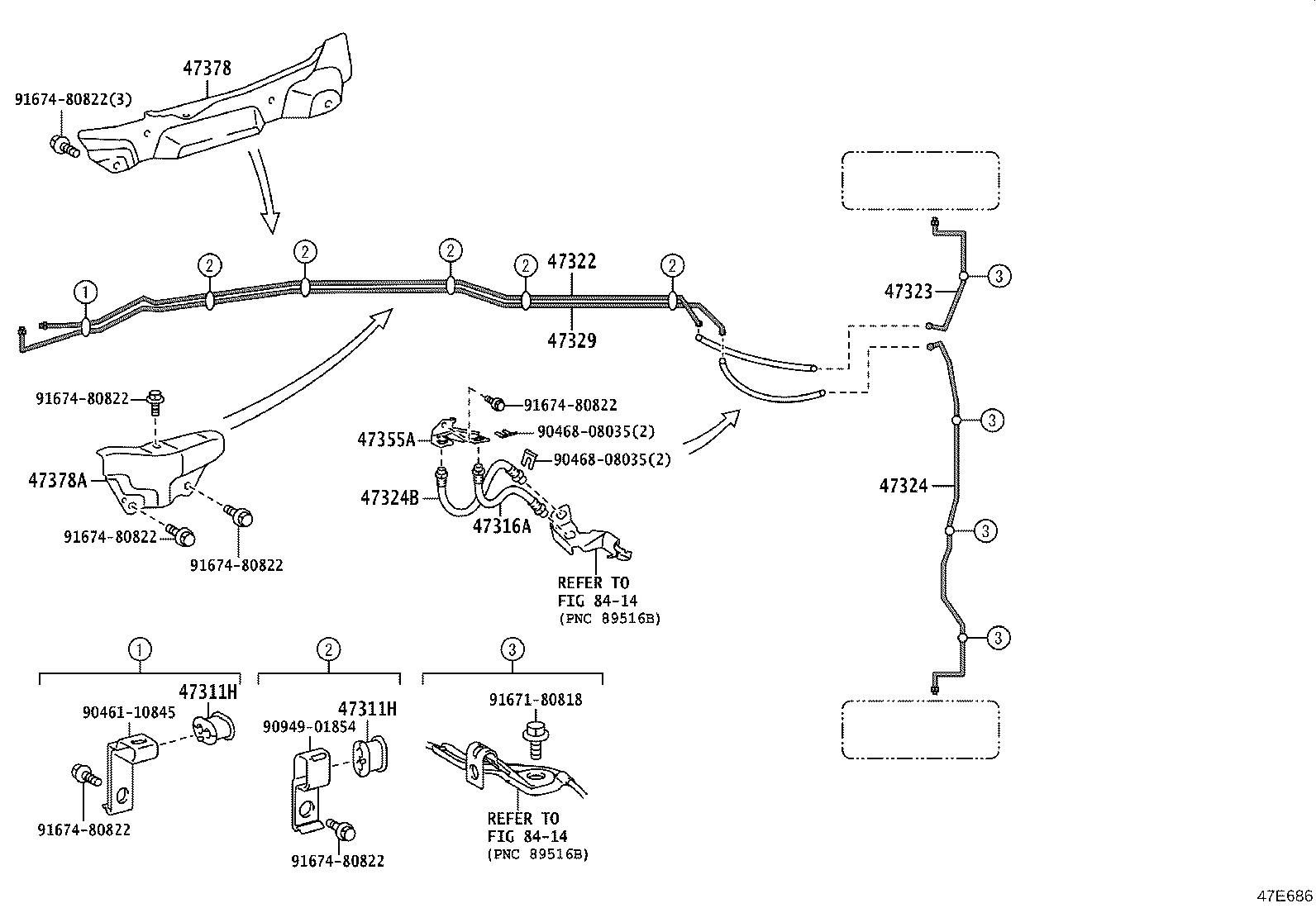

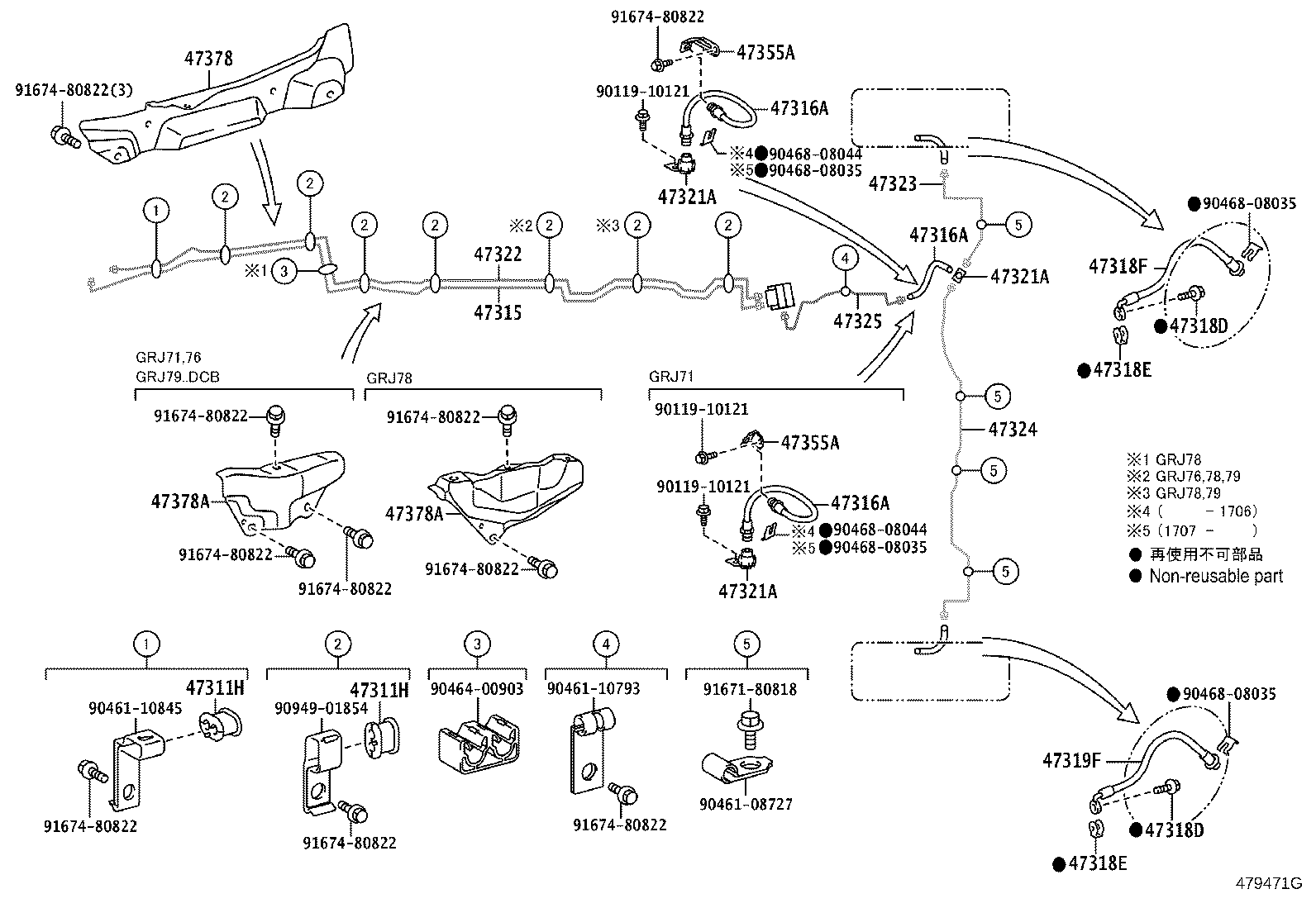

Figure 479456F 479456F 2007-01 → 2009-07 Figure 479456F 479456F 2007-01 → — Figure 479456F 479456F 2009-07 → 2012-08 Figure 479456F 479456F 2009-07 → — Figure 47A505B 47A505B 2016-08 → — Figure 479457F 479457F 2007-01 → 2009-07 Figure 479457F 479457F 2007-01 → — Figure 479457F 479457F 2009-07 → — Figure 479457F 479457F 2009-07 → — Figure 47E67EB 47E67EB 2023-09 → — Figure 47E68PA 47E68PA 2023-09 → — Figure 479458A 479458A 2007-01 → 2009-07 Figure 479458A 479458A 2007-01 → — Figure 479458A 479458A 2009-07 → 2012-08 Figure 479458A 479458A 2009-07 → — Figure 47A506 47A506 2016-08 → — Figure 479459E 479459E 2012-08 → — Figure 479462F 479462F 2012-08 → 2014-03 Figure 479463F 479463F 2014-03 → — Figure 479463F 479463F 2023-09 → — Figure 479464E 479464E 2012-08 → — Figure 479465E 479465E 2012-08 → 2014-03 Figure 479466E 479466E 2014-03 → — Figure 479467E 479467E 2009-07 → 2012-08 Figure 479467E 479467E 2012-08 → — Figure 479468G 479468G 2012-08 → — Figure 479469E 479469E 2012-08 → — Figure 479469E 479469E 2012-08 → — Figure 479469E 479469E 2023-09 → — Figure 479470G 479470G 2012-08 → — Figure 479470G 479470G 2012-08 → — Figure 479470G 479470G 2023-09 → — Figure 47A718C 47A718C 2016-08 → — Figure 47A718C 47A718C 2023-09 → — Figure 47A718C 47A718C 2023-09 → — Figure 47A504B 47A504B 2016-08 → — Figure 47A504B 47A504B 2023-09 → — Figure 47A719B 47A719B 2017-01 → — Figure 47A719B 47A719B 2023-09 → — Figure 47A719B 47A719B 2023-09 → — Figure 47E686 47E686 2023-09 → — Figure 47E687 47E687 2023-09 → — Figure 47E688 47E688 2023-09 → — Figure 47E689 47E689 2023-09 → — Figure 47E67F 47E67F 2023-09 → — Figure 47E68A 47E68A 2023-09 → — Figure 479471G 479471G 2012-08 → — Figure 47A720C 47A720C 2016-08 → — Figure 47A721B 47A721B 2016-08 → — Figure 47A721B 47A721B 2023-09 → — Figure 47A722B 47A722B 2016-08 → — Figure 479472D 479472D 2012-08 → — Figure 479472D 479472D 2023-09 → — Figure 47A500B 47A500B 2016-08 → — Figure 47A723B 47A723B 2017-01 → — Figure 47A501B 47A501B 2016-08 → — Figure 47A724B 47A724B 2017-01 → — Figure 47A502B 47A502B 2016-08 → — Figure 47A502B 47A502B 2023-09 → — Figure 47A503B 47A503B 2016-08 → — Figure 47A503B 47A503B 2023-09 → — Figure 47E67W 47E67W 2023-09 → — Figure 479461E 479461E 2007-01 → — Figure 479461E 479461E 2007-01 → — Figure 47E67X 47E67X 2023-09 → — Figure 47E68Q 47E68Q 2023-09 → — Figure 479473C 479473C 2012-08 → — Figure 479473C 479473C 2012-08 → — Figure 47A499 47A499 2016-08 → — Figure 47A499 47A499 2016-08 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
31478D Cap, Bleeder Plug(FOR LSPV)

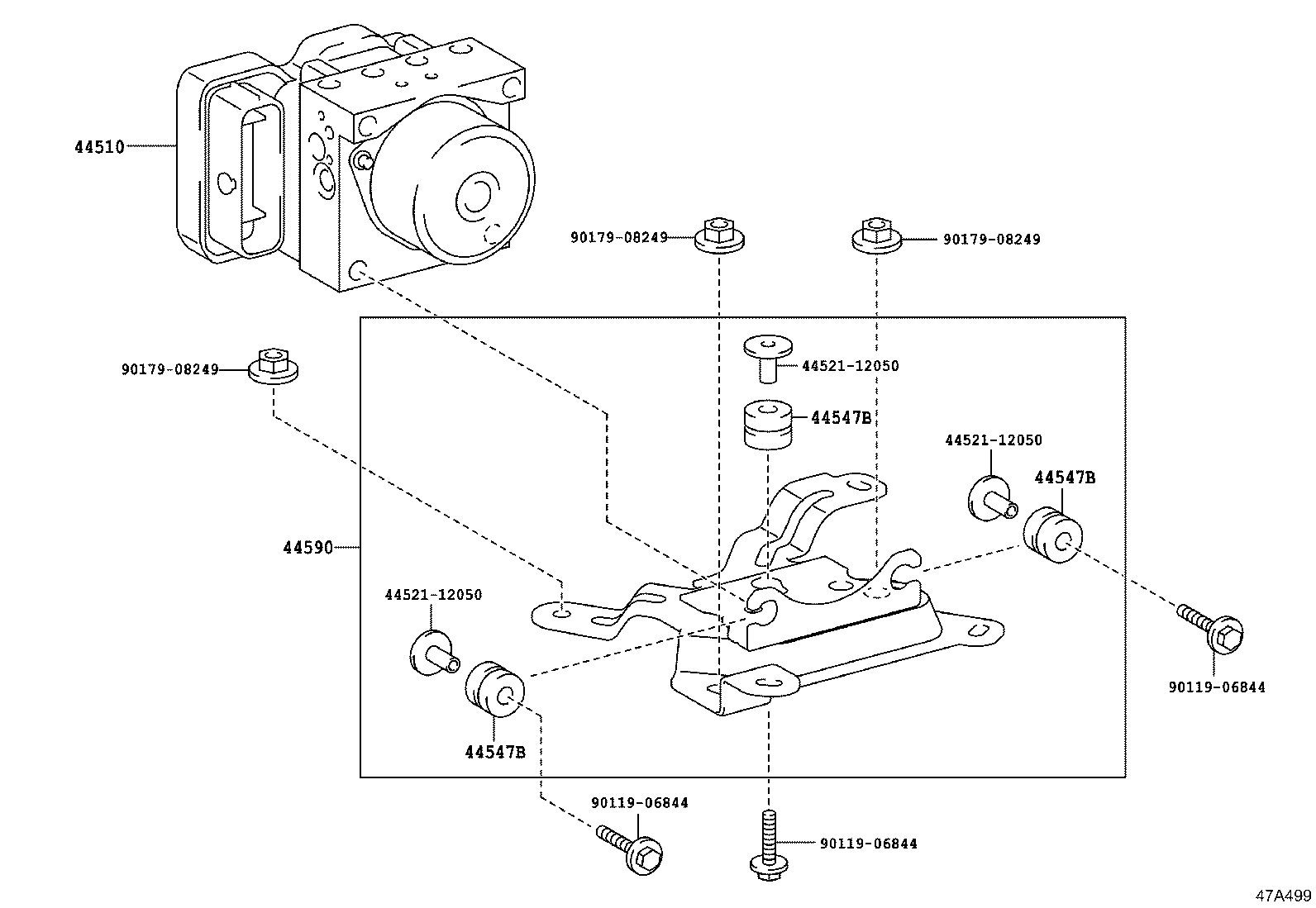

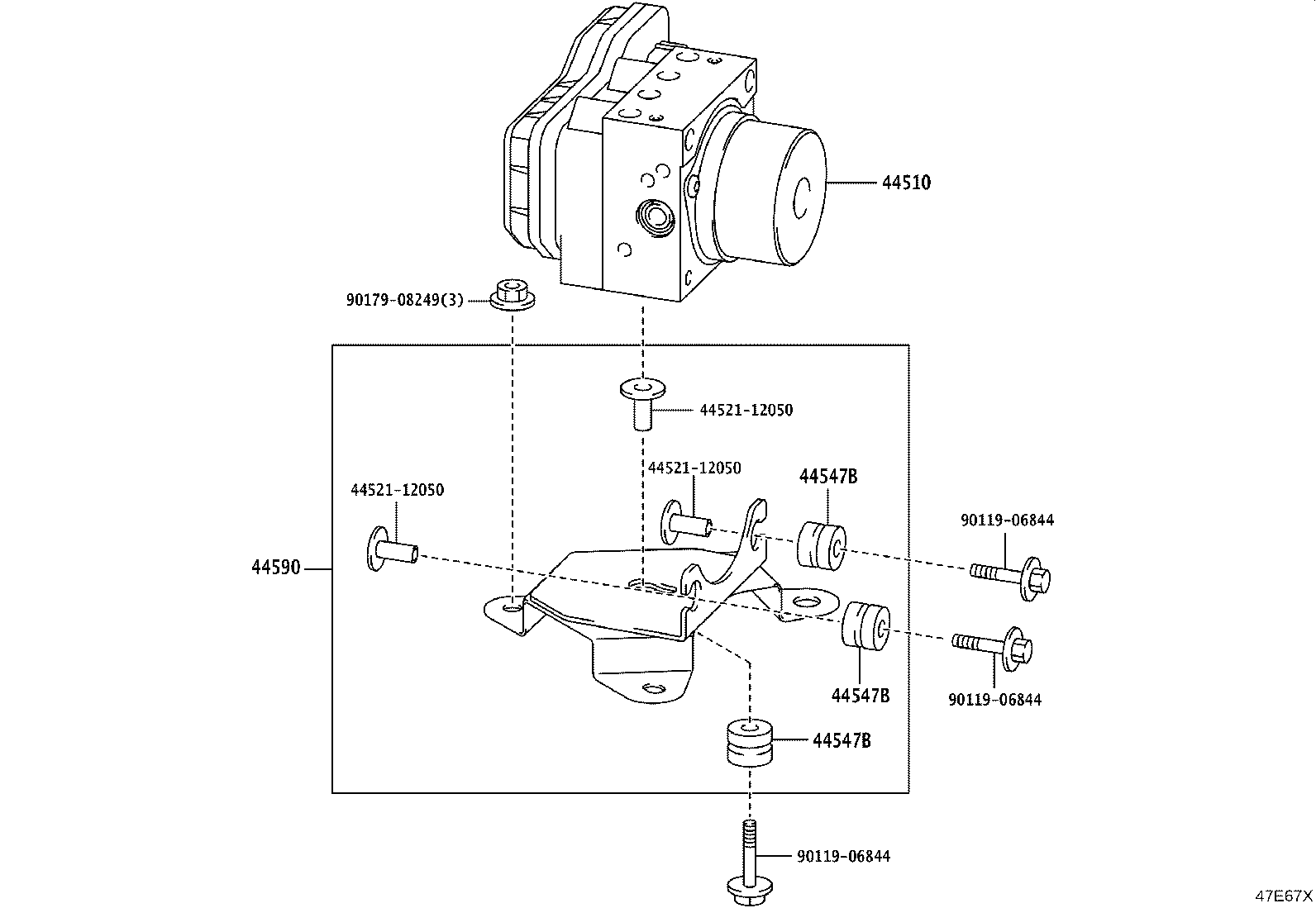

44510 Actuator Assy, Brake
44547B Cushion, Brake Actuator Bracket
44590 Bracket Assy, Brake Actuator
44730W Way, 2(FOR FRONT BRAKE TUBE)
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47311F Tube, Front Brake, Frame NO.1
47311H Grommet(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313H Way, NO.3(FOR FRONT BRAKE TUBE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47315B Hose, Flexible(FOR BRAKE TUBE)
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47317A Way(FOR BRAKE TUBE)
47318 Tube, Front Brake, NO.8
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319 Tube, Front Brake, NO.9
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321A Way(FOR REAR BRAKE TUBE)
47321G Tube, Rear Brake, Frame NO.1
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47324B Hose, Flexible(FOR REAR BRAKE TUBE, NO.2)
47325 Tube, Rear Brake, NO.5
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47352B Bracket, Flexible Hose, NO.2
47353B Bracket, Flexible Hose, NO.3
47354B Bracket, Flexible Hose, NO.4
47355A Bracket, Flexible Hose, NO.5
47361A Tube, Front Brake, NO.10
47362 Tube, Front Brake, NO.11
47363 Tube, Front Brake, NO.12
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47371F Clamp, Brake Tube, NO.10
47371G Clamp, Brake Tube, NO.11
47371H Clamp, Brake Tube, NO.12
47371M Clamp, Brake Tube, NO.13
47371P Clamp, Brake Tube, NO.14
47371Q Clamp, Brake Tube, NO.15
47371R Clamp, Brake Tube, NO.16
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47375 Clamp, Brake Tube, NO.5
47378 Protector, Brake Tube
47378A Protector, Brake Tube(FOR REAR)
47381 Bracket, Brake Tube Clamp NO.1
47383 Bracket, Connector
47394 Insulator, Brake Tube Heat, NO.2

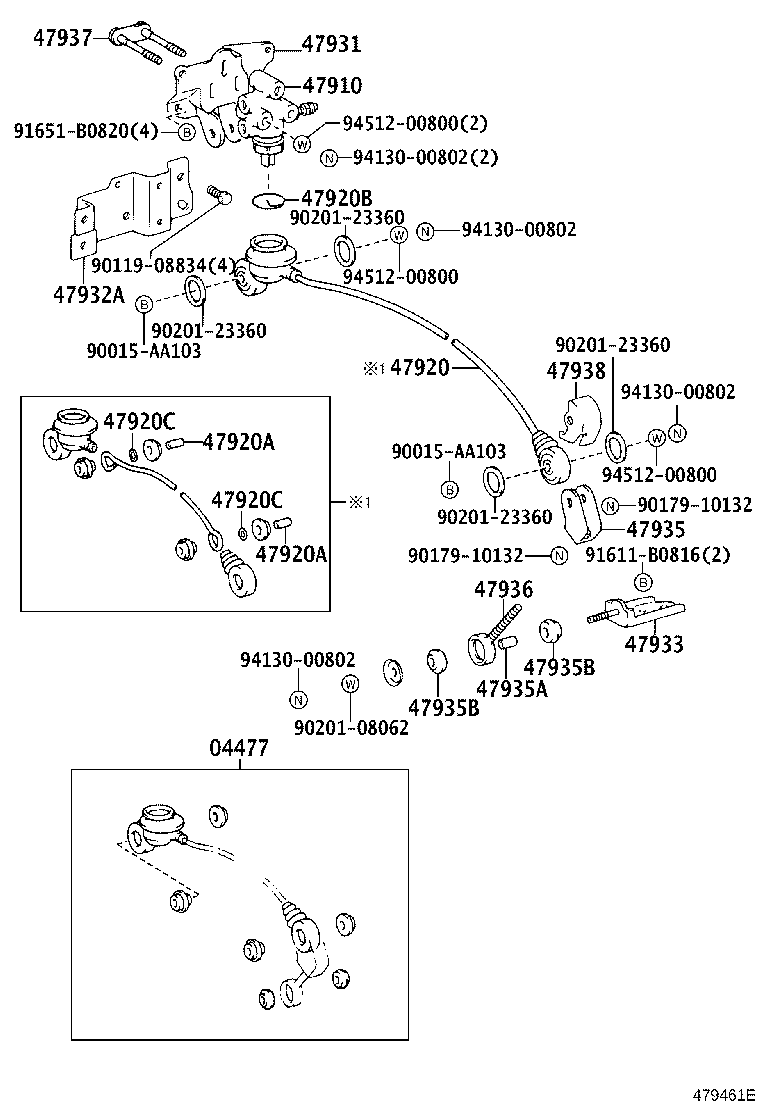

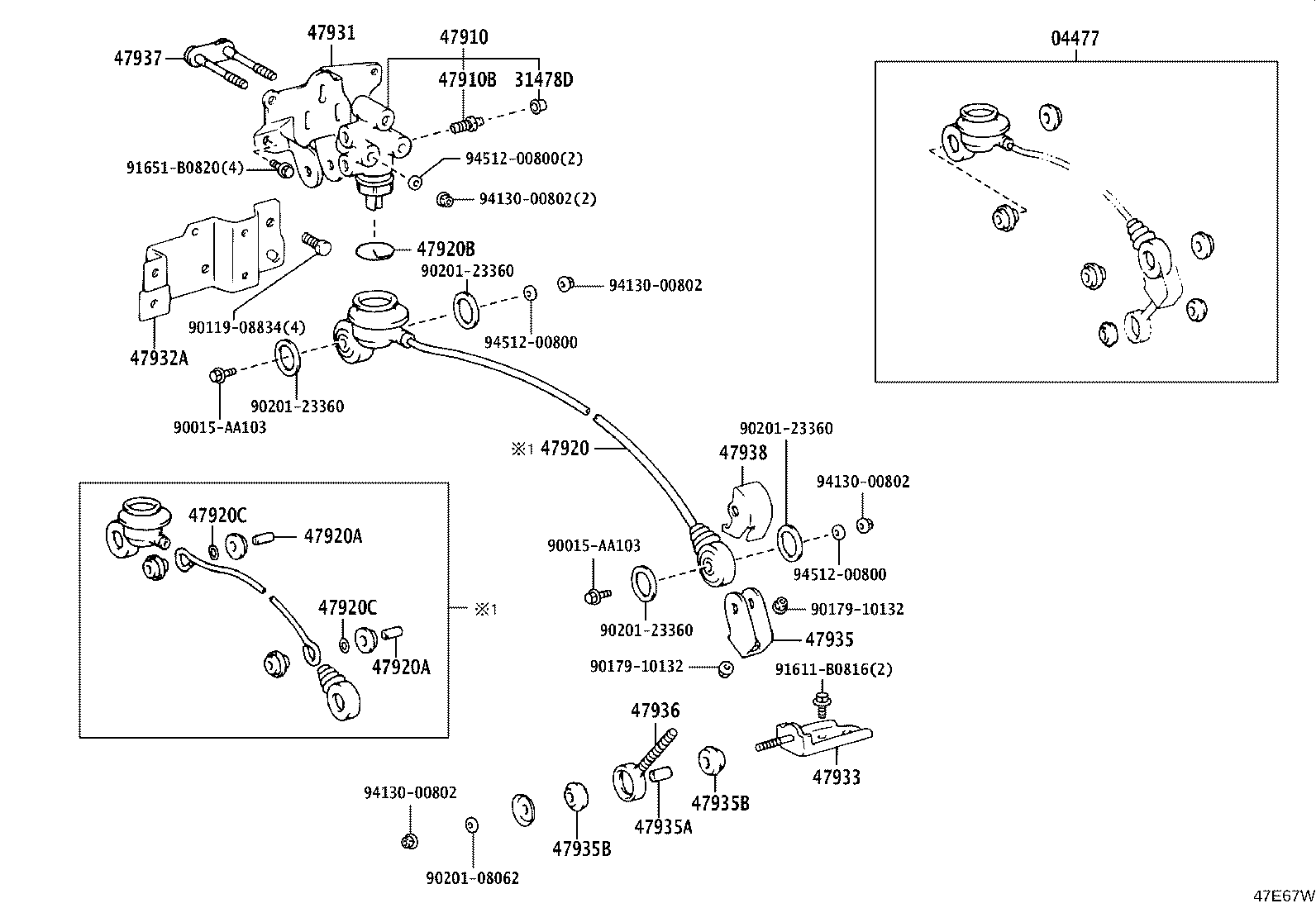

47910 Valve Assy, Load Sensing Proportioning
47910B Plug, Bleeder
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47931 Bracket, Load Sensing Valve
47932A Bracket, Load Sensing Valve Union
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B Bush(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
47938 Insulator, Load Sensing Spring Shackle Haet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
