Front Spring & Shock Absorber

18 part groups · 6 illustrations

Illustrations

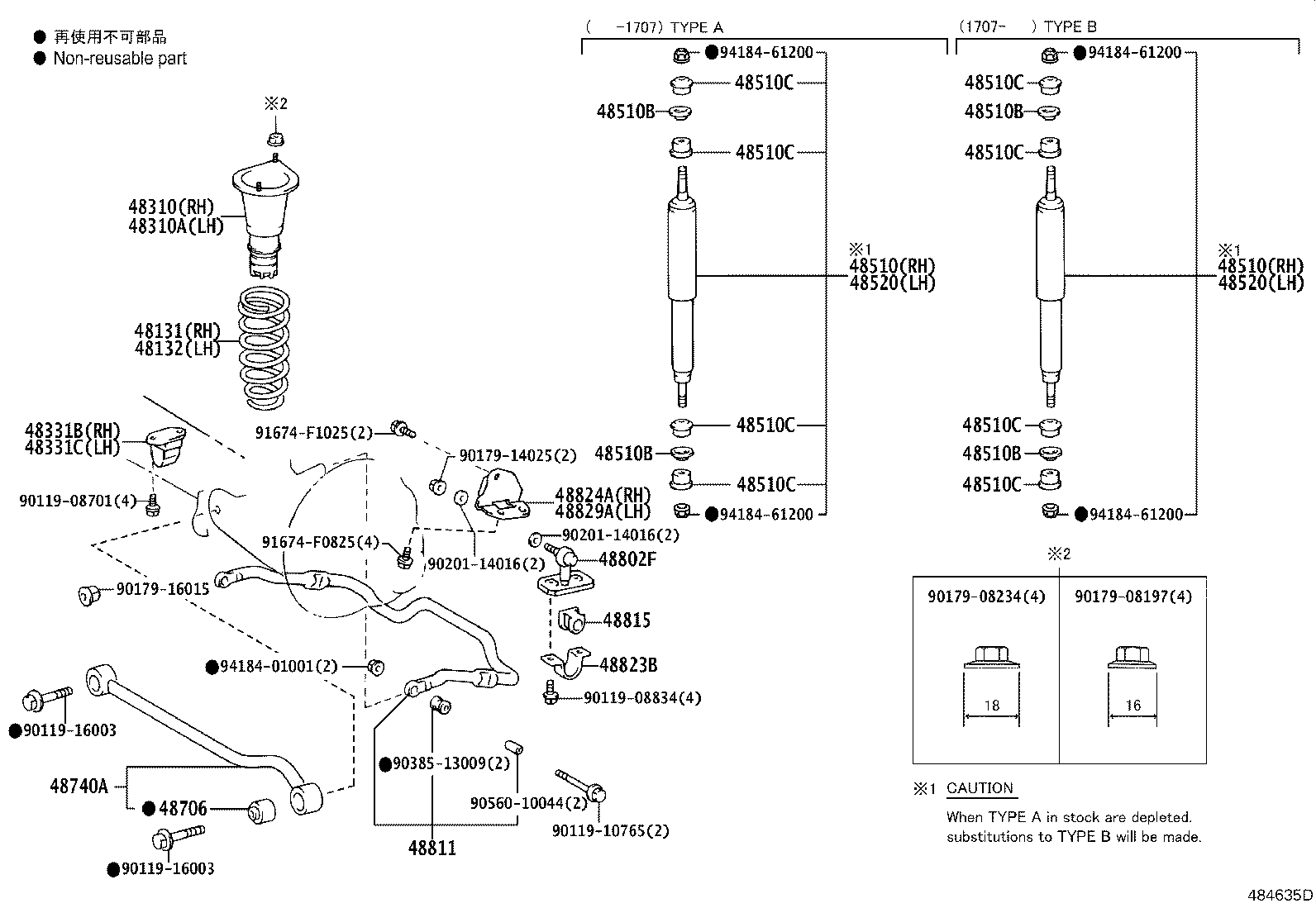

Figure 484525E 484525E 2007-01 → — Figure 484525E 484525E 2007-01 → — Figure 484525E 484525E 2023-09 → — Figure 484525E 484525E 2024-10 → — Figure 484635D 484635D 2009-07 → — Figure 484635D 484635D 2023-09 → —

Part groups

PNCDescription
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48310 Spring Assy, Front Suspension Hollow, RH
48310A Spring Assy, Front Suspension Hollow, LH
48331B Bumper, Front Spring, RH
48331C Bumper, Front Spring, LH
48510 Absorber Assy, Shock, Front RH
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48520 Absorber Assy, Shock, Front LH
48706 Bush Sub-assy, Front Lateral Control Rod
48740A Rod Assy, Front Lateral Control
48802F Link Sub-assy, Front Stabilizer
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48823B Cover, Front Stabilizer Bracket
48824A Bracket, Front Stabilizer, NO.1 RH
48829A Bracket, Front Stabilizer, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
