Rear Spring & Shock Absorber

52 part groups · 44 illustrations

Illustrations

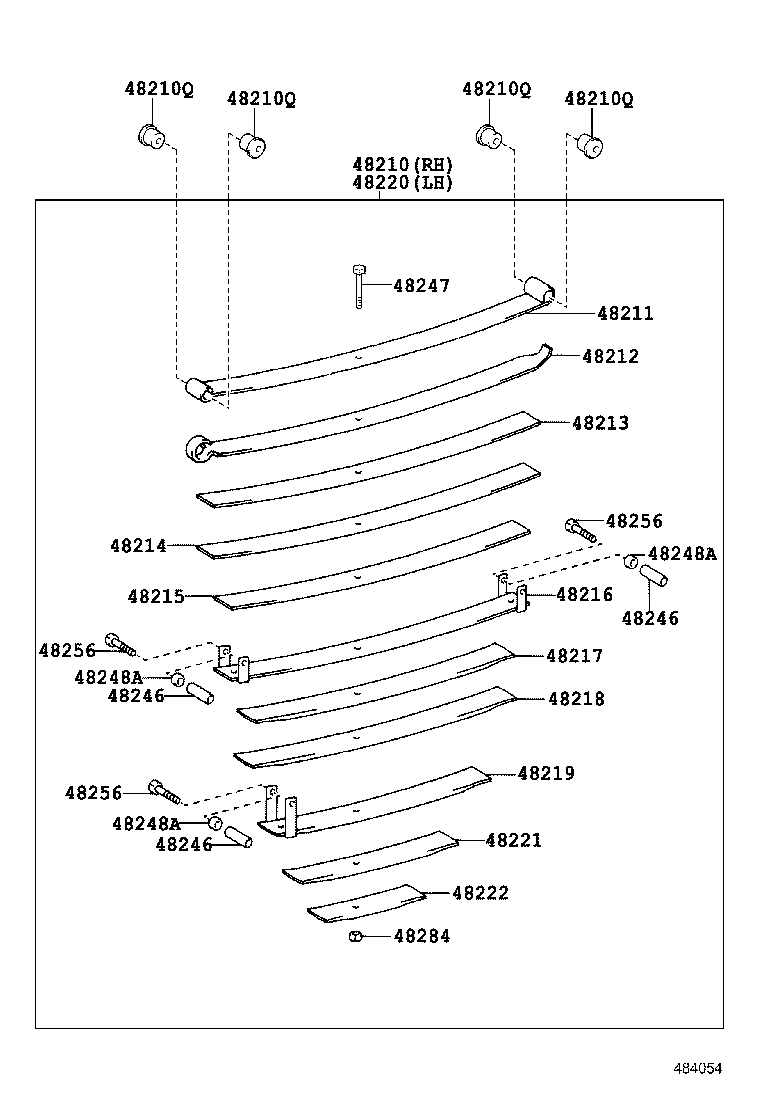

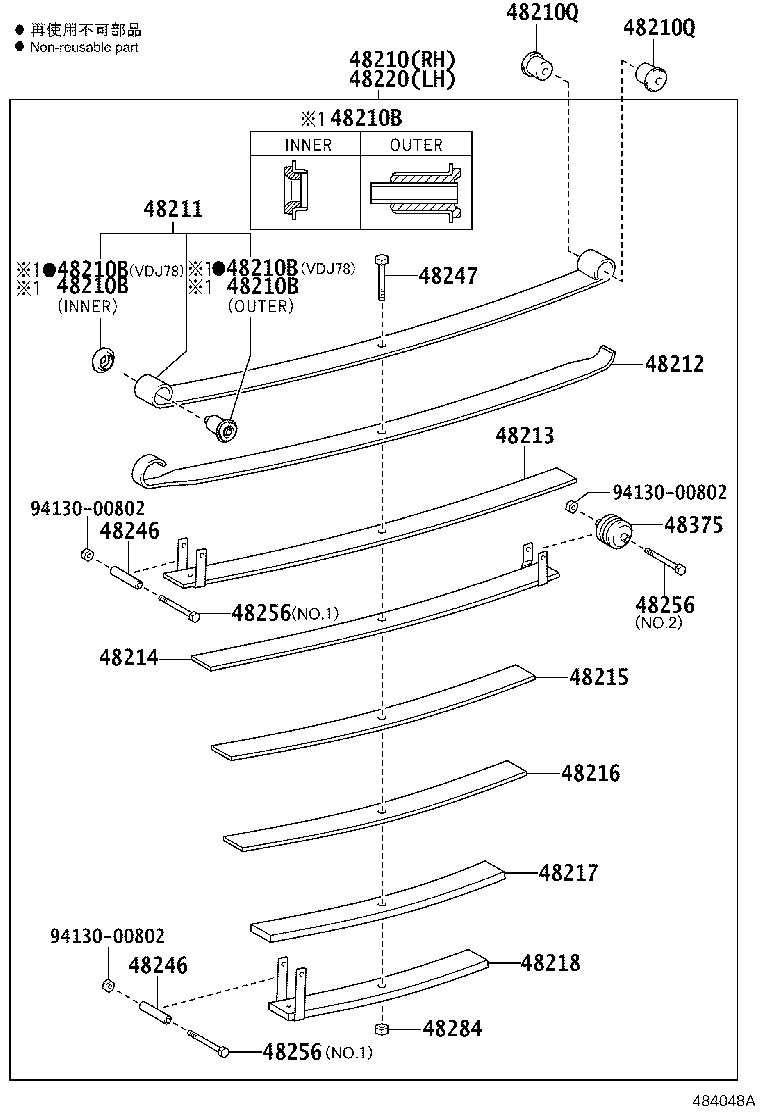

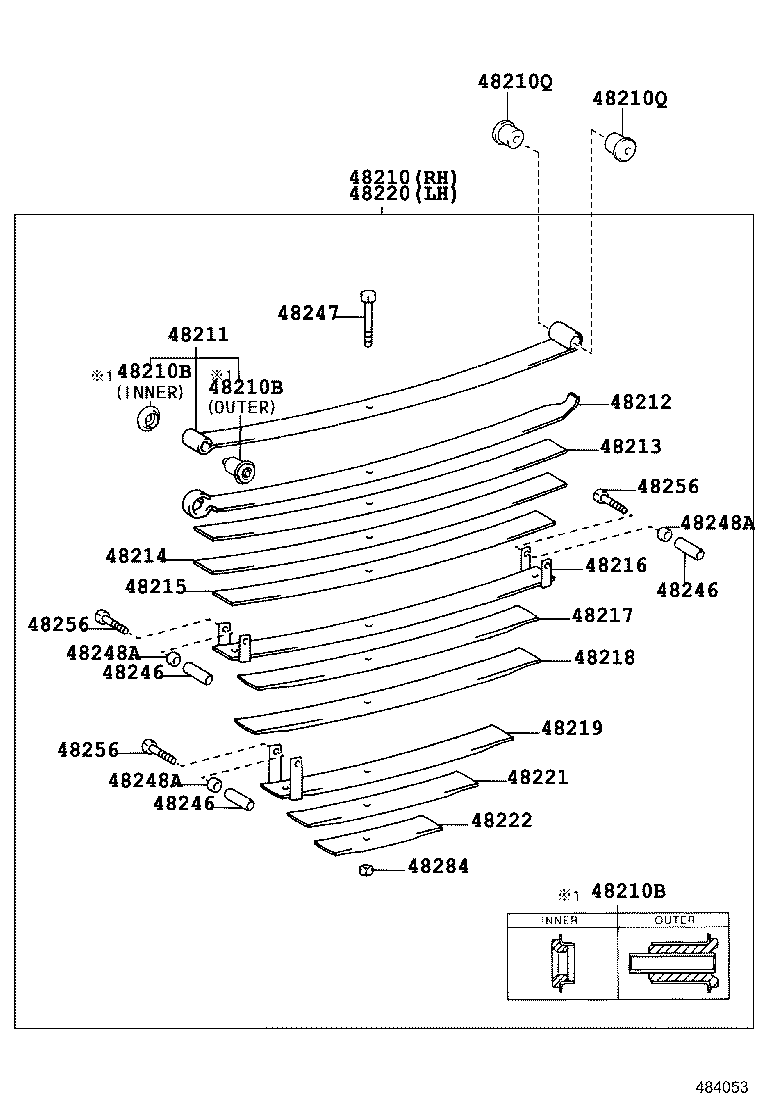

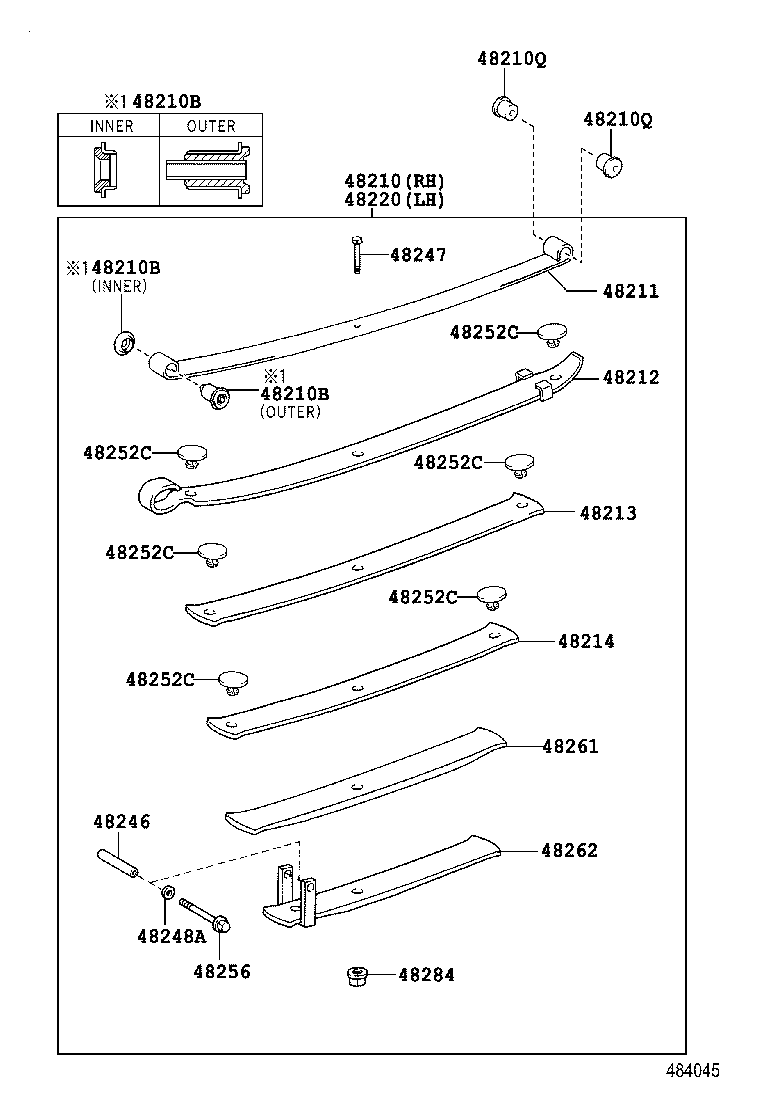

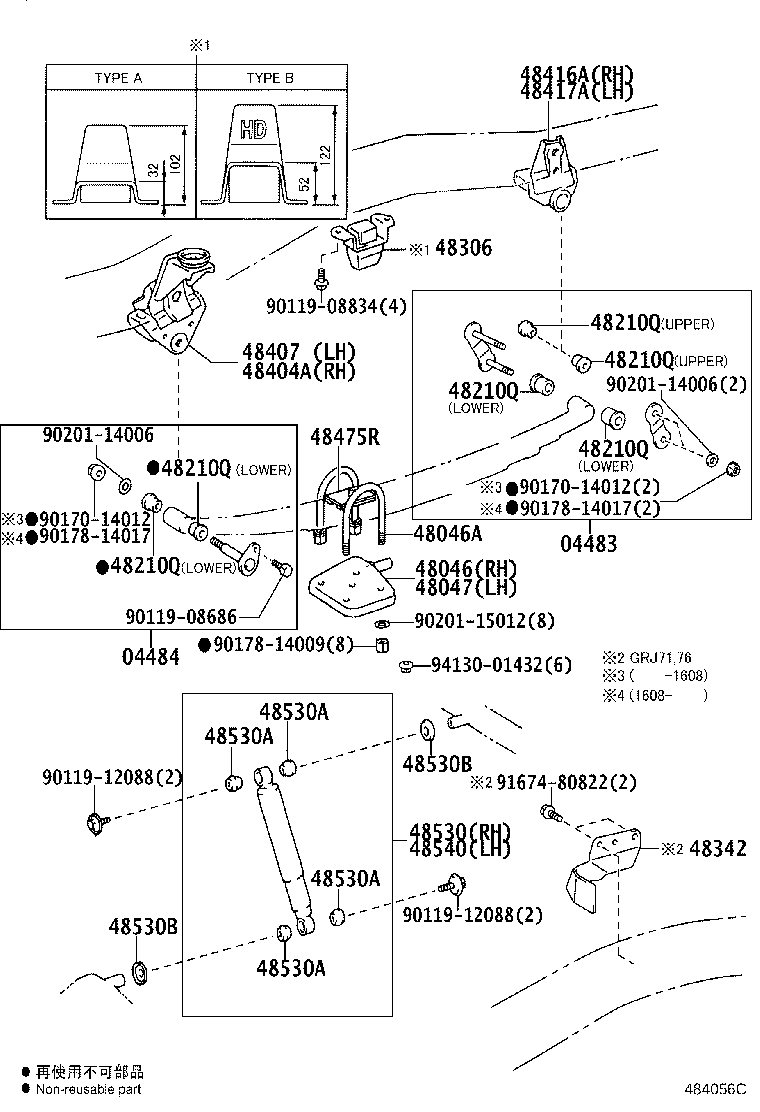

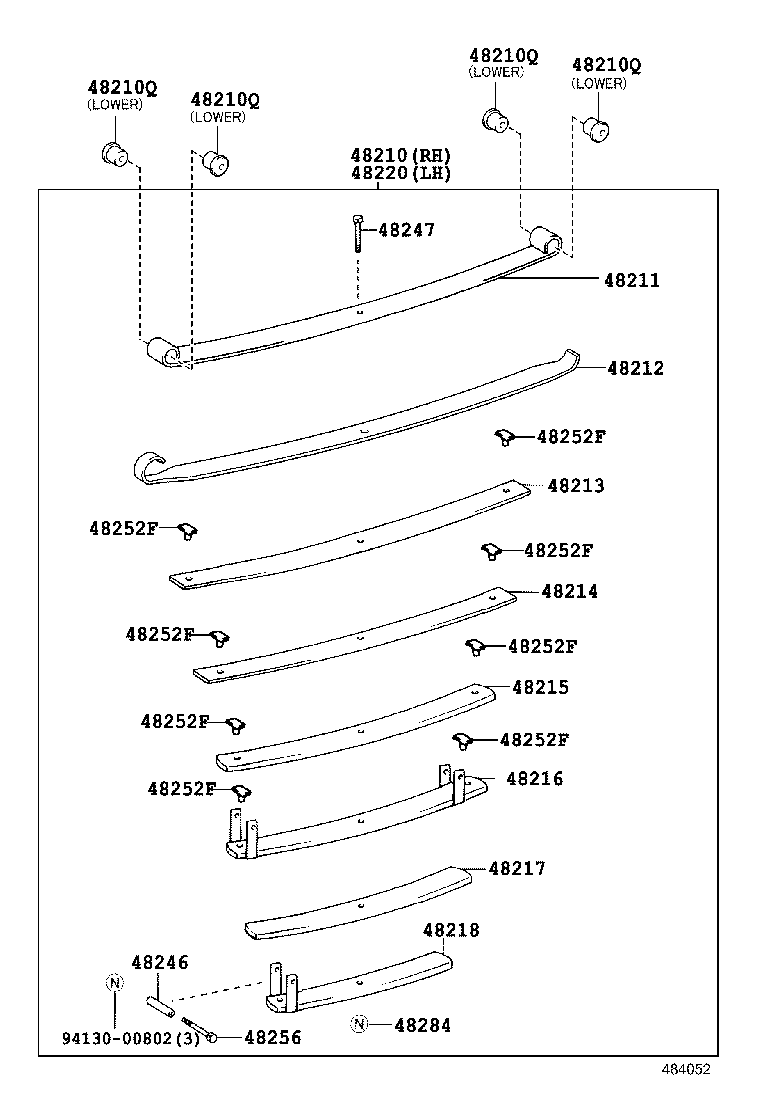

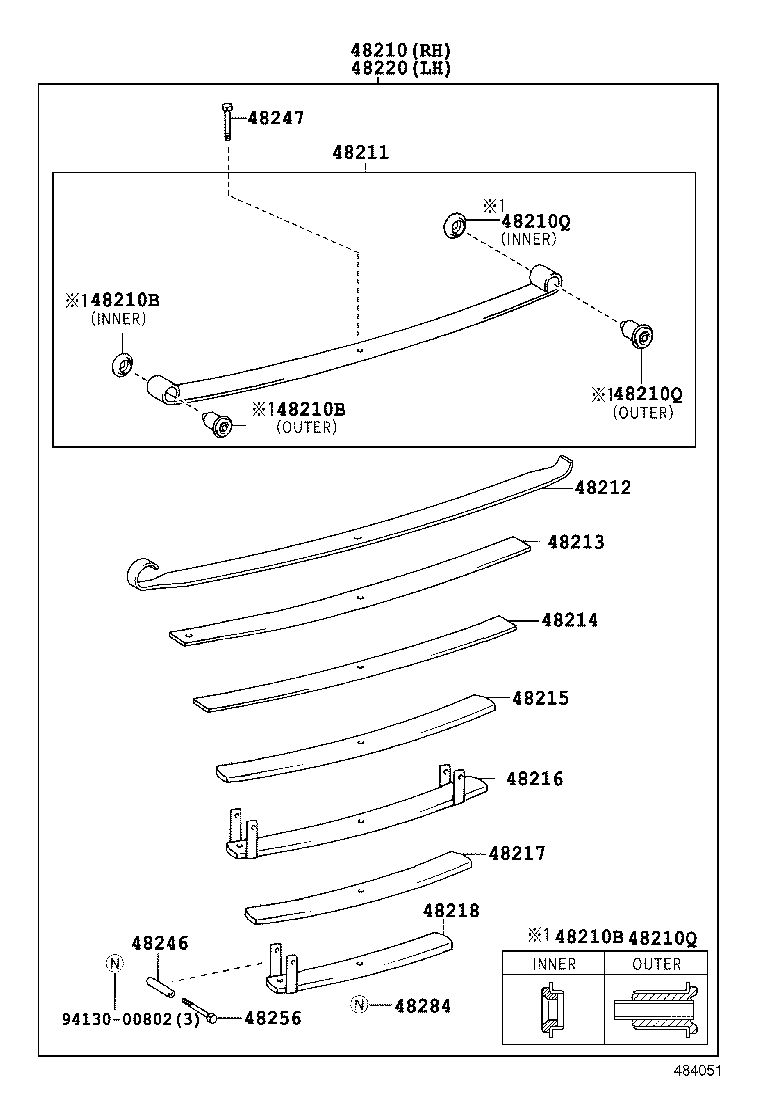

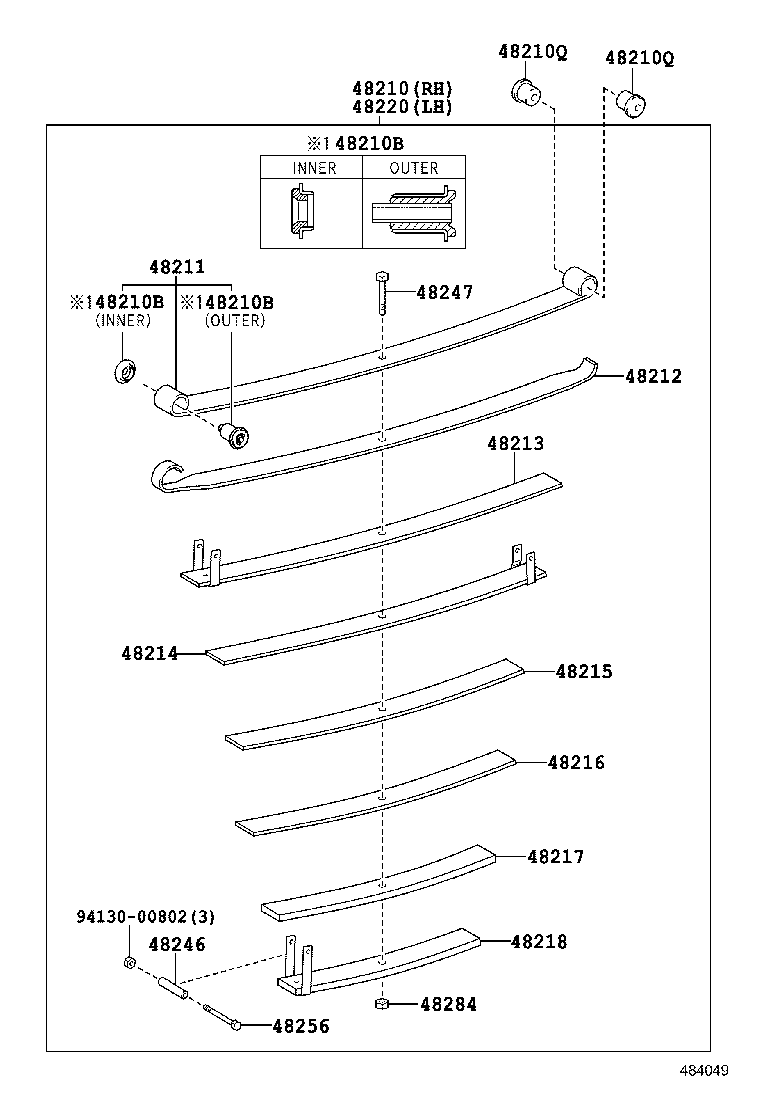

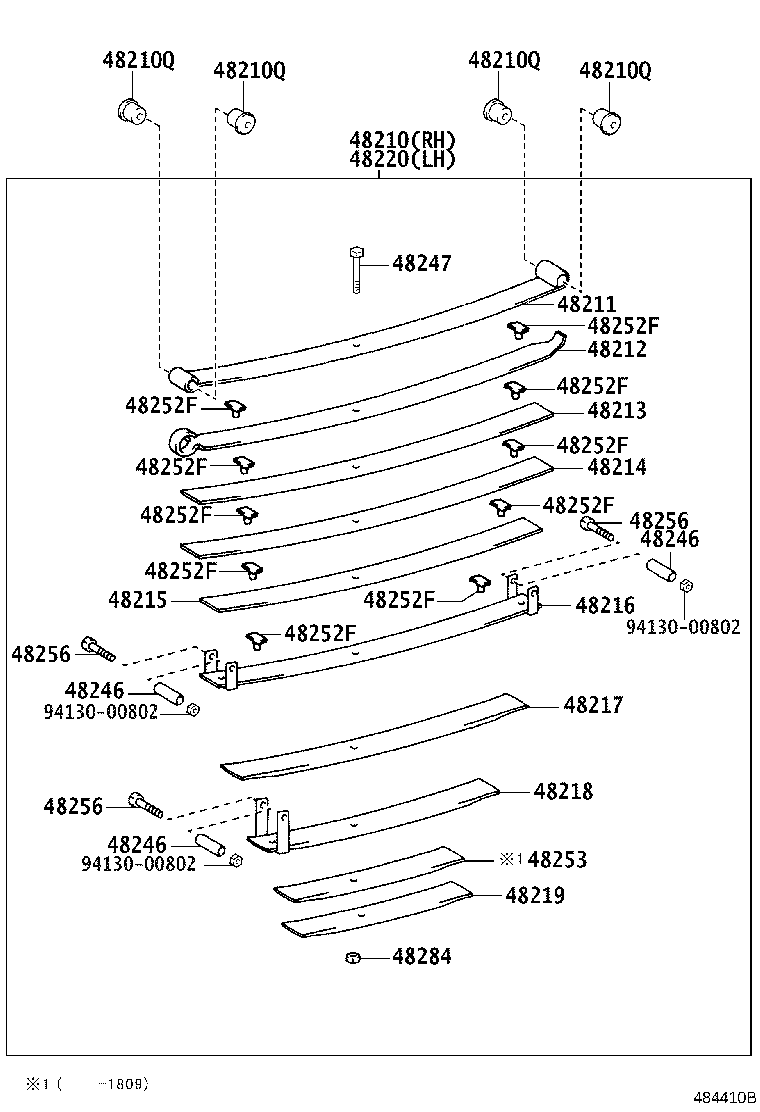

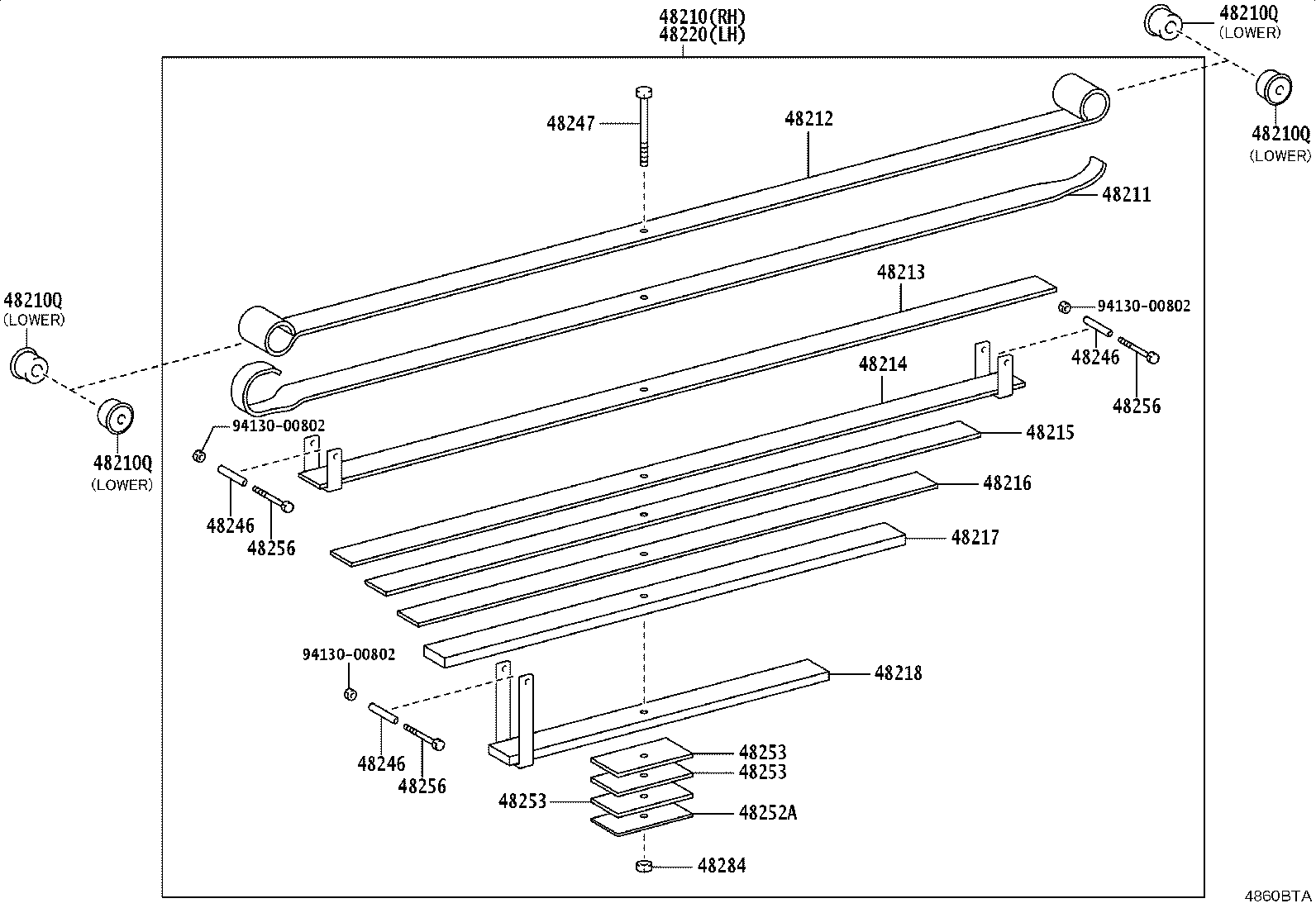

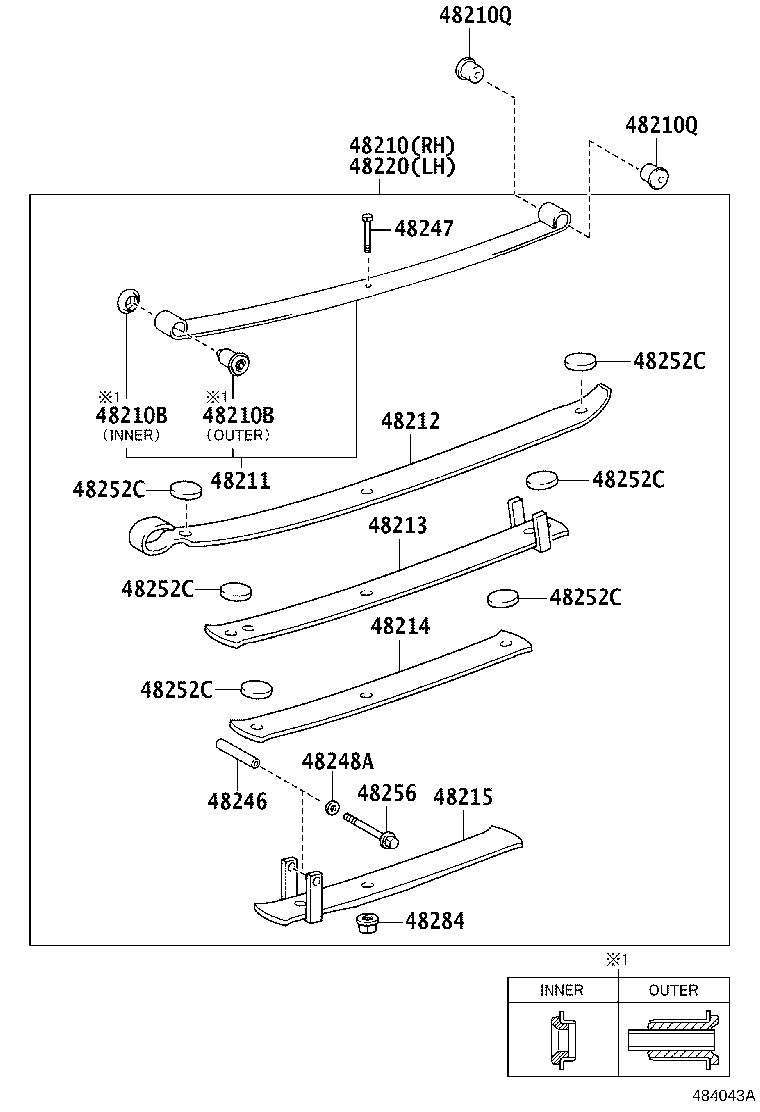

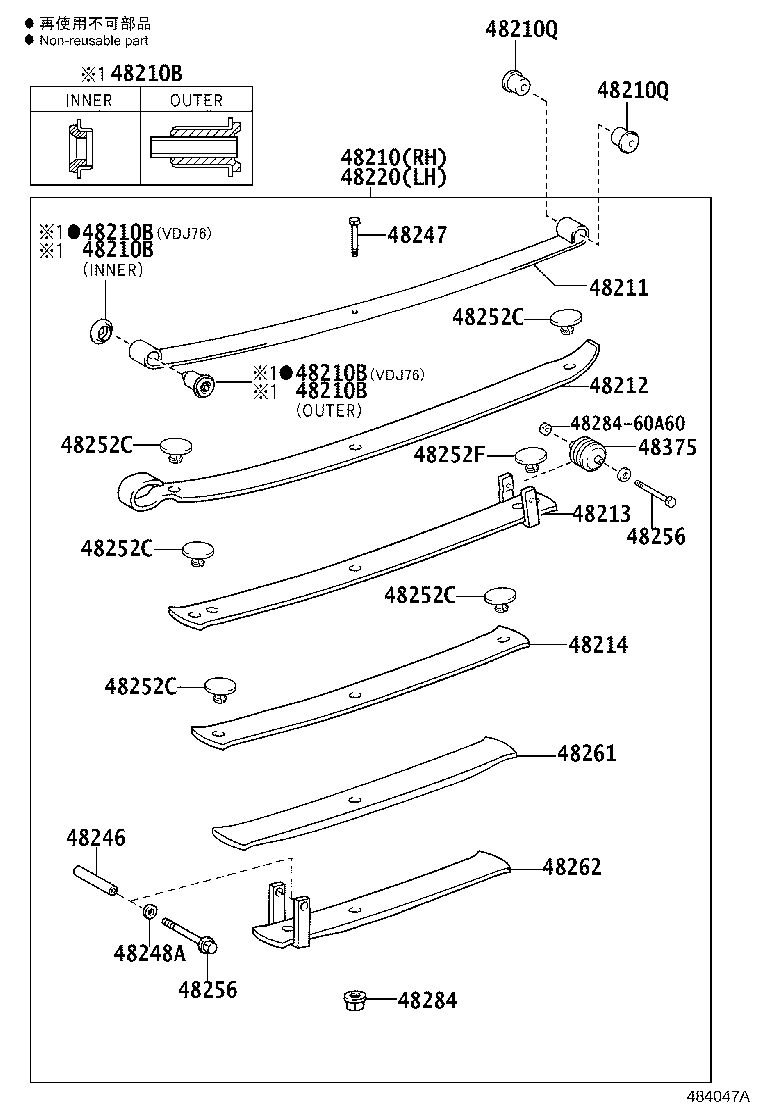

Figure 484055B 484055B 2007-01 → 2009-07 Figure 484055B 484055B 2009-07 → — Figure 484055B 484055B 2023-09 → — Figure 484055B 484055B 2023-09 → — Figure 484055B 484055B 2024-10 → — Figure 484056C 484056C 2009-07 → — Figure 484056C 484056C 2009-07 → — Figure 484056C 484056C 2009-07 → — Figure 484056C 484056C 2023-09 → — Figure 484043A 484043A 2007-01 → 2009-07 Figure 484044 484044 2009-07 → — Figure 484044 484044 2023-09 → — Figure 484045 484045 2007-01 → 2009-07 Figure 484046 484046 2009-07 → — Figure 484046 484046 2023-09 → — Figure 484046 484046 2024-10 → — Figure 484047A 484047A 2007-01 → — Figure 484048A 484048A 2007-01 → — Figure 484049 484049 2007-01 → 2009-07 Figure 484050 484050 2009-07 → — Figure 484050 484050 2023-09 → — Figure 484051 484051 2007-01 → 2009-07 Figure 484052 484052 2009-07 → — Figure 484052 484052 2009-07 → — Figure 484052 484052 2023-09 → — Figure 484052 484052 2023-09 → — Figure 484052 484052 2024-10 → — Figure 484052 484052 2024-10 → — Figure 484053 484053 2007-01 → 2009-07 Figure 484054 484054 2009-07 → — Figure 484054 484054 2009-07 → — Figure 484054 484054 2022-09 → — Figure 484054 484054 2023-09 → — Figure 484054 484054 2023-09 → — Figure 484054 484054 2024-10 → — Figure 484410B 484410B 2016-08 → — Figure 484410B 484410B 2023-09 → — Figure 4860BTA 4860BTA 2024-10 → — Figure 484040C 484040C 2007-01 → — Figure 484040C 484040C 2007-01 → — Figure 484040C 484040C 2023-09 → — Figure 484040C 484040C 2023-09 → — Figure 484040C 484040C 2024-10 → — Figure 484040C 484040C 2024-10 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
04484 Pin Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210B Bush(FOR REAR SPRING PIN)
48210Q Bush(FOR REAR SPRING SHACKLE)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48218 Leaf, Rear Spring, NO.8
48219 Leaf, Rear Spring, NO.9
48220 Spring Assy, Rear LH
48221 Leaf, Rear Spring, NO.10
48222 Leaf, Rear Spring, NO.11
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48248A Washer(FOR REAR SPRING CLIP BOLT)
48252A Spacer, Rear Spring, NO.2
48252C Silencer, Rear Spring, NO.2
48252F Silencer, Rear Spring, NO.3
48253 Spacer, Rear Spring, NO.1
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48261 Leaf, Rear Helper Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48284 Nut, Rear Spring Center Bolt
48306 Bumper Sub-assy, Rear Spring
48342 Cover, Bumper, Rear
48375 Damper, Leaf Spring Dynamic
48404A Bracket Sub-assy, Spring, NO.3 RH
48407 Bracket Sub-assy, Spring, NO.3 LH
48416A Bracket, Spring, NO.4 RH
48417A Bracket, Spring, NO.4 LH
48475R Plate, Distance(FOR REAR)
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48540 Absorber Assy, Shock, Rear LH
48802 Link Sub-assy, Stabilizer
48812 Bar, Stabilizer, Rear
48815R Bush, Stabilizer(FOR REAR)
48817R Cushion, Stabilizer(FOR REAR)
48817S Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48817V Retainer, Cushion, NO.2(FOR STABILIZER REAR BAR)
48824R Bracket, Stabilizer(FOR REAR)
48825A Bracket, Rear Stabilizer End
48826B Protector, Rear Stabilizer Bar
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
