Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

20 part groups · 5 illustrations

Illustrations

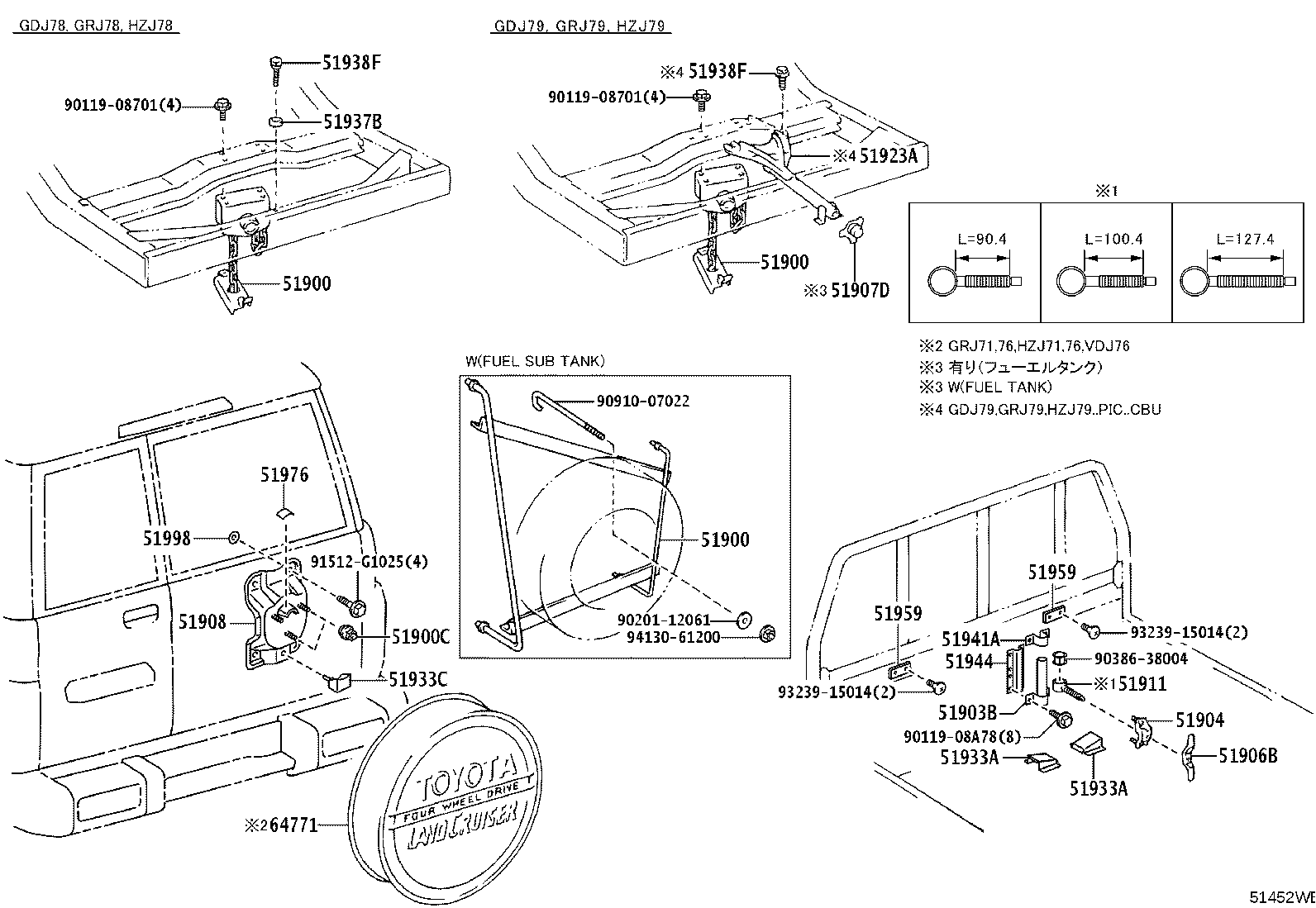

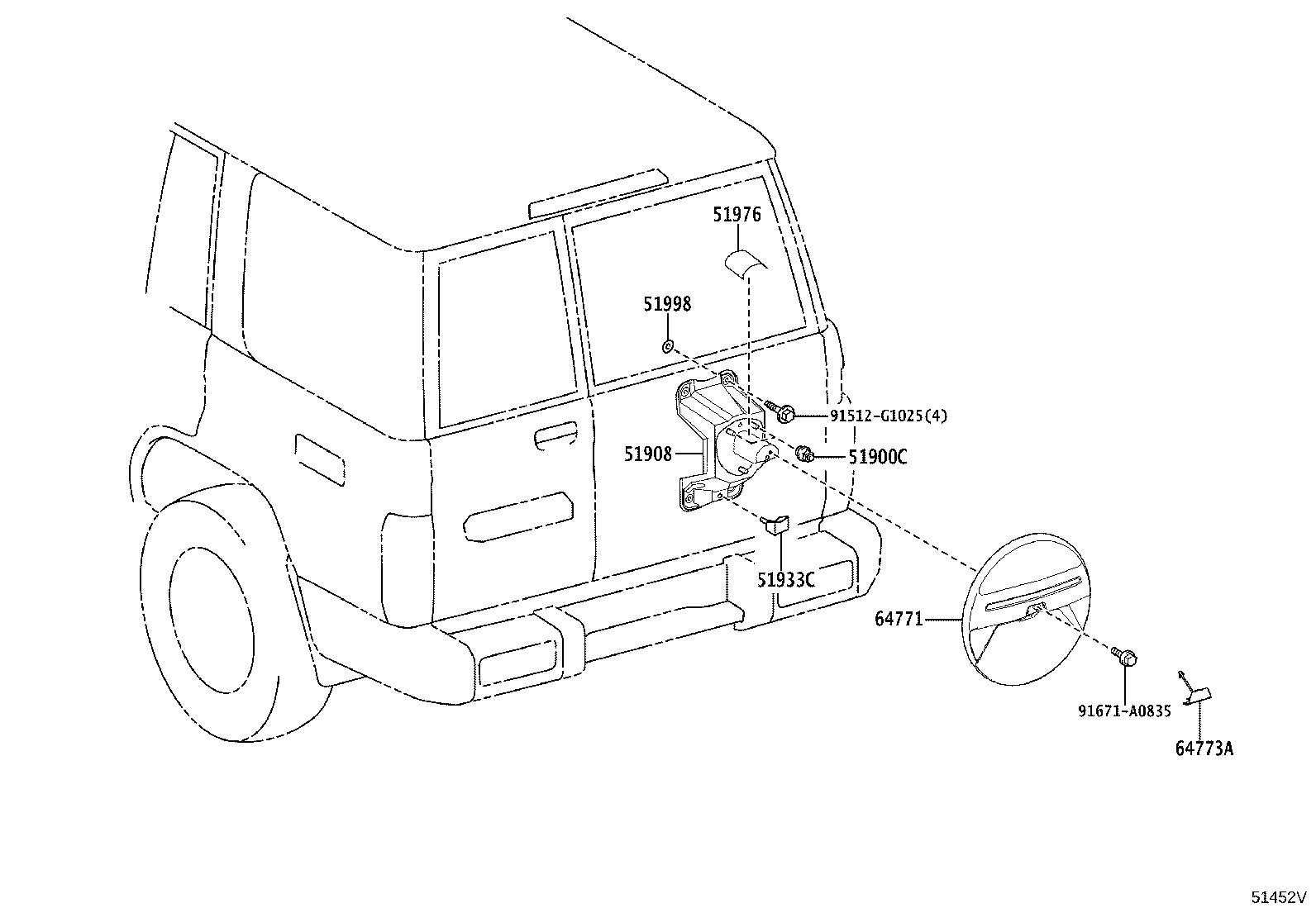

Figure 511652D 511652D 2007-01 → — Figure 511652D 511652D 2007-01 → — Figure 511652D 511652D 2007-01 → — Figure 51452WB 51452WB 2023-09 → — Figure 51452V 51452V 2023-09 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51900C Nut, Spare Wheel, Hub
51903B Carrier Sub-assy, Spare Wheel
51904 Bracket Sub-assy, Speare Wheel Carrier
51906B Handle Sub-assy, Spare Wheel Carrier
51907D Bracket Sub-assy, Spare Wheel Service Hole Cap
51908 Bracket Sub-assy, Spare Wheel Carrier
51911 Bolt Assy, Spare Wheel Mounting
51923A Guide, Spare Whell Carrier Handle
51933A Stopper, Spare Wheel, NO.1
51933C Stopper, Spare Wheel
51937B Plate, Spare Wheel Carrier Lock
51938F Bolt(FOR SPARE WHEEL CARRIER LOCK)
51941A Bracket, Spare Wheel Carrier
51944 Bracket, Spare Wheel Carrier, NO.2
51959 Cushion, Spare Wheel
51976 Film, Spare Wheel Carrier, NO.2
51998 Pad, Spare Wheel Bracket
64771 Cover, Spare Wheel
64773A Cover, Spare Wheel, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
