Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

47 part groups · 17 illustrations

Illustrations

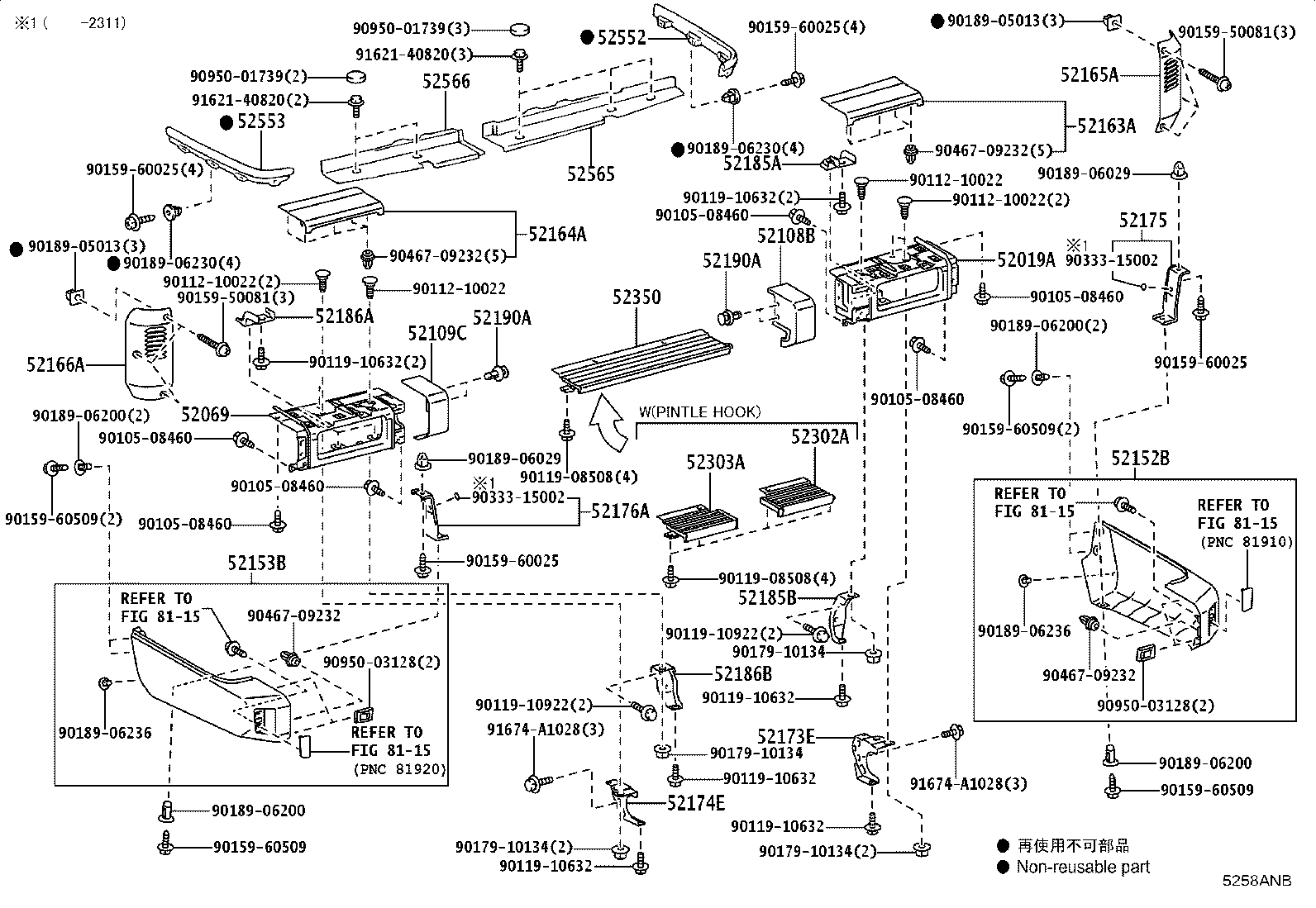

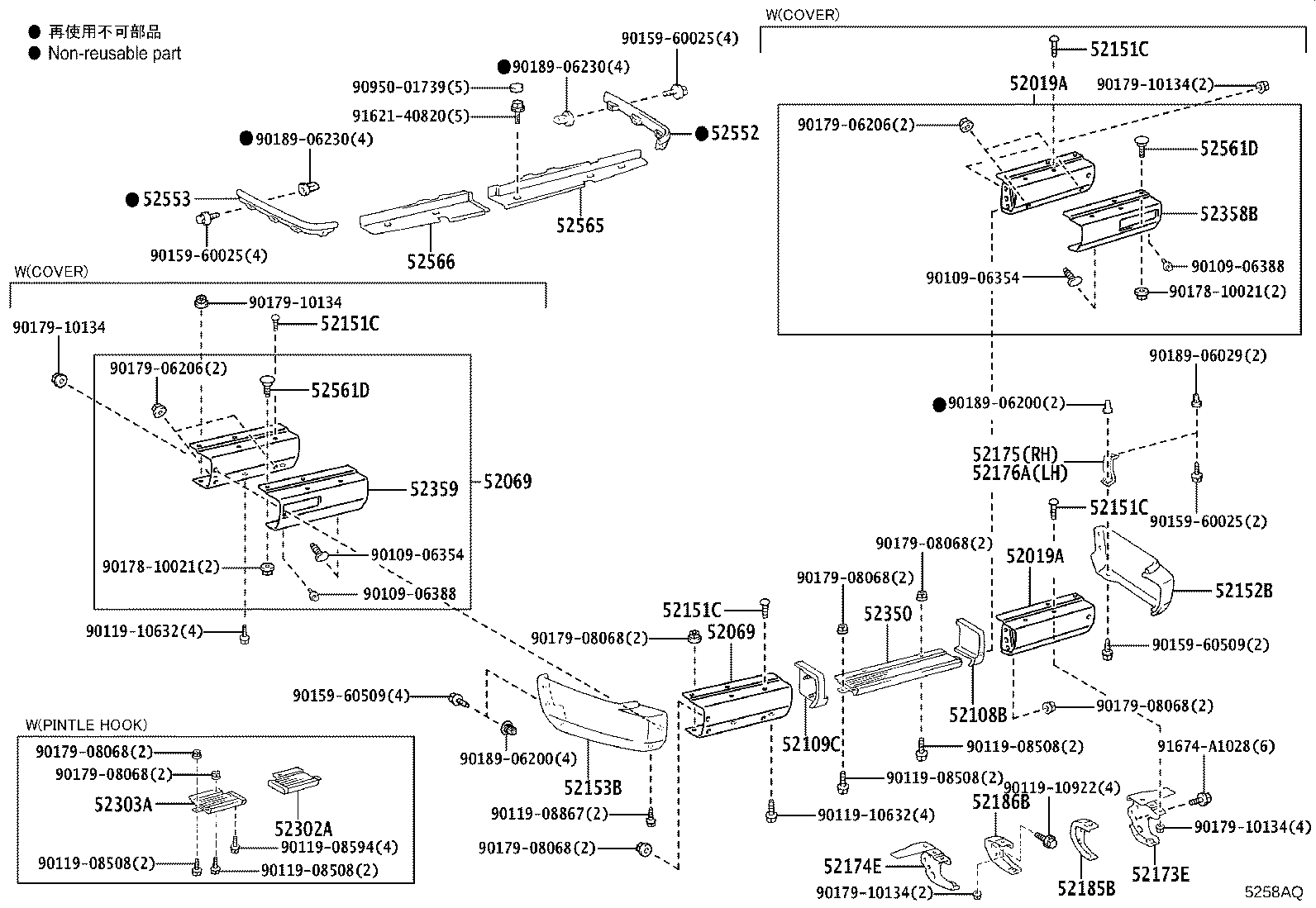

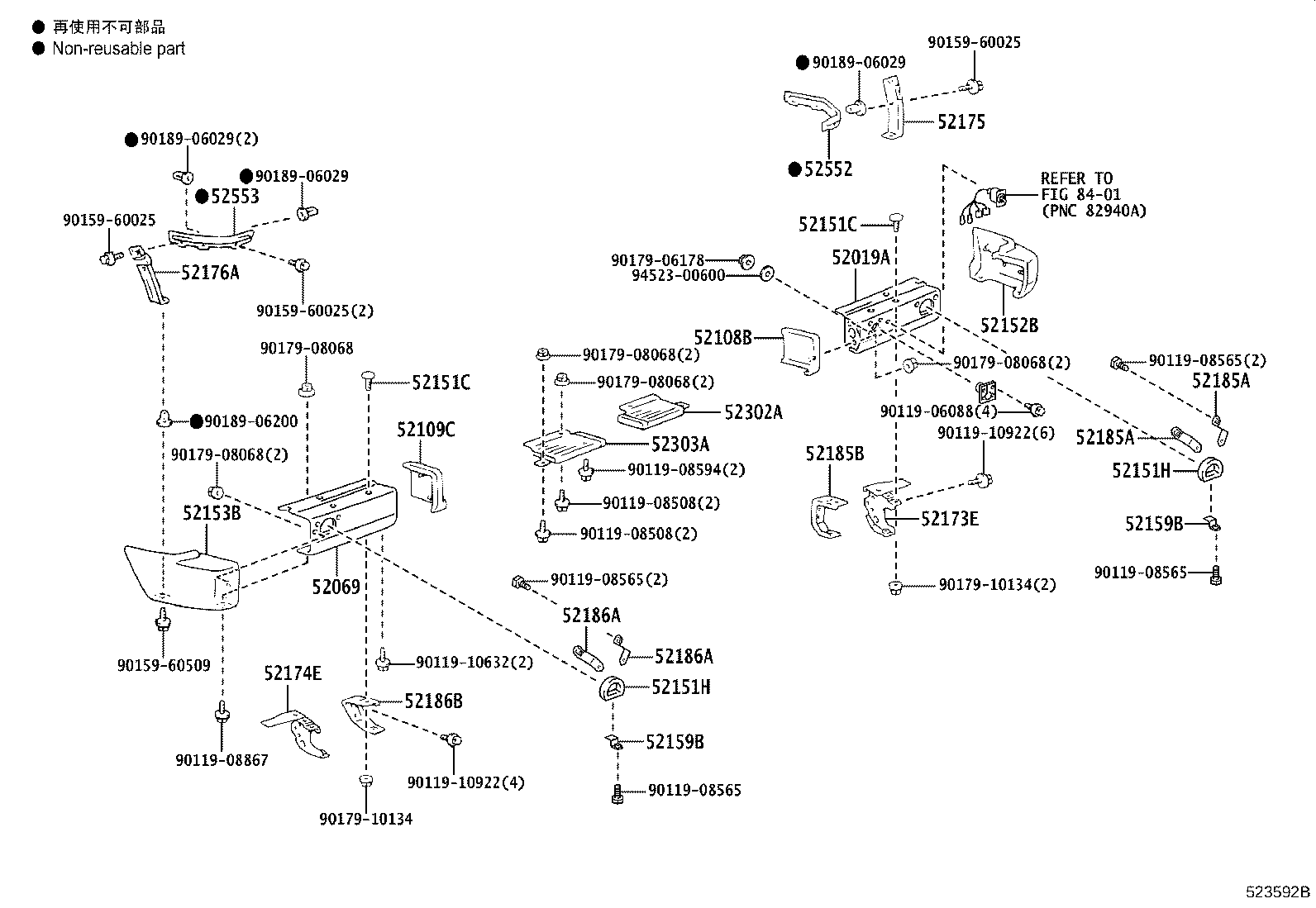

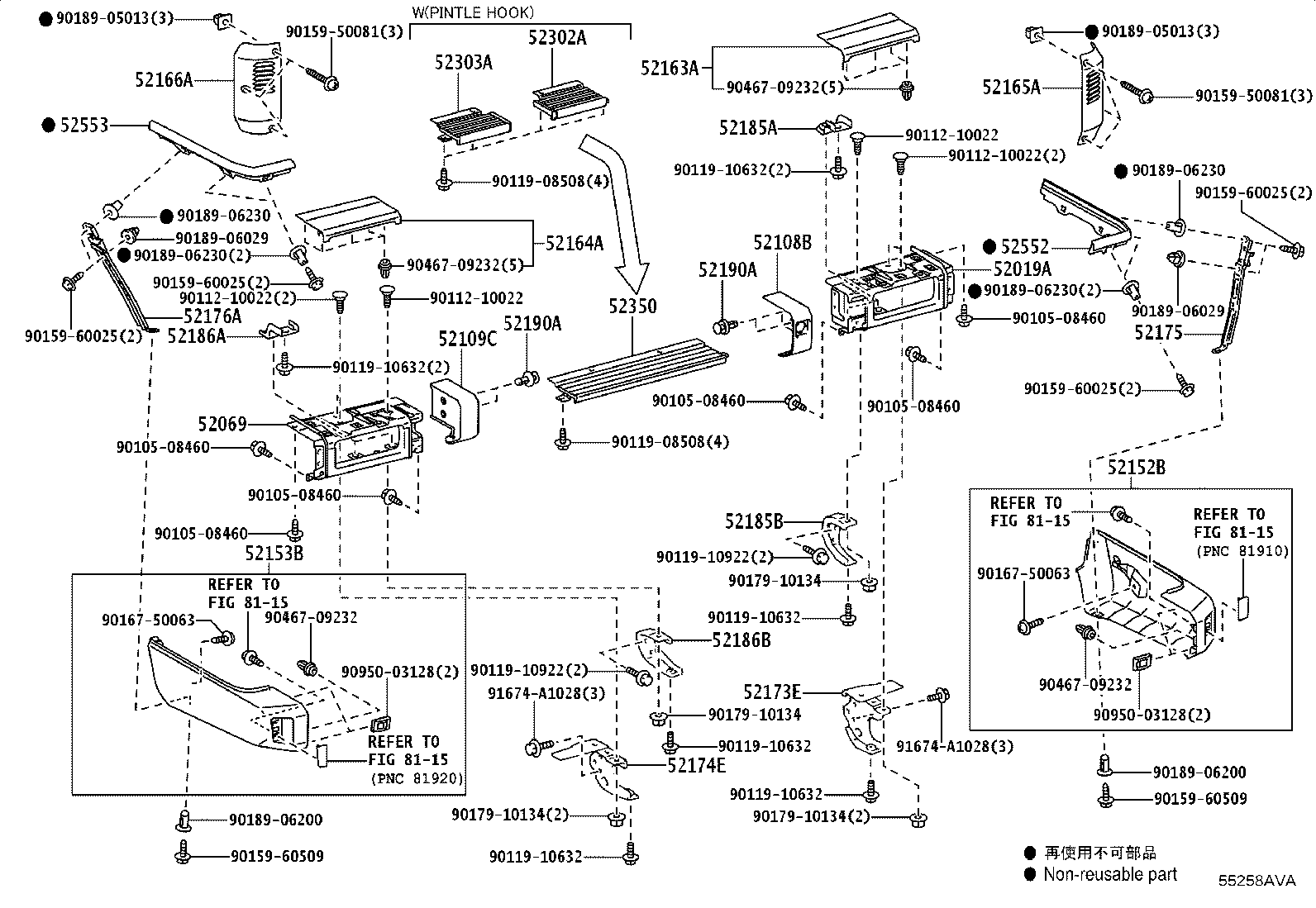

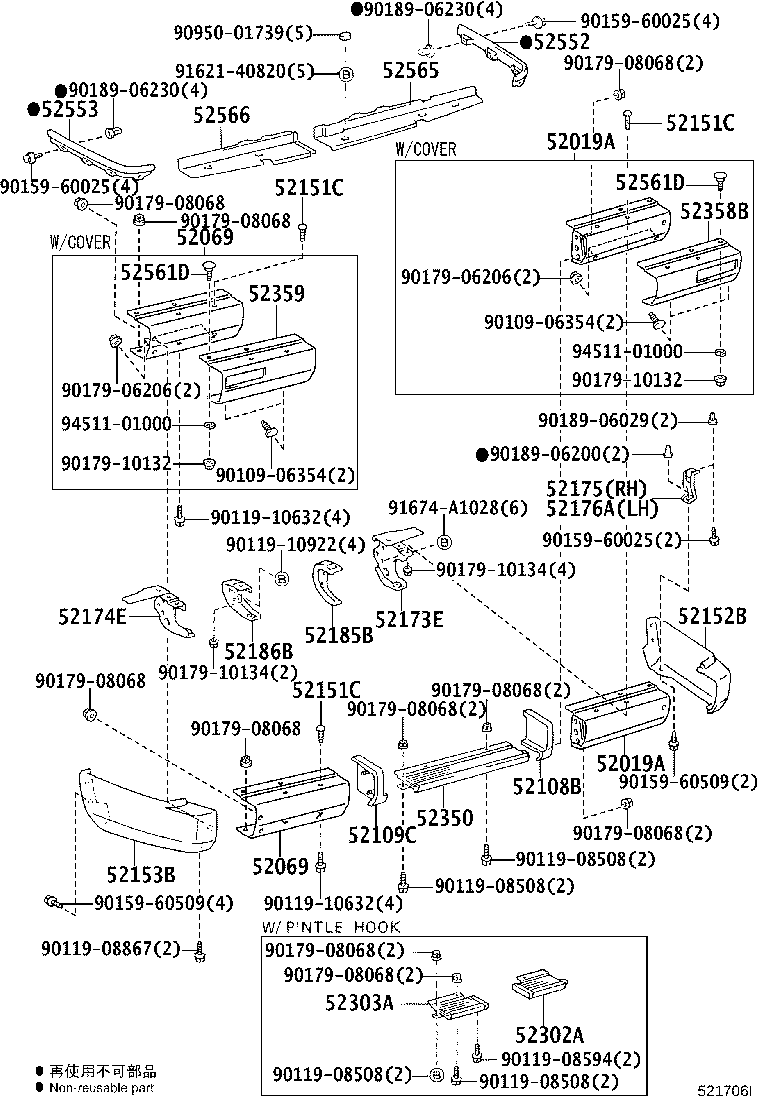

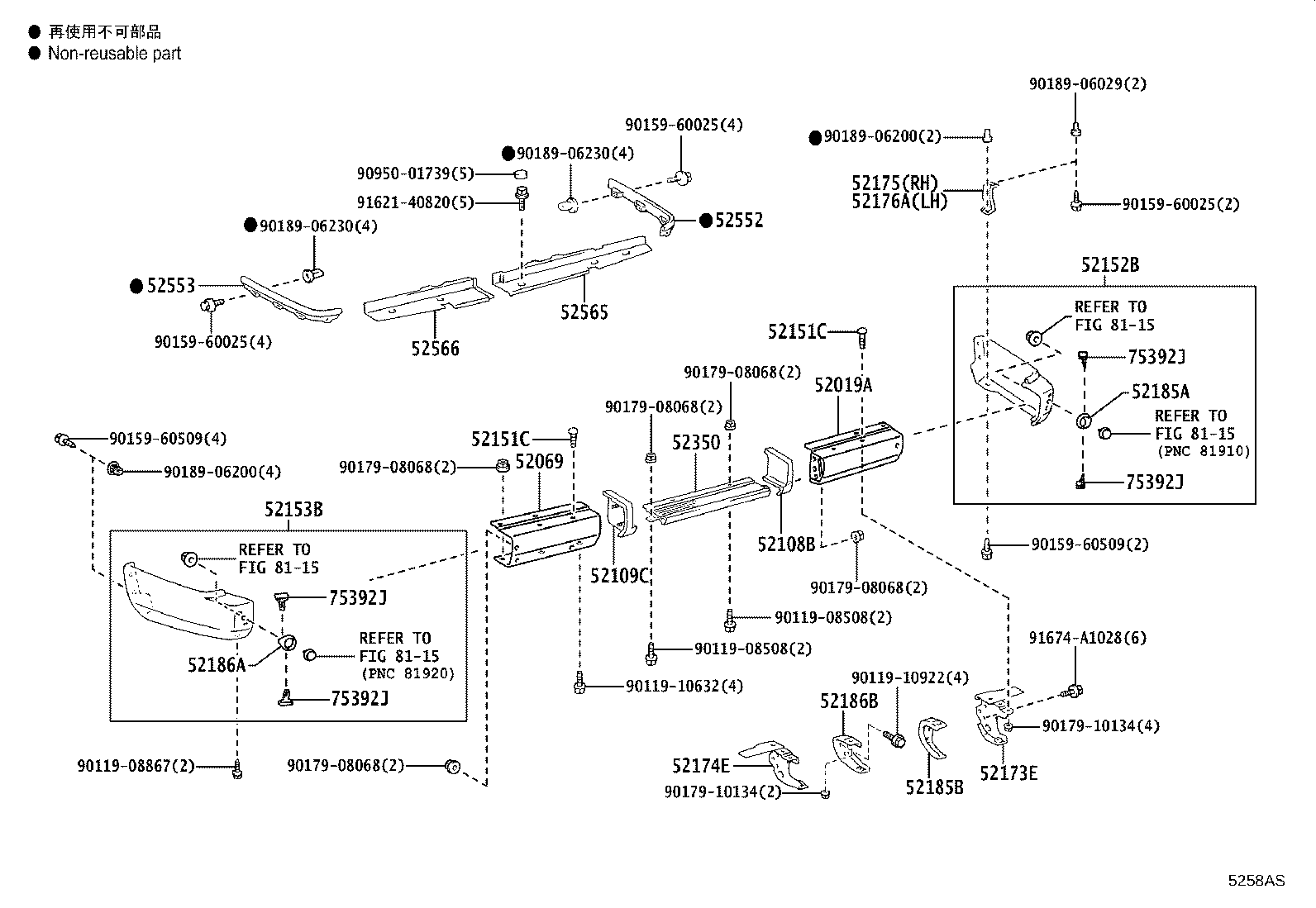

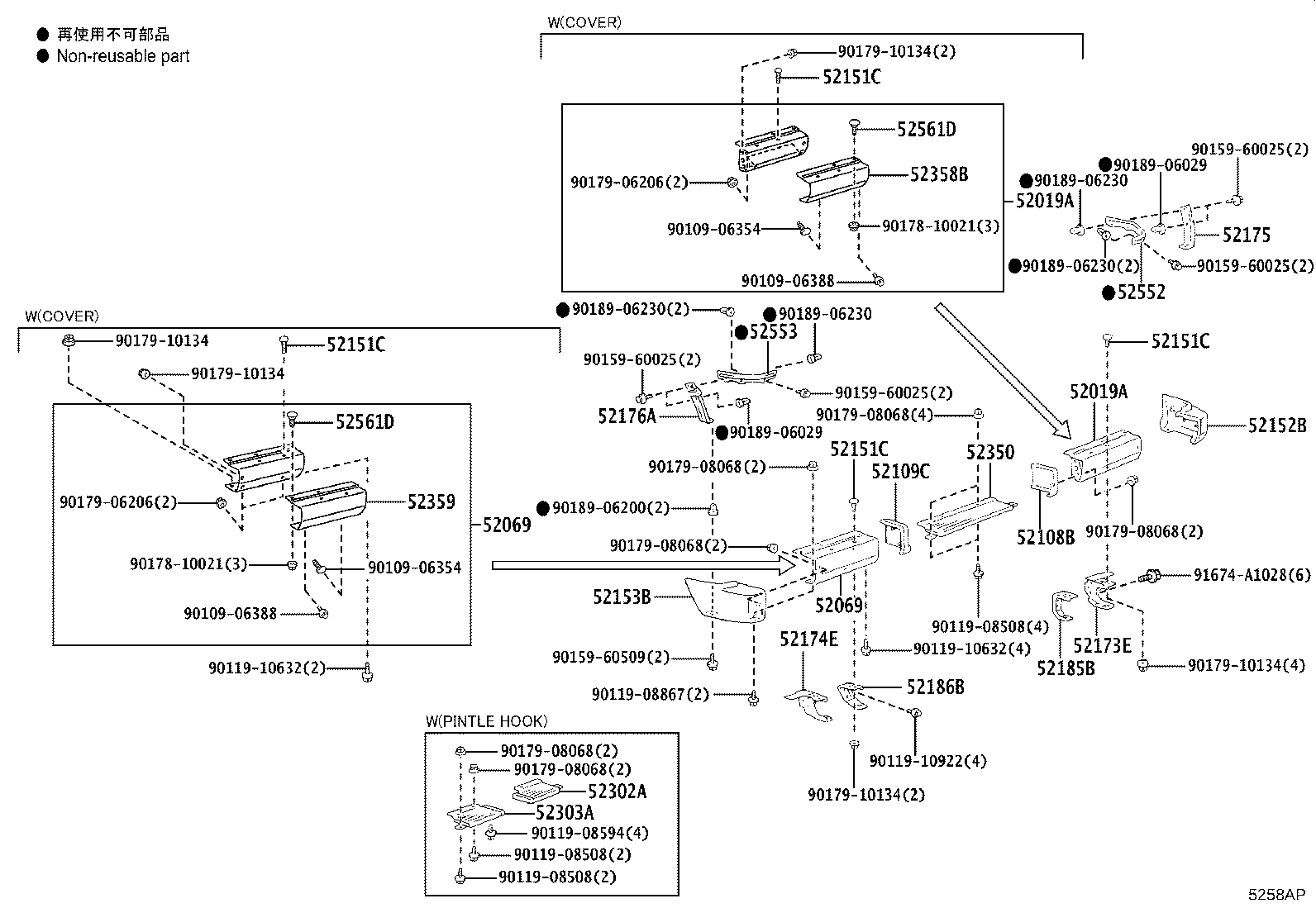

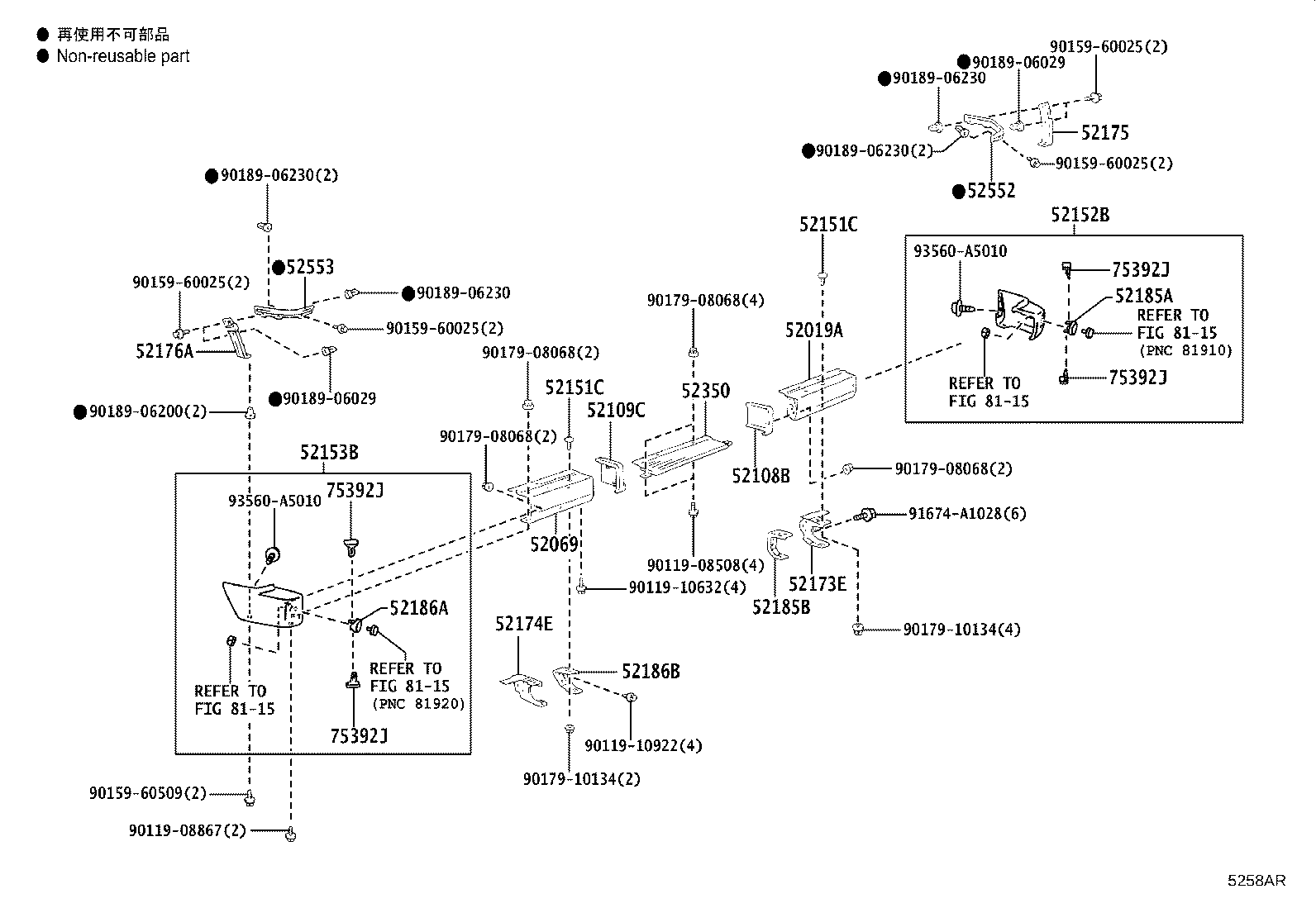

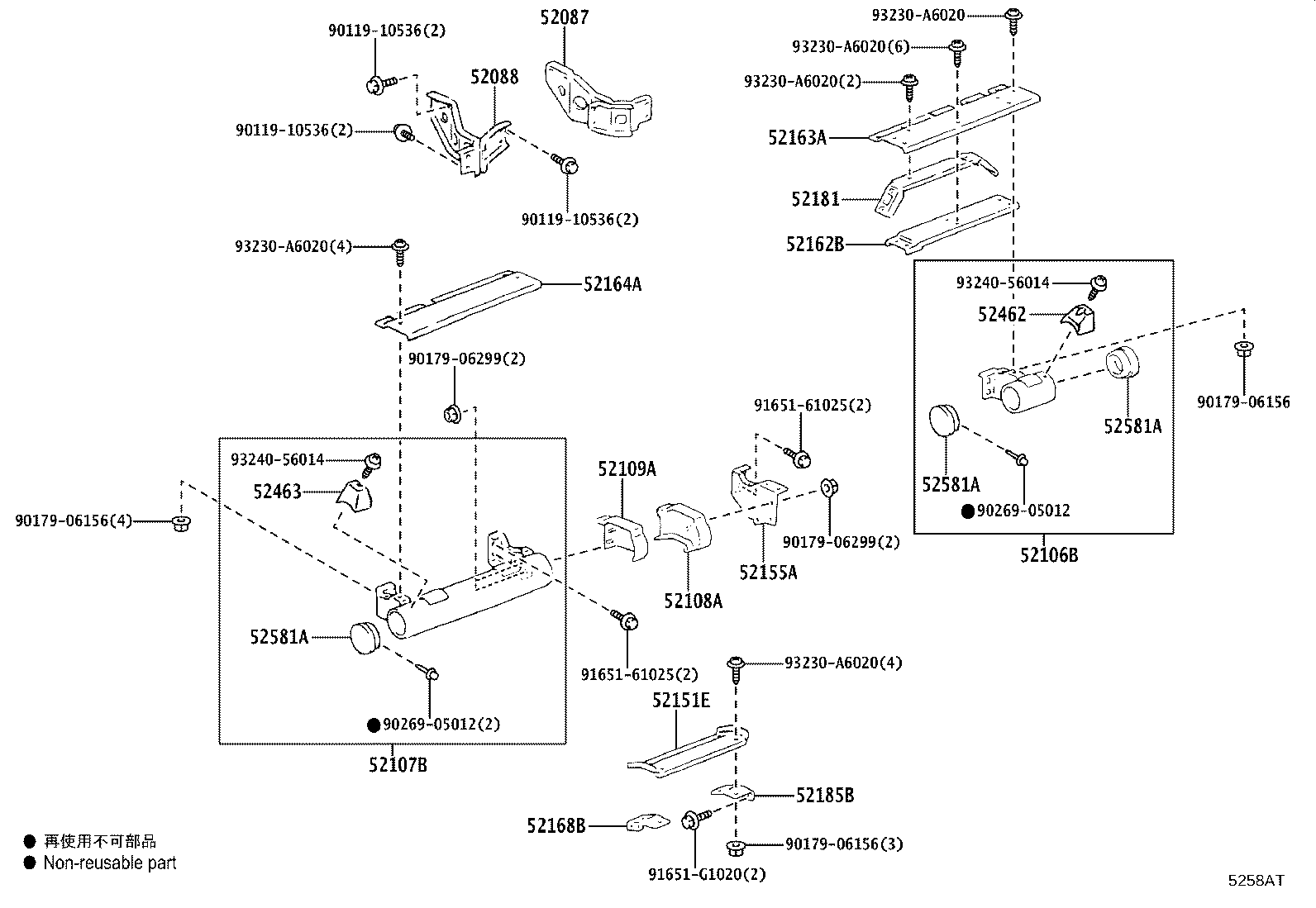

Figure 521705J 521705J 2007-01 → — Figure 521706I 521706I 2007-01 → — Figure 5258AT 5258AT 2007-01 → — Figure 5258AP 5258AP 2016-08 → — Figure 5258AP 5258AP 2023-09 → — Figure 5258AP 5258AP 2023-09 → — Figure 5258AQ 5258AQ 2016-08 → — Figure 5258AQ 5258AQ 2023-09 → 2024-08 Figure 5258AQ 5258AQ 2023-09 → — Figure 523592B 523592B 2017-02 → 2017-04 Figure 523592B 523592B 2018-02 → 2018-03 Figure 523592B 523592B 2019-02 → 2019-03 Figure 5258AS 5258AS 2023-09 → — Figure 5258AR 5258AR 2023-09 → — Figure 5258AVA 5258AVA 2023-09 → — Figure 5258ANB 5258ANB 2023-09 → 2024-08 Figure 5258ANB 5258ANB 2023-09 → —

Part groups

PNCDescription
52019A Bar Sub-assy, Rear Bumper, RH
52069 Bar Sub-assy, Rear Bumper, LH
52087 Stay Sub-assy, Rear Bumper Side, RH
52088 Stay Sub-assy, Rear Bumper Side, LH
52106B Bumper Sub-assy, Rear RH
52107B Bumper Sub-assy, Rear LH
52108A Bumper Sub-assy, Rear Side, RH
52108B Extension Sub-assy, Rear Bumper Side, RH
52109A Bumper Sub-assy, Rear Side, LH
52109C Extension Sub-assy, Rear Bumper Side, LH
52151C Bolt, Round Head Square Neck(FOR REAR BUMPER)
52151E Bar, Rear Bumper
52151H Cover, Rear Bumper
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52159B Plate, Rear Bumper
52162B Plate, Rear Bumper, NO.1
52163A Plate, Rear Bumper, RH
52164A Plate, Rear Bumper, LH
52165A Cover, Rear Bumper, Upr RH
52166A Cover, Rear Bumper, Upr LH
52168B Bracket, Rear Bumper Extension Mounting, LH
52173E Bracket, Rear Bumper Bar, RH
52174E Bracket, Rear Bumper Bar, LH
52175 Bracket, Rear Bumper Arm Mounting
52176A Bracket, Rear Bumper Arm Mounting, LH
52181 Arm, Rear Bumper, RH
52185A Bracket, Rear Bumper Side, RH
52185B Bracket, Rear Bumper Side Mounting, RH
52186A Bracket, Rear Bumper Side, LH
52186B Bracket, Rear Bumper Side Mounting, LH
52190A Clip
52302A Step Sub-assy, Rear Bumper
52303A Step Sub-assy, Rear Bumper, LH
52350 Step Assy, Rear Bumper
52358B Cover, Rear Bumper Step, RH
52359 Cover, Rear Bumper Step, LH
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52552 Filler, Rear Bumper, RH
52553 Filler, Rear Bumper, LH
52561D Retainer, Rear Bumper Filler
52565 Filler, Rear Bumper Extension, RH
52566 Filler, Rear Bumper Extension, LH
52581A Protector, Rear Bumper Filler
75392J Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
