Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 5 illustrations

Illustrations

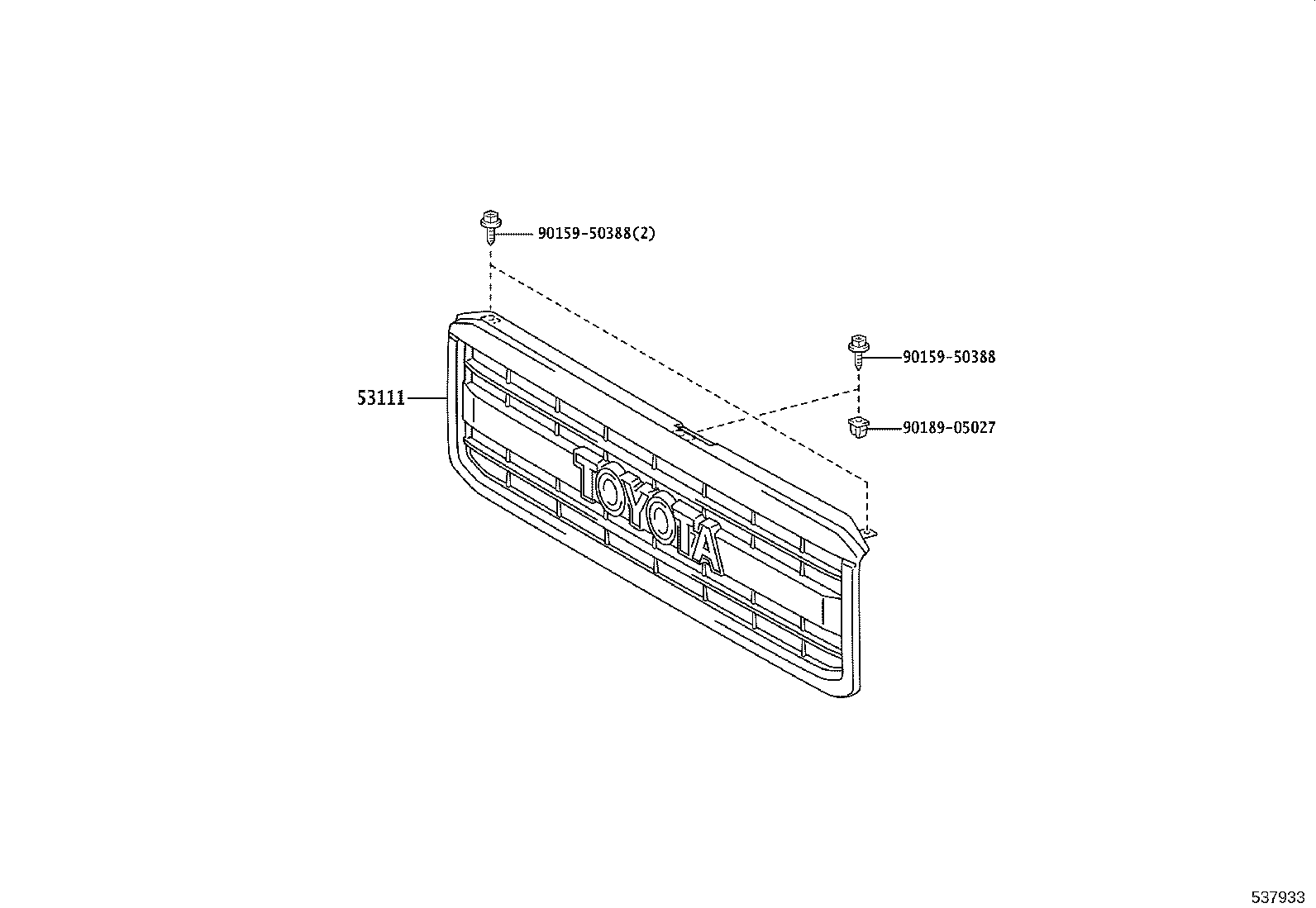

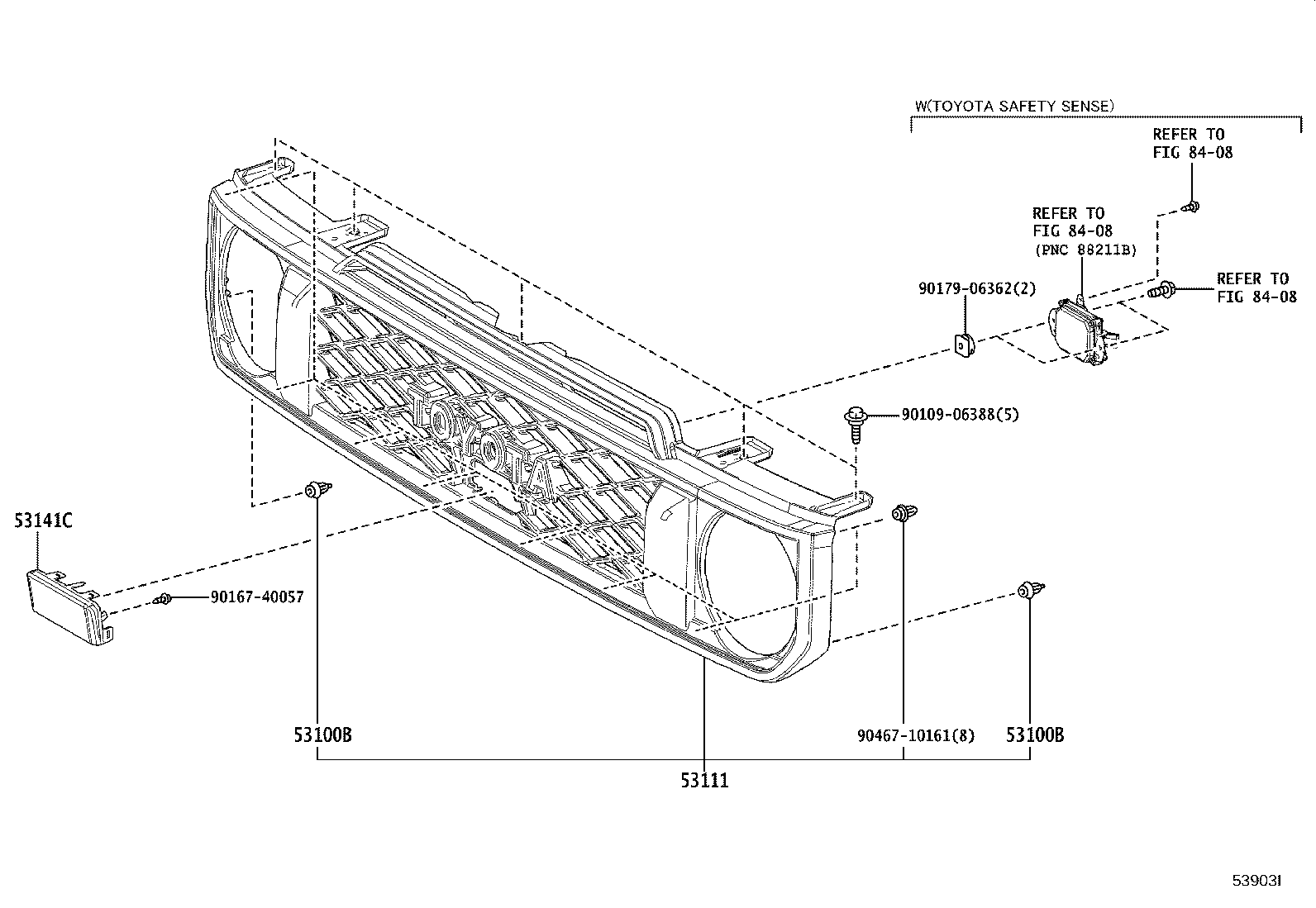

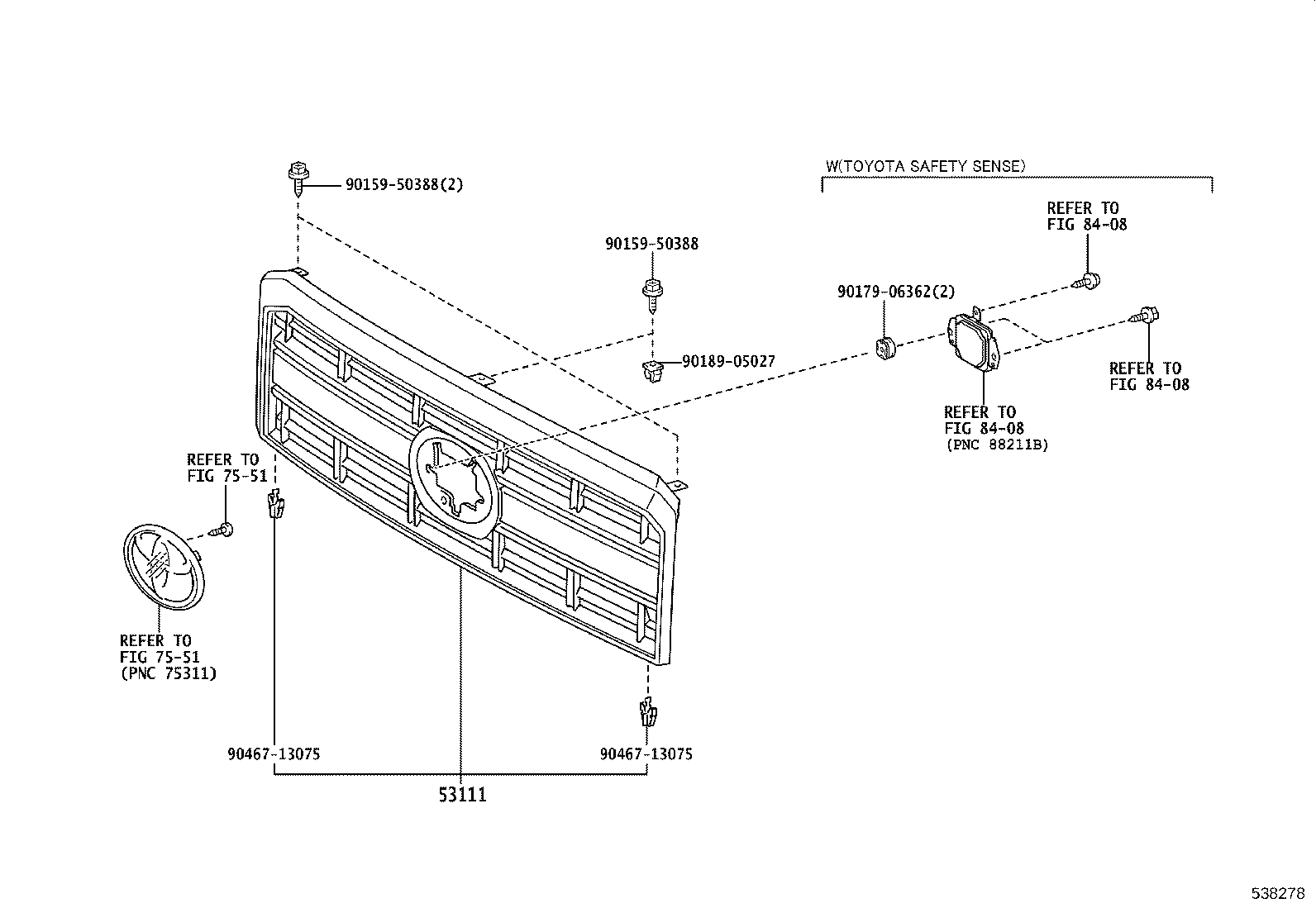

Figure 532448F 532448F 2007-01 → 2022-09 Figure 537933 537933 2021-07 → — Figure 537933 537933 2021-07 → — Figure 538278 538278 2022-09 → 2023-09 Figure 53903I 53903I 2023-09 → —

Part groups

PNCDescription
53100B Clip, Radiator Grille
53111 Grille, Radiator
53119B Protector, Radiator Grille
53141C Garnish, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
