Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

47 part groups · 7 illustrations

Illustrations

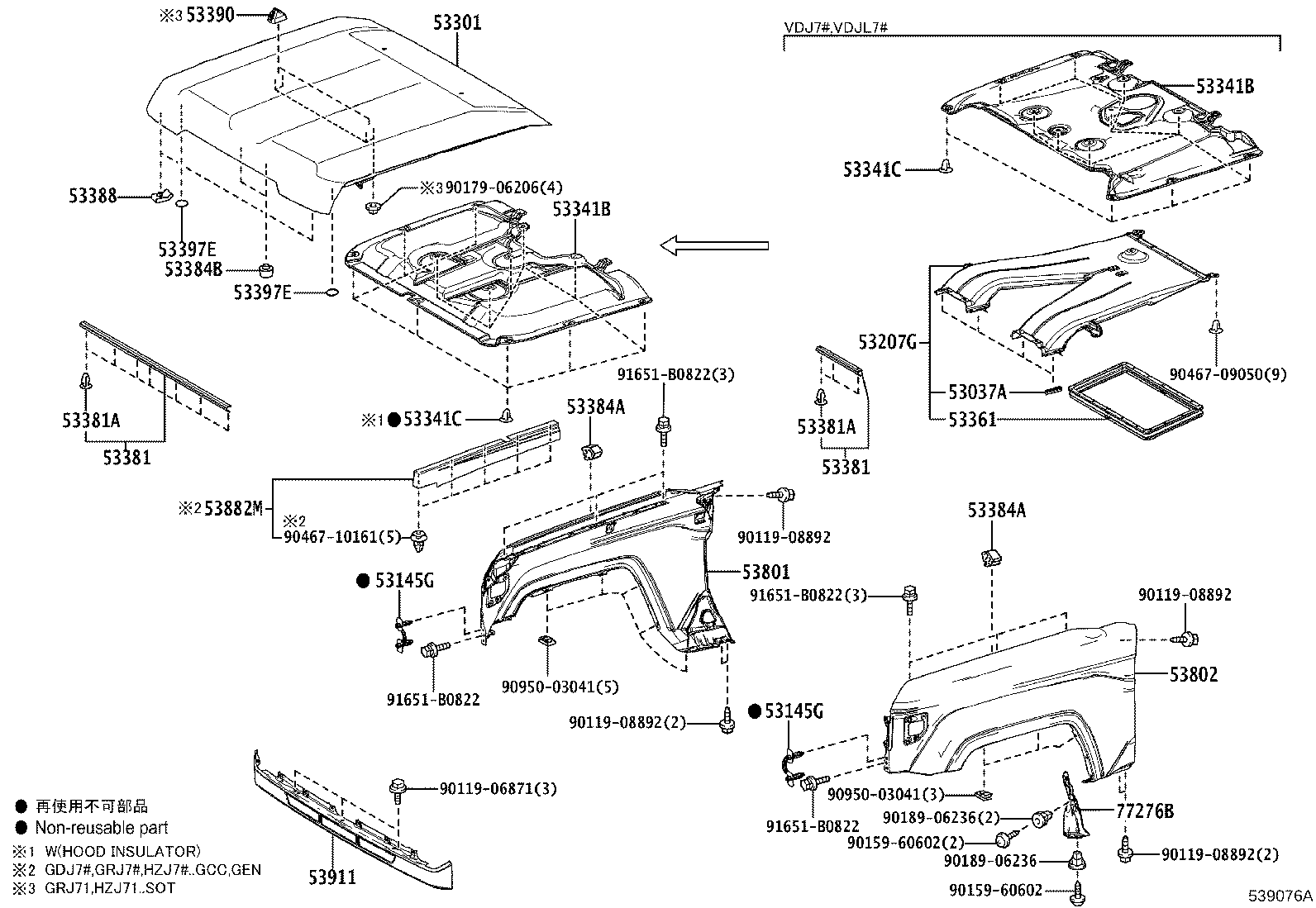

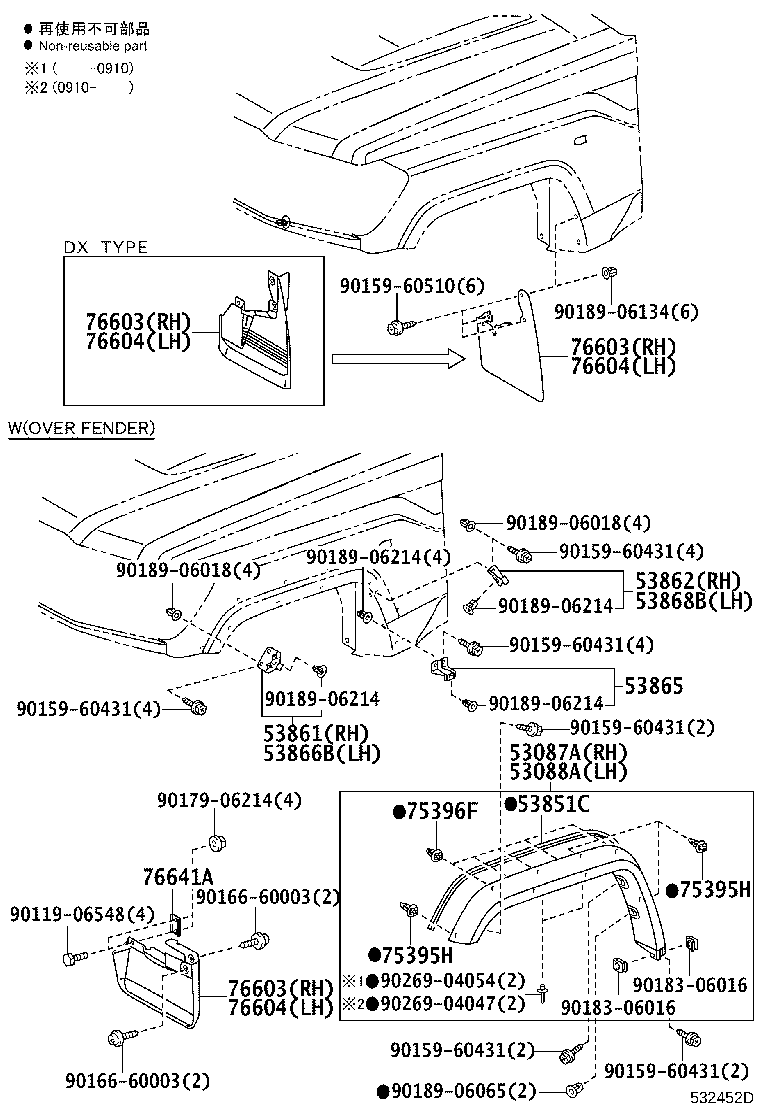

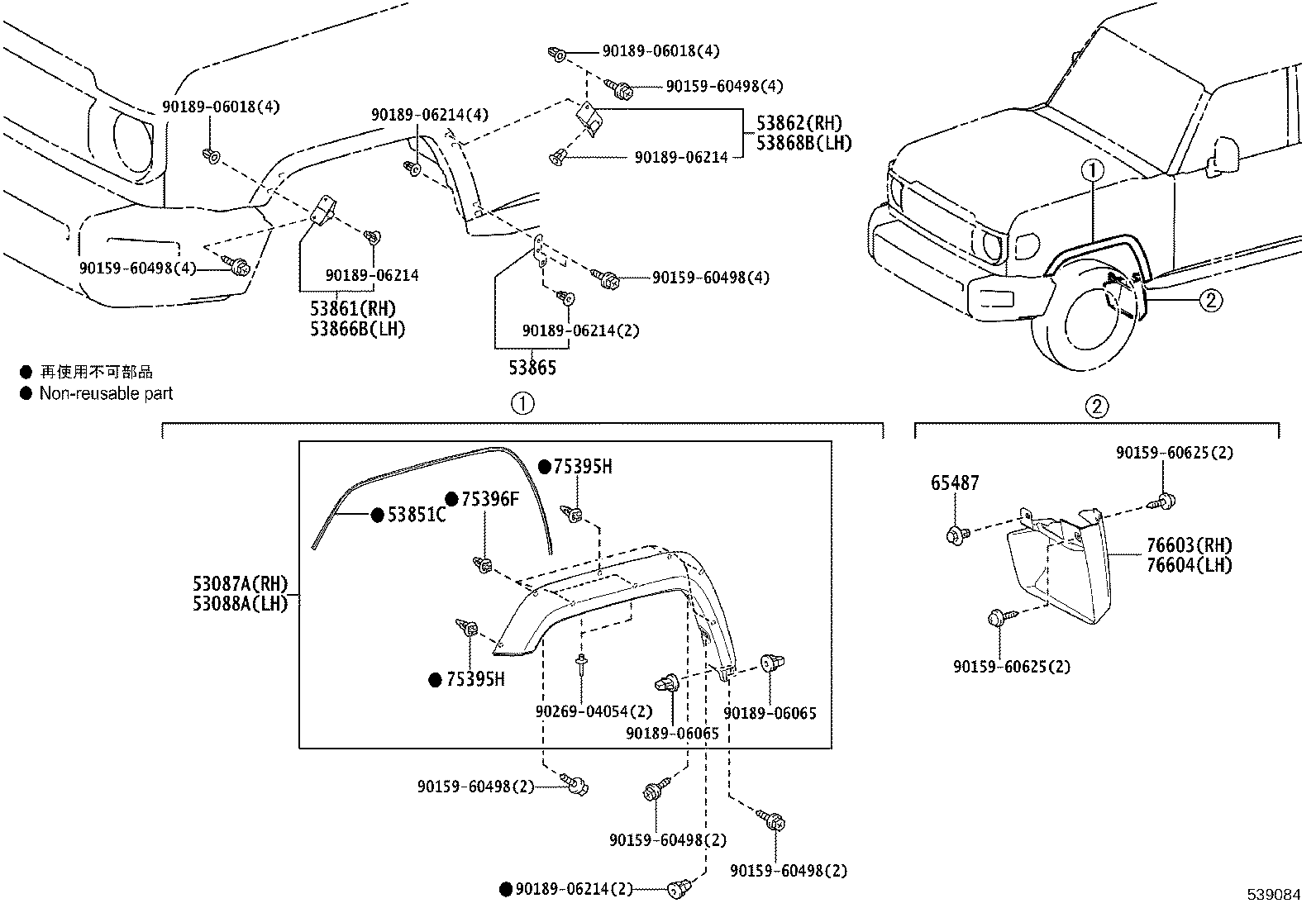

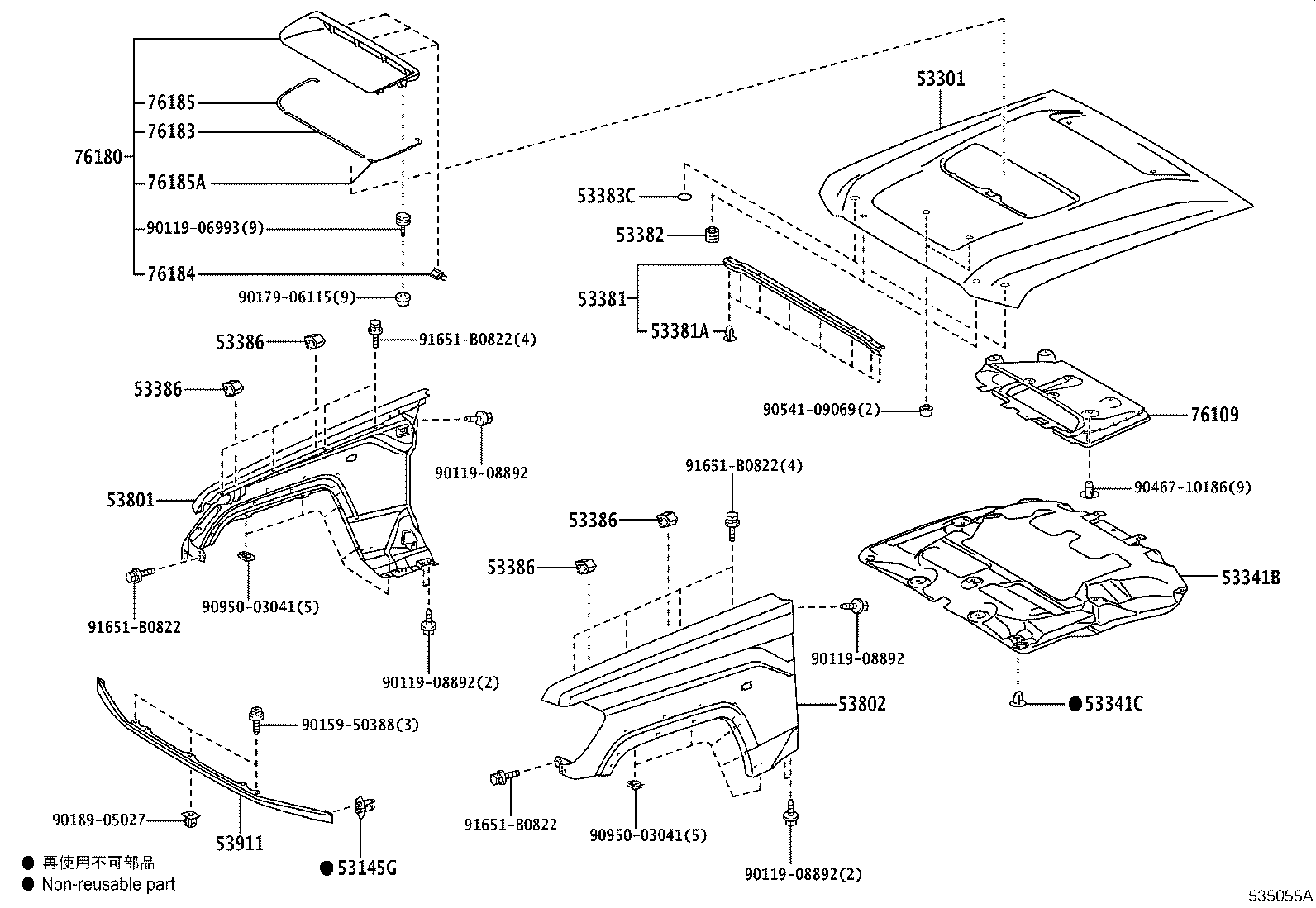

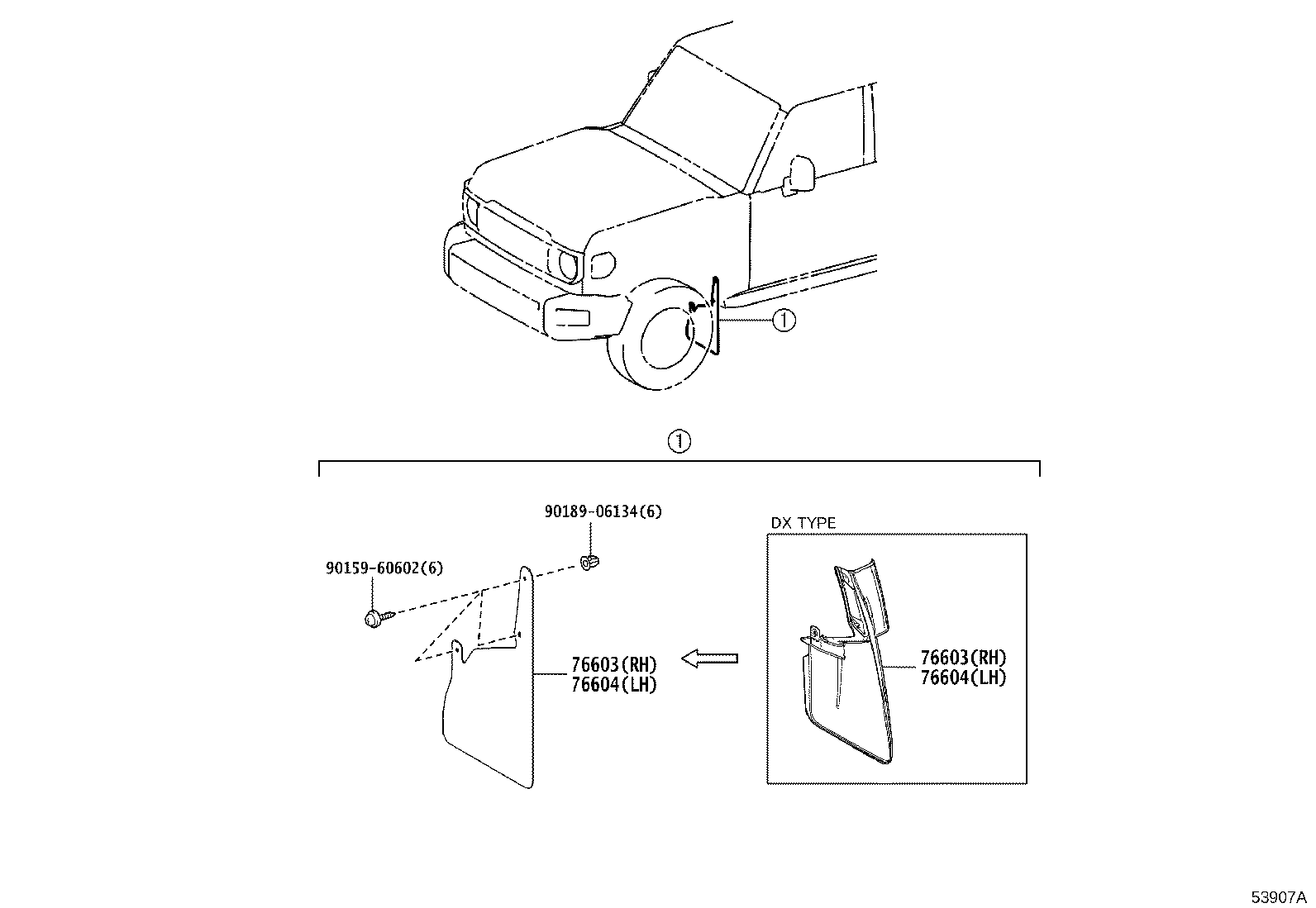

Figure 532451J 532451J 2007-01 → 2016-08 Figure 532451J 532451J 2007-01 → 2023-09 Figure 535055A 535055A 2016-08 → 2023-09 Figure 532452D 532452D 2007-01 → 2023-09 Figure 539076A 539076A 2023-09 → — Figure 53907A 53907A 2023-09 → — Figure 539084 539084 2023-09 → —

Part groups

PNCDescription
53037A Seal Sub-assy, Radiator
53087A Extension Sub-assy, Front Wheel Opening, RH
53088A Extension Sub-assy, Front Wheel Opening, LH
53145G Clip, Radiator Grille
53207G Duct Sub-assy, Cool Air Intake, NO.1
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53361 Weatherstrip, Hood
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382 Bumper, Hood, Front
53383C Seal, Hood TO Cowl Top
53384A Bumper, Fender TO Hood
53384B Cushion, Hood, Center
53386 Bumper, Hood, Rear
53388 Cushion, Hood, Rear
53390 Cradle Assy, Windshield Rest
53397E Seal, Radiator, Upper
53781D Packing, Front Fender Apron Trim
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53803C Reinforce Sub-assy, Front Fender Side, Rear RH
53851C Pad, Front Wheel Opening Extension, NO.1
53861 Bracket, Front Wheel Opening, NO.1
53862 Bracket, Front Wheel Opening, NO.2
53865 Bracket, Front Wheel Opening, NO.3
53866B Bracket, Front Wheel Opening, NO.4
53868B Bracket, Front Wheel Opening, NO.6
53882M Seal, Front Fender
53891K Seal, Front Fender Splash Sheild, Front
53911 Panel, Front Valance
65487 Clip, Corner Protector
75395H Clip, Outside Moulding, NO.1
75396F Clip, Outside Moulding, NO.2
76109 Guide Sub-assy, Hood Air Intake
76180 Bulge Assy, Hood
76181 Bulge, Hood
76183 Protector, Hood Bulge, NO.1
76184 Protector, Hood Bulge, NO.2
76185 Protector, Hood Bulge, NO.3
76185A Protector, Hood Bulge, NO.4
76187 Retainer, Hood Air Intake Guide, NO.1
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76641A Bracket, Front Mudguard
77276B Protector, Fuel Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
