Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

48 part groups · 17 illustrations

Illustrations

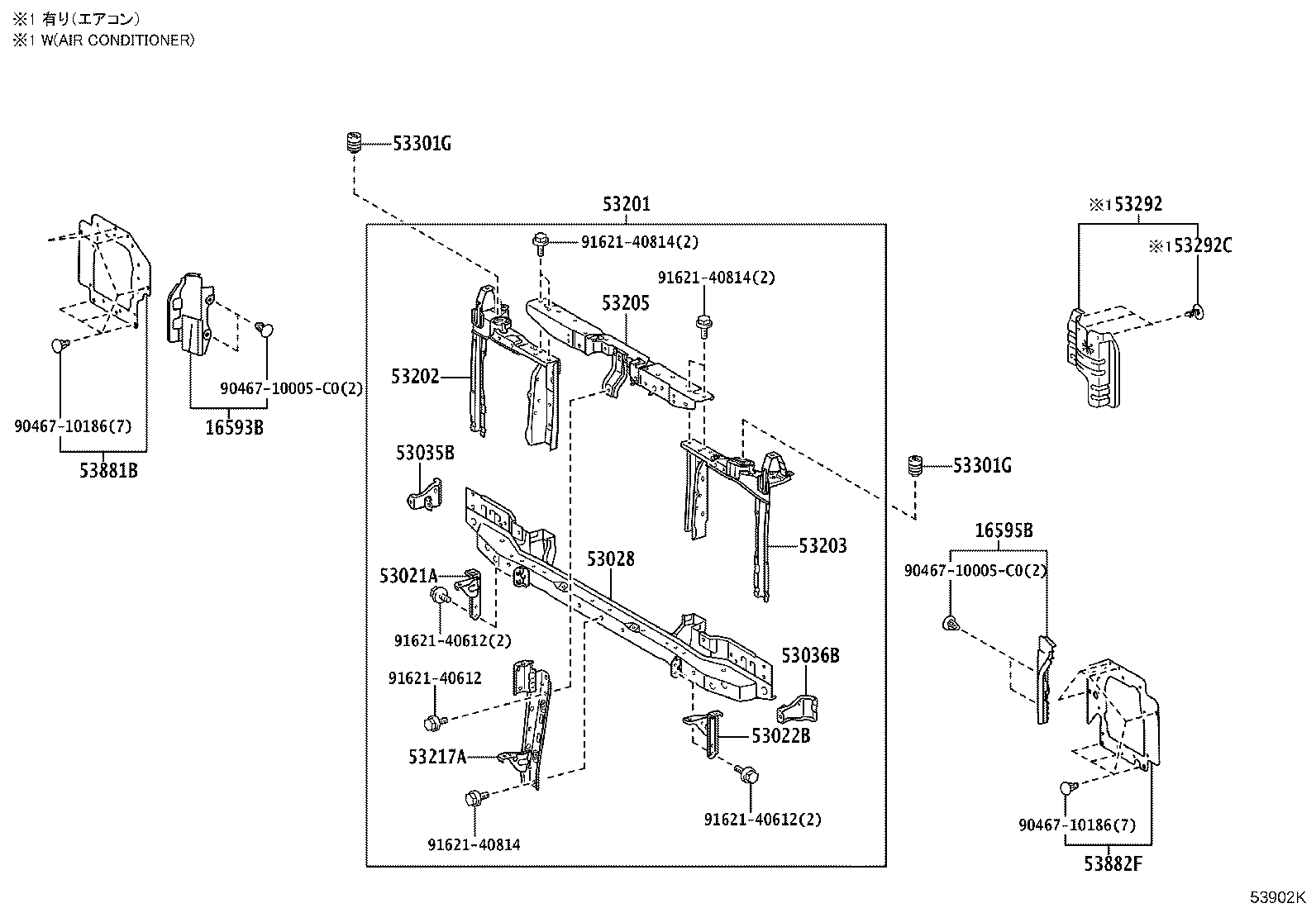

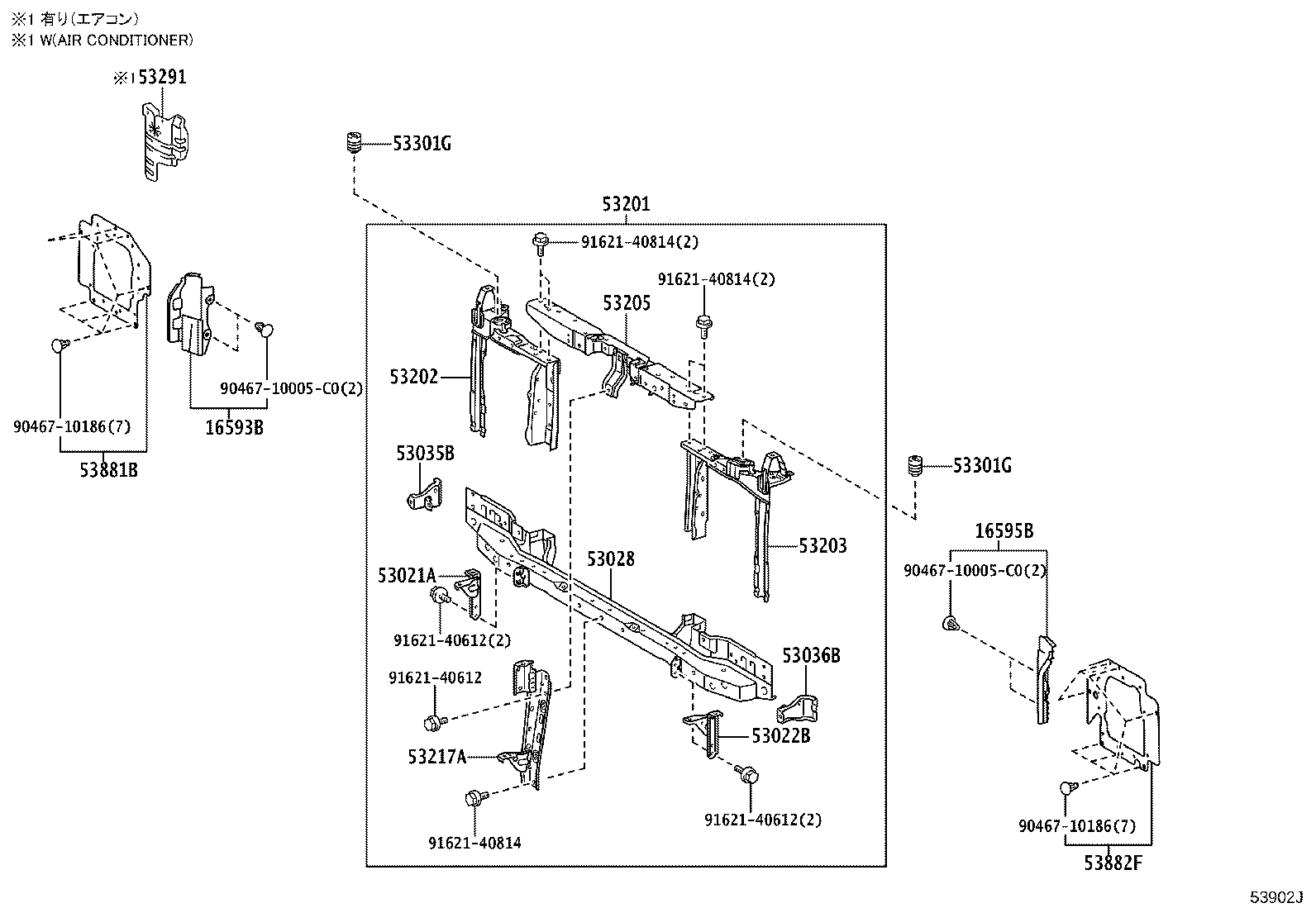

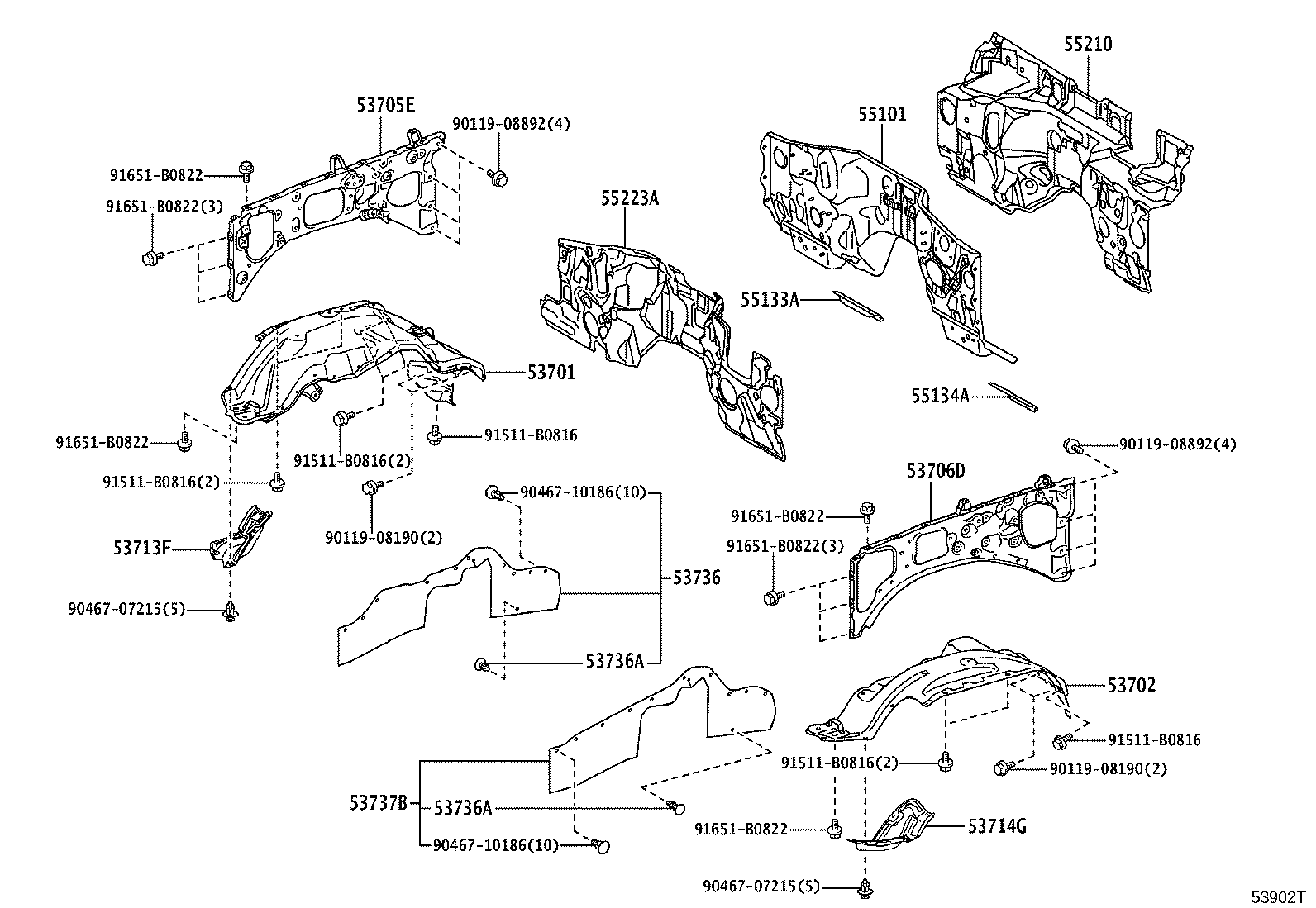

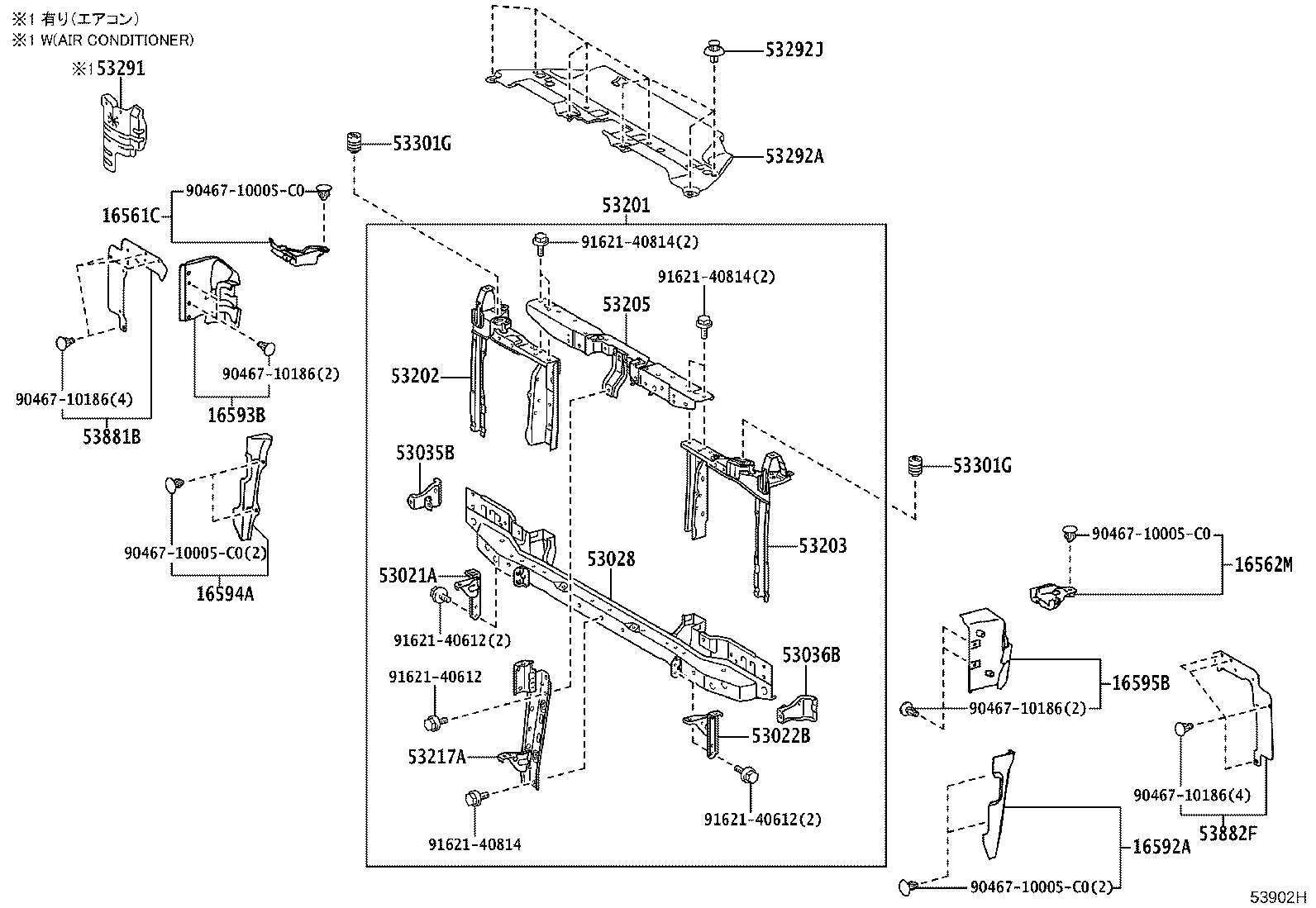

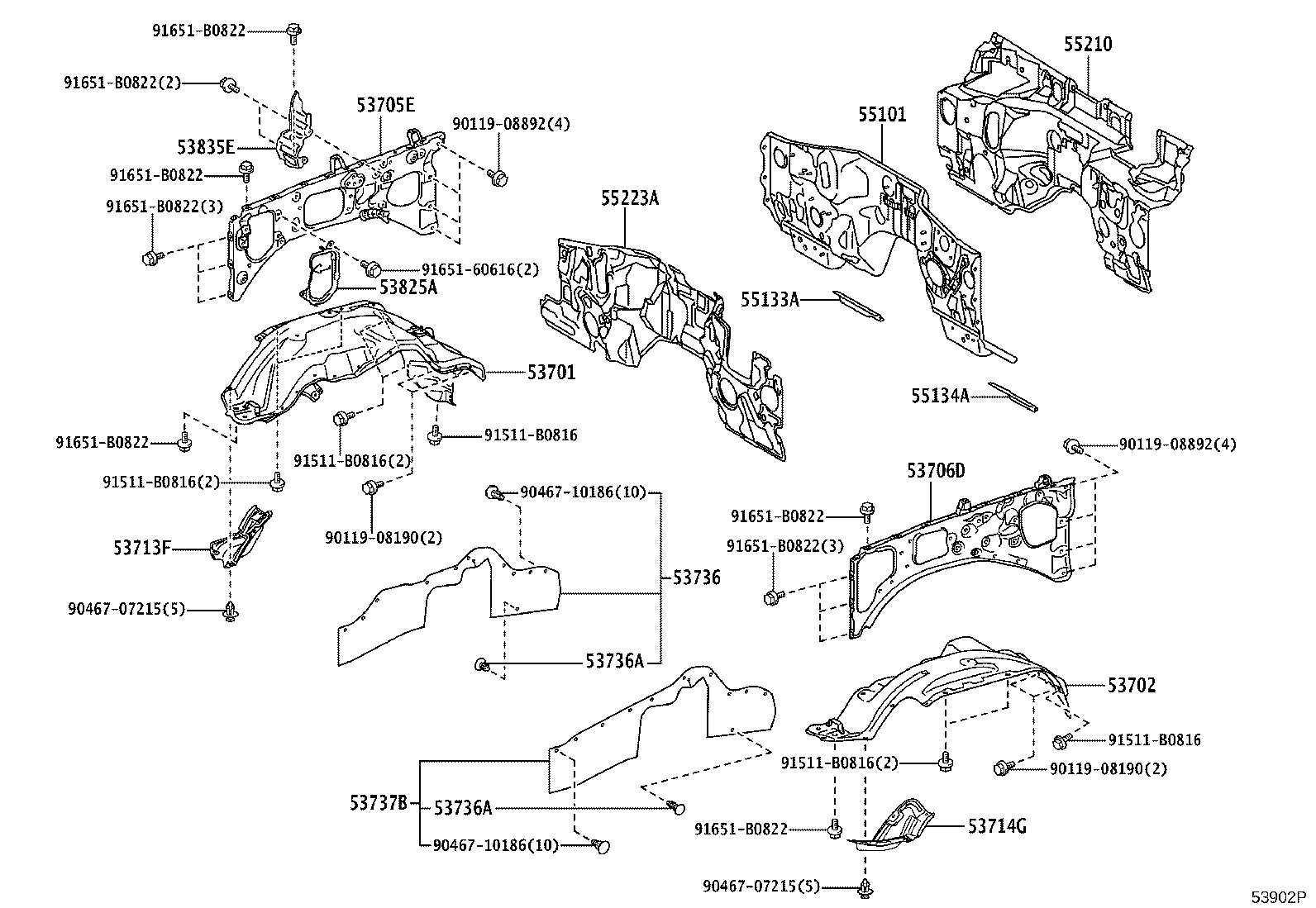

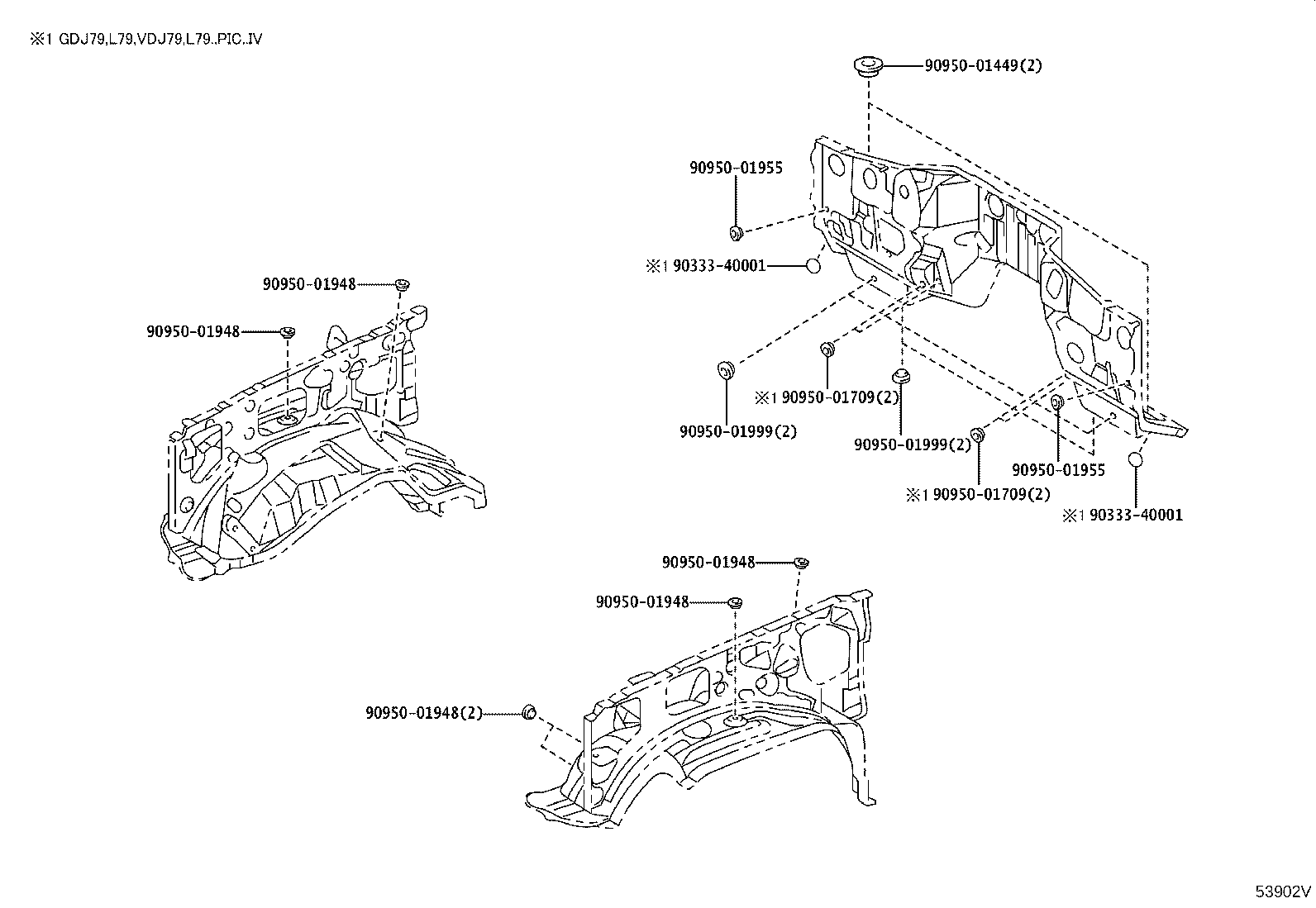

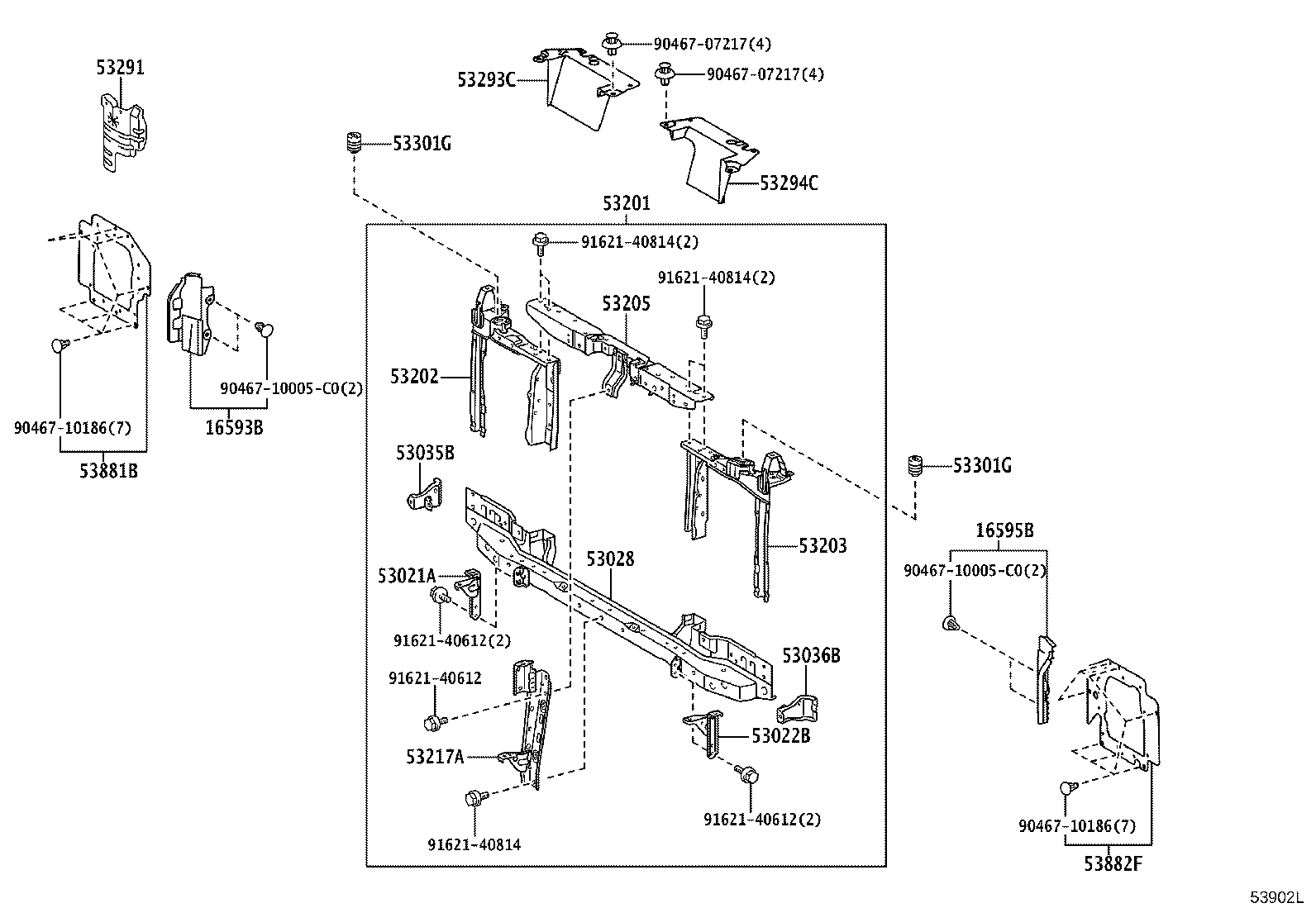

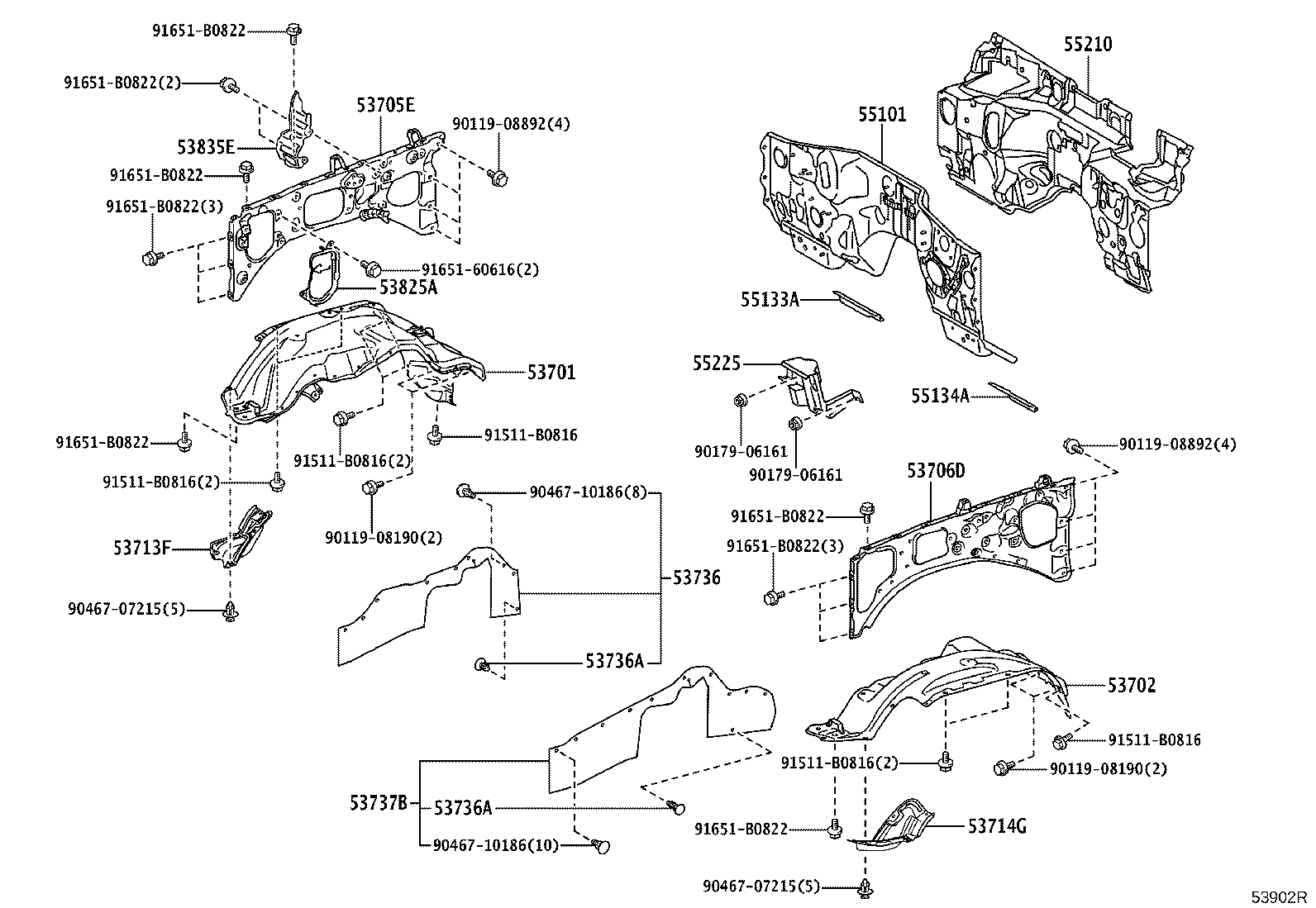

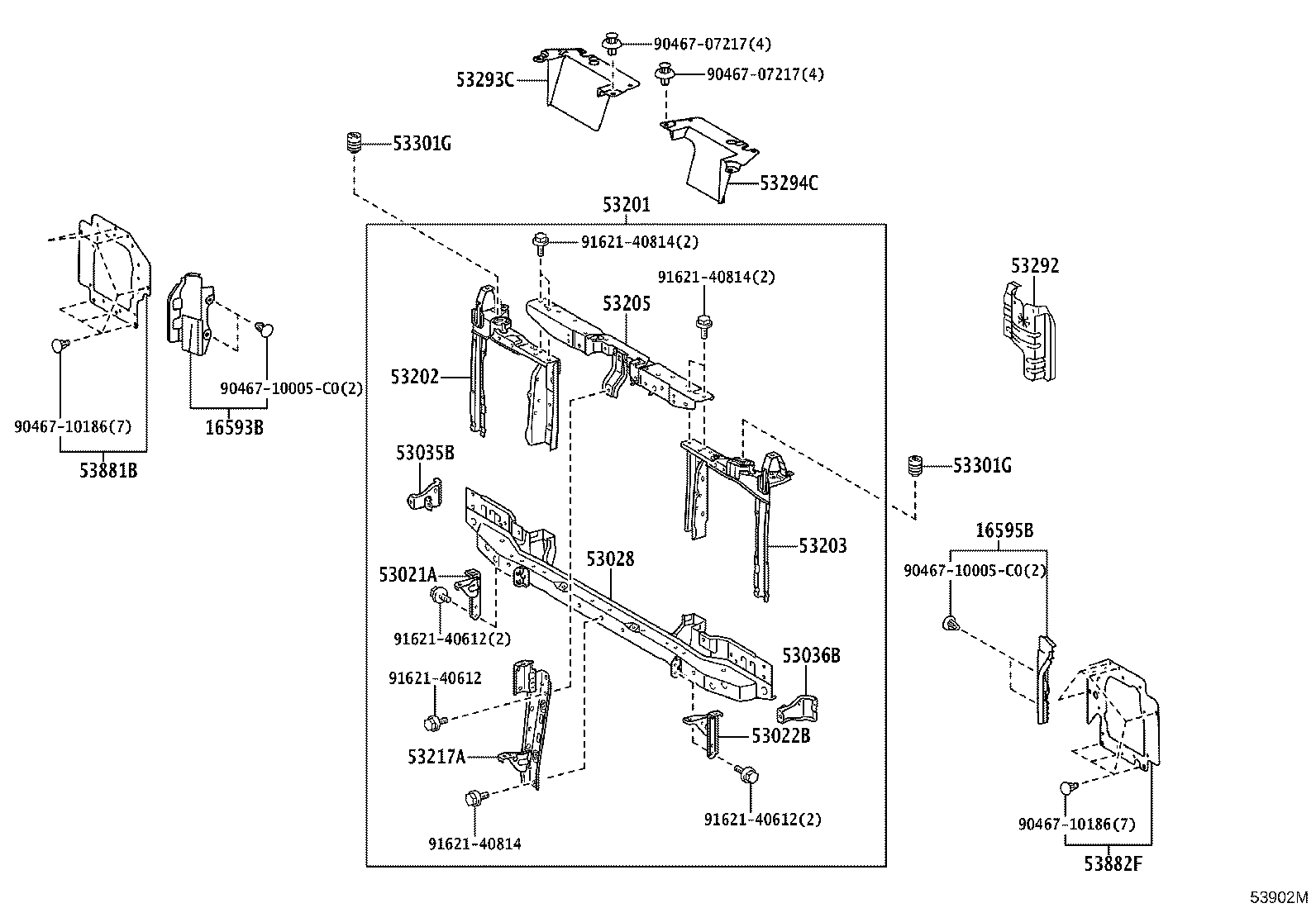

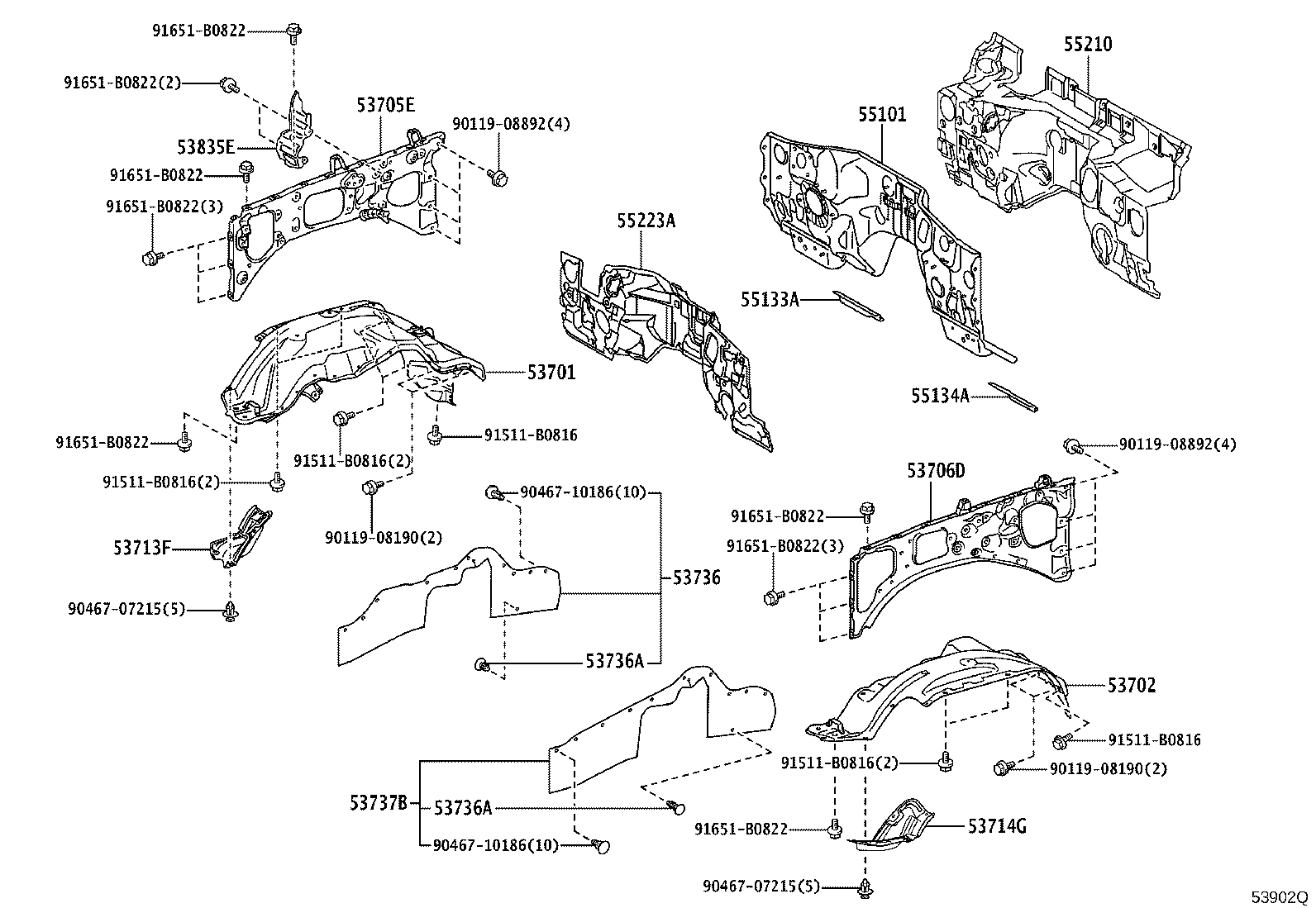

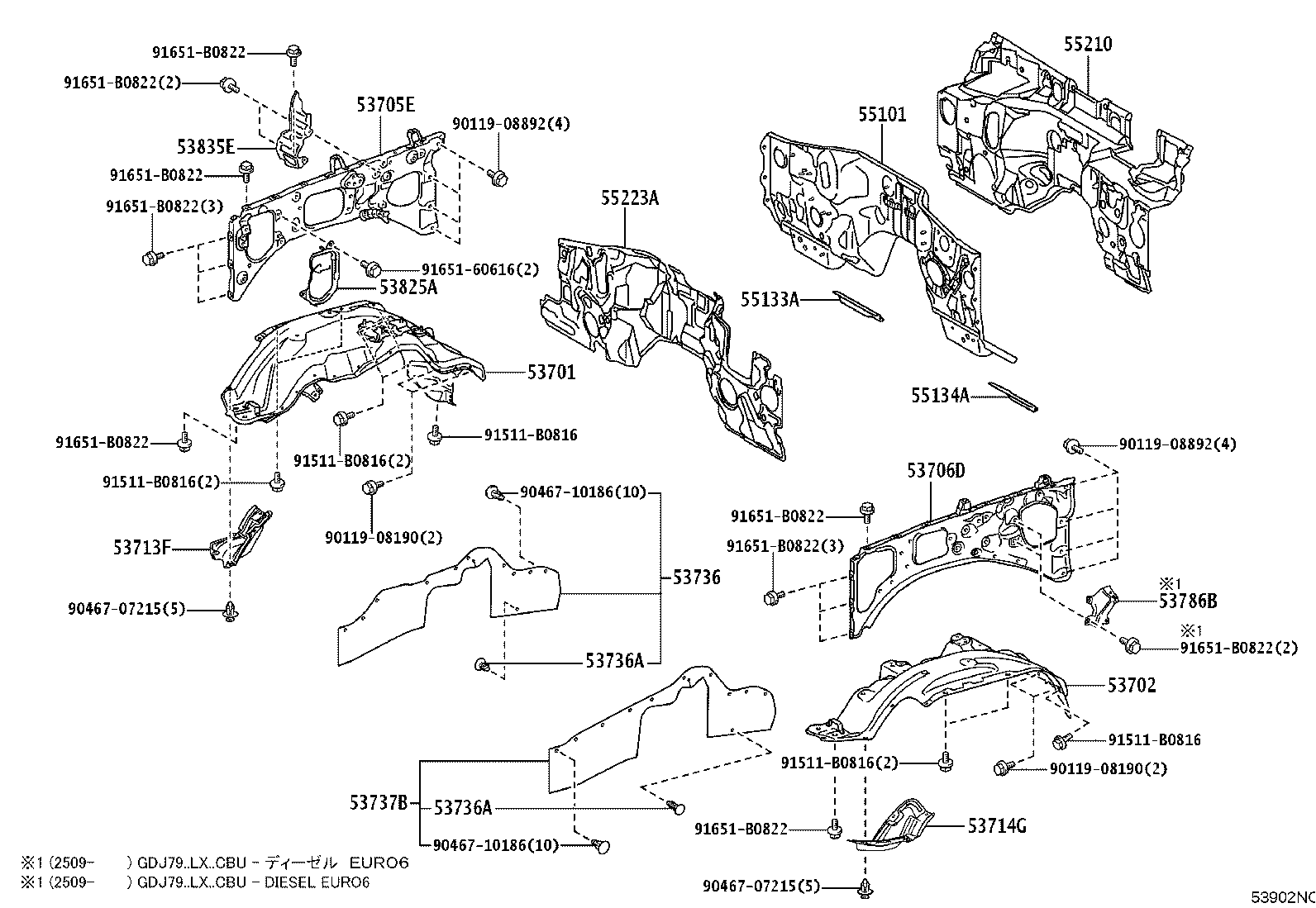

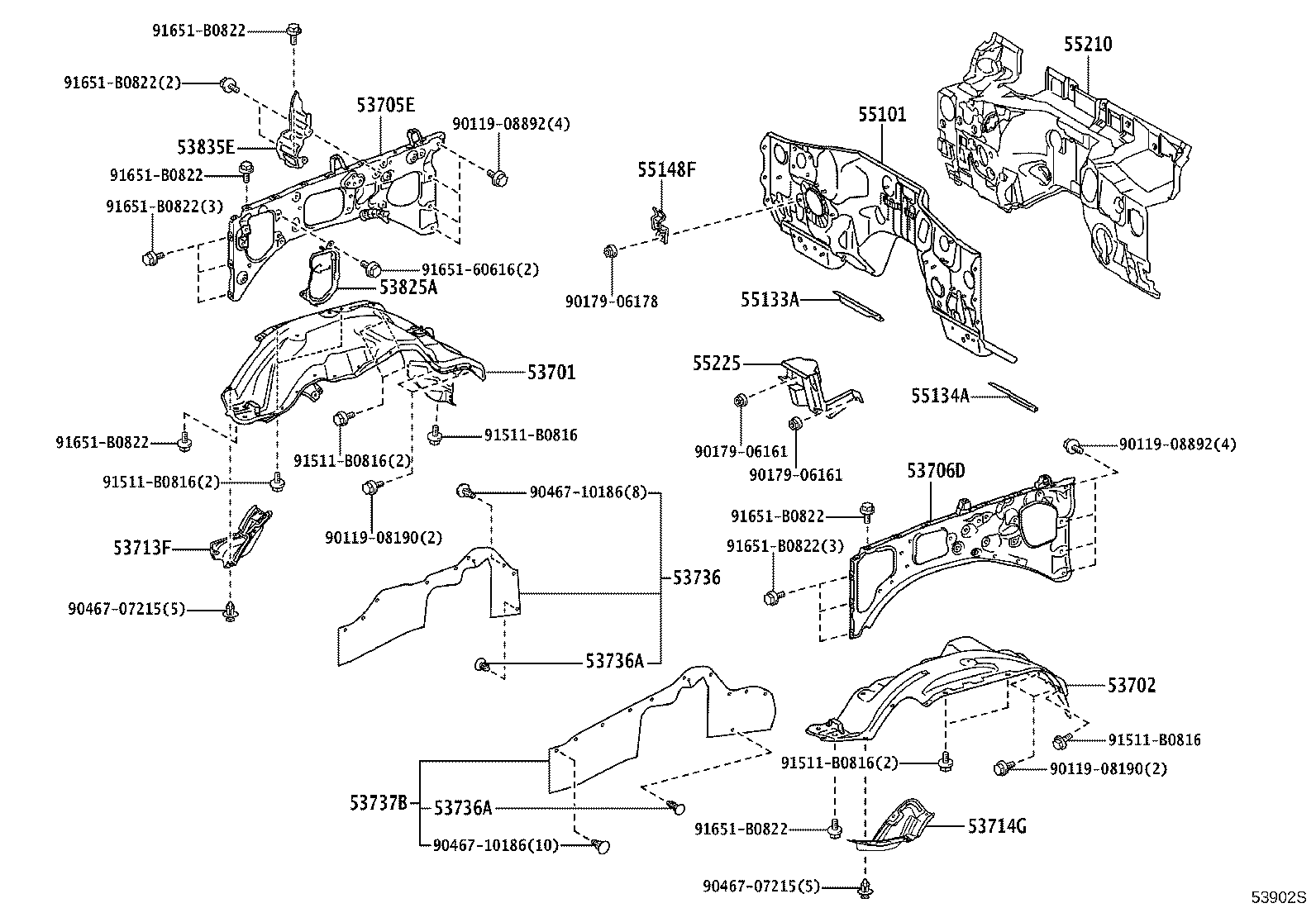

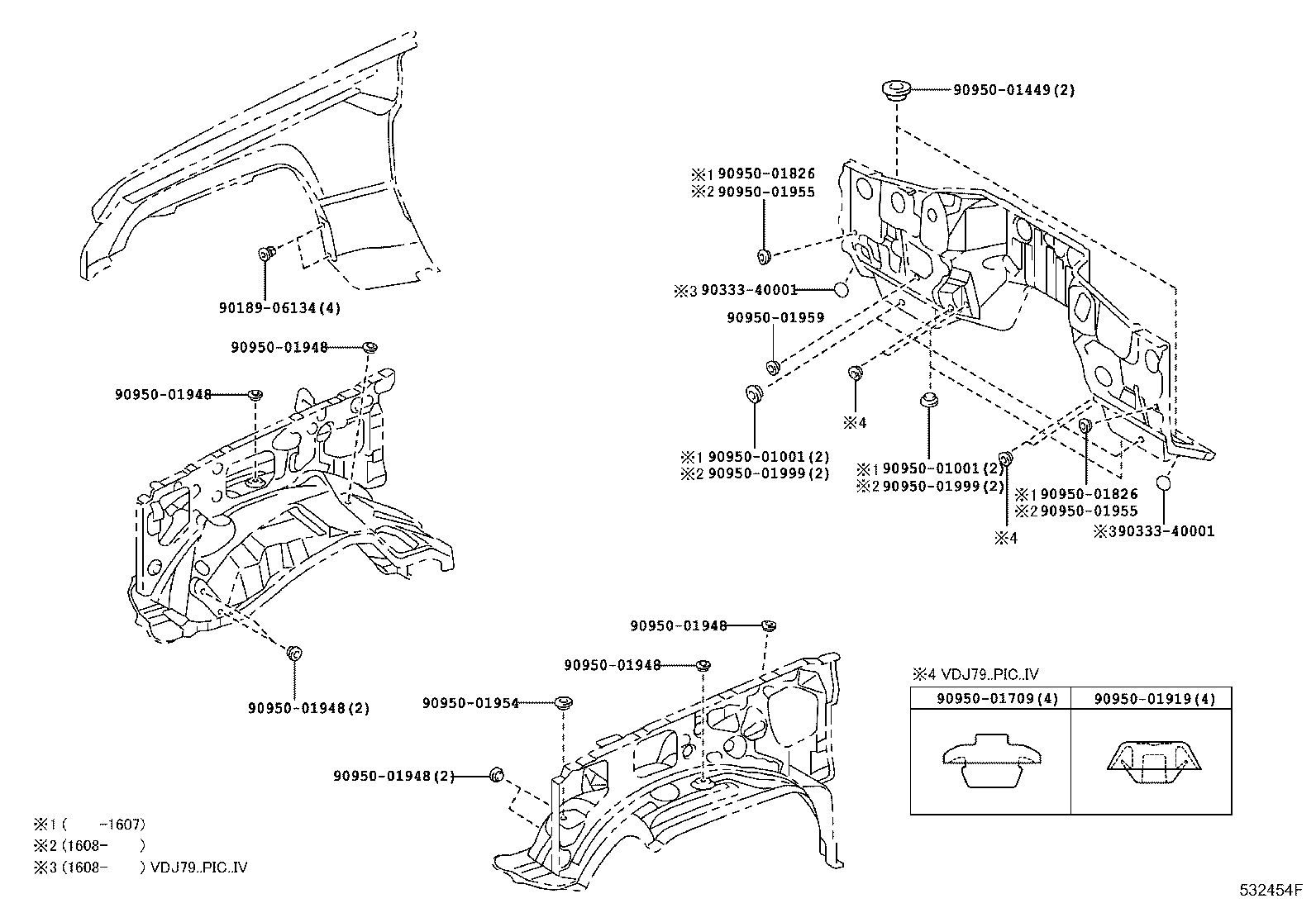

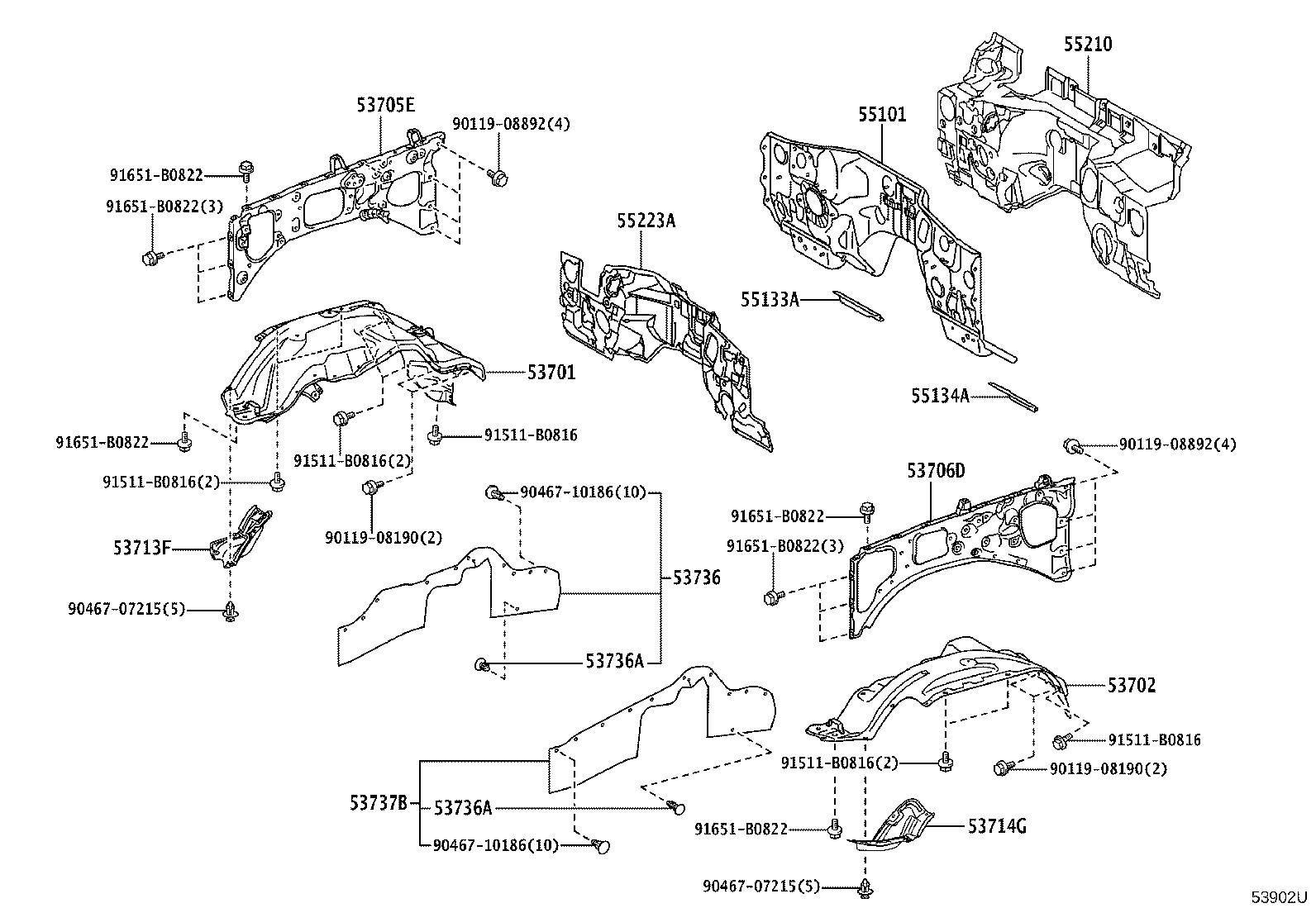

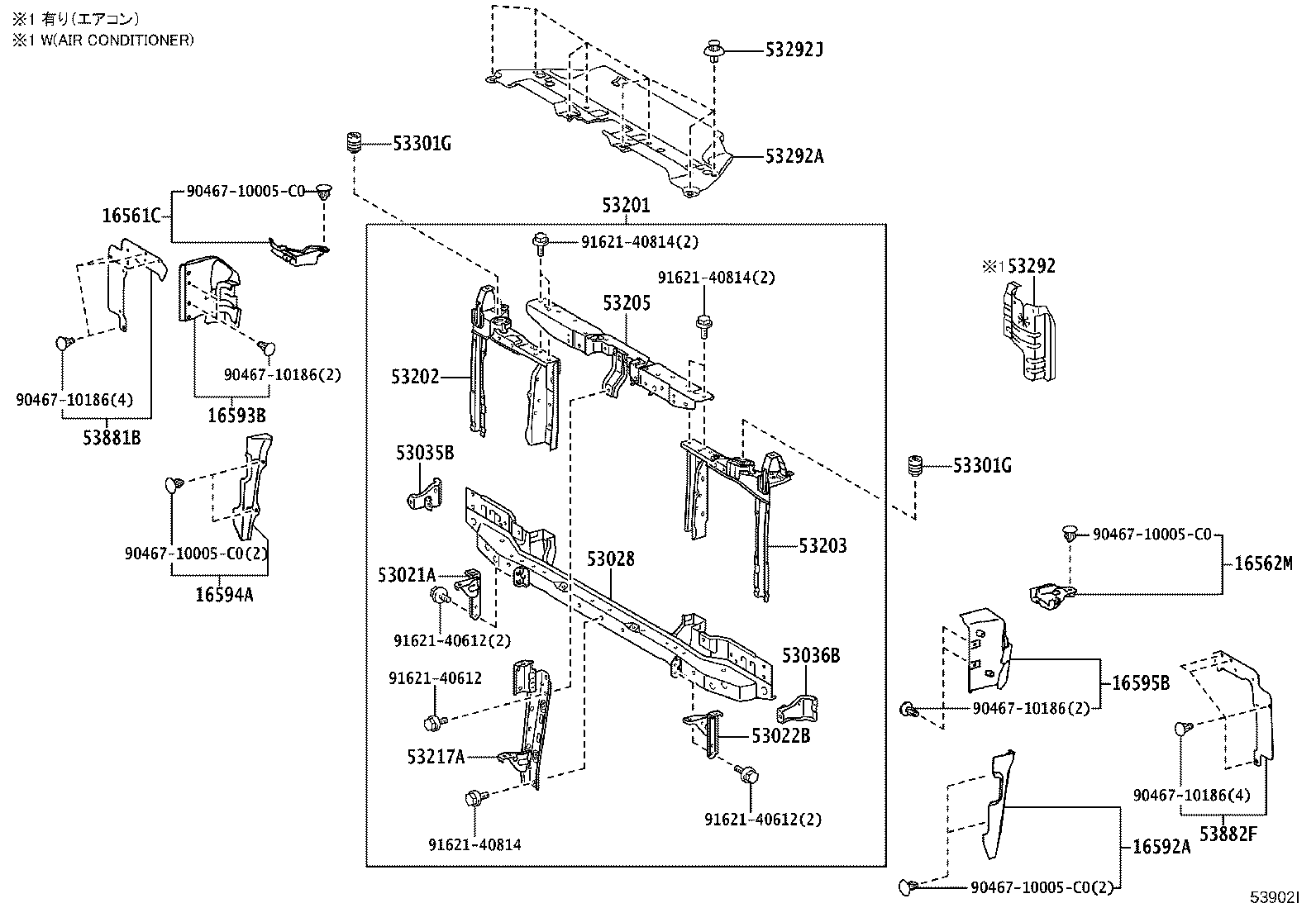

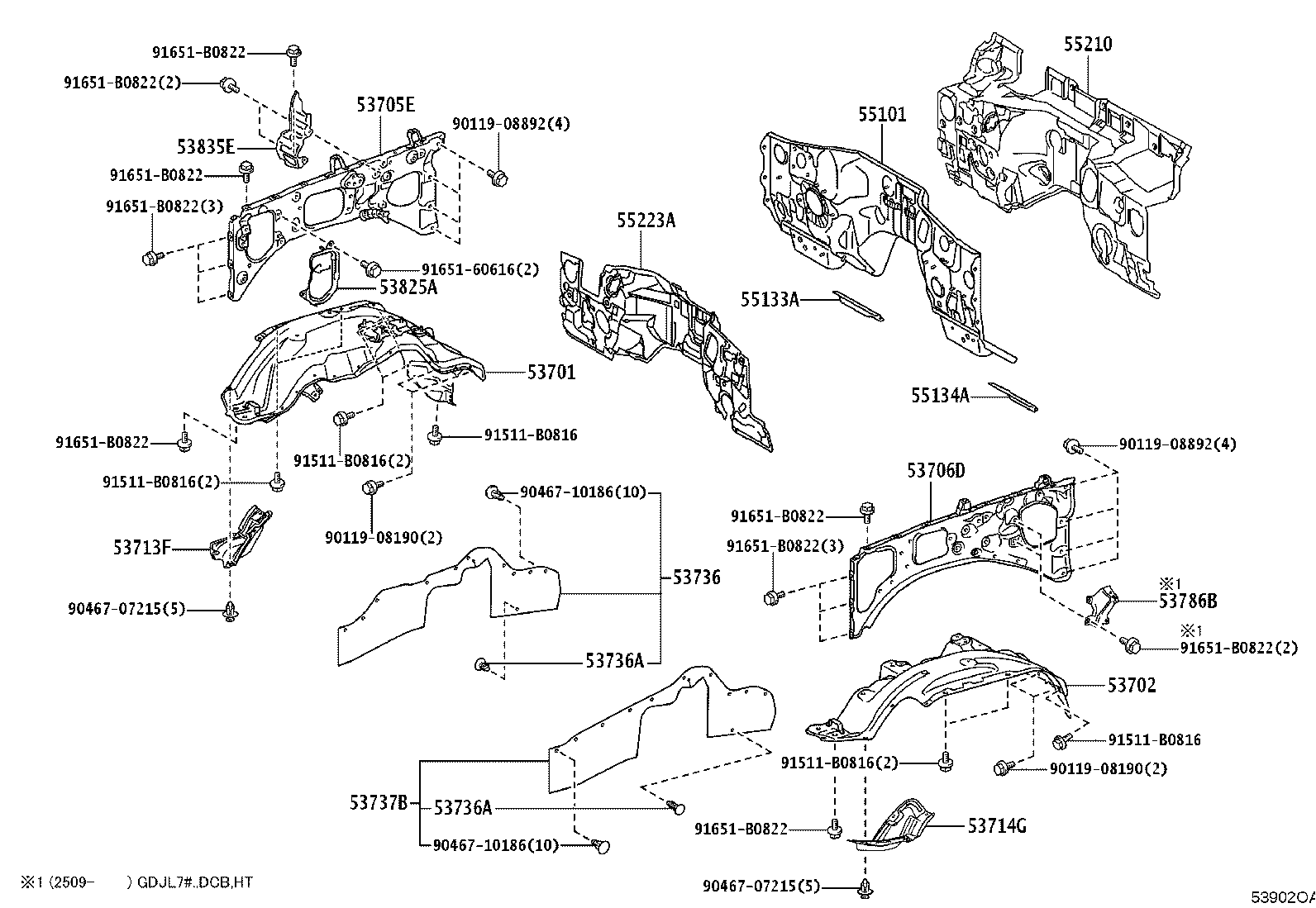

Figure 534580 534580 2007-01 → 2023-09 Figure 532454F 532454F 2007-01 → 2023-09 Figure 53902H 53902H 2023-09 → — Figure 53902I 53902I 2023-09 → — Figure 53902J 53902J 2023-09 → — Figure 53902K 53902K 2023-09 → — Figure 53902L 53902L 2023-09 → — Figure 53902M 53902M 2023-09 → — Figure 53902NC 53902NC 2023-09 → — Figure 53902OA 53902OA 2023-09 → — Figure 53902P 53902P 2023-09 → — Figure 53902Q 53902Q 2023-09 → — Figure 53902R 53902R 2023-09 → — Figure 53902S 53902S 2023-09 → — Figure 53902T 53902T 2023-09 → — Figure 53902U 53902U 2023-09 → — Figure 53902V 53902V 2023-09 → —

Part groups

PNCDescription
16561C Seal, Radiator TO Support, NO.1
16562M Seal, Radiator TO Support, NO.2
16592A Guide, Radiator Air, NO.3
16593B Guide, Radiator Air, NO.1 RH
16594A Guide, Radiator Air, NO.2
16595B Guide, Radiator Air, NO.1 LH
53021A Moulding Sub-assy, Radiator Grille
53022B Moulding Sub-assy, Radiator Grille, NO.2
53028 Support Sub-assy, Radiator, Lower
53035B Bracket Sub-assy, Headlamp Mounting, RH
53036B Bracket Sub-assy, Headlamp Mounting, LH
53201 Support Sub-assy, Radiator
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53217A Brace, Hood Lock Support
53233B Bracket, Headlamp, Inner RH
53257B Bracket, Radiator Support TO Front Fender
53258B Bracket, Radiator Support TO Front Fender, LH
53291 Seal, Radiator Support TO Frame, RH
53292 Seal, Radiator Support TO Frame, LH
53292A Seal, Radiator Support, Upper
53292C Clip, Radiator Support TO Frame
53292J Clip, Radiator Support Seal
53293C Deflector, Radiator Side, RH
53294C Deflector, Radiator Side, LH
53301G Cushion, Hood Bumper
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53705E Member Sub-assy, Front Apron TO Cowl Side, RH
53706D Member Sub-assy, Front Apron TO Cowl Side, LH
53713F Plate, Fender Apron Splash, RH
53714G Plate, Fender Apron Splash, LH
53736 Seal, Front Fender Apron, RH
53736A Clip(FOR FRONT FENDER APRON SEAL)
53737B Seal, Front Fender Apron, LH
53825A Protector, Front Fender, Upper RH
53835E Brace, Front Fender TO Apron, RH
53881B Seal, Cooling Fan Air Duct, NO.1
53882F Seal, Front Fender
55101 Panel Sub-assy, Dash
55133A Reinforcement, Dash TO Floor, RH
55134A Reinforcement, Dash TO Floor, LH
55148F Bracket, Brake Tube
55210 Insulator Assy, Dash Panel
55210A Clip
55223A Insulator, Dash Panel, Outer
55225 Insulator, Dash Panel Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
