Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

92 part groups · 34 illustrations

Illustrations

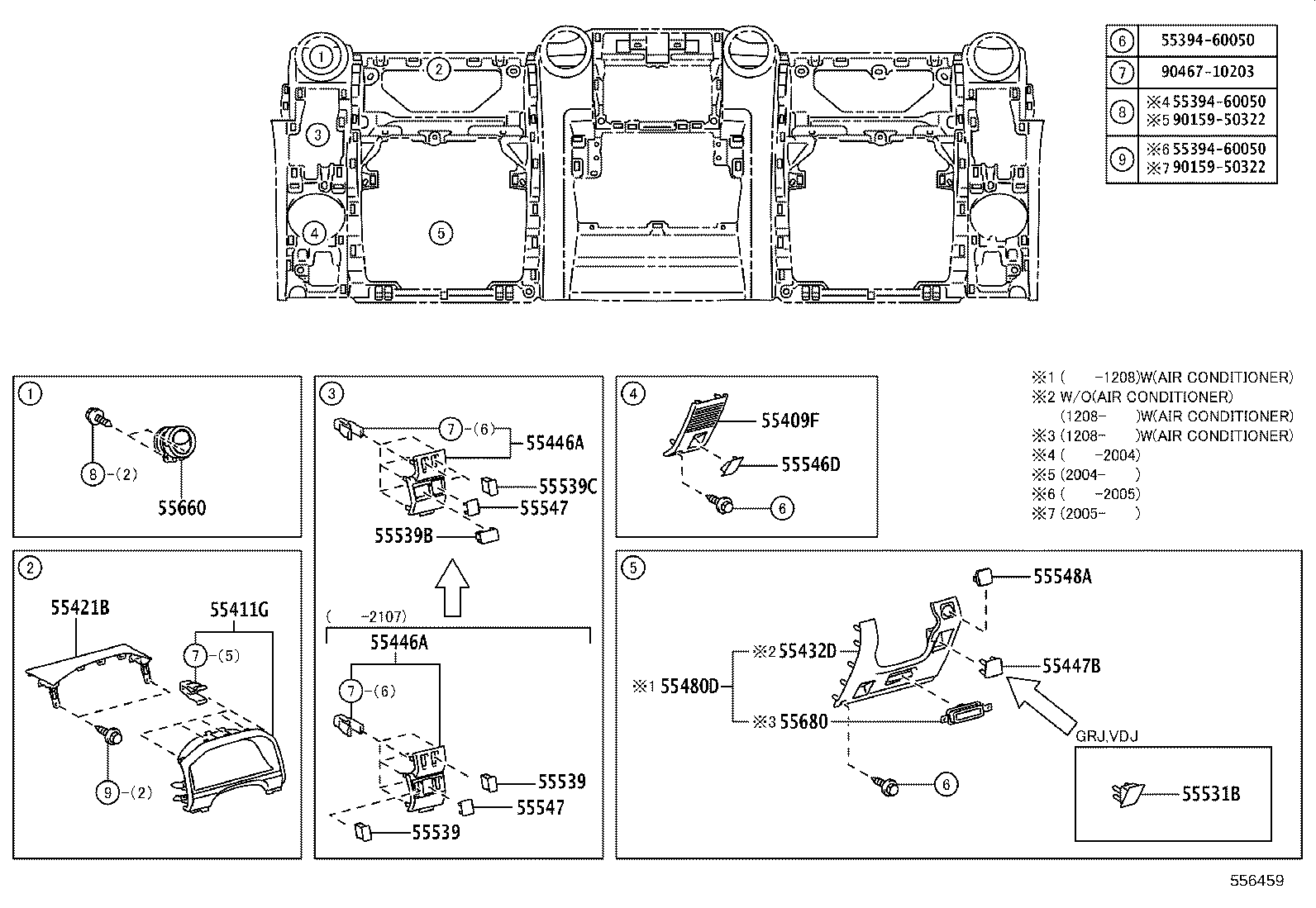

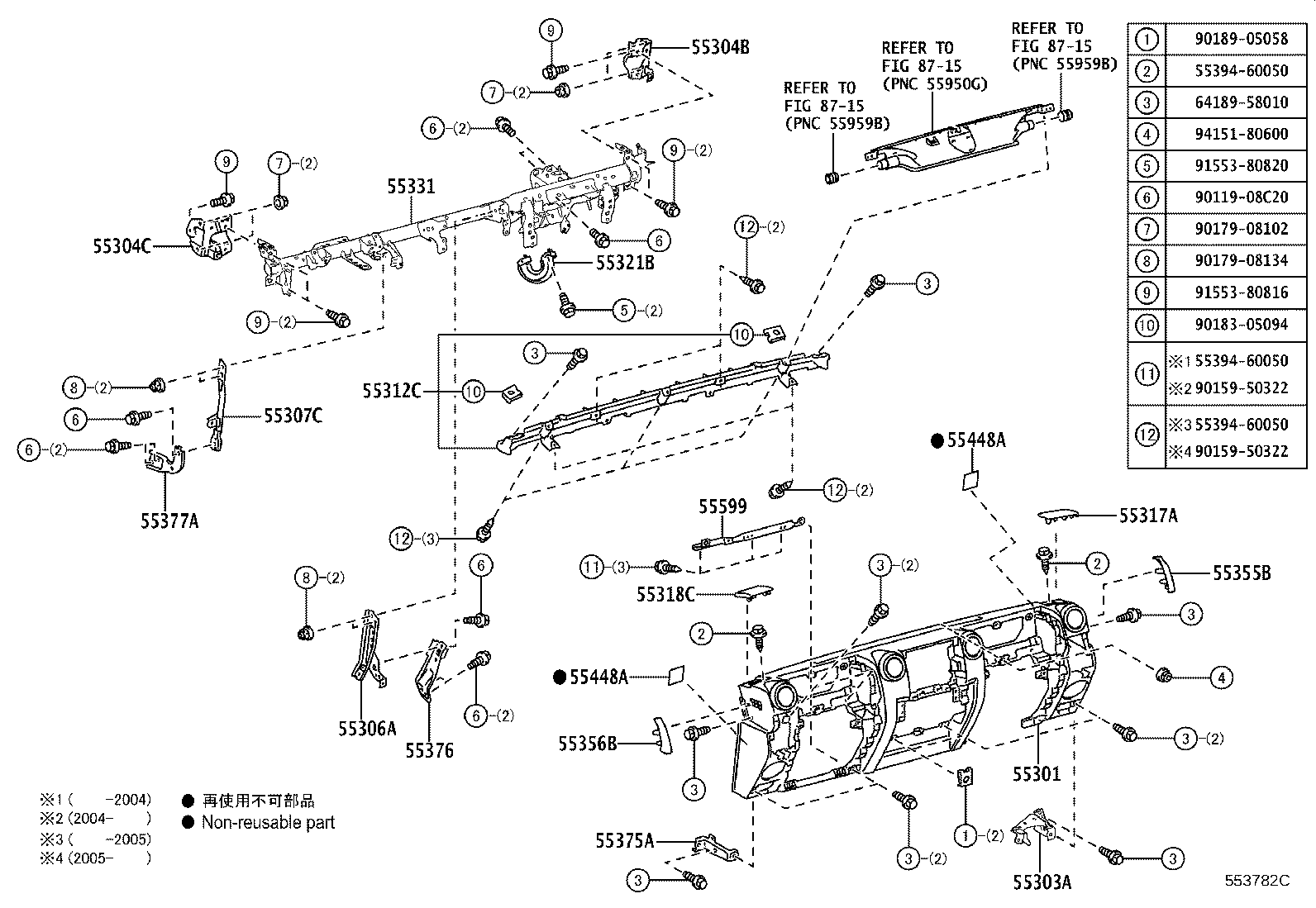

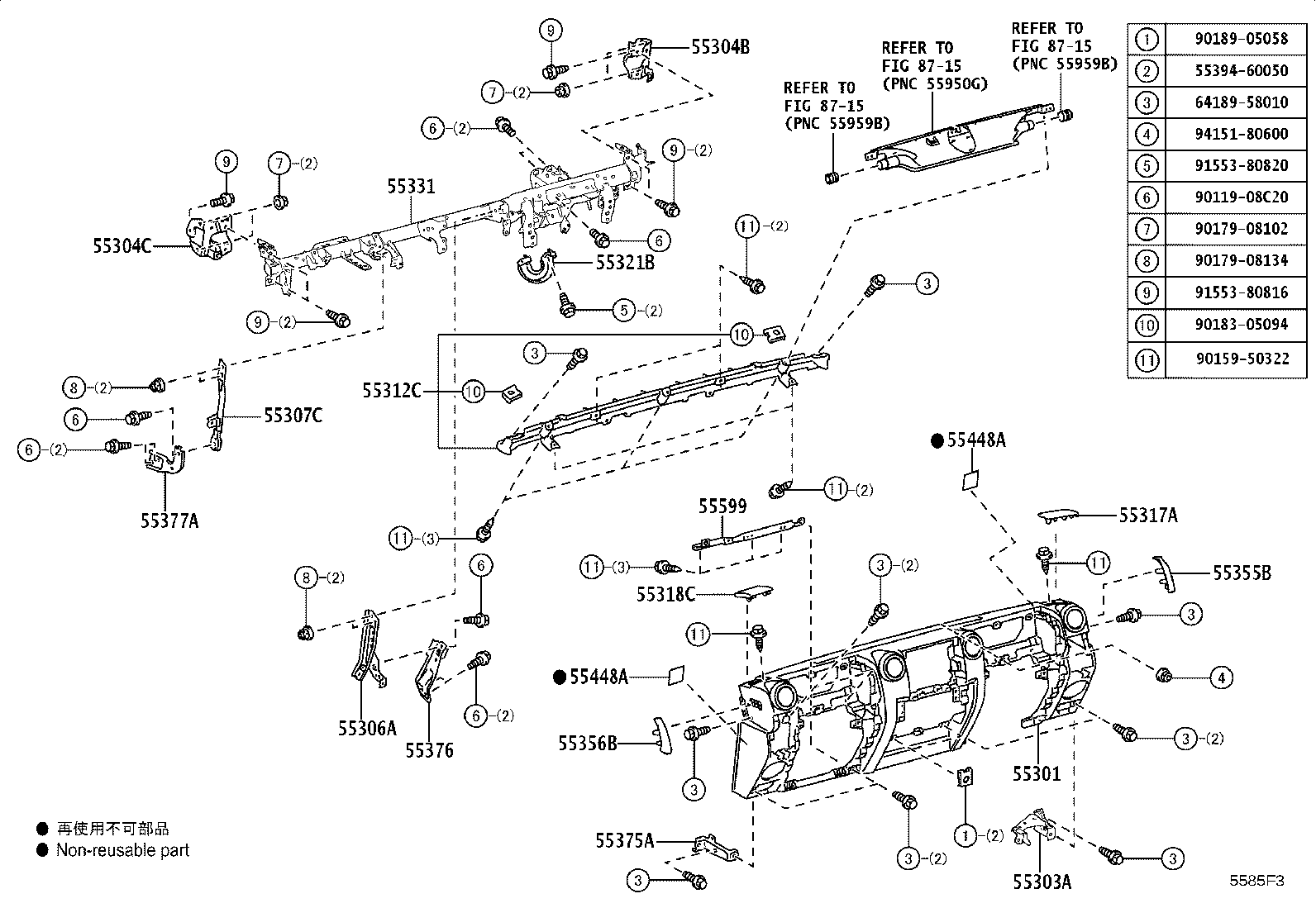

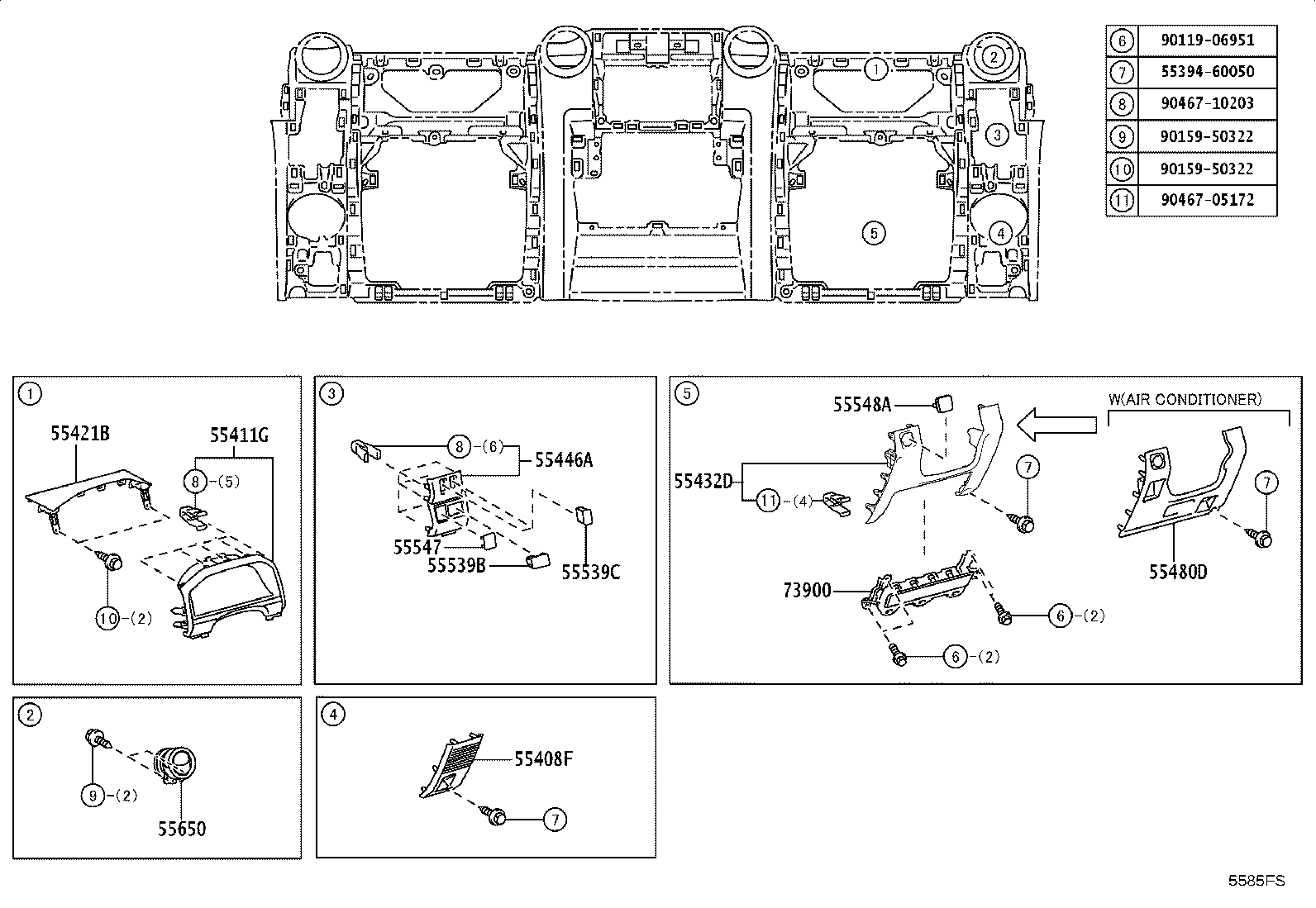

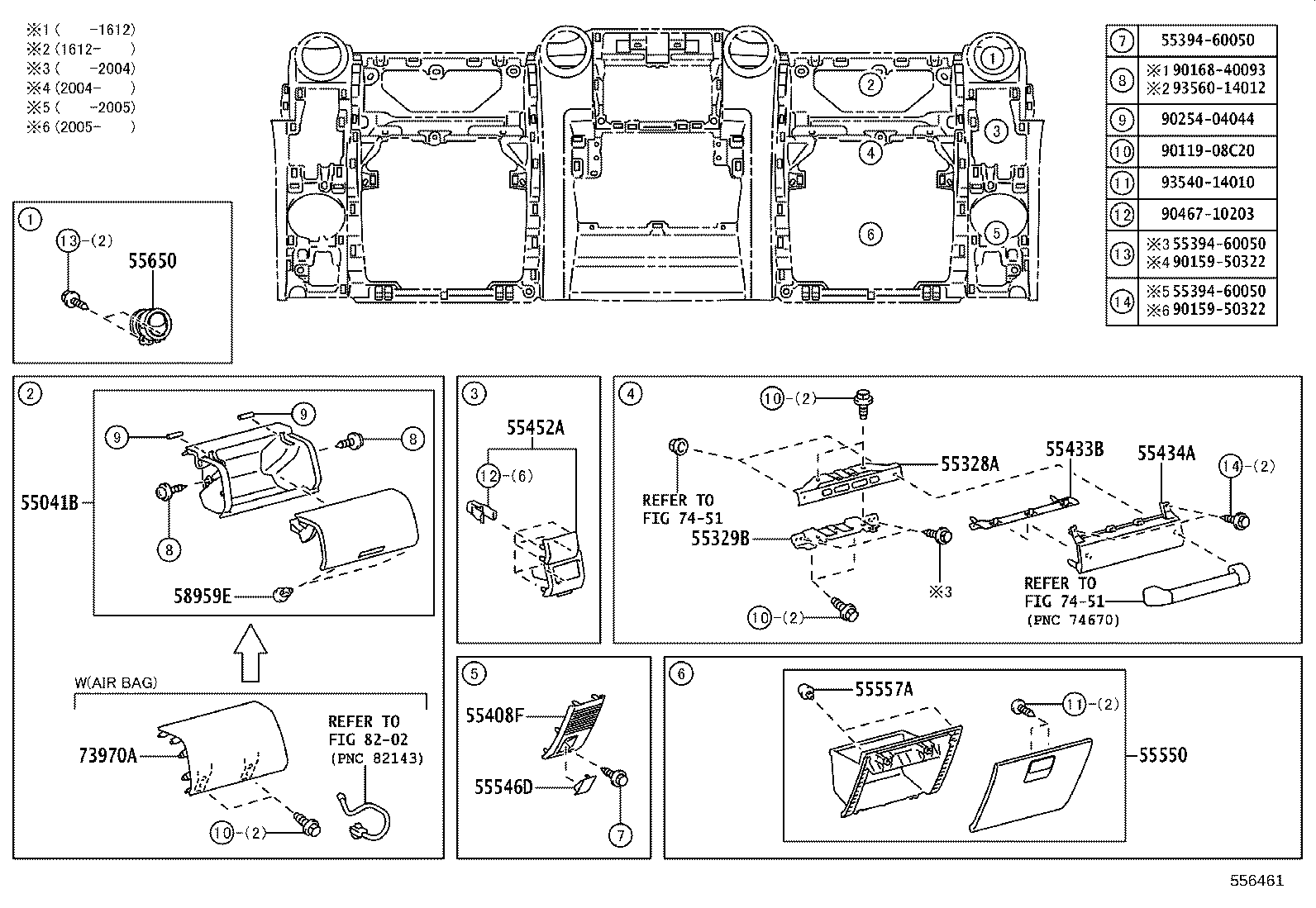

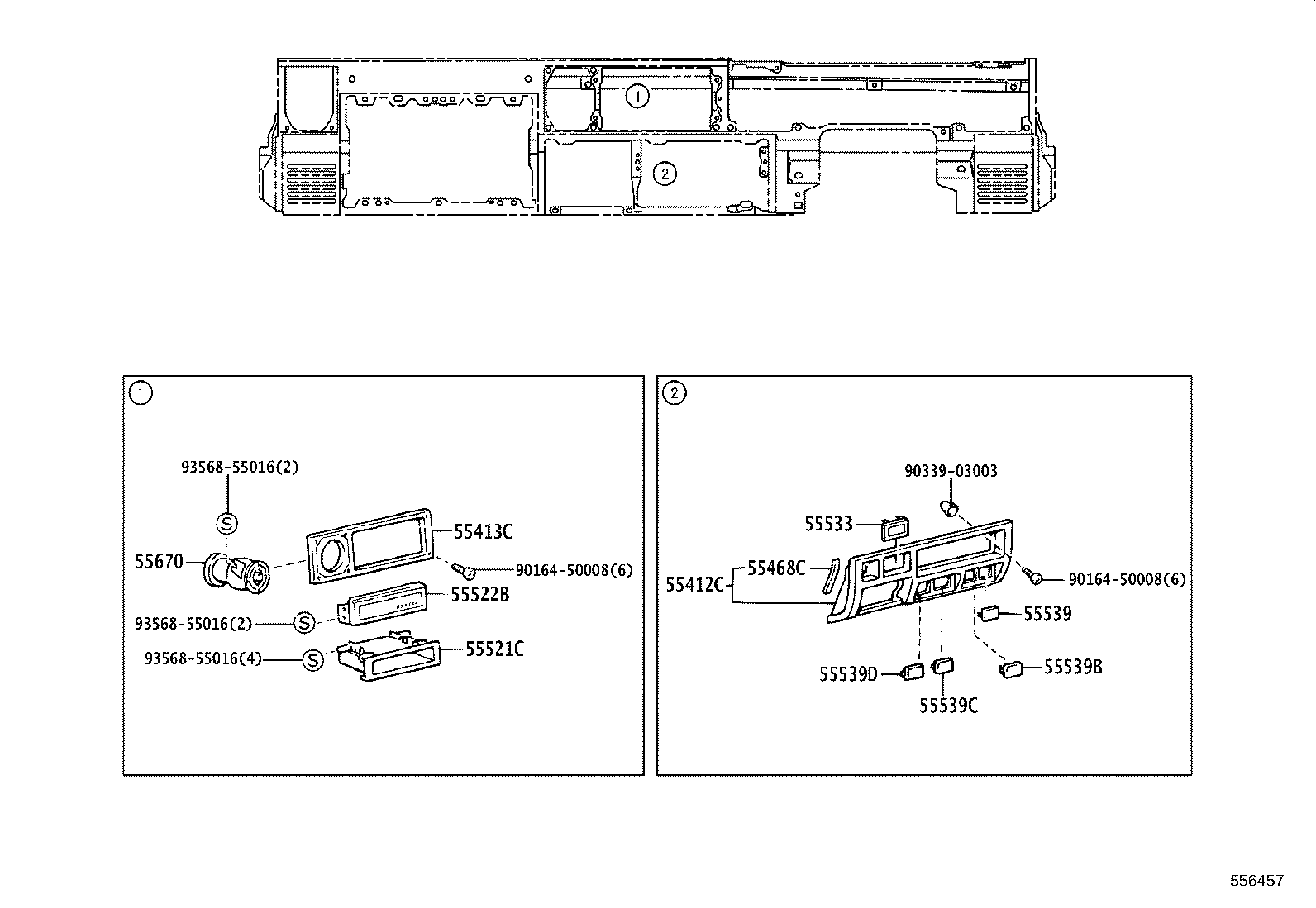

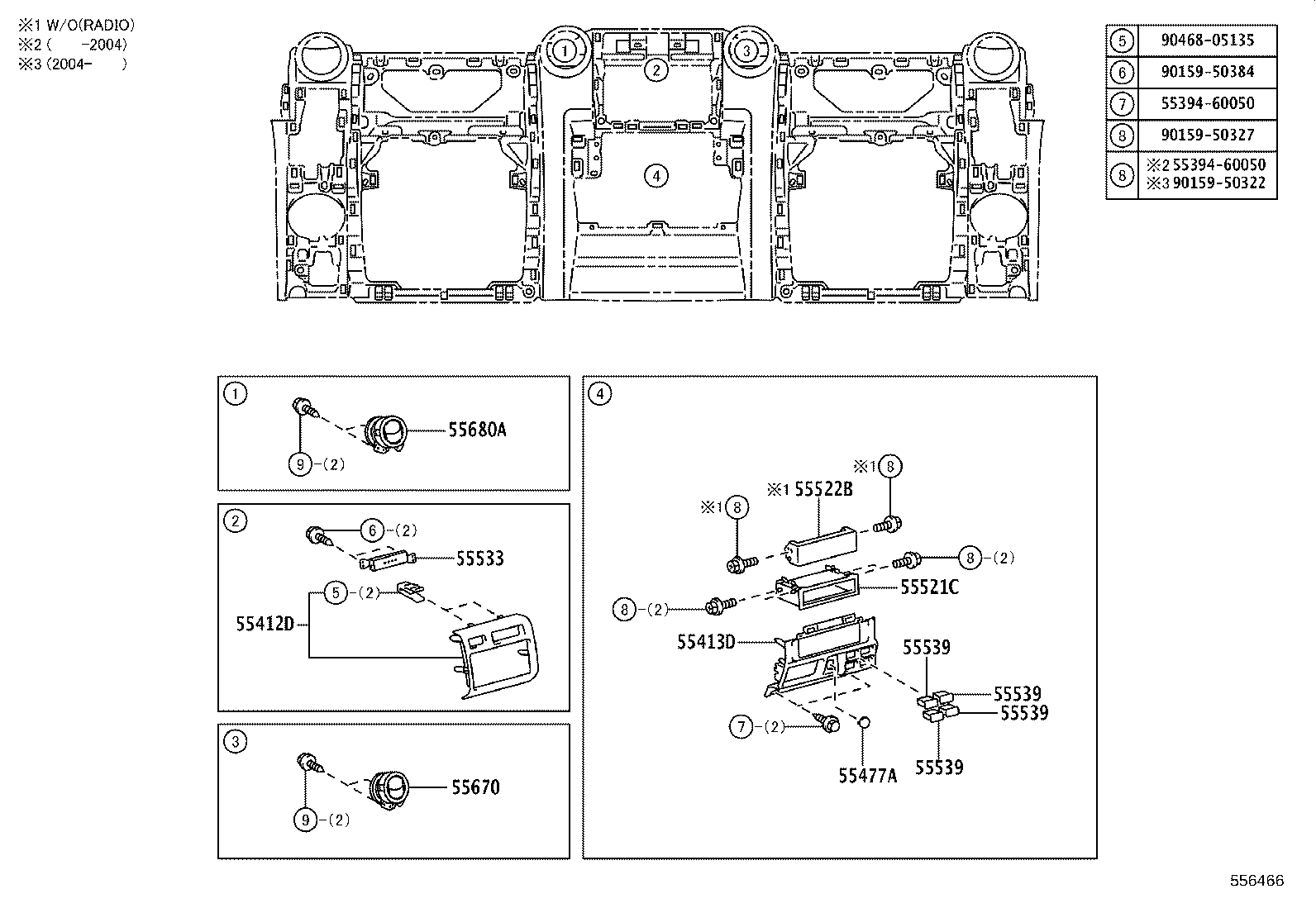

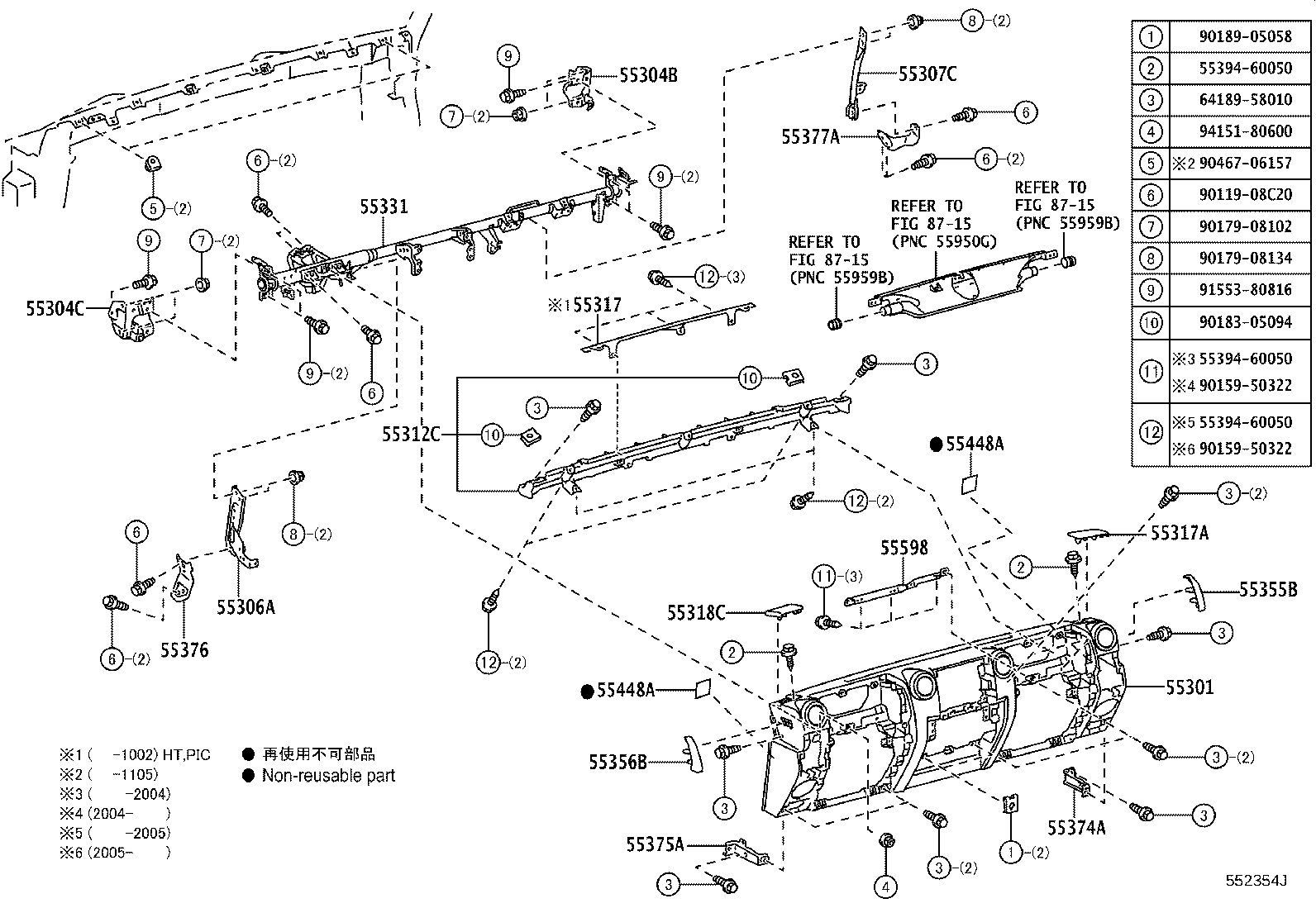

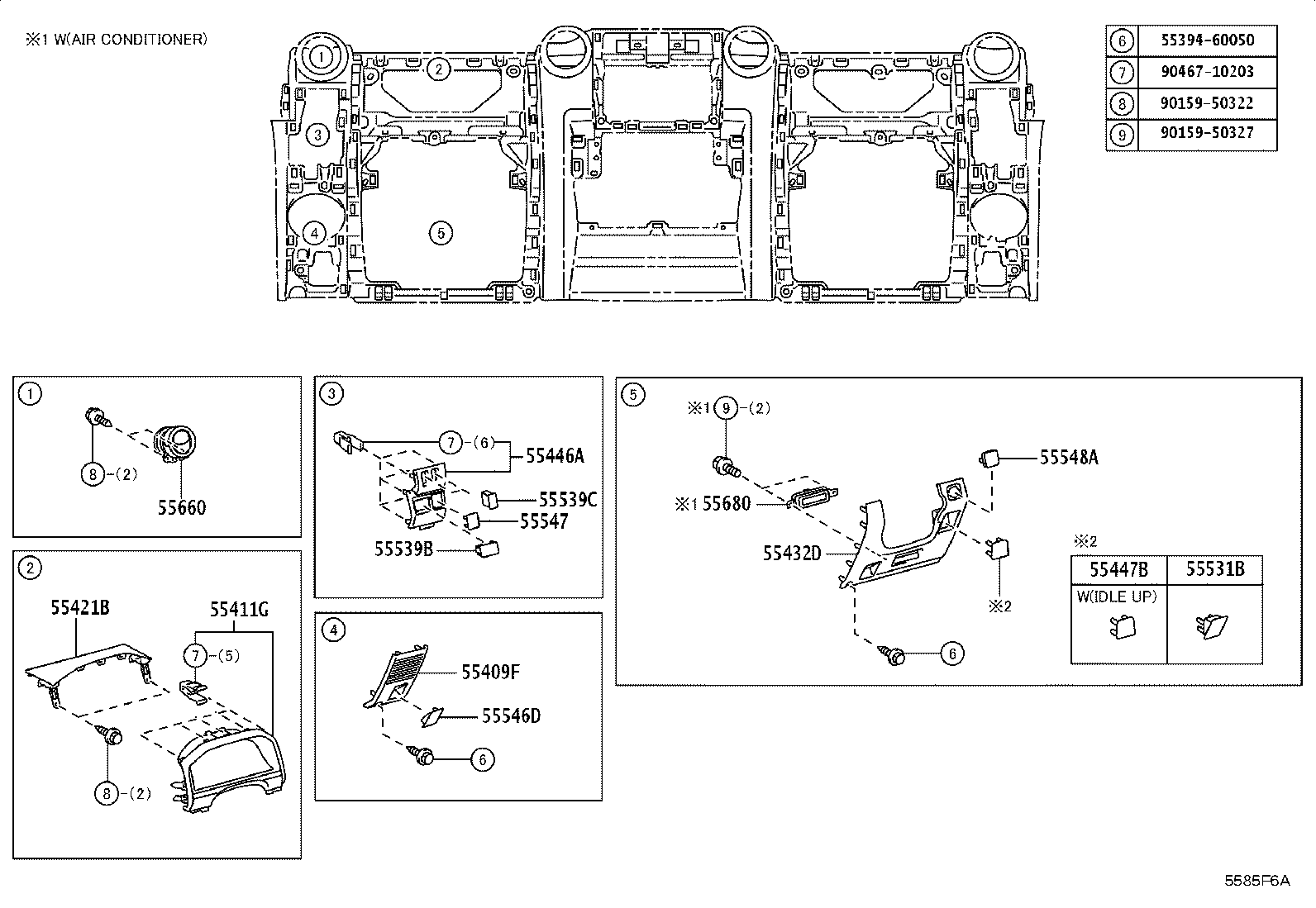

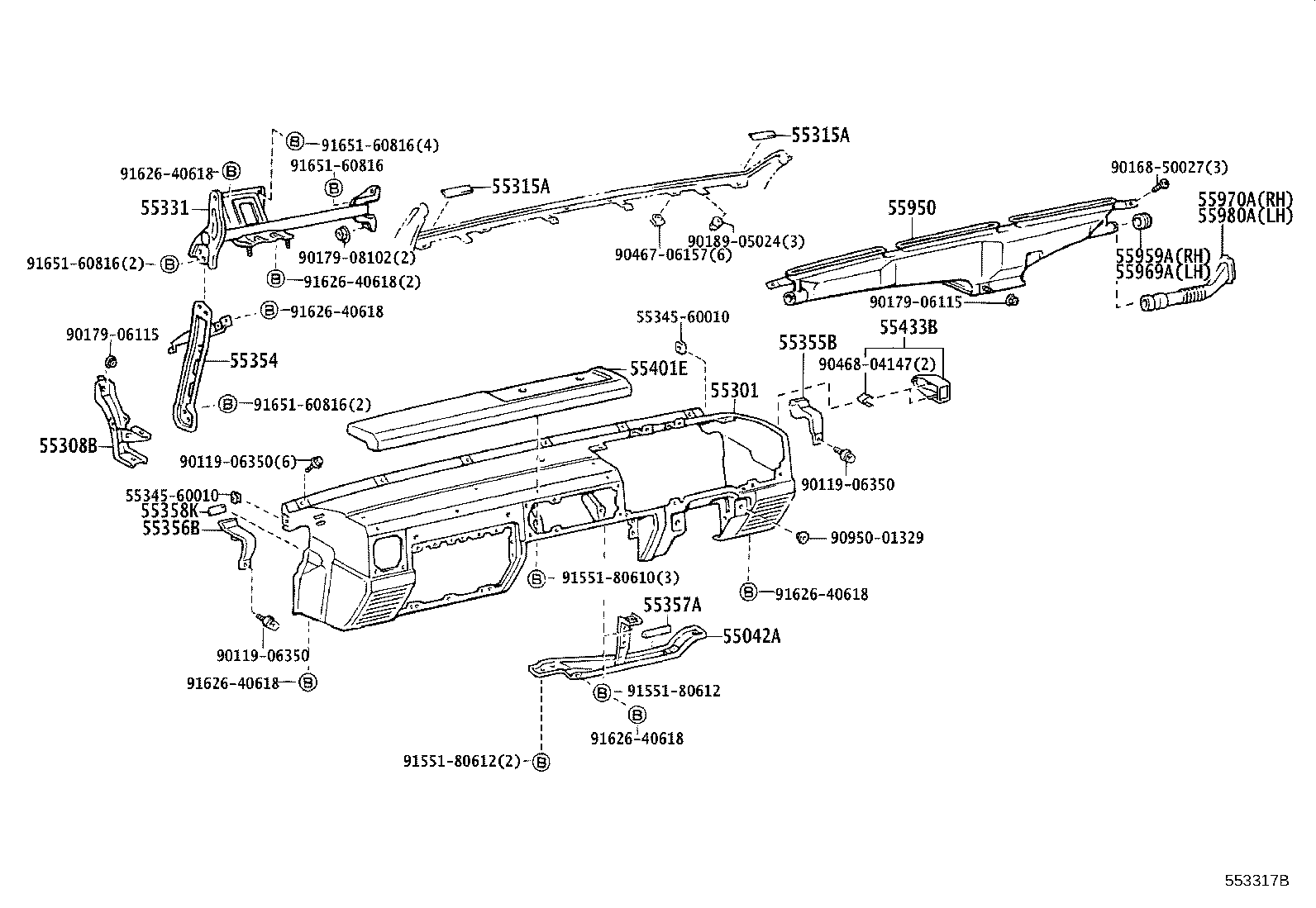

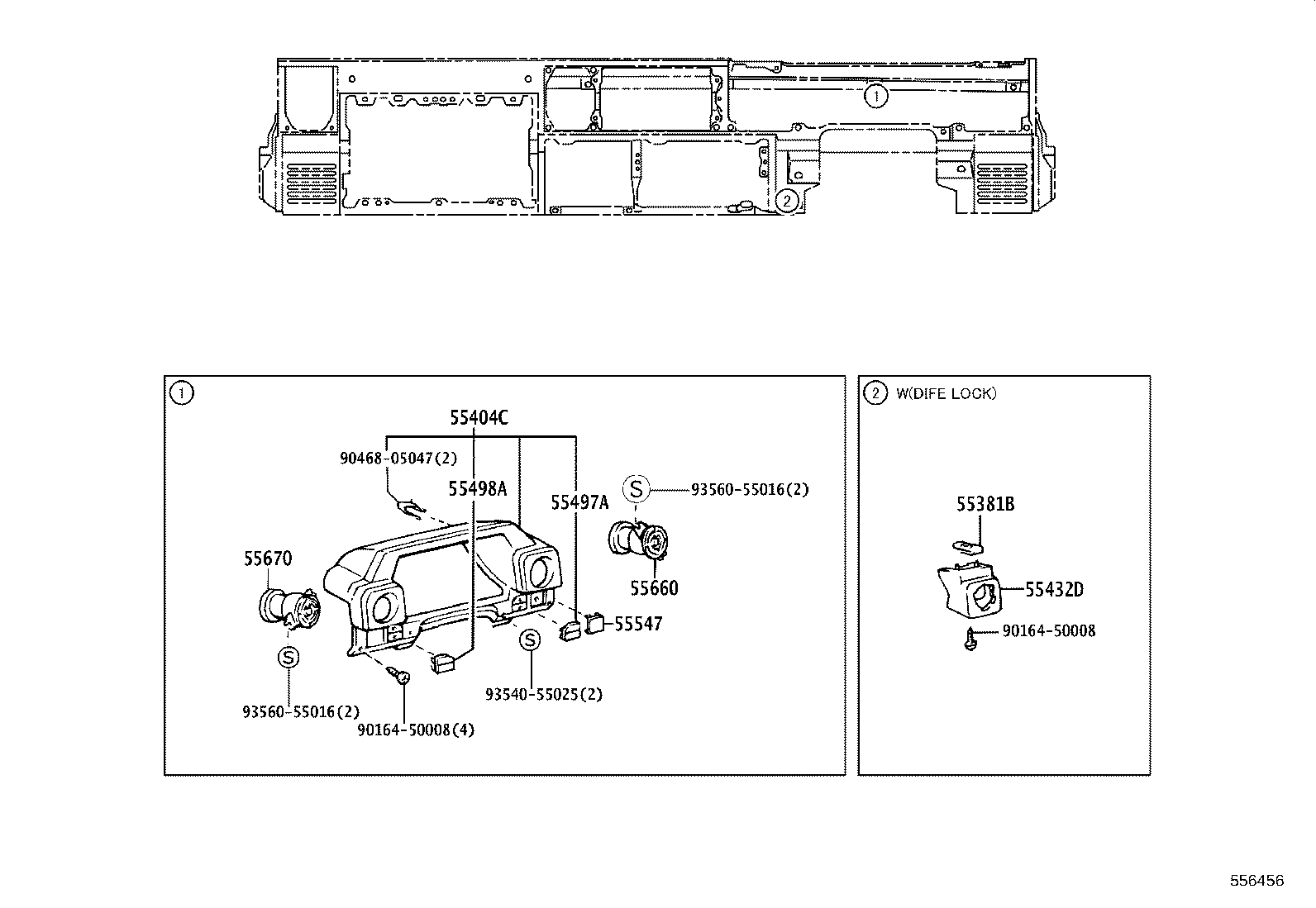

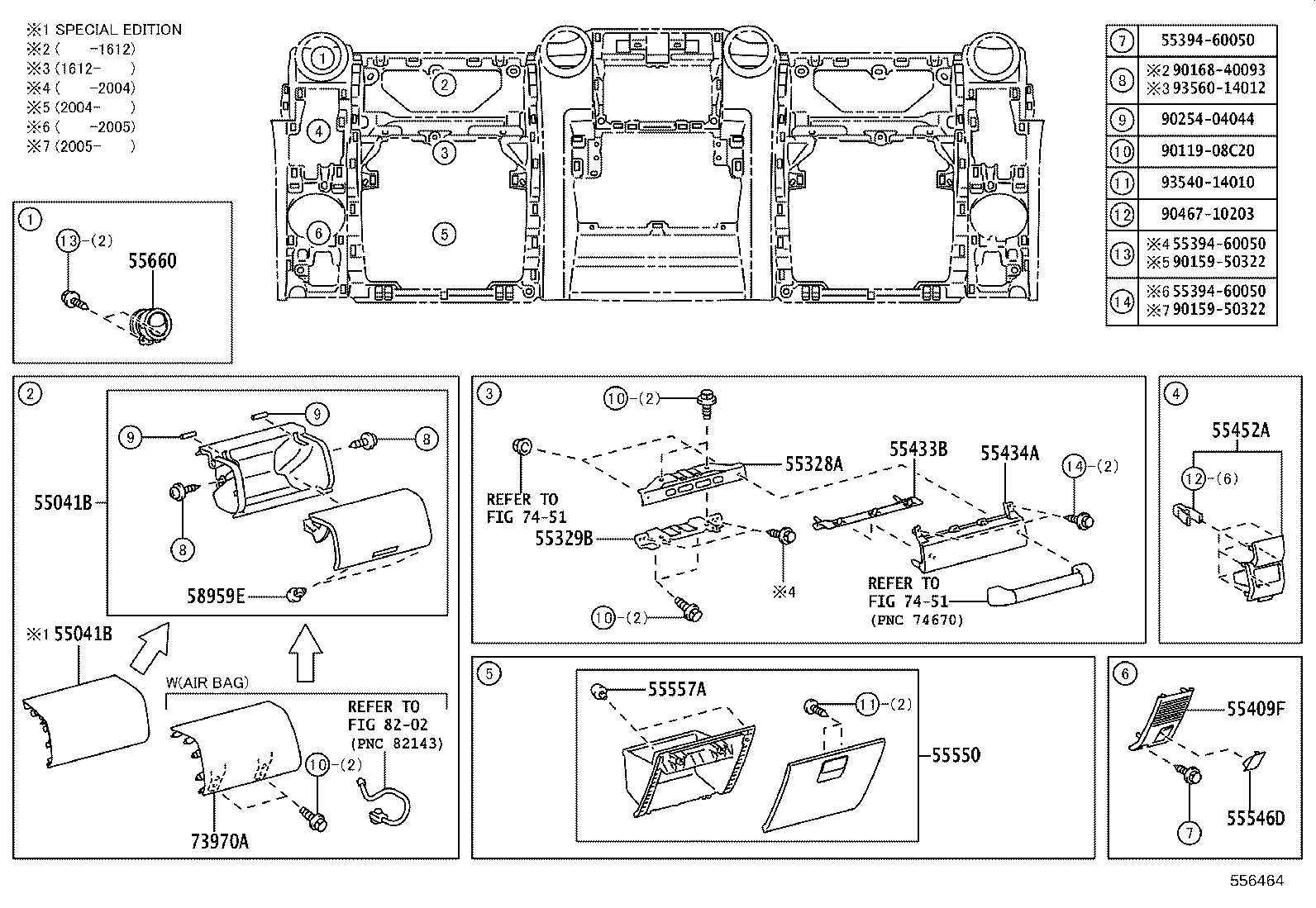

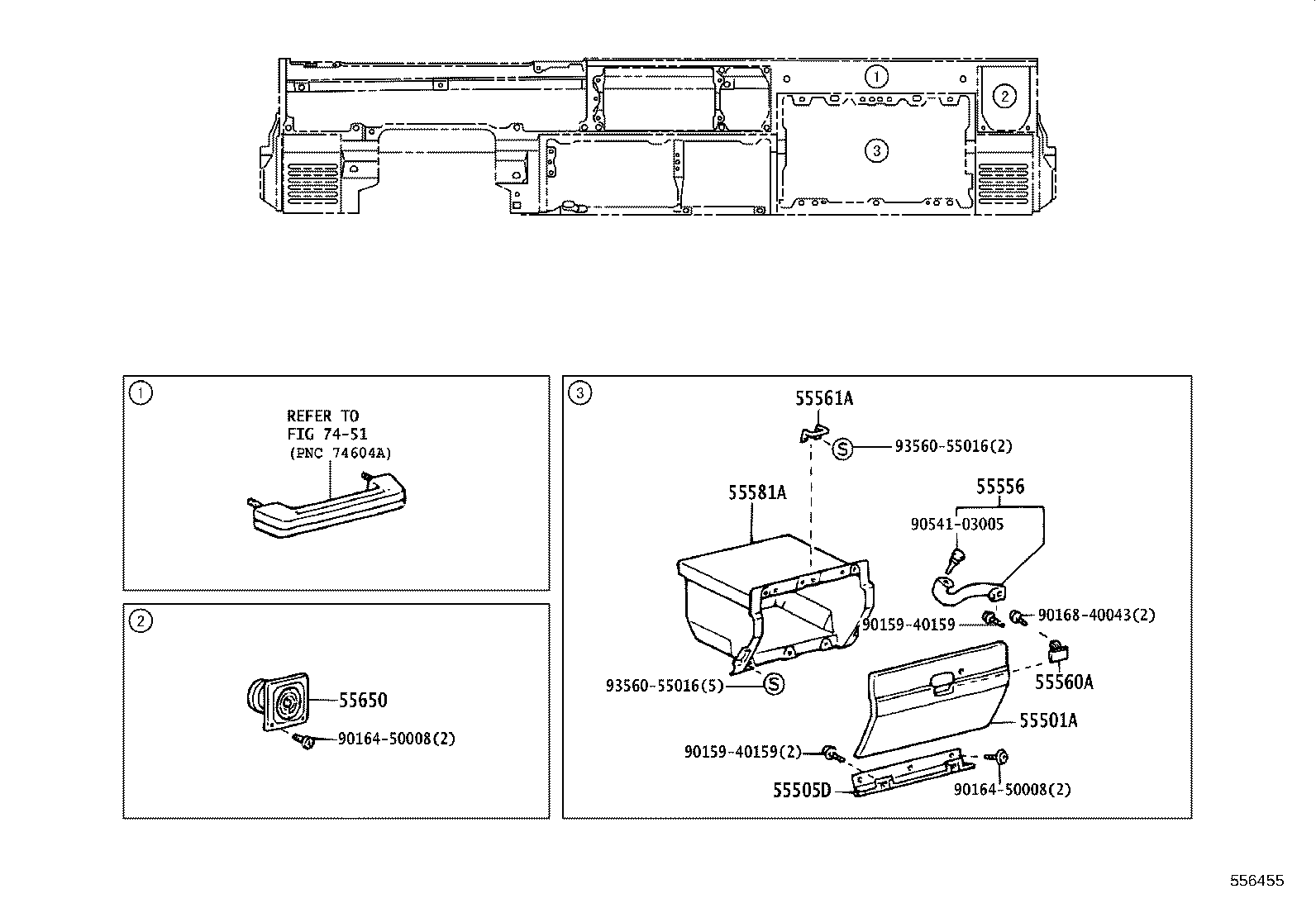

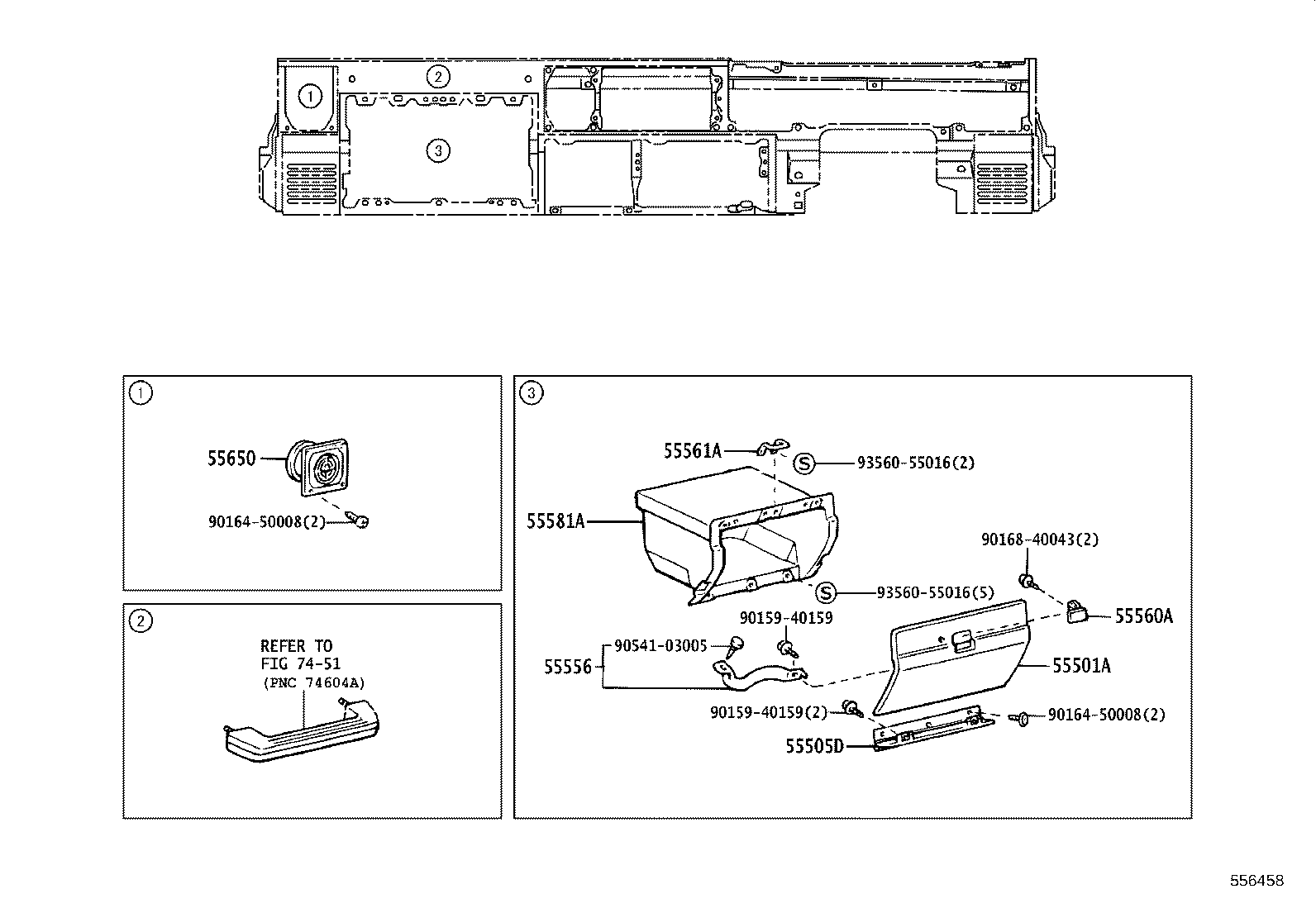

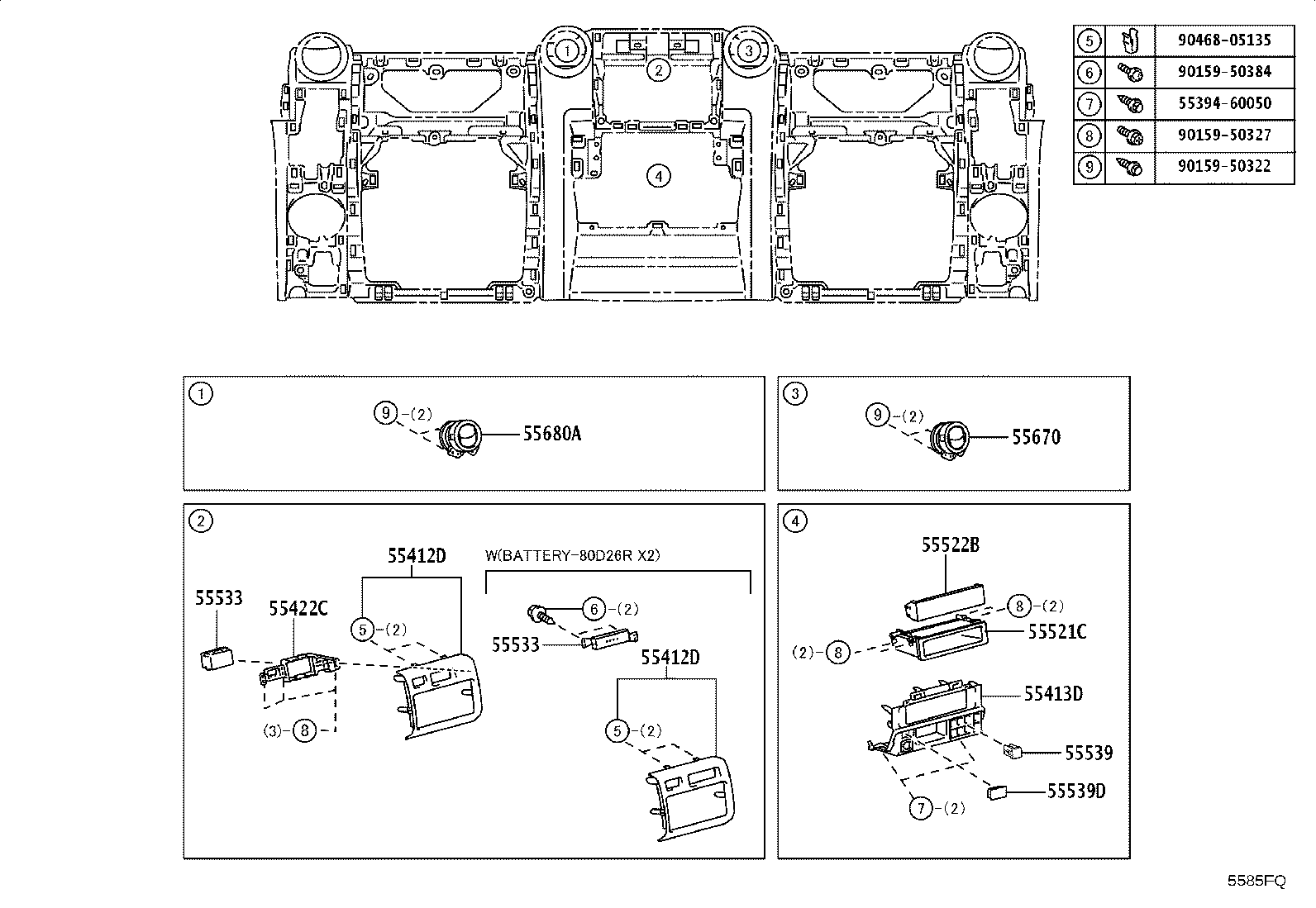

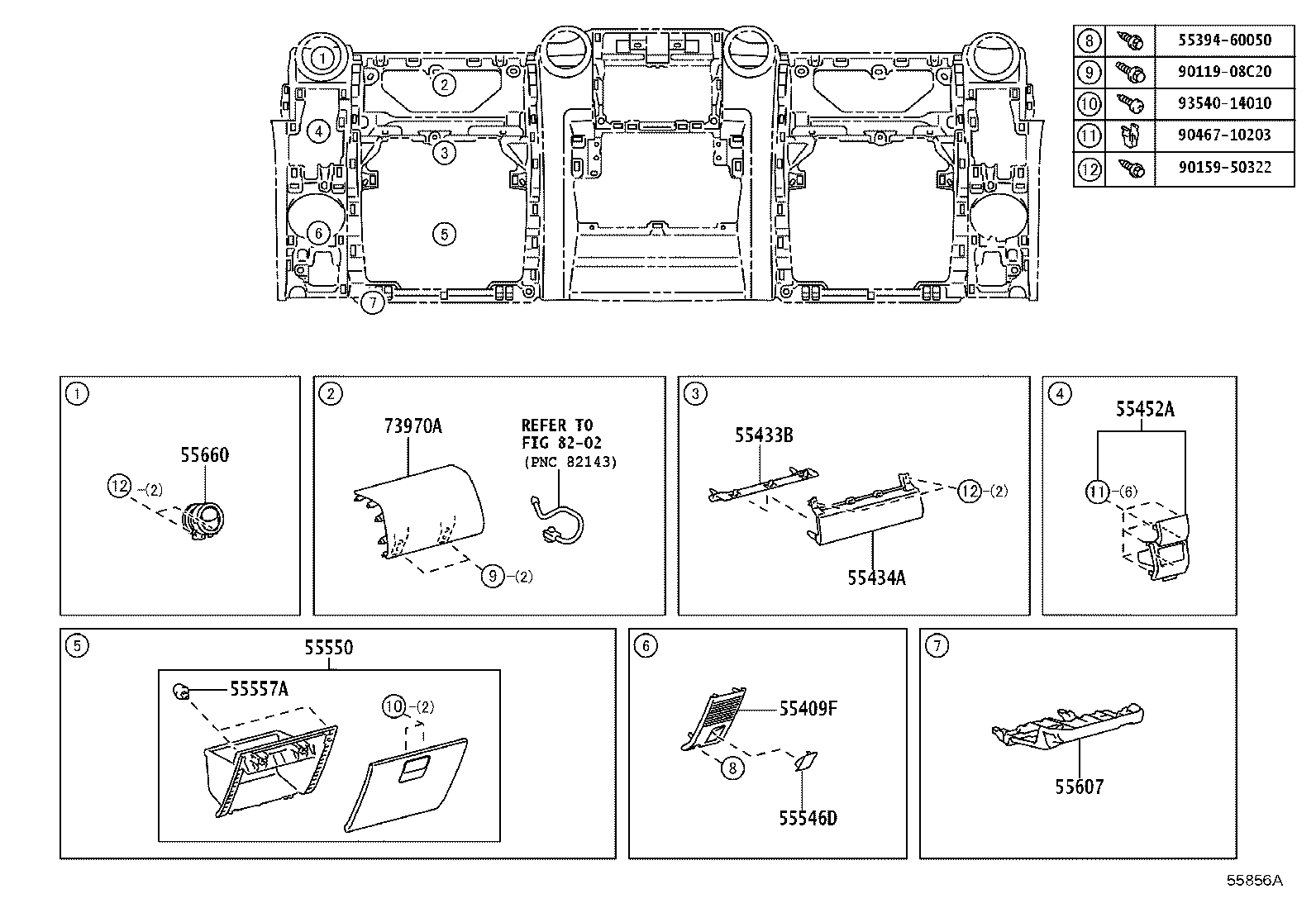

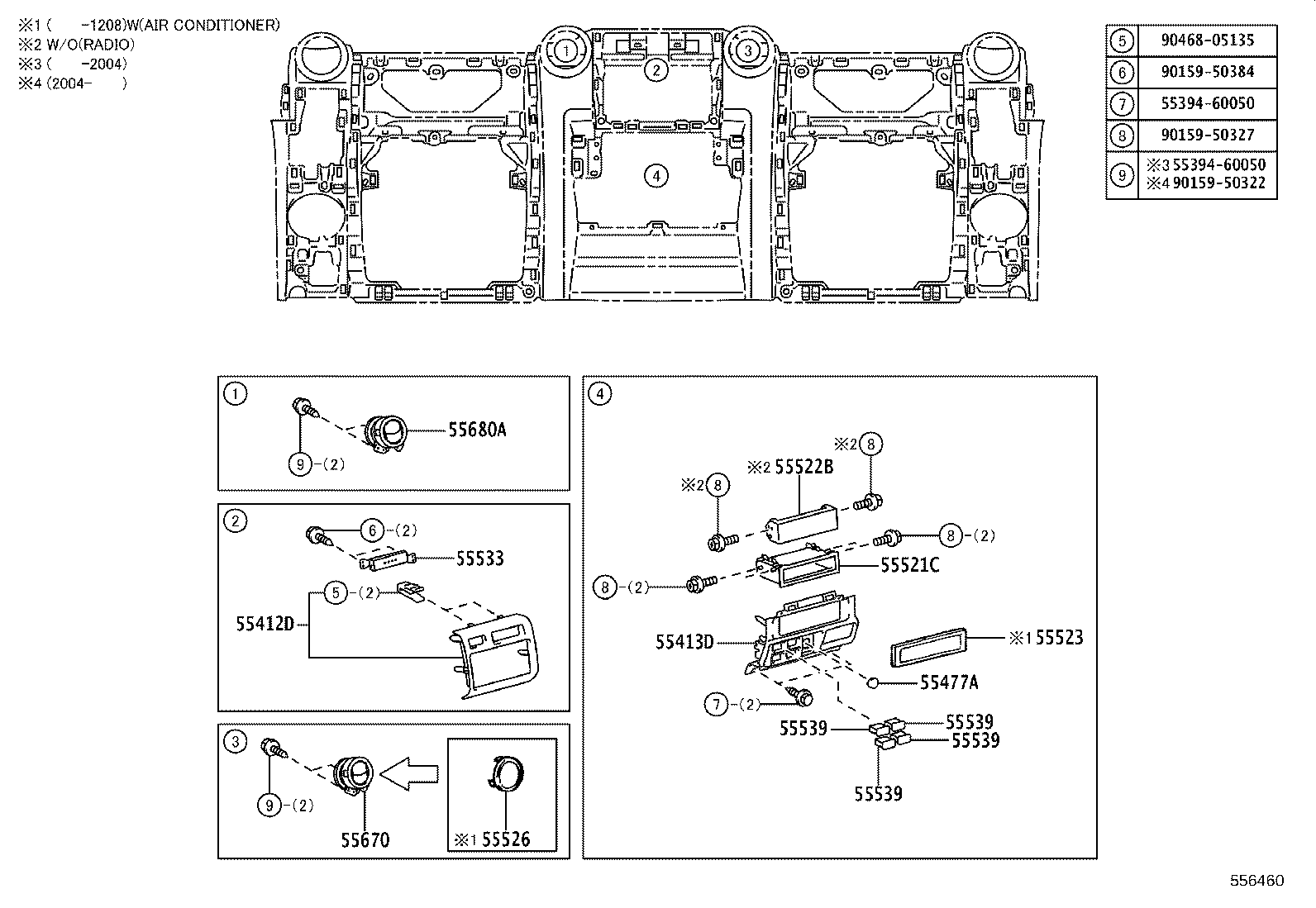

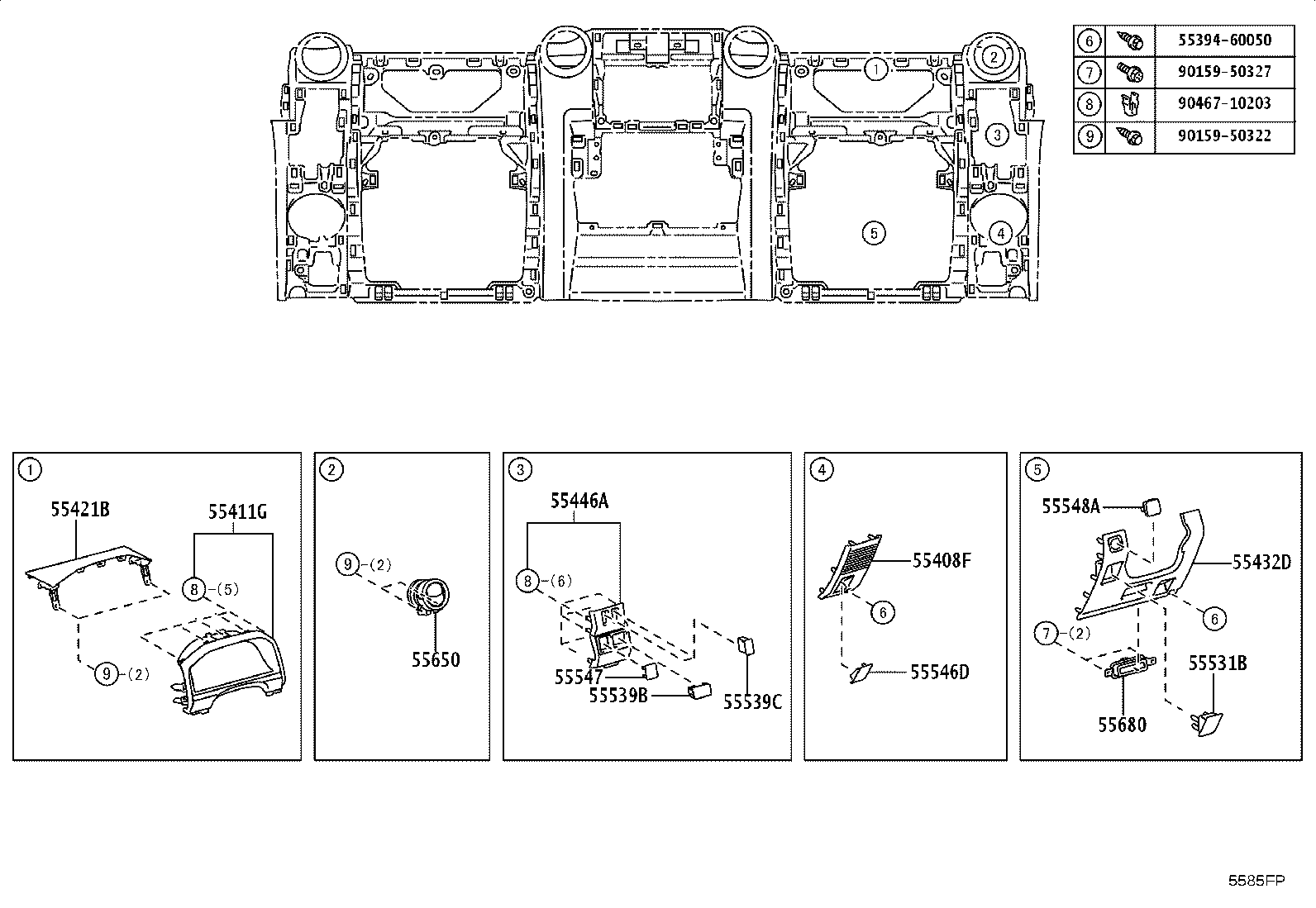

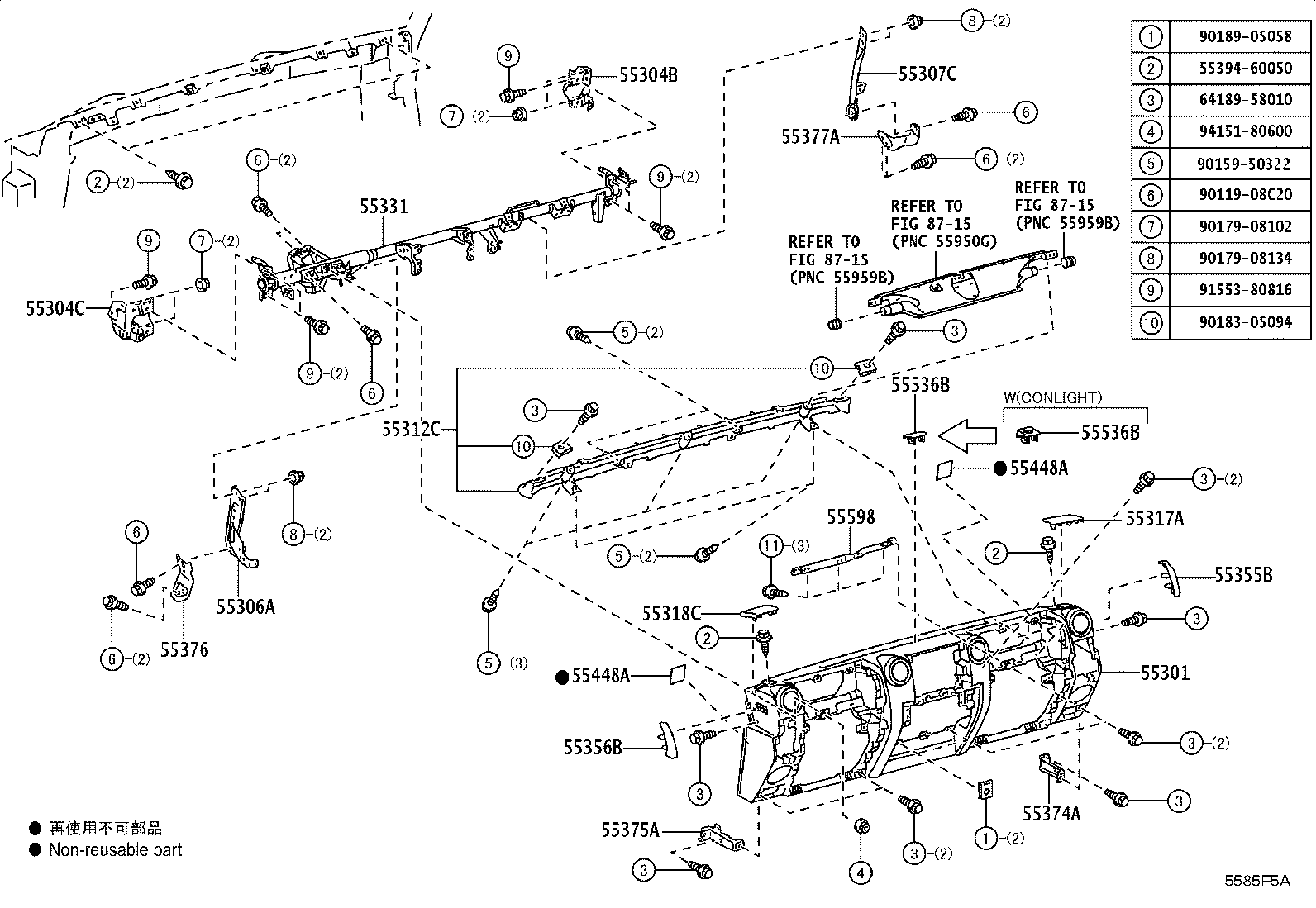

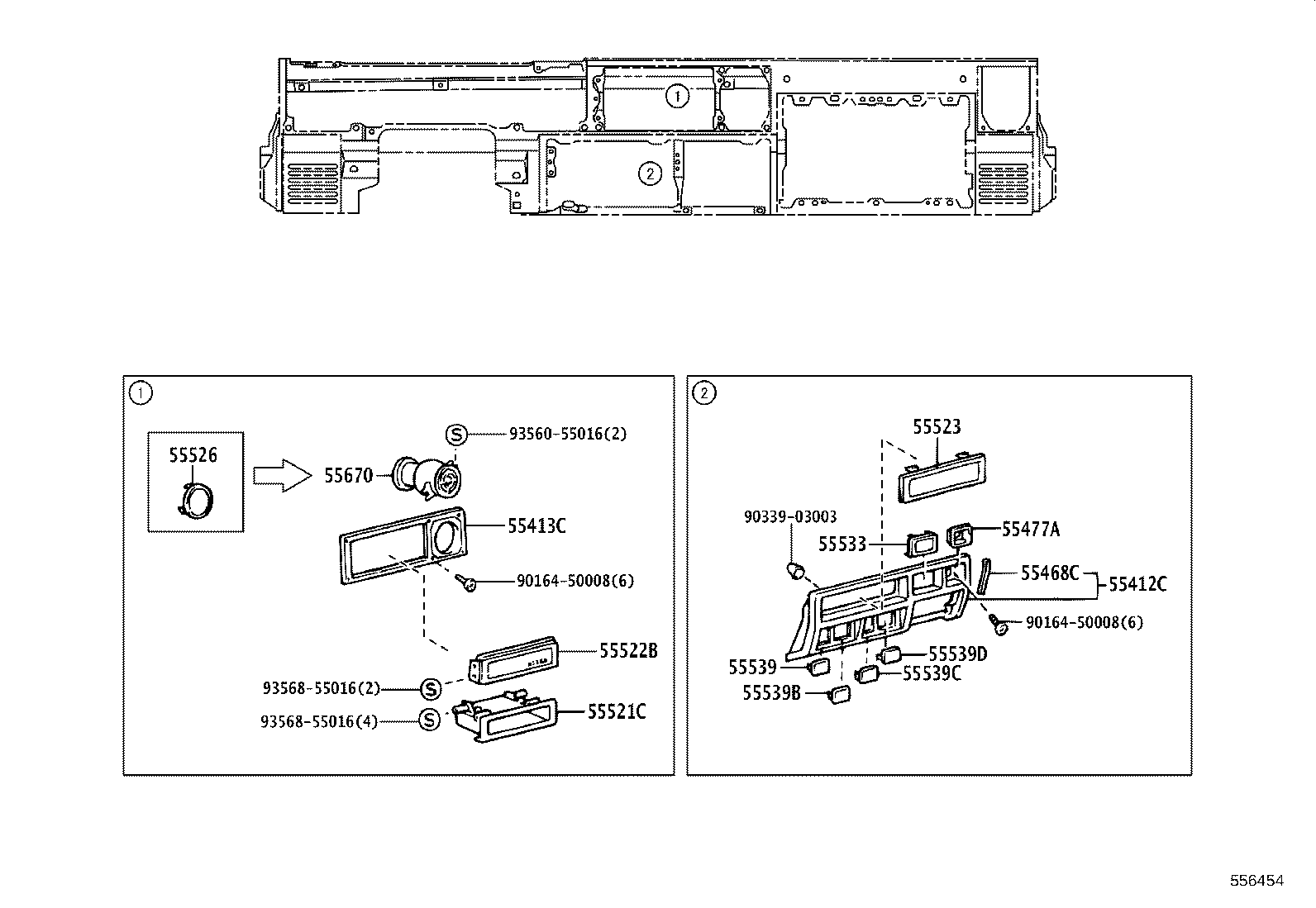

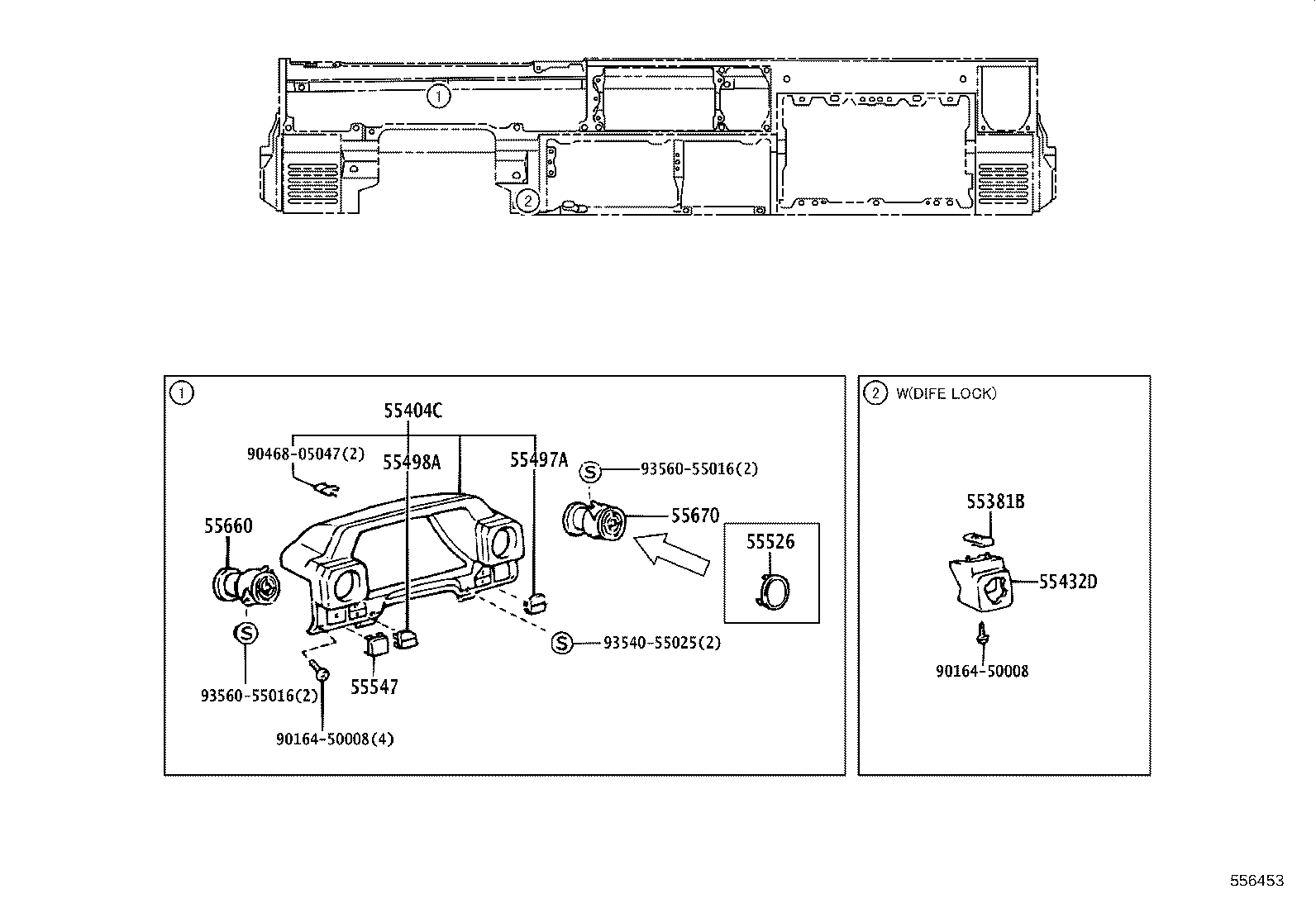

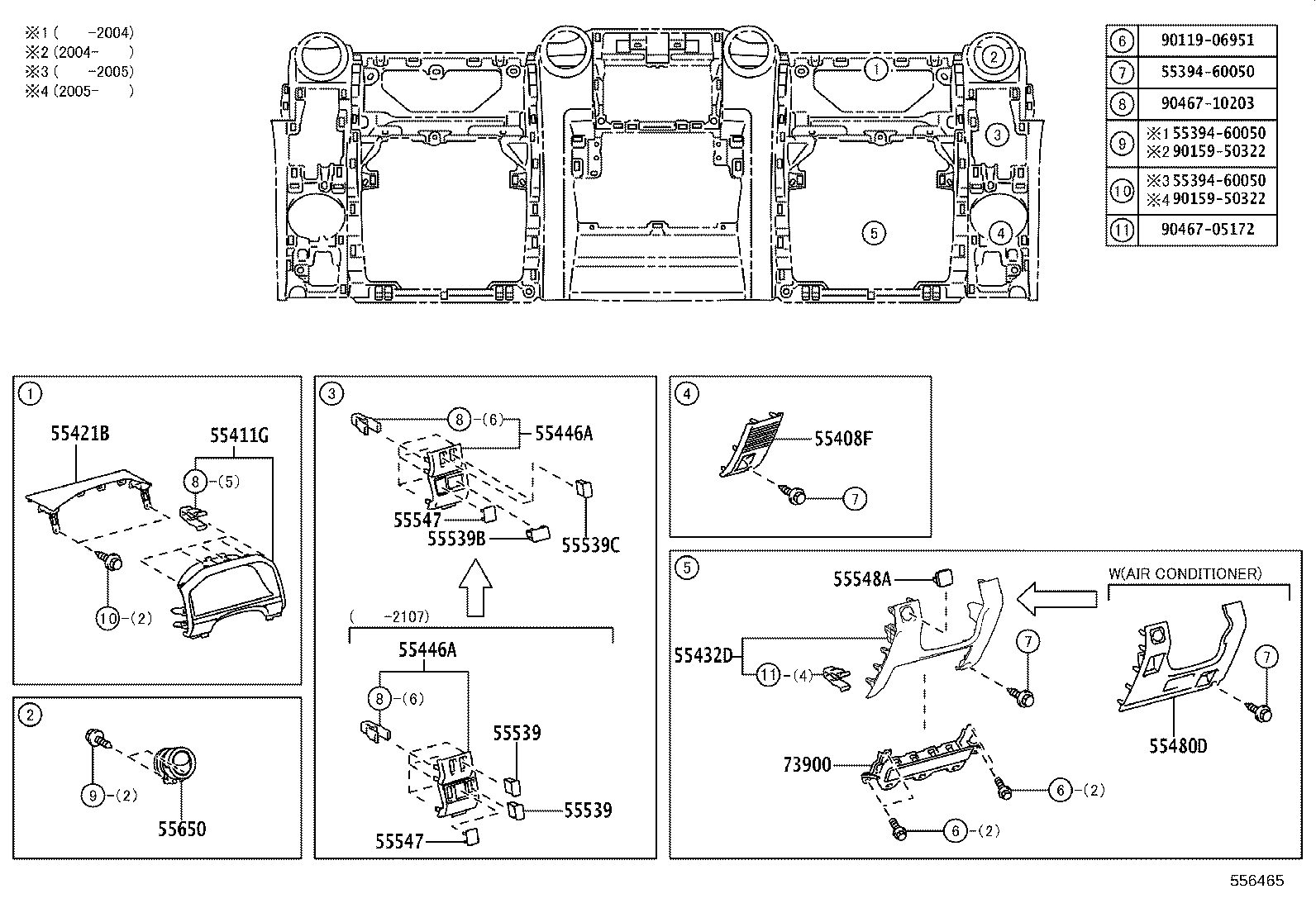

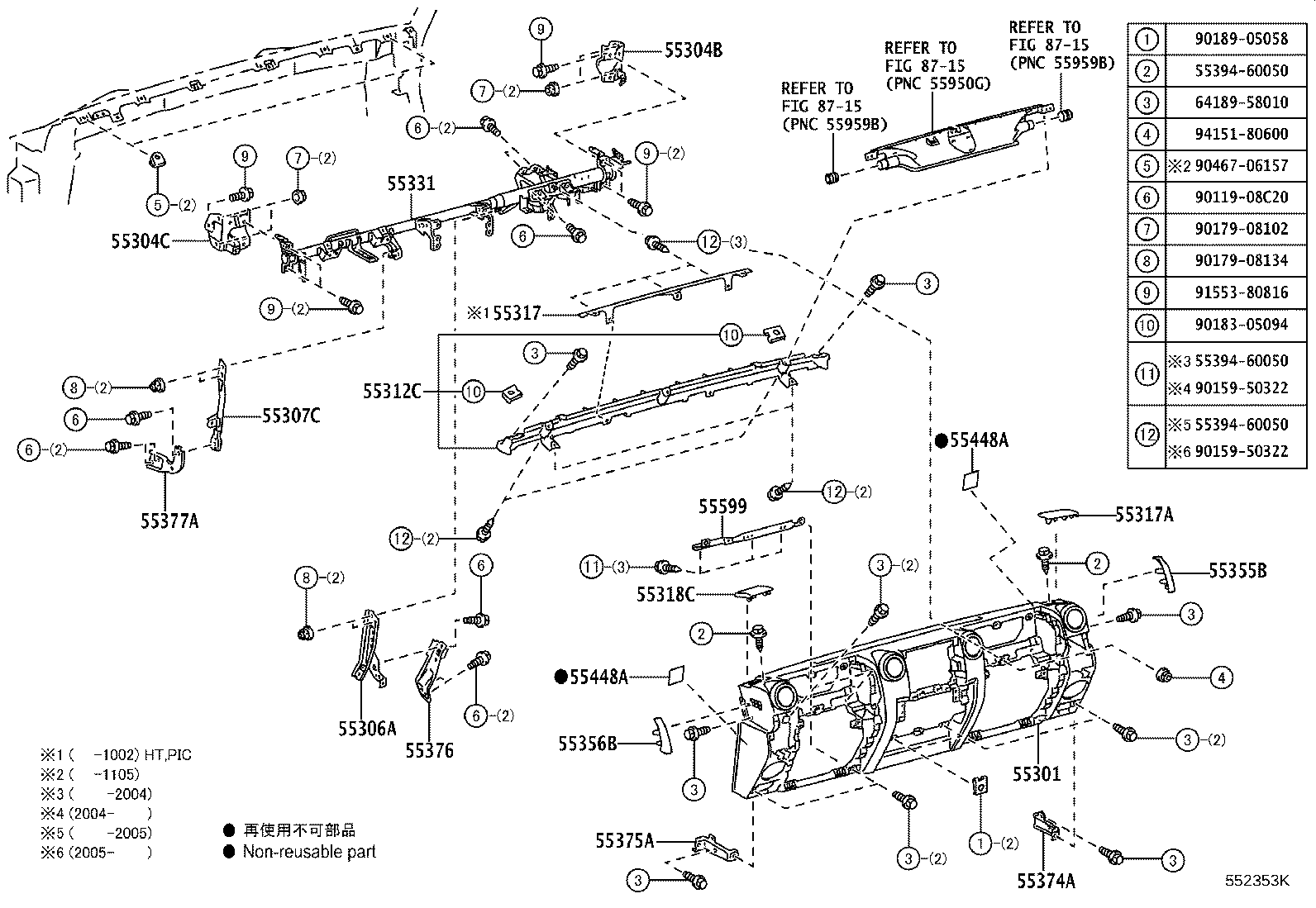

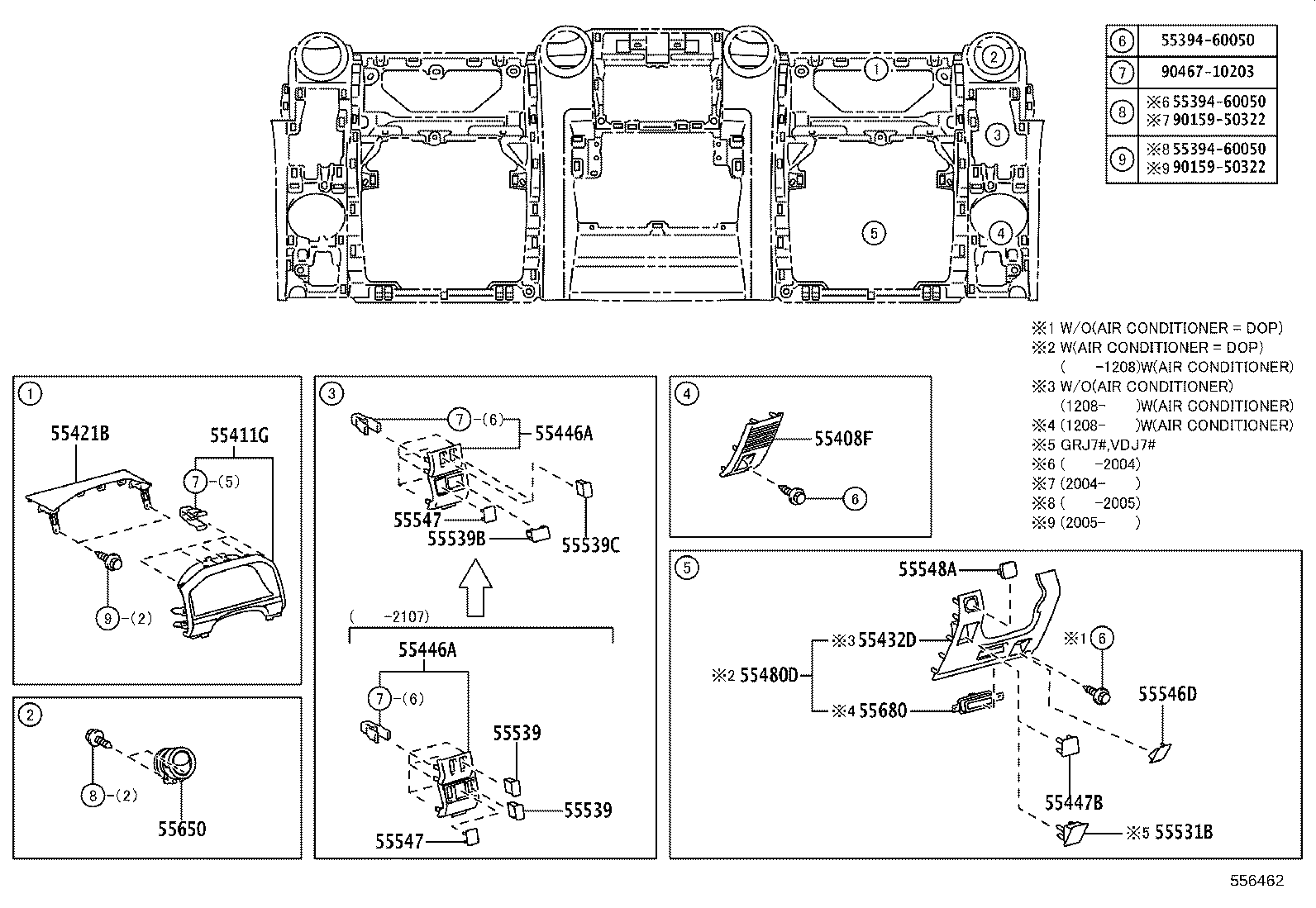

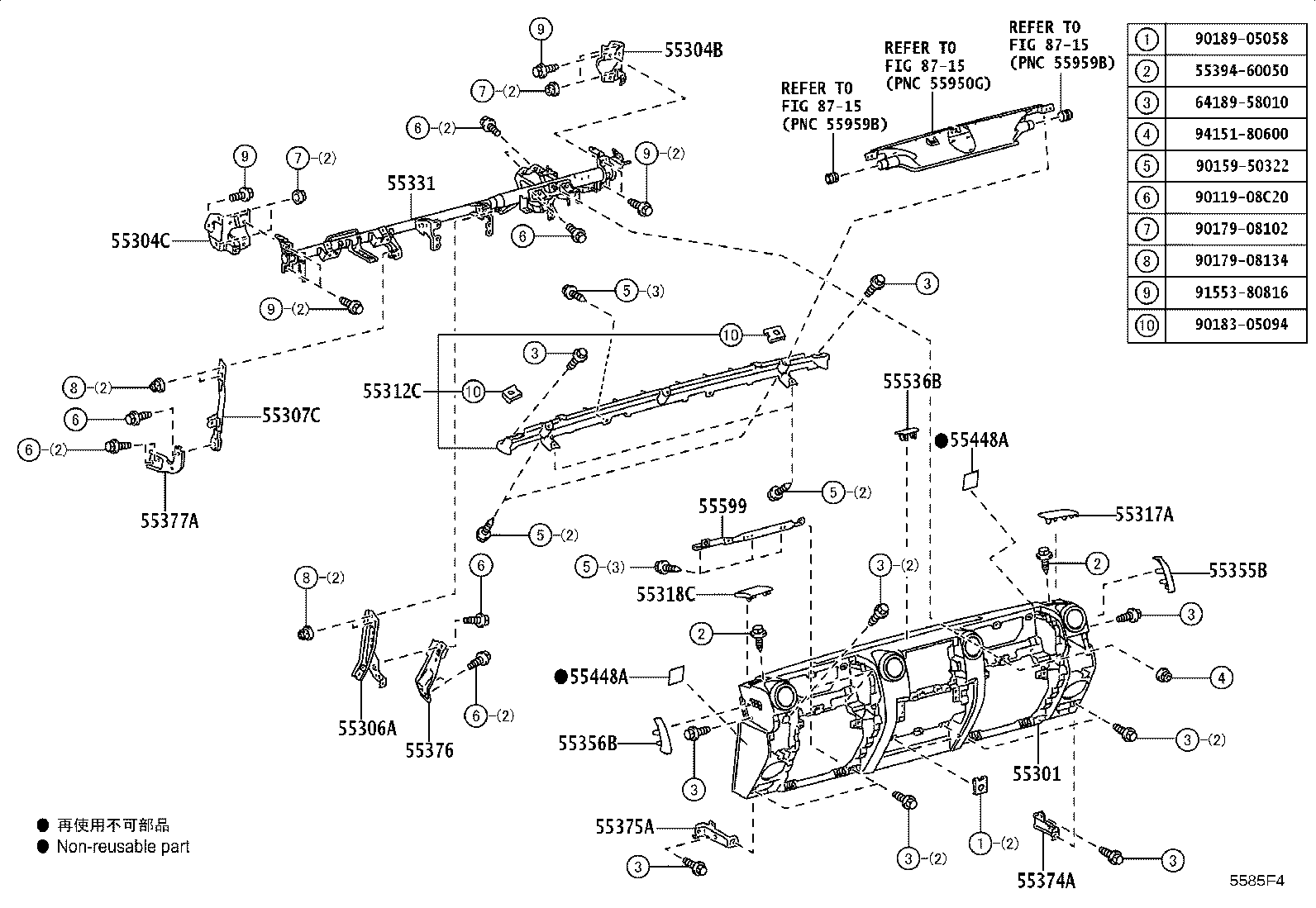

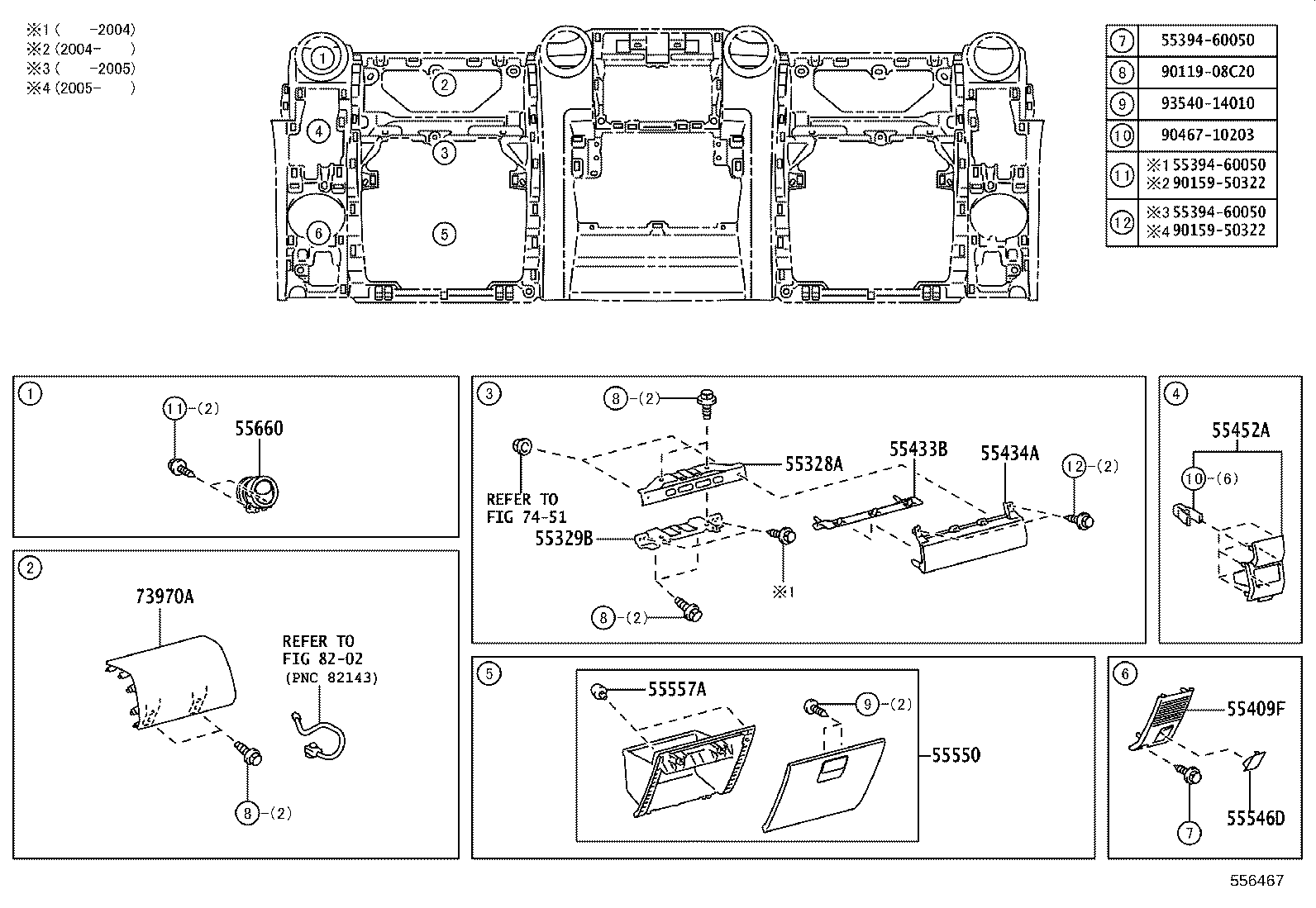

Figure 553318A 553318A 2007-01 → 2009-07 Figure 556453 556453 2007-01 → 2009-07 Figure 556454 556454 2007-01 → 2009-07 Figure 556455 556455 2007-01 → 2009-07 Figure 553317B 553317B 2007-01 → 2009-07 Figure 556456 556456 2007-01 → 2009-07 Figure 556457 556457 2007-01 → 2009-07 Figure 556458 556458 2007-01 → 2009-07 Figure 552354J 552354J 2009-07 → 2023-09 Figure 556459 556459 2009-07 → 2023-09 Figure 556460 556460 2009-07 → 2023-09 Figure 556461 556461 2009-07 → 2023-09 Figure 553782C 553782C 2016-08 → 2023-09 Figure 556465 556465 2016-08 → 2023-09 Figure 556466 556466 2016-08 → 2023-09 Figure 556467 556467 2016-08 → 2023-09 Figure 552353K 552353K 2009-07 → 2016-08 Figure 552353K 552353K 2016-08 → 2023-09 Figure 556462 556462 2009-07 → 2016-08 Figure 556462 556462 2016-08 → 2023-09 Figure 556463 556463 2009-07 → 2016-08 Figure 556463 556463 2016-08 → 2023-09 Figure 556464 556464 2009-07 → 2016-08 Figure 556464 556464 2016-08 → 2023-09 Figure 5585F4 5585F4 2023-09 → — Figure 5585F3 5585F3 2023-09 → — Figure 5585FP 5585FP 2023-09 → — Figure 5585FS 5585FS 2023-09 → — Figure 5585FQ 5585FQ 2023-09 → — Figure 5585FR 5585FR 2023-09 → — Figure 5585F5A 5585F5A 2023-09 → — Figure 5585F6A 5585F6A 2023-09 → — Figure 5585F7 5585F7 2023-09 → — Figure 5585F8 5585F8 2023-09 → —

Part groups

PNCDescription
55041B Door Sub-assy, Instrument Panel Box, NO.1
55042A Reinforcement Sub-assy, Cluster Finish Panel
55301 Panel Sub-assy, Instrument
55303A Stay Sub-assy, Instrument Panel
55304B Bracket Sub-assy, Instrument Panel Bracket Mounting
55304C Bracket Sub-assy, Instrument Panel Bracket Mounting
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308B Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55312C Plate, Instrument Retainer
55315A Spacer, Instrument Panel, NO.1
55317 Patch, Instrument Panel
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55321B Bracket, Instrument Panel, NO.1
55328A Stay, Instrument Panel, NO.3
55329B Stay, Instrument Panel, NO.4
55331 Reinforcement, Instrument Panel
55354 Brace, Instrument Panel TO Floor
55355B Plate, Instrument Panel, RH
55356B Plate, Instrument Panel, LH
55357A Protector, Edge, NO.1
55358K Cushion, Instrument Panel, NO.4
55374A Bracket, Instrument Panel Lower Mounting, RH
55375A Bracket, Instrument Panel Lower Mounting, LH
55376 Bracket, Instrument Panel Mounting, NO.1
55377A Bracket, Instrument Panel Mounting, NO.2
55381B Bracket, Finish Panel Mounting, NO.1
55401E Pad Sub-assy, Instrument Panel Safety
55404C Panel Sub-assy, Instrument Cluster Finish, NO.2
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55411G Panel, Instrument Cluster Finish, NO.1
55412C Panel, Instrument Cluster Finish, Center NO.1
55412D Panel, Instrument Cluster Finish, Center
55413C Panel, Instrument Cluster Finish, Center NO.2
55413D Panel, Instrument Cluster Finish, Center Lower
55421B Panel, Instrument Cluster Finish, Upper
55422C Panel, Instrument Cluster Finish, Center Upper
55432D Panel, Instrument Panel Finish, Lower NO.1
55433B Panel, Instrument Panel Finish, Lower NO.2
55434A Panel, Instrument Finish, Lower Sub
55446A Base, Switch Hole, NO.1
55447B Base, Choke Knob Hole
55448A Cushion, Instrument Panel Finish, NO.1
55452A Box, Instrument Panel, NO.2
55468C Seal, Instrument Cluster Finish Panel, NO.1
55477A Bezel, Cigarette Lighter Hole
55480D Panel Assy, Instrument Panel Finish, Lwr
55497A Reflector, Warning Lamp, RH
55498A Reflector, Warning Lamp, LH
55501A Door Sub-assy, Glove Compartment
55505D Hinge Sub-assy, Glove Compartment Door
55521C Cover, Stereo Opening
55522B Cover, Radio Tuner Opening
55523 Cover, Heater Control Opening
55526 Cover, Instrument Panel Register Opening
55531B Cover, Choke Knob Hole
55533 Cover, Auto Clock Hole
55536B Cover, Light Control Switch Hole
55539 Cover, Spare Switch Hole
55539B Cover, Spare Switch Hole, NO.2
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55546D Cover, Instrument Panel Hole, NO.2
55547 Cover, Remote Control Mirror Hole
55548A Cover, Instrument Panel Hole
55550 Door Assy, Glove Compartment
55556 Arm, Glove Compartment Door Check
55557A Cushion, Glove Compartment Door Check
55560A Lock Assy, Glove Compartment Door
55561A Striker, Glove Compartment Door Lock
55581A Compartment, Glove
55598 Bracket, Glove Compartment Door Hinge, RH
55599 Bracket, Glove Compartment Door Hinge, LH
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680 Register Assy, Instrument Panel, Lower NO.1
55680A Register Assy, Instrument Panel, NO.4
55950 Nozzle Assy, Defroster
55959 Cover, Defroster Nozzle Opening, NO.1
55959A Cover, Defroster Nozzle Opening, NO.1
55969 Cover, Defroster Nozzle Opening, NO.2
55969A Cover, Defroster Nozzle Opening, NO.2
55970A Duct Assy, Side Defroster, RH
55980A Duct Assy, Side Defroster, LH
55989 Cover, Defroster Nozzle Opening, Center
58959E Cushion, Console Compartment Door
73900 Airbag Assy, Instrument Panel, Lower NO.1
73970A Airbag Assy, Instrument Panel Passenger
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
