Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Member

22 part groups · 7 illustrations

Illustrations

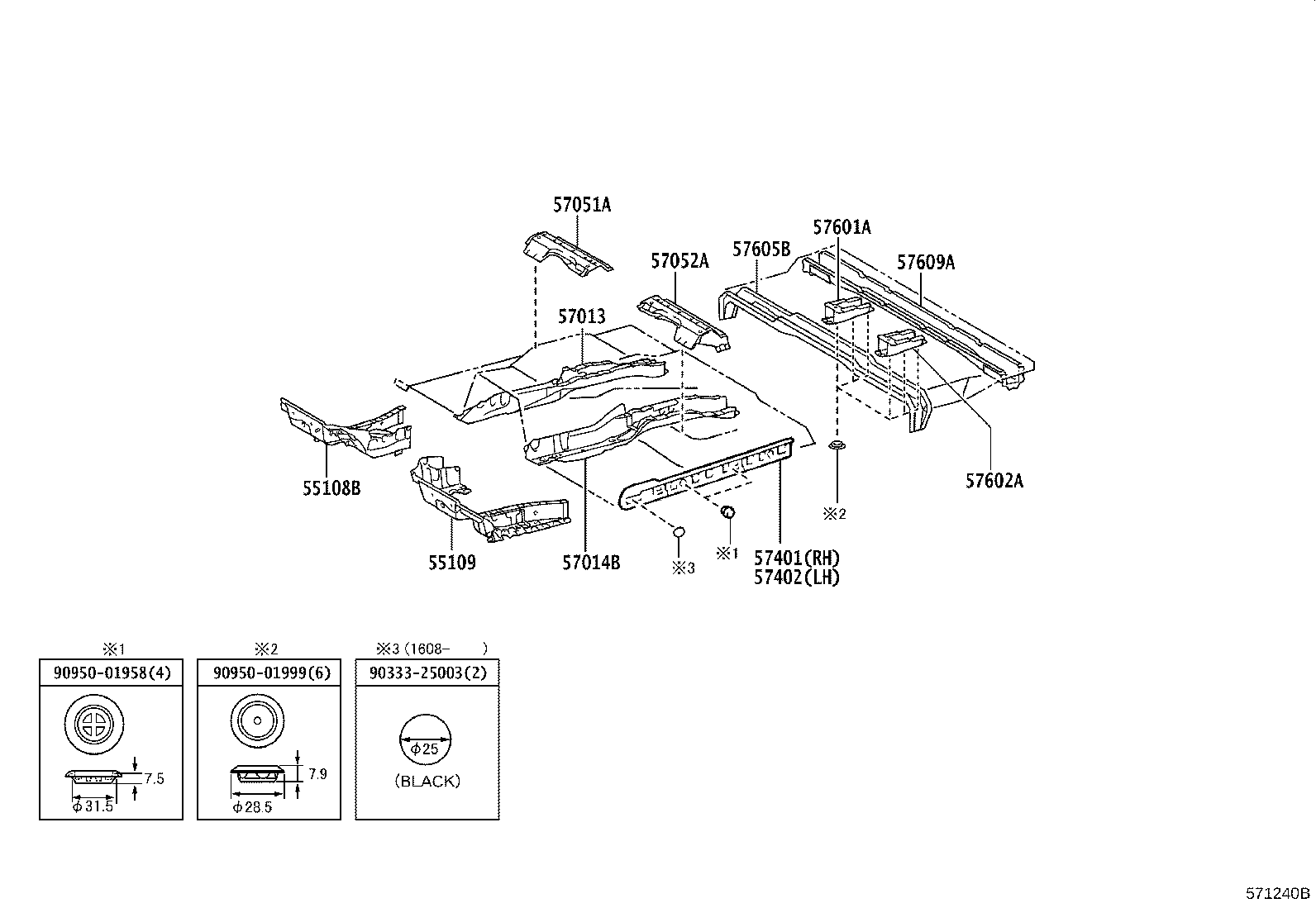

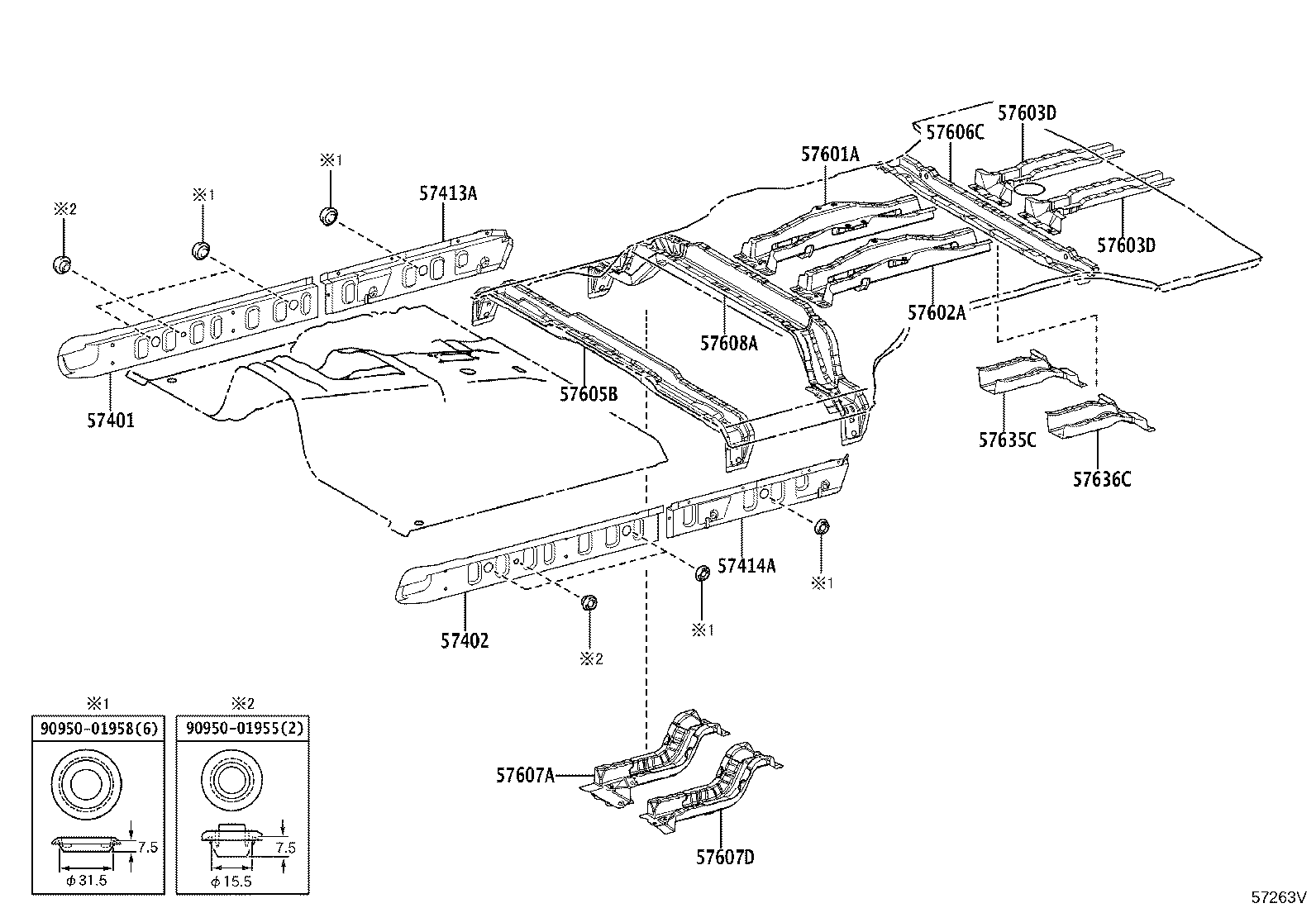

Figure 570265G 570265G 2007-01 → 2016-08 Figure 570265G 570265G 2007-01 → 2023-09 Figure 570265G 570265G 2007-01 → — Figure 570265G 570265G 2007-01 → — Figure 571240B 571240B 2016-08 → 2023-09 Figure 571240B 571240B 2023-09 → — Figure 57263V 57263V 2023-09 → —

Part groups

PNCDescription
55108B Brace Sub-assy, Dash TO Frame, RH
55109 Brace Sub-assy, Dash TO Frame, LH
57013 Bracket Sub-assy, Front Side Member, RH
57014B Bracket Sub-assy, Front Side Member, LH
57051A Member Sub-assy, Front Floor Cross, RH
57052A Member Sub-assy, Front Floor Cross, LH
57401 Member Sub-assy, Main Floor Side, RH
57402 Member Sub-assy, Main Floor Side, LH
57413A Member, Floor Side, Inner Rear RH
57414A Member, Floor Side, Inner Rear LH
57451 Member, Front Floor Cross
57601A Member Sub-assy, Rear Floor Side, RH
57602A Member Sub-assy, Rear Floor Side, LH
57603D Member Sub-assy, Rear Floor Side Rear, Center
57605B Member Sub-assy, Rear Floor Cross, NO.1
57606C Member Sub-assy, Rear Floor Cross, NO.2
57607A Member Sub-assy, Rear Floor Cross, NO.3
57607D Member Sub-assy, Rear Floor Cross, NO.3 LH
57608A Member Sub-assy, Rear Floor Cross, NO.4
57609A Member Sub-assy, Rear Floor Cross, NO.5
57635C Reinforcement, Rear Floor Side Member, Rear RH
57636C Reinforcement, Rear Floor Side Member, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
