Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

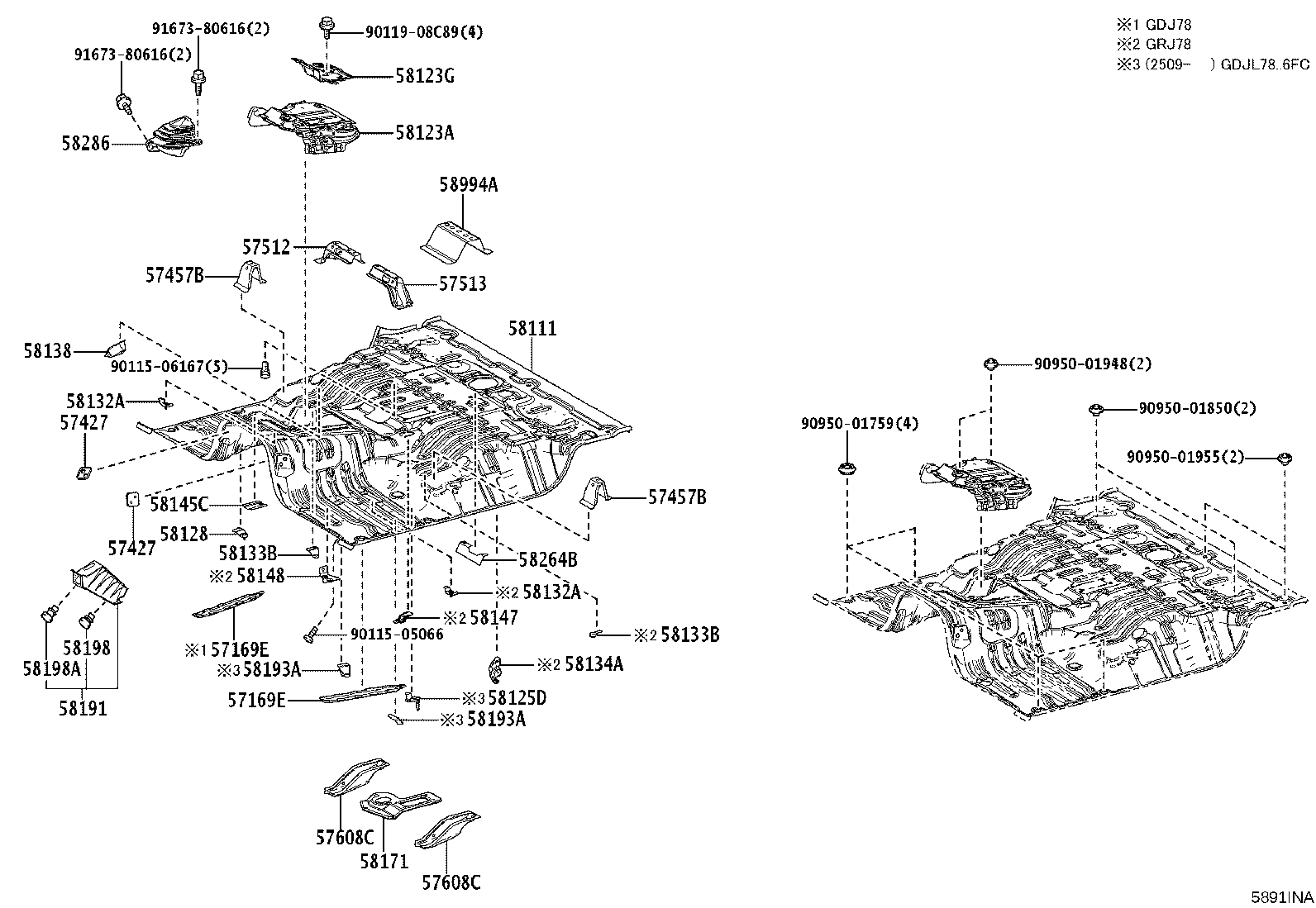

Front Floor Panel & Front Floor Member

63 part groups · 55 illustrations

Illustrations

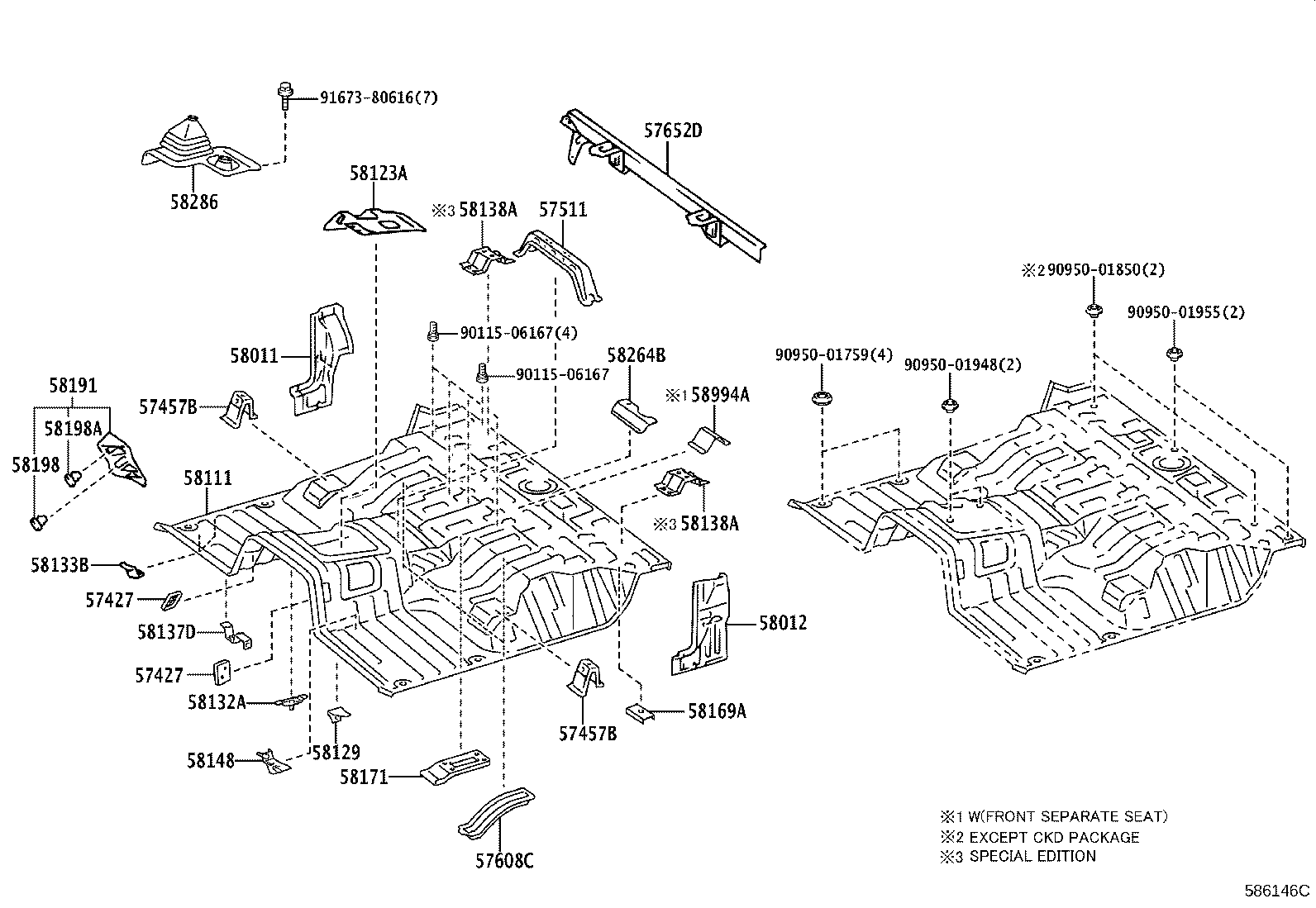

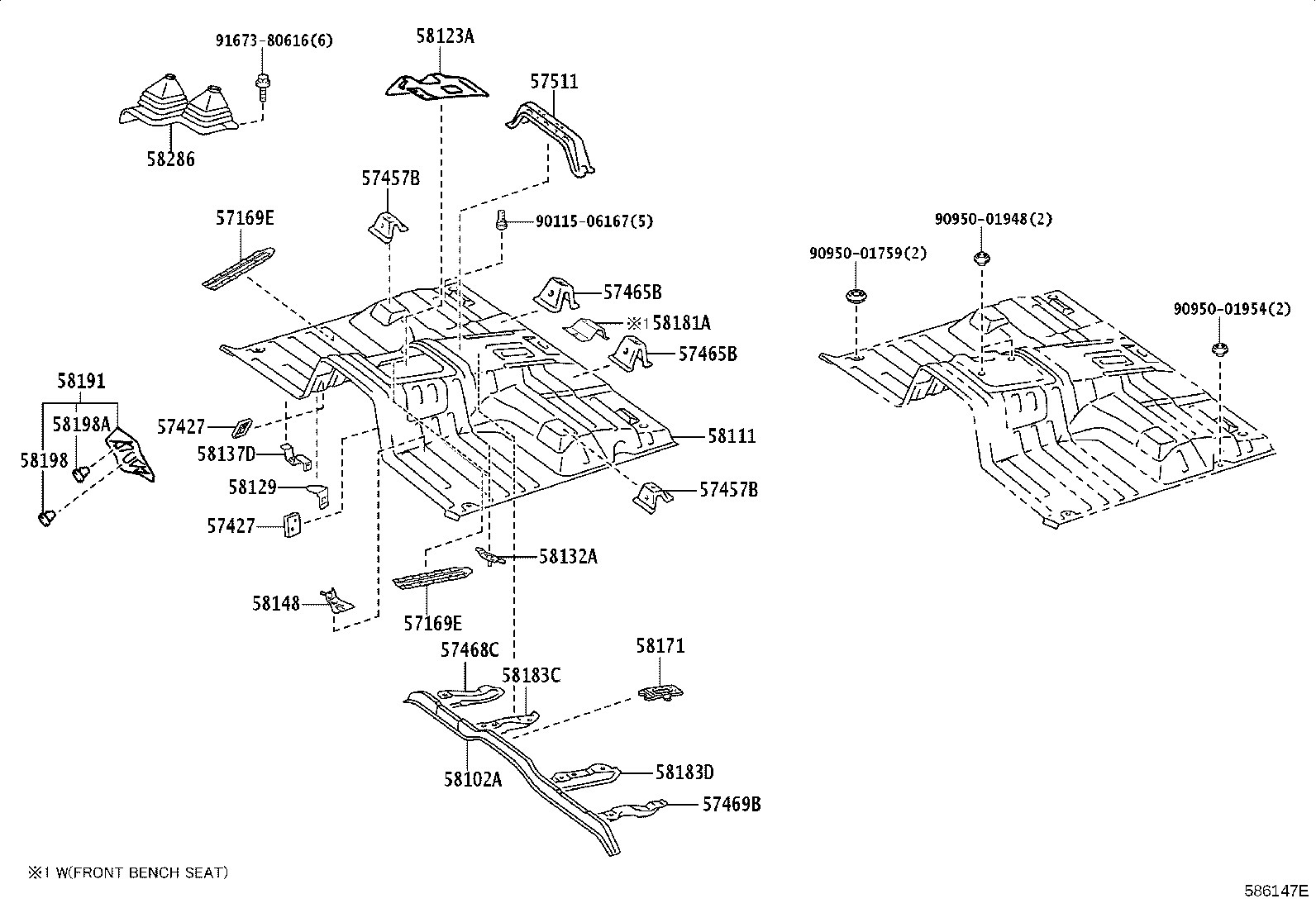

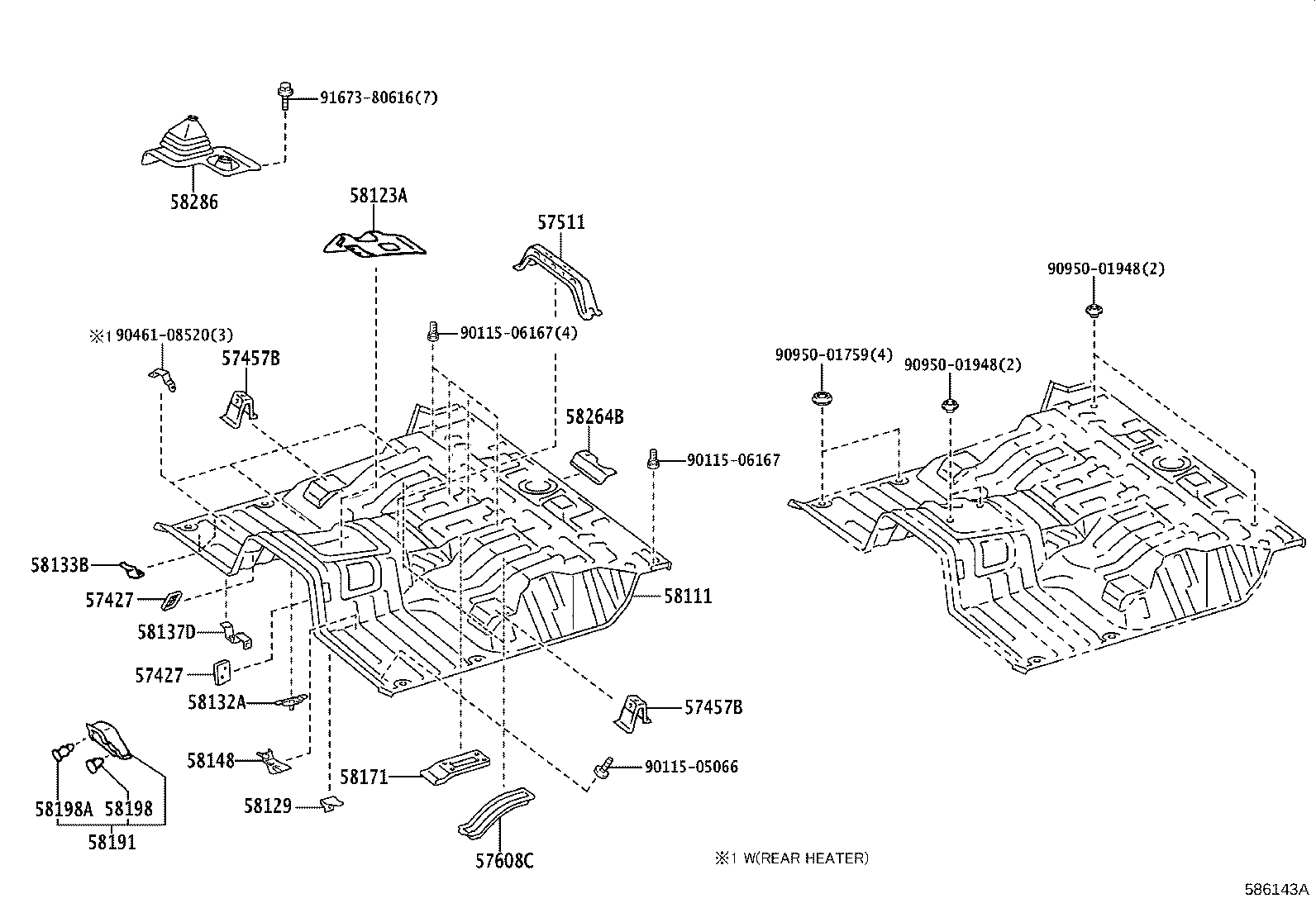

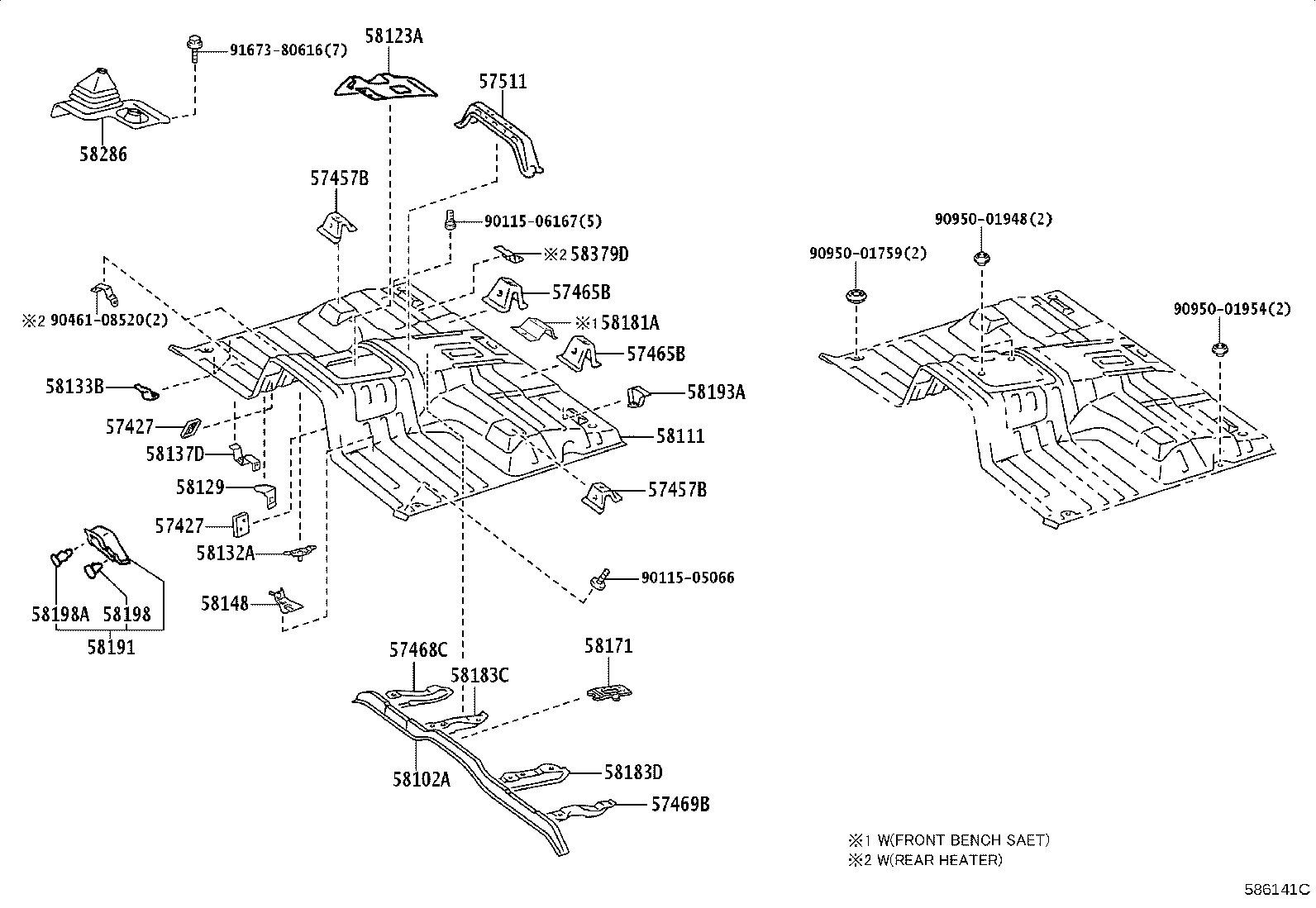

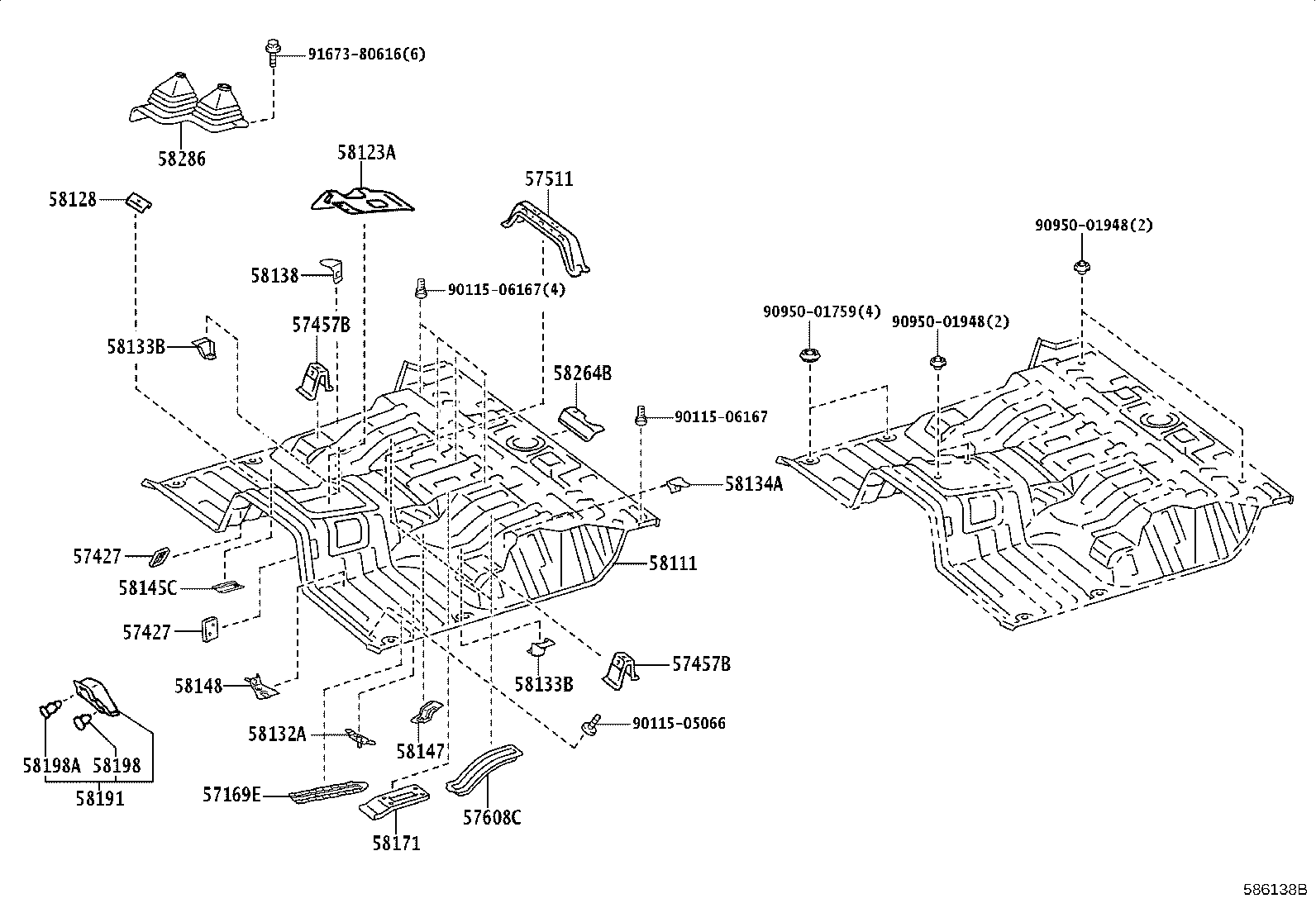

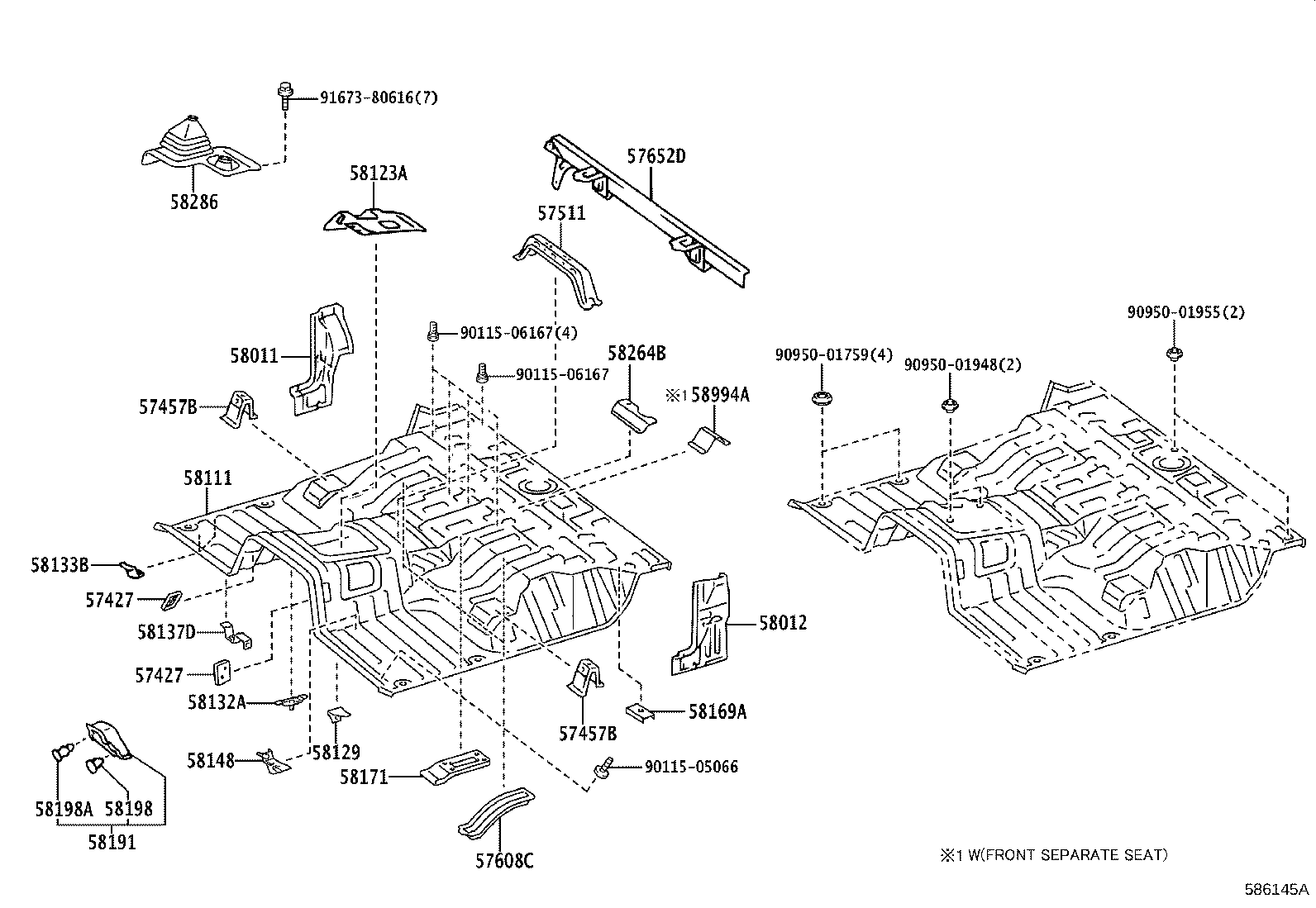

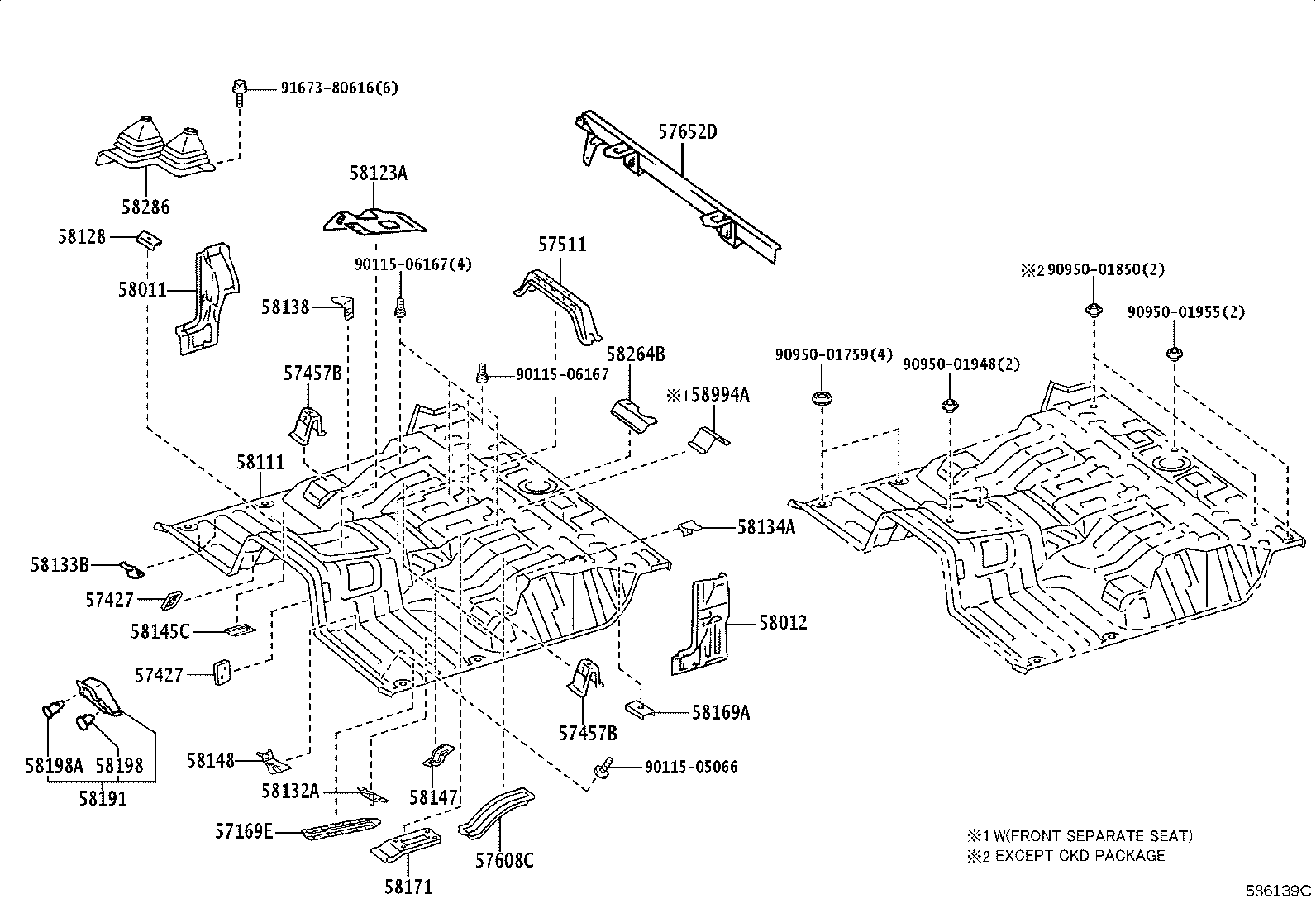

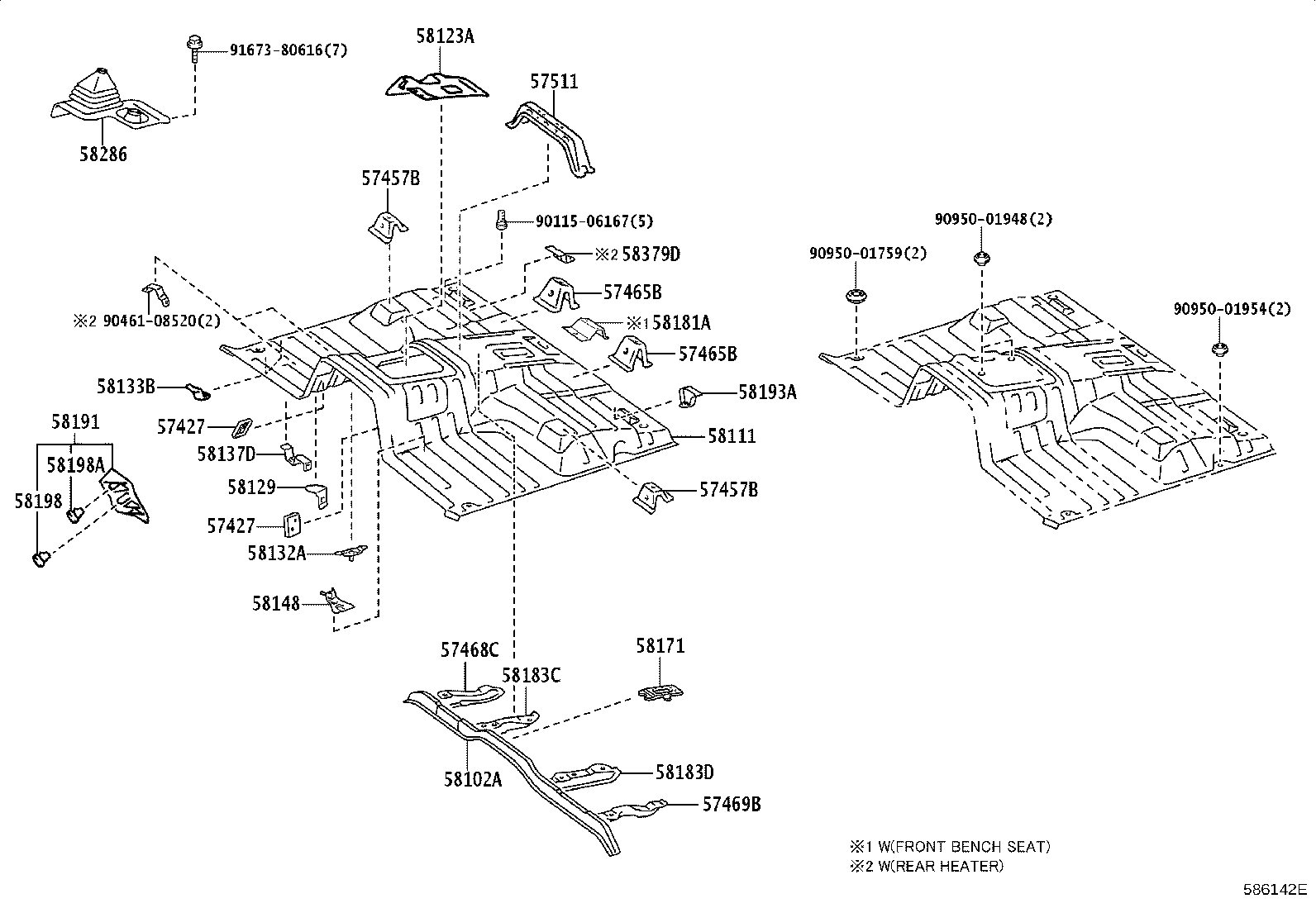

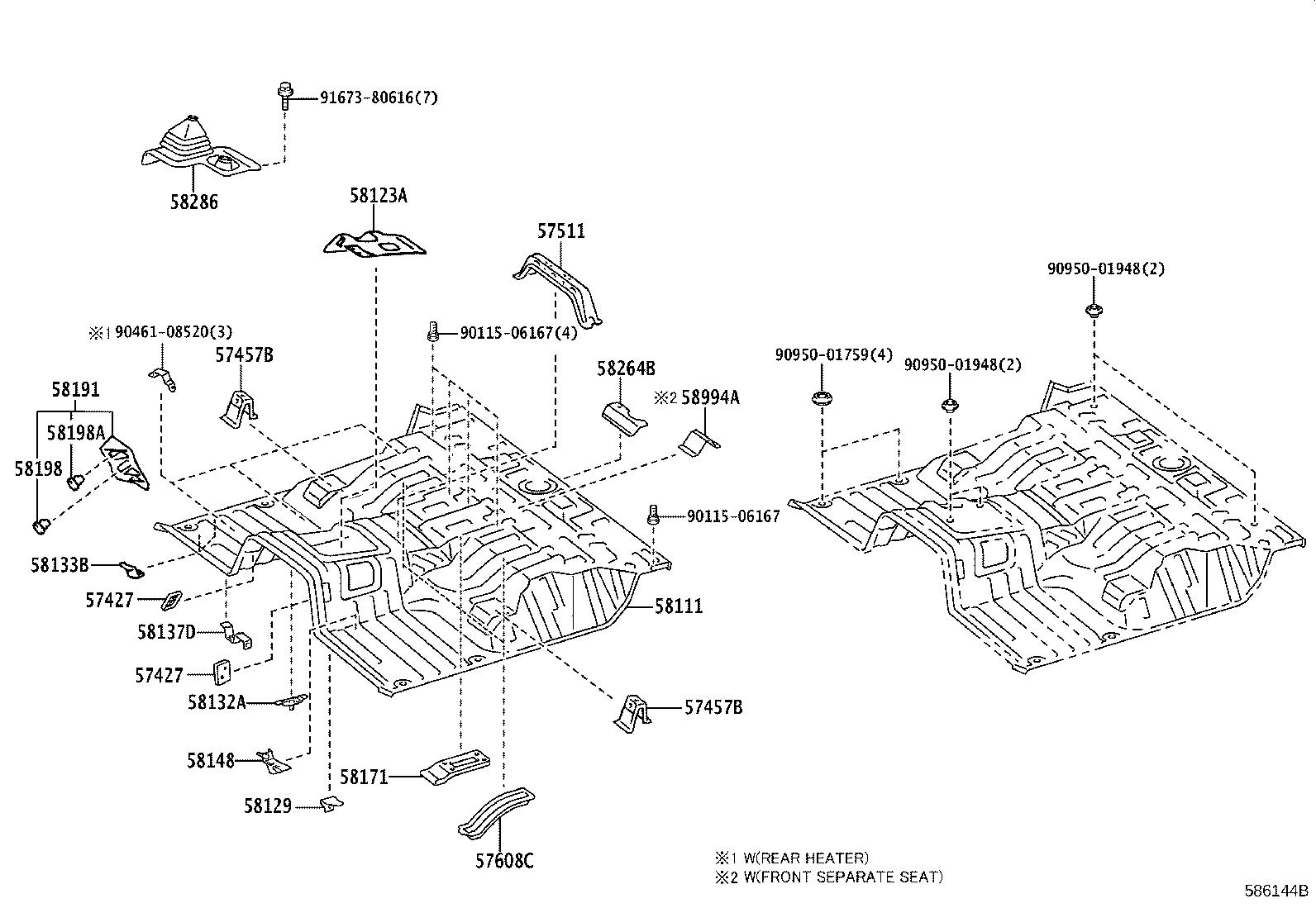

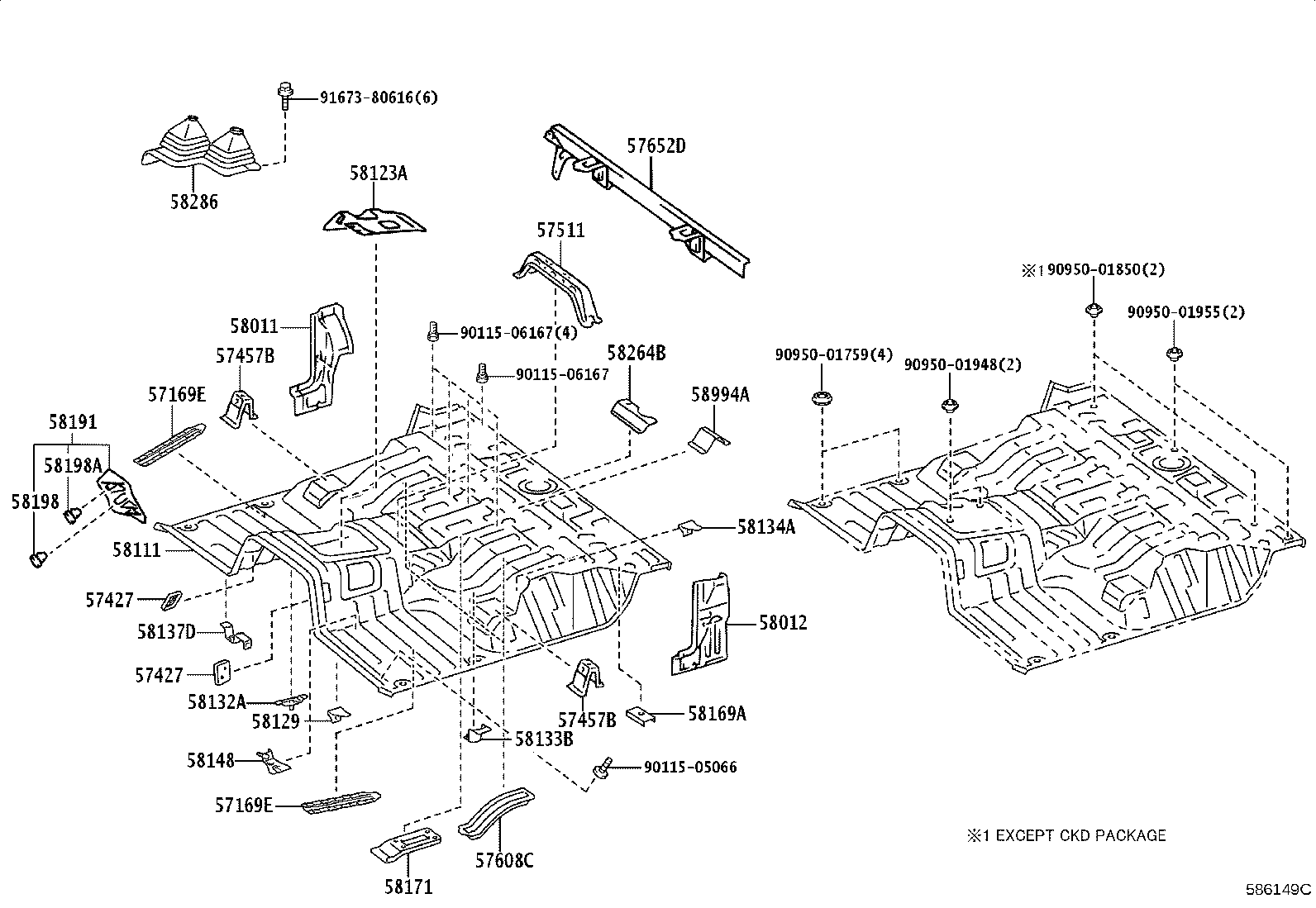

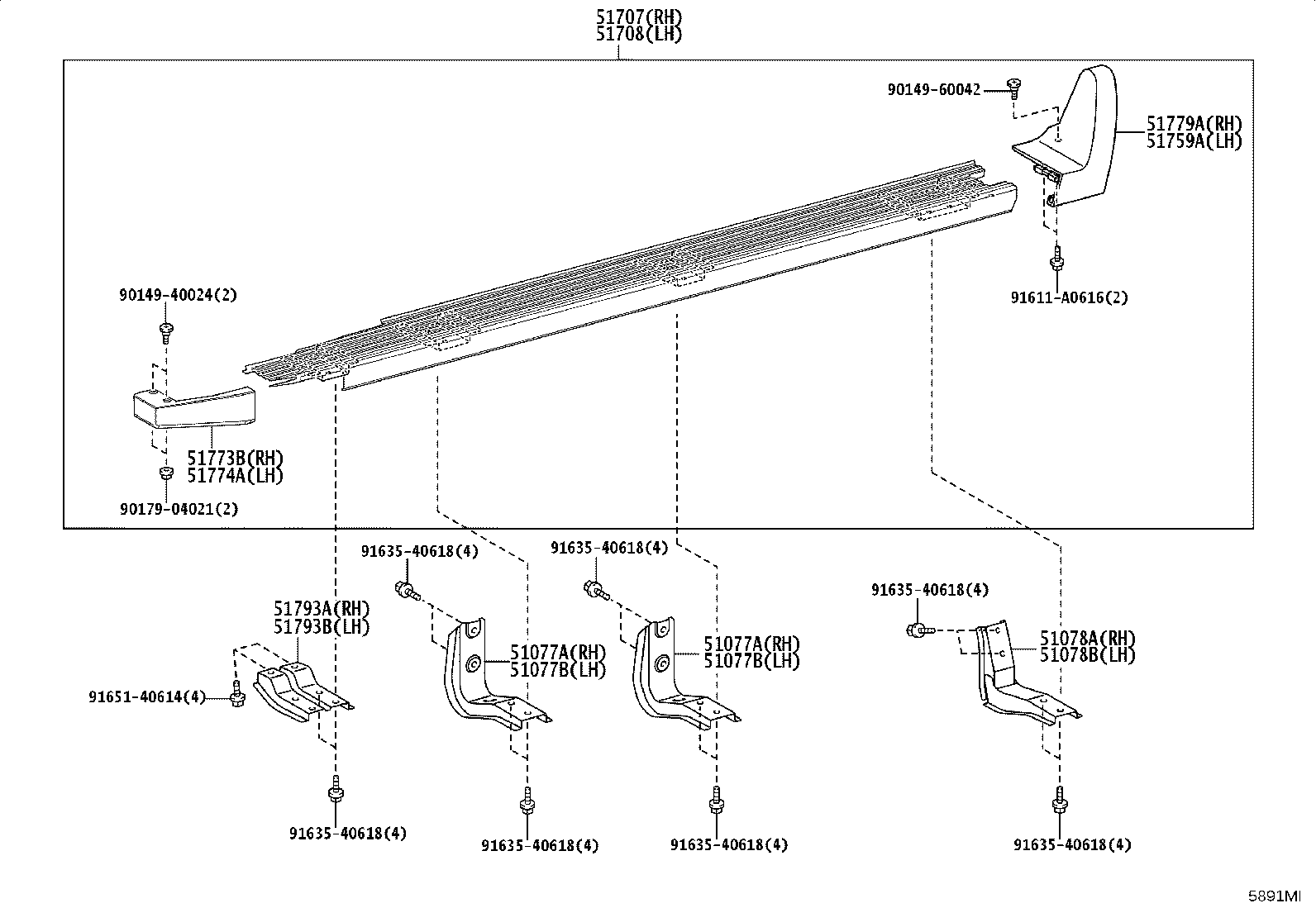

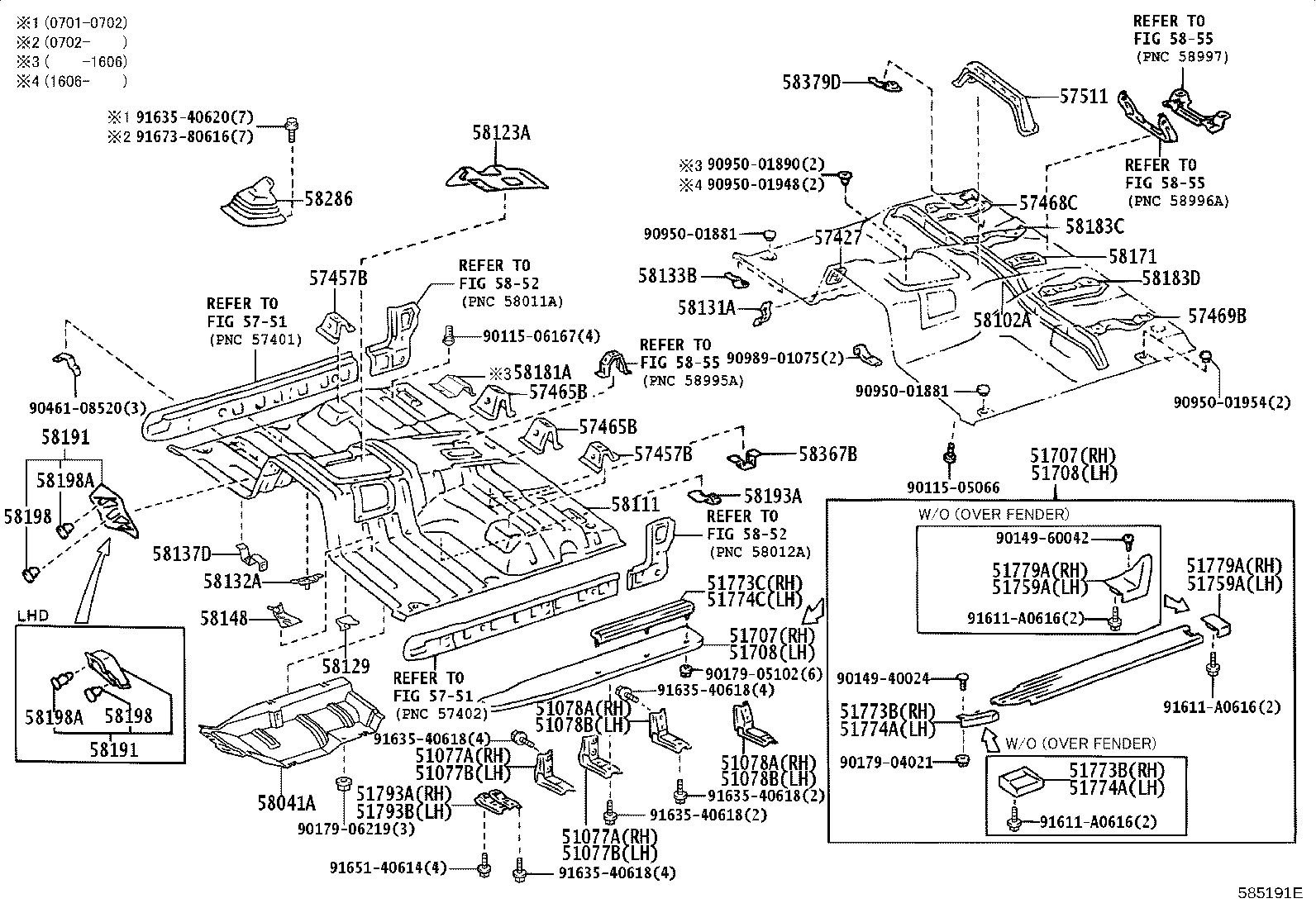

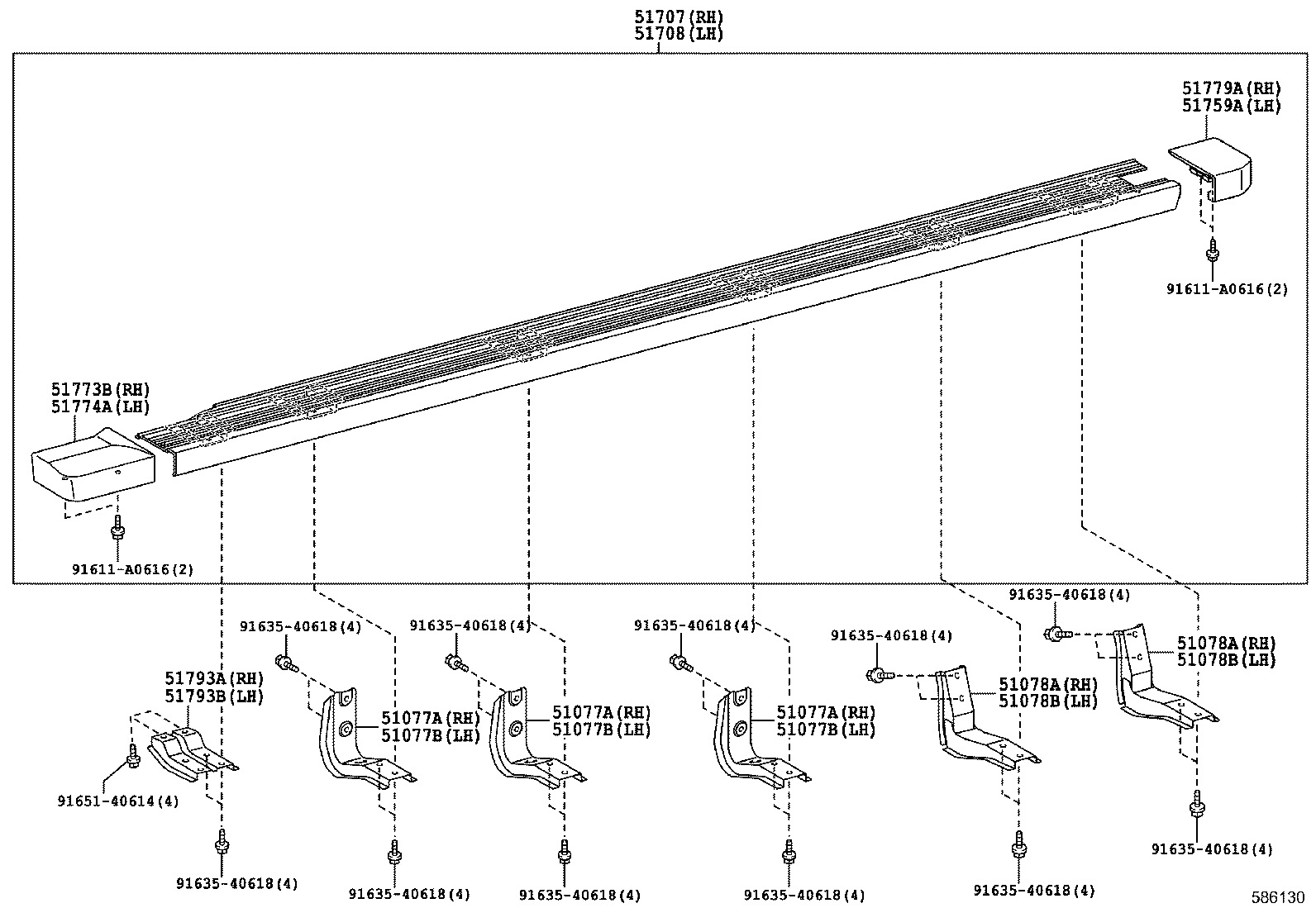

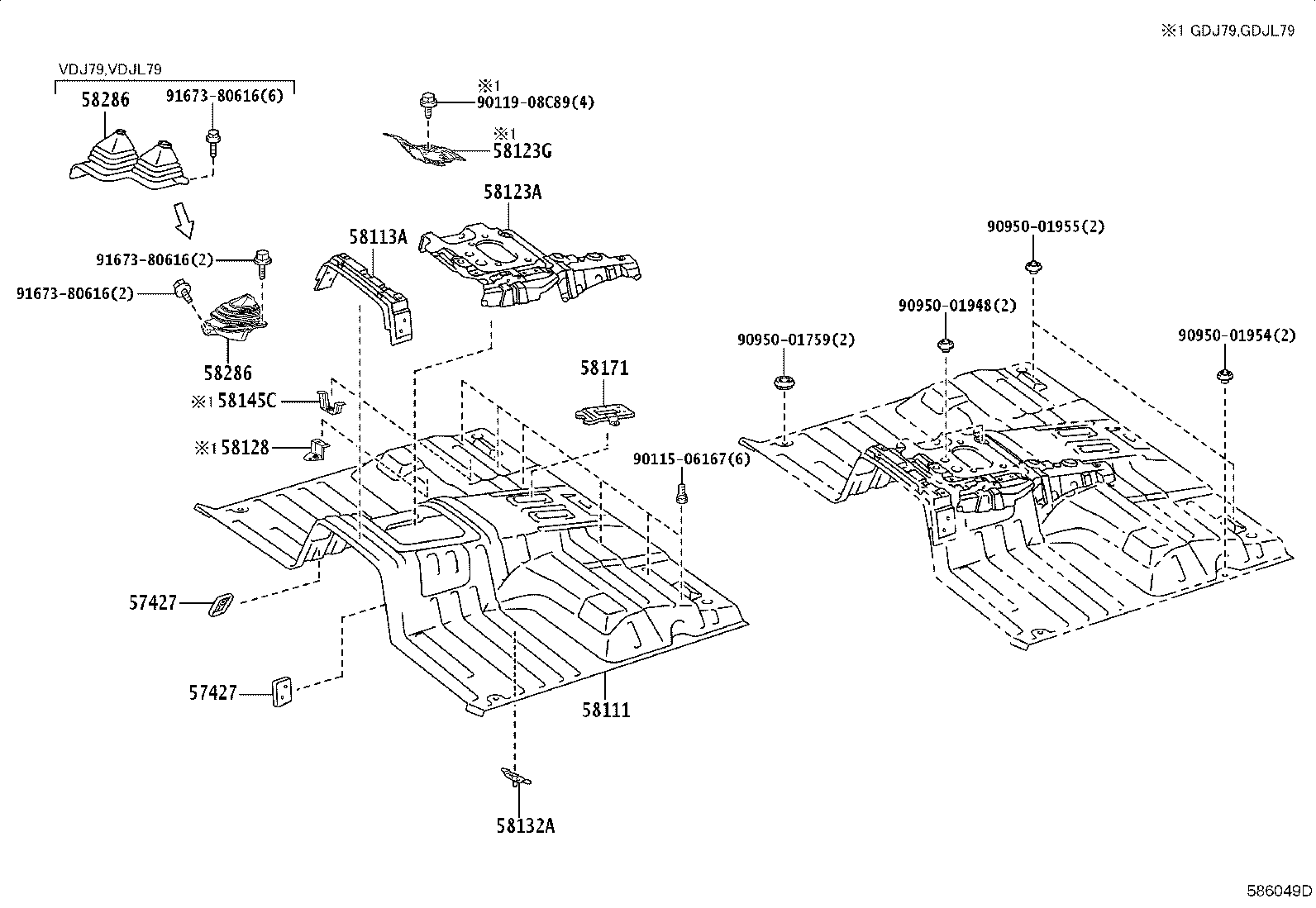

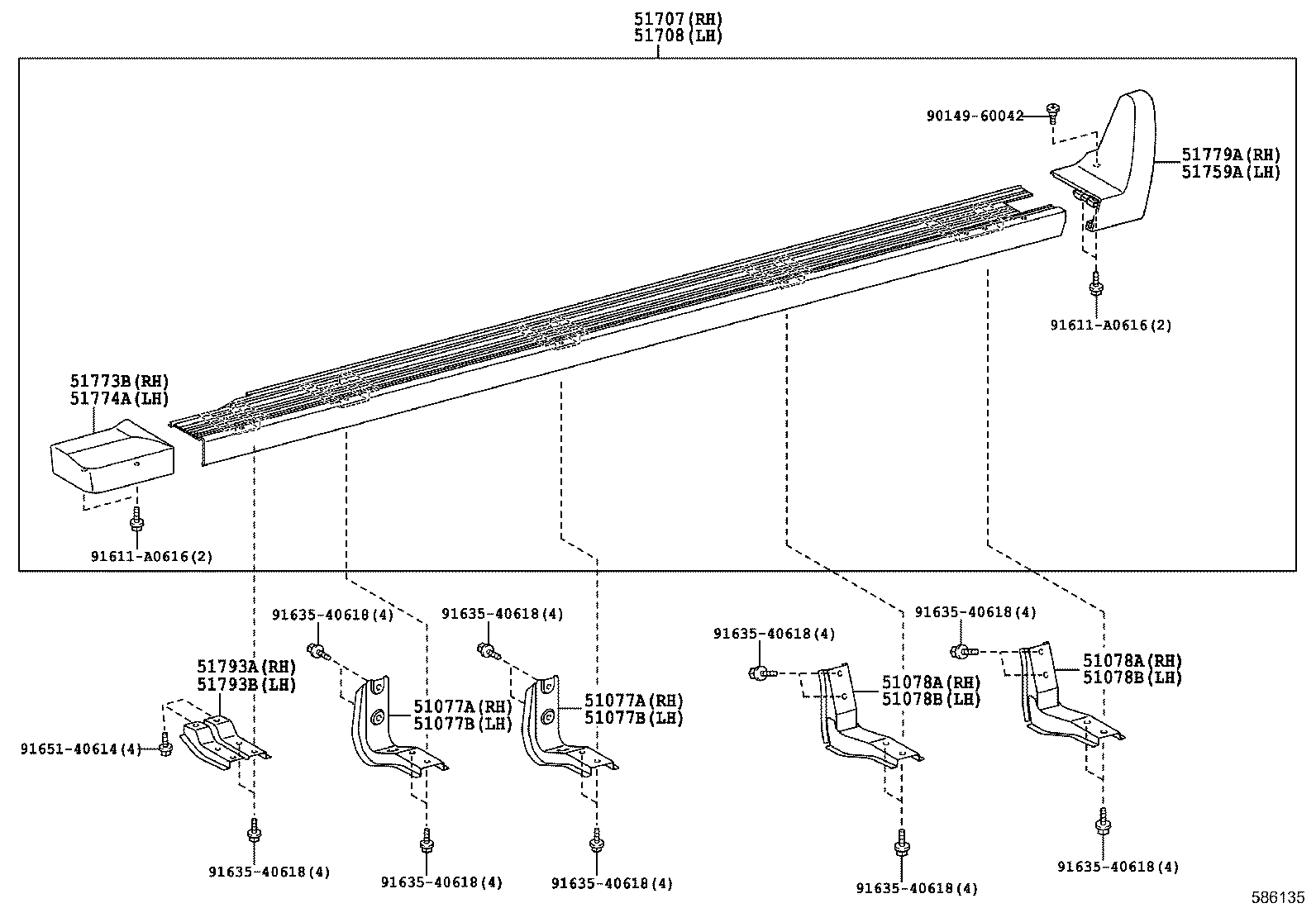

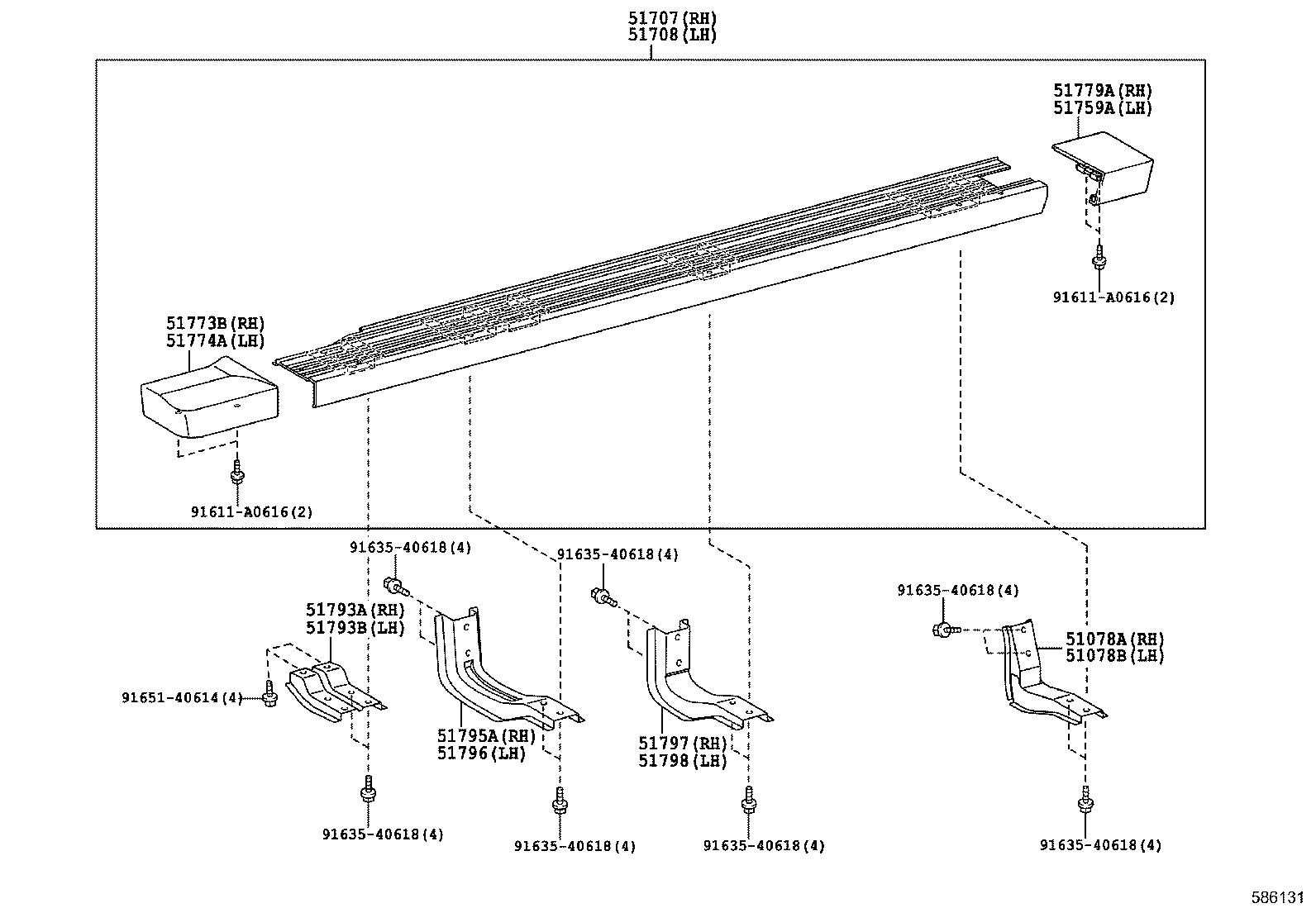

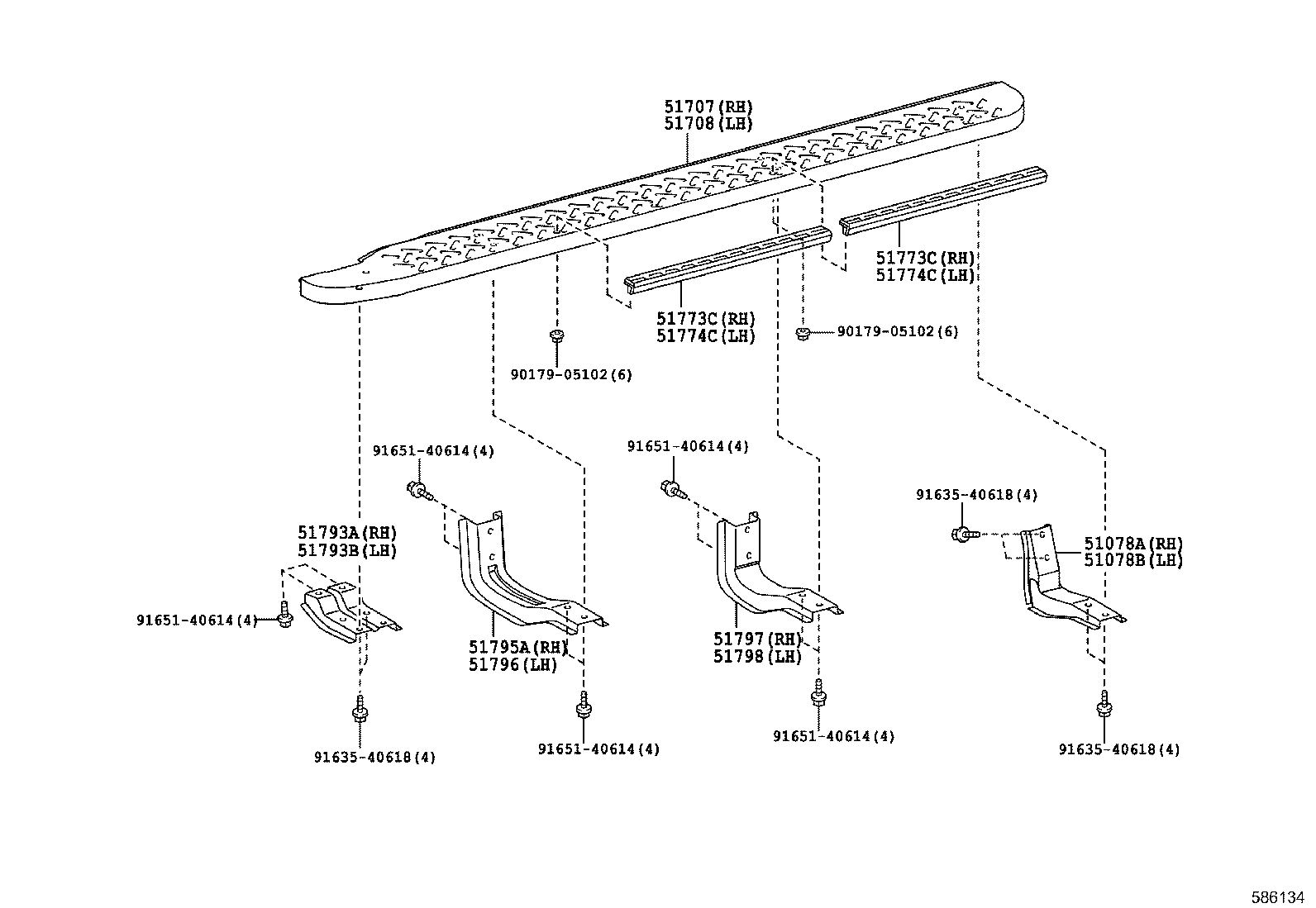

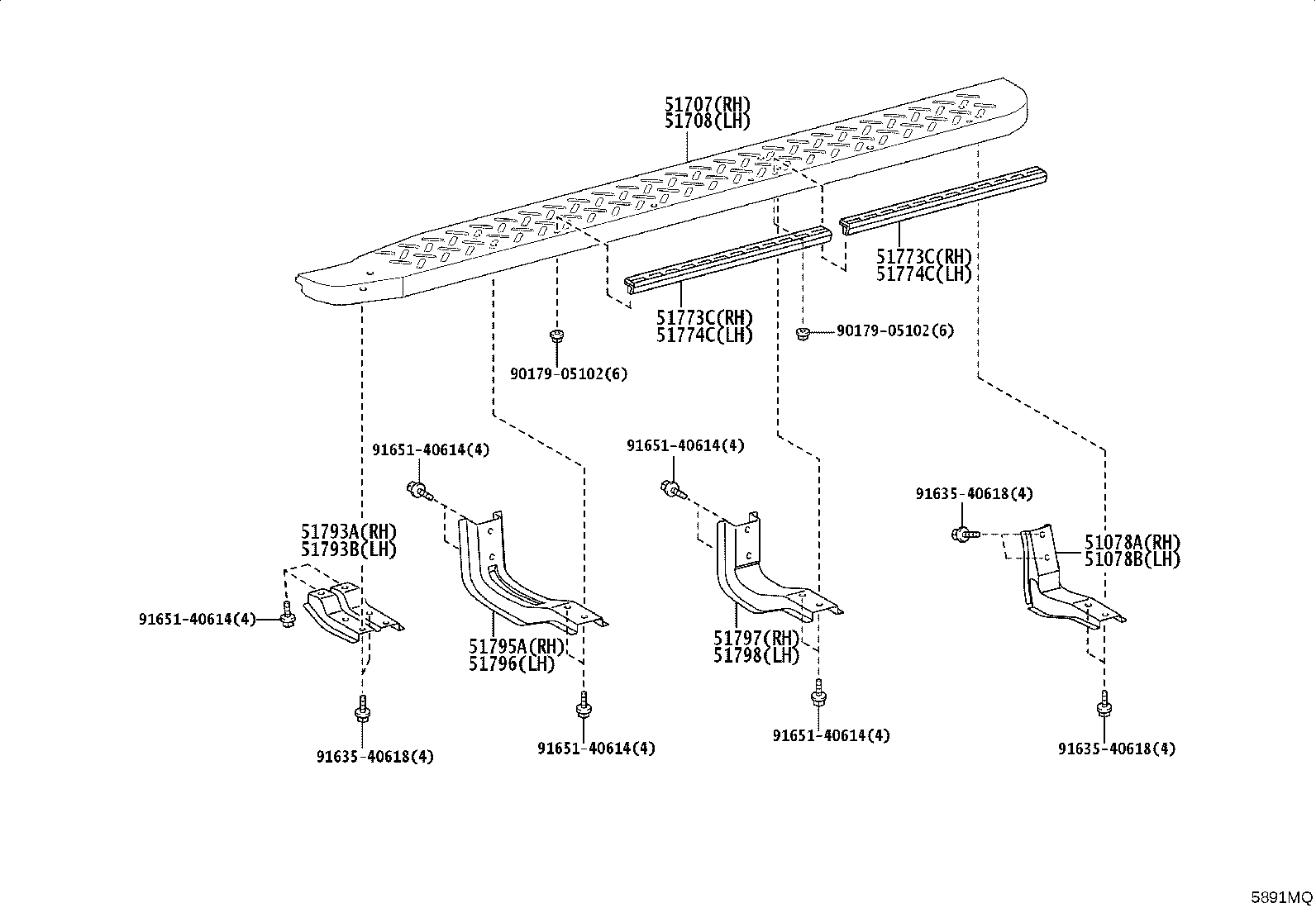

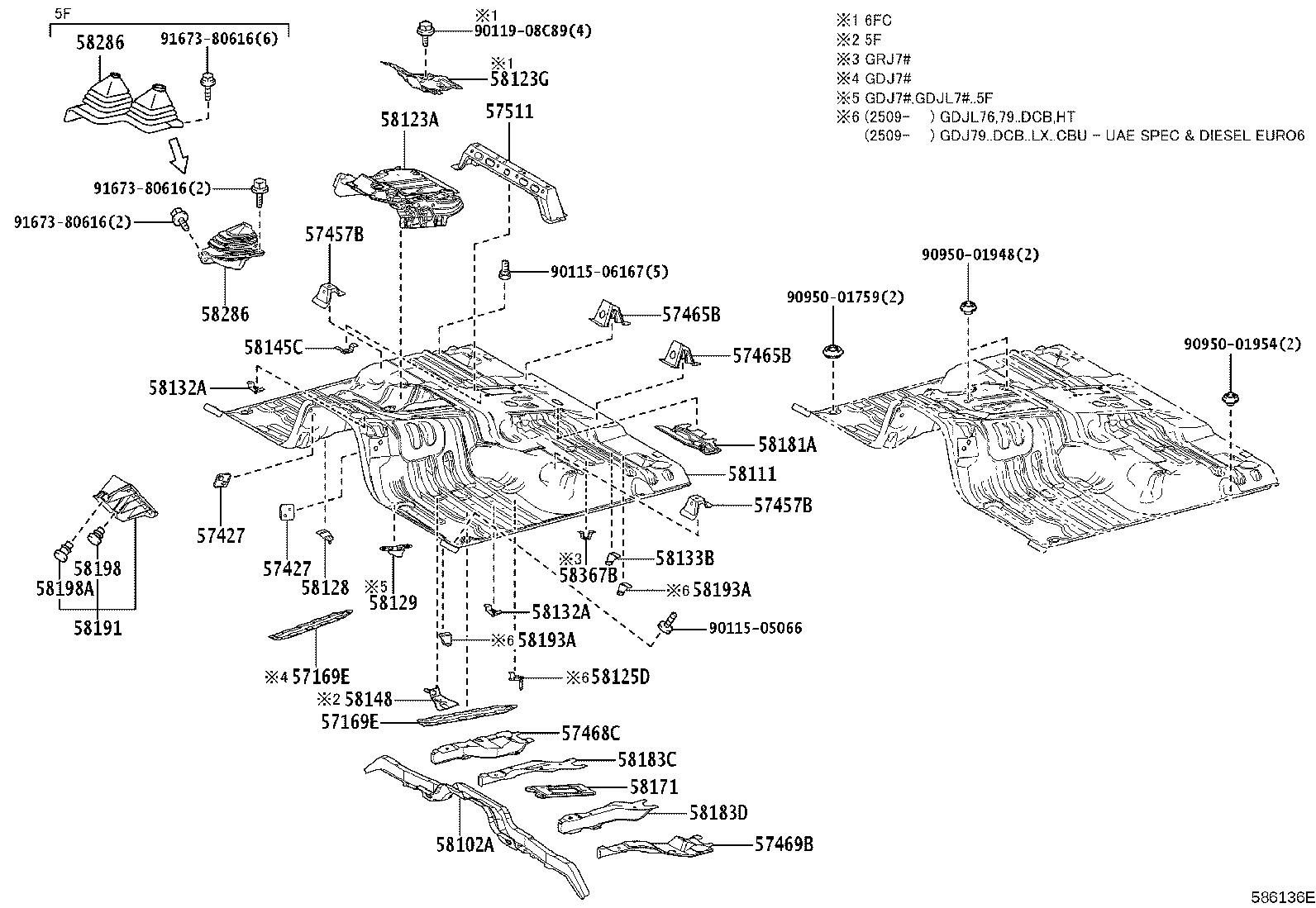

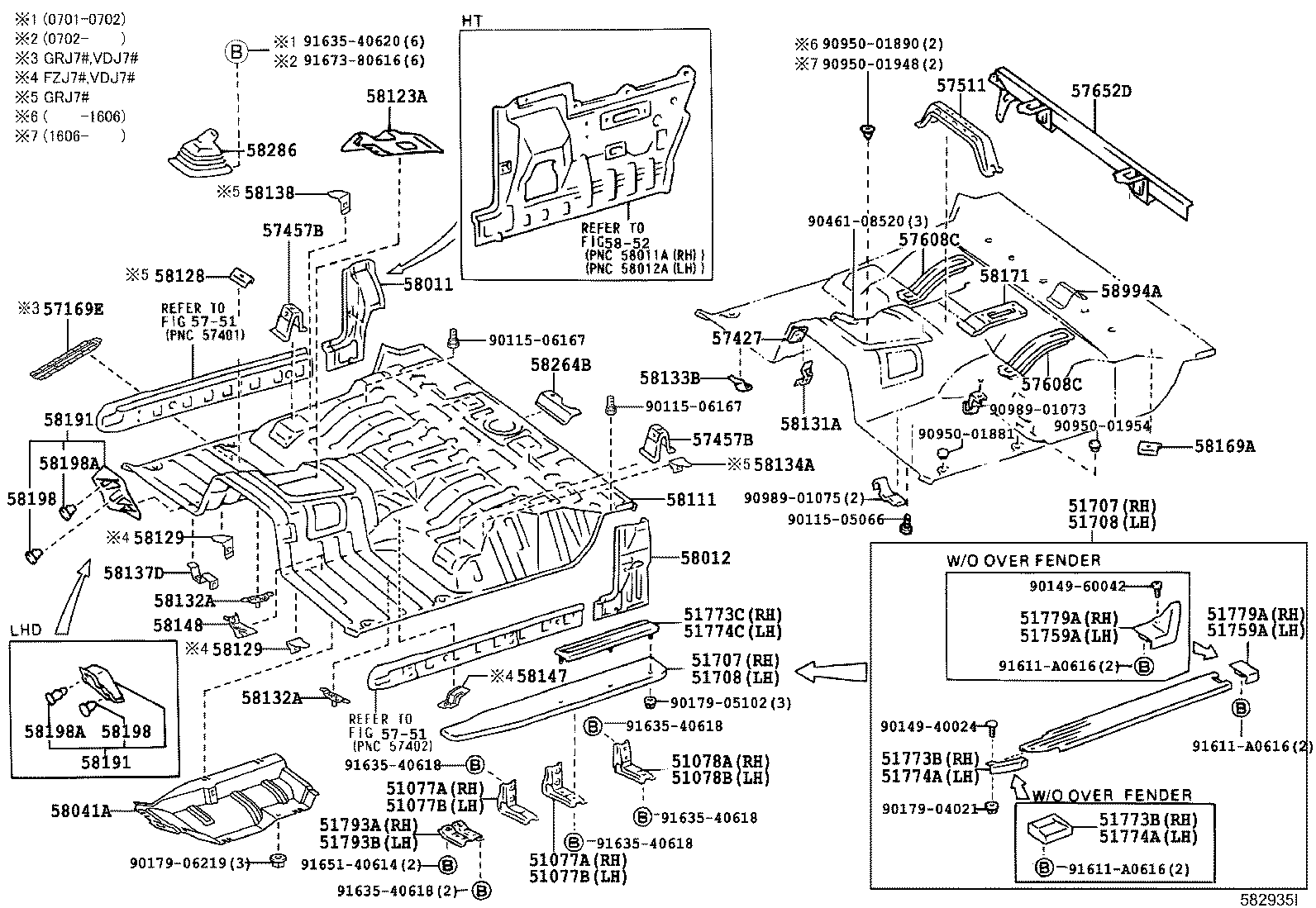

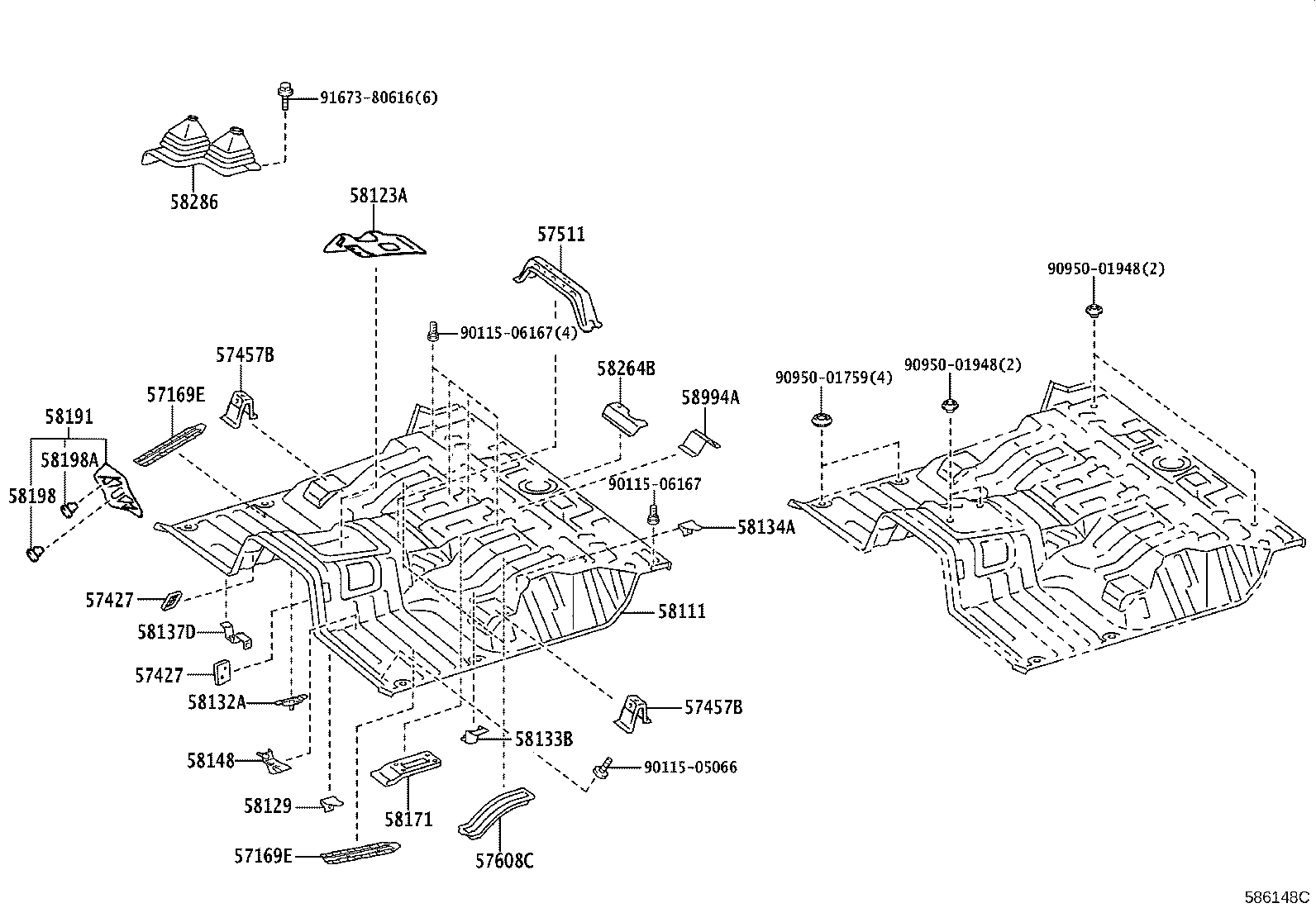

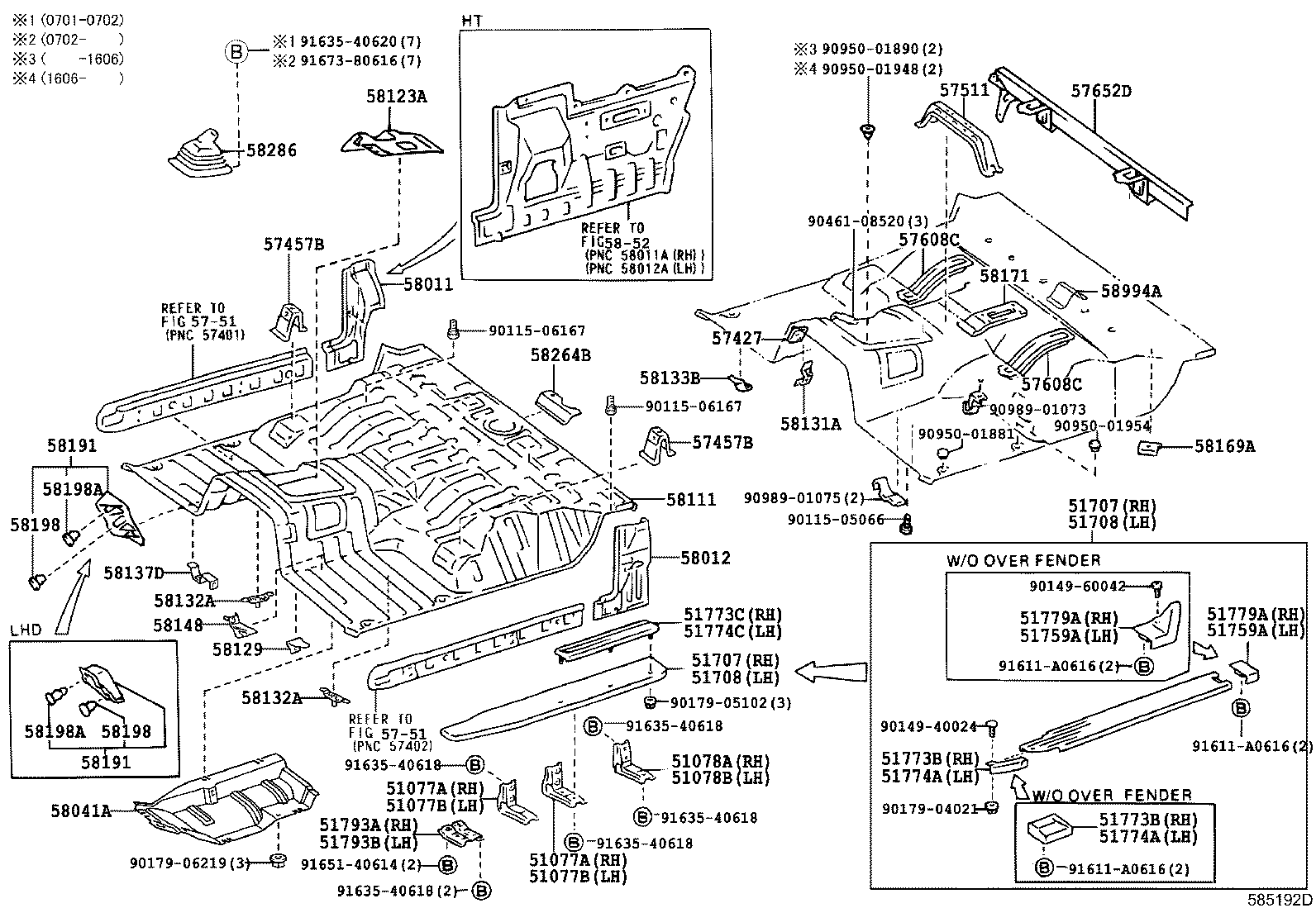

Figure 582934H 582934H 2007-01 → 2023-09 Figure 582934H 582934H 2007-01 → 2023-09 Figure 582935I 582935I 2007-01 → 2016-08 Figure 585192D 585192D 2007-01 → 2016-08 Figure 585191E 585191E 2007-01 → 2016-08 Figure 586136E 586136E 2016-08 → 2023-09 Figure 586136E 586136E 2023-09 → — Figure 586138B 586138B 2016-08 → 2023-09 Figure 586138B 586138B 2023-09 → — Figure 586139C 586139C 2016-08 → 2023-09 Figure 586139C 586139C 2023-09 → — Figure 586141C 586141C 2016-08 → 2023-09 Figure 586141C 586141C 2023-09 → — Figure 586142E 586142E 2016-08 → 2023-09 Figure 586142E 586142E 2023-09 → — Figure 586143A 586143A 2016-08 → 2023-09 Figure 586143A 586143A 2023-09 → — Figure 586144B 586144B 2016-08 → 2023-09 Figure 586144B 586144B 2023-09 → — Figure 586145A 586145A 2016-08 → 2023-09 Figure 586145A 586145A 2023-09 → — Figure 586146C 586146C 2016-08 → 2023-09 Figure 586146C 586146C 2023-09 → — Figure 586147E 586147E 2016-08 → 2023-09 Figure 586147E 586147E 2023-09 → — Figure 586148C 586148C 2016-08 → 2023-09 Figure 586148C 586148C 2023-09 → — Figure 586149C 586149C 2016-08 → 2023-09 Figure 586149C 586149C 2023-09 → — Figure 586049D 586049D 2016-08 → 2023-09 Figure 586049D 586049D 2023-09 → — Figure 5891INA 5891INA 2023-09 → — Figure 5891C0B 5891C0B 2023-09 → — Figure 5891N3A 5891N3A 2024-10 → — Figure 5891N4A 5891N4A 2024-10 → — Figure 586125B 586125B 2016-08 → — Figure 586126A 586126A 2016-08 → — Figure 586127A 586127A 2016-08 → — Figure 586128A 586128A 2016-08 → — Figure 586129 586129 2016-08 → — Figure 586129 586129 2016-08 → — Figure 586130 586130 2016-08 → — Figure 586131 586131 2016-08 → — Figure 586132 586132 2016-08 → — Figure 586135 586135 2016-08 → — Figure 586133 586133 2016-08 → — Figure 586134 586134 2016-08 → — Figure 5891MI 5891MI 2023-09 → — Figure 5891MJ 5891MJ 2023-09 → — Figure 5891ML 5891ML 2023-09 → — Figure 5891MM 5891MM 2023-09 → — Figure 5891MN 5891MN 2023-09 → — Figure 5891MO 5891MO 2023-09 → — Figure 5891MP 5891MP 2023-09 → — Figure 5891MQ 5891MQ 2023-09 → —

Part groups

PNCDescription
51077A Bracket Sub-assy, Side Step, NO.2, RH
51077B Bracket Sub-assy, Side Step, NO.2, LH
51078A Bracket Sub-assy, Side Step, NO.3, RH
51078B Bracket Sub-assy, Side Step, NO.3, LH

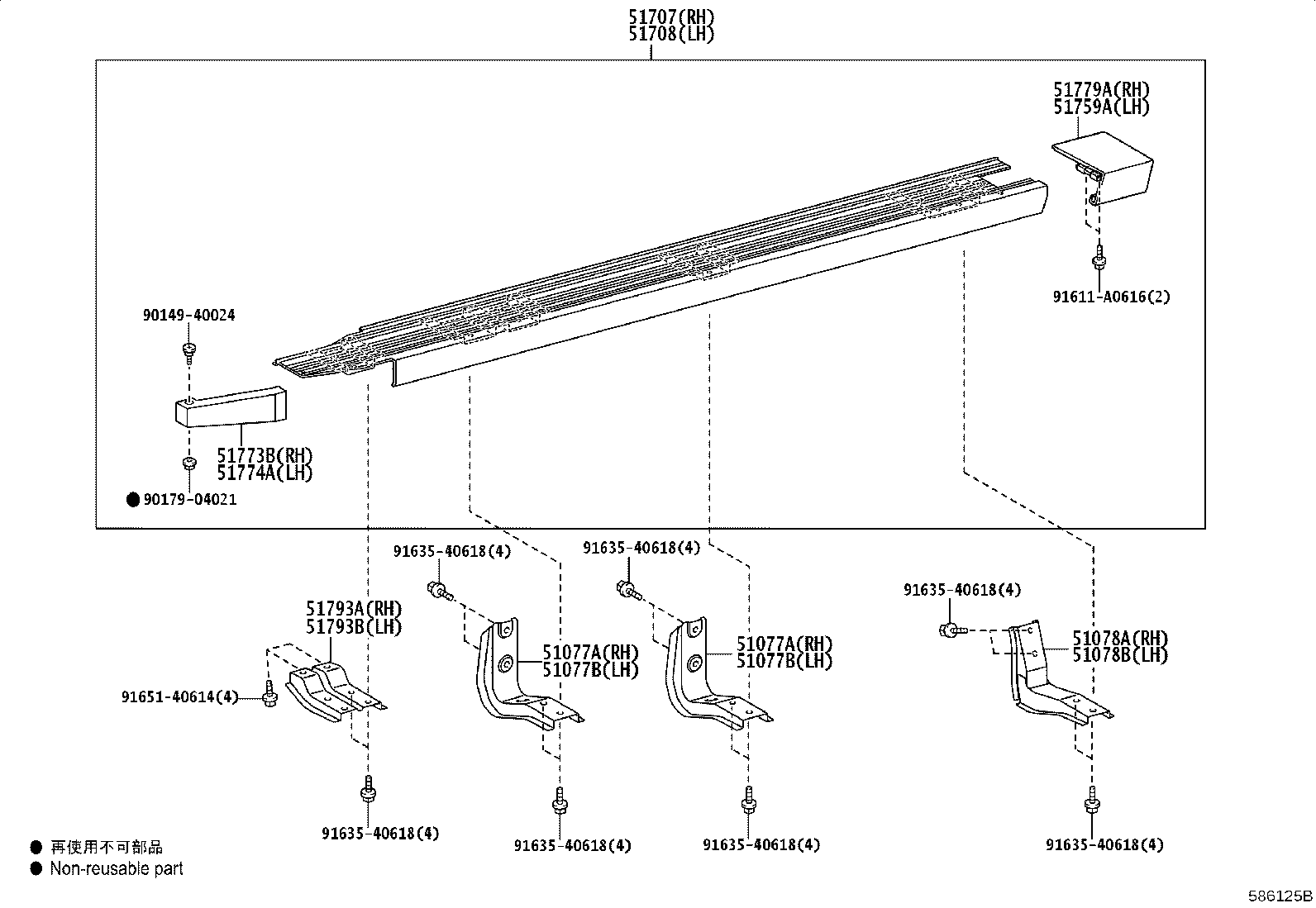

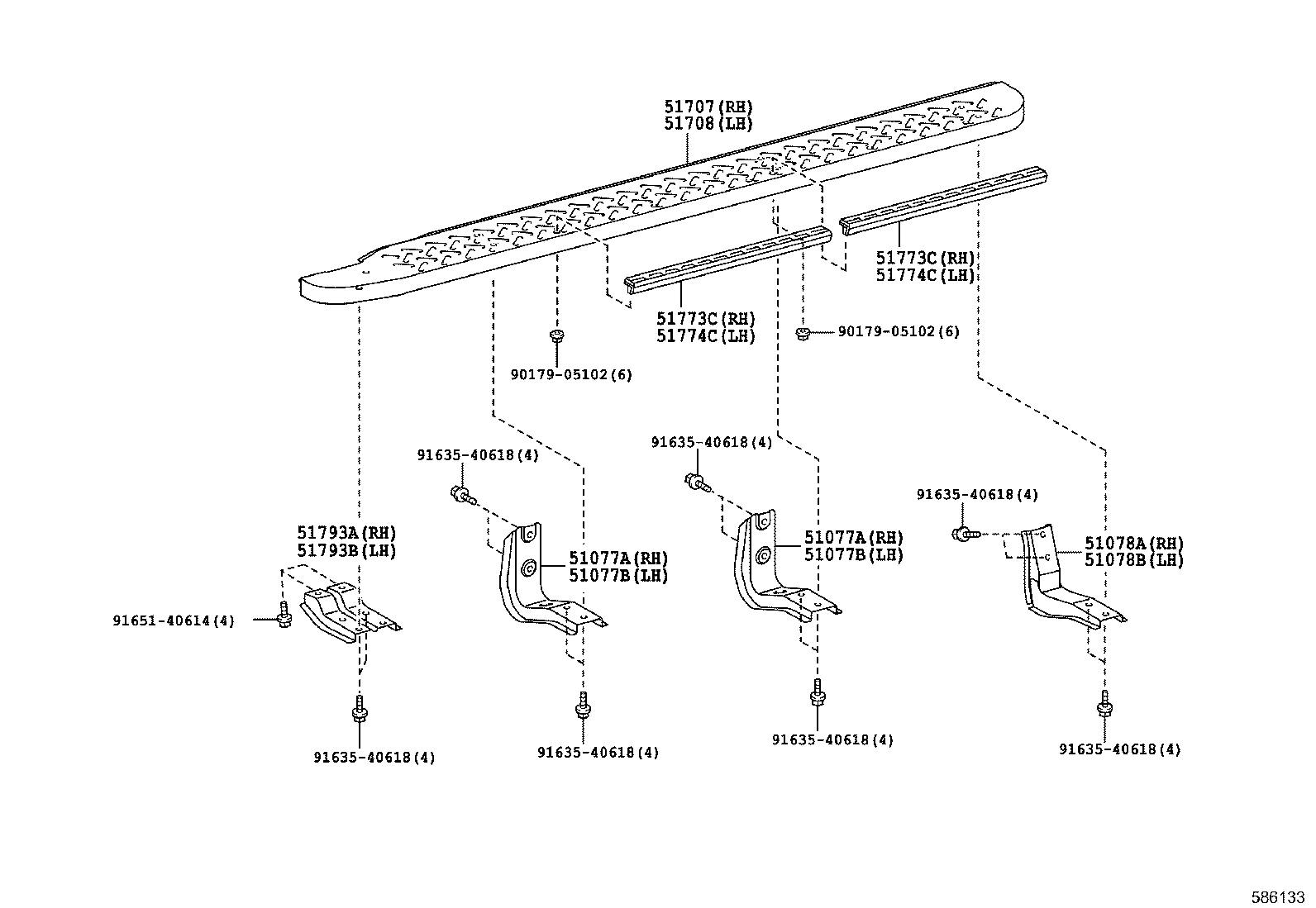

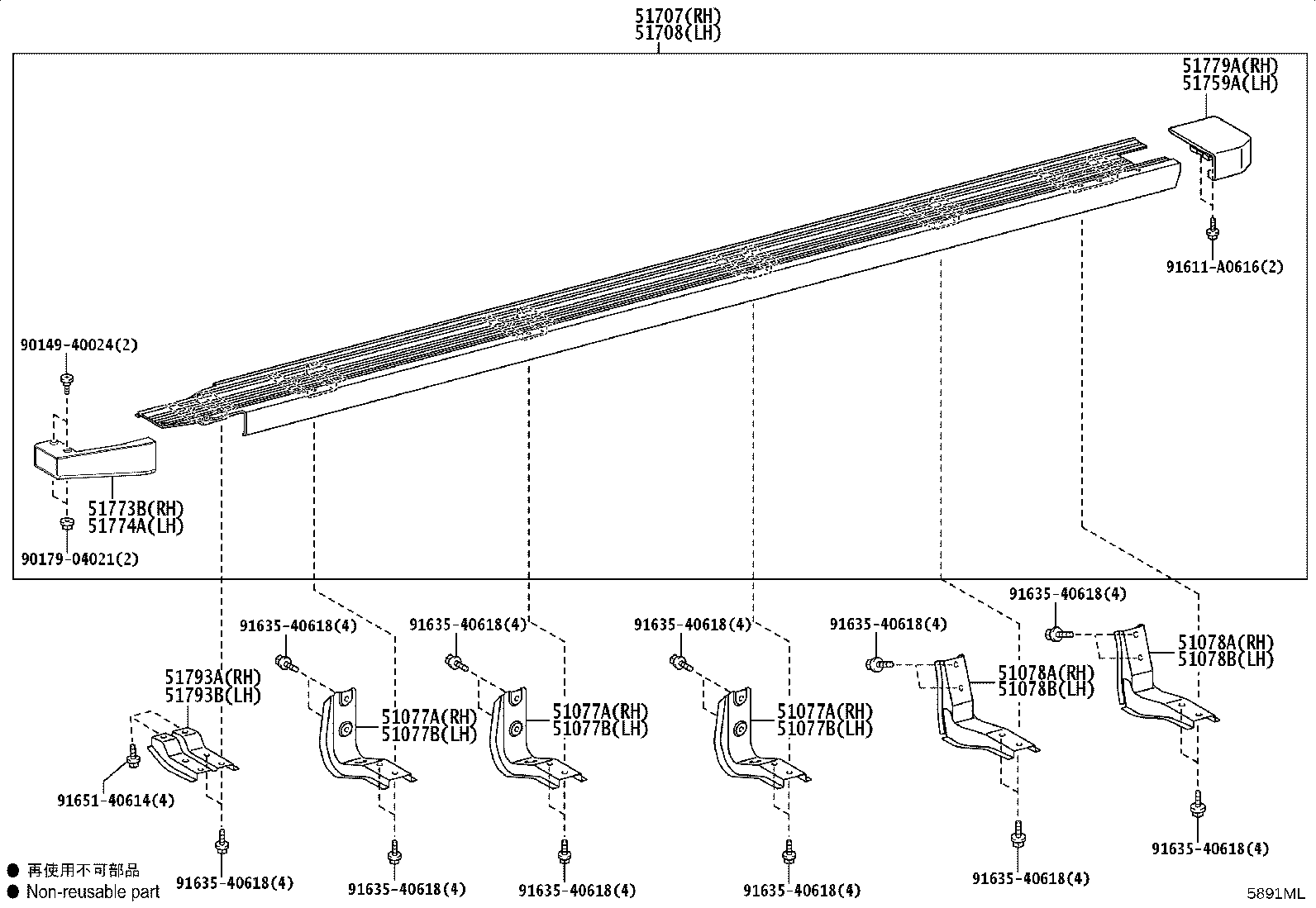

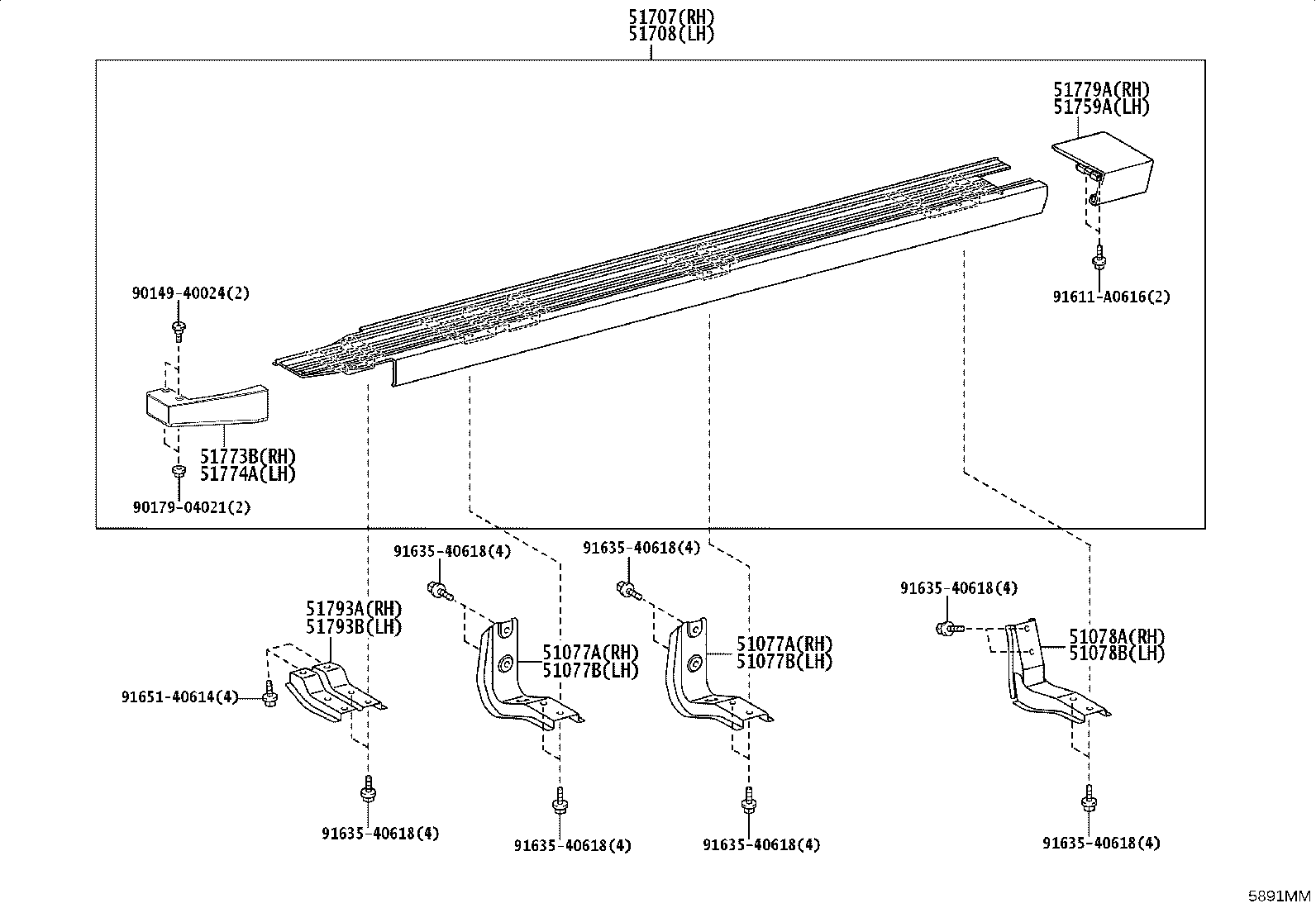

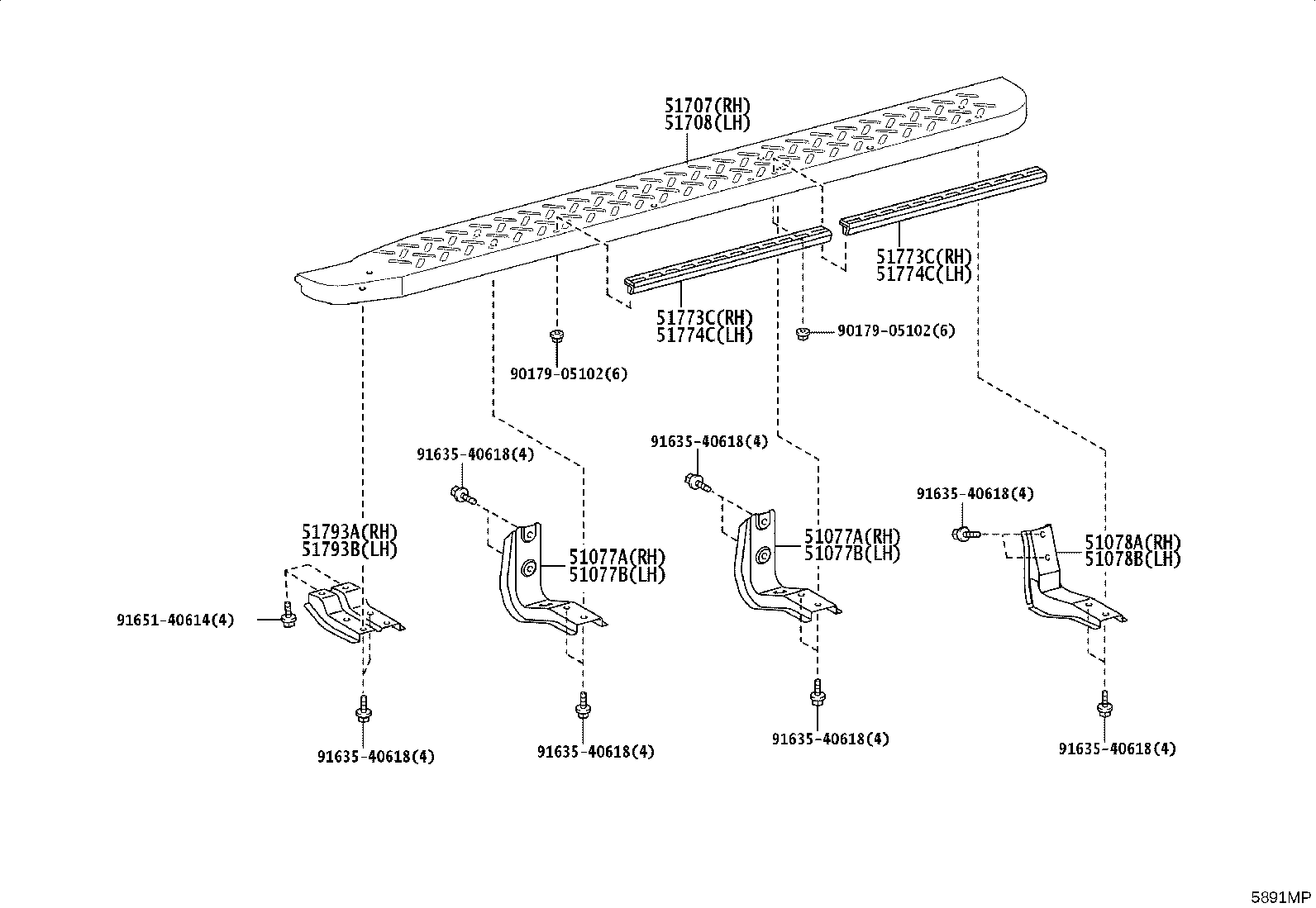

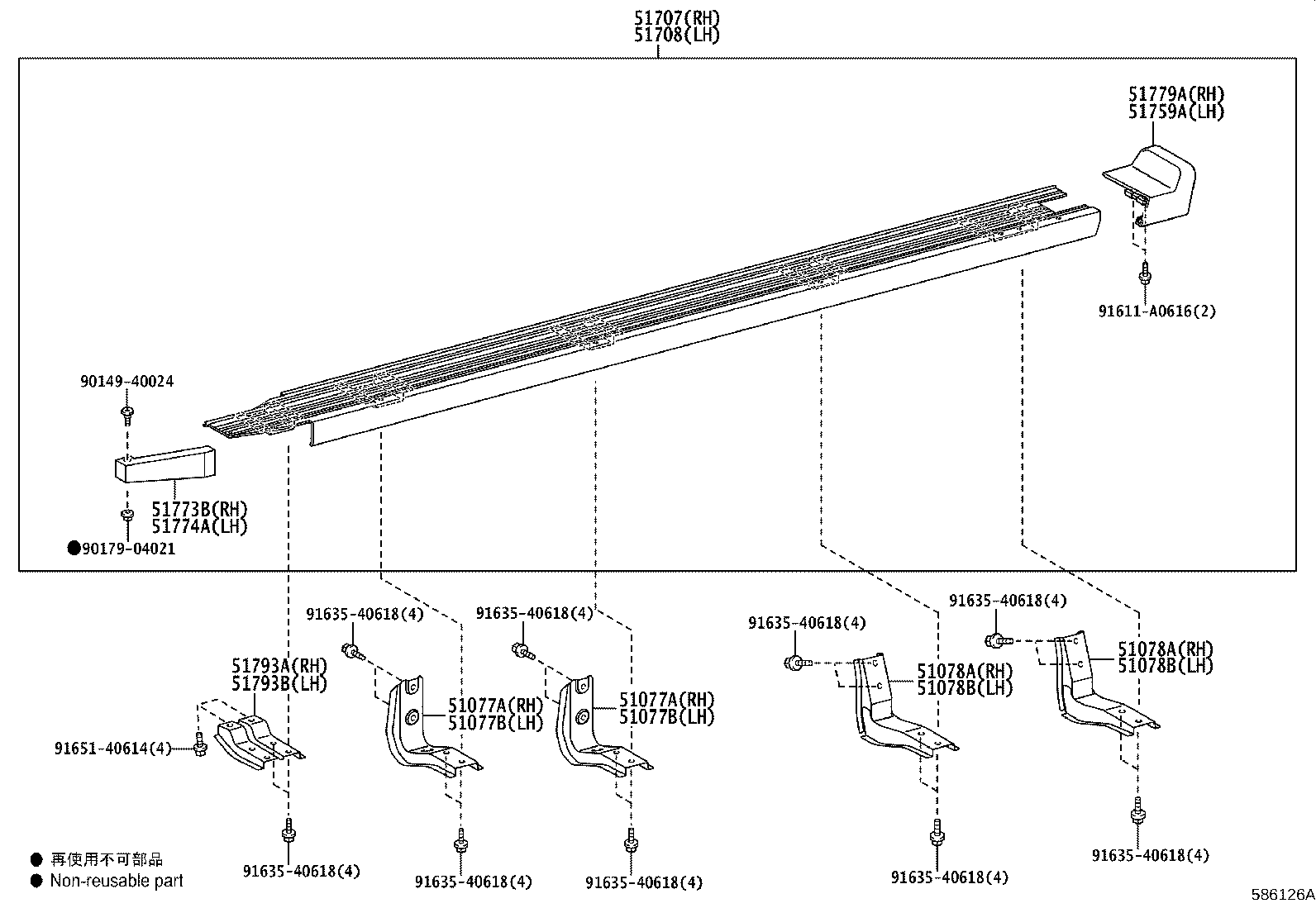

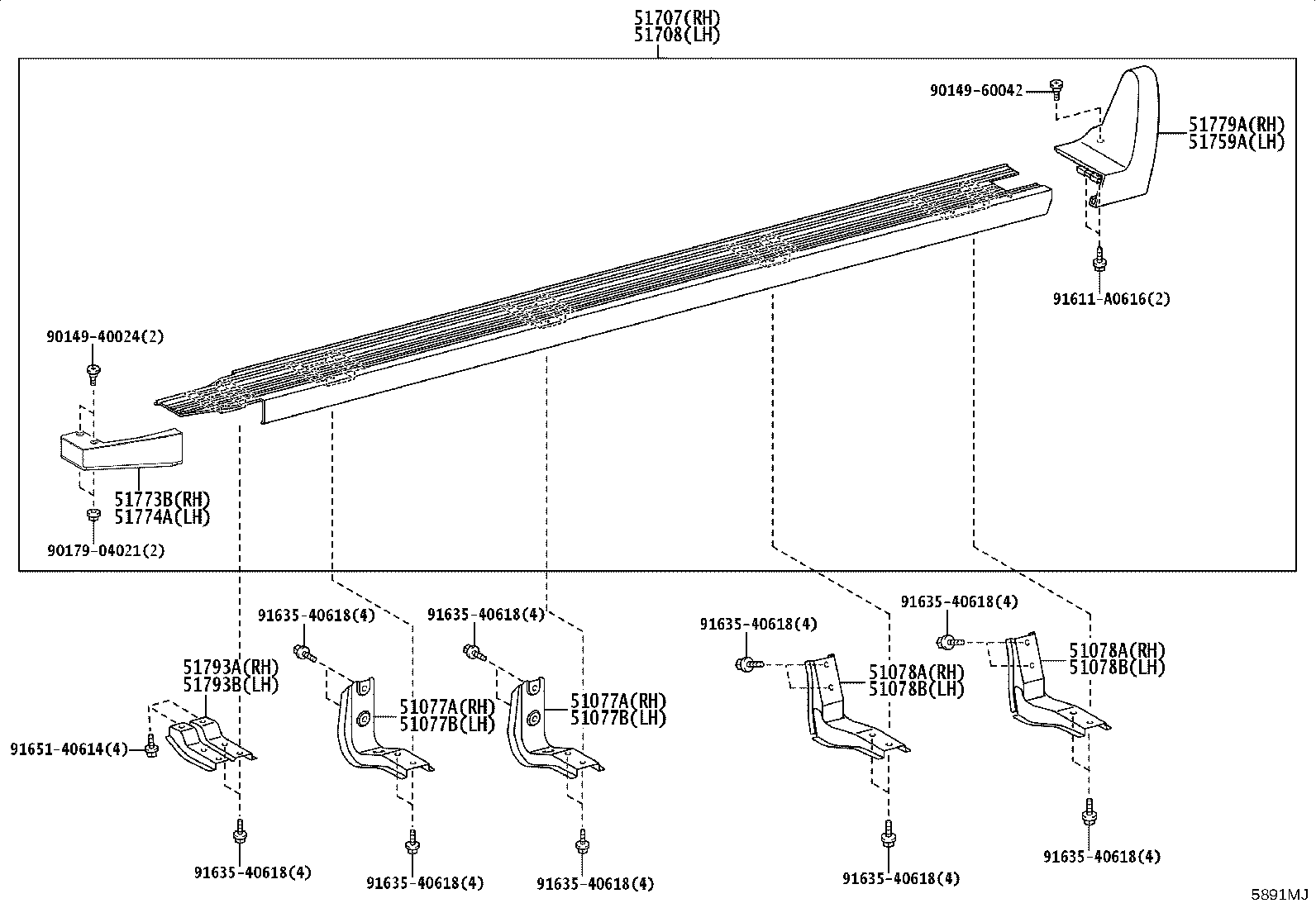

51707 Step Sub-assy, RH
51708 Step Sub-assy, LH
51759A Cover, Side Door Step Plate, Rear LH
51773B Cover, Side Door Step Plate, Front RH
51773C Cover, Step Plate, RH
51774A Cover, Side Door Step Plate, Front LH
51774C Cover, Step Plate, LH
51779A Cover, Side Door Step Plate, Rear RH
51793A Bracket, Side Step, NO.1 RH
51793B Bracket, Side Step, NO.1, LH
51795A Bracket, Side Step, NO.2 RH
51796 Bracket, Side Step, NO.2 LH
51797 Bracket, Side Step, NO.3 RH
51798 Bracket, Side Step, NO.3 LH
57169E Reinforcement, Front Crossmember, NO.4
57427 Reinforcement, Front Floor TO Brace
57457B Bracket, Front Seat, Front
57465B Bracket, Front Seat, Inner
57468C Bracket, Front Seat, Outside, RH
57469B Bracket, Front Seat, Outside LH
57511 Reinforcement, Front Floor, Center
57512 Reinforcement, Front Floor, RH
57513 Reinforcement, Front Floor, LH
57608C Bracket Sub-assy, Fuel Tank Mounting
57652D Member, Rear Floor Cross, NO.1
58011 Panel Sub-assy, Front Floor Side, RH
58012 Panel Sub-assy, Front Floor Side, LH
58041A Insulator Sub-assy, Front Floor Heat, NO.1
58102A Reinforcement Sub-assy, Front Floor
58111 Pan, Front Floor
58113A Panel, Front Floor, Center
58123A Support, Shift & Select Lever
58123G Support, Shift & Select Lever, NO.2
58128 Plate, Front Floor, NO.1
58129 Plate, Front Floor, NO.2
58131A Bracket, Front Floor Heat Insulator, NO.1
58132A Bracket, Front Floor Heat Insulator, NO.2
58133B Bracket, Front Floor Heat Insulator, NO.3
58134A Bracket, Front Floor Heat Insulator, NO.4
58137D Bracket, Front Floor Housing, Front RH
58138 Bracket, Front Floor Heat Insulator, NO.4
58138A Bracket, Front Floor Housing, Rear RH
58145C Retainer, Front Floor Heat Insulator Support, NO.1
58147 Bracket, Front Floor Housing, Front LH
58148 Bracket, Front Floor Housing, Rear LH
58169A Retainer, Rear Heater Mounting
58171 Reinforcement, Parking Brake Base
58181A Retainer, Seat Rail, Front
58183C Bracket, Front Seat Mounting, Inside RH
58183D Bracket, Front Seat Mounting, Inside LH
58191 Footrest, Front Floor
58193A Bracket, Fuel Pipe
58198 Clip, Footrest
58198A Clip, Footrest, NO.1
58264B Bracket, Parking Brake Cable Guide
58286 Boot, Shift & Select Lever, NO.1
58367B Bracket, Fuel Tube
58379D Bracket, Heater Hose Clamp
58994A Bracket, Console Box Mounting, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
