Rear Floor Panel & Rear Floor Member

73 part groups · 11 illustrations

Illustrations

582936G 2007-01 → —

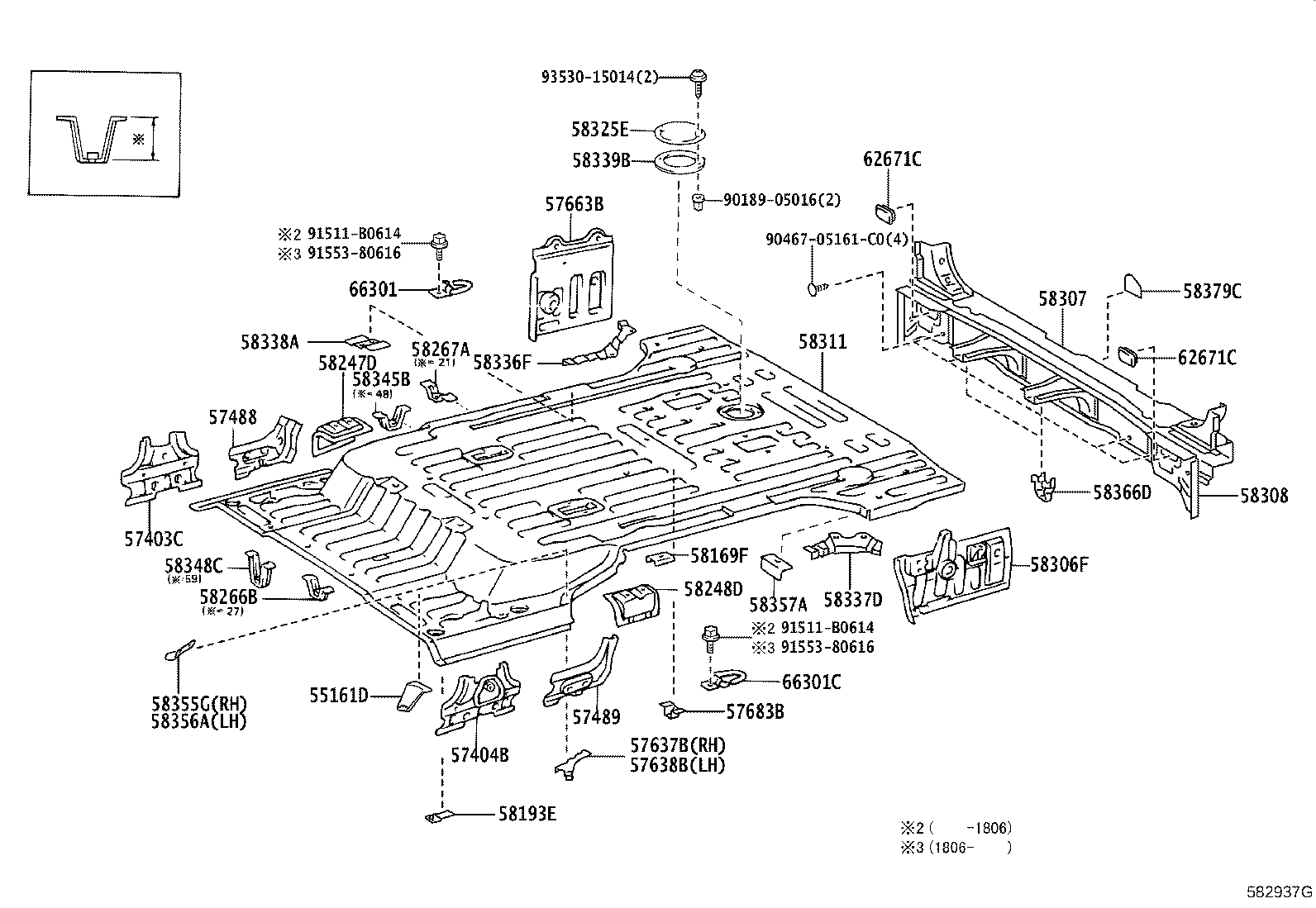

582937G 2007-01 → 2023-09

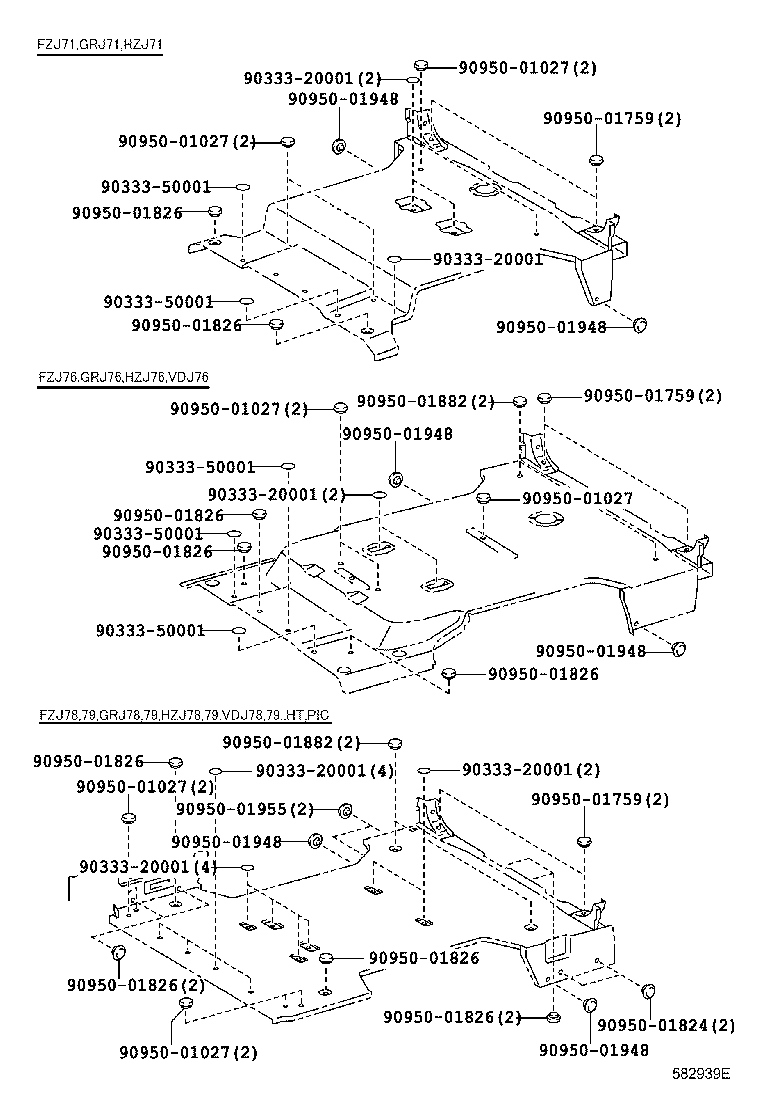

582939E 2007-01 → 2016-08

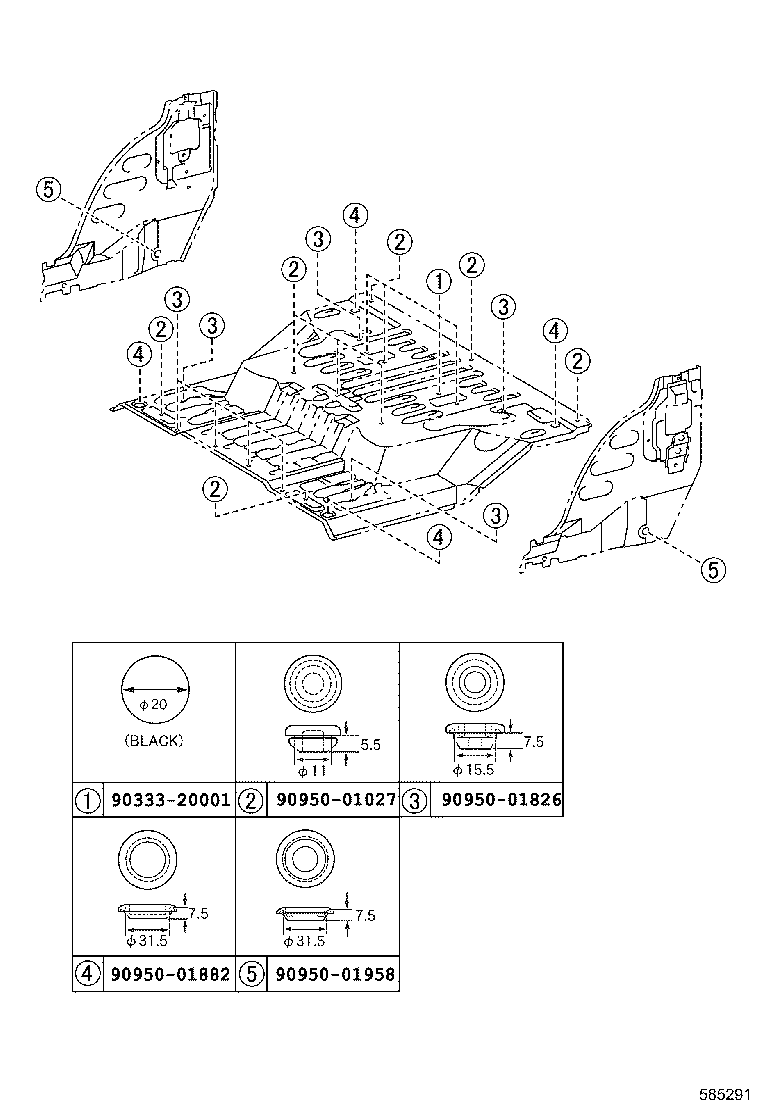

585291 2012-08 → 2016-08

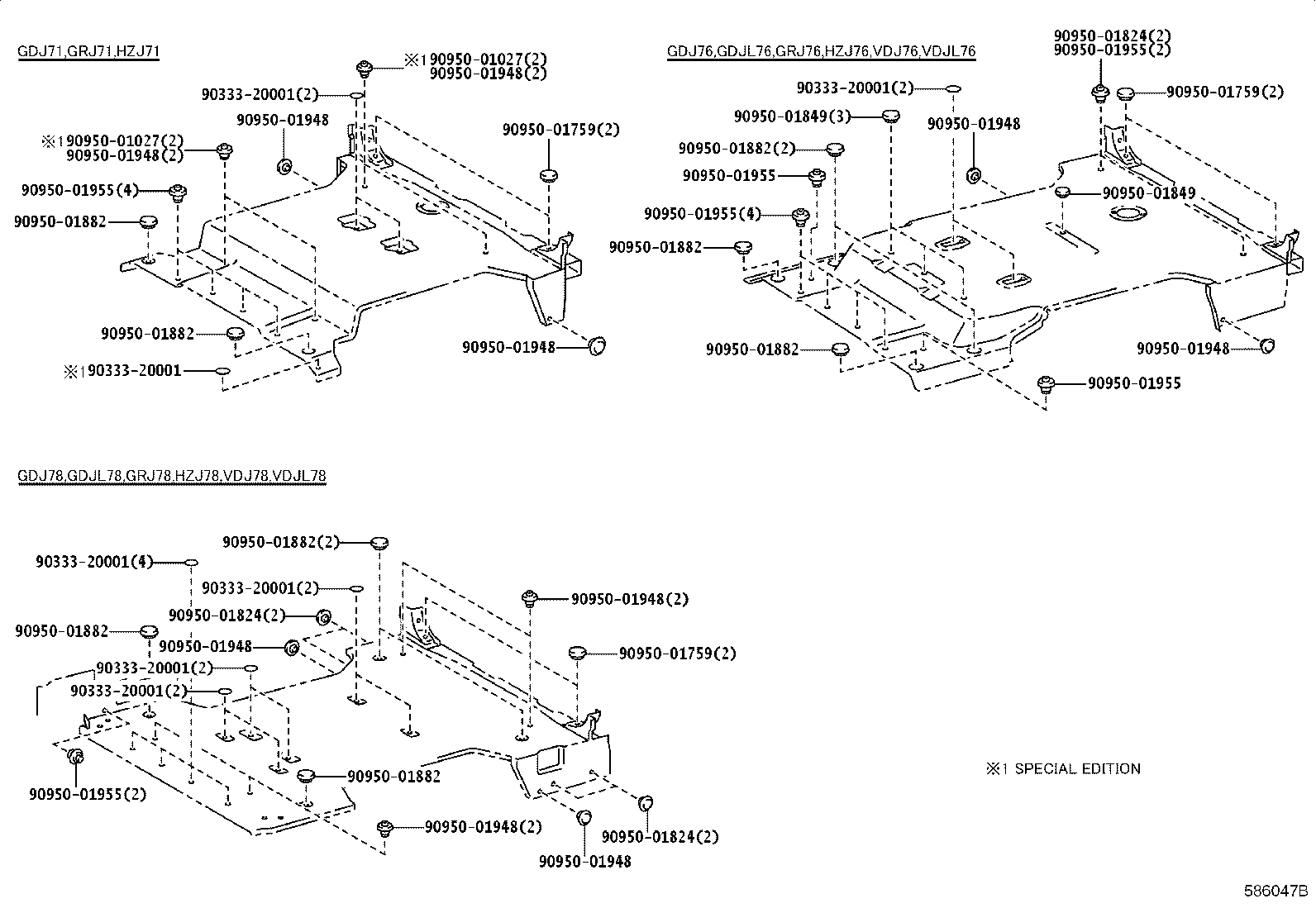

586047B 2016-08 → —

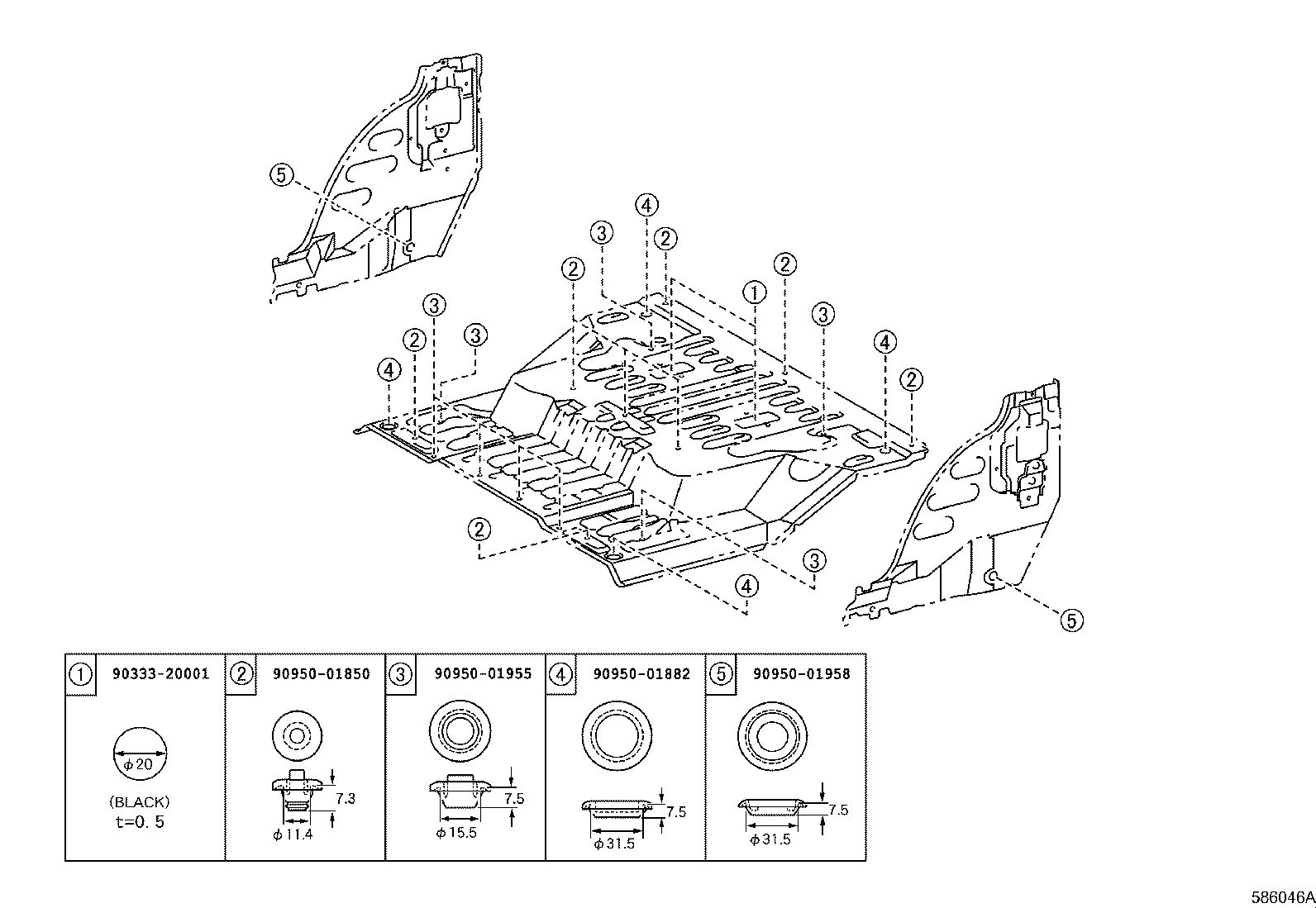

586046A 2016-08 → —

586044B 2016-08 → —

Part groups

PNC	Description
55161D	Bracket, Heater Mounting, RH
57023A	Member Sub-assy, Rear Side, RH
57024A	Member Sub-assy, Rear Side, LH
57403C	Reinforce Sub-assy, Floor Side, Inner RH
57404B	Reinforce Sub-assy, Floor Side, Inner LH
57488	Reinforcement, Floor Side Member, NO.2 RH
57489	Reinforcement, Floor Side Member, NO.2 LH
57627C	Cover, Rear Floor Side Member, RH
57628C	Cover, Rear Floor Side Member, LH
57637B	Reinforcement, Rear Floor Side Member, Center RH
57638B	Reinforcement, Rear Floor Side Member, Center LH
57648D	Reinforce, Rear Floor Side Member, Rear Upper RH
57649G	Reinforce, Rear Floor Side Member, Rear Upper LH
57659D	Bracket, Exhaust Pipe Mounting, NO.4
57659E	Bracket, Exhaust Pipe Mounting, NO.4 LH
57663B	Panel, Rear Floor Side, Rear RH
57664B	Panel, Rear Floor Side, Rear LH
57677B	Reinforcement, Rear Floor Crossmember, NO.6 RH
57678B	Reinforcement, Rear Floor Crossmember, NO.6 LH
57683B	Bracket, Fuel Tank Mounting, Front
57769	Gusset, Fuel Inlet Separator
57882	Reinforcement, Belt Anchor, NO.4
58011A	Panel Sub-assy, Floor Panel Side, RH
58012A	Panel Sub-assy, Floor Panel Side, LH
58037A	Retainer Sub-assy, Rear Floor Seat Lock
58133C	Bracket, Rear Floor Heat Insulator, NO.3
58169F	Retainer, Rear Heater Mounting
58181C	Retainer, Seat Rail, Front RH
58182D	Retainer, Seat Rail, Front LH
58193E	Bracket, Fuel Pipe
58247C	Reinforcement, Rear Seat Cushion Hinge, RH
58247D	Bracket, Rear Seat Hinge, Outer RH
58248C	Reinforcement, Rear Seat Cushion Hinge, LH
58248D	Bracket, Rear Seat Hinge, Outer LH
58266B	Bracket, Fuel Tube Clamp
58267A	Bracket, Fuel Tube Clamp, NO.2
58296C	Reinforcement, Belt Anchor, NO.1
58297K	Reinforcement, Seat Belt Anchor, NO.2
58301A	Panel Sub-assy, Rear Floor
58306F	Panel Sub-assy, Rear Floor Side, LH
58307	Panel Sub-assy, Body Lower Back
58308	Panel Sub-assy, Body Lower Back, Inner
58311	Pan, Rear Floor
58325E	Cover, Rear Floor Service Hole
58336B	Reinforcement, Rear Floor Pan
58336F	Reinforcement, Rear Floor Pan, RH
58337D	Reinforcement, Rear Floor Pan, LH
58338A	Reinforcement, Rear Floor Pan, NO.2
58339B	Packing, Rear Floor Service Hole
58345B	Bracket, Rear Floor Heat Insulator, NO.1
58346A	Bracket, Rear Floor Heat Insulator, NO.2
58346B	Bracket, Rear Floor Heat Insulator, NO.3
58348C	Bracket, Rear Floor Heat Insulator, NO.3
58355G	Reinforcement, Floor Side Plate, RH
58356A	Reinforcement, Floor Side Plate, LH
58357A	Reinforcement, Jack Carrier
58366D	Reinforcement, Fuel Tank Support, Rear
58379C	Protector, Body Lower Back
58387C	Plate, Rear Floor Finish
58793D	Bracket, Jack Carrier
61067G	Bracket Sub-assy, Rear Susp Bumper, RH
61068E	Bracket Sub-assy, Rear Susp Bumper, LH
61403F	Reinforce Sub-assy, Rocker, Outer RH
61404F	Reinforce Sub-assy, Rocker, Outer LH
62671C	Cover, Lower Back Panel
65557	Retainer, Rope Hook
66301	Hook Sub-assy, Rope
66301C	Hook Sub-assy, Rope, LH
74413F	Plate, Battery Bracket Set
74453C	Plate, Battery Carrier Set, Rear
76617	Mudguard, Lower Back Panel, Front RH
76618	Mudguard, Lower Back Panel, Front LH
76645G	Bracket, Quarter Panel Rear Mudguard

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
