Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

11 part groups · 22 illustrations

Illustrations

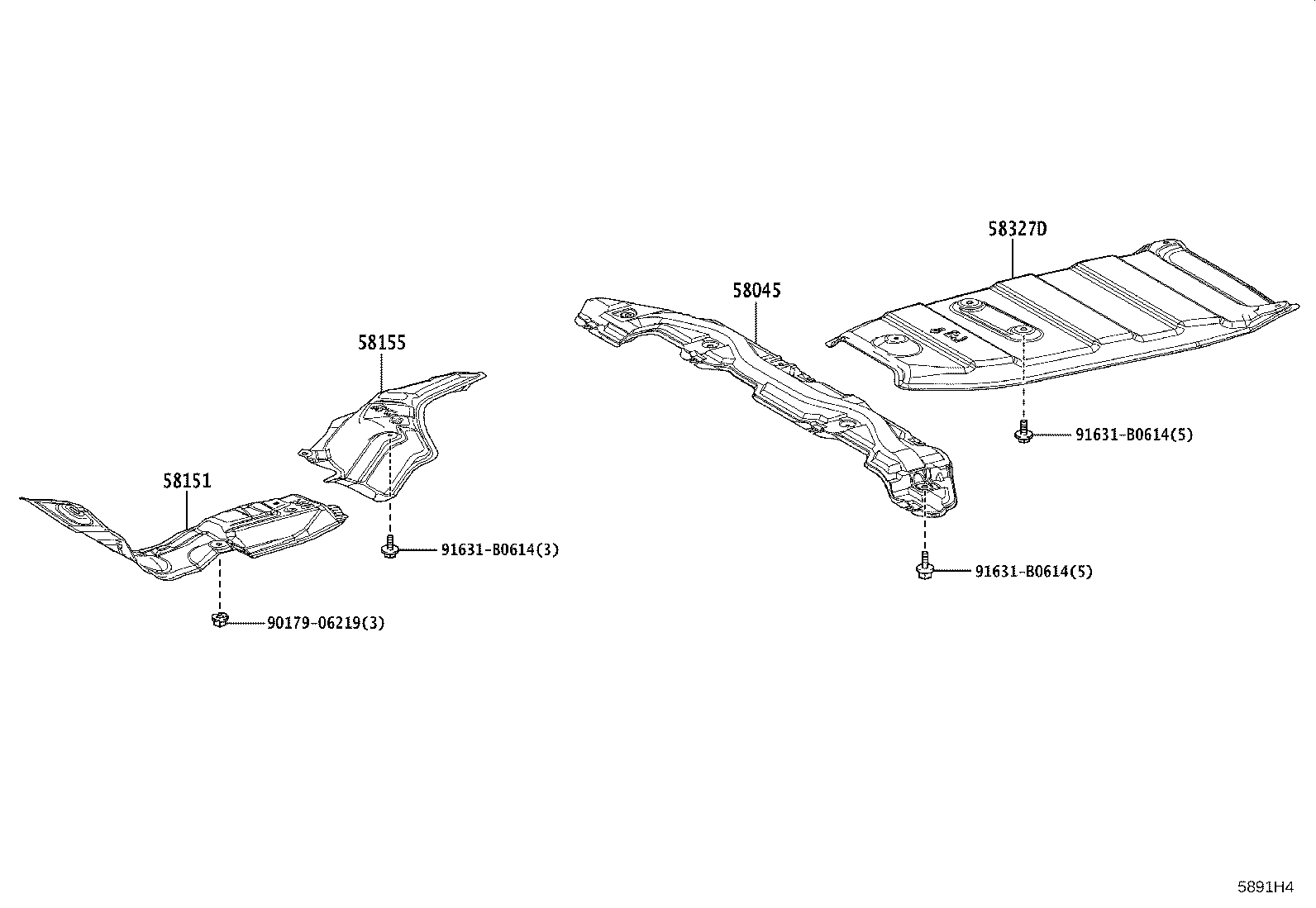

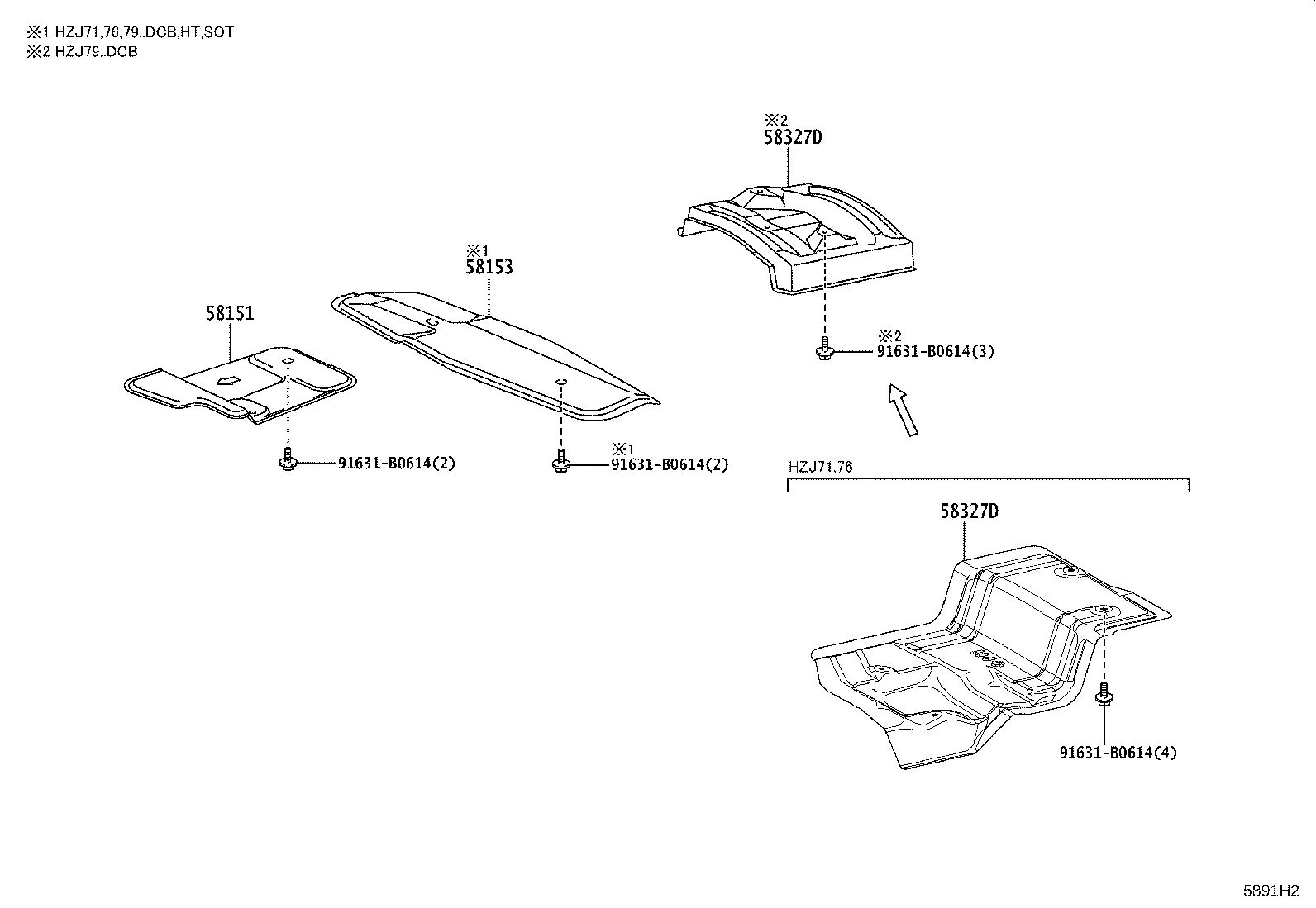

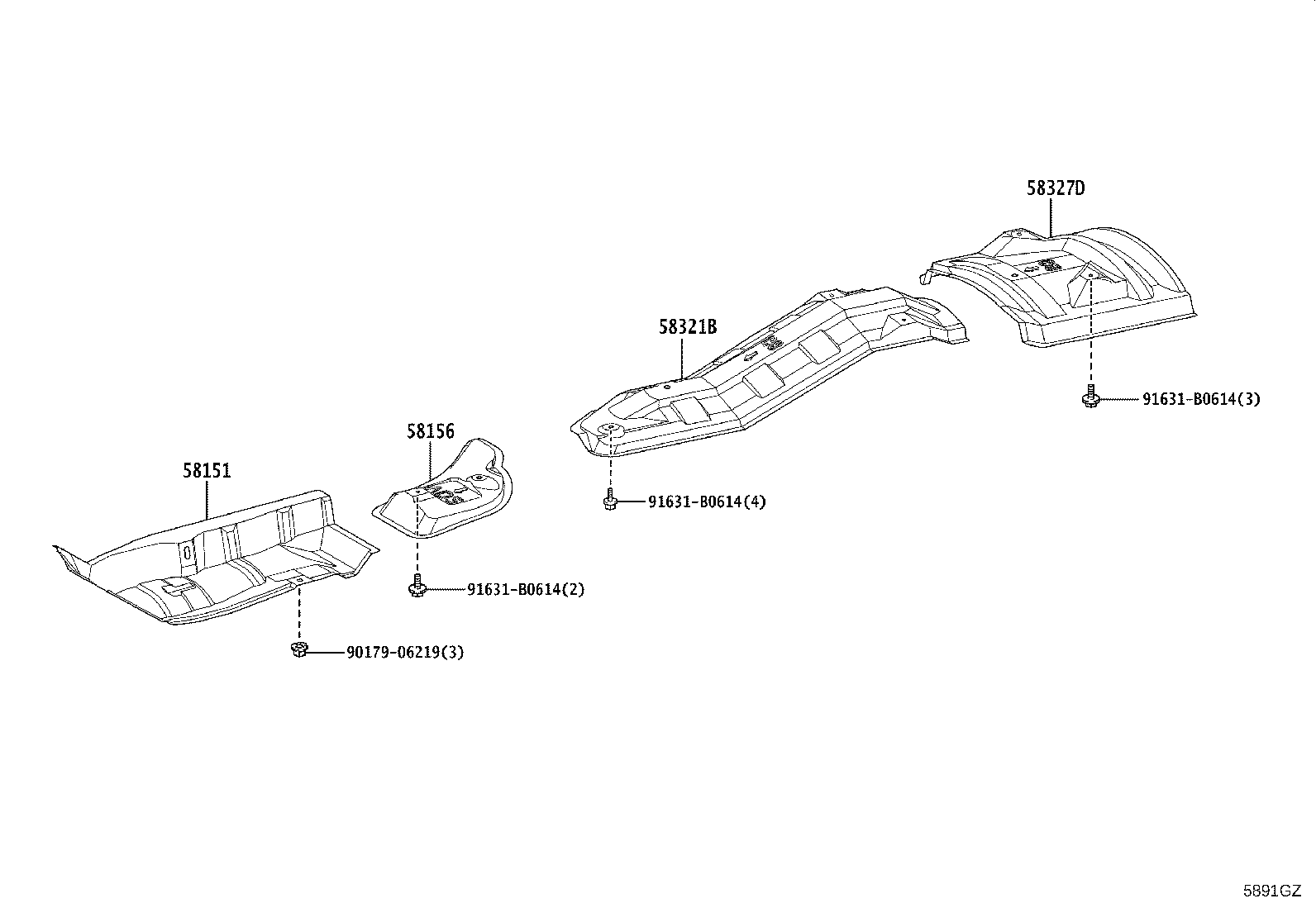

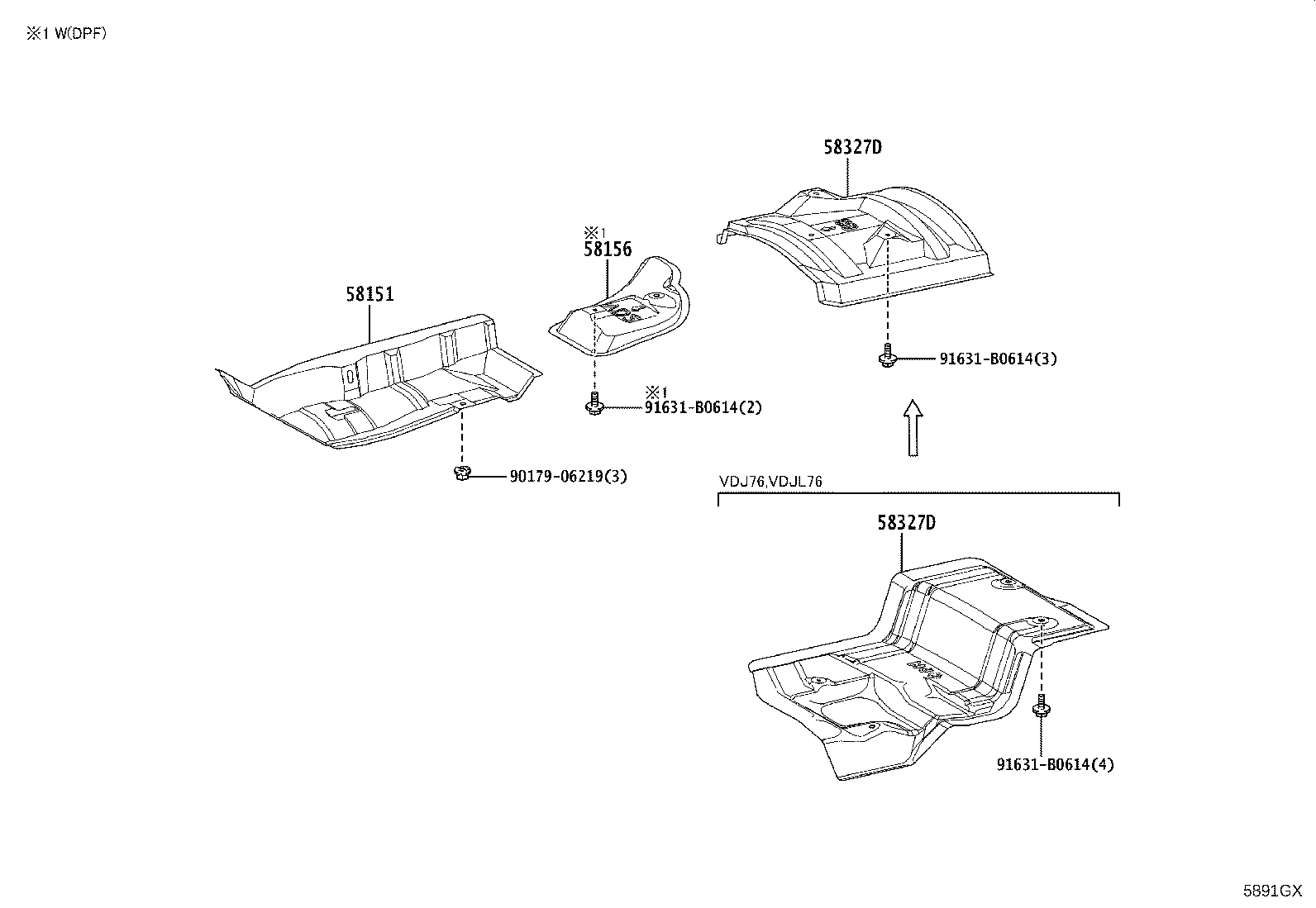

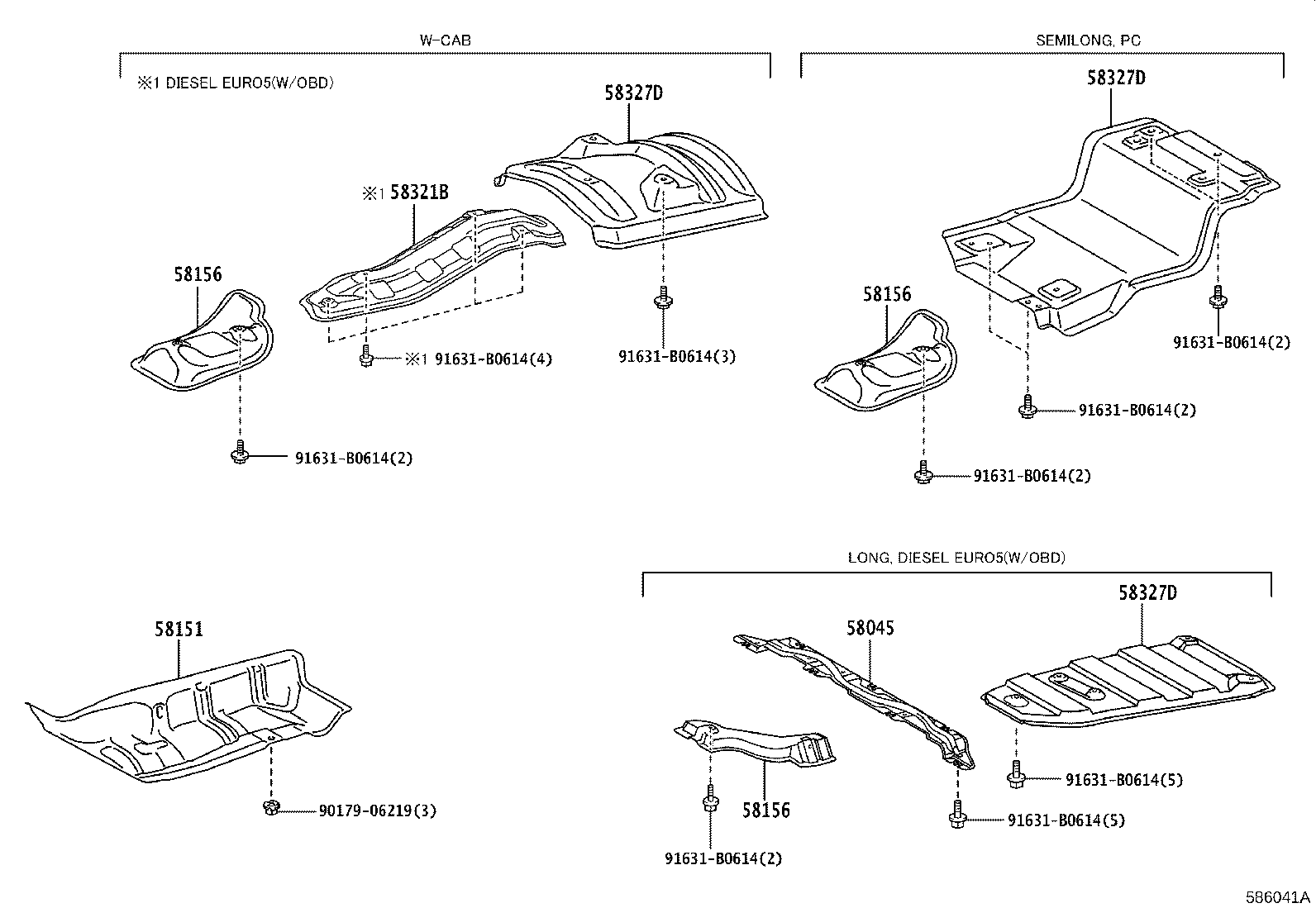

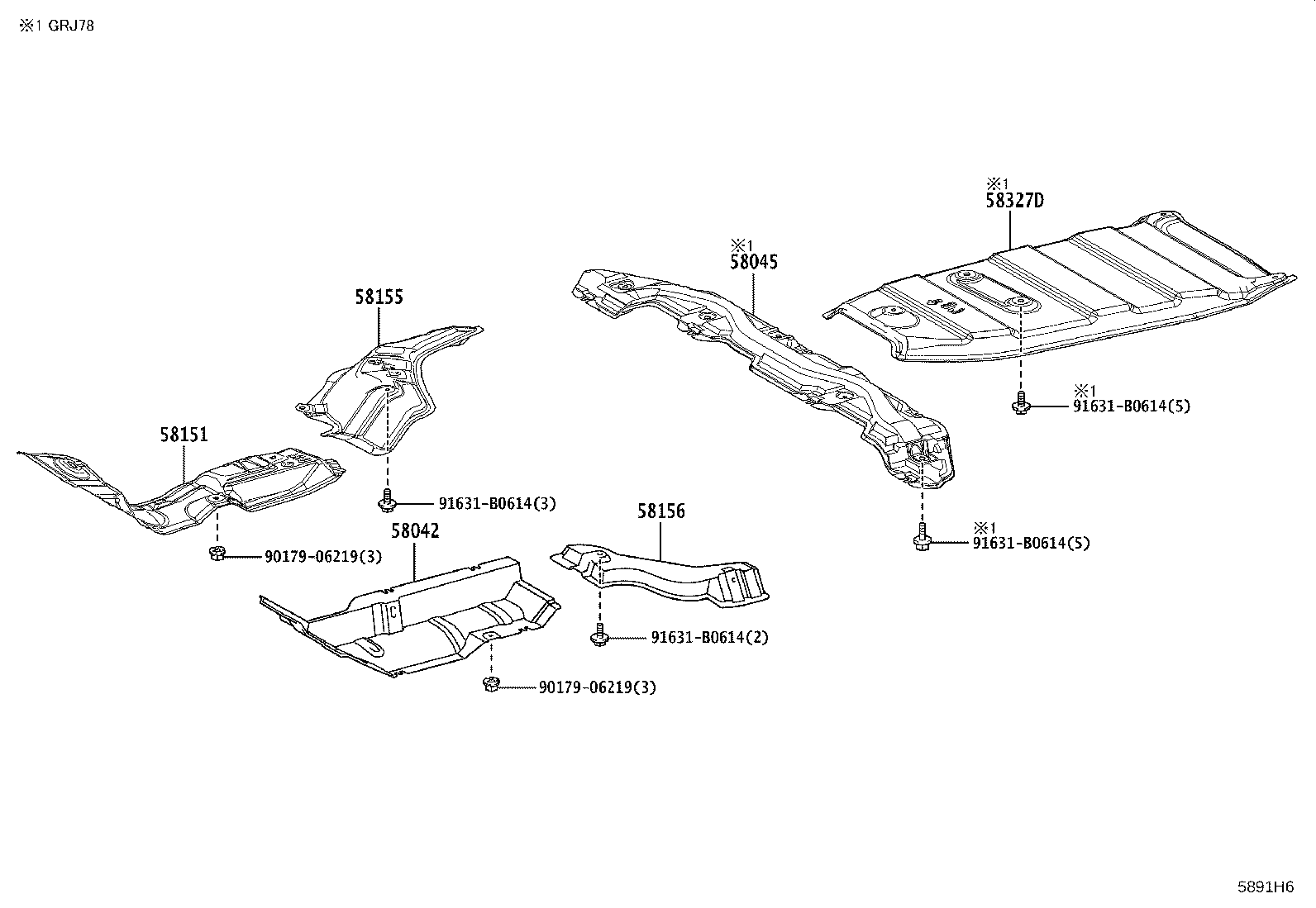

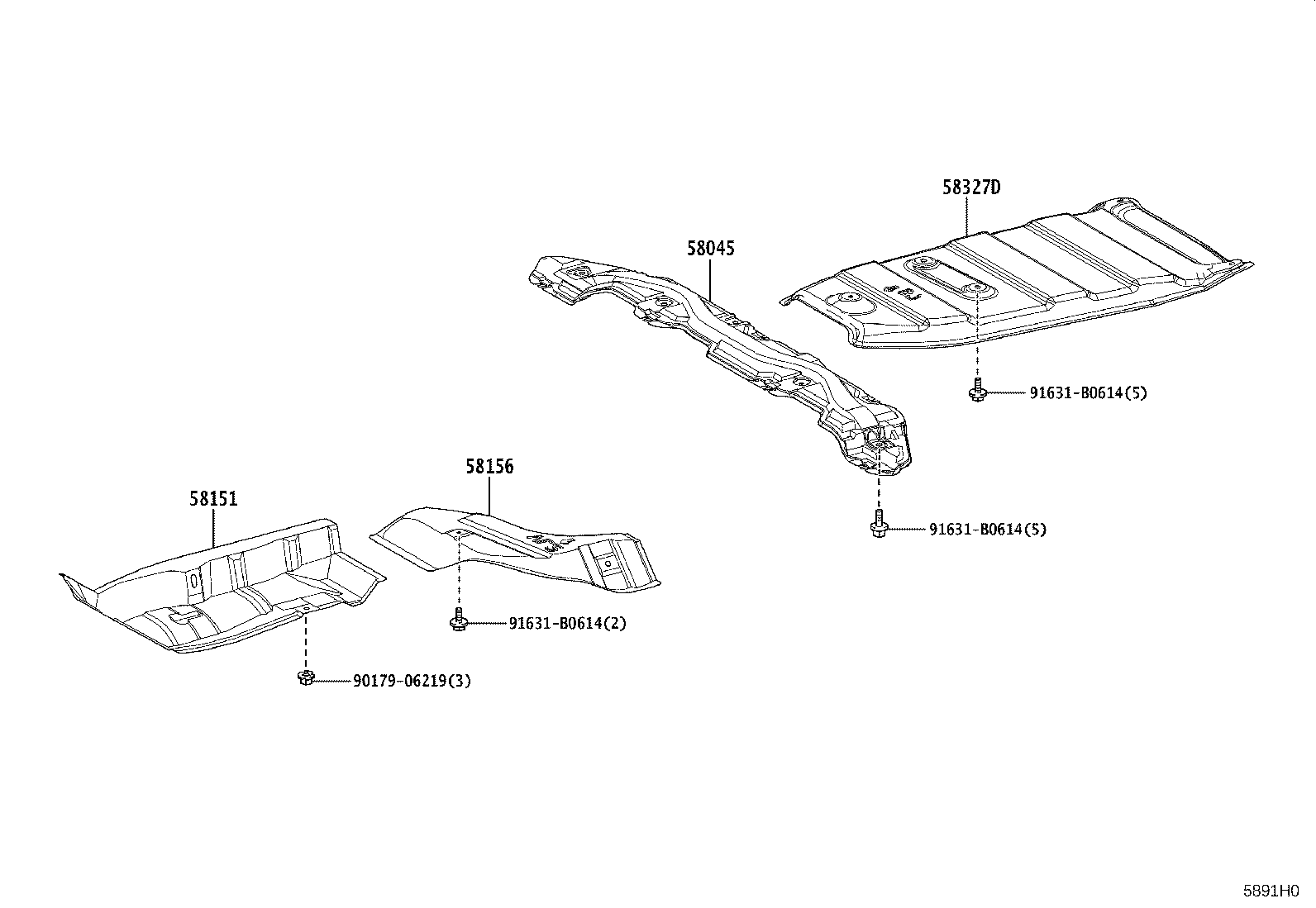

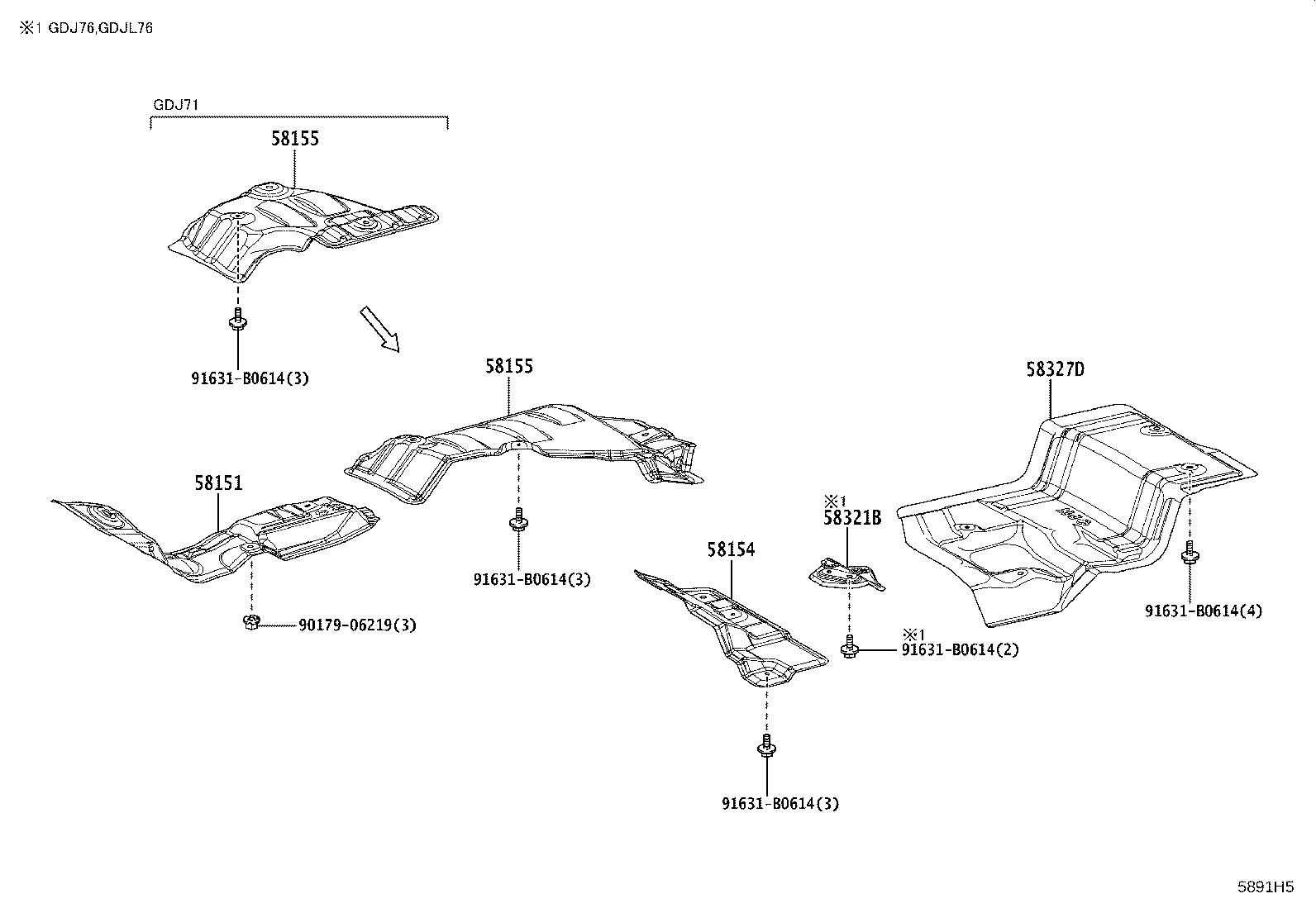

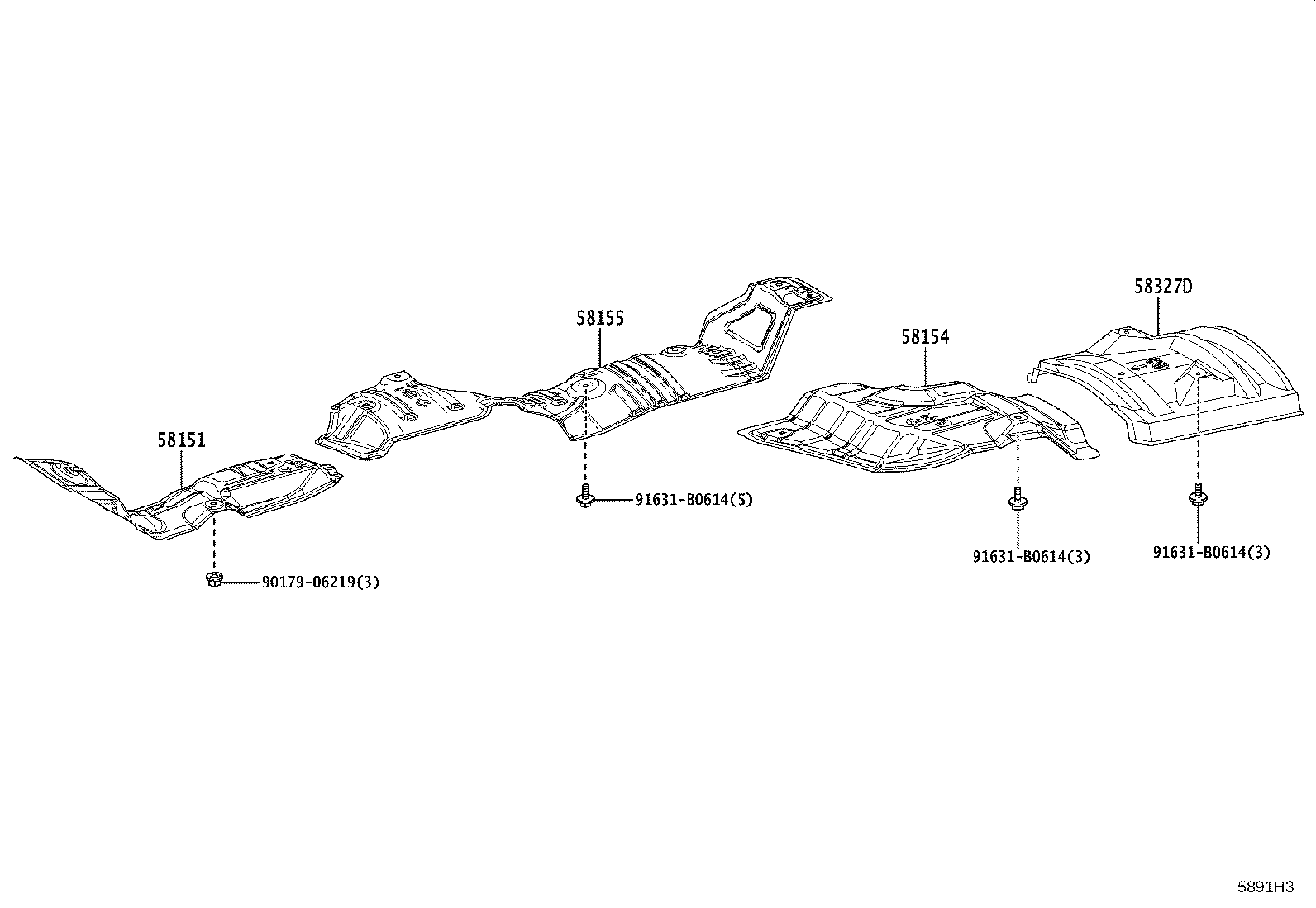

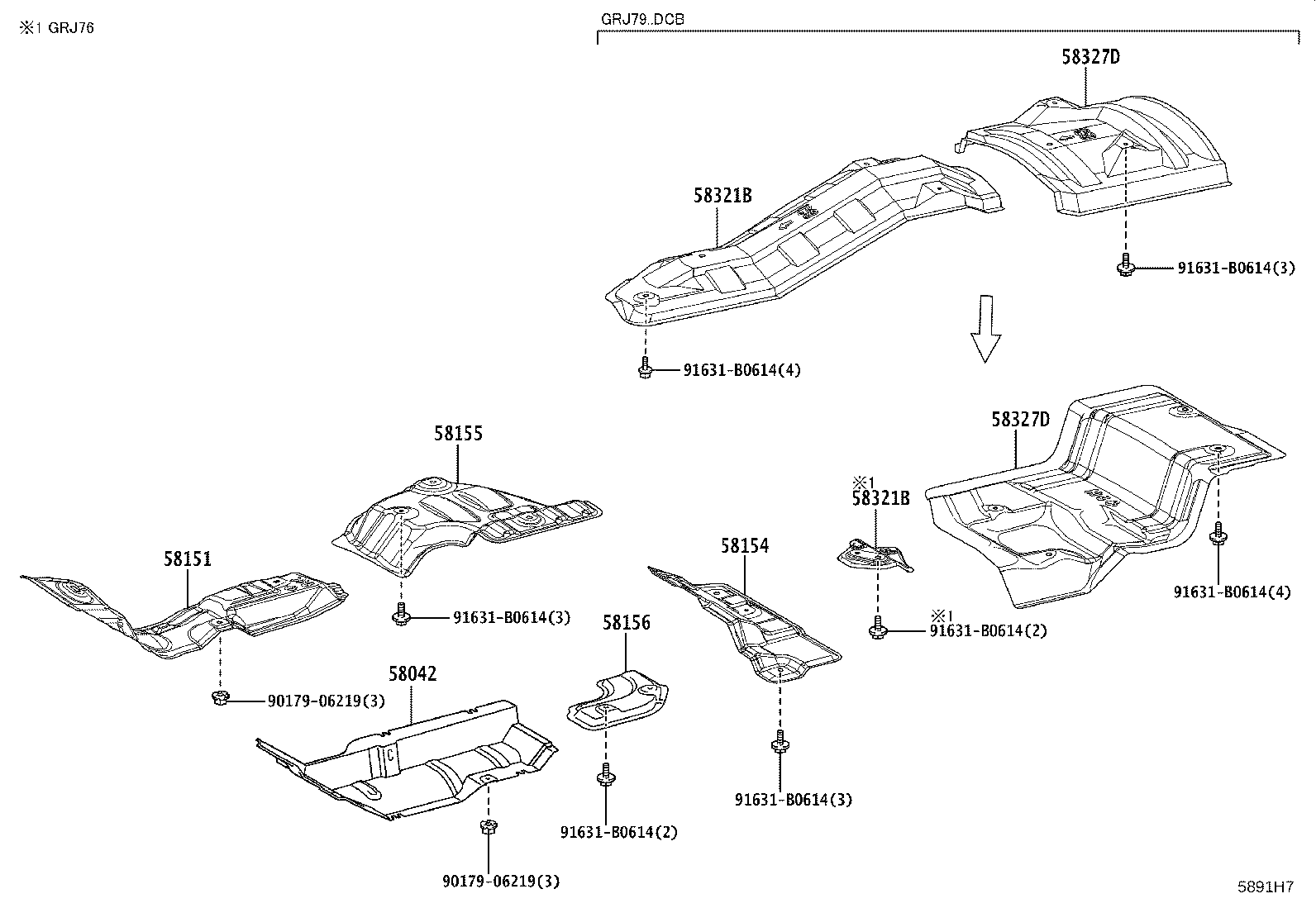

Figure 585261 585261 2007-01 → 2023-09 Figure 585262 585262 2009-07 → 2023-09 Figure 585263 585263 2009-07 → 2023-09 Figure 584647 584647 2012-08 → 2023-09 Figure 584648 584648 2012-08 → 2023-09 Figure 584649A 584649A 2012-08 → 2023-09 Figure 584649A 584649A 2016-08 → 2023-09 Figure 586041A 586041A 2016-08 → 2023-09 Figure 586042 586042 2016-08 → 2023-09 Figure 5891H5 5891H5 2023-09 → — Figure 5891H4 5891H4 2023-09 → 2025-09 Figure 5891H4 5891H4 2023-09 → — Figure 5891H3 5891H3 2023-09 → 2025-09 Figure 5891H3 5891H3 2023-09 → — Figure 5891H1 5891H1 2023-09 → — Figure 5891H7 5891H7 2023-09 → — Figure 5891H6 5891H6 2023-09 → — Figure 5891H2 5891H2 2023-09 → — Figure 5891GW 5891GW 2023-09 → — Figure 5891GX 5891GX 2023-09 → — Figure 5891H0 5891H0 2023-09 → — Figure 5891GZ 5891GZ 2023-09 → —

Part groups

PNCDescription
58041C Insulator Sub-assy, Front Floor Heat, NO.1
58042 Insulator Sub-assy, Front Floor Heat, NO.2
58043 Insulator Sub-assy, Main Muffler Heat, Rear
58045 Insulator Sub-assy, Rear Floor Heat
58151 Insulator, Front Floor Heat, NO.1
58153 Insulator, Front Floor Heat, NO.2
58154 Insulator, Front Floor Heat, NO.2 Lower
58155 Insulator, Front Floor Heat, NO.3
58156 Insulator, Front Floor Heat, NO.4
58321B Insulator, Rear Floor Heat, NO.1
58327D Insulator, Main Muffler Heat, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
