Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

20 part groups · 19 illustrations

Illustrations

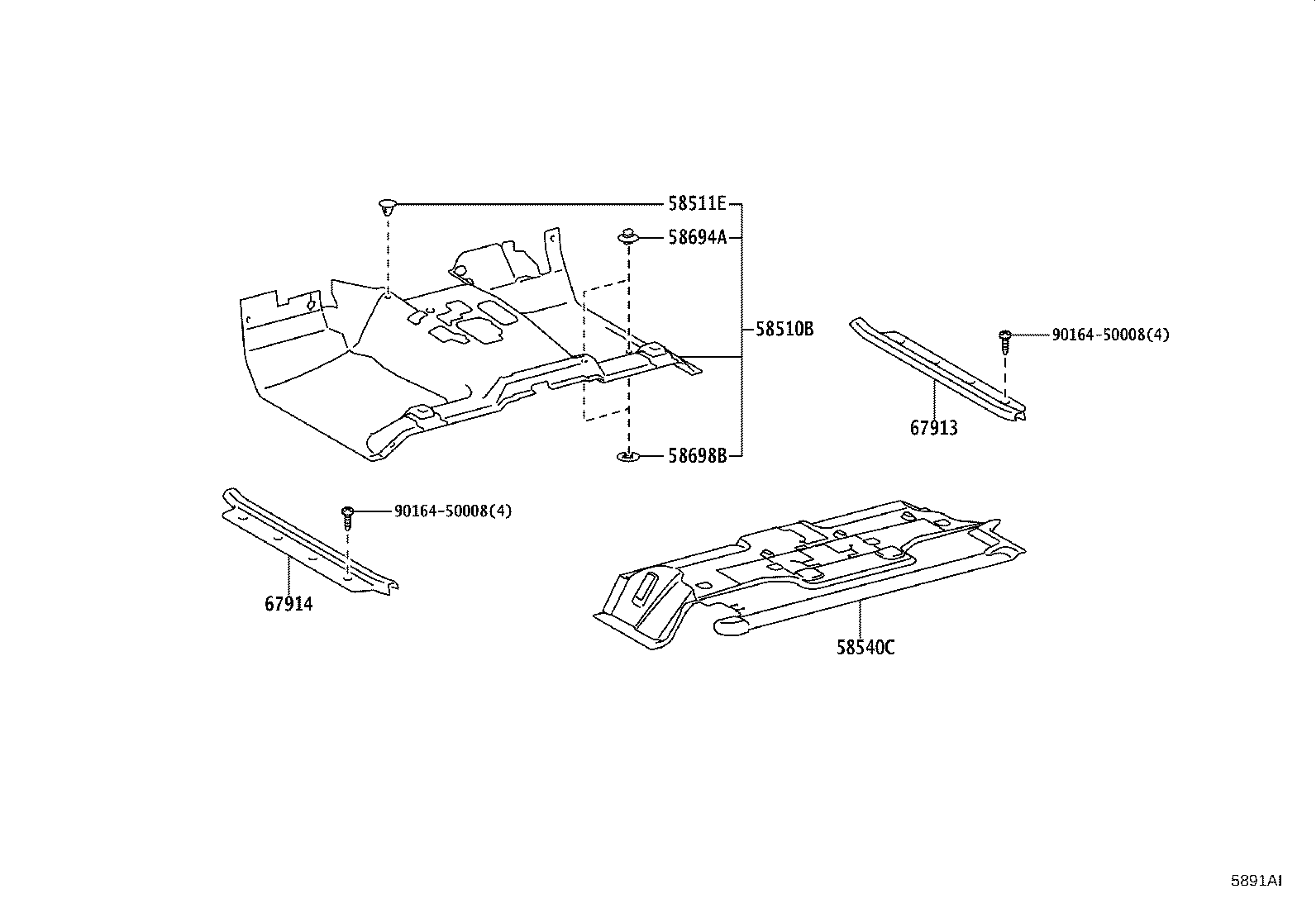

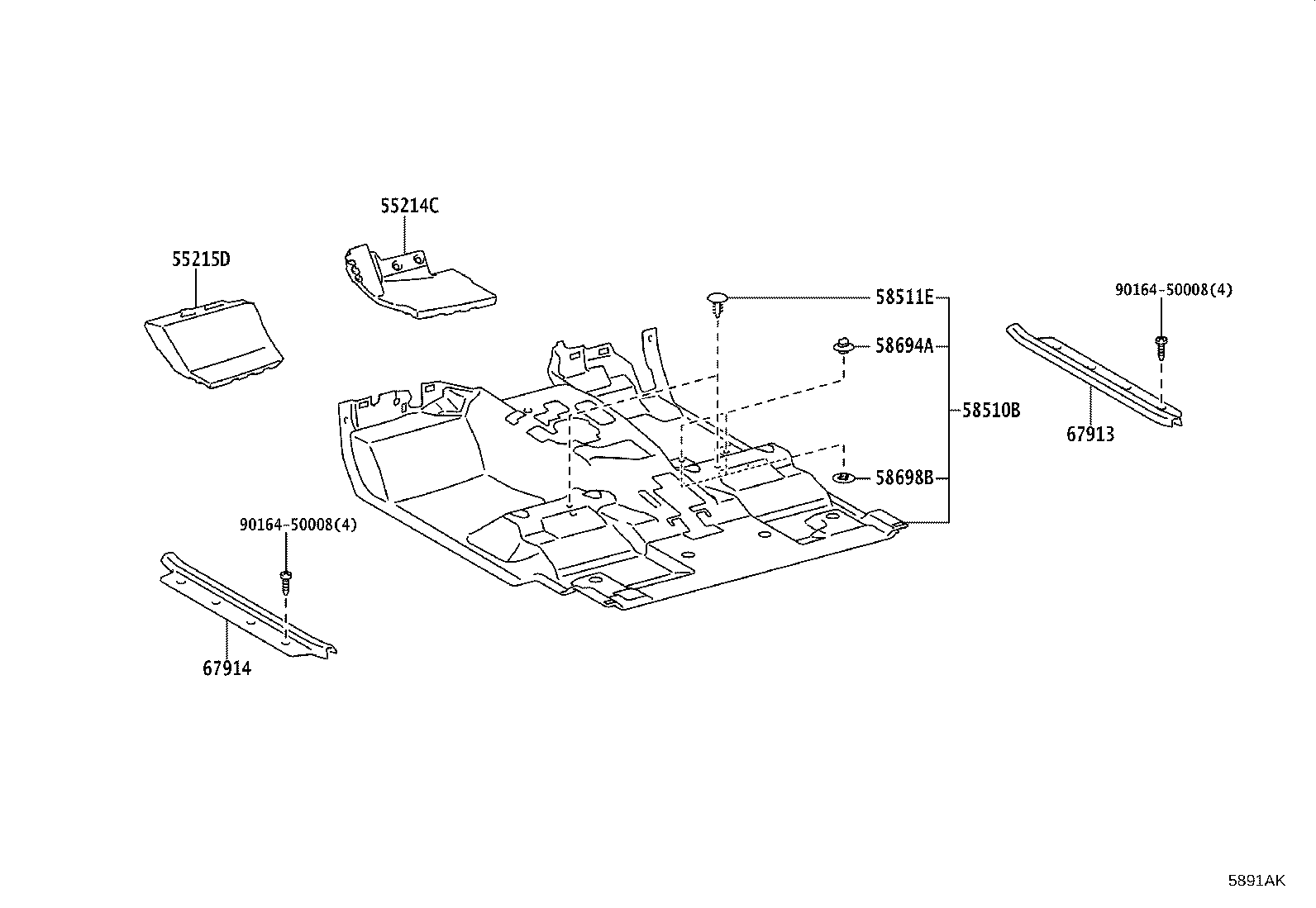

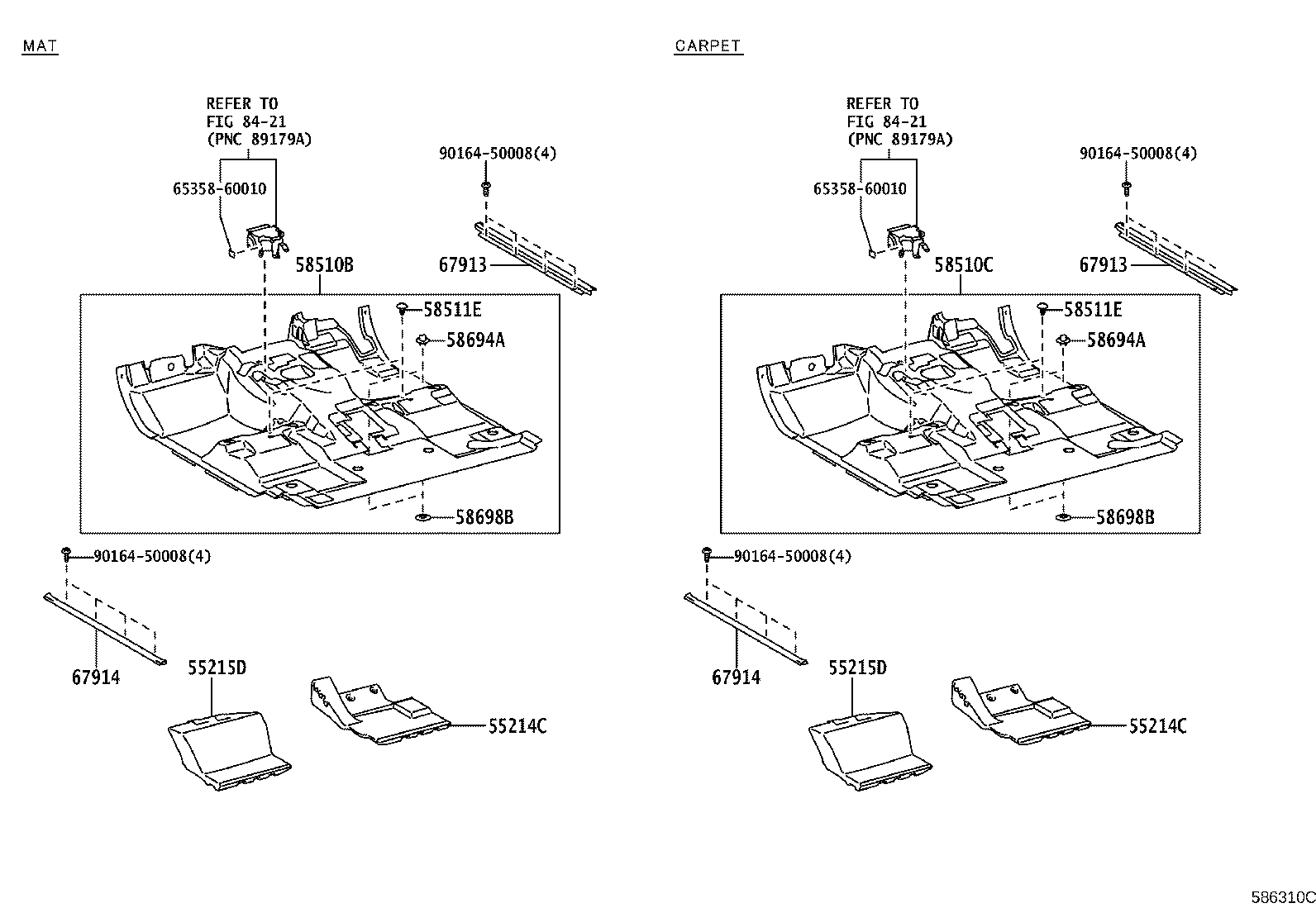

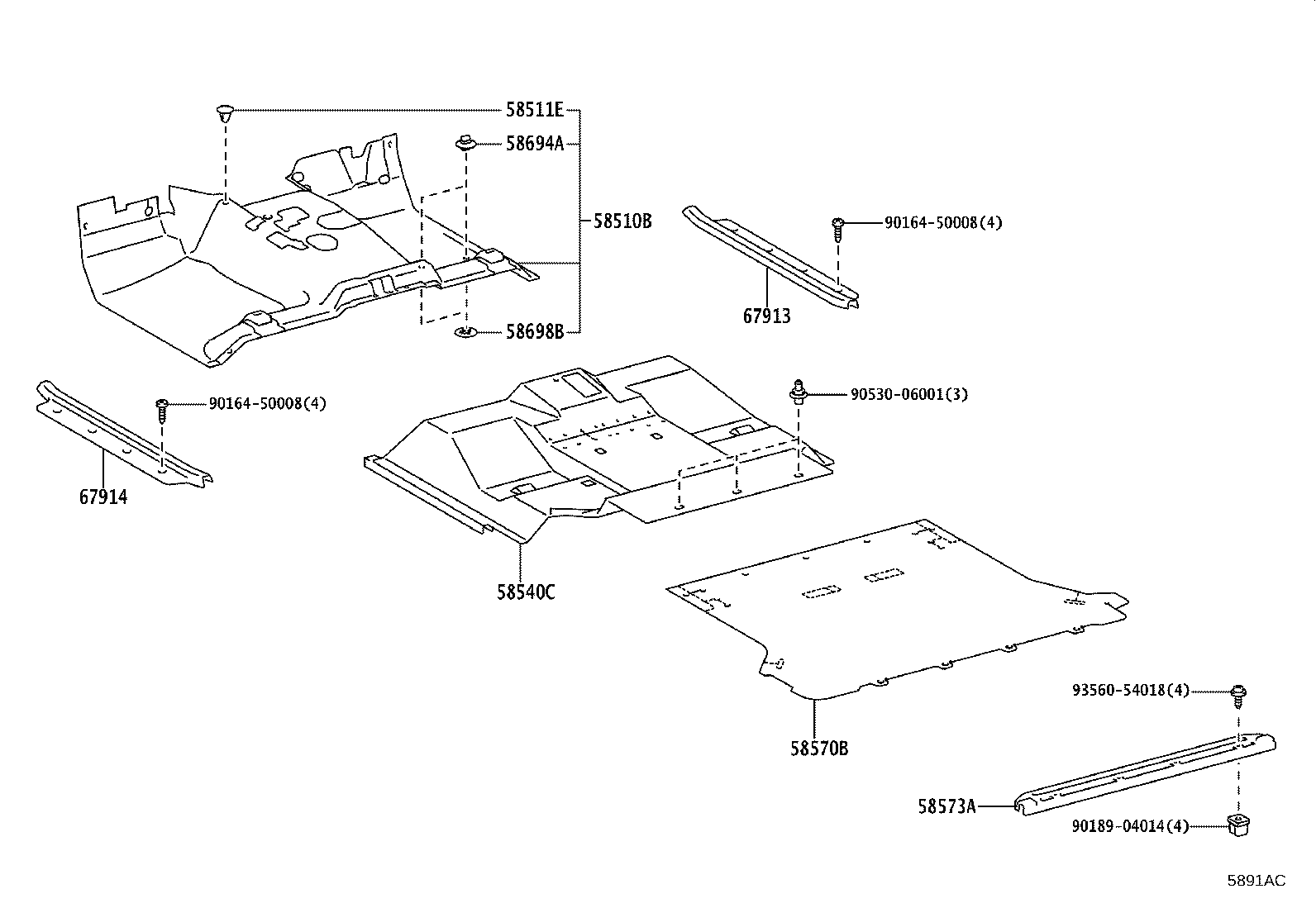

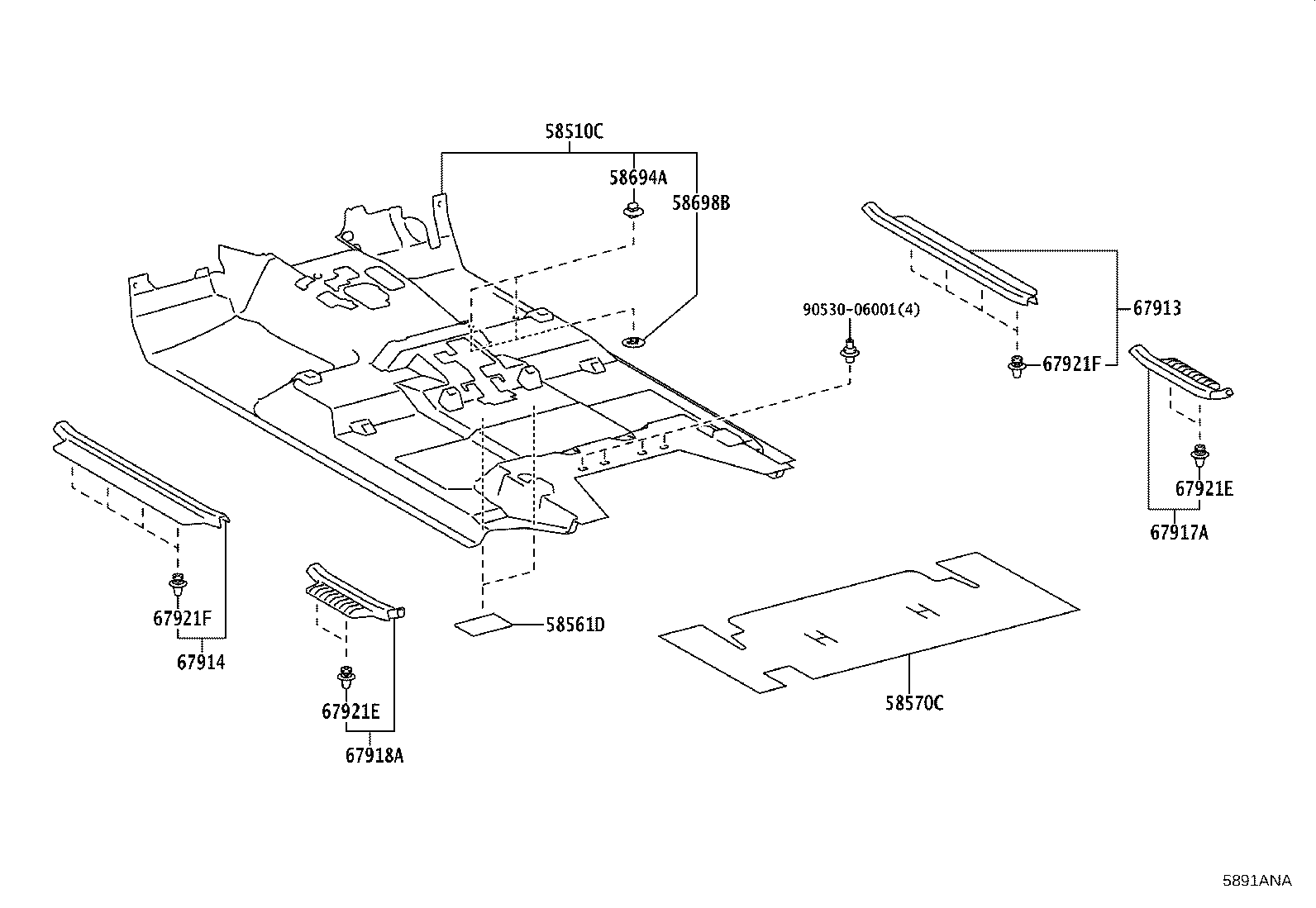

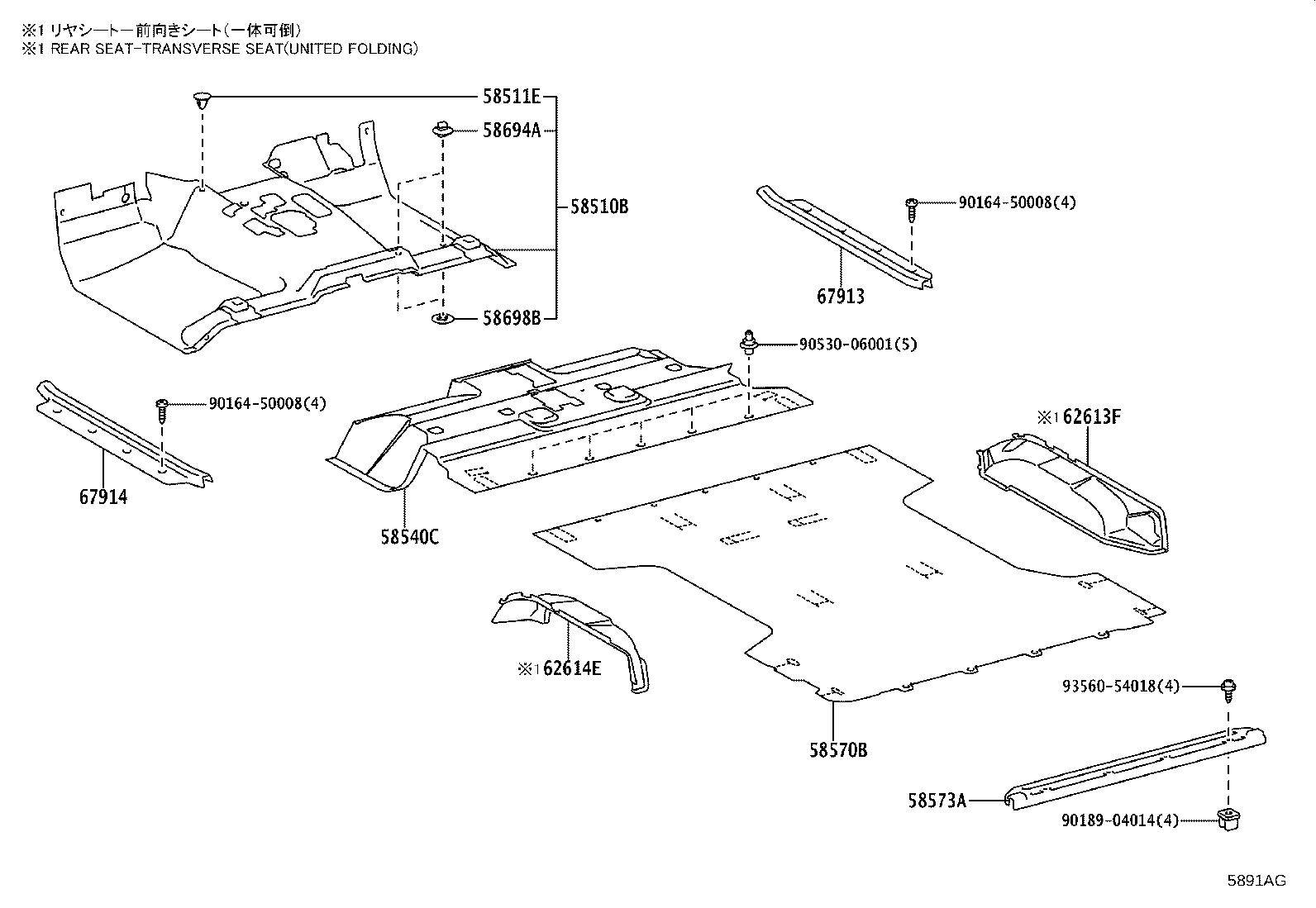

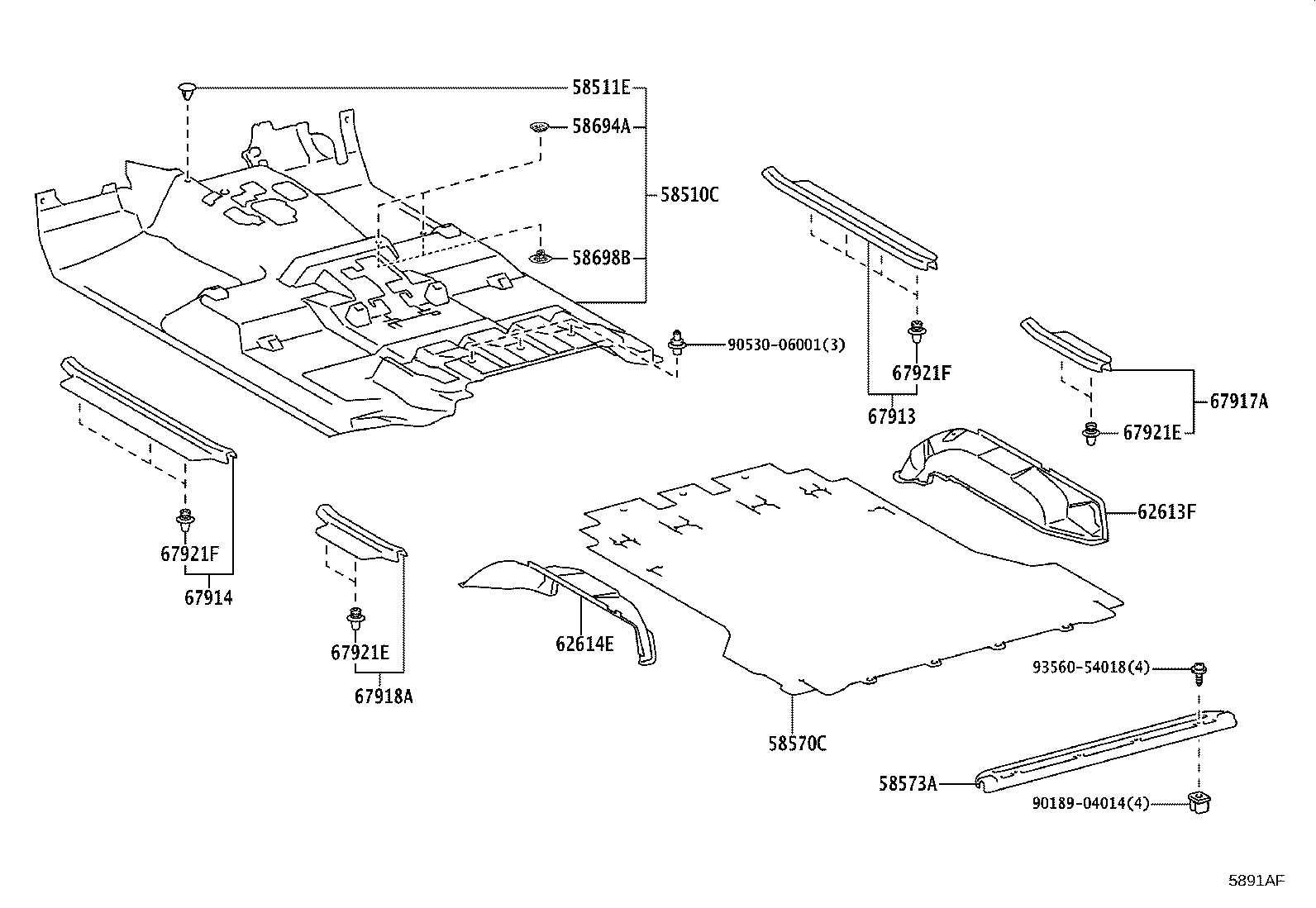

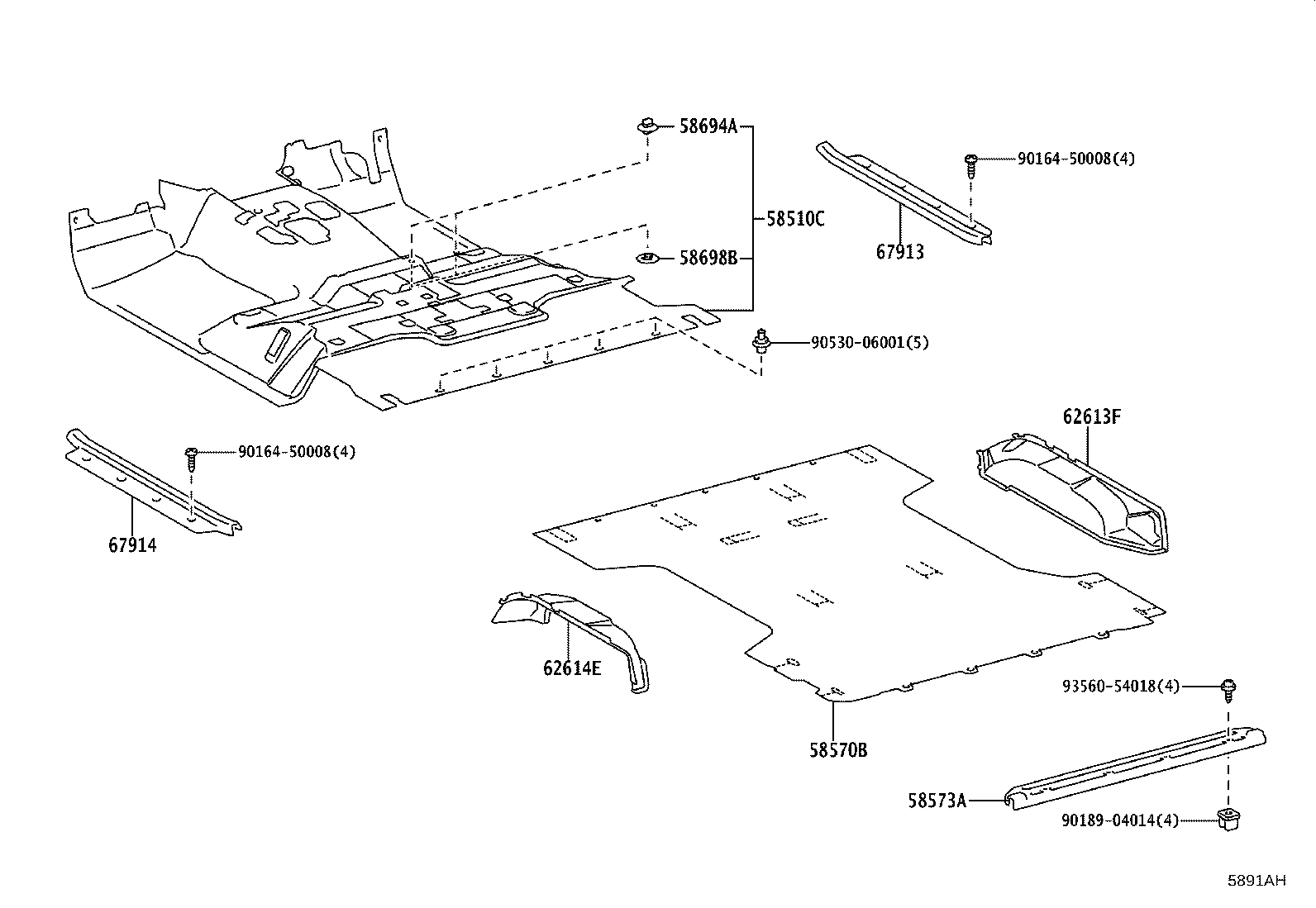

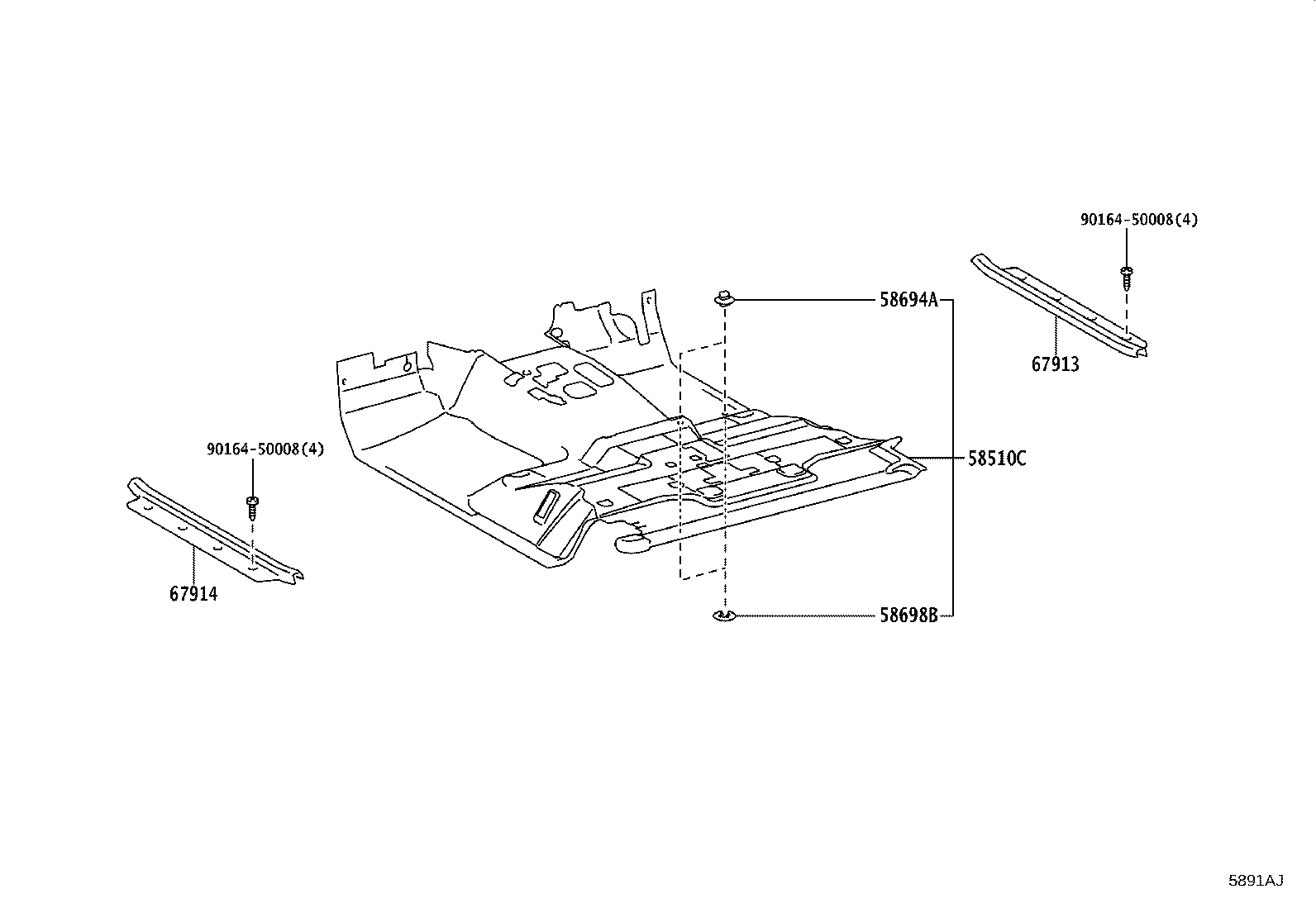

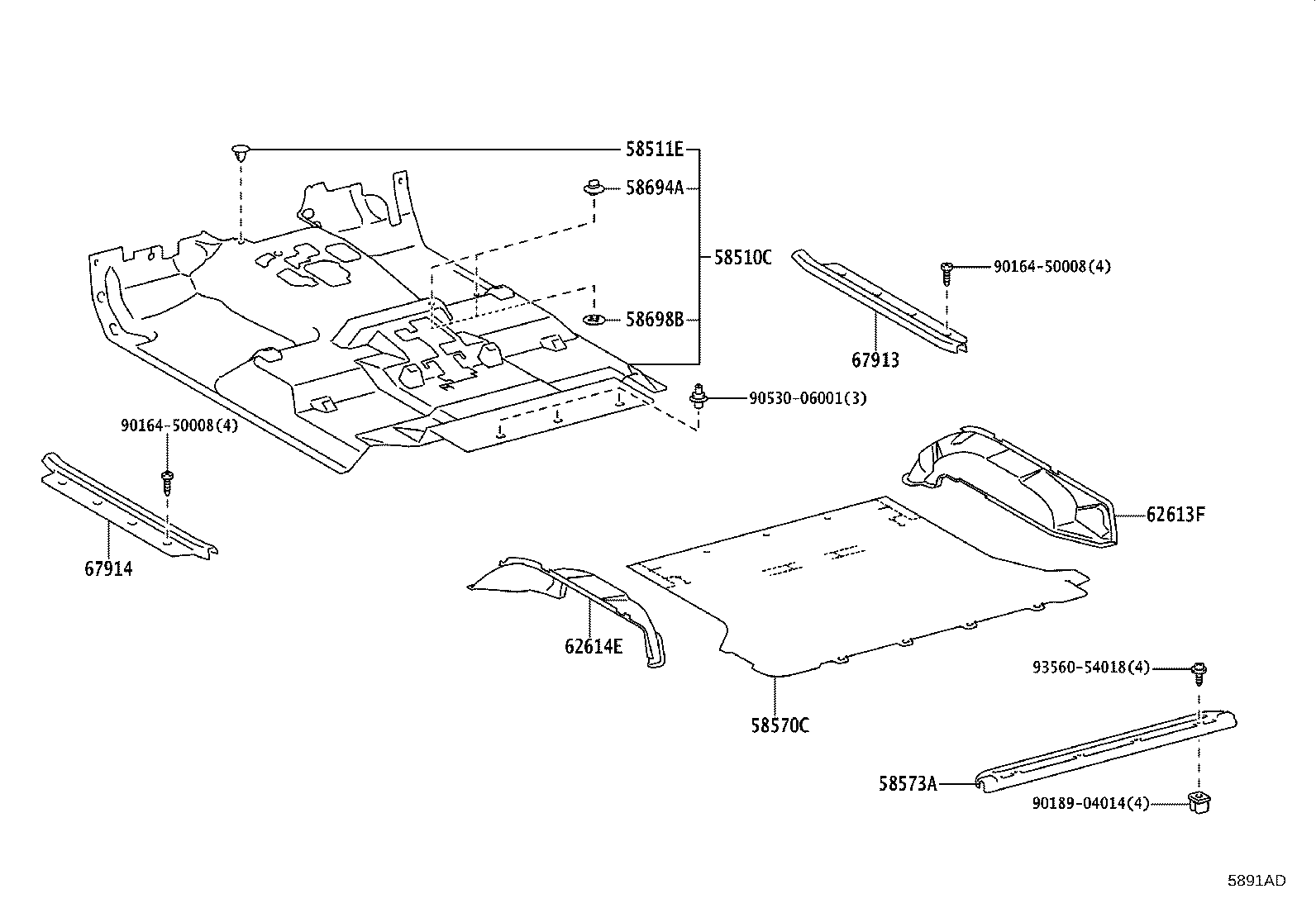

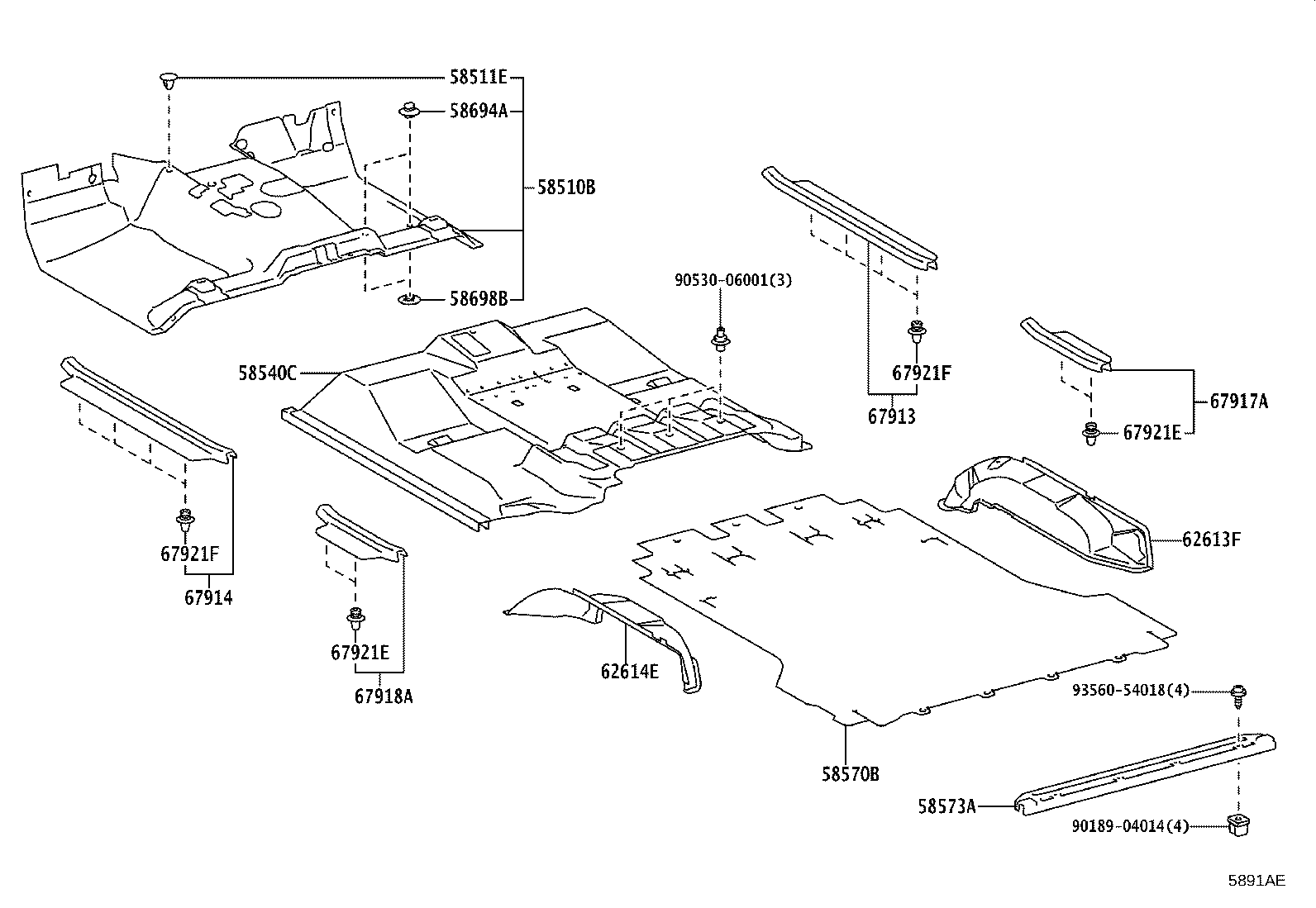

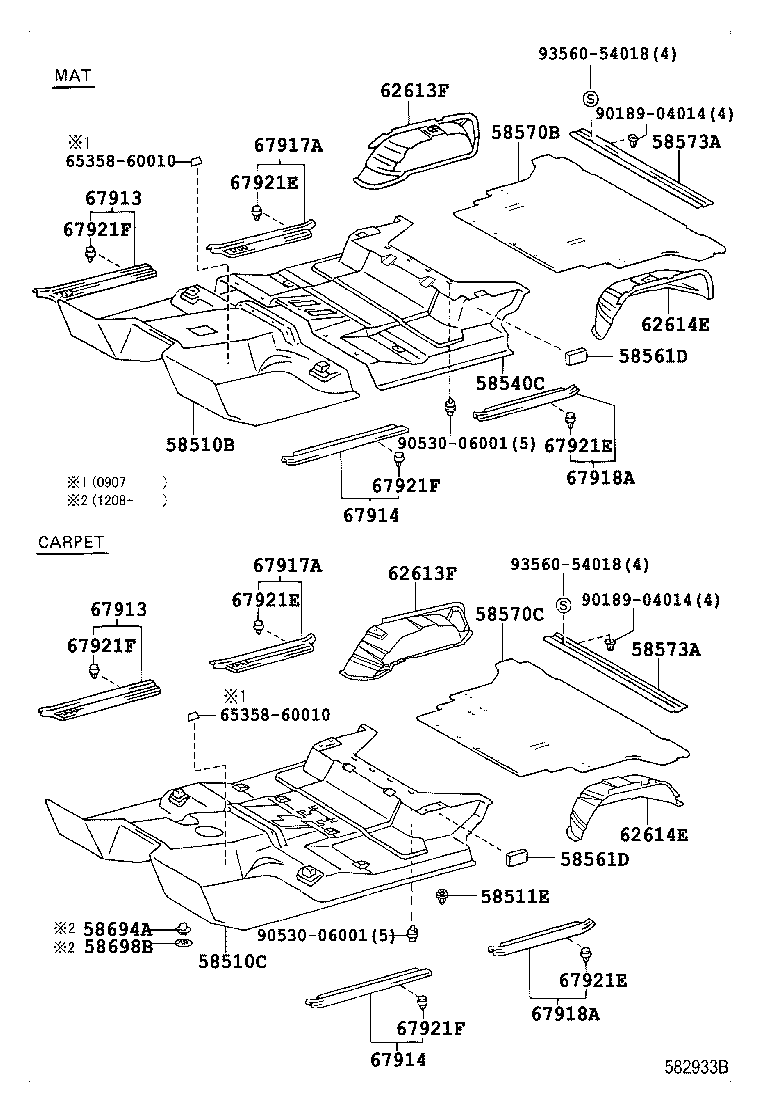

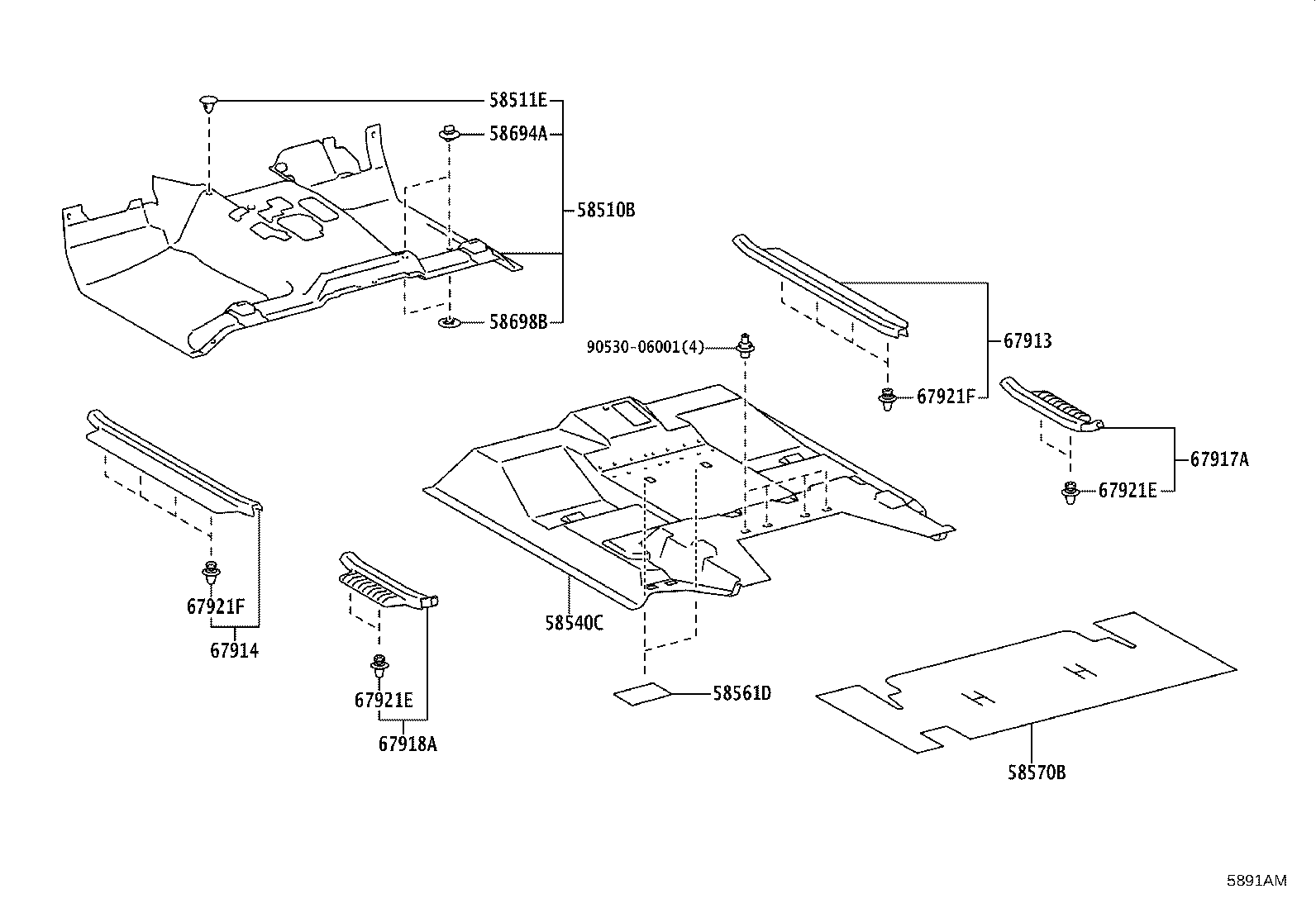

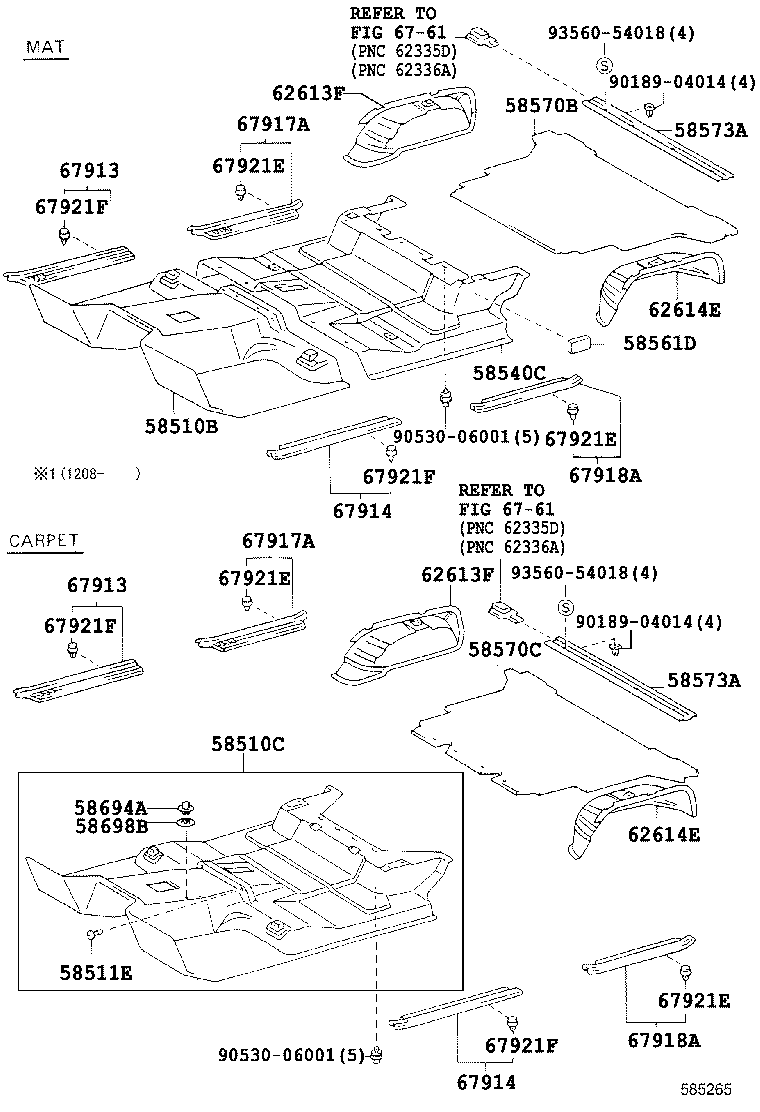

Figure 585264 585264 2007-01 → 2016-08 Figure 585264 585264 2007-01 → 2023-09 Figure 585264 585264 2013-04 → 2023-09 Figure 582933B 582933B 2007-01 → 2023-09 Figure 585265 585265 2007-01 → 2023-09 Figure 585265 585265 2012-08 → 2023-09 Figure 586310C 586310C 2016-08 → 2023-09 Figure 5891AC 5891AC 2023-09 → — Figure 5891AD 5891AD 2023-09 → — Figure 5891AE 5891AE 2023-09 → — Figure 5891AF 5891AF 2023-09 → — Figure 5891AG 5891AG 2023-09 → — Figure 5891AH 5891AH 2023-09 → — Figure 5891AI 5891AI 2023-09 → — Figure 5891AJ 5891AJ 2023-09 → — Figure 5891AK 5891AK 2023-09 → — Figure 5891AL 5891AL 2023-09 → — Figure 5891AM 5891AM 2023-09 → — Figure 5891ANA 5891ANA 2023-09 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58510B Mat, Front Floor, Front
58510C Carpet Assy, Front Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58540C Mat Assy, Floor, Rear
58561D Pad, Roof Silencer, NO.1
58570B Mat Assy, Rear Floor
58570C Carpet Assy, Rear Floor
58573A Plate, Rear Floor Mat Support
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
62613F Cover, Quarter Wheel House, RH
62614E Cover, Quarter Wheel House, LH
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
67921E Retainer, Rear Door Scuff Plate
67921F Retainer, Front Door Scuff Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
