Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

89 part groups · 11 illustrations

Illustrations

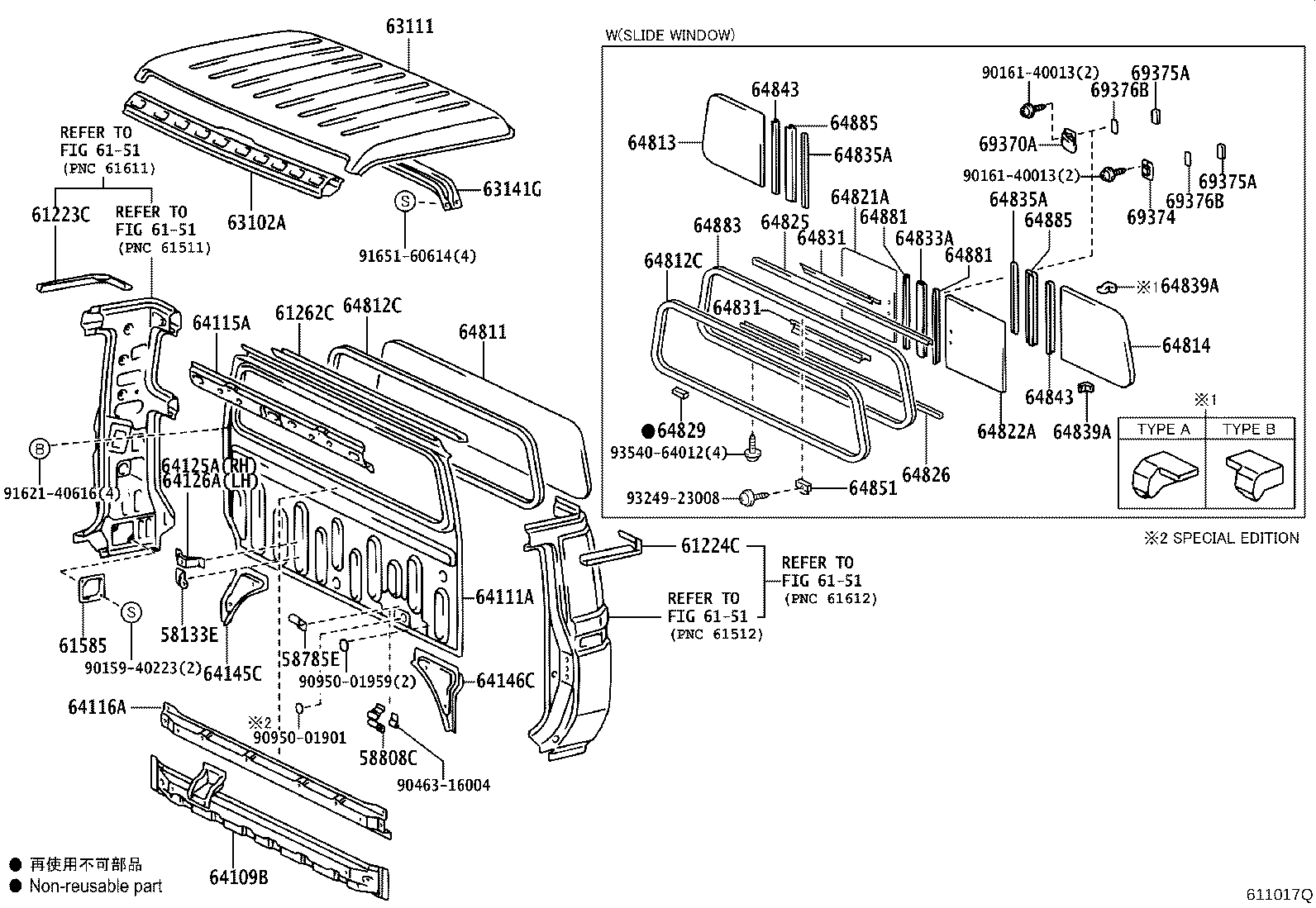

611017Q 2007-01 → 2016-08

611017Q 2007-01 → —

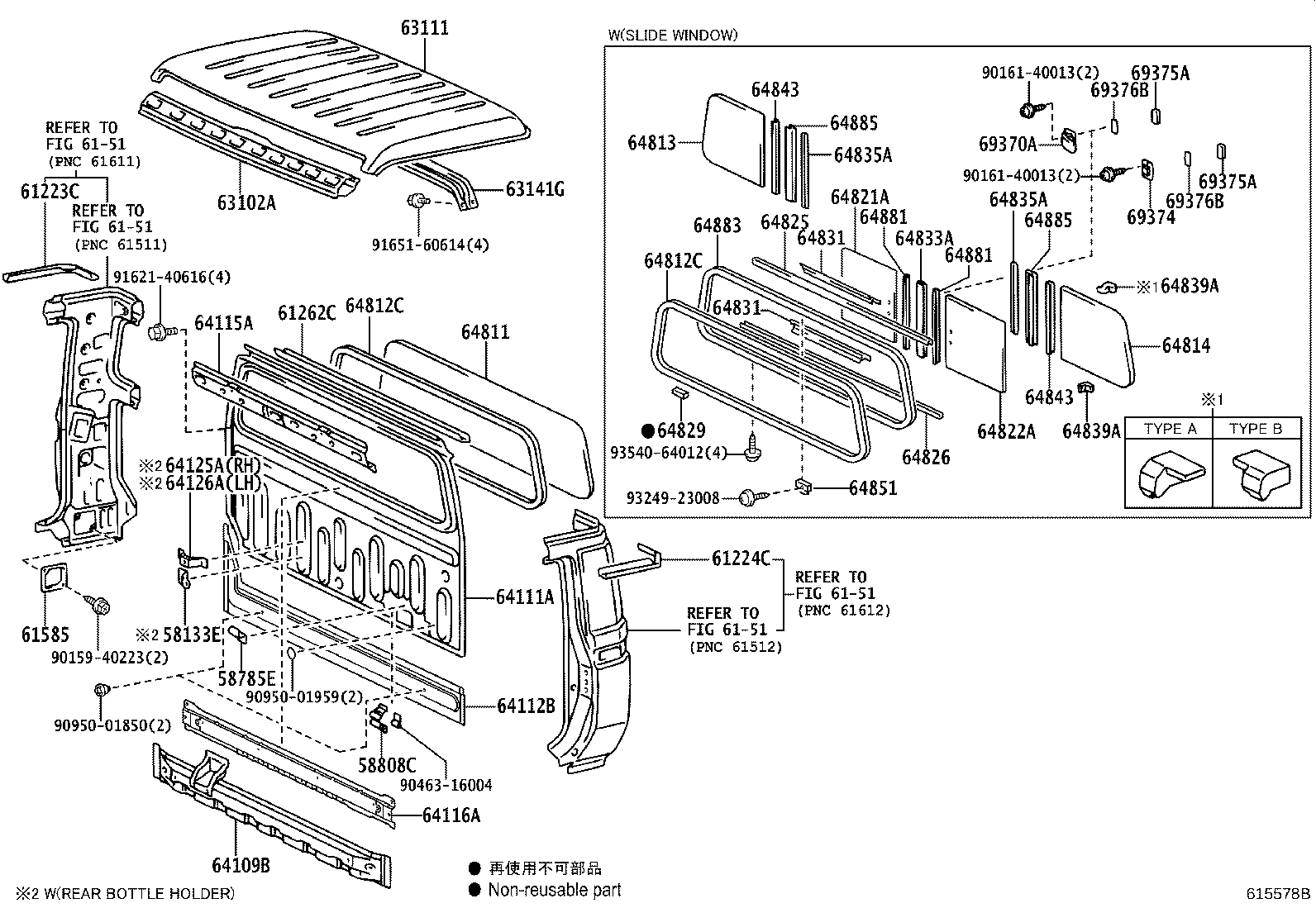

615578B 2016-08 → —

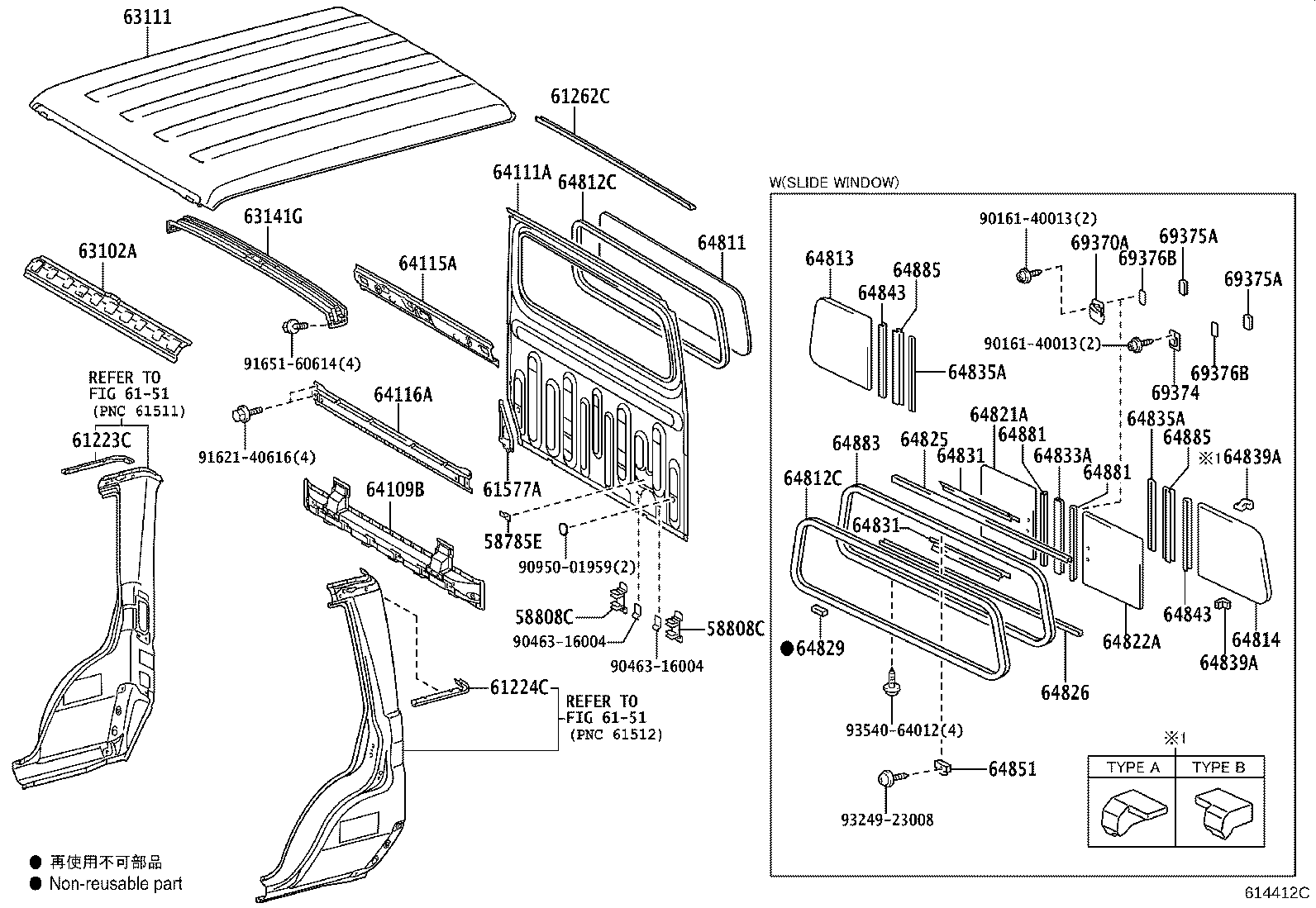

614412C 2012-08 → —

Part groups

PNC	Description
58133E	Bracket, Front Floor Heat Insulator, NO.3
58785E	Bracket, Tool Bag Band
58808C	Spring Sub-assy, Juck Handle
61223C	Channel, Roof Drip Side, RH
61224C	Channel, Roof Drip Side, LH
61262C	Channel, Roof Drip, Rear
61577A	Plate, Cab Rear Pillar, Lower RH
61585	Lid, Quarter Hole, NO.1
63041	Leg Sub-assy, Roof Rack, Front RH
63042	Leg Sub-assy, Roof Rack, Front LH
63049	Frame Sub-assy, Roof Rack, Upper End
63063	Stay Sub-assy, Roof Rack, Front RH
63064	Stay Sub-assy, Roof Rack, Front LH
63065	Stay Sub-assy, Roof Rack, Center
63066	Frame Sub-assy, Roof Rack, Lower Front RH
63067	Frame Sub-assy, Roof Rack, Lower Front LH
63068	Frame Sub-assy, Roof Rack, Lower Rear RH
63069A	Frame Sub-assy, Roof Rack, Lower Rear LH
63073A	Stay Sub-assy, Roof Rack, Rear RH
63074A	Stay Sub-assy, Roof Rack, Rear LH
63079	Frame Sub-assy, Roof Rack, Upper Front
63102A	Panel Sub-assy, Windshield Header
63103A	Reinforcement Sub-assy, Roof Panel
63104D	Reinforcement Sub-assy, Roof Panel, NO.2
63105A	Frame Sub-assy, Back Door Opening
63111	Panel, Roof
63123D	Reinforcement, Roof Panel, Front RH
63124B	Reinforcement, Roof Panel, Front LH
63141G	Reinforcement, Roof Panel, NO.1
63143B	Reinforcement, Roof Panel, NO.3
63189A	Bracket, Roof Rack, Center
63189B	Bracket, Roof Rack, Center
63404	Leg Sub-assy, Roof Rack, Front
63405	Leg Sub-assy, Roof Rack, Rear RH
63406	Leg Sub-assy, Roof Rack, Rear LH
63407	Support Sub-assy, Roof Rack Leg, Front
63408	Support Sub-assy, Roof Rack Leg, Rear
63409	Leg Sub-assy, Roof Rack, Center
63438A	Cover, Roof Rack End, NO.1
63439	Cover, Roof Rack End, NO.2
63453C	Stay, Roof Rack, Front RH
63454C	Stay, Roof Rack, Front LH
63469	Gusset, Roof Rack Lower Frame
63475	Step, Roof Rack
63481	Board, Roof Rack Deck, NO.1
63484	Stay, Roof Rack
63485	Cushion, Roof Rack Leg, Center
63495	Spacer, Roof Rack Support
63707	Frame Sub-assy, Roof Rack, Lower NO.1
63708	Frame Sub-assy, Roof Rack, Lower NO.2
63709	Frame Sub-assy, Roof Rack, Lower NO.3
63765	Retainer, Roof Rack, Upper
63766	Retainer, Roof Rack, Lower
63773	Gusset, Roof Rack Center Frame, RH
63774	Gusset, Roof Rack Center Frame, LH
63796	Frame, Roof Rack, Lower NO.4
64109B	Reinforcement Sub-assy, Cab Back, Lower
64111A	Panel, Back
64112B	Panel, Cab Back, Lower
64115A	Reinforcement, Back, Upper
64116A	Reinforcement, Back, Lower
64125A	Bracket, Upper Back Panel, RH
64126A	Bracket, Upper Back Panel, LH
64145C	Gusset, Back Panel, RH
64146C	Gusset, Back Panel, LH
64811	Glass, Back Window
64812C	Weatherstrip, Back Window Glass
64813	Glass, Back Window Corner, RH
64814	Glass, Back Window Corner, LH
64821A	Glass, Back Window Slide, RH
64822A	Glass, Back Window Slide, LH
64825	Run, Back Window Channel, Upper
64826	Run, Back Window Channel, Lower
64829	Film, Back Window Frame
64831	Weatherstrip, Back Window Glass
64833A	Weatherstrip, Back Window Center Channel
64835A	Weatherstrip, Back Window Glass, Center
64839A	Packing, Back Window
64843	Weatherstrip, Back Window Channel
64851	Stop, Back Window Slide Glass
64881	Channel, Back Window Glass
64883	Frame, Back Window
64885	Frame, Back Window Vertical
66301A	Hook Sub-assy, Rope
66319A	Plate, Rope Hook
69370A	Lock Assy, Back Window
69374	Catch, Back Window Lock
69375A	Retainer, Back Window Lock
69376B	Packing, Back Window Lock

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
