Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

73 part groups · 14 illustrations

Illustrations

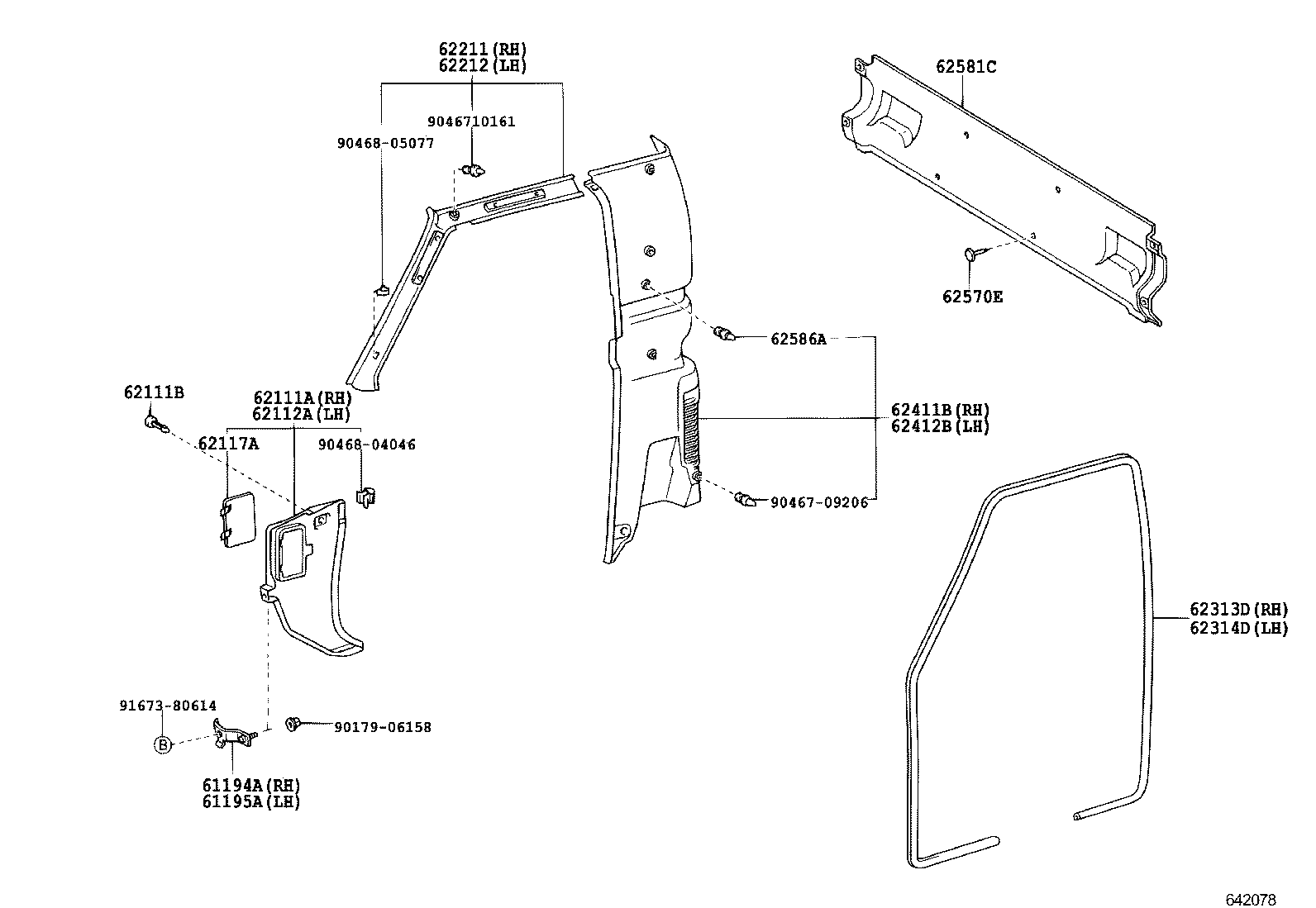

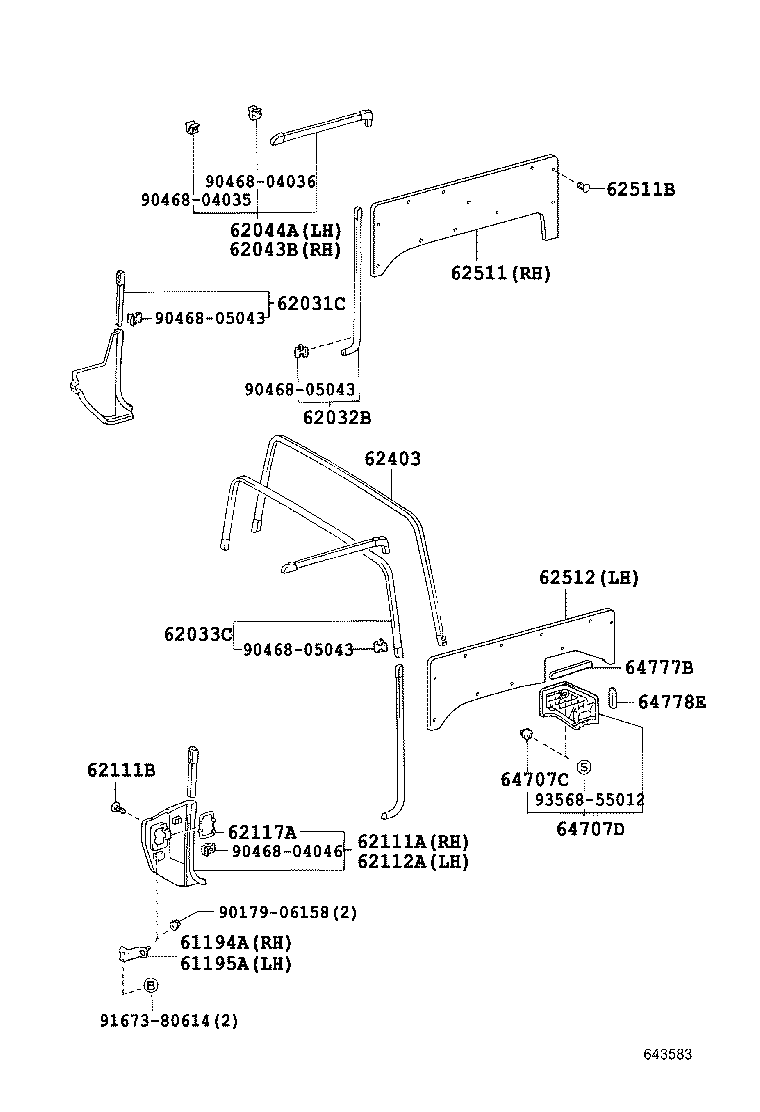

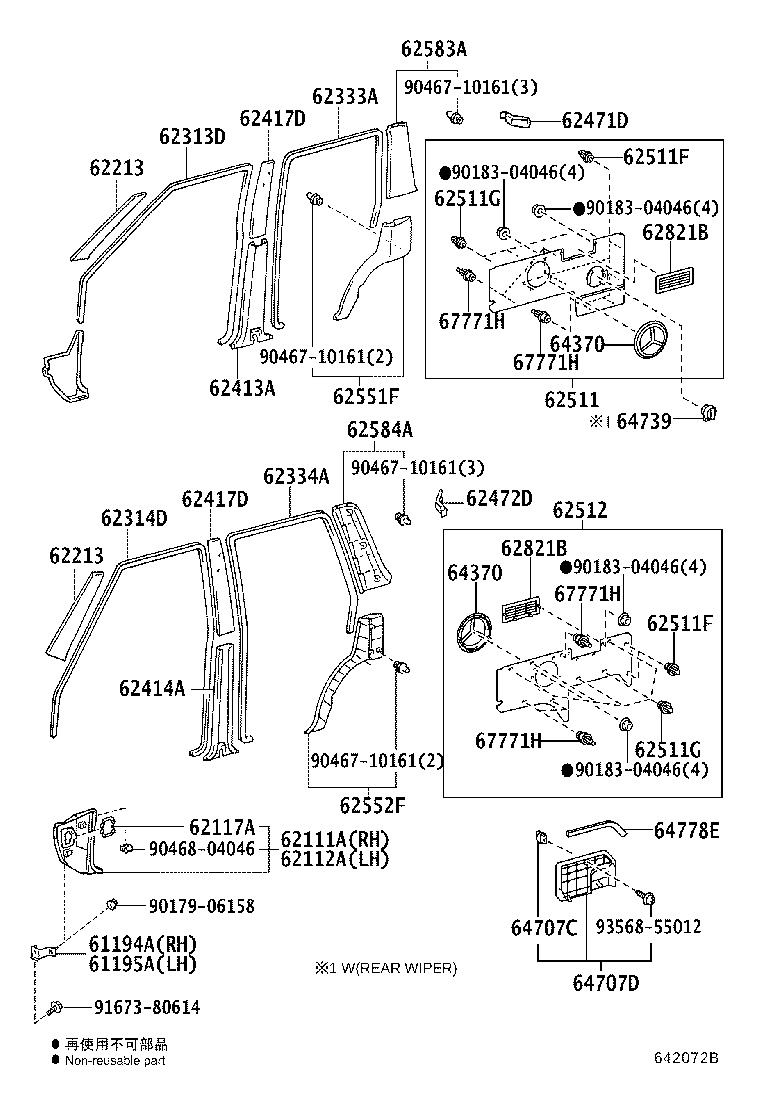

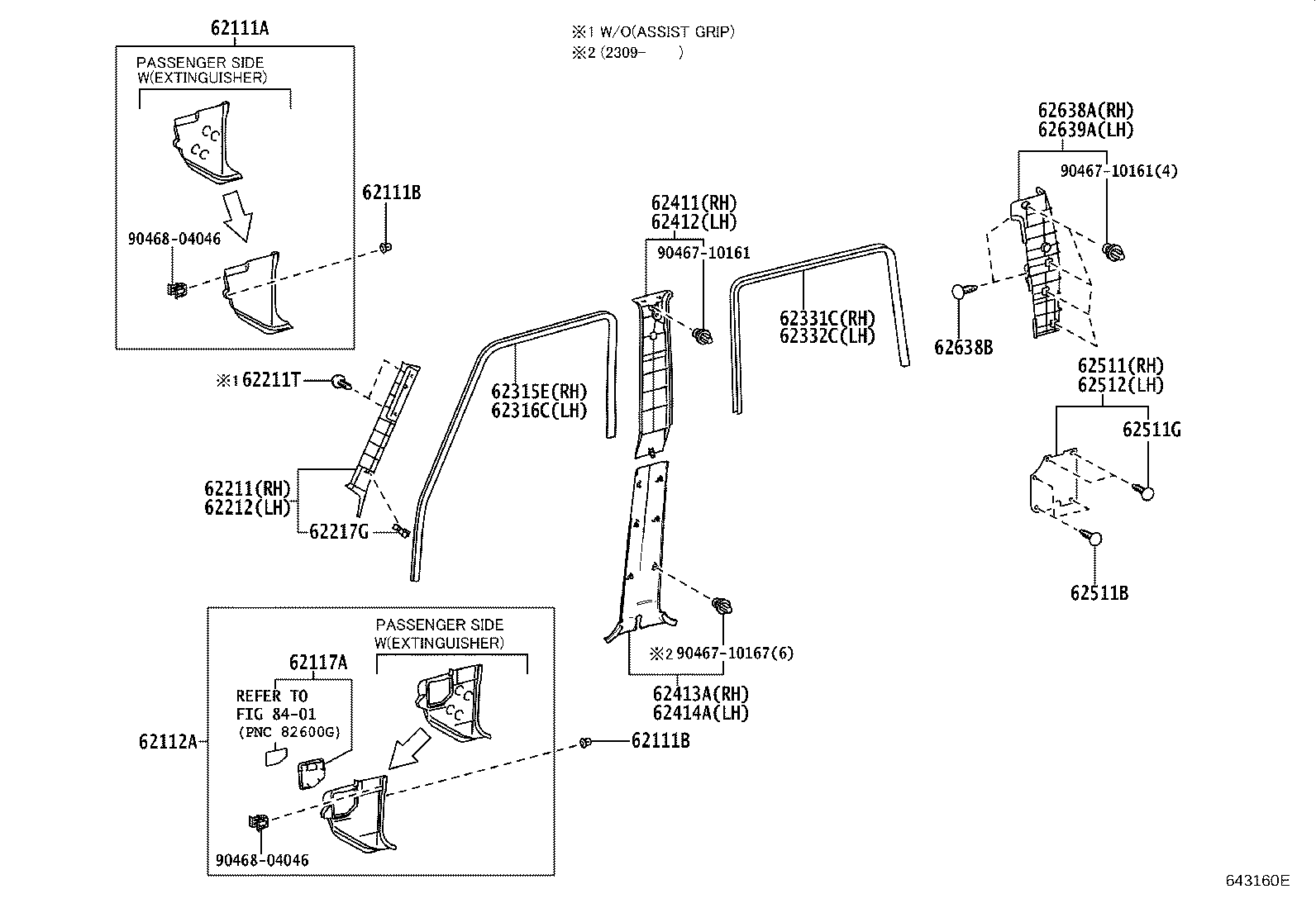

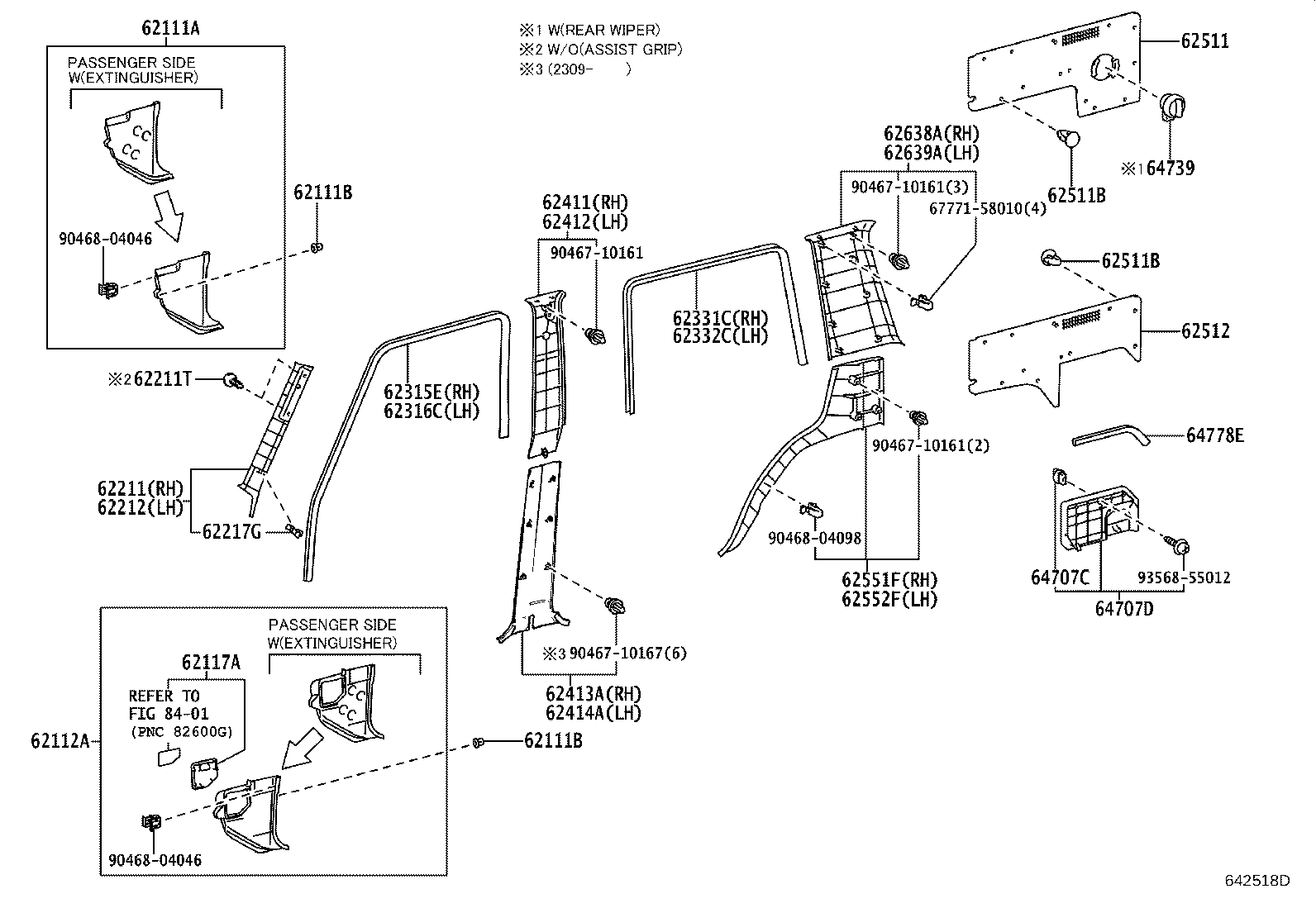

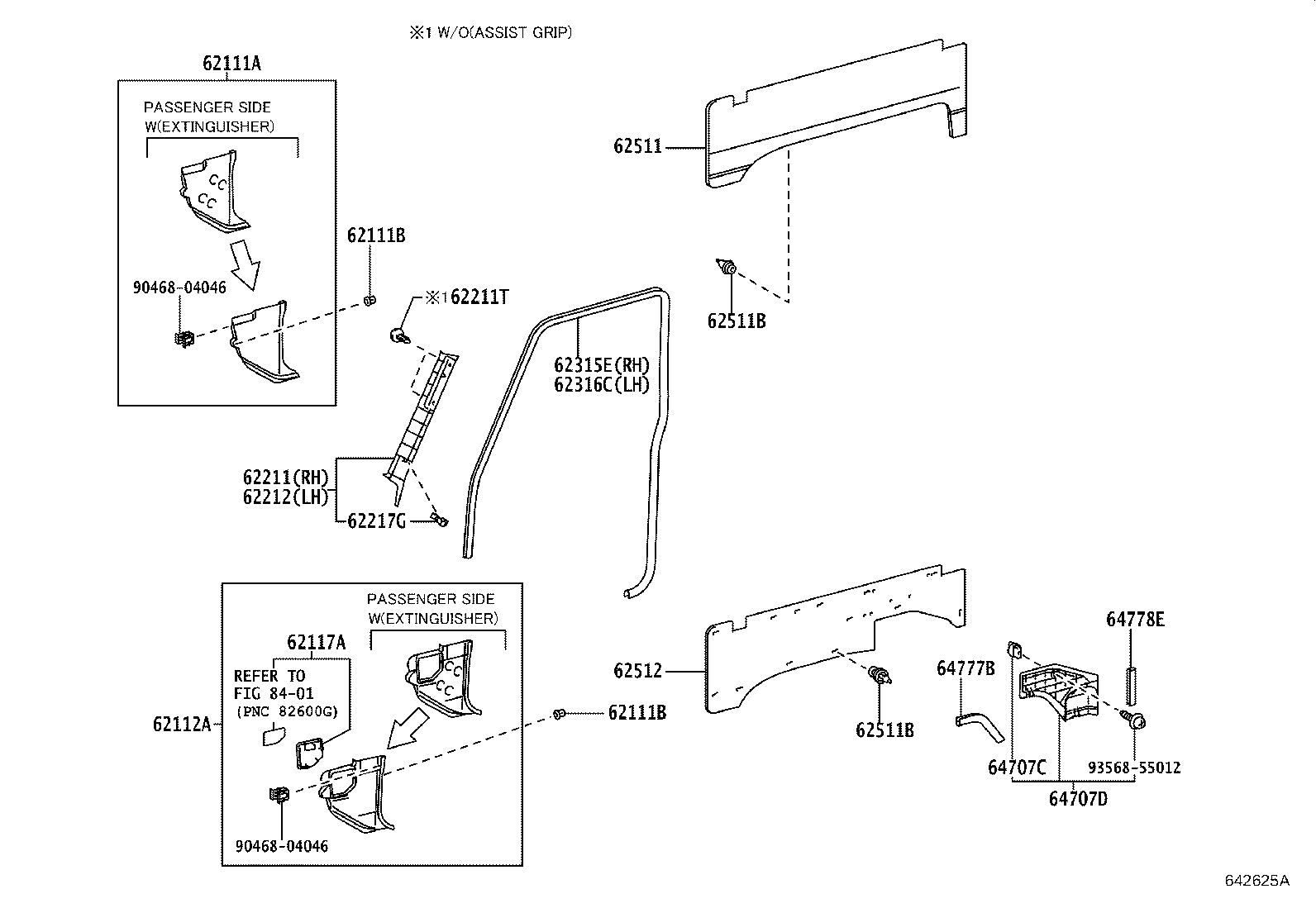

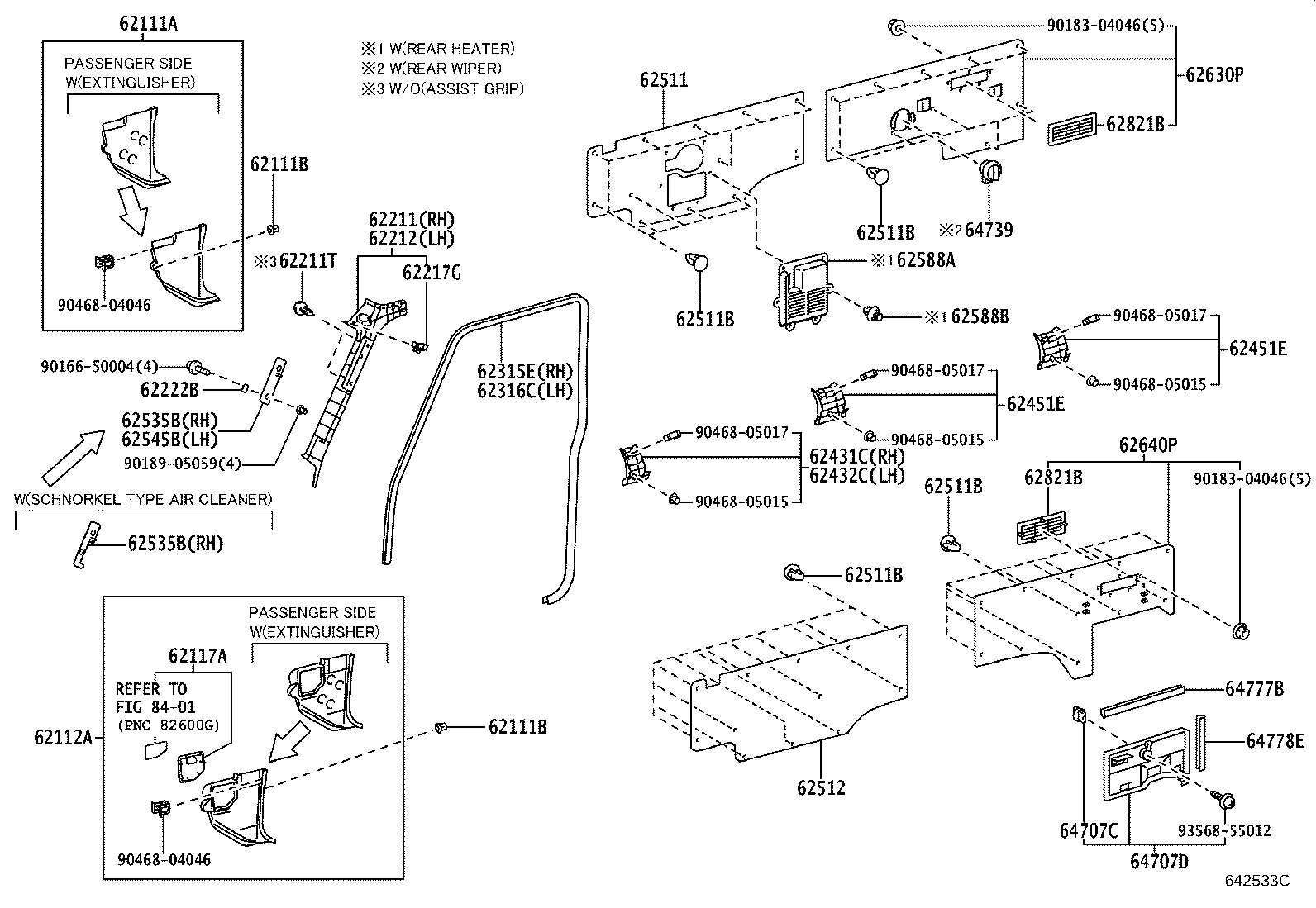

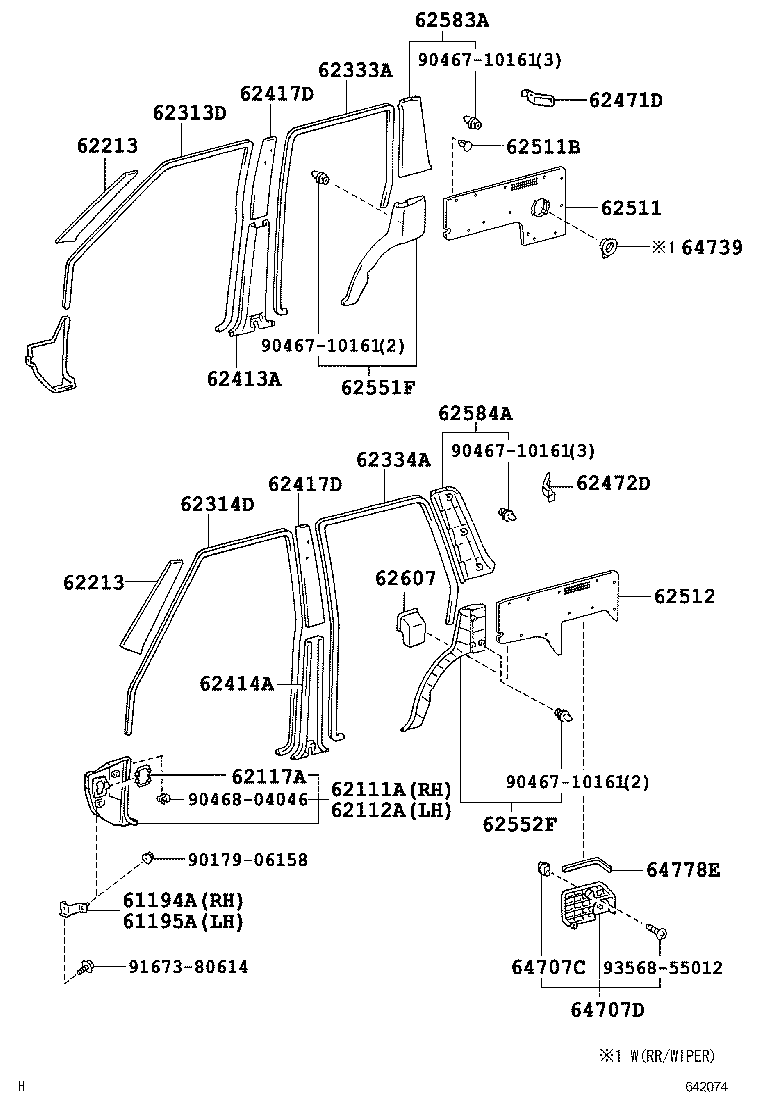

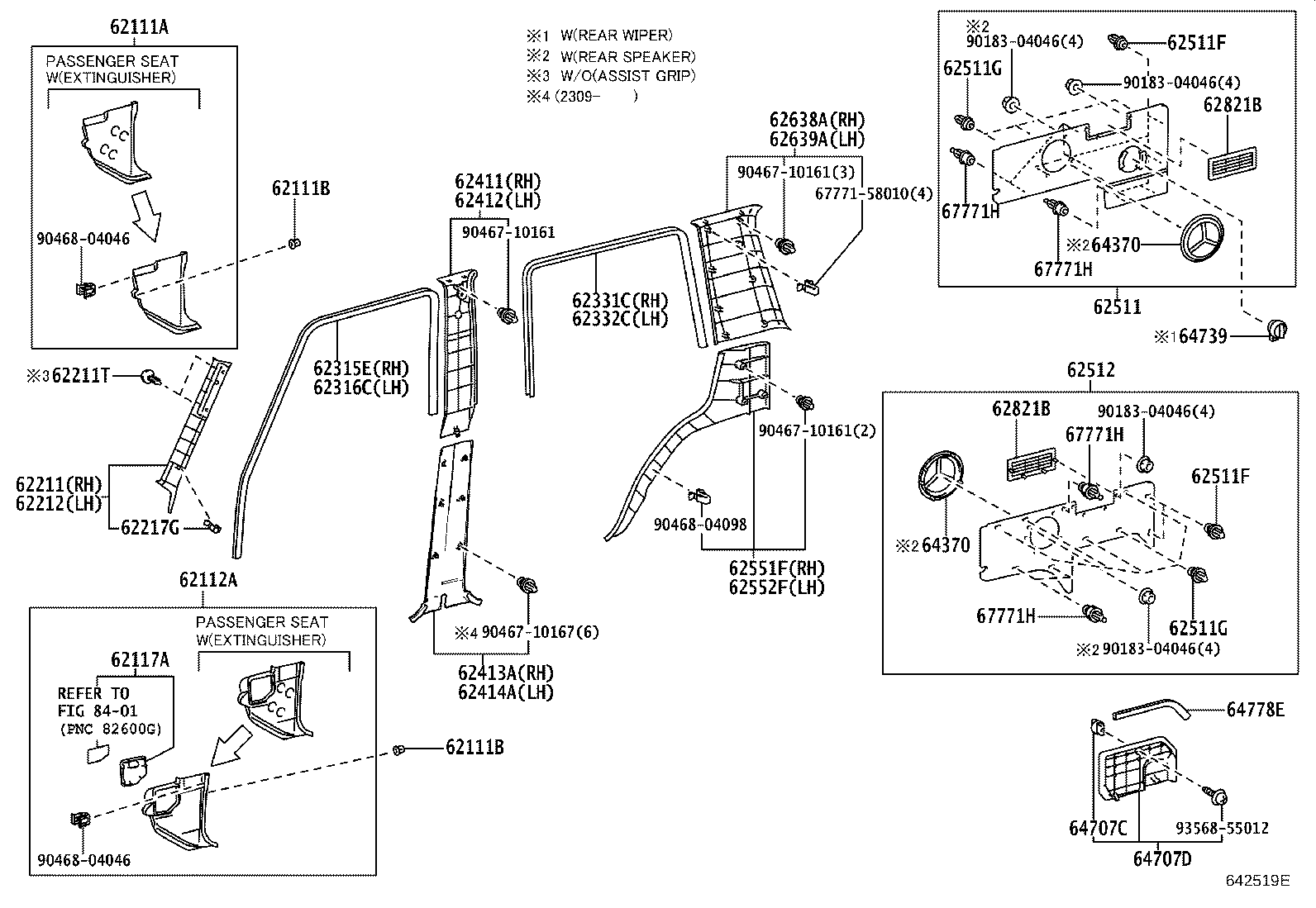

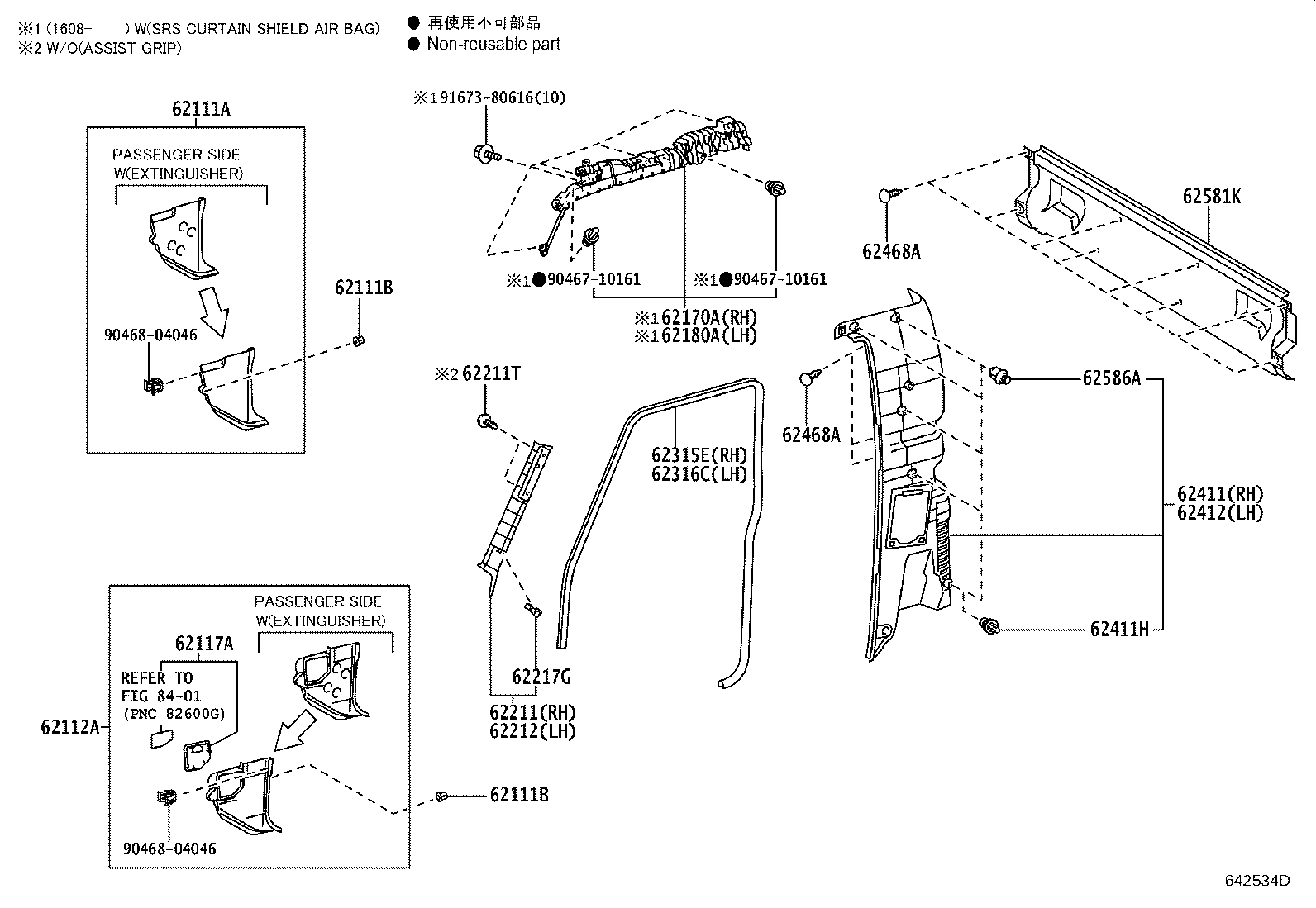

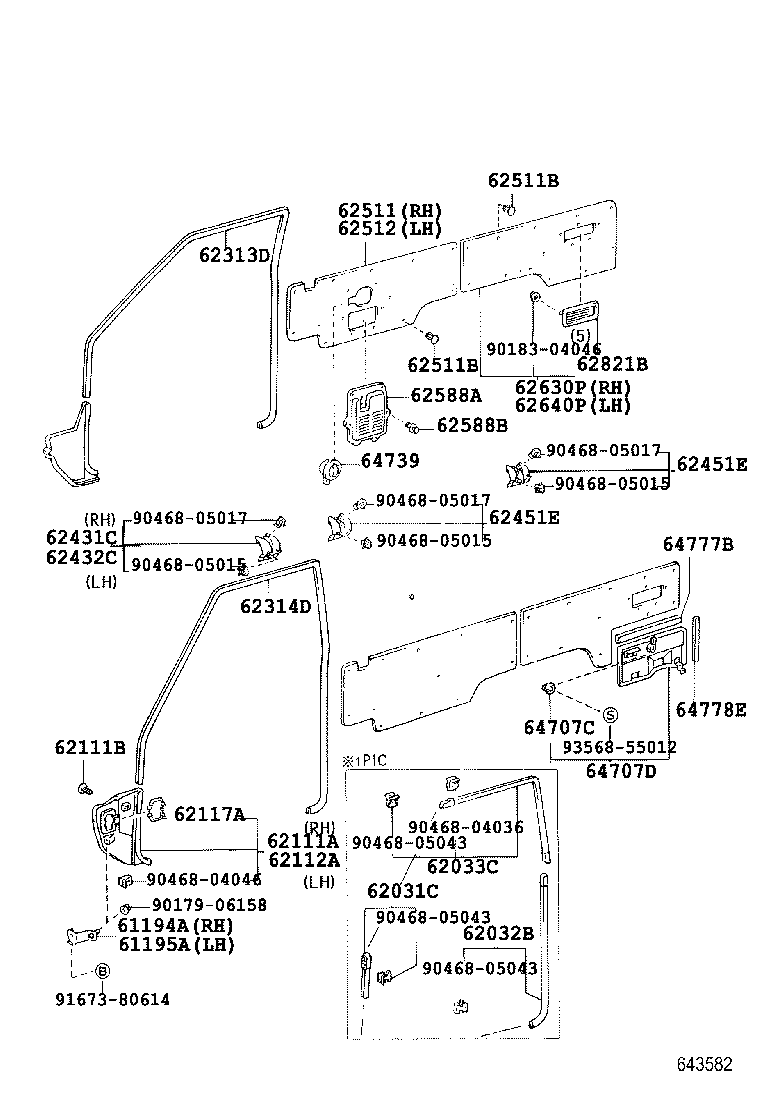

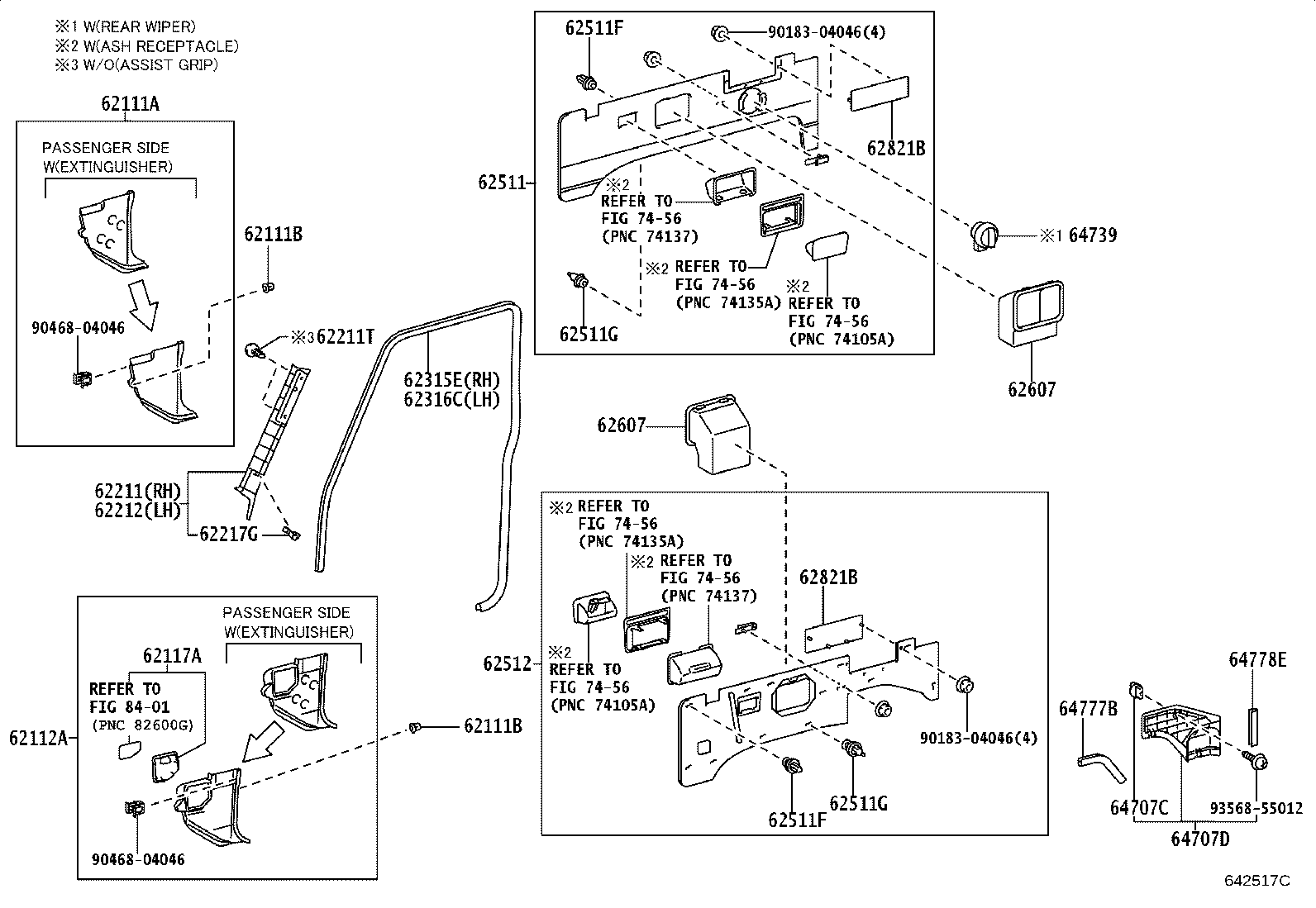

Figure 643572 643572 2007-01 → 2009-07 Figure 643573 643573 2007-01 → 2009-07 Figure 642074 642074 2007-01 → 2009-07 Figure 642072B 642072B 2007-01 → 2009-07 Figure 643582 643582 2007-01 → 2009-07 Figure 642078 642078 2007-01 → 2009-07 Figure 643583 643583 2007-01 → — Figure 642625A 642625A 2009-07 → — Figure 642517C 642517C 2009-07 → — Figure 642518D 642518D 2009-07 → — Figure 642519E 642519E 2009-07 → — Figure 642533C 642533C 2009-07 → — Figure 642534D 642534D 2009-07 → — Figure 643160E 643160E 2012-08 → —

Part groups

PNCDescription
61194A Bracket, Cowl Side Trim, RH
61195A Bracket, Cowl Side Trim, LH
62031C Trim Sub-assy, Front Door Opening, NO.1
62032B Trim Sub-assy, Front Door Opening, NO.2
62033C Trim Sub-assy, Front Door Opening, NO.3
62043B Trim Sub-assy, Front Door Opening, NO.3 RH
62044A Trim Sub-assy, Front Door Opening, NO.3 LH
62111A Trim Sub-assy, Cowl Side, RH
62111B Clip(FOR COWL SIDE TRIM)
62112A Trim Sub-assy, Cowl Side, LH
62117A Cover, Cowl Side Trim Service Hole
62170A Airbag Assy, Curtain Shield, RH
62180A Airbag Assy, Curtain Shield, LH
62211 Garnish, Front Pillar, RH
62211T Clip(FOR FRONT PILLAR GARNISH)
62212 Garnish, Front Pillar, LH
62213 Pad, Front Pillar Garnish
62217G Clip, Front Pillar Garnish
62222B Cover, Front Pillar Garnish, LH
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62315E Weatherstrip, Front Door Opening Trim, Rear RH
62316C Weatherstrip, Front Door Opening Trim, Rear LH
62331C Weatherstrip, Rear Door Opening Trim, RH
62332C Weatherstrip, Rear Door Opening Trim, LH
62333A Trim, Rear Door Opening, RH
62334A Trim, Rear Door Opening, LH
62403 Trim Sub-assy, Roll Over Panel
62411 Garnish, Center Pillar, RH
62411B Garnish, Center Pillar, Upper RH
62411H Clip
62412 Garnish, Center Pillar, LH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62417D Pad, Center Pillar Garnish
62431C Garnish, Roof Side Rail, Front RH
62432C Garnish, Roof Side Rail, Front LH
62451E Garnish, Roof Side Rail, Rear
62468A Clip (FOR CENTER PILLAR REAR GARNISH)
62471D Garnish, Rear Pillar, Upper RH
62472D Garnish, Rear Pillar, Upper LH
62511 Board, Quarter Inside Trim, RH
62511B Clip (FOR QUARTER INSIDE TRIM BOARD)
62511F Retainer (FOR QUARTER INSIDE TRIM BOARD)
62511G Clip (FOR QUARTER INSIDE TRIM BOARD)
62512 Board, Quarter Inside Trim, LH
62535B Garnish, Pillar NO.1, RH
62545B Garnish, Pillar NO.1, LH
62551F Garnish, Rear Seat Side, RH
62552F Garnish, Rear Seat Side, LH
62570E Clip, Rear Window Side Garnish
62581C Garnish, Rear Window Side, RH
62581K Garnish, Rear Window Side
62583A Cover, Quarter Pillar, Upper RH
62584A Cover, Quarter Pillar, Upper LH
62586A Retainer, Quarter Trim
62588A Cover, Side Heater, Lower
62588B Clip (FOR SIDE HEATER COVER)
62607 Pocket Sub-assy, Quarter Trim
62630P Panel Assy, Quarter Trim, Rear RH
62638A Garnish, Quarter Pillar, RH
62638B Clip
62639A Garnish, Quarter Pillar, LH
62640P Panel Assy, Quarter Trim, Rear LH
62821B Glille, Room Ventilation
64370 Grille Assy, Rear Speaker
64707C Knob, Jack Cover
64707D Cover Sub-assy, Quarter Trim Jack
64739 Cover, Deck Trim Side Washer
64777B Protector, Quarter, Inner
64778E Protecter, Quarter Inner, NO.1
67771H Retainer, Door Trim
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
