Toyota Land Cruiser
2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States
Supported model
Data version 2024-10

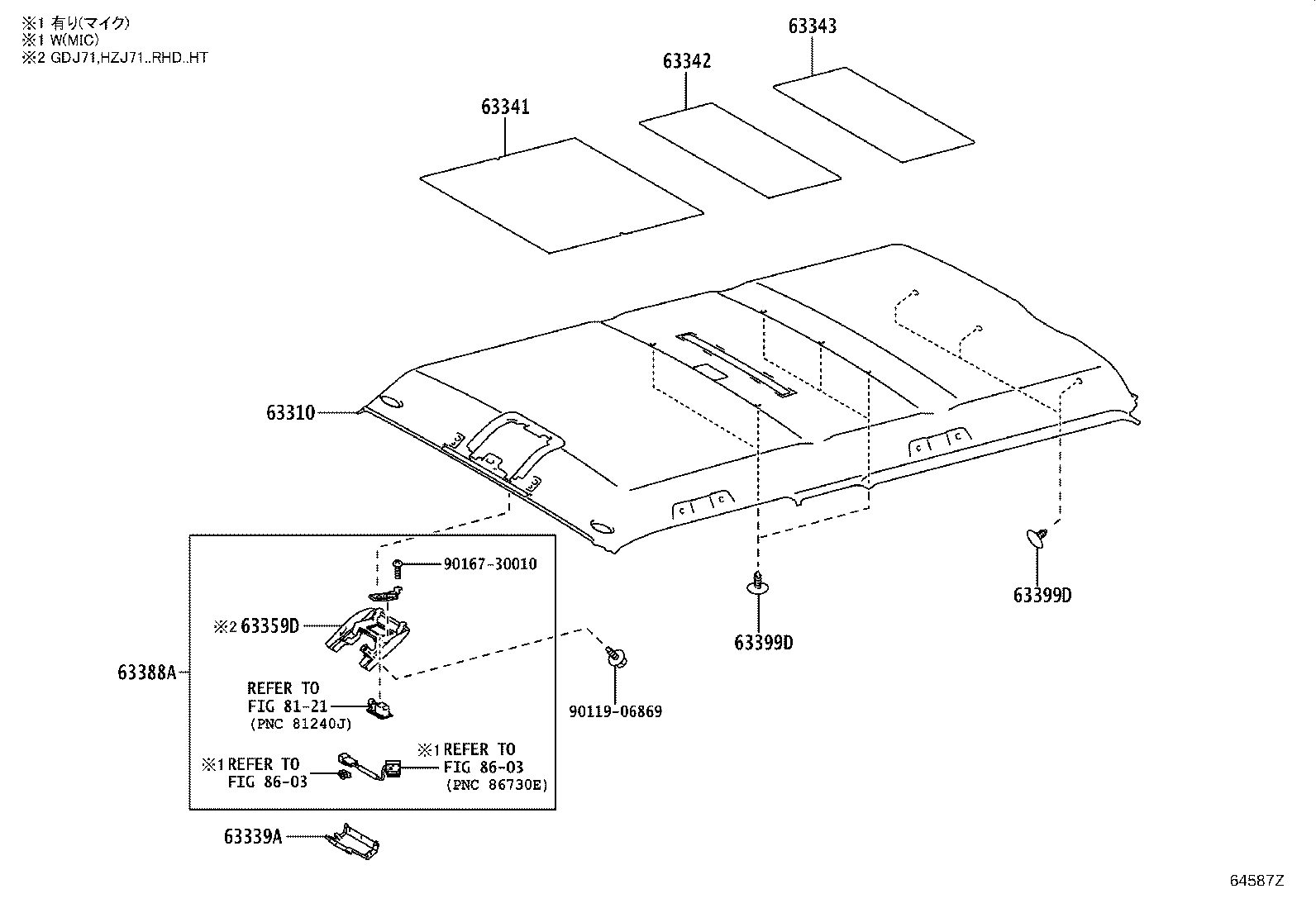

Roof Headlining & Silencer Pad
31 part groups · 13 illustrations
Illustrations
Part groups

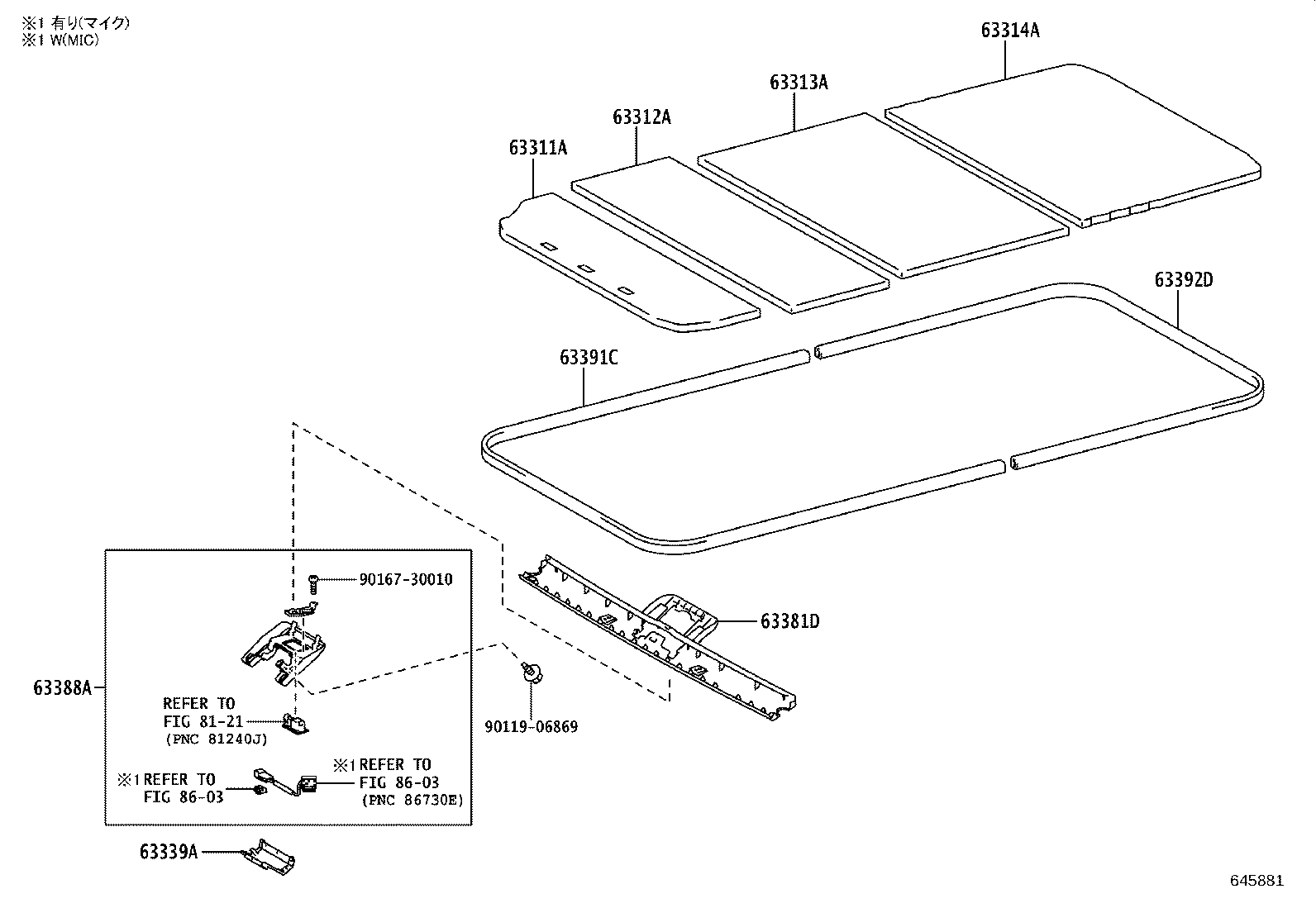

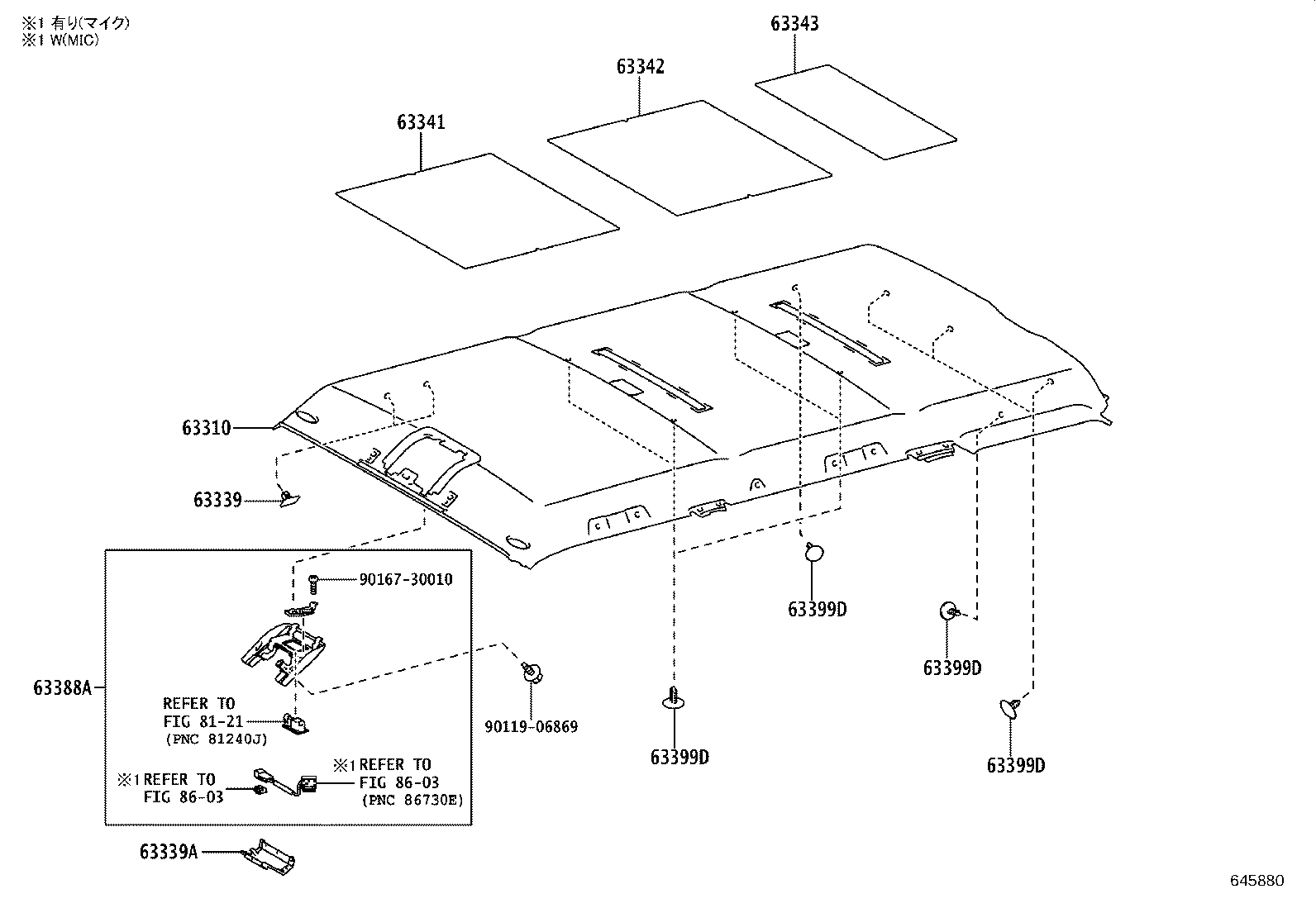

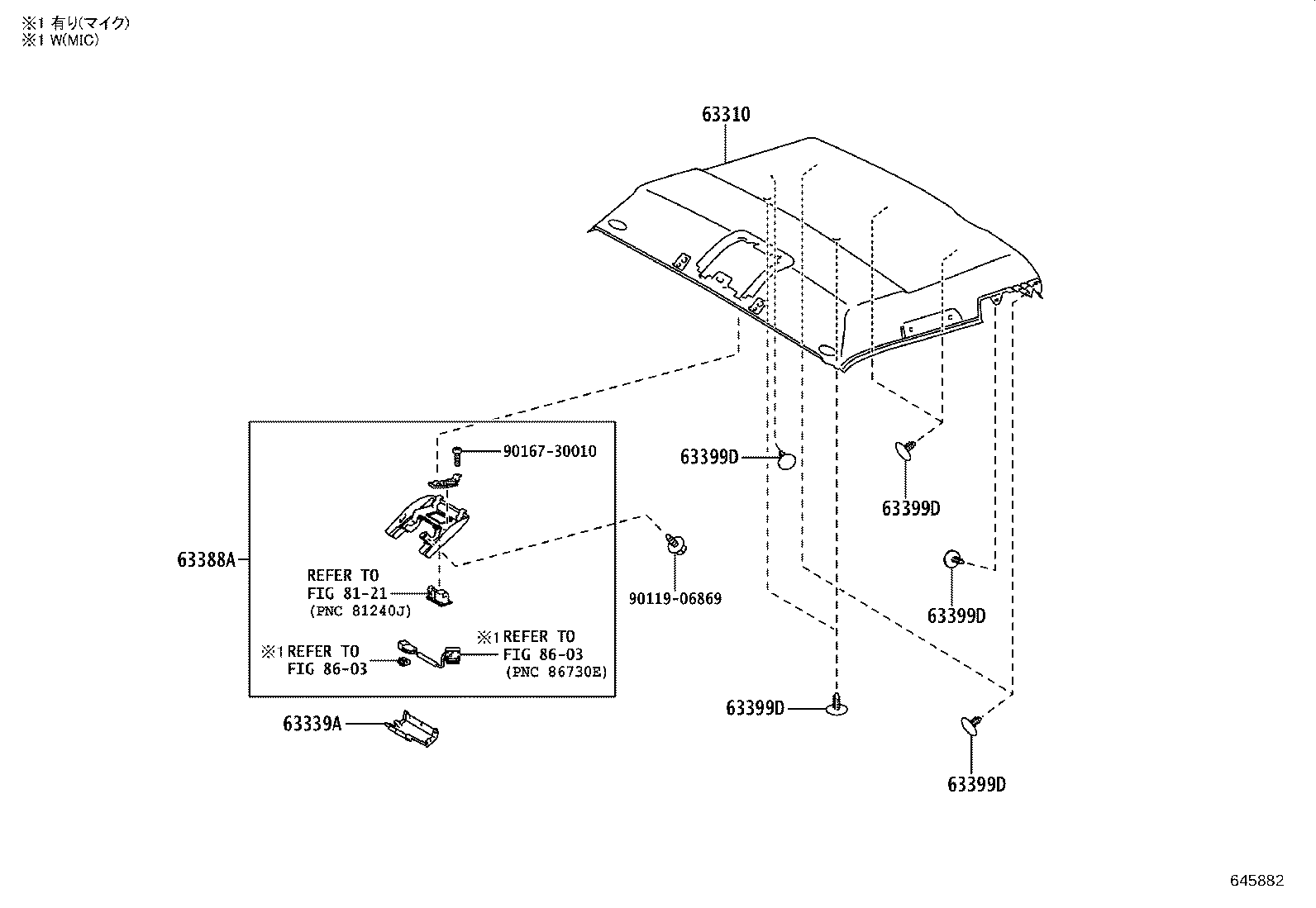

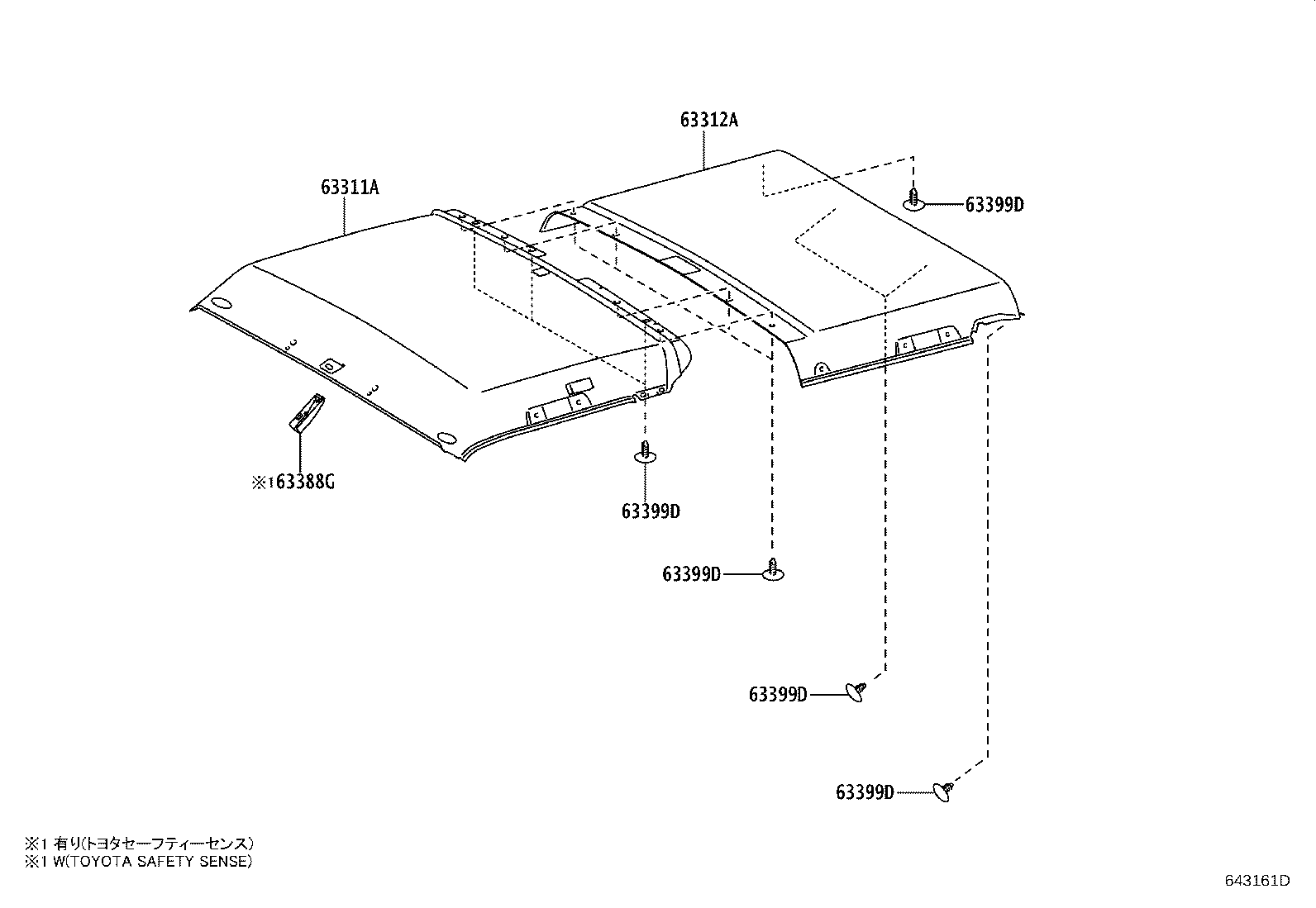

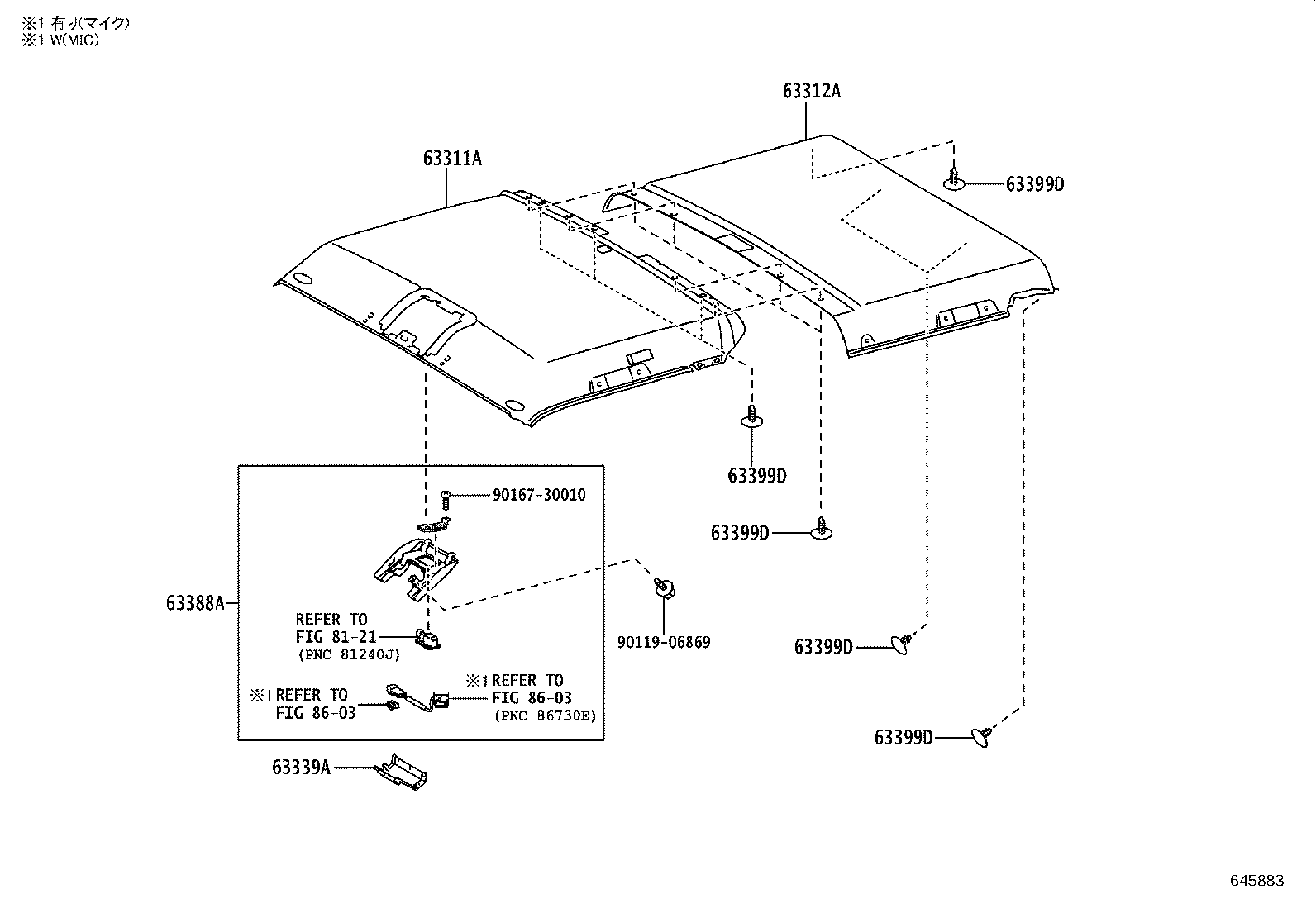

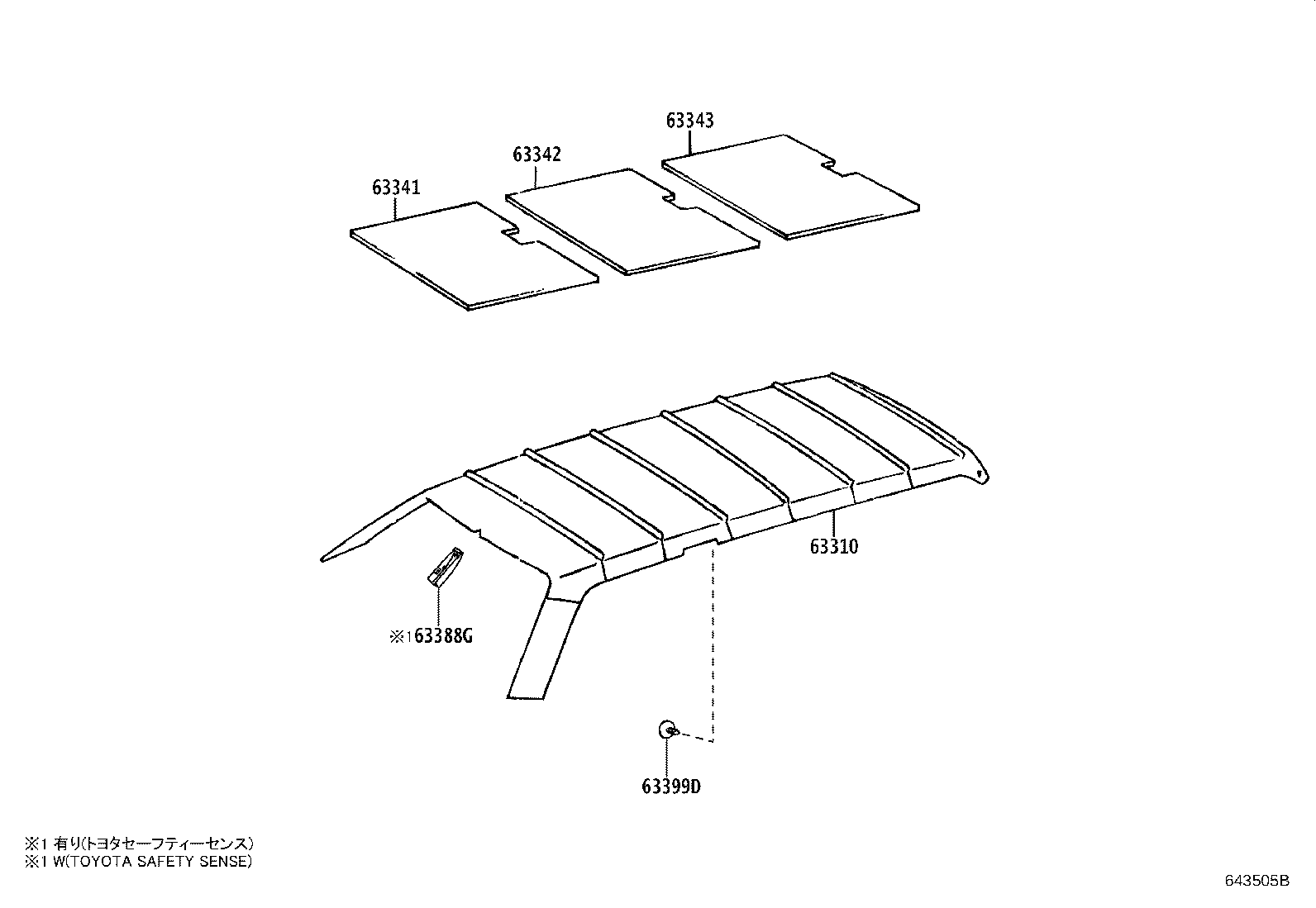

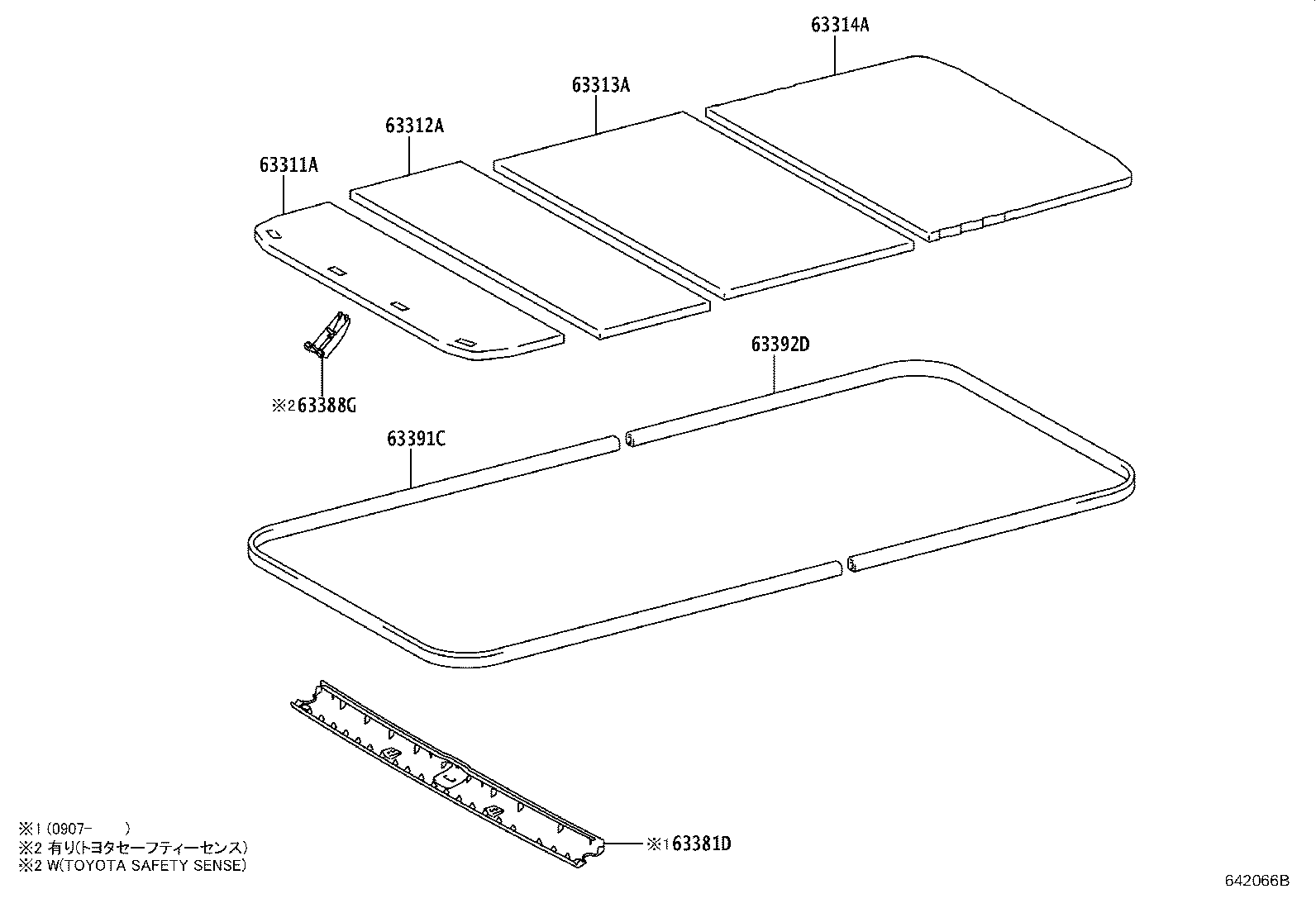

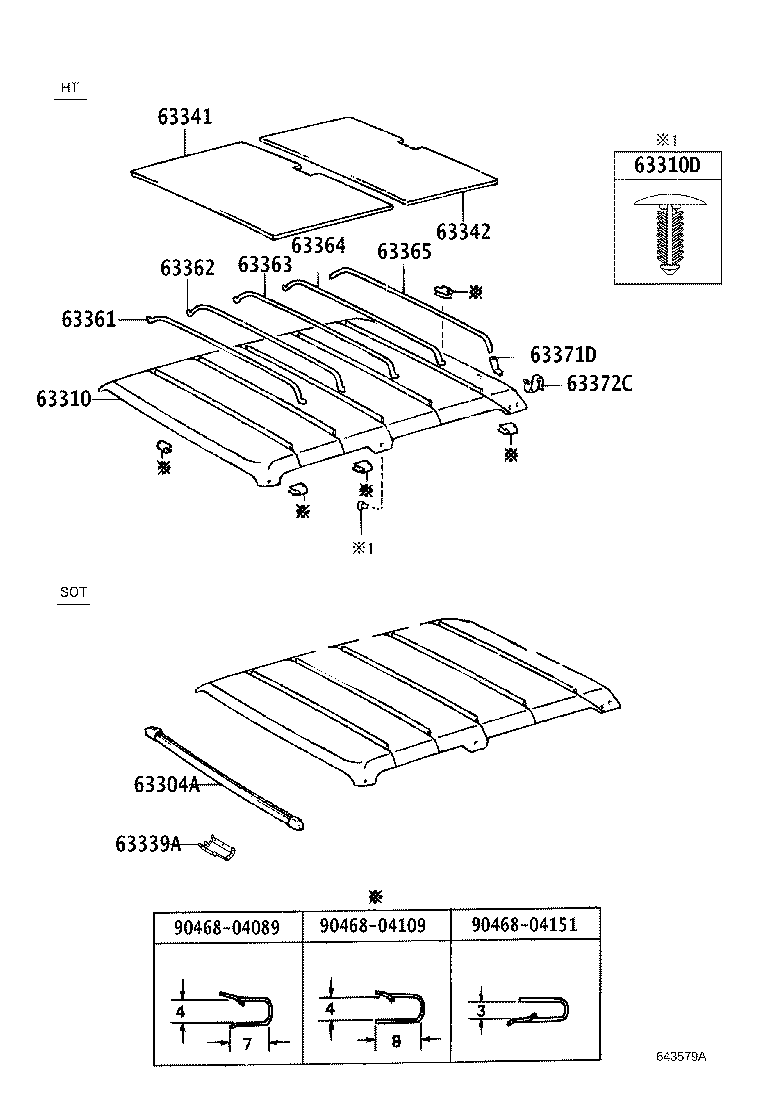

| PNC | Description |
|---|---|
| 63304A | Trim Sub-assy, Roof Headlining, Front |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63311A | Headlining, Roof NO.1 |
| 63312A | Headlining, Roof, NO.2 |
| 63313A | Headlining, Roof, NO.3 |
| 63314A | Headlining, Roof, NO.4 |
| 63331B | Headlining, Roof, Center RH |
| 63332C | Headlining, Roof, Center LH |
| 63339 | Ornament, Roof Headlining |
| 63339A | Cover, Roof Headlining Service Hole |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63359D | Cover, Roof Headlining Retainer |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365 | Support, Roof Headlining, NO.5 |
| 63366 | Support, Roof Headlining, NO.6 |
| 63367 | Support, Roof Headlining, NO.7 |
| 63371D | Retainer, Roof Headlining Support |
| 63372C | Hook, Roof Headlining Support |
| 63381D | Garnish, Roof Headlining Trim, RH |
| 63388A | Cover, Roof Headlining Holder |
| 63388G | Cover, Roof Headlining Holder, NO.2 |
| 63391C | Trim, Roof Headlining, NO.1 |
| 63392D | Trim, Roof Headlining, NO.2 |
| 63399D | Clip, Roof Headlining |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
