Toyota Land Cruiser
2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States
Supported model
Data version 2024-10

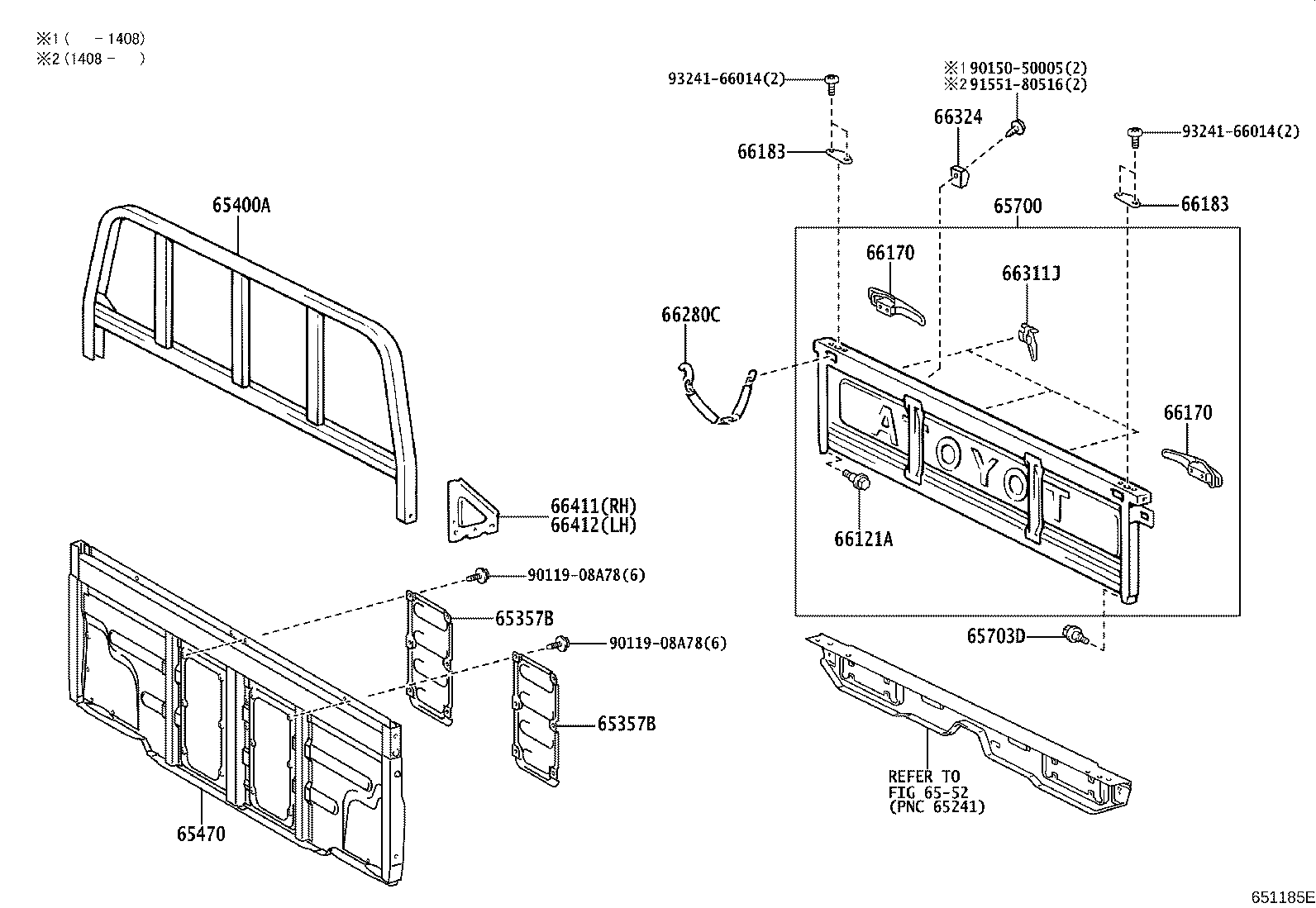

Rear Body Guard Frame & Tail Gate
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65357B | Cover, Header Board |
| 65400A | Guard Assy, Rear Body |
| 65470 | Board Assy, Header |
| 65700 | Gate Assy, Rear Body Tail |
| 65703D | Bolt(FOR TAIL GATE) |
| 66121A | Bolt, Tail Gate Male |
| 66170 | Latch Assy, Rear Body Tail Gate |
| 66183 | Stopper, Tail Gate |
| 66280C | Chain Assy, Tail Gate |
| 66311J | Hook, Rope |
| 66324 | Cushion, Tail Gate Side |
| 66411 | Bracket, Guard Frame, RH |
| 66412 | Bracket, Guard Frame, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
