Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

31 part groups · 7 illustrations

Illustrations

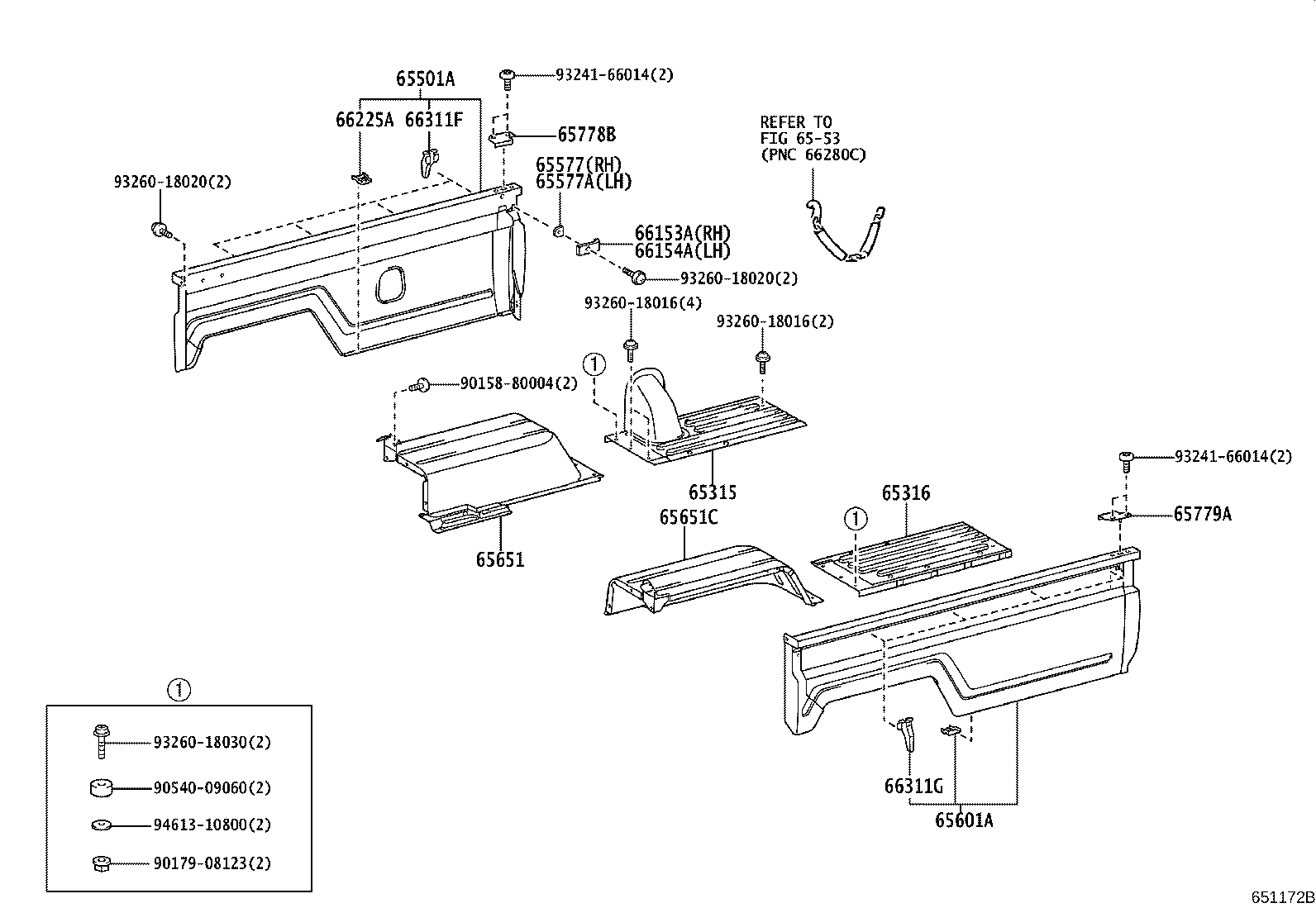

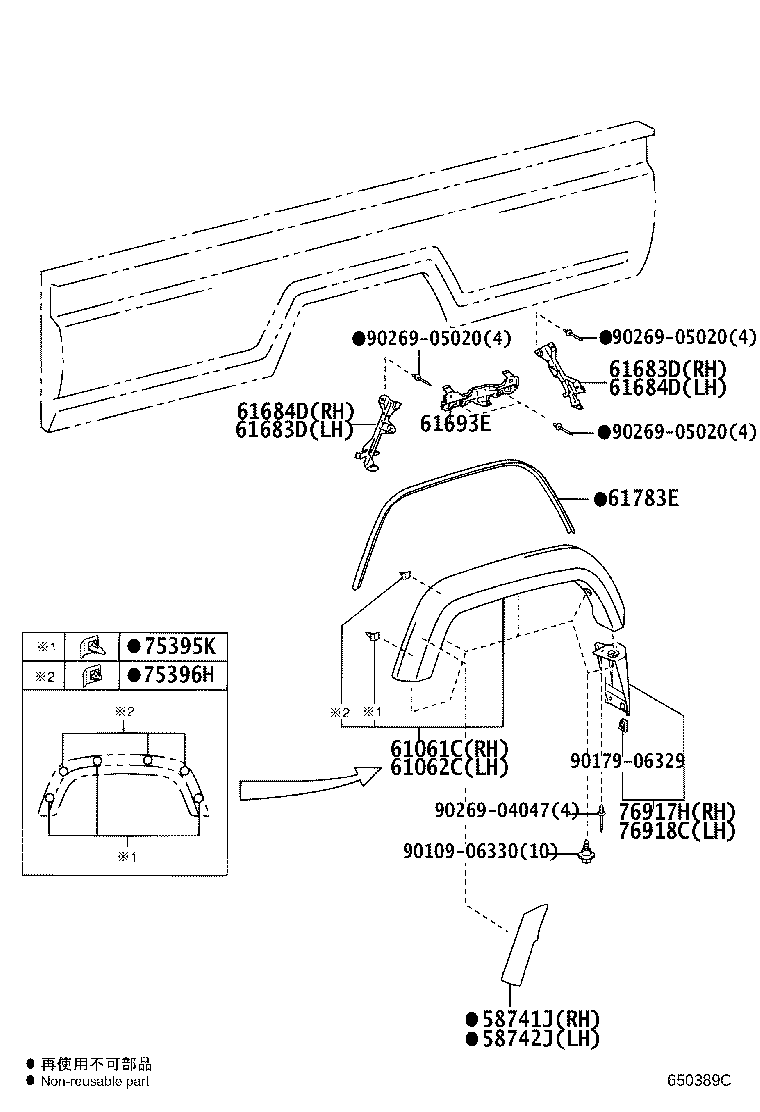

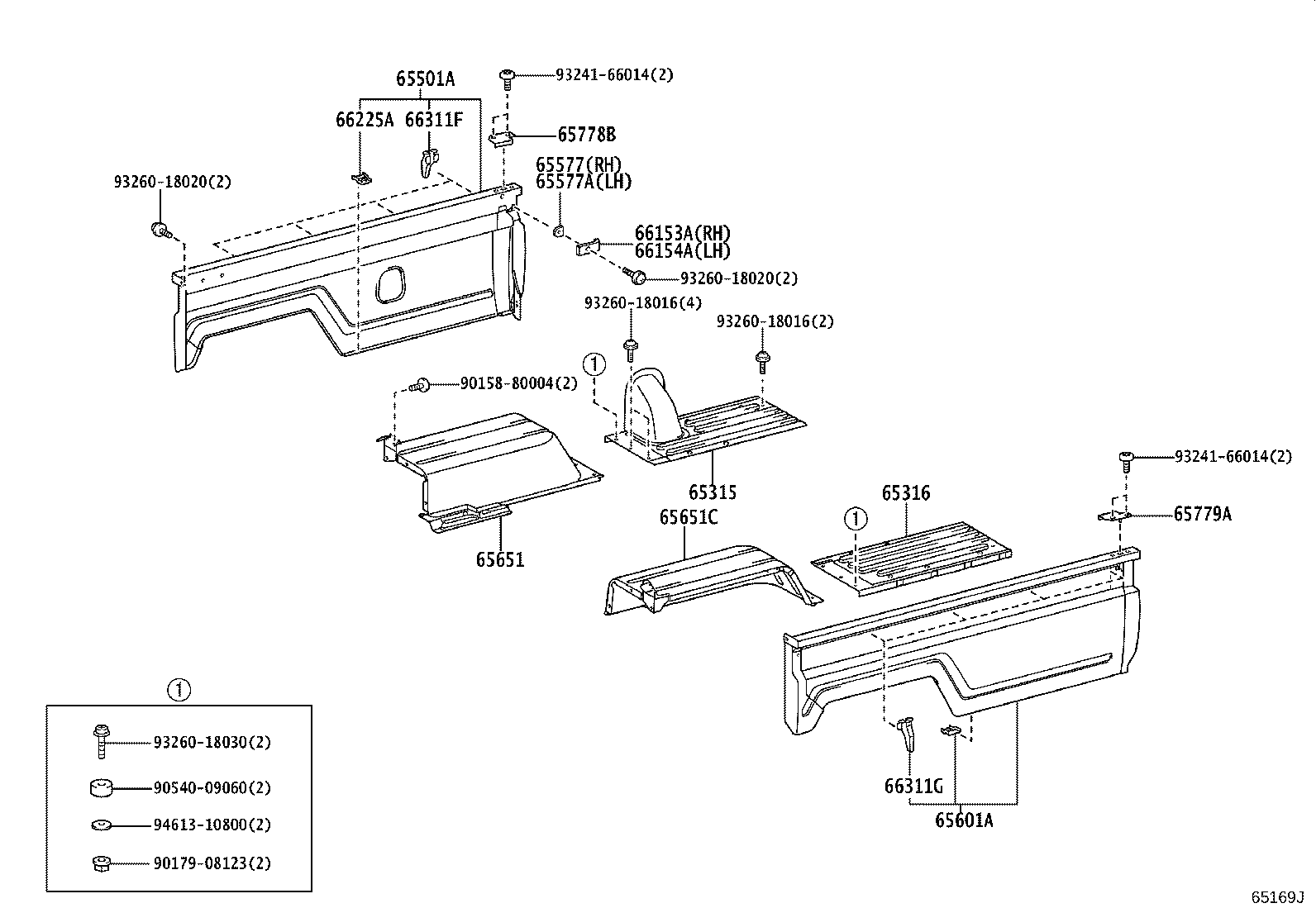

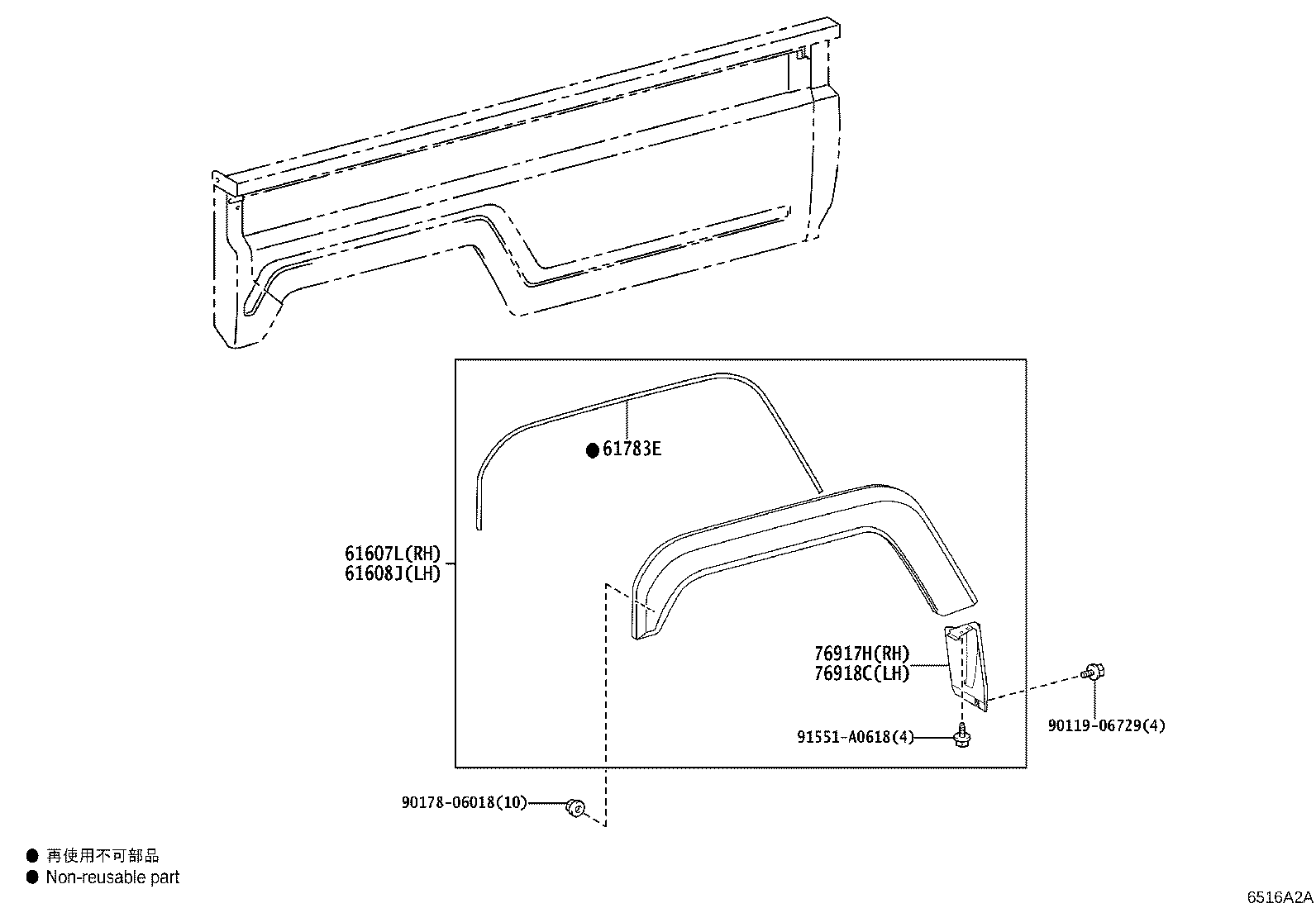

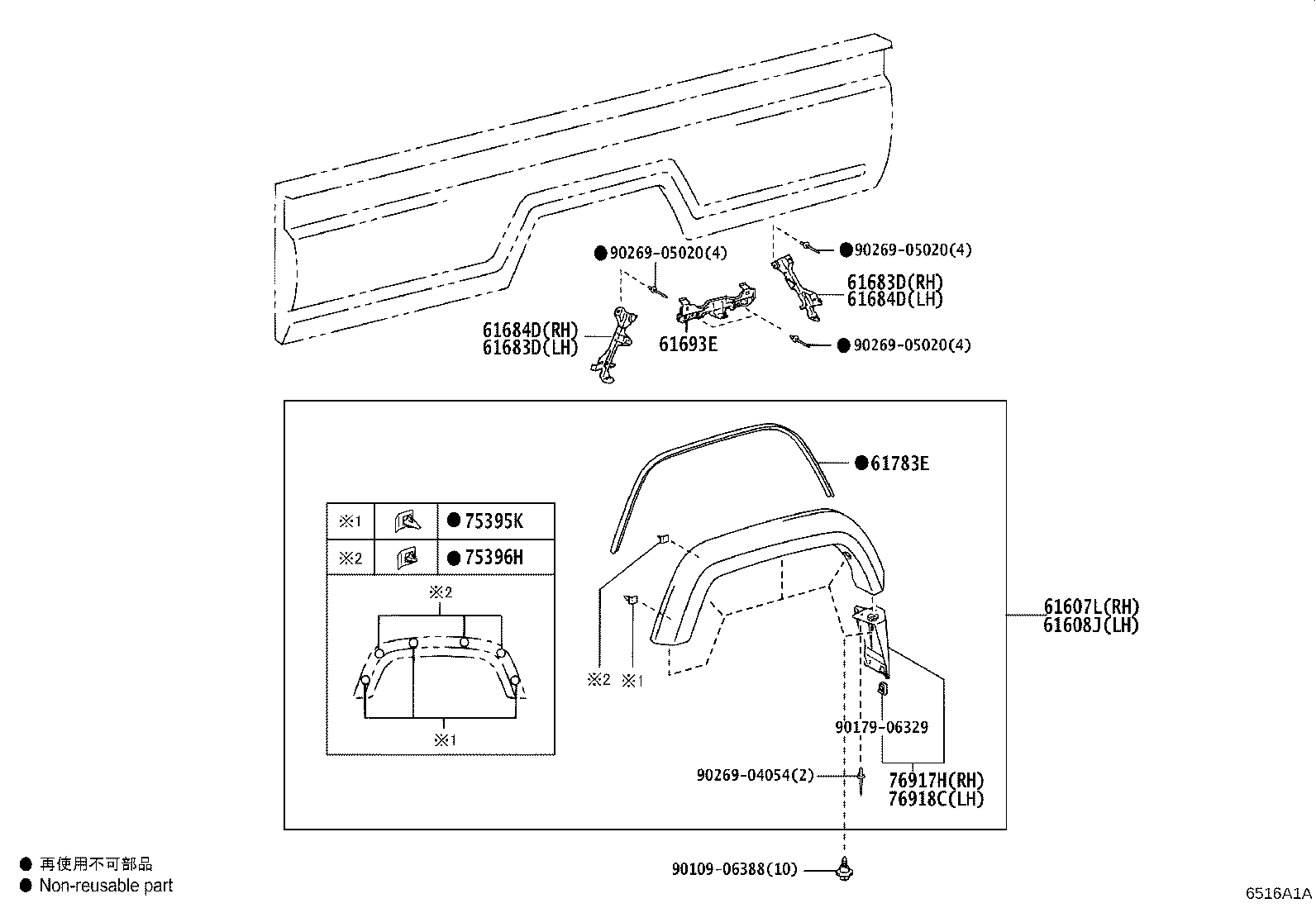

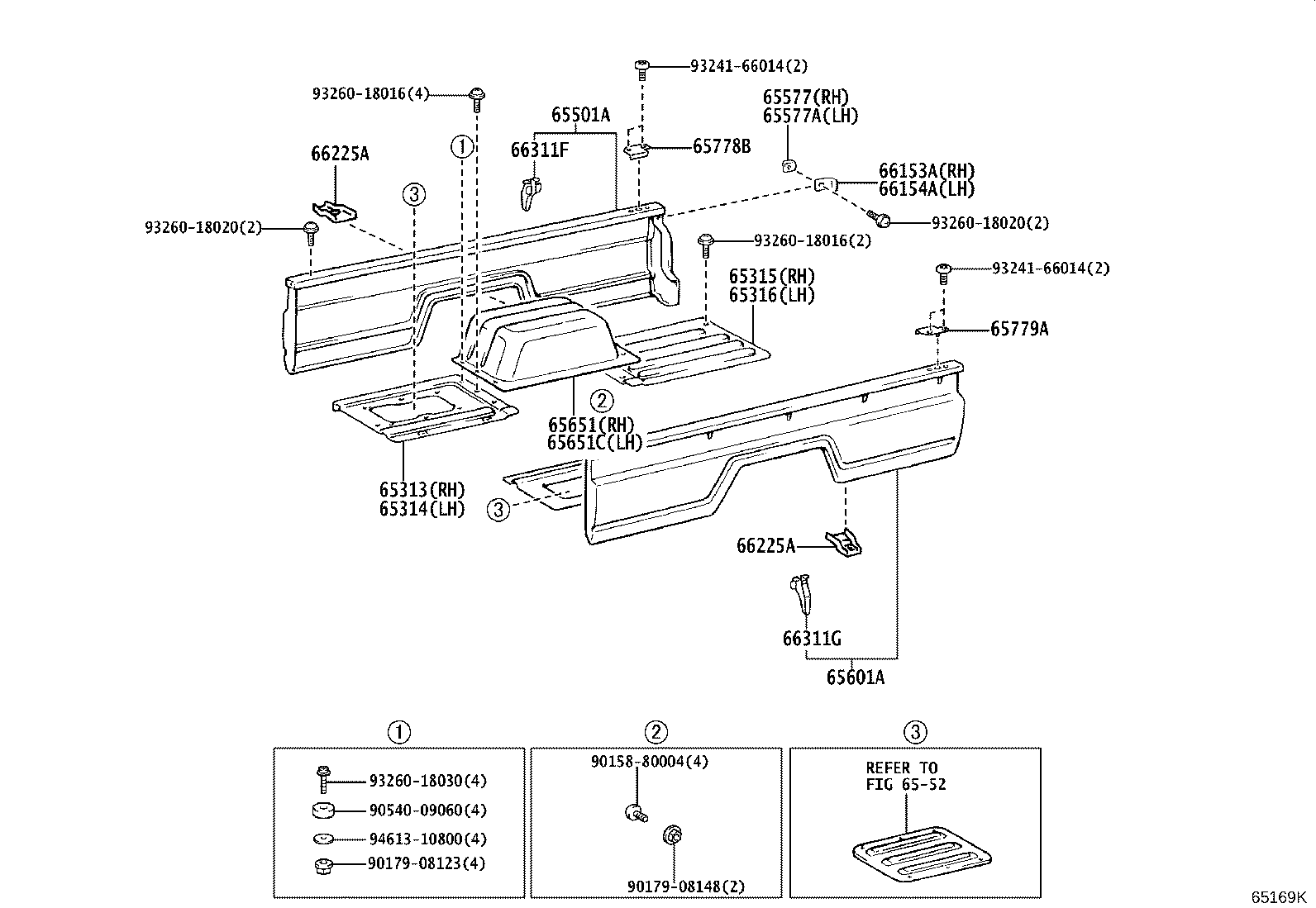

Figure 651212B 651212B 2007-01 → 2023-09 Figure 650389D 650389D 2007-01 → 2023-09 Figure 651172B 651172B 2012-08 → 2023-09 Figure 65169J 65169J 2023-09 → — Figure 6516A2A 6516A2A 2023-09 → — Figure 65169K 65169K 2023-09 → — Figure 6516A1A 6516A1A 2023-09 → —

Part groups

PNCDescription
58741J Protector, Rear Wheel Extension, RH
58742J Protector, Rear Wheel Extension, LH
61061C Extension Sub-assy, Rear Wheel Opening, NO.1 RH
61062C Extension Sub-assy, Rear Wheel Opening, NO.1 LH
61607L Extension Sub-assy, Rear Wheel Opening, RH
61608J Extension Sub-assy, Rear Wheel Opening, LH
61683D Bracket, Rear Wheel Opening, NO.1 RH
61684D Bracket, Rear Wheel Opening, NO.1 LH
61693E Bracket, Rear Wheel Opening, NO.1
61783E Pad, Rear Wheel Opening Extension, NO.1
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65501A Panel Sub-assy, Rear Body Side, RH
65577 Retainer, Tail Gate Latch Female
65577A Retainer, Tail Gate Female
65601A Panel Sub-assy, Rear Body Side, LH
65651 Panel, Wheel House
65651C Panel, Wheel House
65778B Stopper, Tail Gate Stay, RH
65779A Stopper, Tail Gate Stay, LH
66153A Latch, Tail Gate Female, RH
66154A Latch, Tail Gate Female, LH
66225A Support, Baffle Rubber
66311F Hook, Rope, NO.2
66311G Hook, Rope
75395K Clip, Outside Moulding, NO.1
75396H Clip, Outside Moulding, NO.2
76917H Mudguard, Side, Rear RH
76918C Mudguard, Side, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
