Toyota Land Cruiser
2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States
Supported model
Data version 2024-10

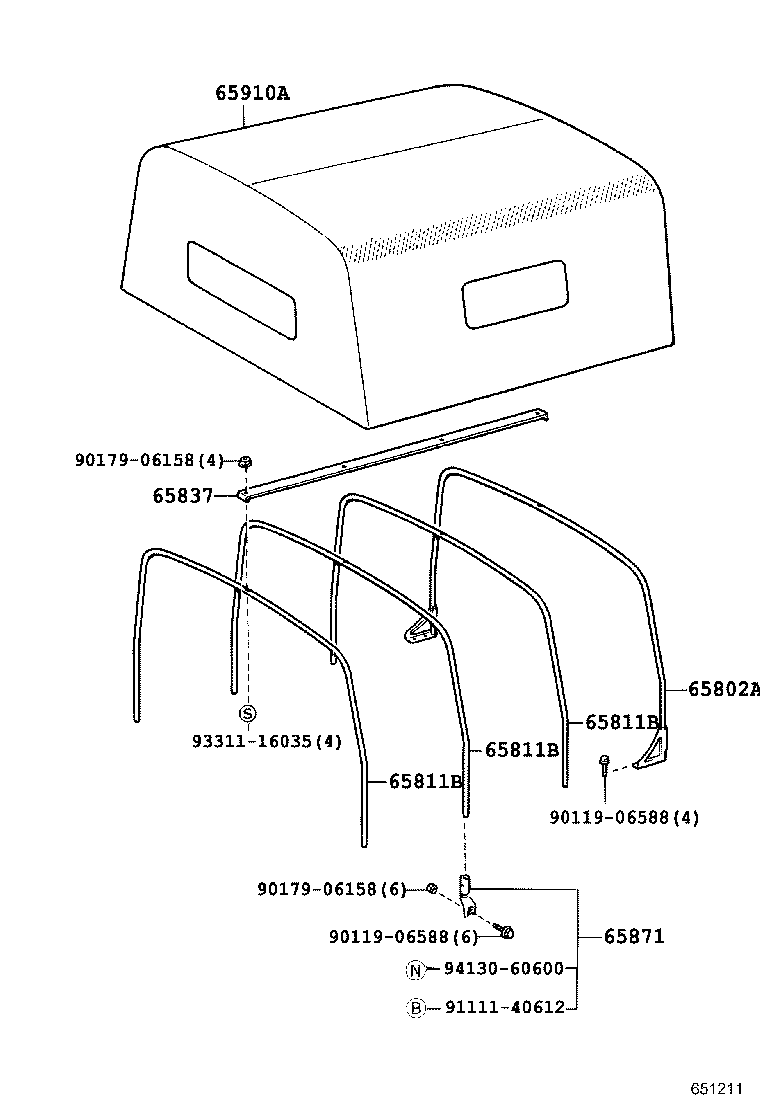

Rear Body Top Curtain & Roof Panel
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61667B | Weatherstrip, Rear Body Rear Side, RH |
| 61668B | Weatherstrip, Rear Body Rear Side, LH |
| 65802A | Bow Sub-assy, Top, NO.2 |
| 65805A | Bow Sub-assy, Center Top Cover Tarpaulin, RH |
| 65806A | Bow Sub-assy, Center Top Cover Tarpaulin, LH |
| 65809A | Bow Sub-assy, Rear Top Cover Tarpaulin |
| 65811B | Bow, Top, NO.1 |
| 65821 | Bow, Front Top Cover Tarpaulin |
| 65831 | Bow, Center Top Cover Tarpaulin |
| 65837 | Plate, Top Bow |
| 65871 | Holder, Top Bow |
| 65910A | Tarpaulin Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
