Toyota Land Cruiser
2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States
Supported model
Data version 2024-10

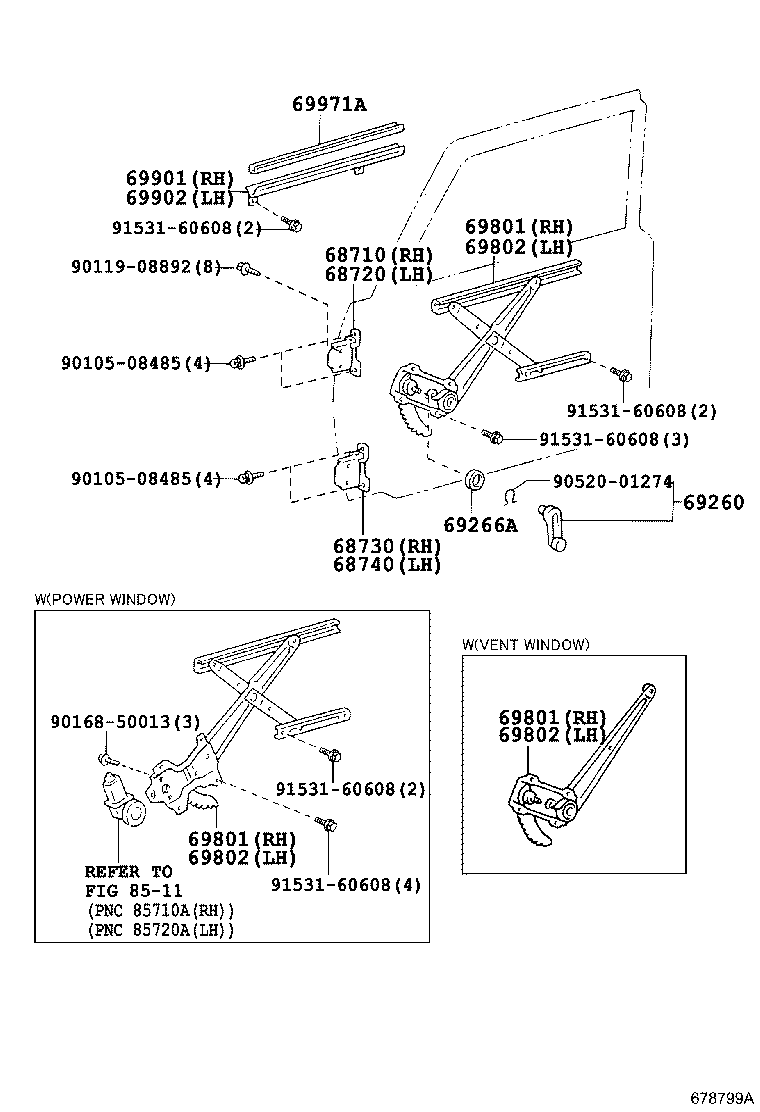

Front Door Window Regulator & Hinge
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 68710 | Hinge Assy, Front Door, Upper RH |
| 68720 | Hinge Assy, Front Door, Upper LH |
| 68730 | Hinge Assy, Front Door, Lower RH |
| 68740 | Hinge Assy, Front Door, Lower LH |
| 69260 | Handle Assy, Front Door Window Regulator |
| 69266A | Escutcheon, Door Regulator Handle(FOR FRONT DOOR) |
| 69801 | Regulator Sub-assy, Front Door Window, RH |
| 69802 | Regulator Sub-assy, Front Door Window, LH |
| 69901 | Channel Sub-assy, Front Door Glass, RH |
| 69902 | Channel Sub-assy, Front Door Glass, LH |
| 69971A | Filler, Front Door Glass Channel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
