Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

228 part groups · 69 illustrations

Illustrations

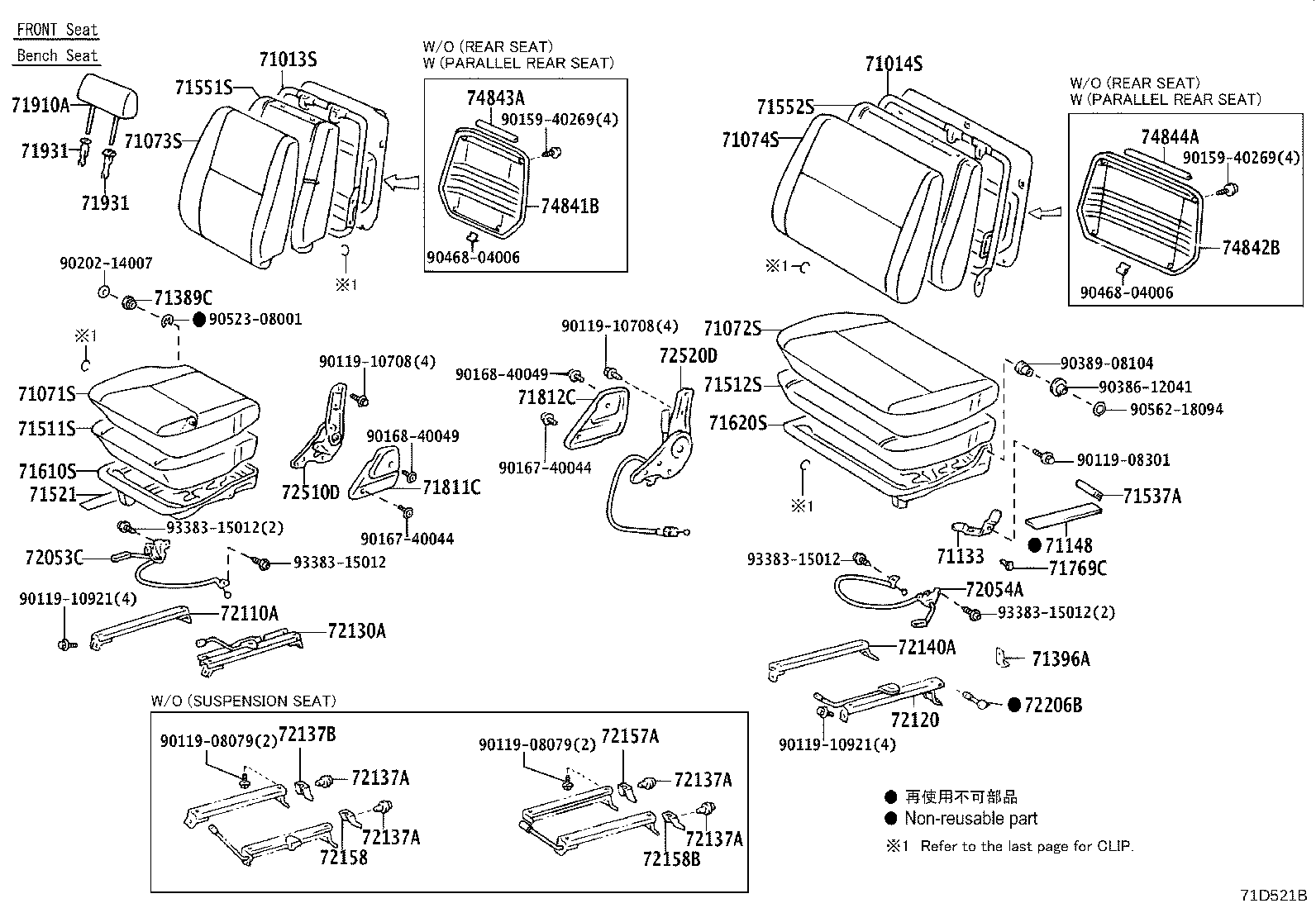

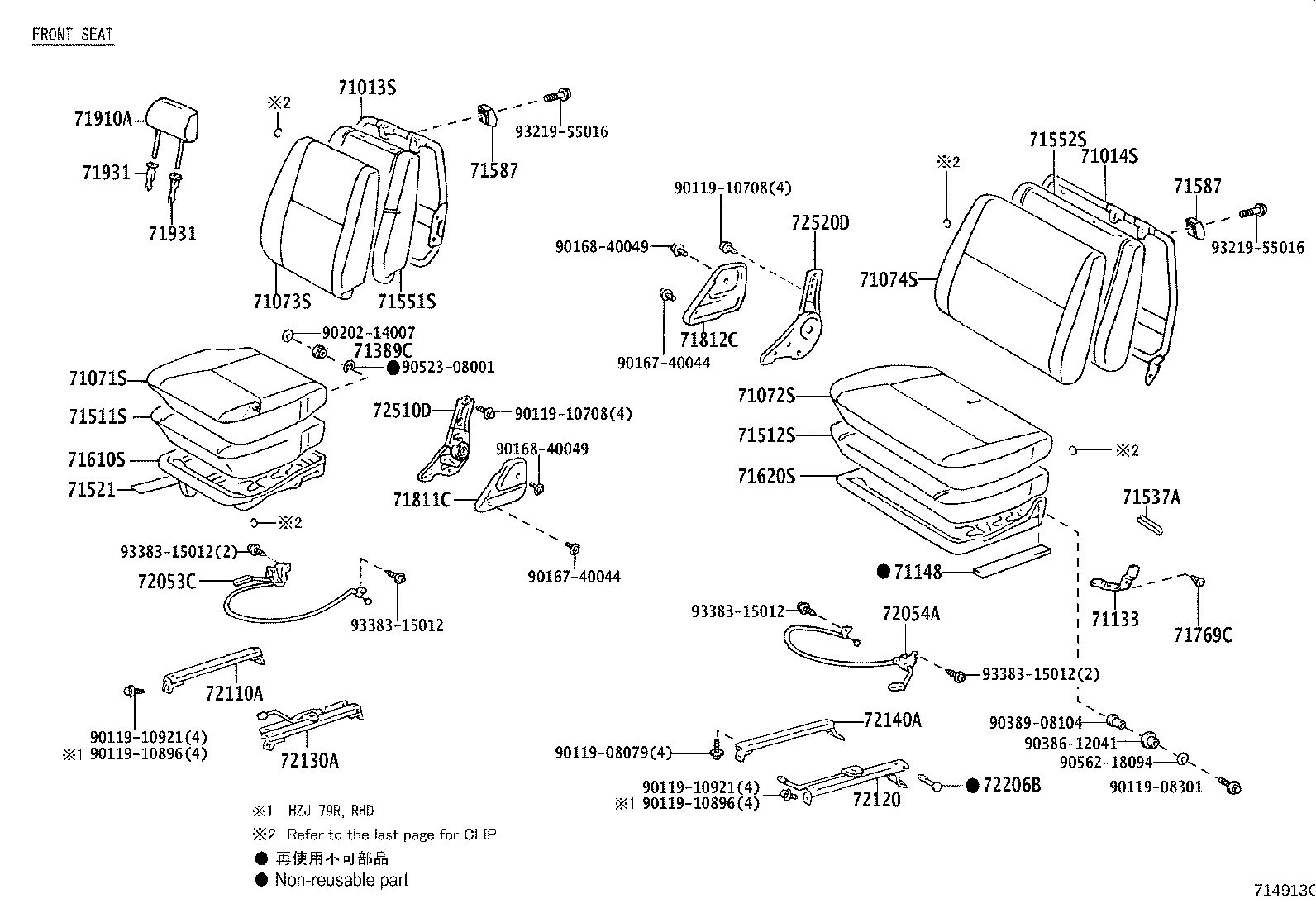

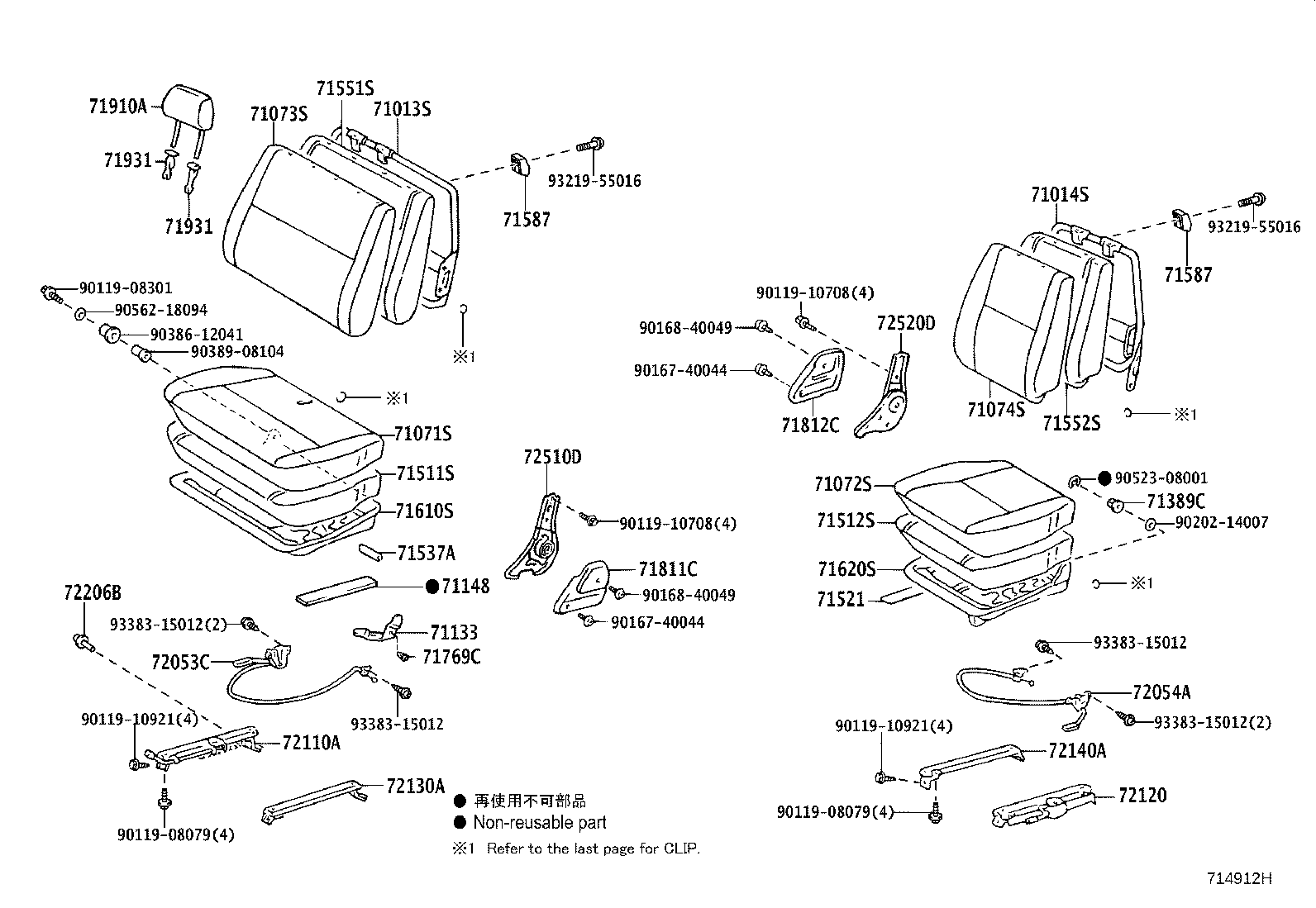

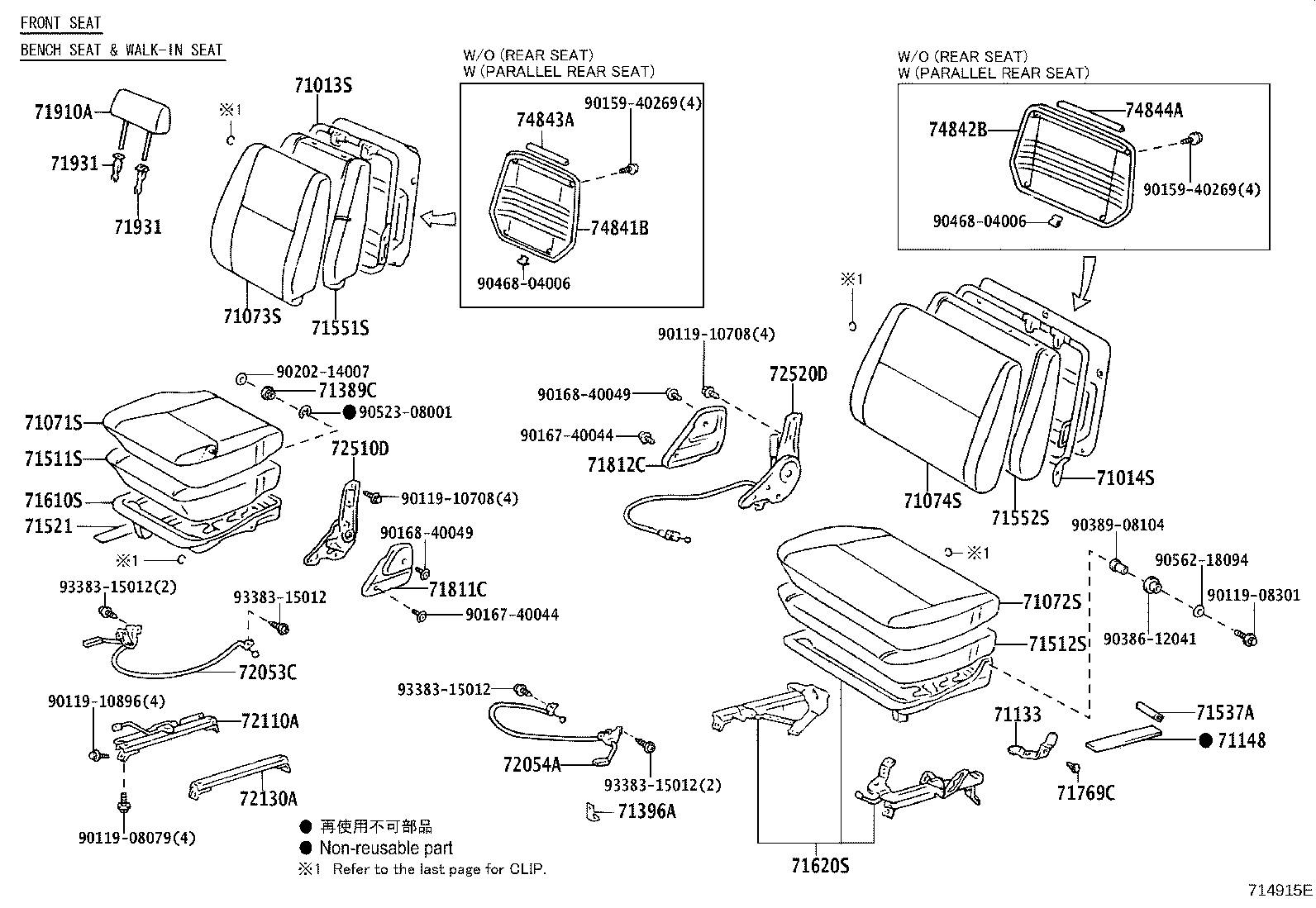

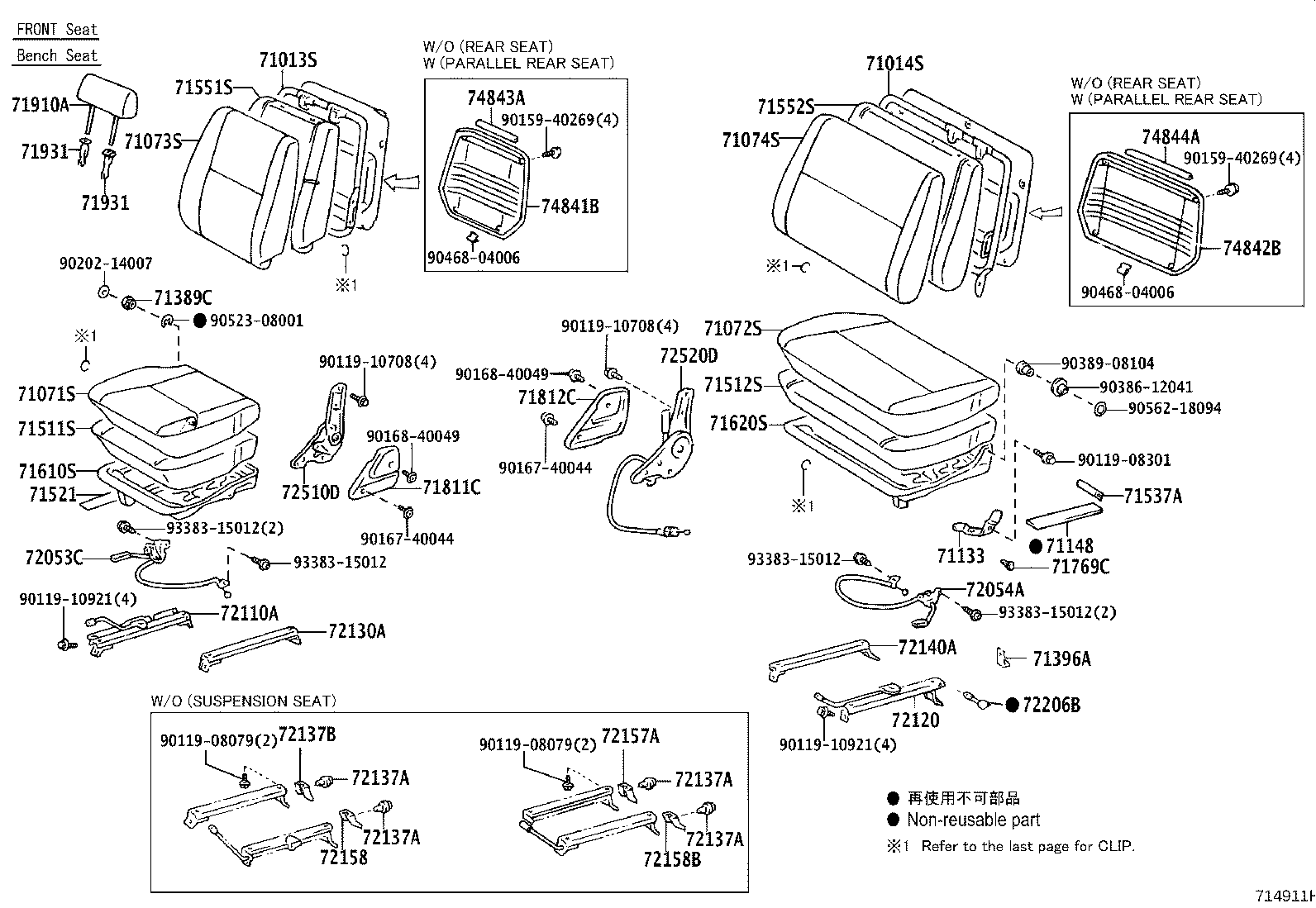

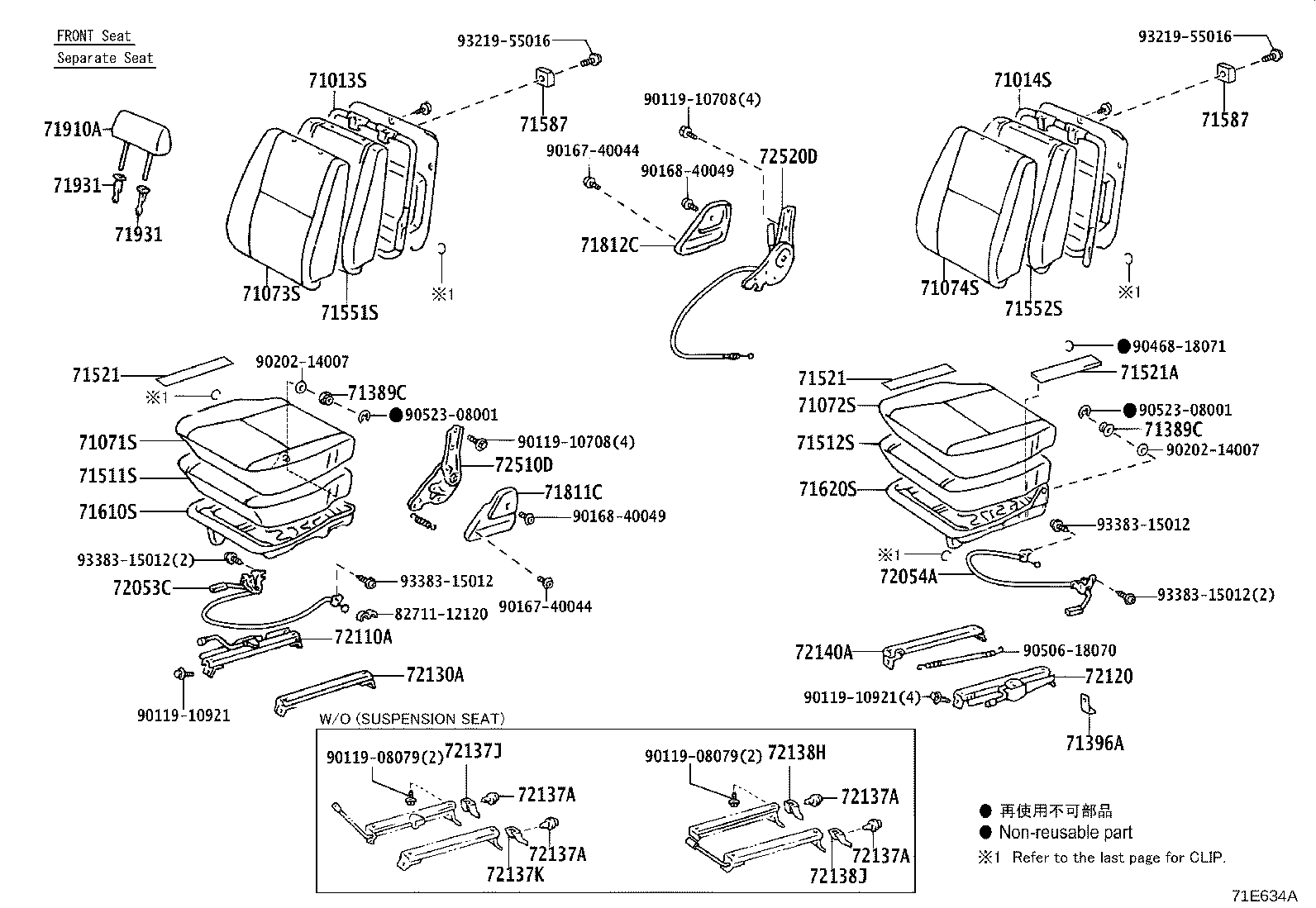

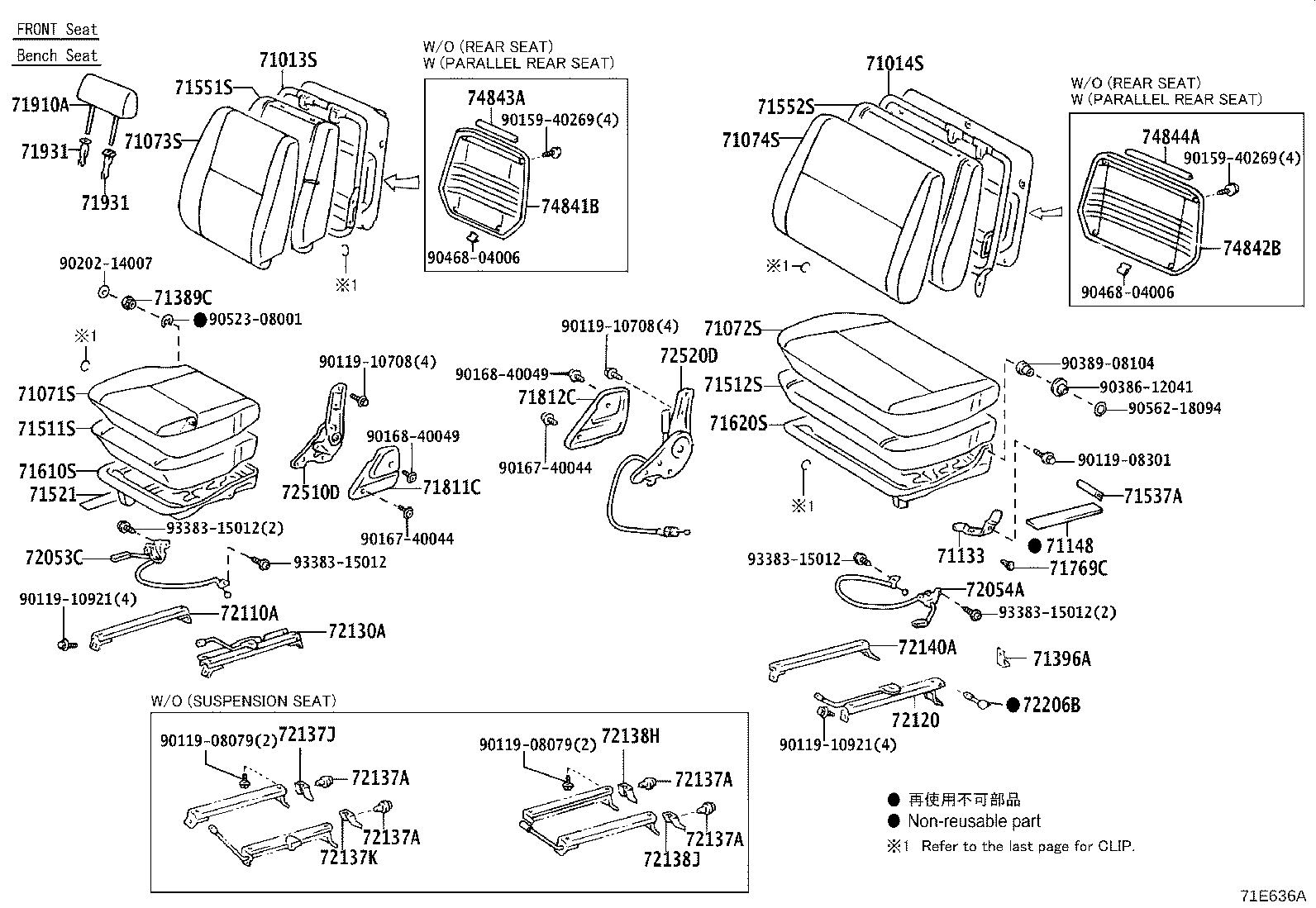

Figure 714904F 714904F 2007-01 → 2016-08 Figure 714904F 714904F 2012-08 → 2016-08 Figure 714904F 714904F 2014-08 → 2016-08 Figure 714905F 714905F 2007-01 → 2016-08 Figure 71D521B 71D521B 2007-01 → 2016-08 Figure 714910G 714910G 2007-01 → 2016-08 Figure 714911H 714911H 2007-01 → 2016-08 Figure 714912H 714912H 2007-01 → 2016-08 Figure 714913G 714913G 2007-01 → 2014-08 Figure 714913G 714913G 2007-01 → 2016-08 Figure 714914F 714914F 2007-01 → 2016-08 Figure 714915E 714915E 2007-01 → 2016-08 Figure 71E634A 71E634A 2016-08 → 2023-09 Figure 71E634A 71E634A 2023-09 → — Figure 71E635A 71E635A 2016-08 → 2023-09 Figure 71E635A 71E635A 2023-09 → — Figure 71E636A 71E636A 2016-08 → 2023-09 Figure 71E636A 71E636A 2023-09 → — Figure 71E636A 71E636A 2023-09 → — Figure 71E636A 71E636A 2024-10 → — Figure 71E637A 71E637A 2016-08 → 2023-09 Figure 71E637A 71E637A 2023-09 → — Figure 71E637A 71E637A 2024-10 → — Figure 71E638A 71E638A 2016-08 → 2023-09 Figure 71E638A 71E638A 2023-09 → — Figure 71E639A 71E639A 2016-08 → 2023-09 Figure 71E639A 71E639A 2023-09 → — Figure 71E640A 71E640A 2016-08 → 2023-09 Figure 71E640A 71E640A 2023-09 → — Figure 71E641A 71E641A 2016-08 → 2023-09 Figure 71E641A 71E641A 2023-09 → — Figure 71E642A 71E642A 2016-08 → 2023-09 Figure 71E642A 71E642A 2023-09 → — Figure 71A755B 71A755B 2016-08 → 2019-09 Figure 71A755B 71A755B 2016-08 → 2023-09 Figure 71A755B 71A755B 2021-01 → 2023-09 Figure 71A755B 71A755B 2023-09 → — Figure 71A755B 71A755B 2023-09 → — Figure 71A385A 71A385A 2016-08 → — Figure 71A386 71A386 2016-08 → — Figure 714926E 714926E 2007-01 → 2014-08 Figure 71A212B 71A212B 2014-08 → 2016-08 Figure 71A733C 71A733C 2016-08 → 2023-09 Figure 714923E 714923E 2007-01 → 2023-09 Figure 714923E 714923E 2023-09 → — Figure 714921F 714921F 2007-01 → 2023-09 Figure 714921F 714921F 2023-09 → — Figure 714928D 714928D 2007-01 → 2023-09 Figure 714928D 714928D 2023-09 → — Figure 714927C 714927C 2007-01 → 2023-09 Figure 714927C 714927C 2023-09 → — Figure 714924D 714924D 2007-01 → 2012-08 Figure 714924D 714924D 2007-01 → 2016-08 Figure 714924D 714924D 2007-01 → 2023-09 Figure 714924D 714924D 2023-09 → — Figure 714925D 714925D 2007-01 → 2023-09 Figure 714925D 714925D 2023-09 → — Figure 714929C 714929C 2007-01 → 2023-09 Figure 714929C 714929C 2023-09 → — Figure 71A387A 71A387A 2016-08 → 2023-09 Figure 71A387A 71A387A 2023-09 → — Figure 71A389A 71A389A 2016-08 → 2023-09 Figure 71A389A 71A389A 2023-09 → — Figure 71F97W 71F97W 2023-09 → — Figure 71F96TA 71F96TA 2023-09 → — Figure 71F97X 71F97X 2023-09 → — Figure 71F96VA 71F96VA 2023-09 → — Figure 71F9DV 71F9DV 2023-09 → — Figure 718491A 718491A 2007-01 → —

Part groups

PNCDescription
58048A Hook Sub-assy, Rope, NO.1
65661B Guide, Rollar
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71015 Frame Sub-assy, Rear Seat Cushion
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71017A Frame Sub-assy, Rear Seatback
71018 Frame Sub-assy, Rear Seatback, LH
71033 Leg Sub-assy, Rear Seat Cushion
71033B Leg Sub-assy, Rear Side Seat Cushion, NO.1 RH
71033C Leg Sub-assy, Rear Side Seat Cushion, NO.2 RH
71034A Leg Sub-assy, Rear Side Seat Cushion, NO.1 LH
71034B Leg Sub-assy, Rear Side Seat Cushion, NO.2 LH
71065 Frame Sub-assy, Rear Side Seat Cushion, RH
71066 Frame Sub-assy, Rear Side Seat Cushion, LH
71067 Frame Sub-assy, Rear Side Seatback, RH
71068 Frame Sub-assy, Rear Side Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075D Cover Sub-assy, Rear Seat Cushion, RH
71076E Cover Sub-assy, Rear Seat Cushion, LH
71077A Cover Sub-assy, Rear Seatback, RH
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71078C Cover Sub-assy, Rear Seatback, LH
71085B Cover Sub-assy, Rear Side Seat Cushion, RH
71085C Cover Sub-assy, Rear Side Seat Cushion, NO.2 RH
71086B Cover Sub-assy, Rear Side Seat Cushion, LH
71086C Cover Sub-assy, Rear Side Seat Cushion, LH
71088B Cover Sub-assy, Rear Side Seatback, RH
71088C Cover Sub-assy, Rear Side Seatback, NO.2 RH
71089B Cover Sub-assy, Rear Side Seatback, LH
71089C Cover Sub-assy, Rear Side Seatback, NO.2 LH
71133 Plate, Front Seat Cushion, NO.3
71148 Silencer, Front Seat Cushion
71311D Hinge, Rear Seat, Lower RH
71324A Cushion, Rear Seat
71324D Cushion, Rear Seat, RH
71324E Cushion, Rear Seat, LH
71335C Stay, Rear Seat Cushion Link, RH
71336A Stay, Rear Seat Cushion Link, LH
71344A Plate, Rear Seat Cushion Hinge
71344B Plate, Rear Seat Cushion Hinge, NO.2
71350B Hinge Assy, Rear Seat, RH
71350D Hinge Assy, Rear Seat, NO.2 RH
71360A Hinge Assy, Rear Seat, LH
71360D Hinge Assy, Rear Seat, NO.2 LH
71381A Bracket, Rear Seat Cushion Set, RH
71382A Bracket, Rear Seat Cushion Set, LH
71389C Spacer, Front Seat Hinge
71396A Plate, Rear Seat Band Hook
71398A Holder, Rear Seatback
71398B Holder, Rear Seatback, LH
71461A Spring, Rear Seat Cushion, NO.1
71462 Spring, Rear Seat Cushion, NO.2
71485 Cover, Rear Seat Hinge
71486C Cover, Rear Seat Hinge, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71521 Pad, Front Seat Cushion Silencer, A
71521A Pad,Front Seat Cushion Silencer
71537A Protector, Front Seat Cushion
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611 Pad, Rear Seat Cushion
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651 Pad, Rear NO.1 Seatback
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651D Pad, Rear Seatback, RH
71652B Pad, Rear Seatback, LH
71663 Pad, Rear Seatback, Lower
71671 Pad, Rear Seatback Silencer, A
71671A Pad, Rear Seatback Silencer, A
71671B Pad, Rear Seat Cushion Silencer, A
71672A Pad, Rear Seat Cushion Silencer, B
71691E Cover, Rear Seat Cushion Hinge, NO.1
71691F Cover, Rear NO.1 Seat Cushion Hinge, Inner RH
71691G Cover, Rear NO.1 Seat Cushion Hinge, Outer RH
71691K Cover, Rear Seat Cushion Hinge, NO.4
71692E Cover, Rear Seat Cushion Hinge, NO.2
71692F Cover, Rear NO.1 Seat Cushion Hinge, Inner LH
71692G Cover, Rear NO.1 Seat Cushion Hinge, Outer LH
71692H Cover, Rear Seat Cushion Hinge, NO.3
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71701C Board Sub-assy, Rear Seatback, RH
71702C Board Sub-assy, Rear Seatback, LH
71704 Band Sub-assy, Rear Side Seat
71704B Band Sub-assy, Rear Side Seat, NO.2
71710A Frame Assy, Rear Side Seat, RH
71720A Frame Assy, Rear Side Seat, LH
71721 Pad, Rear Side Seat Cushion, RH
71721A Pad, Rear Side Seat Cushion, NO.2 RH
71722 Pad, Rear Side Seat Cushion, LH
71722A Pad, Rear Side Seat Cushion, NO.2 LH
71730B Frame Assy, Rear Side Seat, NO.2 RH
71740B Frame Assy, Rear Side Seat, NO.2 LH
71761A Pad, Rear Side Seatback, RH
71761B Pad, Rear Side Seatback, LH
71761C Pad, Rear Side Seatback, NO.2 RH
71761D Pad, Rear Side Seatback, NO.2 LH
71769C Clip, Front Seat Cushion Cover
71811C Cover, Reclining Adjuster, RH
71811D Shield, Front Seat Cushion, RH
71812C Cover, Reclining Adjuster, LH
71812D Shield, Front Seat Cushion, LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71833B Clip (FOR REAR SEAT RECLINING COVER)
71833C Cover, Rear Seat Reclining, NO.2 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834B Cover, Rear Seat Reclining, NO.2 LH
71842A Clip(FOR REAR SEAT)
71843B Clip, Rear Seat Reclining Cover
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71875C Cover, Reclining Adjuster Inside, RH
71875E Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876B Cover, Reclining Adjuster Inside, LH
71876E Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71887C Carpet, Rear Seat Cushion
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71955A Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
72053C Lever Sub-assy, Reclining Remote Control, RH
72054A Lever Sub-assy, Reclining Remote Control, LH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72123B Cover, Seat Track Bracket, Outer Front
72130A Track Assy, Front Seat, Inner RH
72137A Clip (FOR SEAT TRACK COVER)
72137B Cover, Seat Track, RH
72137D Cover, Rear Seat Track, RH
72137J Cover, Front Seat Track, RH Rear Outer
72137K Cover, Front Seat Track, RH Rear Inner
72138A Cover, Rear Seat Track, LH
72138H Cover, Front Seat Track, LH Rear Inner
72138J Cover, Front Seat Track, LH Rear Outer
72140A Track Assy, Front Seat,Inner LH
72143E Bracket, Rear Seat Track, Lower Rear RH
72144A Bracket, Rear Seat Track, Lower Rear LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72158B Cover, Seat Track Bracket, Inner LH
72181 Bracket, Rear Outer Seat Track, Lower Front RH
72182 Bracket, Rear Outer Seat Track, Lower Front LH
72206B Pin Sub-assy, Seat Track Open Lever, LH
72211 Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72307 Link Sub-assy, Reclining Control, RH
72308 Link Sub-assy, Reclining Control, LH
72329H Cover, Seat Adjuster Bolt, NO.1
72329J Cover, Seat Adjuster Bolt, NO.2
72501C Pipe Sub-assy, Reclining Connecting
72510D Adjuster Assy, Reclining Seat, Outer RH
72520D Adjuster Assy, Reclining Seat, Outer LH
72524 Handle, Reclining Adjuster Release
72525A Handle, Reclining Adjuster Release, RH
72525J Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526E Handle, Reclining Adjuster Release, LH
72551A Cover, Reclining Hinge
72551E Cover, Reclining Hinge, RH
72552A Cover, Reclining Hinge, LH
72552E Cover, Reclining Hinge, LH
72569 Plate, Seatback Stopper
72570D Cable Assy, Reclining Adjusting
72580A Cable Assy, Reclining Adjusting, LH
72593A Knob, Remote Control Lever, RH
72594 Knob, Remote Control Lever, LH
72597A Bezel, Reclining Remote Control Lever, RH
72598 Bezel, Reclining Remote Control Lever, LH
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72607 Striker Sub-assy, Rear Seat Cushion Lock
72650F Lock Assy, Rear Seat, RH
72650K Lock Assy, Rear Seat, RH NO.2
72660A Support Assy, Rear Seat Cushion
72660D Support Assy, Rear Seat Cushion
72660F Lock Assy, Rear Seat, LH
72660Q Lock Assy, Rear Seat, LH NO.2
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72690A Strap Assy, Rear Seat Lock Release
72691B Striker, Rear Seat Cushion Lock
72692 Striker, Rear Seat Cushion Lock, NO.2
72693A Striker, Rear Seat Cushion Lock, NO.3
72694 Cover, Rear Seat Cushion Lock
72749B Spacer, Rear Seat Reclining, NO.1
72927 Cover, Rear Seat Cushion Under, RH
72928 Cover, Rear Seat Cushion Under, LH
73198B Cover, Rear Seat Bracket
74841B Panel, Front Seatback
74842B Panel, Front Seatback, A
74843A Ornament, Front Seatback Panel
74844A Ornament, Front Seatback Panel, A
76892D Bush, Rear Seat Lock Assy
76973E Cover, Rear Under Side, RH
76974E Cover, Rear Under Side, LH
78910 Cable Assy, Fold Seat Lock Control, NO.1
78920 Cable Assy, Fold Seat Lock Control, NO.2
78950 Band Assy, Fold Seat Stopper, NO.1
78960 Band Assy, Fold Seat Stopper, NO.2
79929 Frame, Fold Seat Leg Stopper
79929A Frame, Fold Seat Leg Stopper, NO.2
79956B Cover, Rear Seat Leg Side, RH
79956C Cover, Rear Seat Leg Side, LH
79977 Felt, Seatback
79977A Felt, Seatback
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
