Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

38 part groups · 21 illustrations

Illustrations

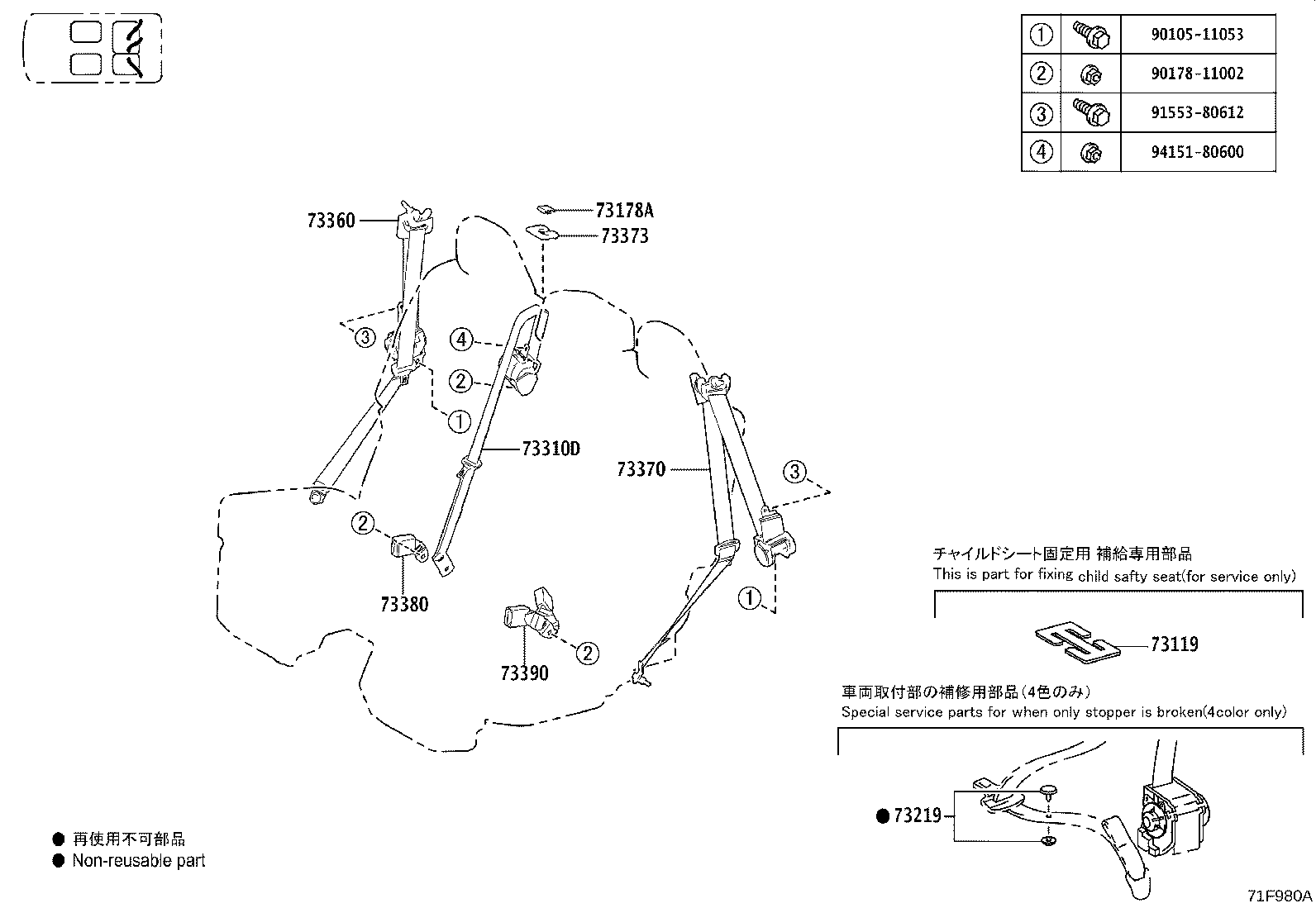

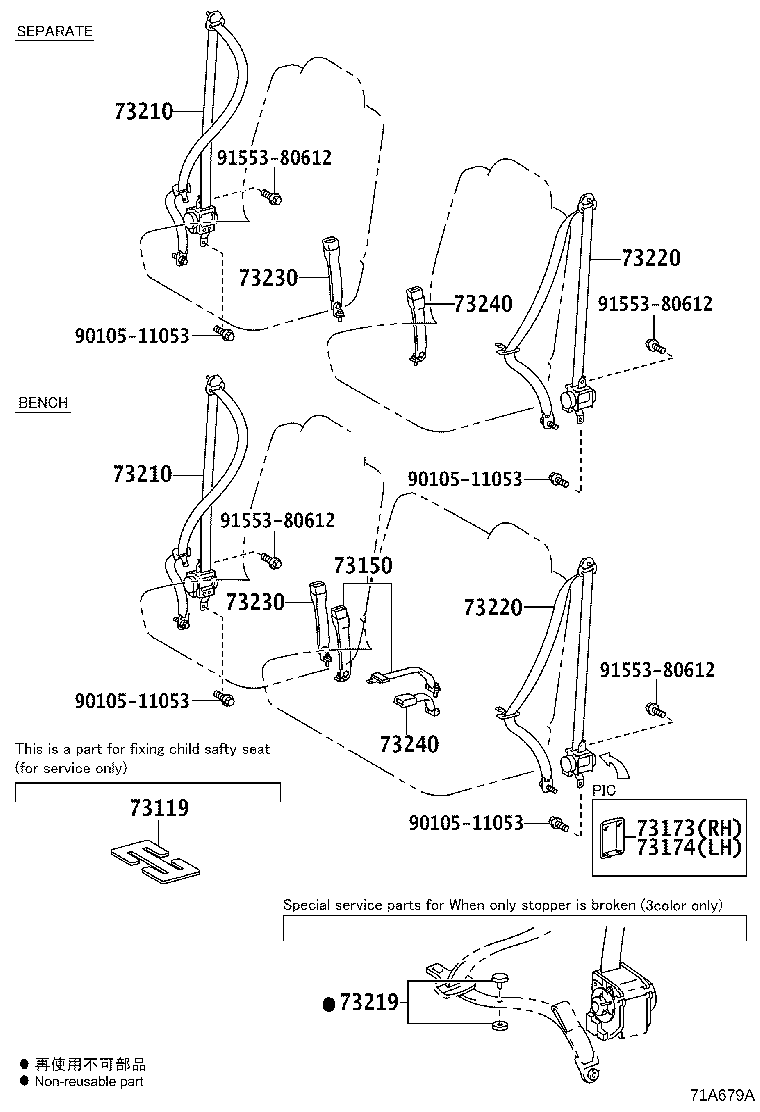

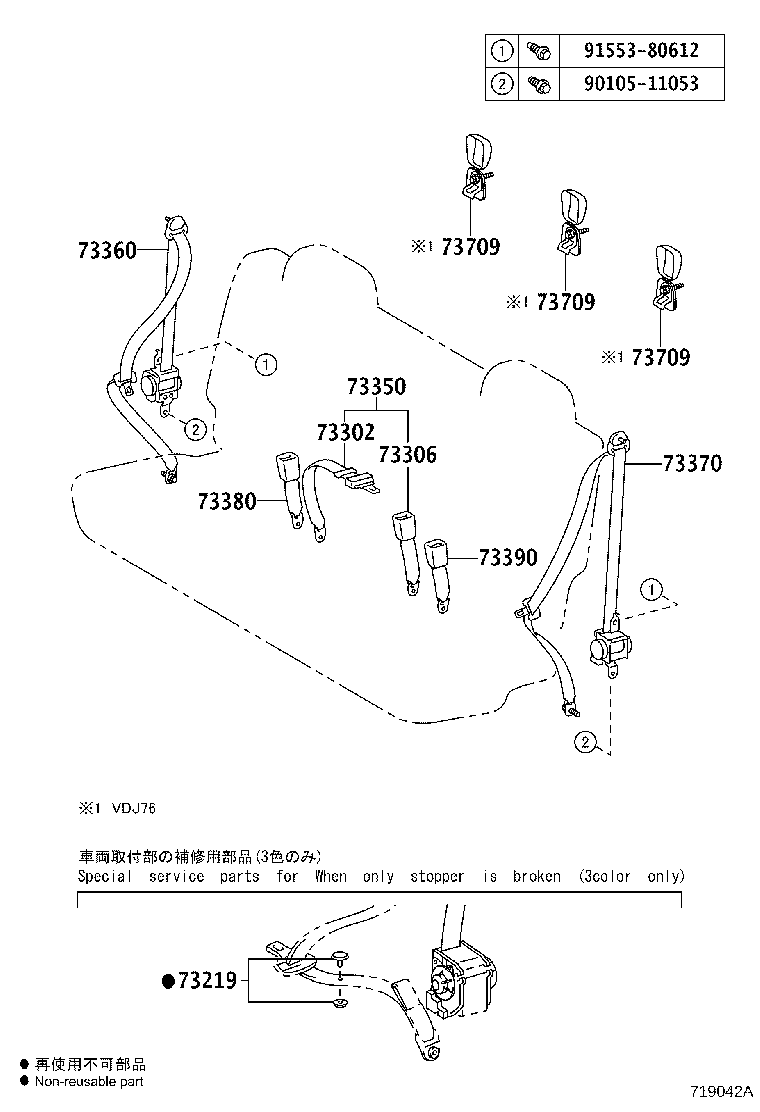

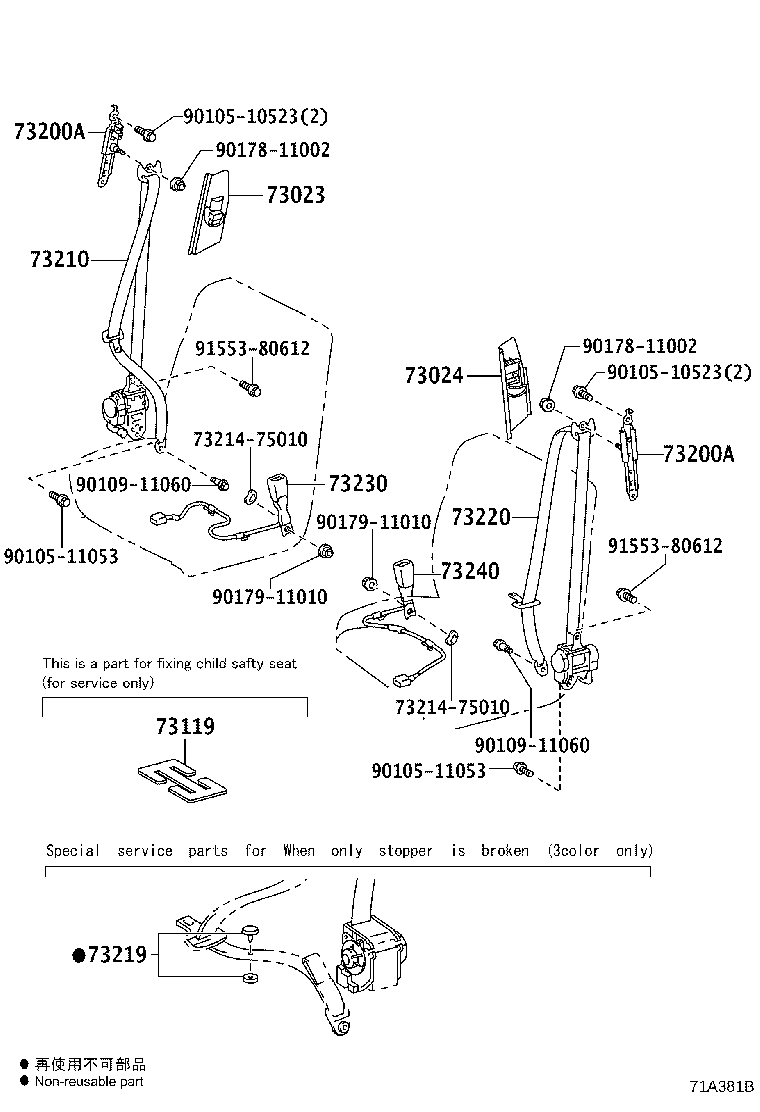

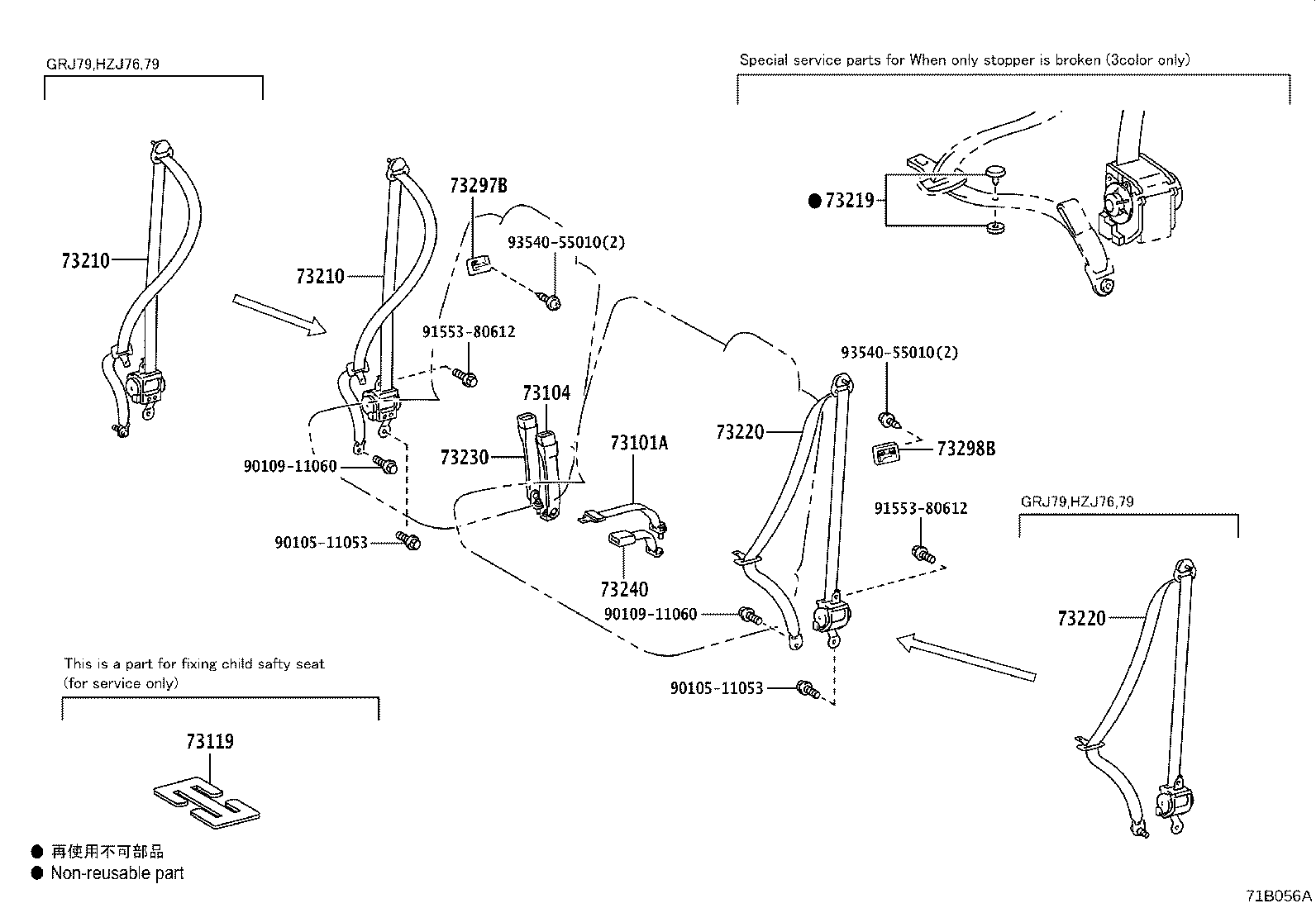

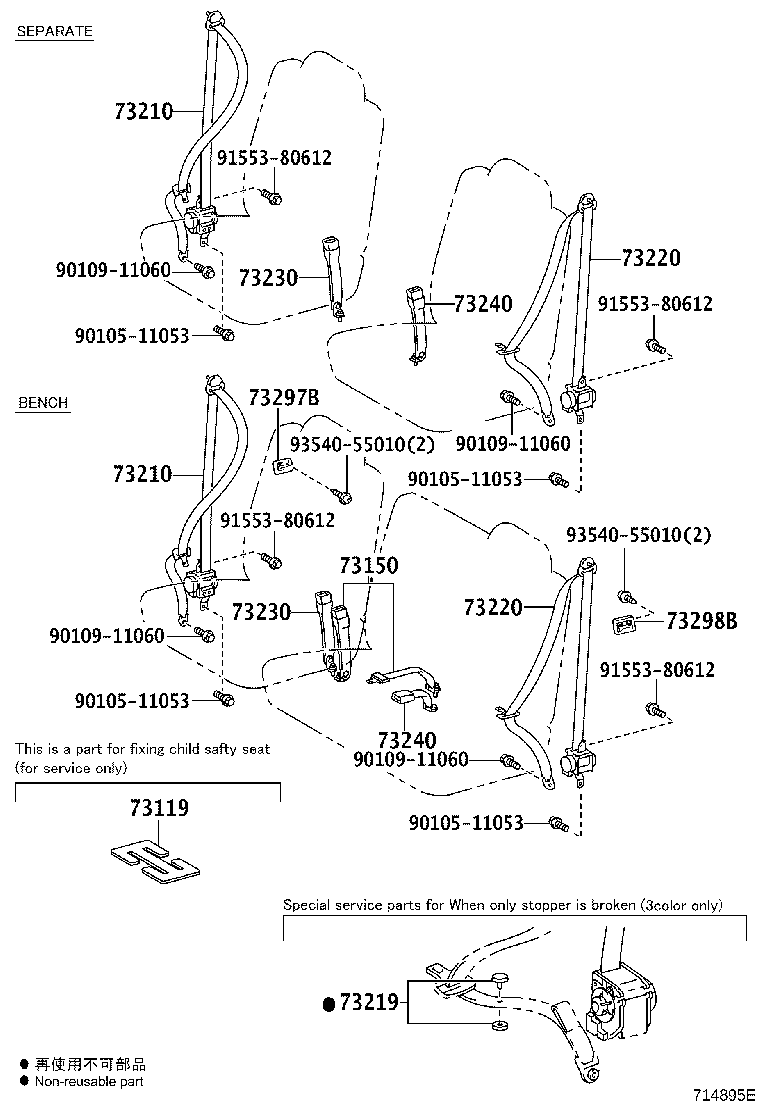

Figure 71B057A 71B057A 2017-06 → 2023-09 Figure 71B057A 71B057A 2023-09 → — Figure 71B056A 71B056A 2017-06 → 2023-09 Figure 71B056A 71B056A 2021-01 → 2023-09 Figure 71B056A 71B056A 2023-09 → — Figure 714895E 714895E 2007-01 → 2017-06 Figure 714895E 714895E 2007-01 → 2023-09 Figure 714895E 714895E 2007-01 → 2023-09 Figure 714895E 714895E 2023-09 → — Figure 71A679A 71A679A 2007-01 → 2016-08 Figure 71A679A 71A679A 2016-08 → 2023-09 Figure 71A679A 71A679A 2023-09 → — Figure 71A381B 71A381B 2016-08 → — Figure 714900B 714900B 2007-01 → 2023-09 Figure 714900B 714900B 2023-09 → — Figure 719042A 719042A 2007-01 → 2023-09 Figure 719042A 719042A 2023-09 → — Figure 718964 718964 2008-08 → 2009-11 Figure 718964 718964 2009-11 → 2023-09 Figure 718964 718964 2023-09 → — Figure 71F980A 71F980A 2023-09 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73030A Belt Assy, Rear Seat Lap Type, RH
73040A Belt Assy, Rear Seat Lap Type, LH
73101A Belt Sub-assy, FR Seat Lap, Outer
73103 Belt Sub-assy, Front Seat Lap, Inner RH
73104 Belt Sub-assy, Front Seat Lap, Inner LH
73119 Plate, Seat Belt Webbing Clip
73150 Belt Assy, Front Seat Lap Type, Center
73173 Cover, Front Seat Belt Hole, RH
73174 Cover, Front Seat Belt Hole, LH
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73297B Cover, Quarter Trim Belt Hole, RH
73298 Cover, Quarter Trim Belt Hole, NO.2 RH
73298B Cover, Quarter Trim Belt Hole, LH
73299 Cover, Quarter Trim Belt Hole, NO.2 LH
73302 Belt Sub-assy, Rear Seat Outer
73306 Belt Sub-assy Seat, Inner
73310D Belt Assy, Rear Seat 3 Point Type, Center
73320B Belt Assy, Rear Seat Lap Type, NO.2
73330B Belt Assy, Seat Lap Type, NO.1
73340B Belt Assy, Seat Lap Type, NO.2
73350 Belt Assy, Rear Seat Lap Type, Center
73350B Belt Assy, Seat Lap Type, NO.3
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73369 Plate, Rear Seat Belt Anchor
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73373 Cover, Rear Seat Shoulder Belt
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73380B Belt Assy, Seat Lap Type, NO.4
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73709 Bracket Sub-assy, Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
