Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

30 part groups · 7 illustrations

Illustrations

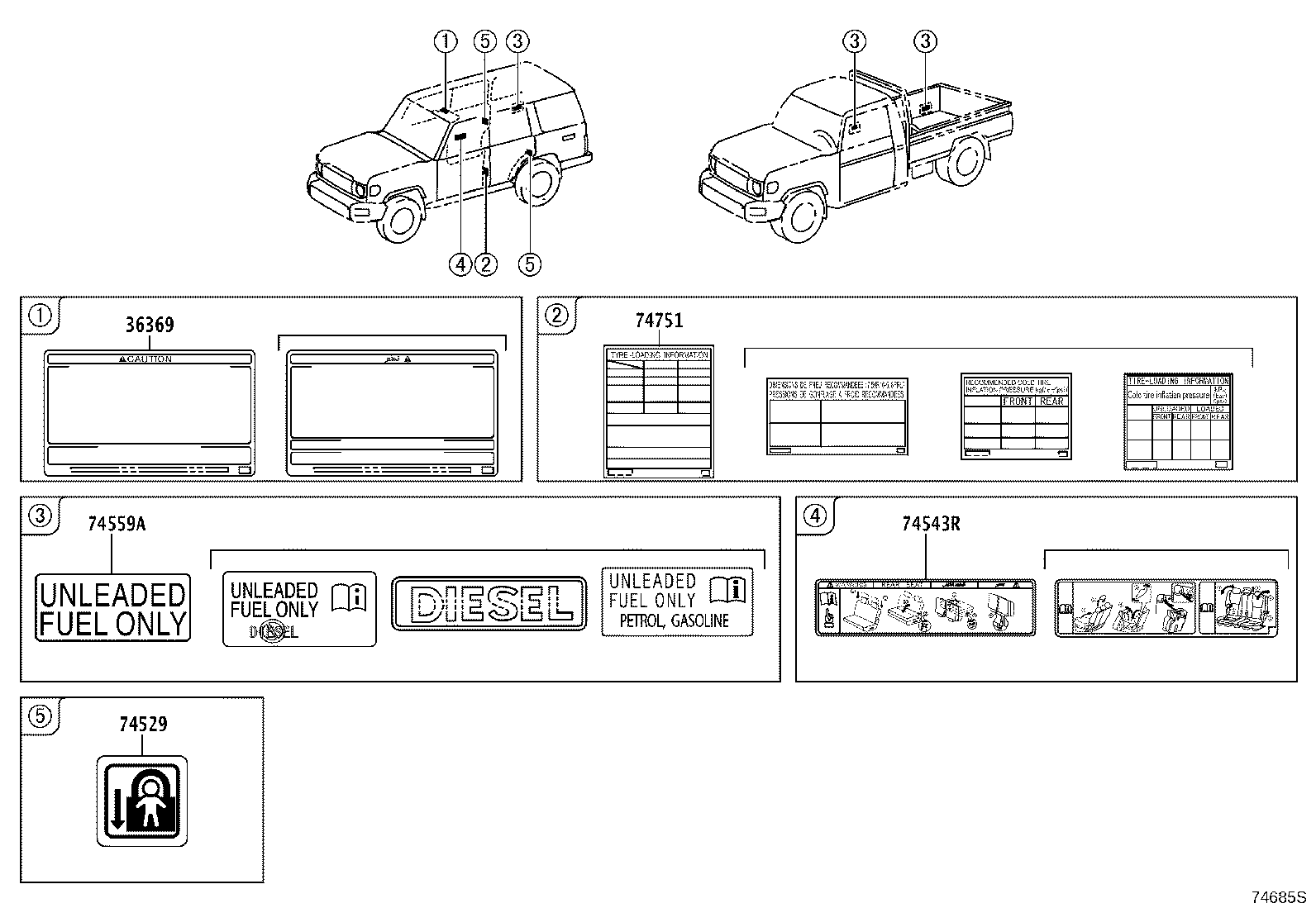

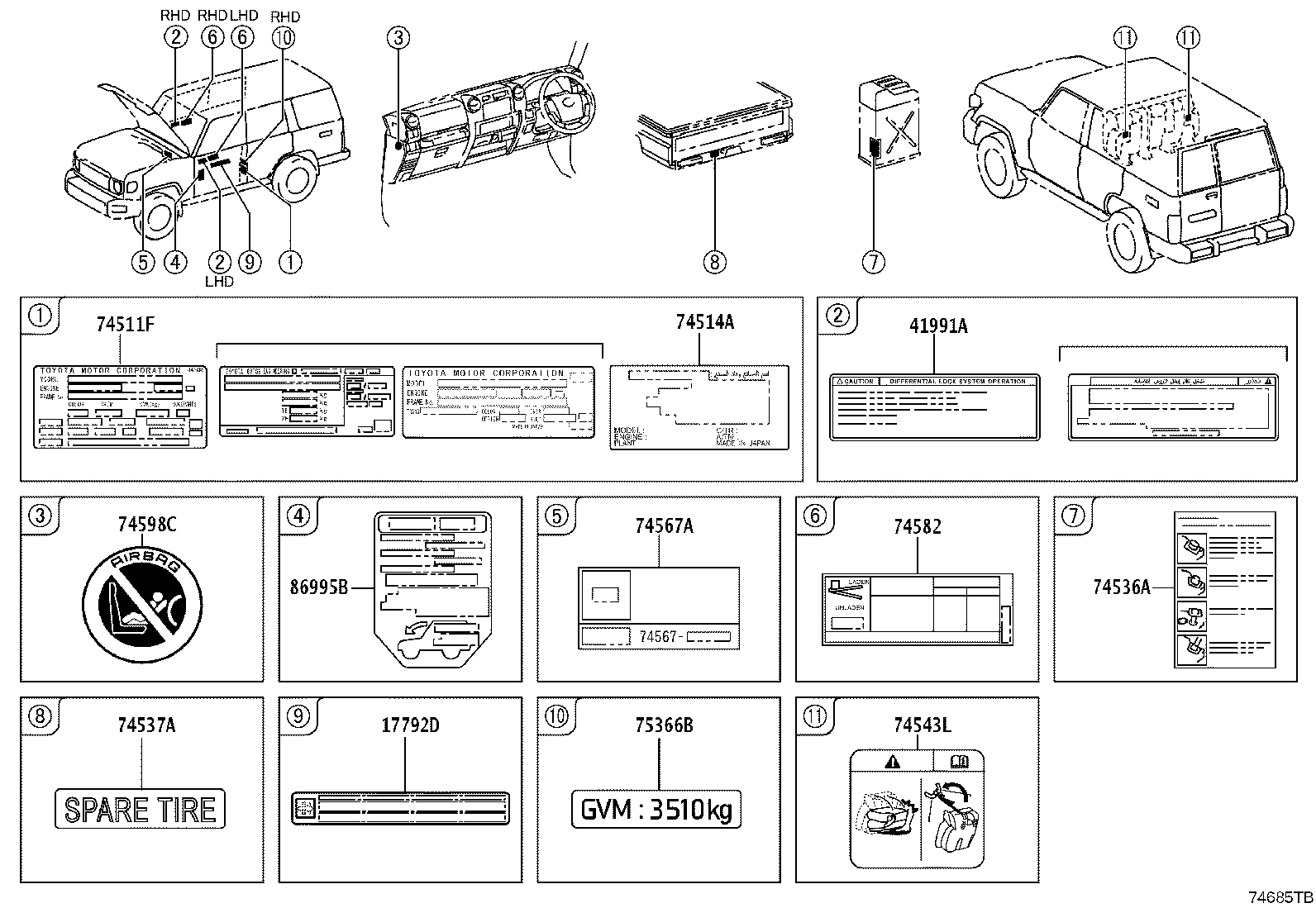

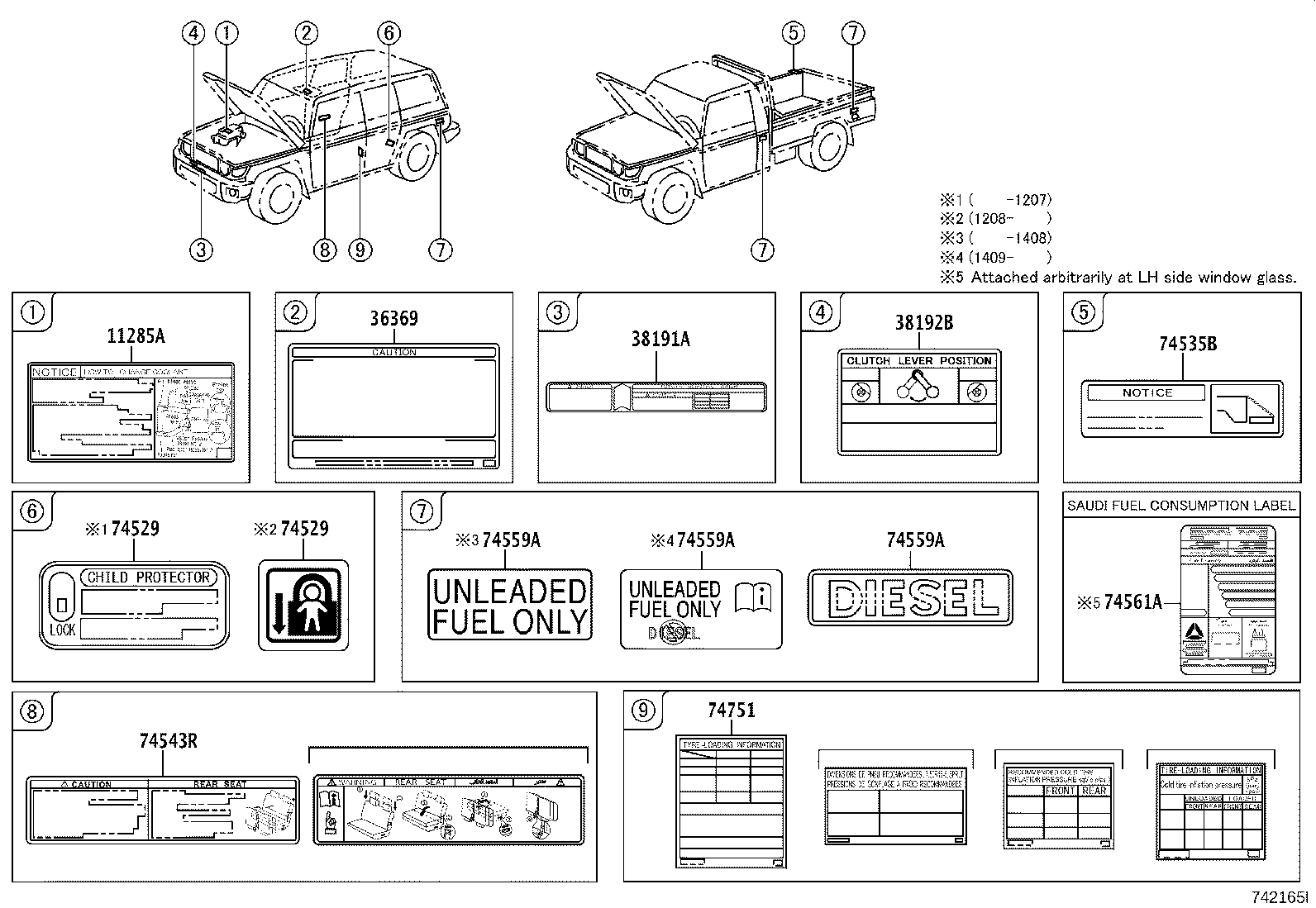

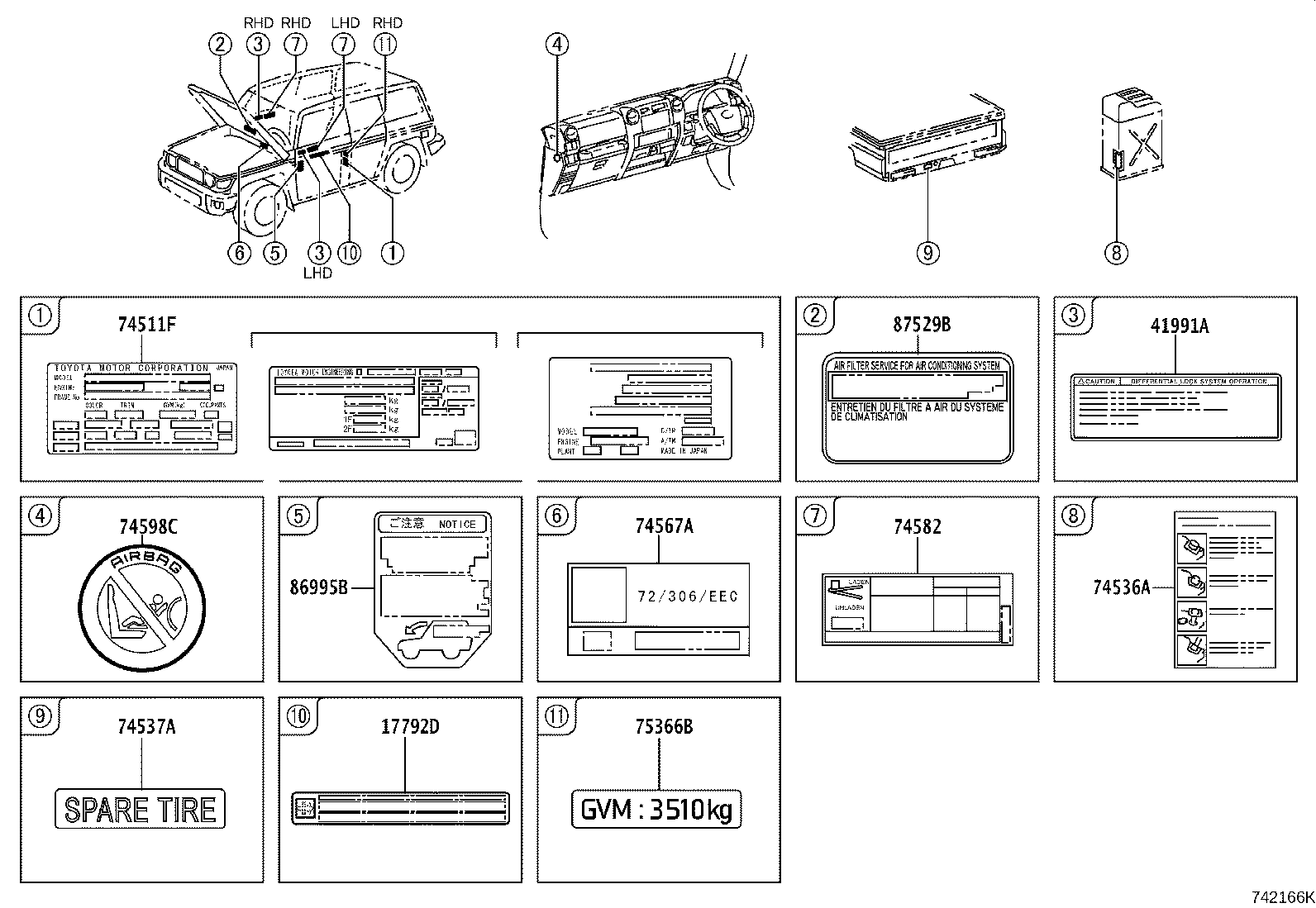

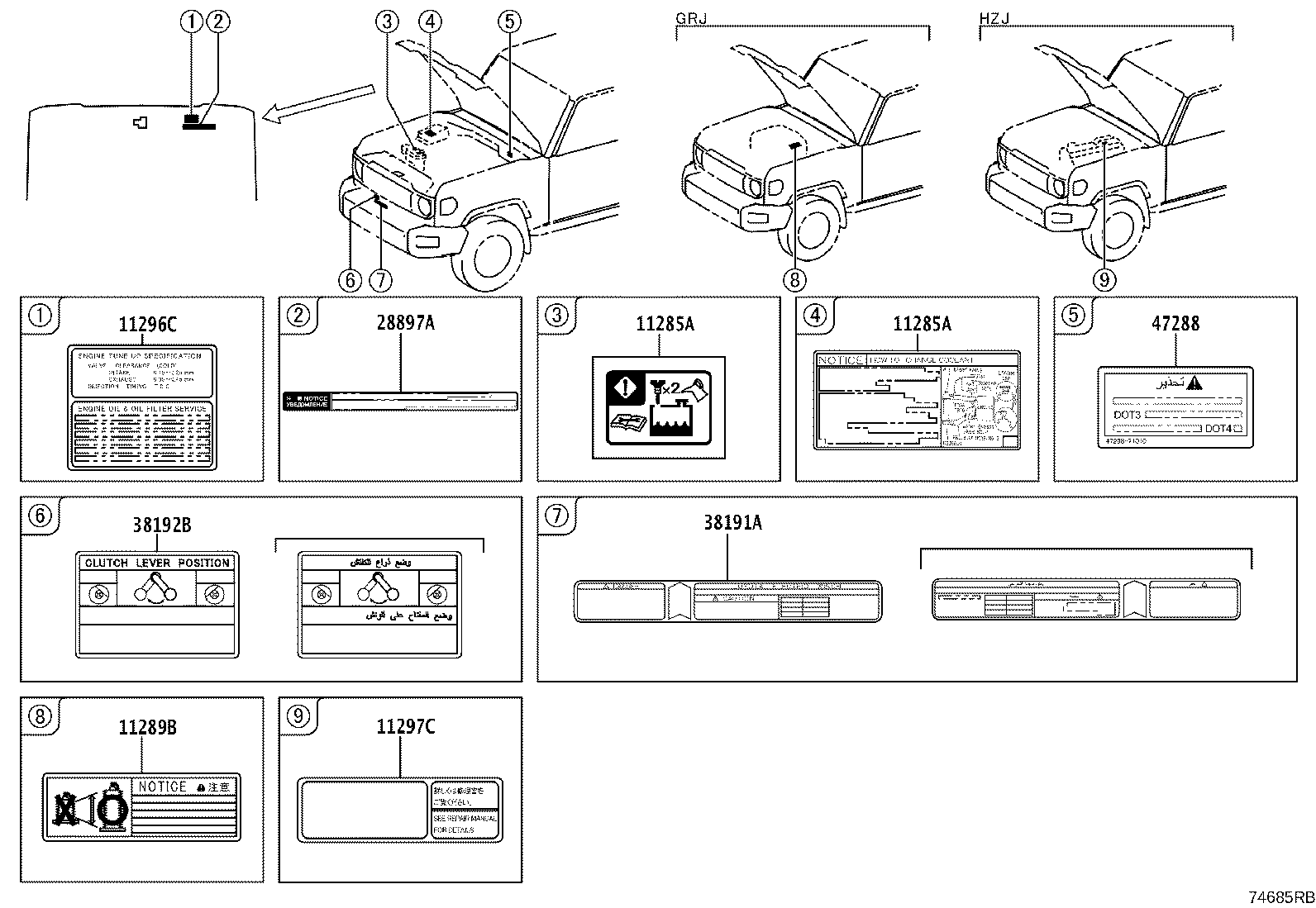

Figure 746084C 746084C 2007-01 → 2023-09 Figure 746085A 746085A 2016-08 → 2023-09 Figure 74685RB 74685RB 2023-09 → — Figure 742165I 742165I 2007-01 → 2023-09 Figure 74685TB 74685TB 2023-09 → — Figure 742166K 742166K 2007-01 → 2023-09 Figure 74685S 74685S 2023-09 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11289B Label, Spark Plug Notice
11296C Label, Engine Service Information
11297C Label, Engine Service Information, NO.2
17700R Label, Air Cleaner Information
17791A Label, Maintenance Information
17792D Label, Emission Control Device Information
28897A Plate, Battery Caution
36369 Label, Transfer Information
38191A Plate, Caution, NO.1
38192B Plate, Caution, NO.2
41991A Plate, Caution
47288 Label, Brake Fluid Notice
74511F Label, Name (IDENTIFICATION LASER LABEL)
74514A Label, Certification Regulation Information
74529 Plate, Child Proof OR Child Protector Lock Caution
74535B Plate, Tail Gate Caution
74536A Label, Fuel Tank Cap Information
74537A Plate, Spare Wheel Service Hole Cap Caution
74543L Label, Rear Seat Caution, NO.1
74543R Label, Rear Seat Caution
74559A Plate, Fuel Caution
74561A Label, Fuel Consumption Information
74567A Plate, E.C.E Approved Number
74582 Plate, Load Sensing Valve Marking
74598C Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
75366B Plate, Center Pillar Name
86995B Plate, Caution
87529B Label, A/C Filter Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
