Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

16 part groups · 9 illustrations

Illustrations

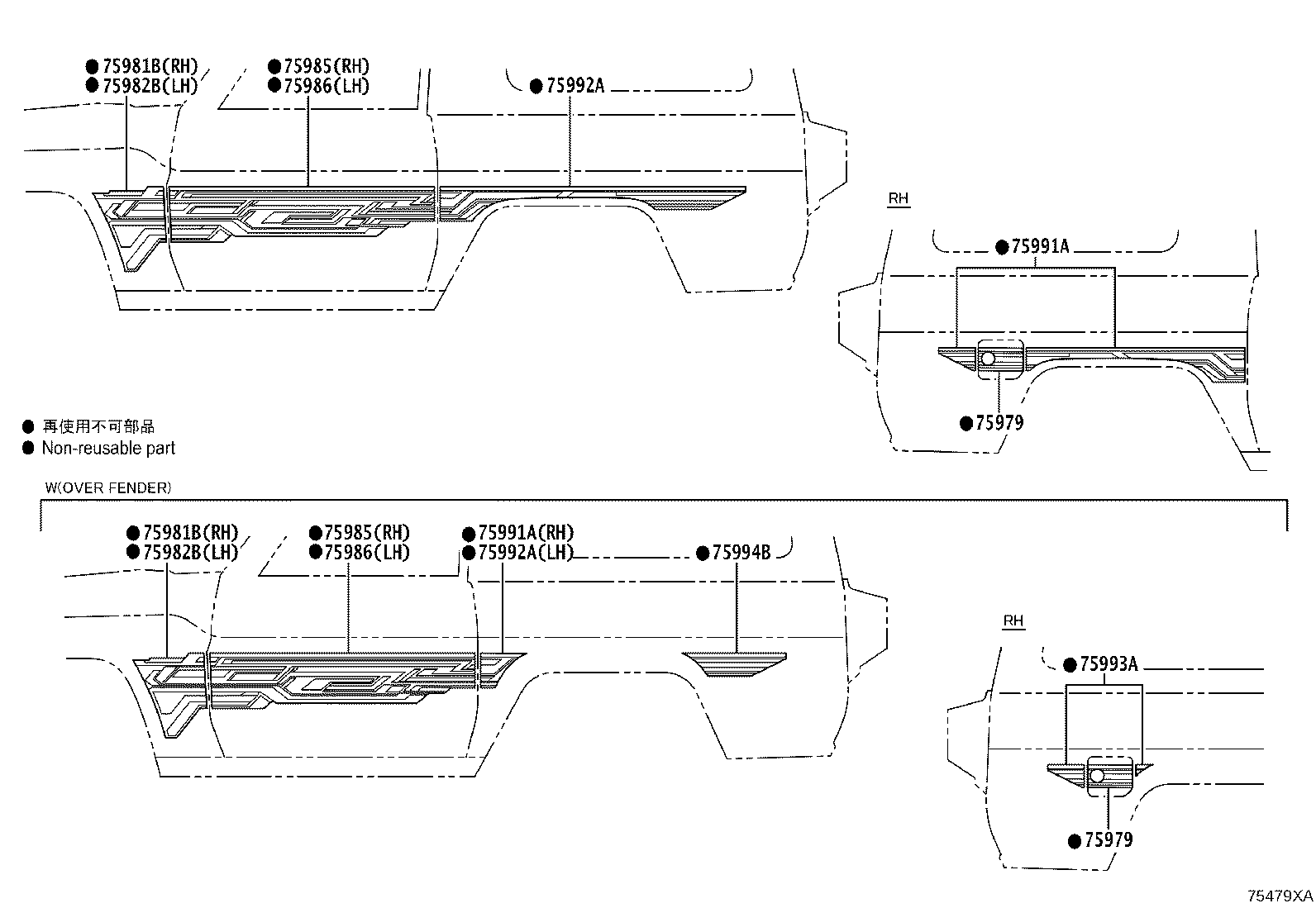

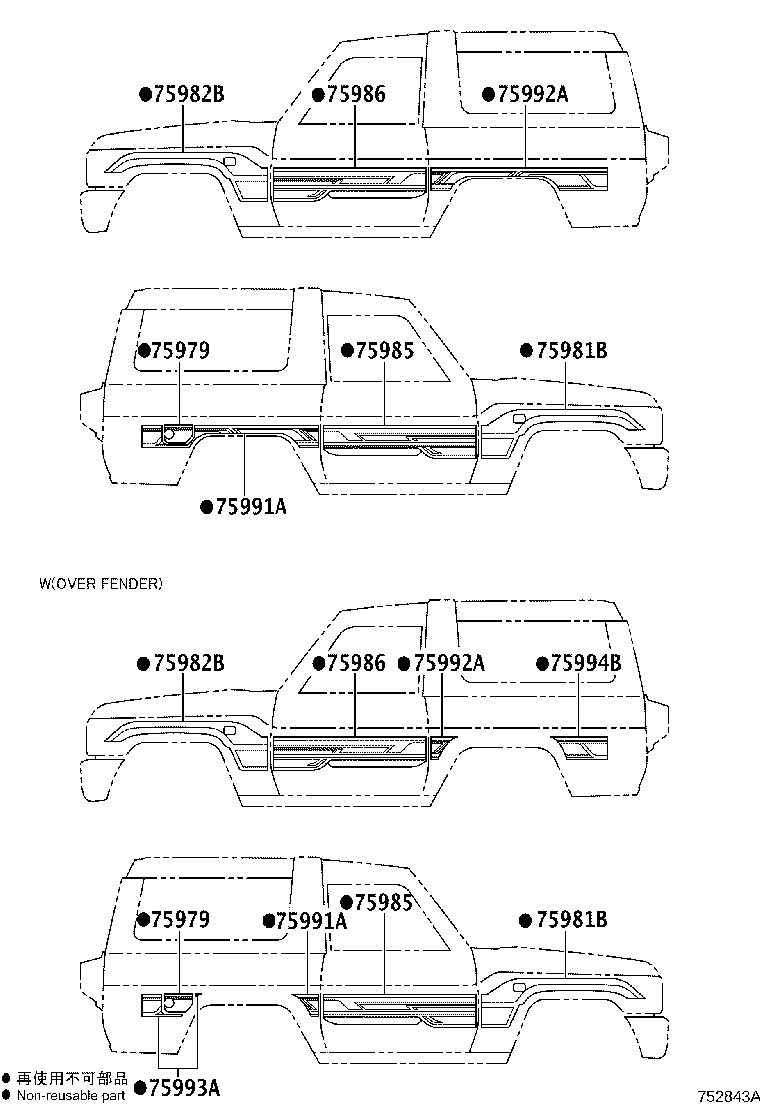

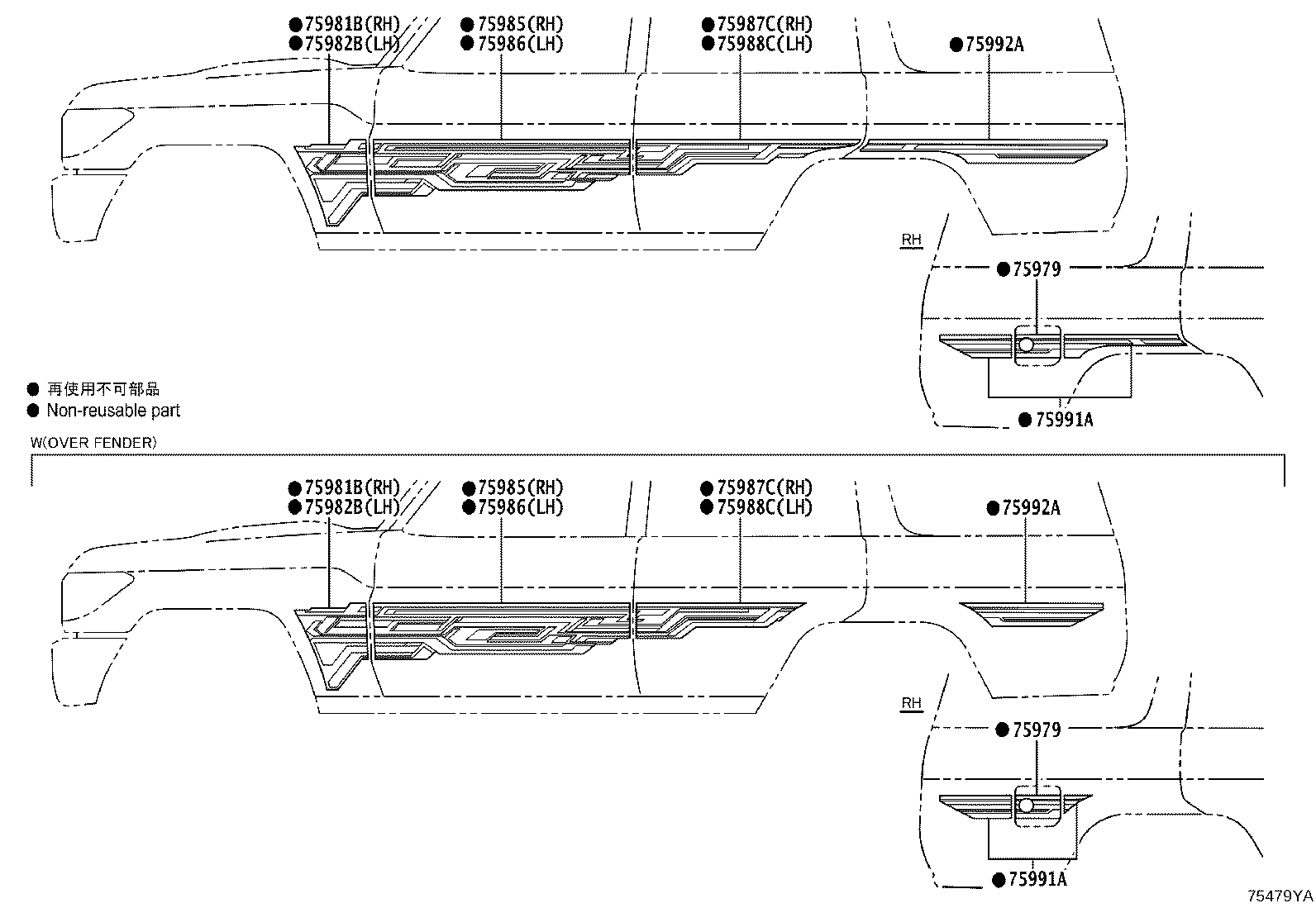

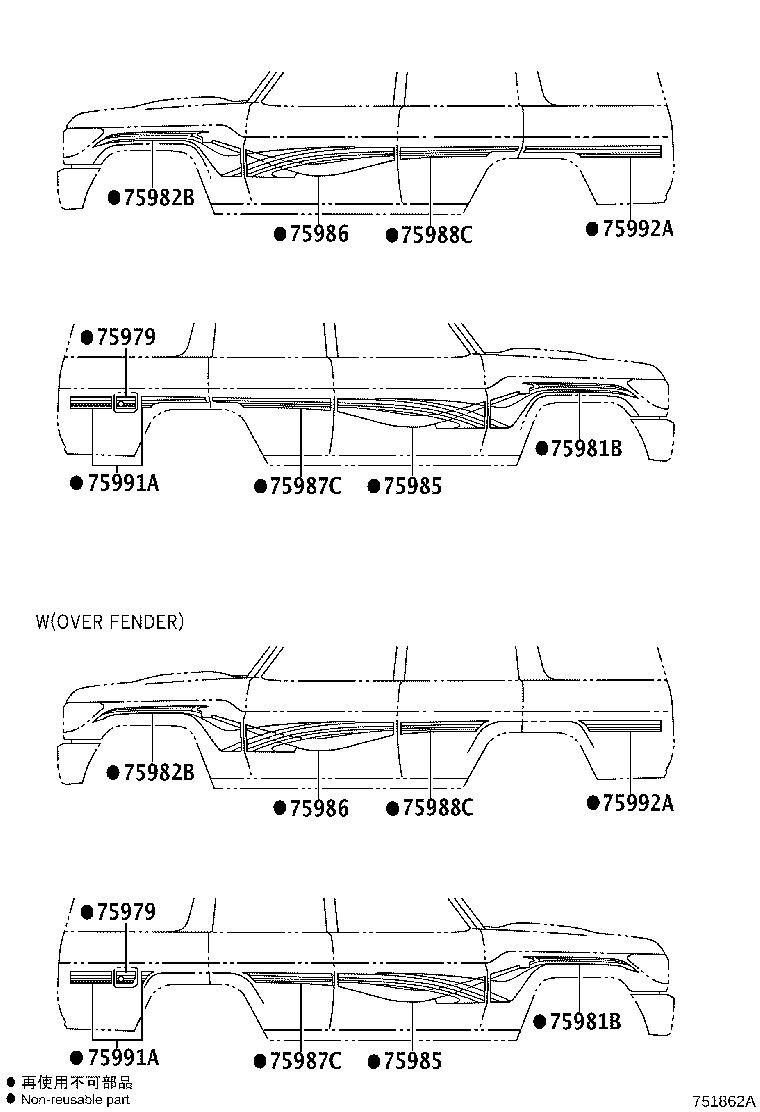

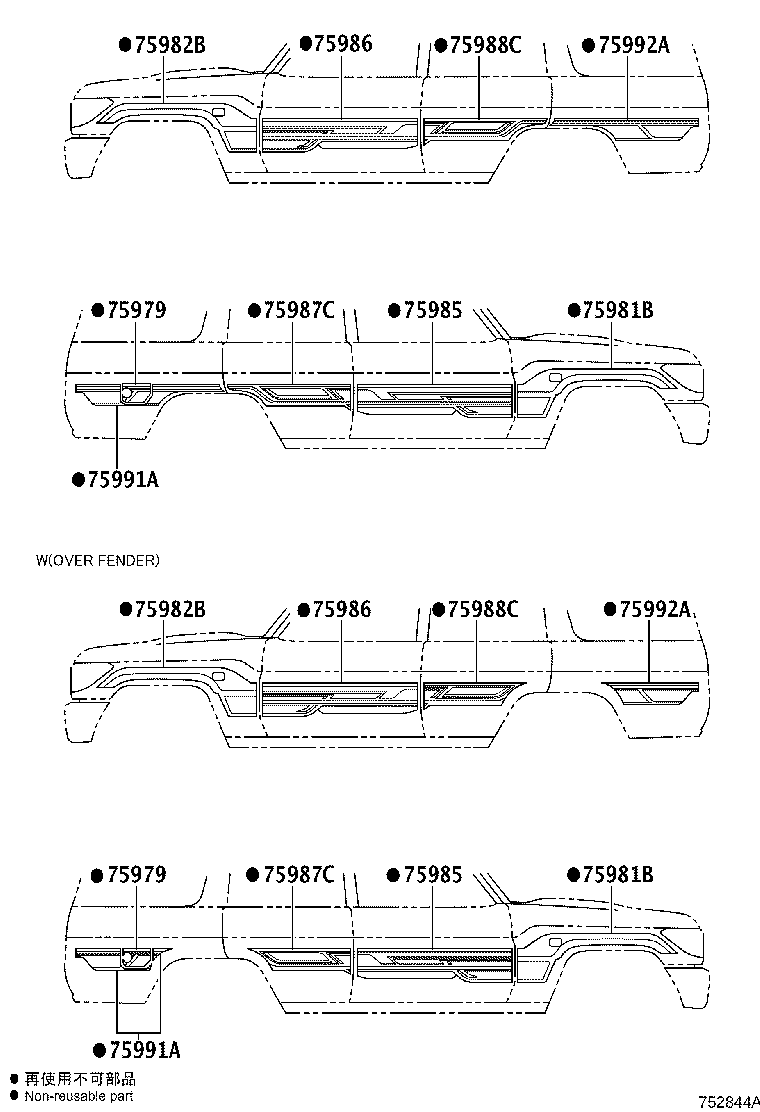

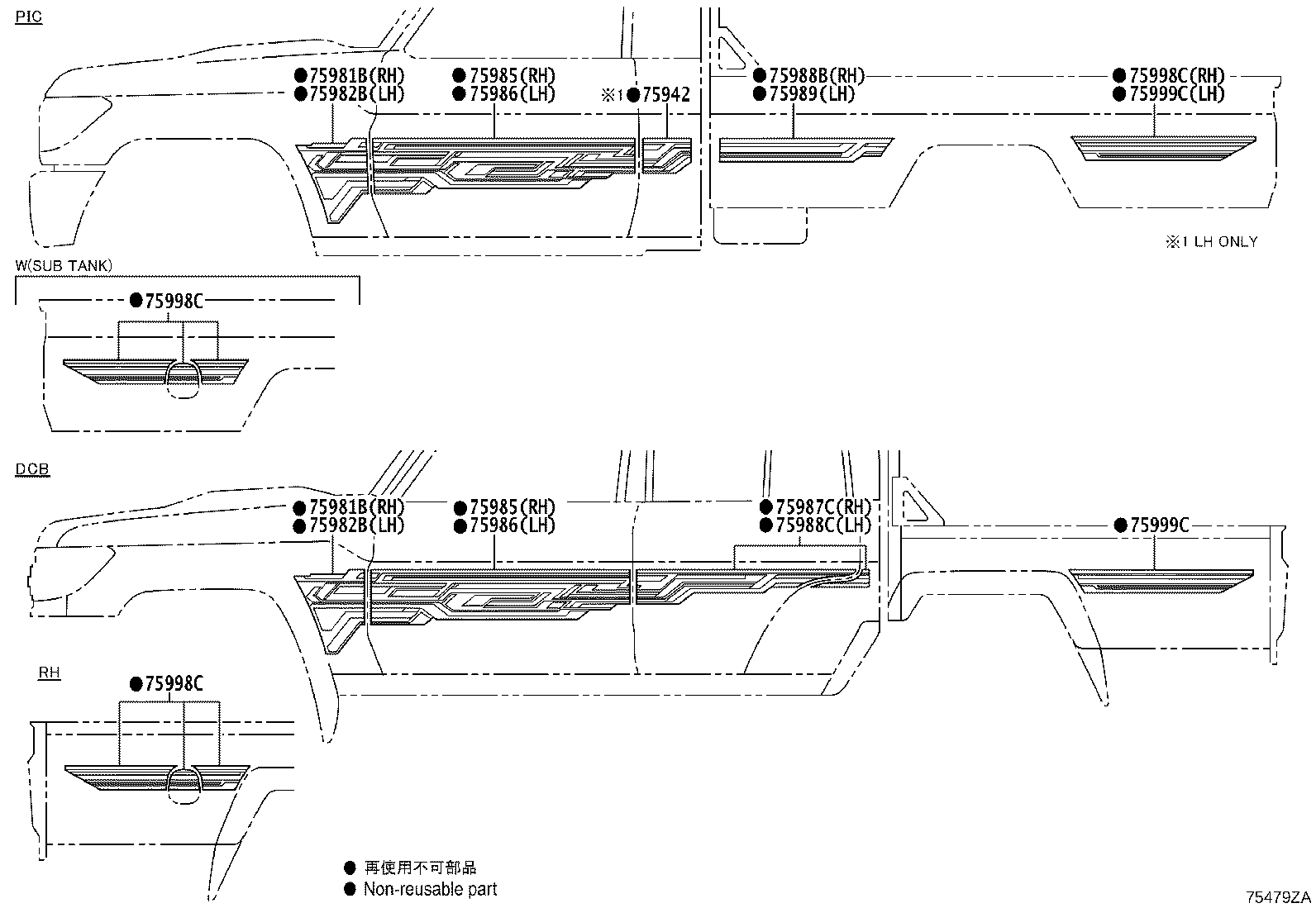

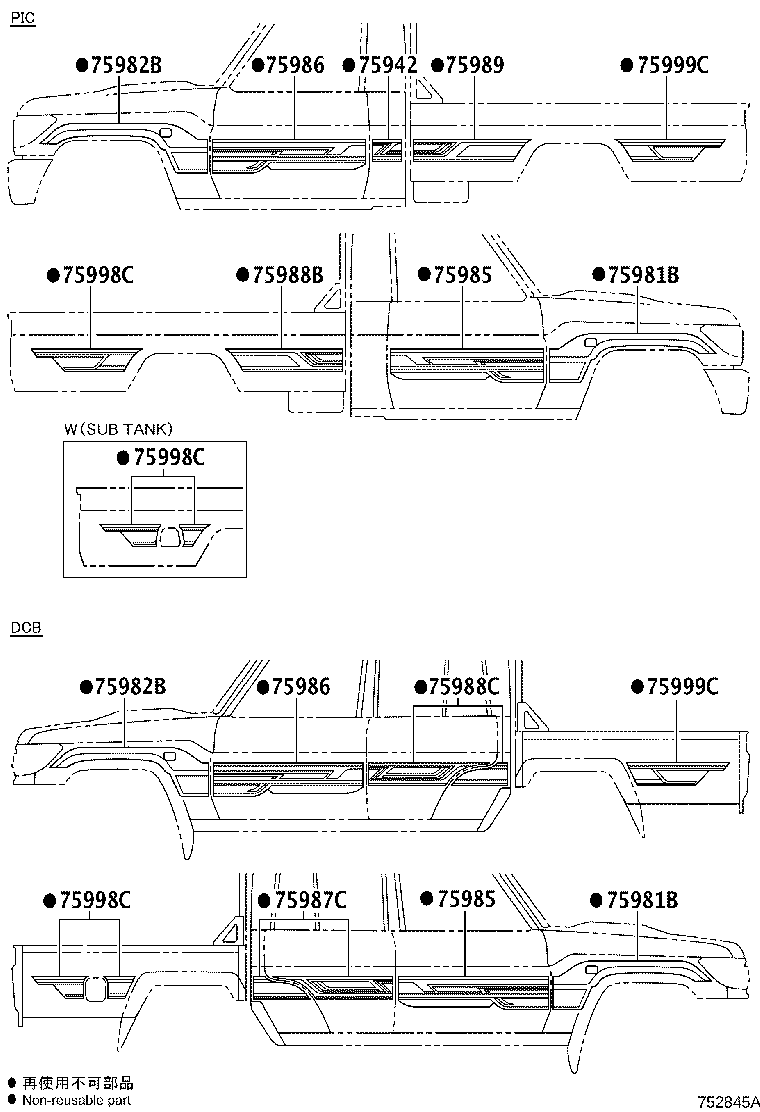

Figure 751863A 751863A 2007-01 → 2012-08 Figure 751862A 751862A 2007-01 → 2012-08 Figure 751861D 751861D 2007-01 → 2012-08 Figure 752843A 752843A 2012-08 → 2023-09 Figure 752844A 752844A 2012-08 → 2023-09 Figure 752845A 752845A 2012-08 → 2023-09 Figure 75479XA 75479XA 2023-09 → — Figure 75479YA 75479YA 2023-09 → — Figure 75479ZA 75479ZA 2023-09 → —

Part groups

PNCDescription
75942 Stripe, Center Pillar, NO.2
75979 Stripe, Fuel Filler Opening Lid
75981B Stripe, Fender, RH
75982B Stripe, Fender, LH
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75987C Stripe, Rear Door, Outside, RH
75988B Stripe, Rear Deck, Front RH
75988C Stripe, Rear Door, Outside LH
75989 Stripe, Rear Deck, Front LH
75991A Stripe, Quarter, RH
75992A Stripe, Quarter, LH
75993A Stripe, Quarter, Rear RH
75994B Strip, Quarter, Rear LH
75998C Stripe, Rear Deck, Rear RH
75999C Stripe, Rear Deck, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
