Toyota Land Cruiser
2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States
Supported model
Data version 2024-10
Fuel Tank & Tube
189 part groups · 85 illustrations
Illustrations
772107C

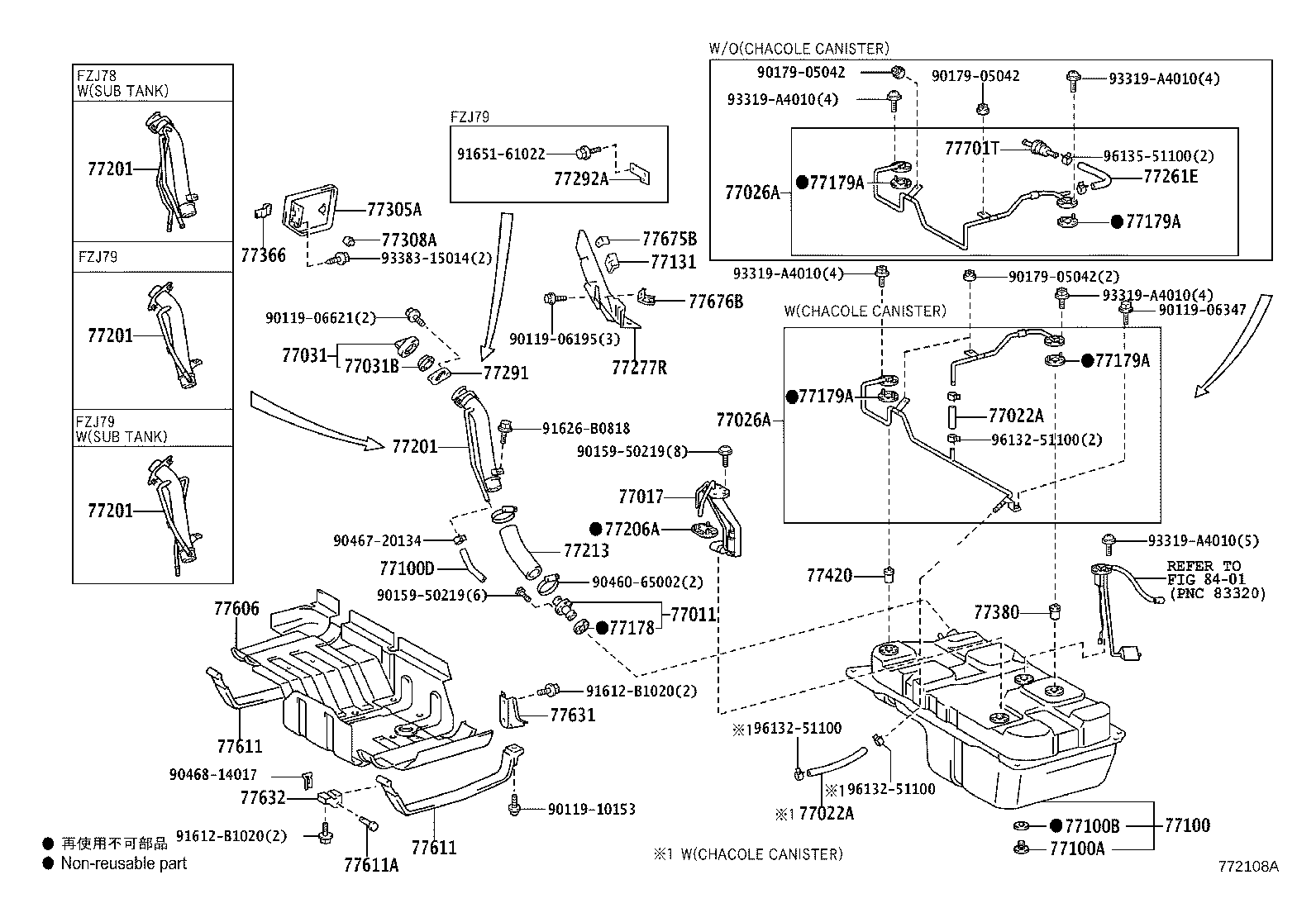

772108A

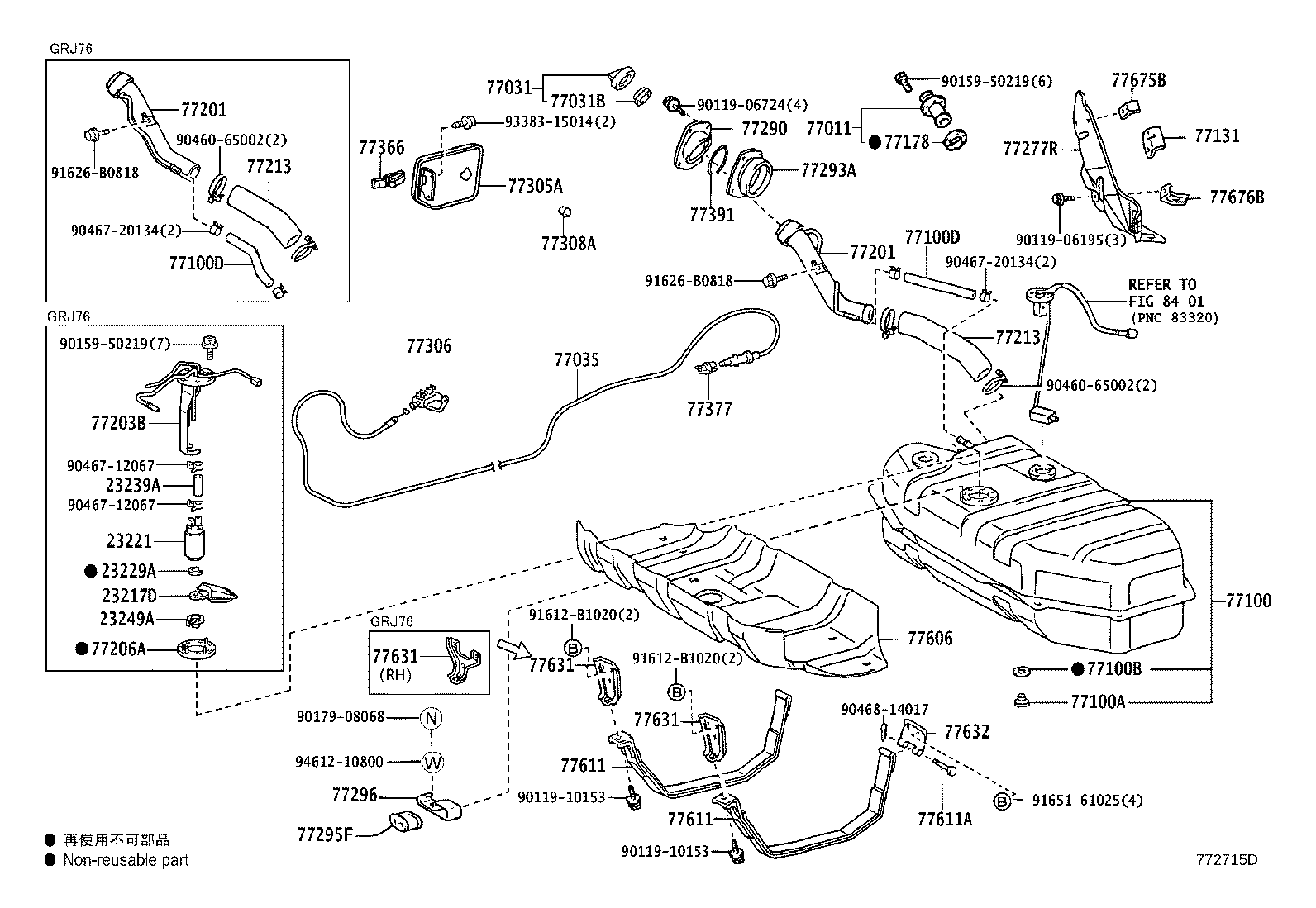

772715D
772715D

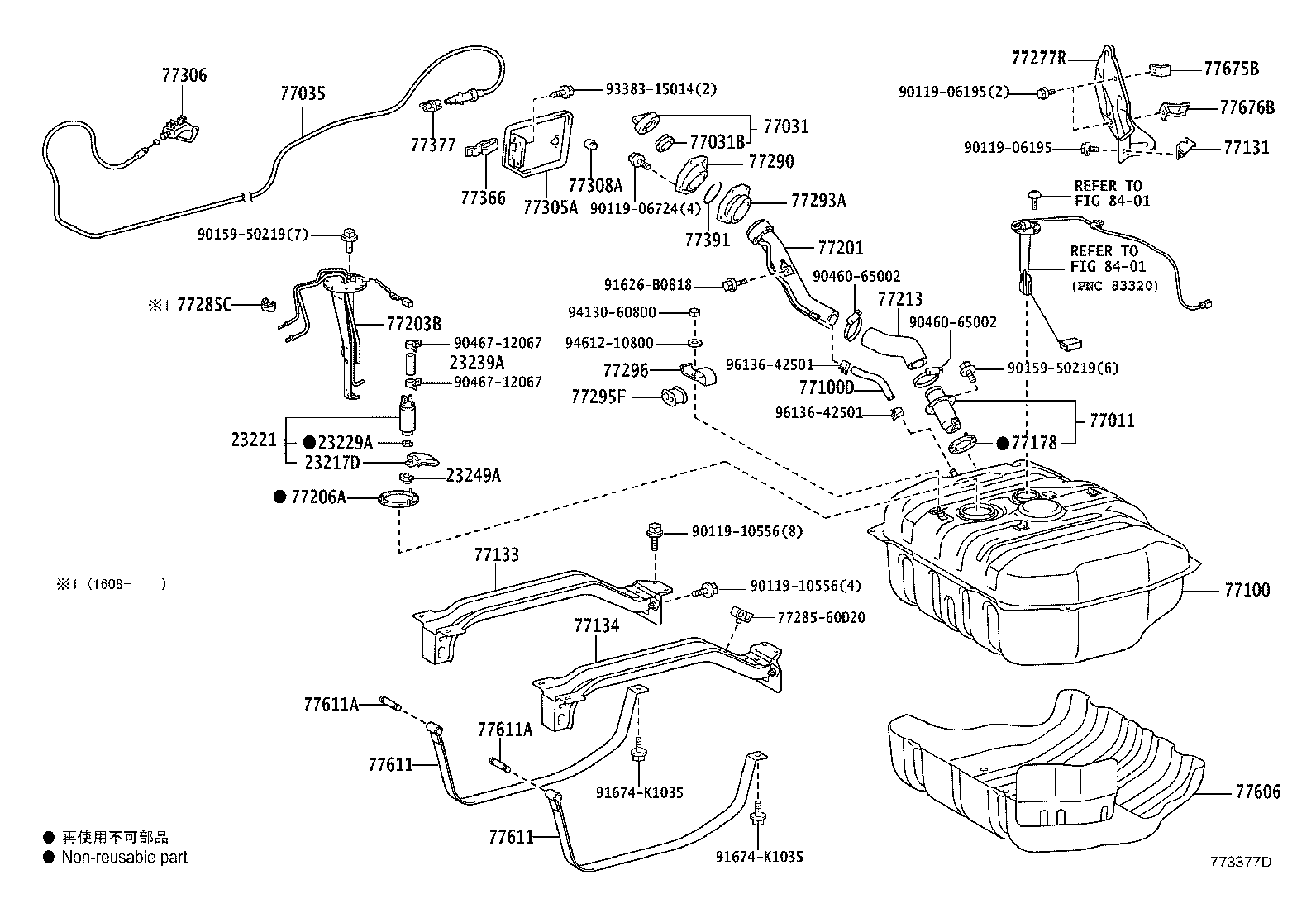

773377D

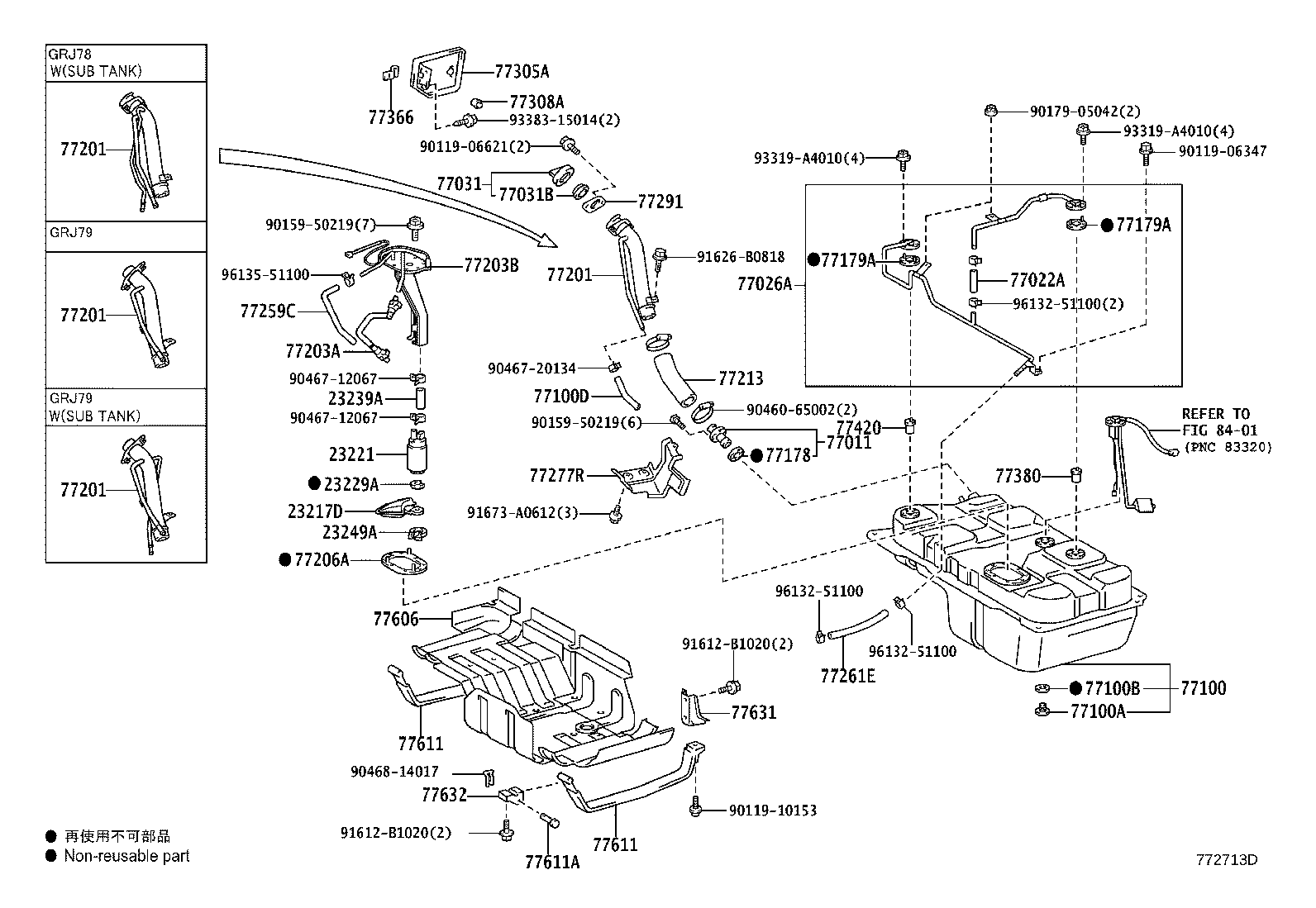

772713D

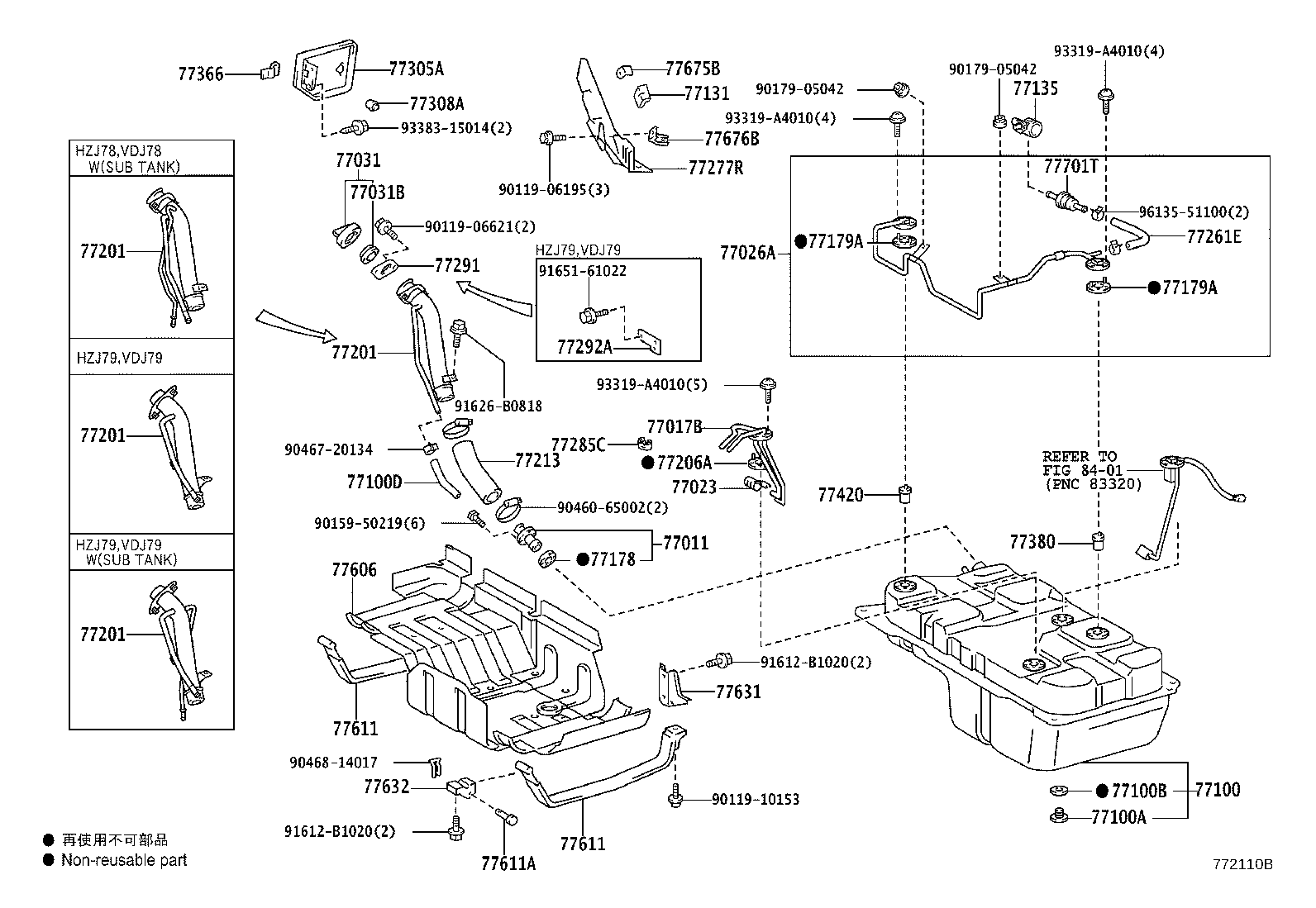

772110B
772110B

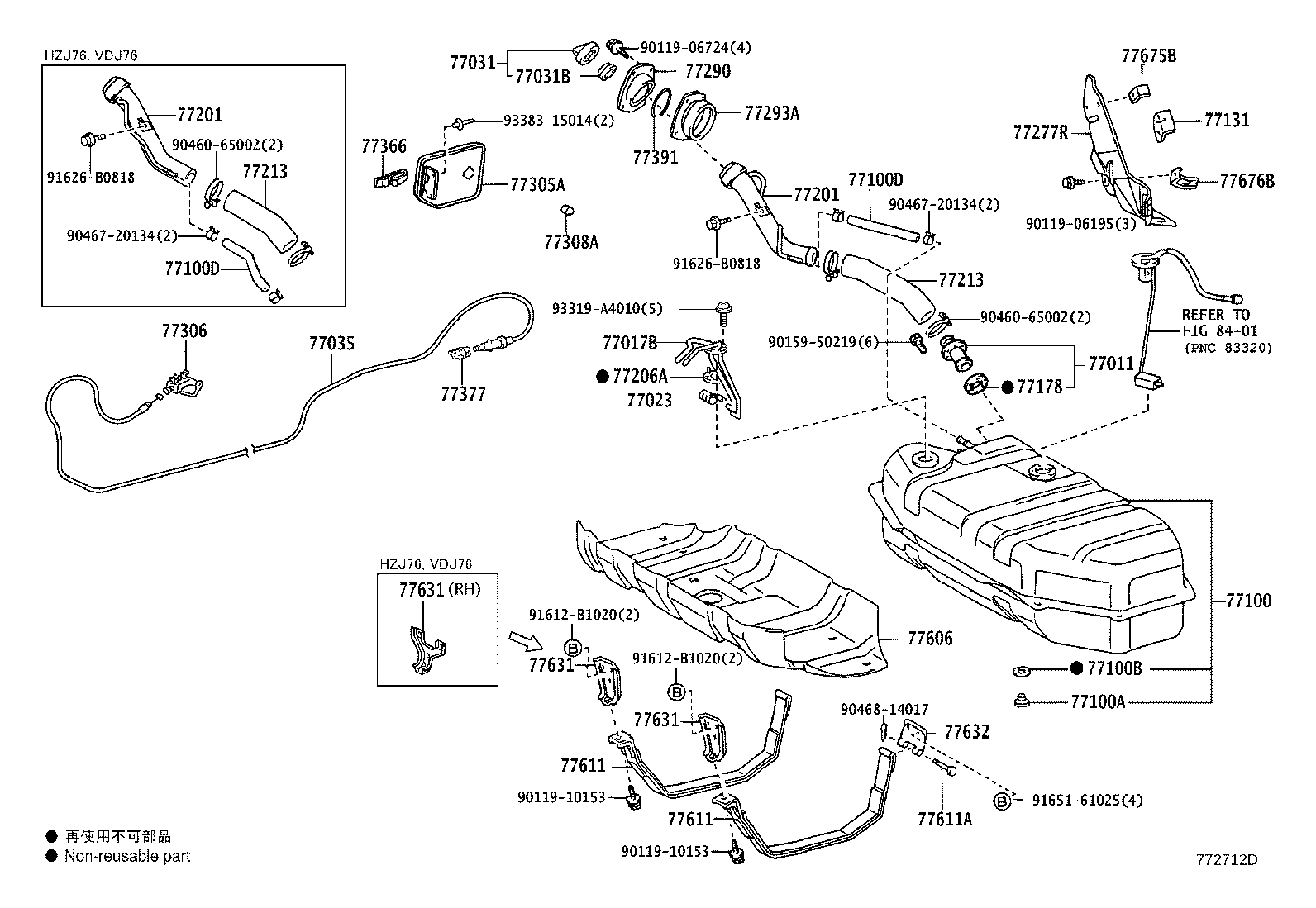

772712D
772712D

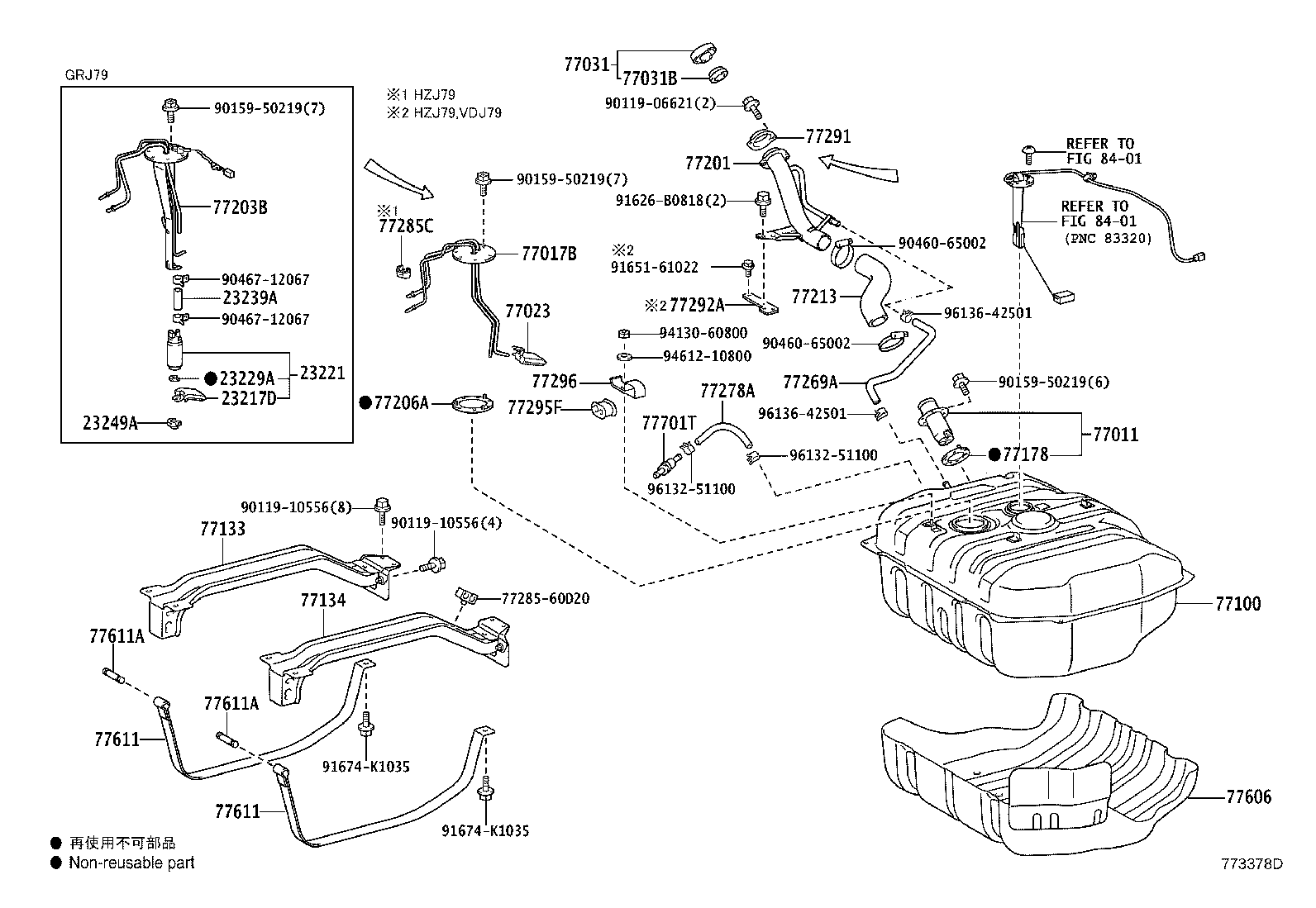

773378D

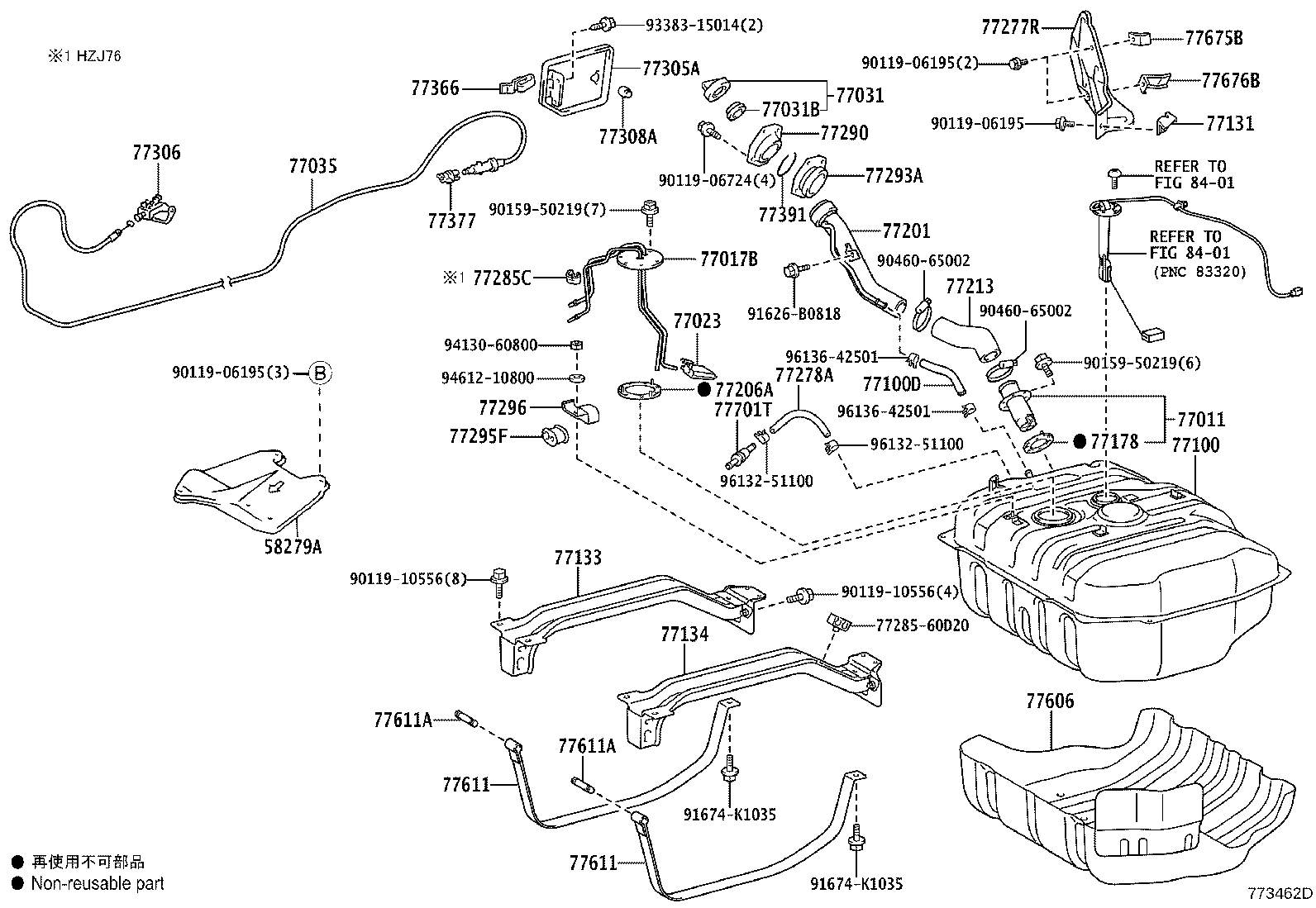

773462D
773462D

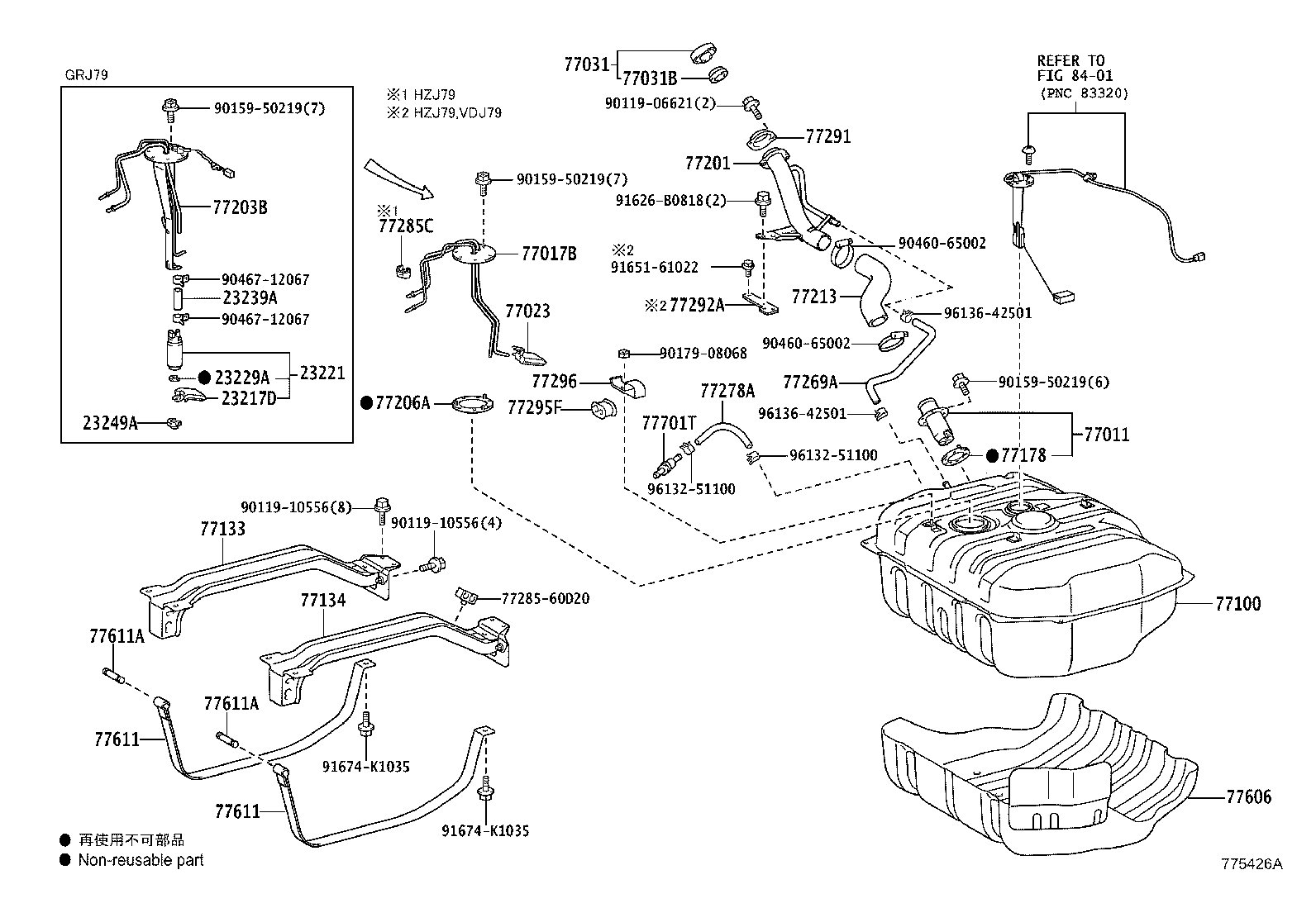

775426A
775426A

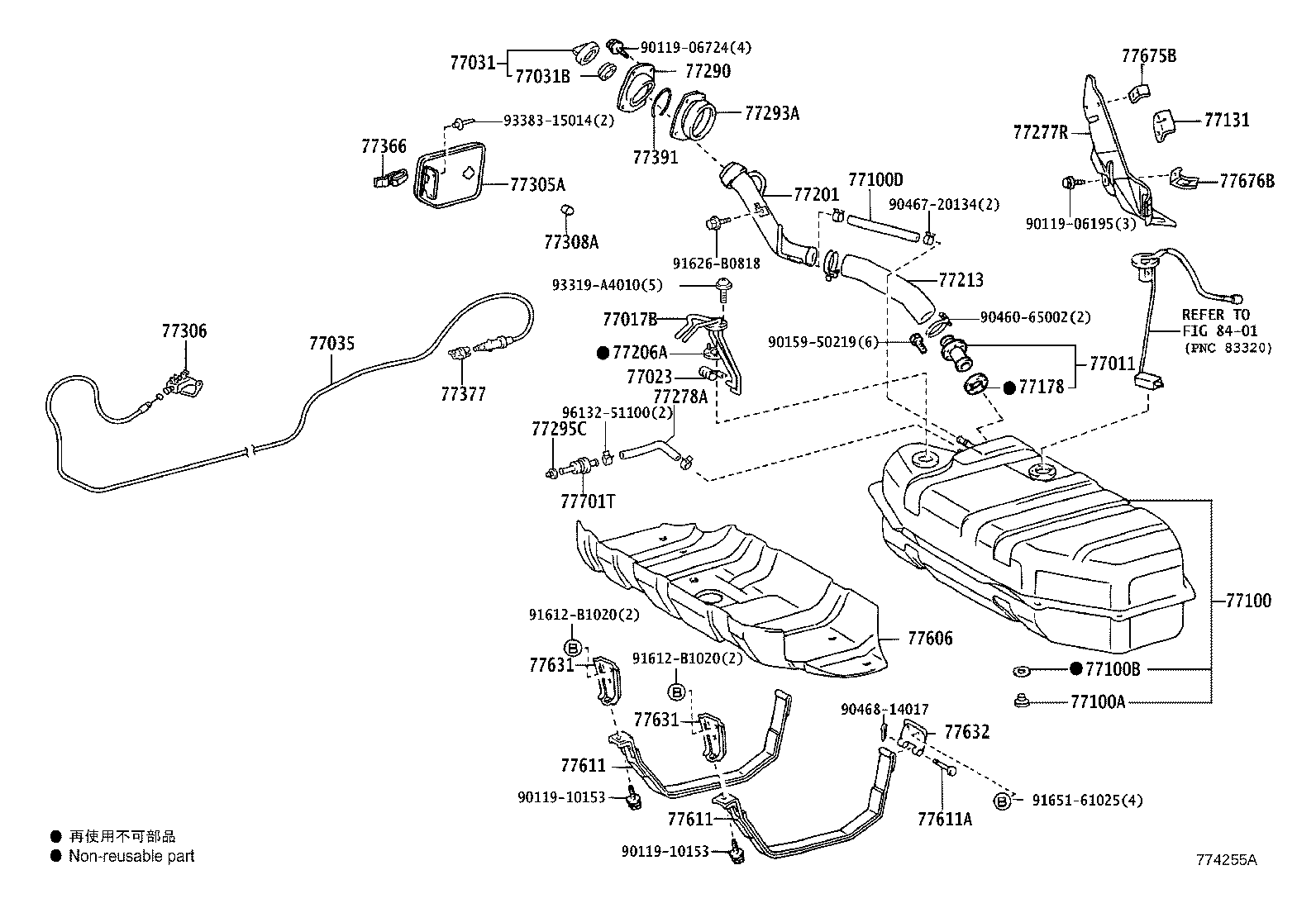

774255A

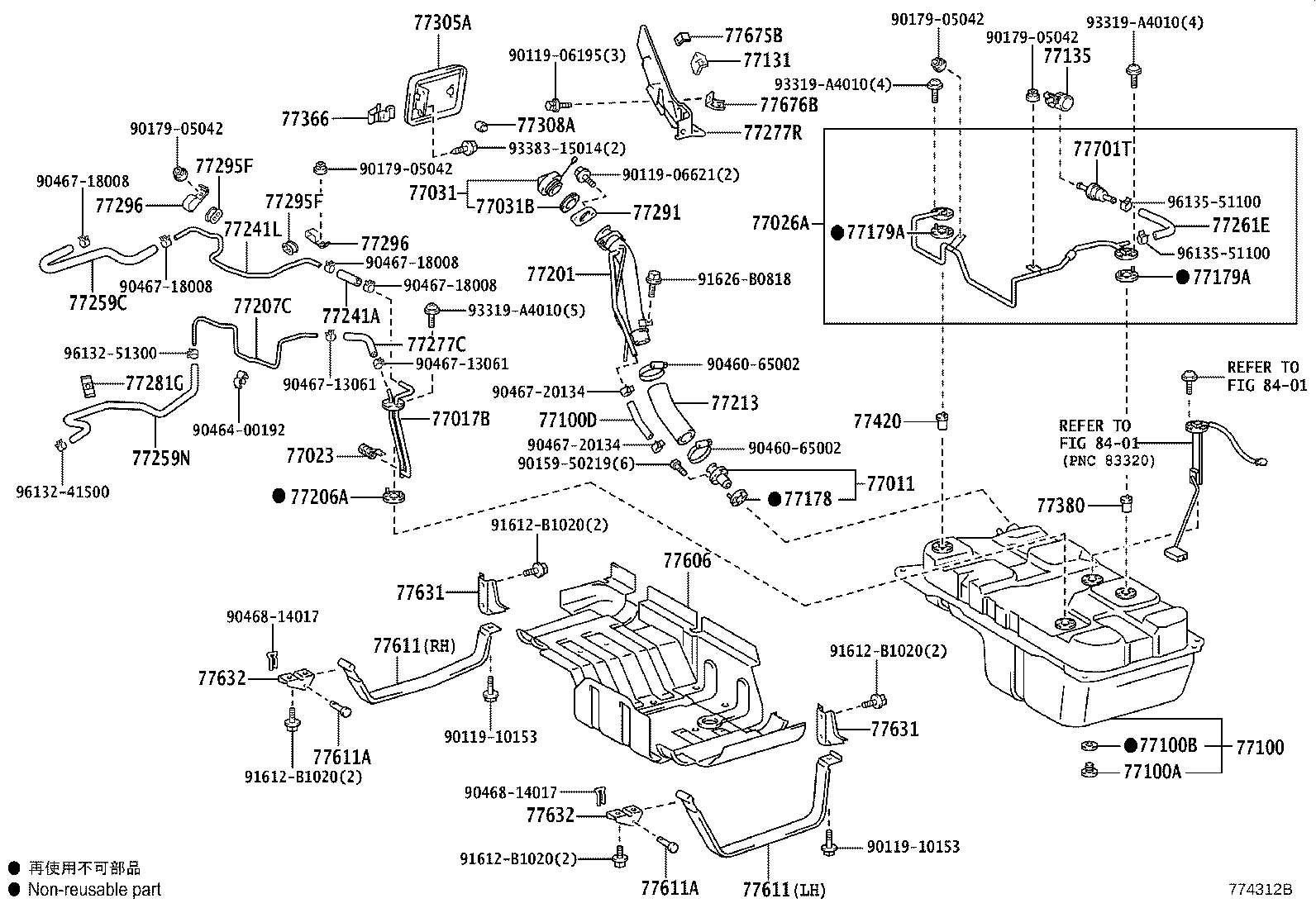

774312B

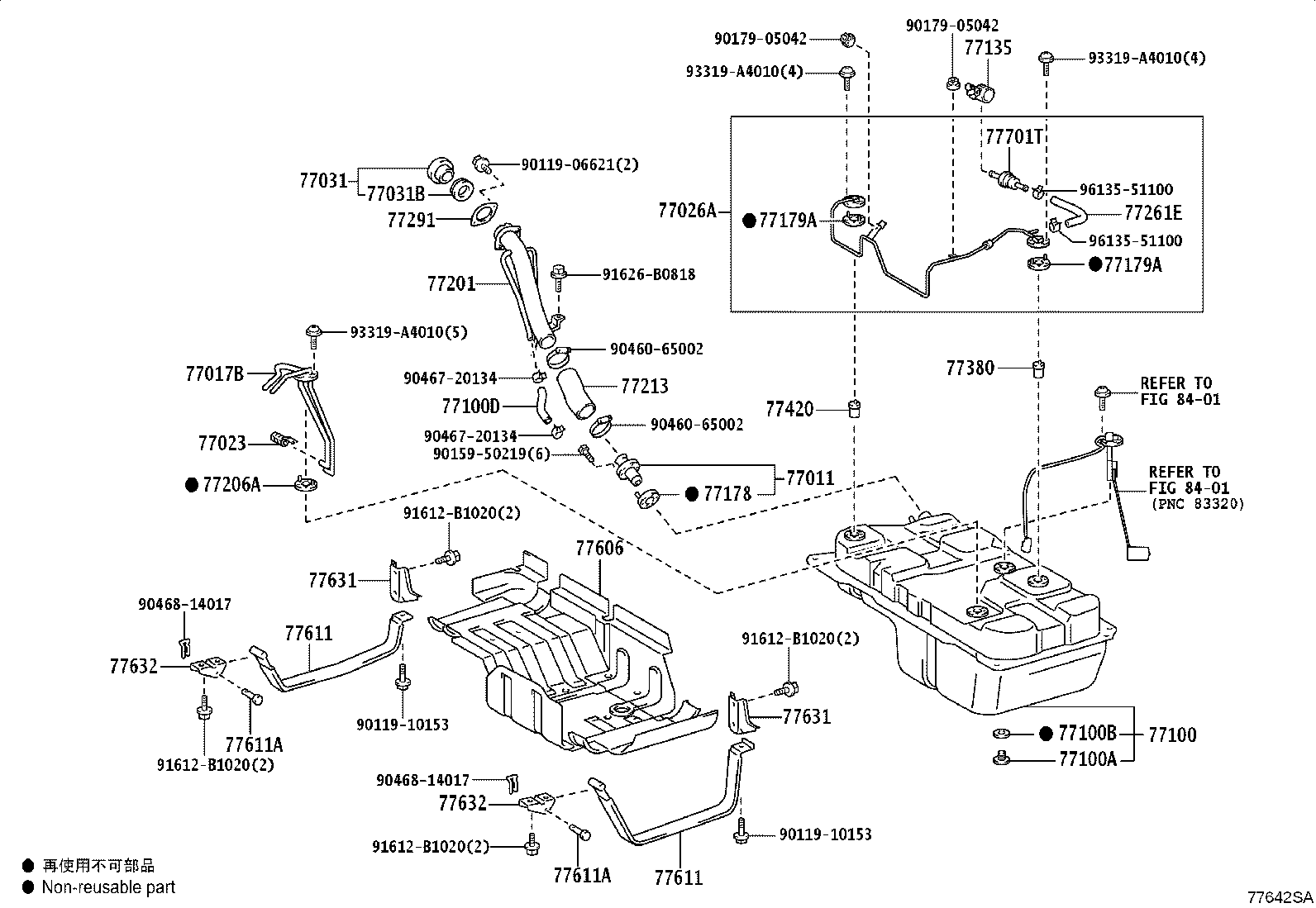

77642SA

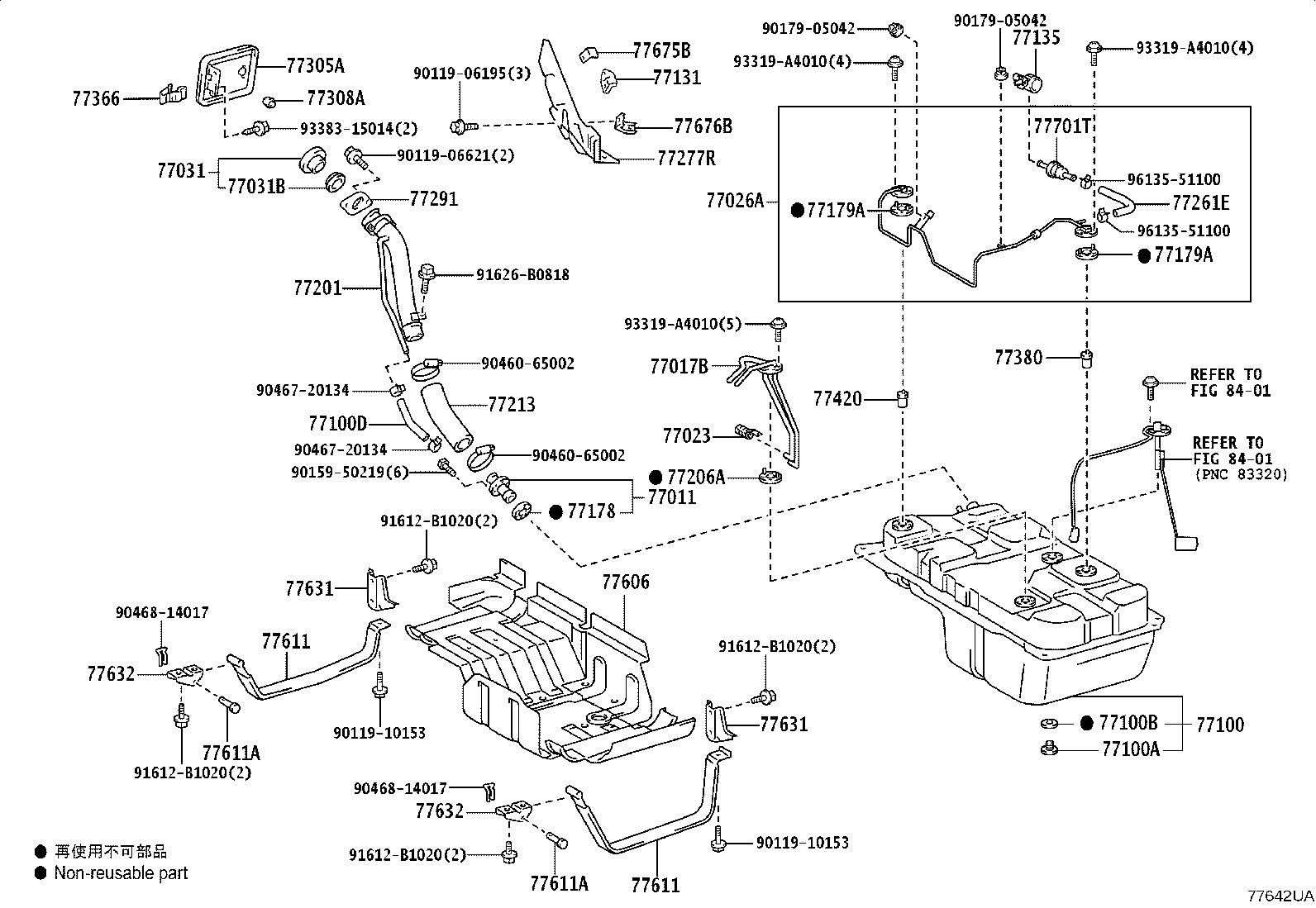

77642UA

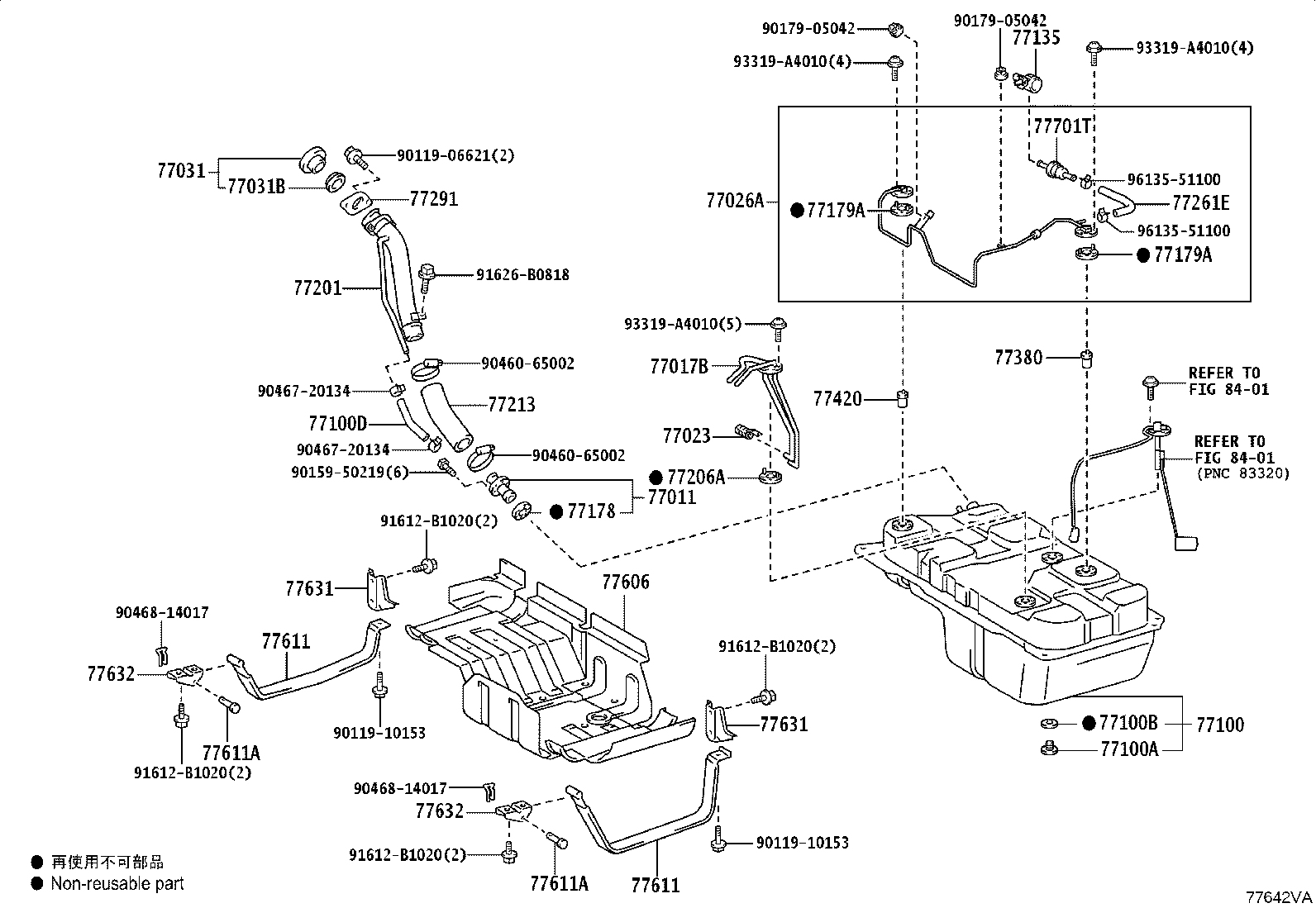

77642VA

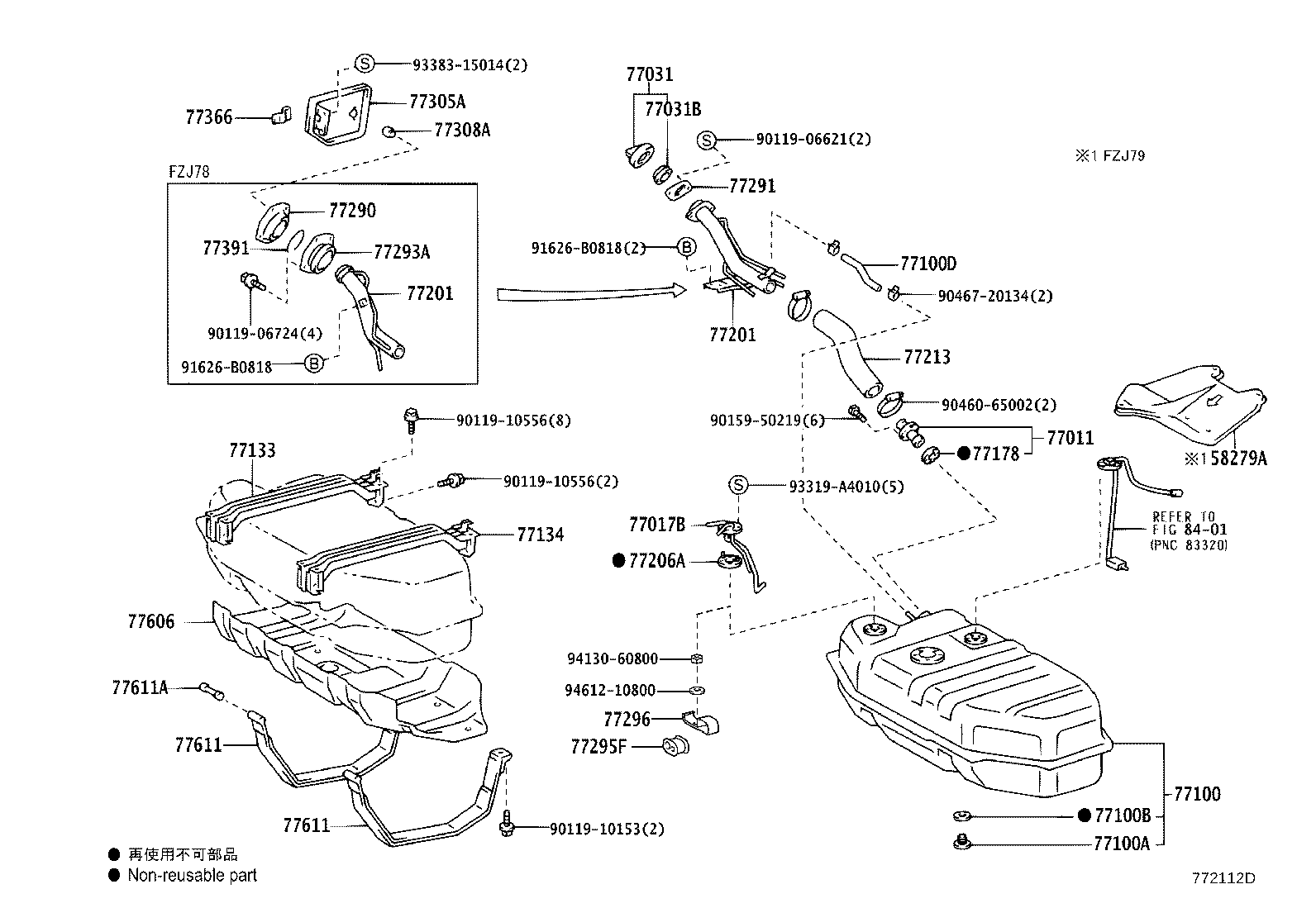

772112D

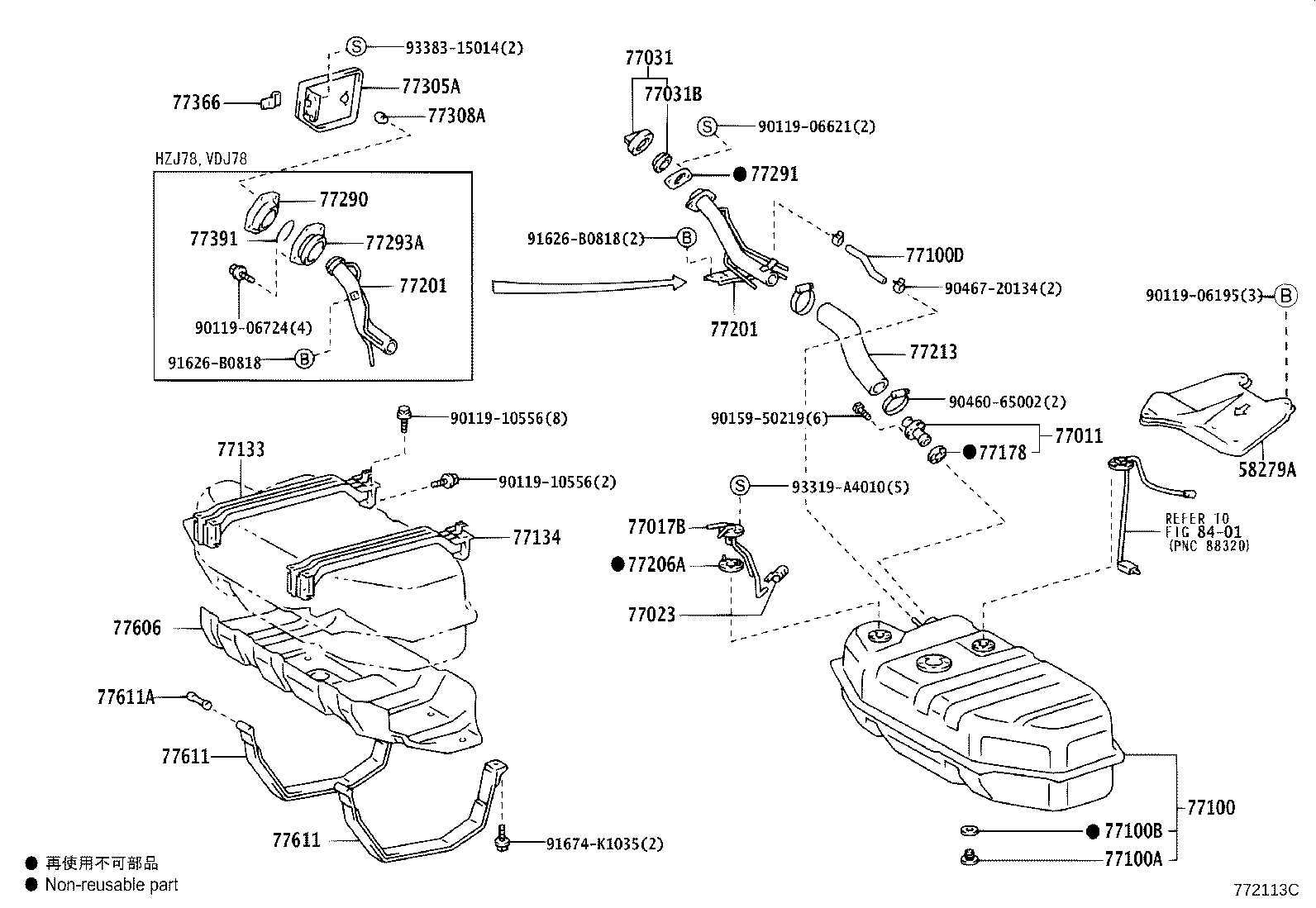

772113C
772113C
772113C

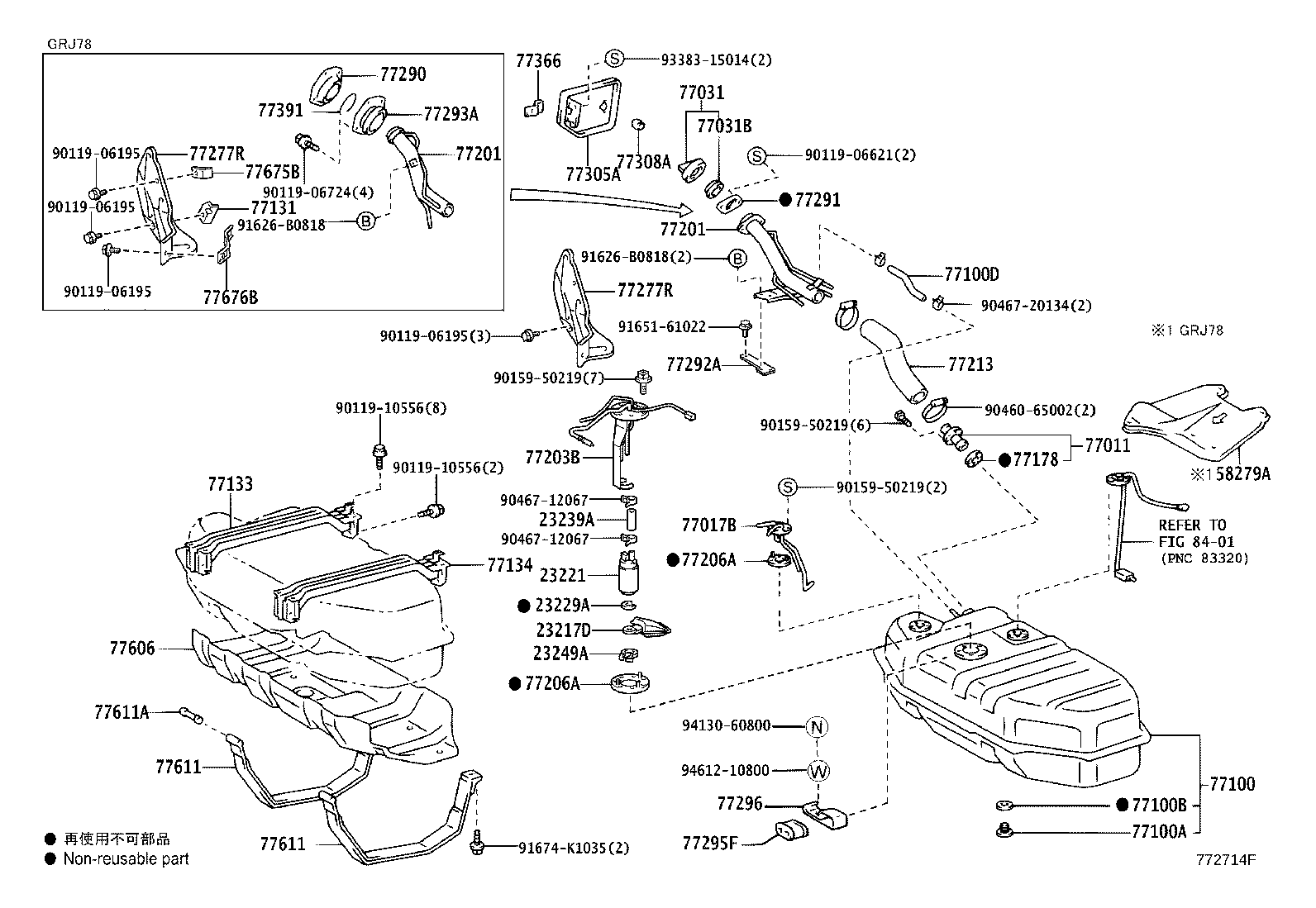

772714F

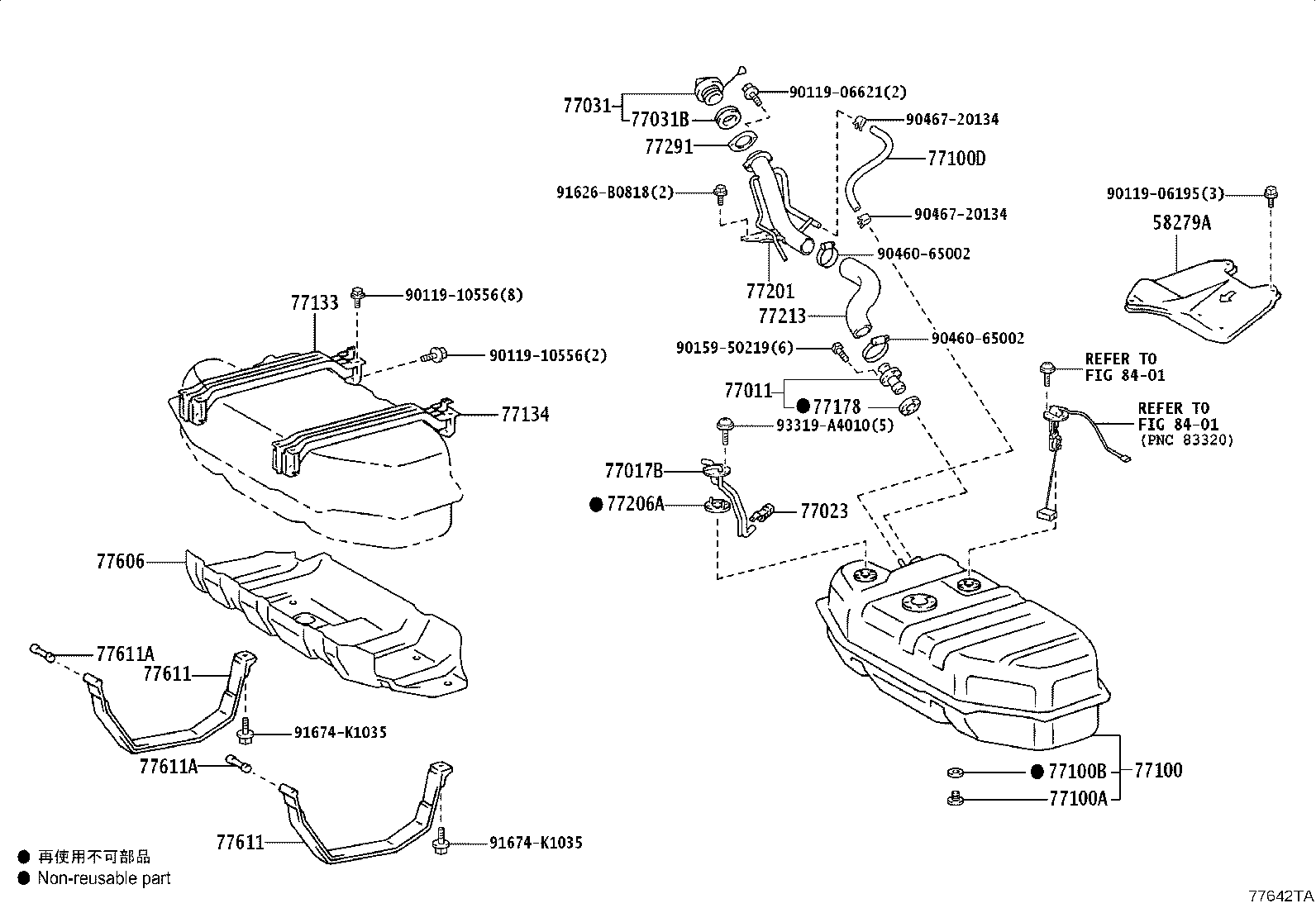

77642TA

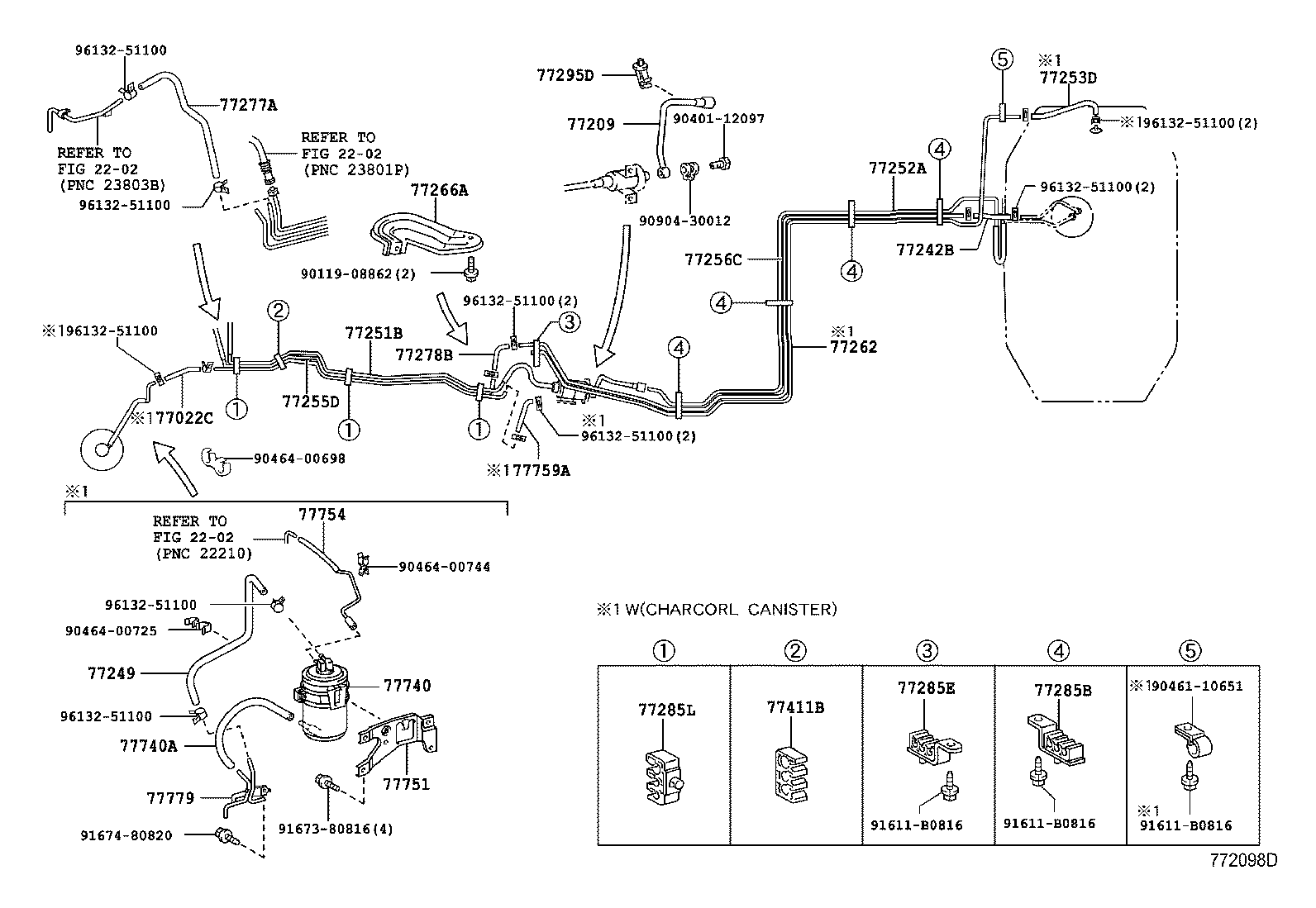

772098D

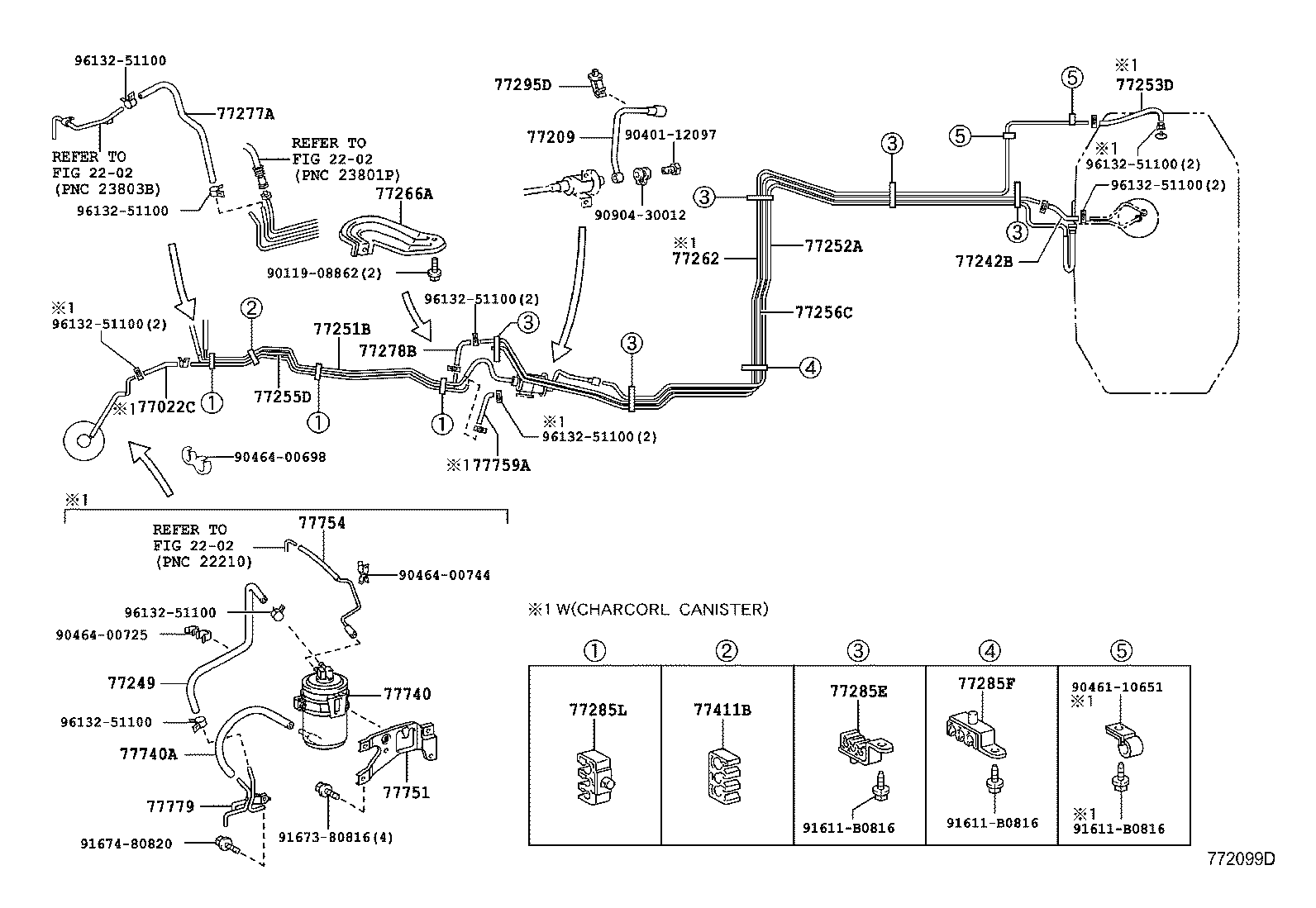

772099D

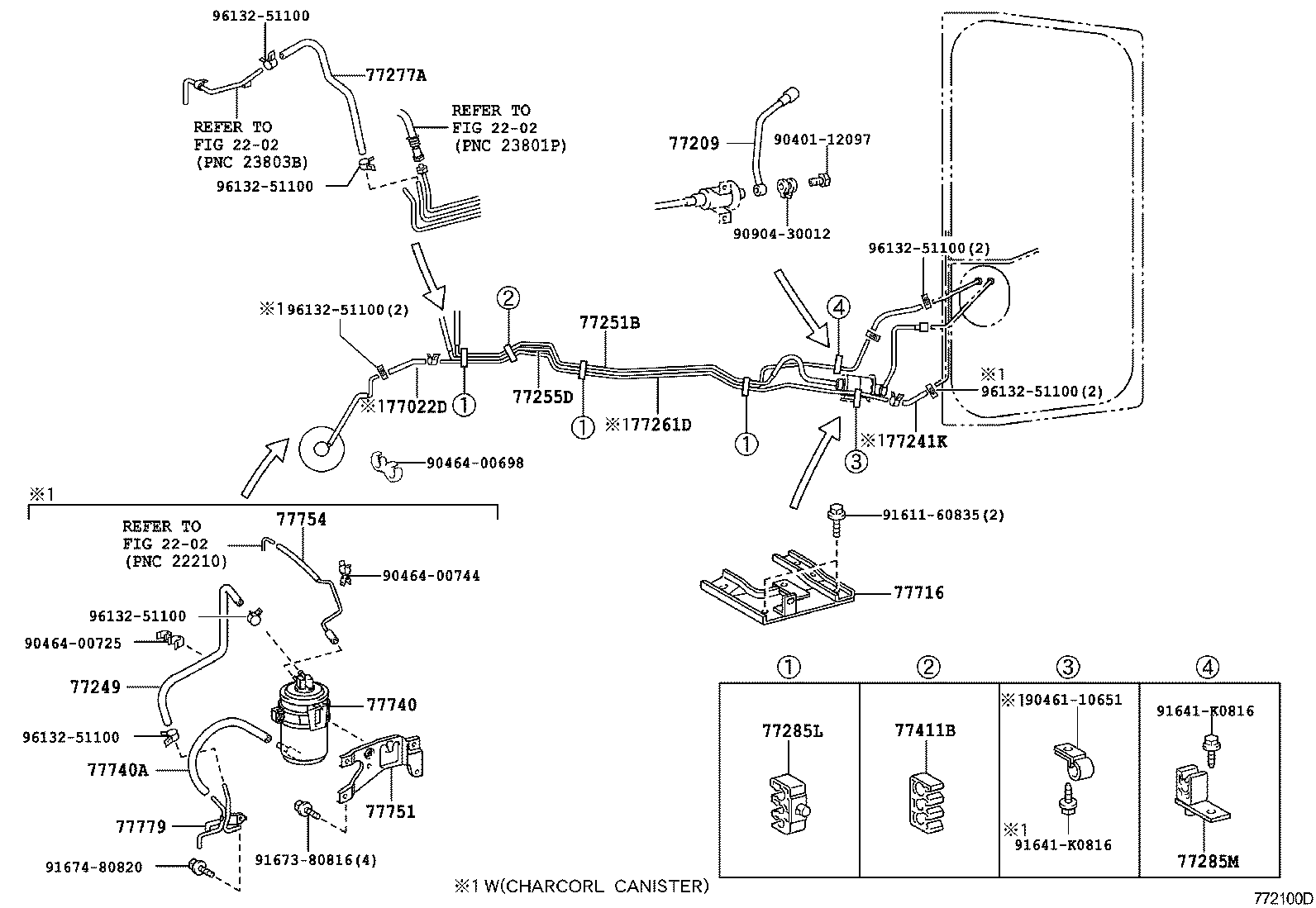

772100D

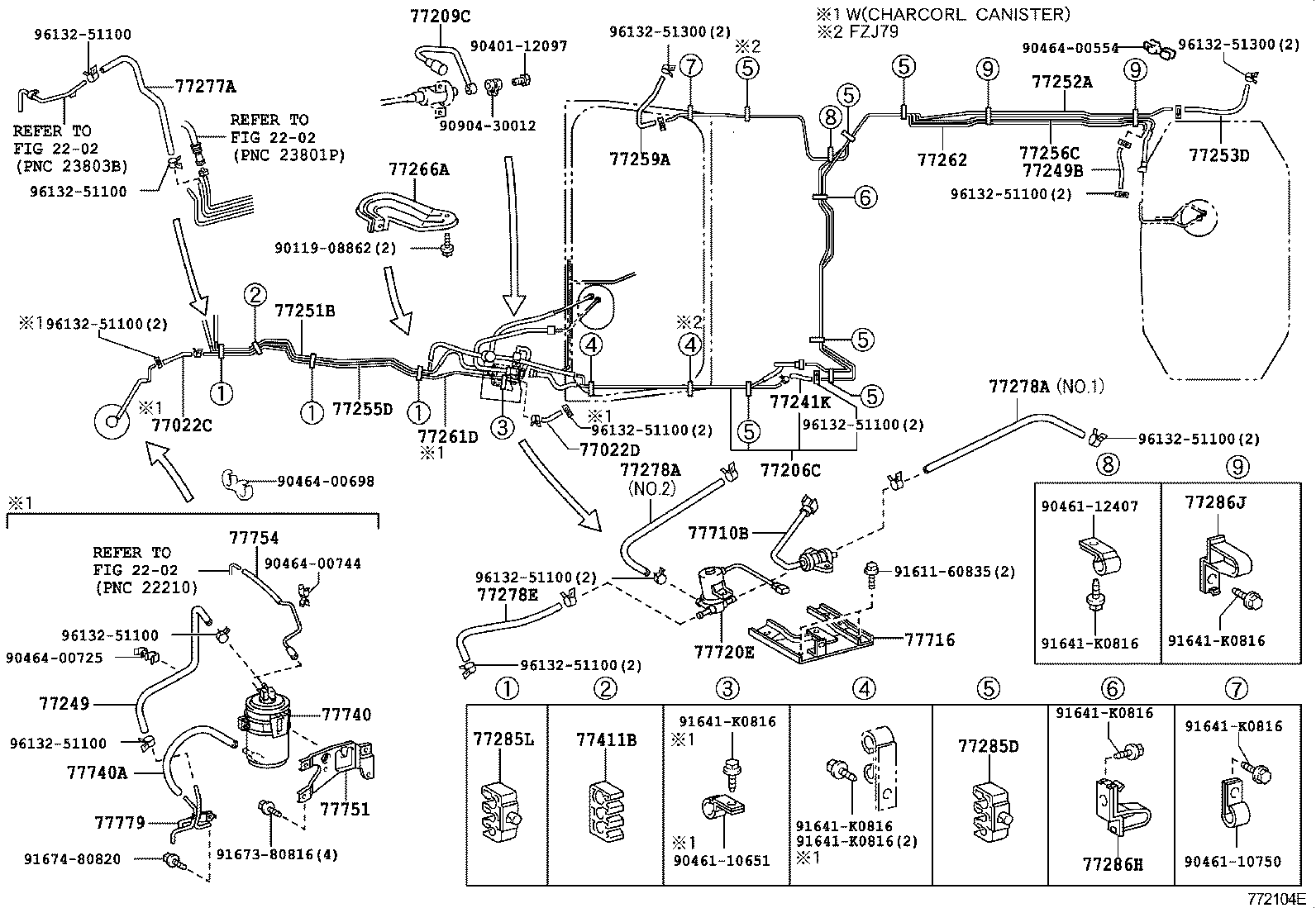

772104E

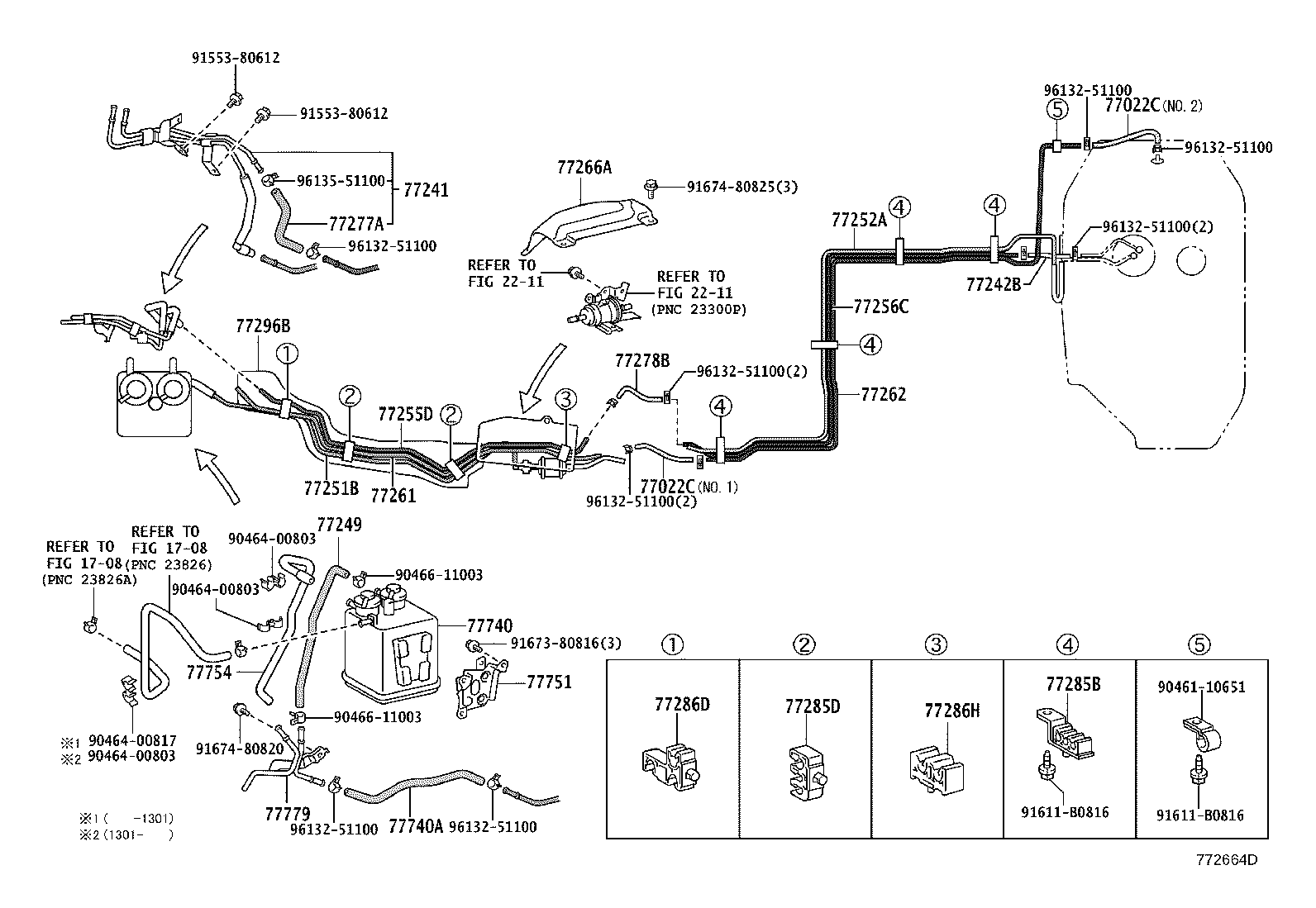

772664D

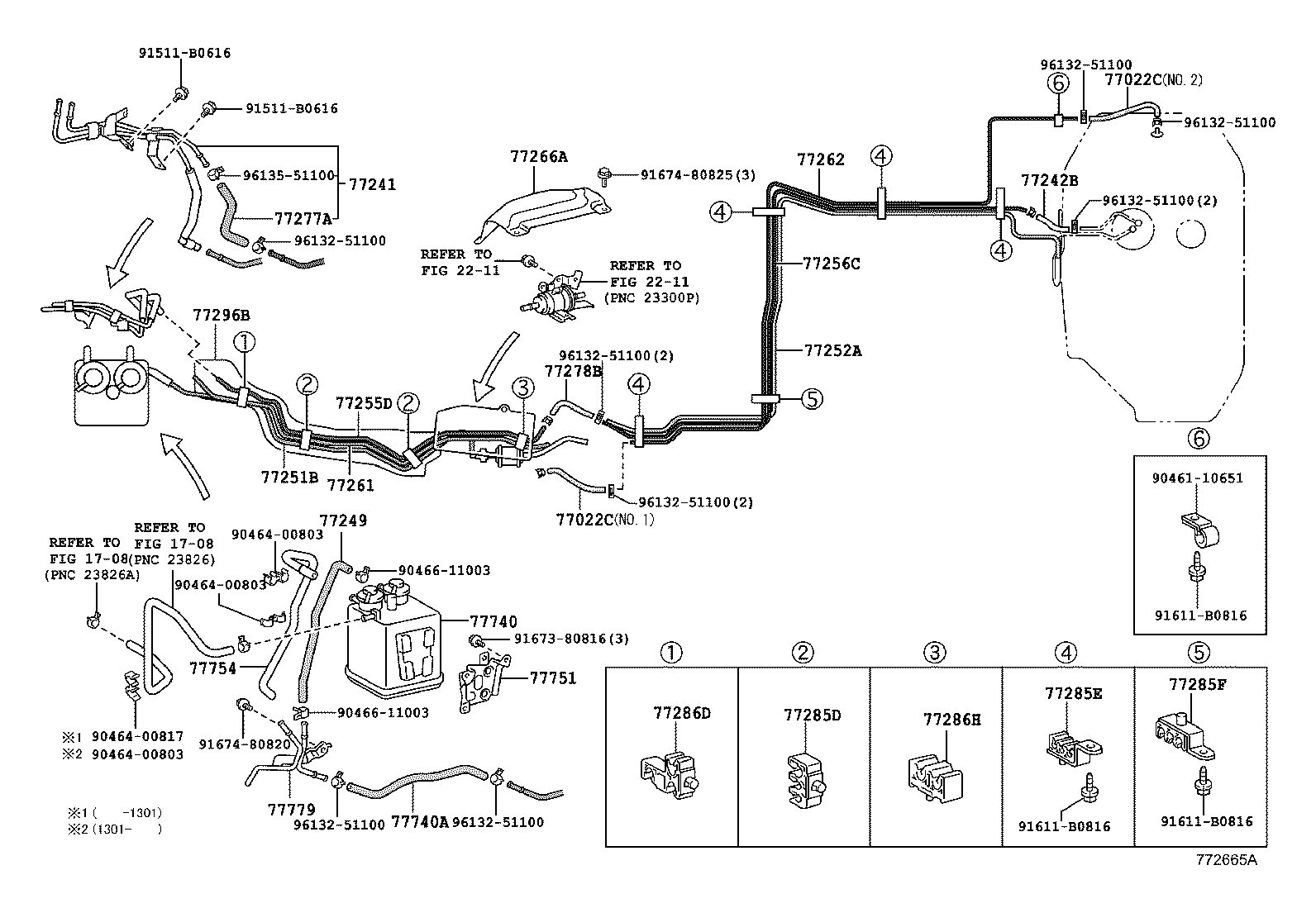

772665B

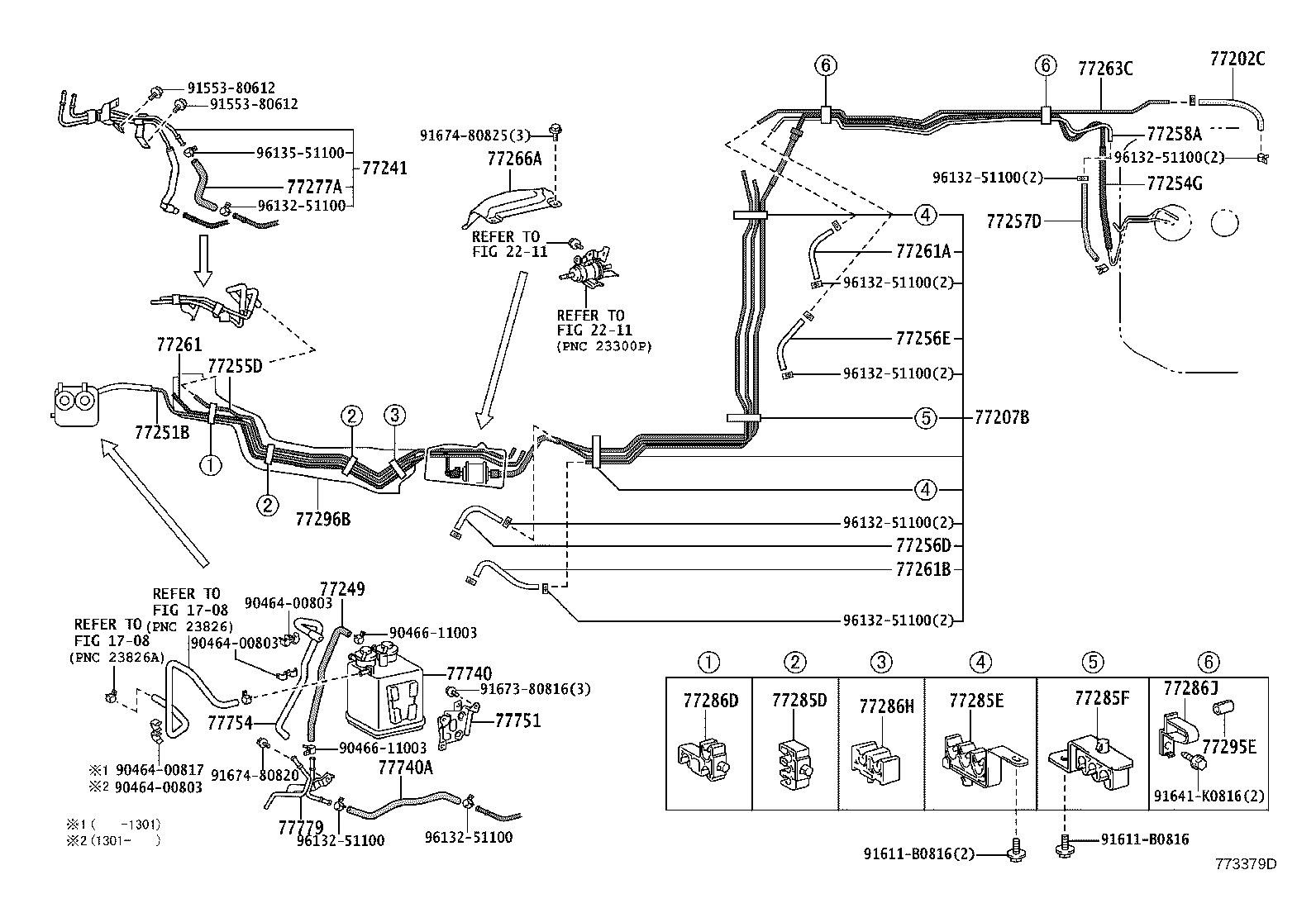

773379D

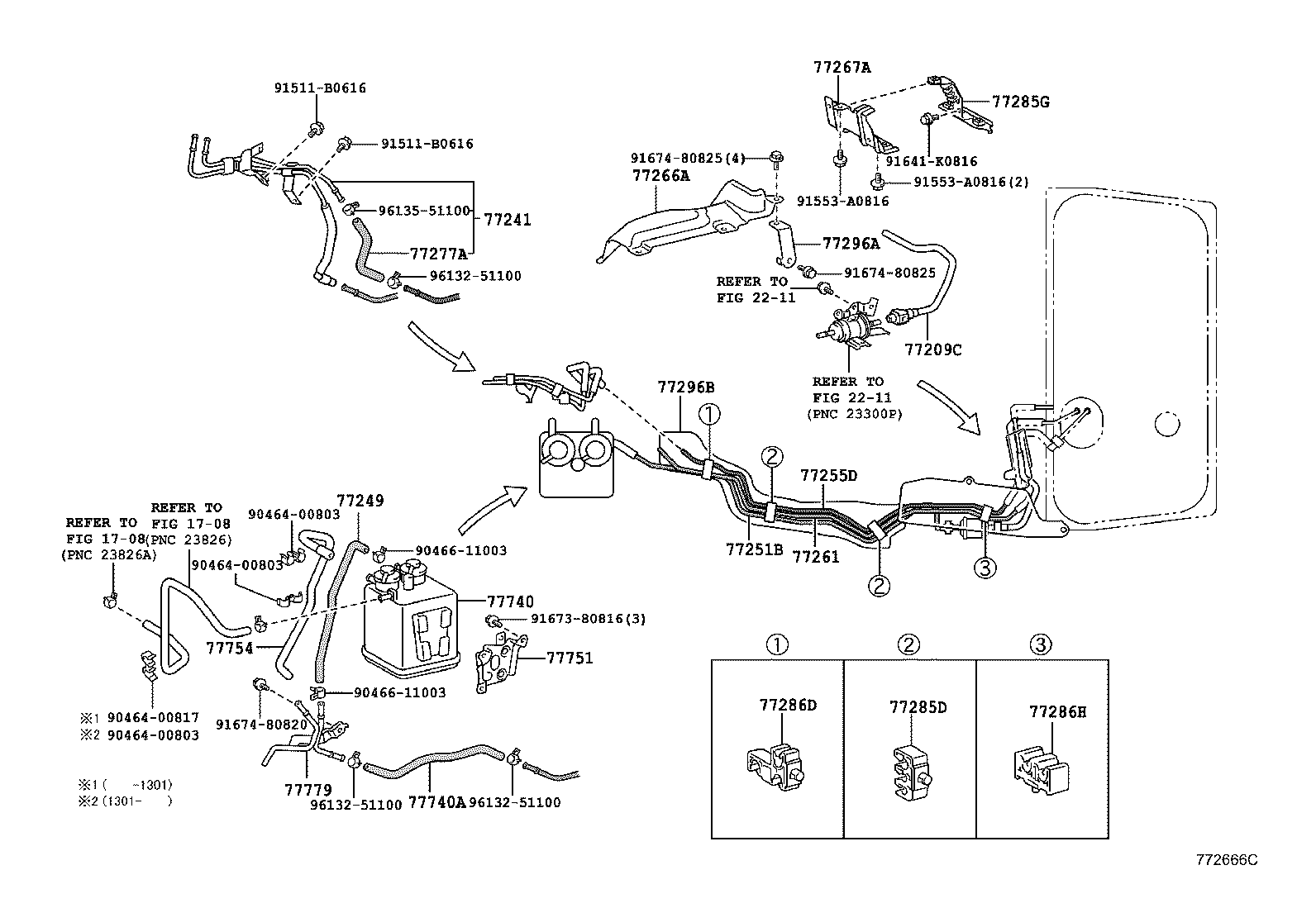

772666C

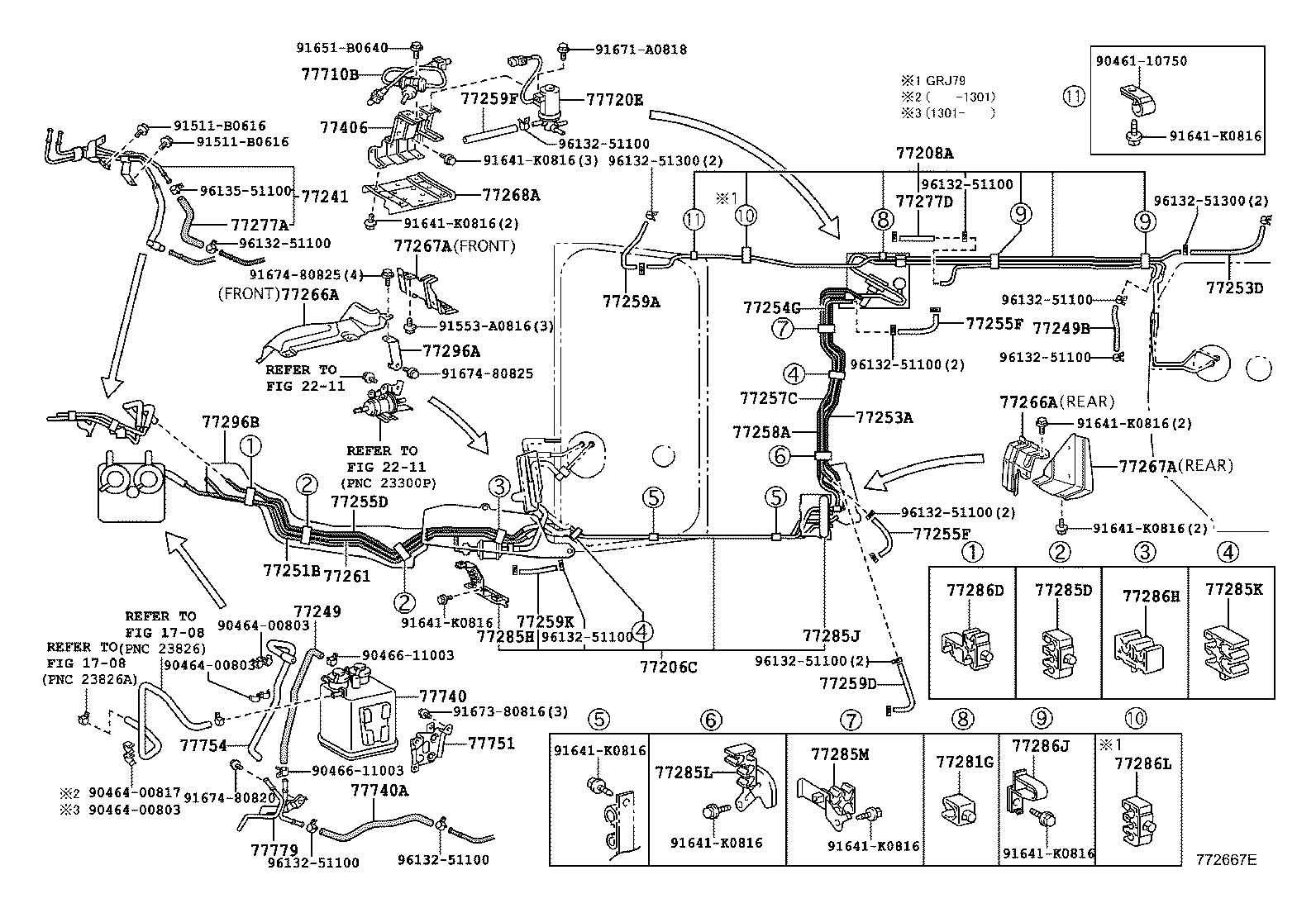

772667E

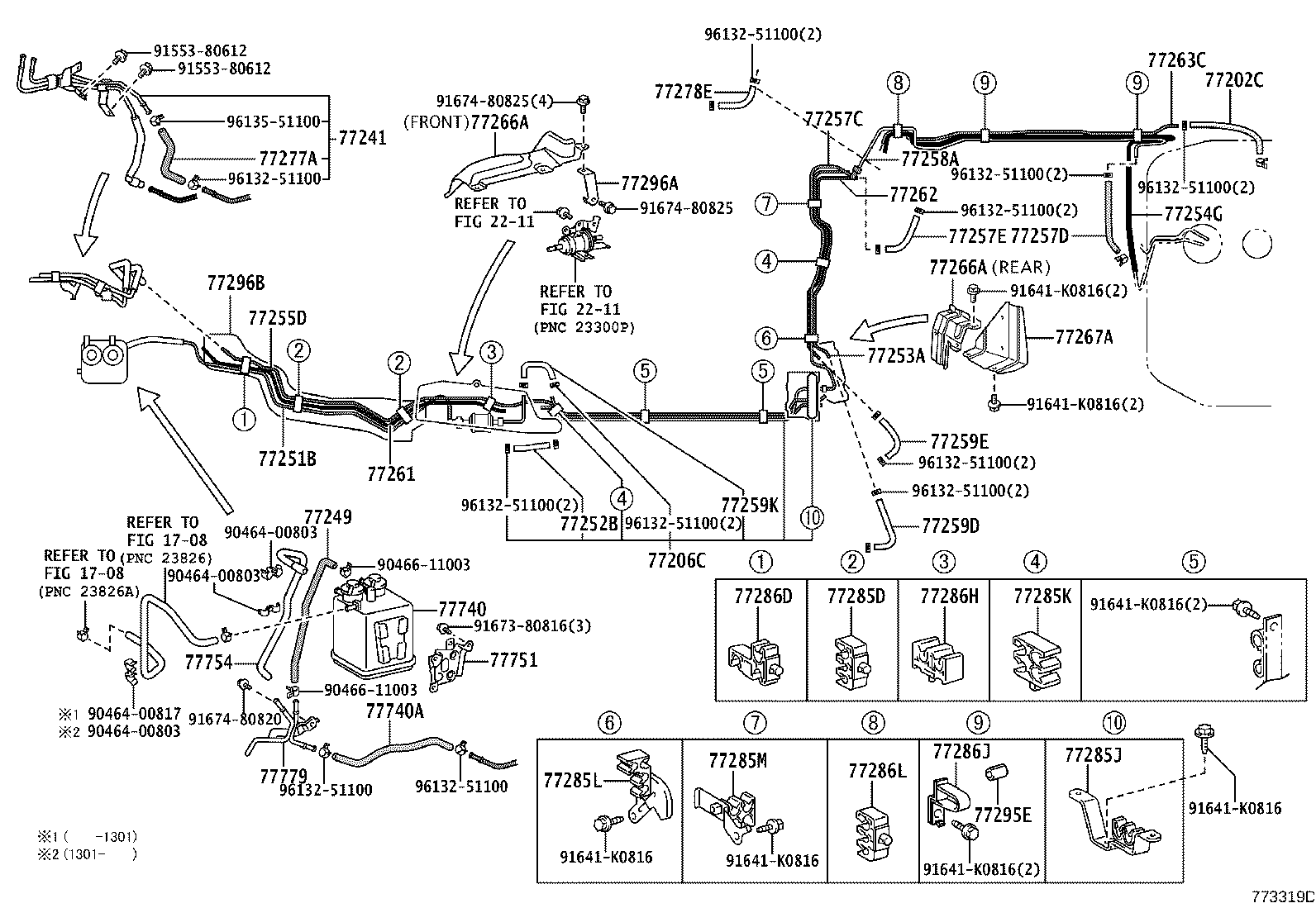

773319D

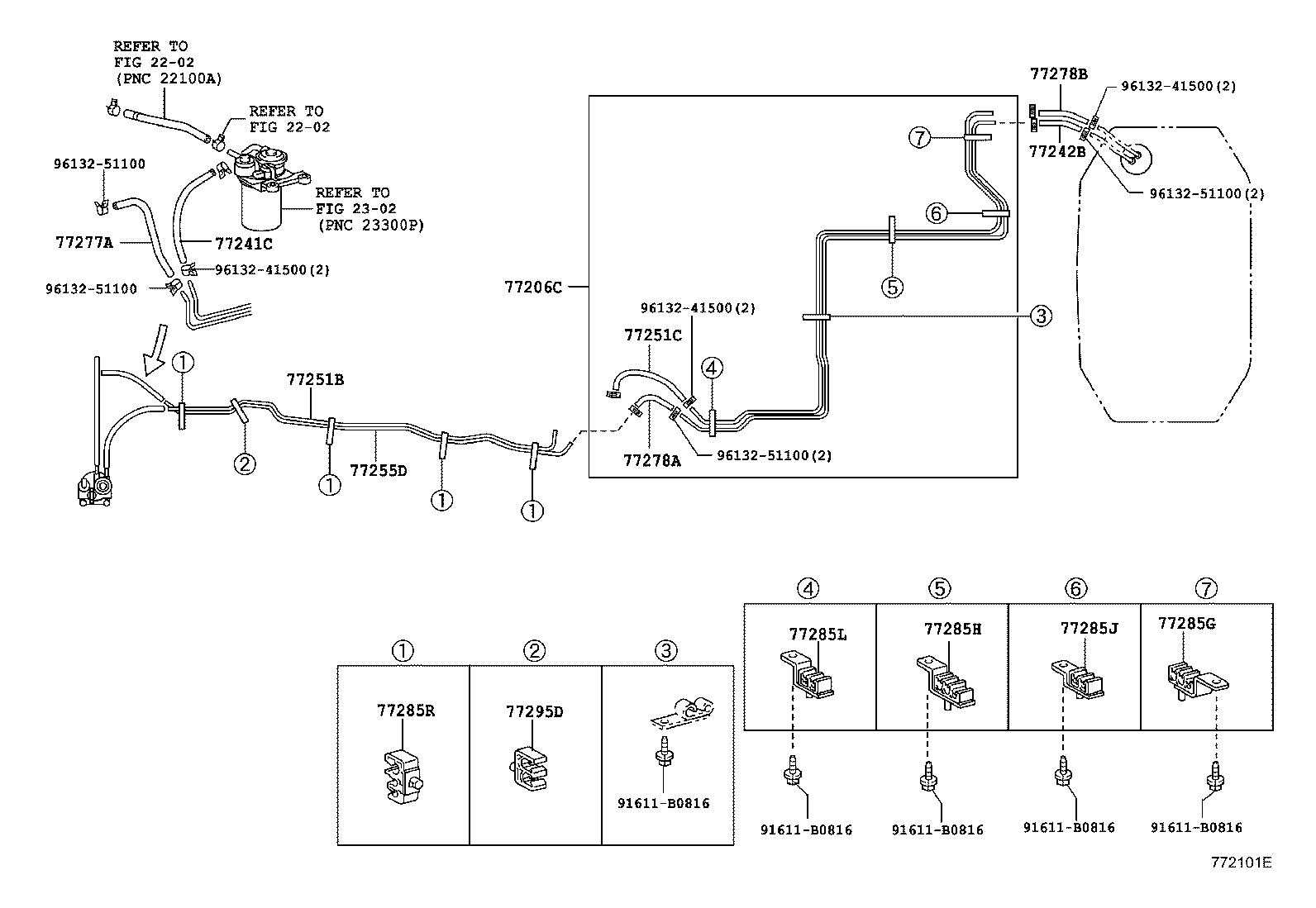

772101E

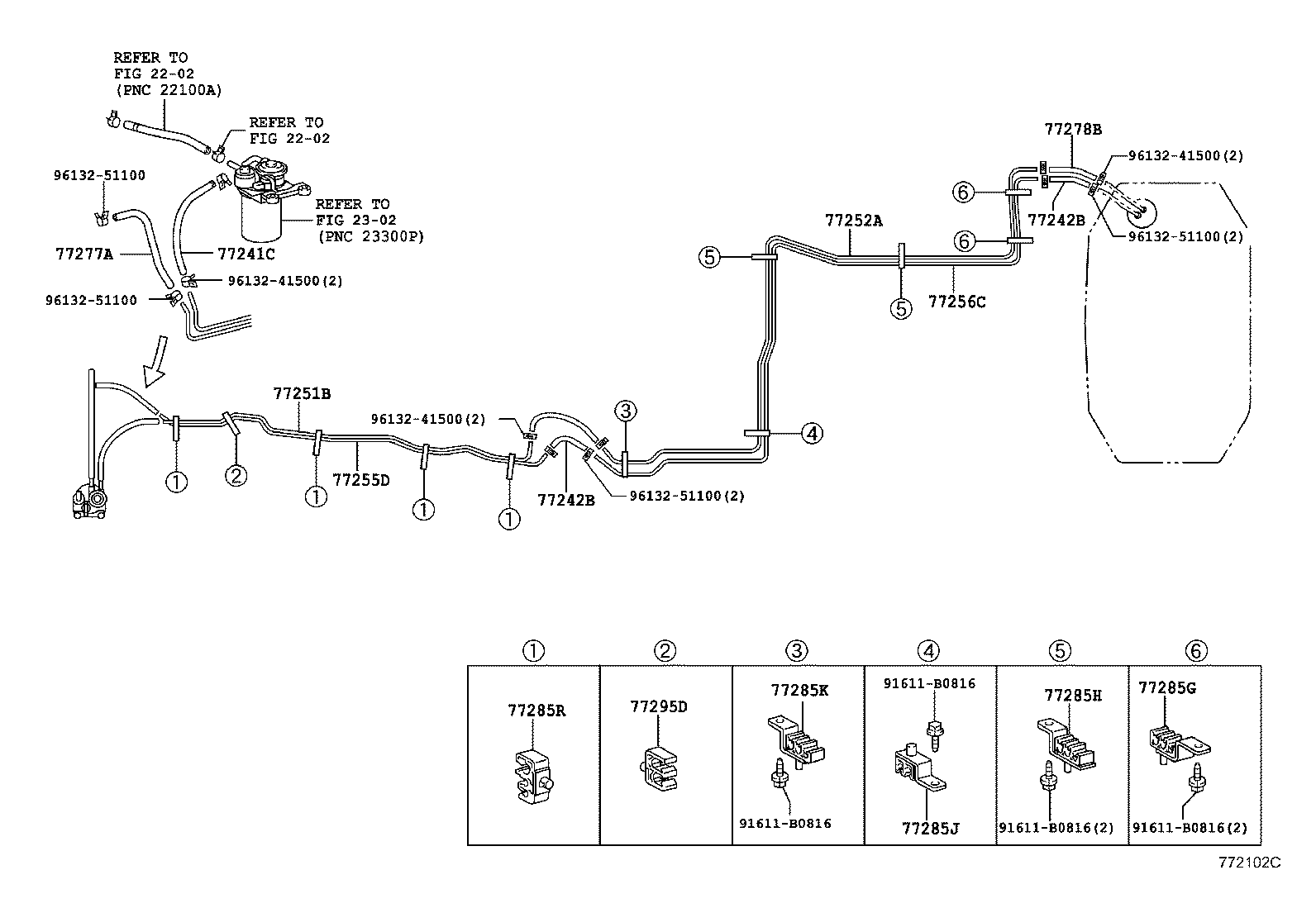

772102C

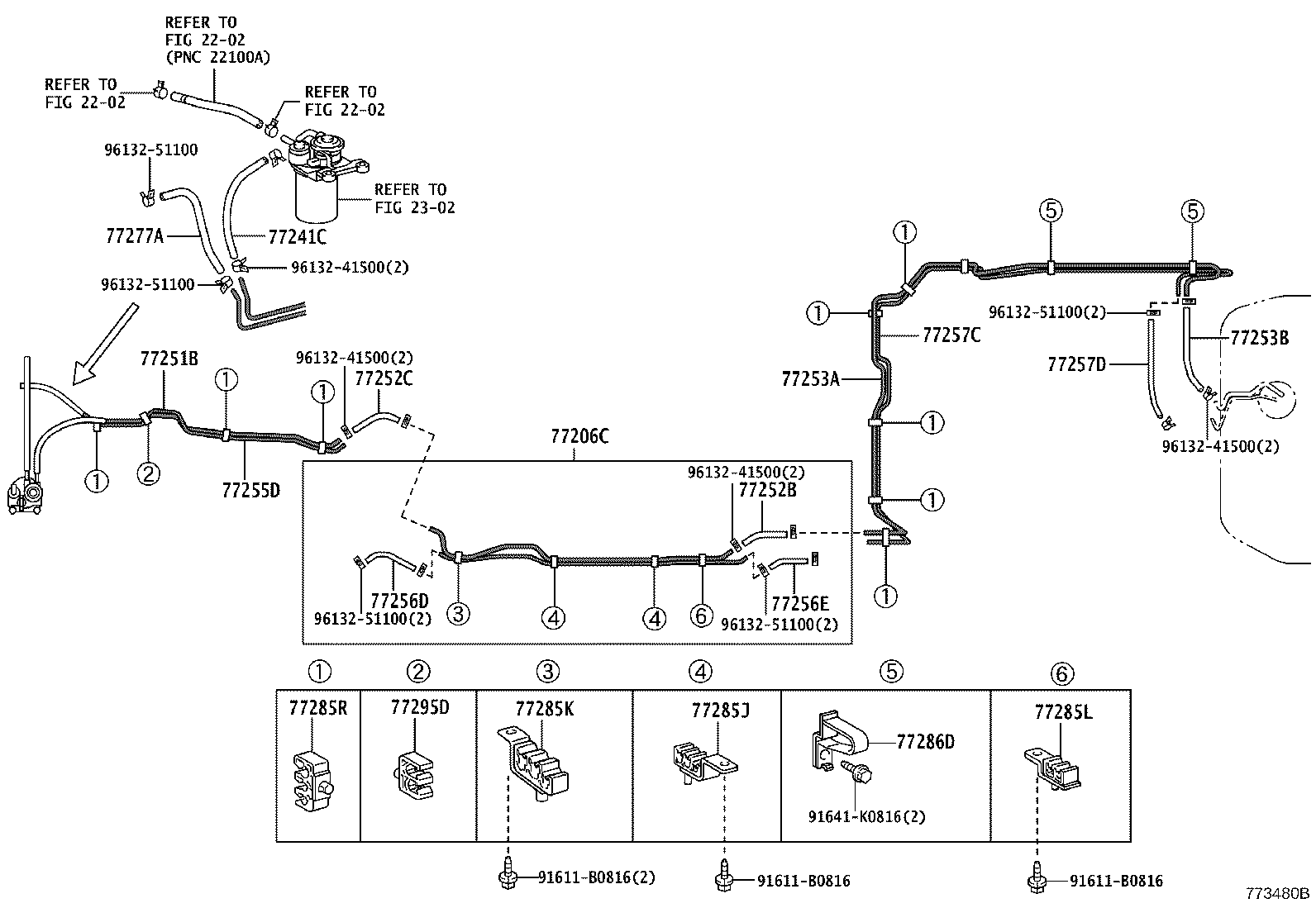

773480B

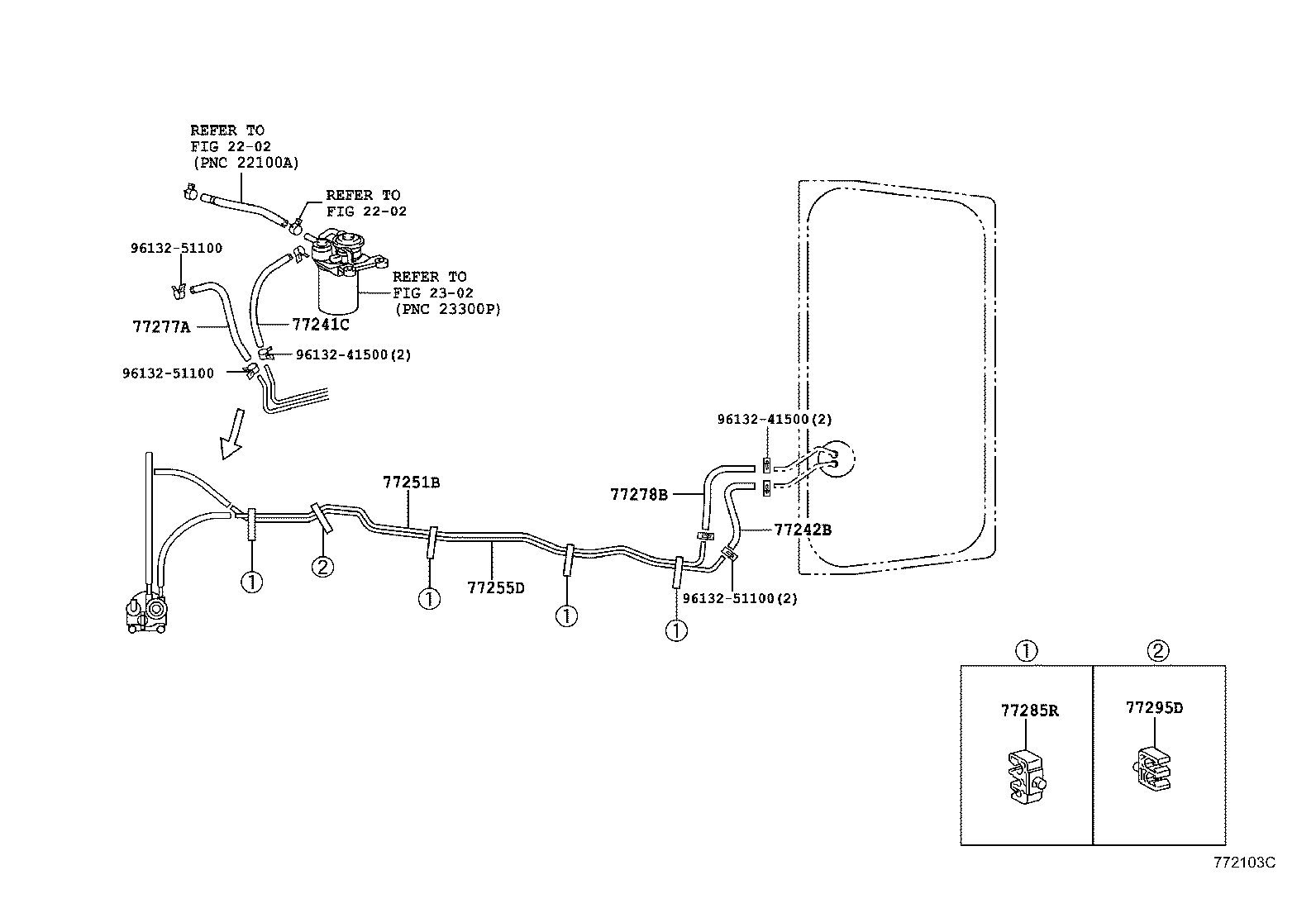

772103C

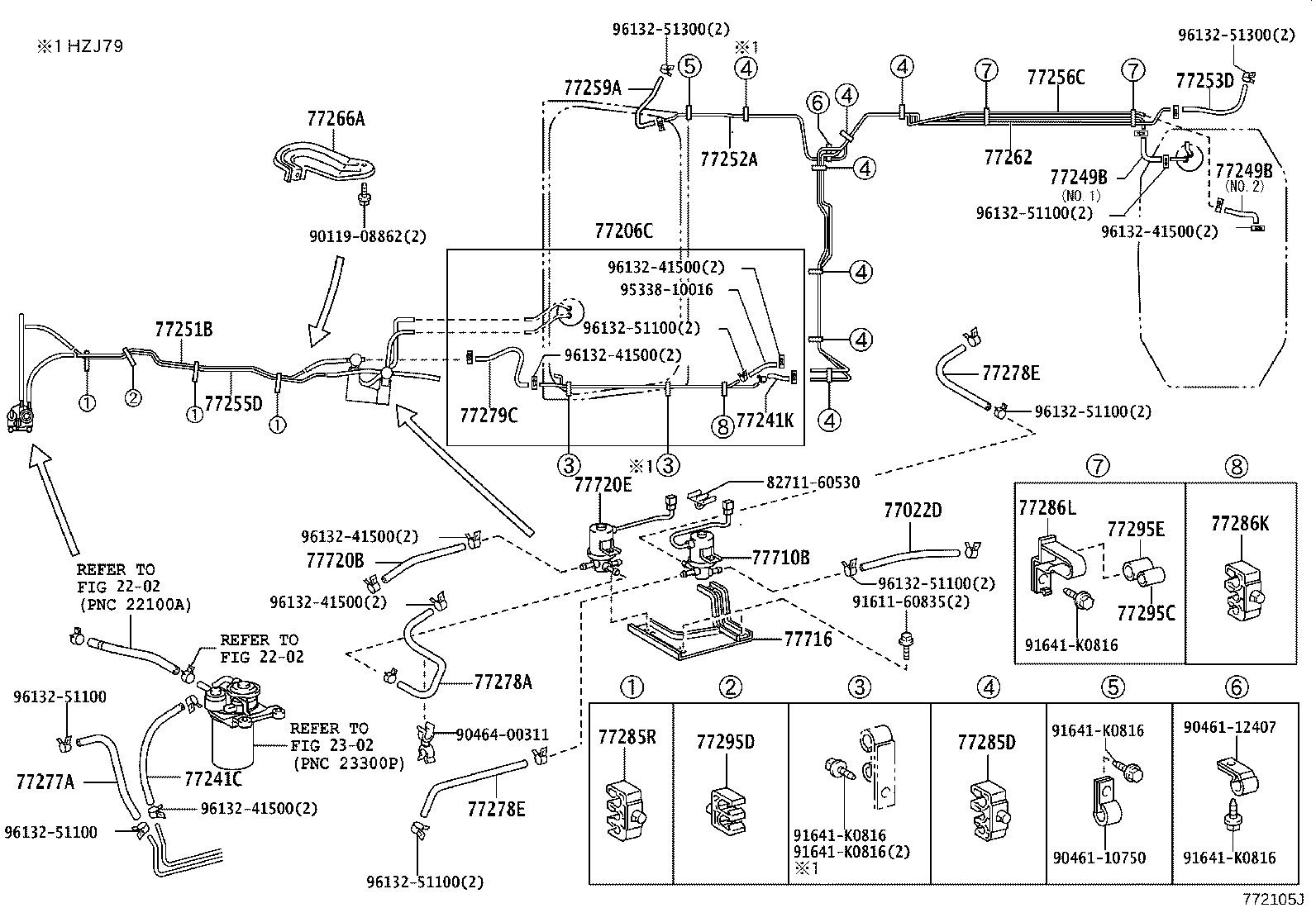

772105J

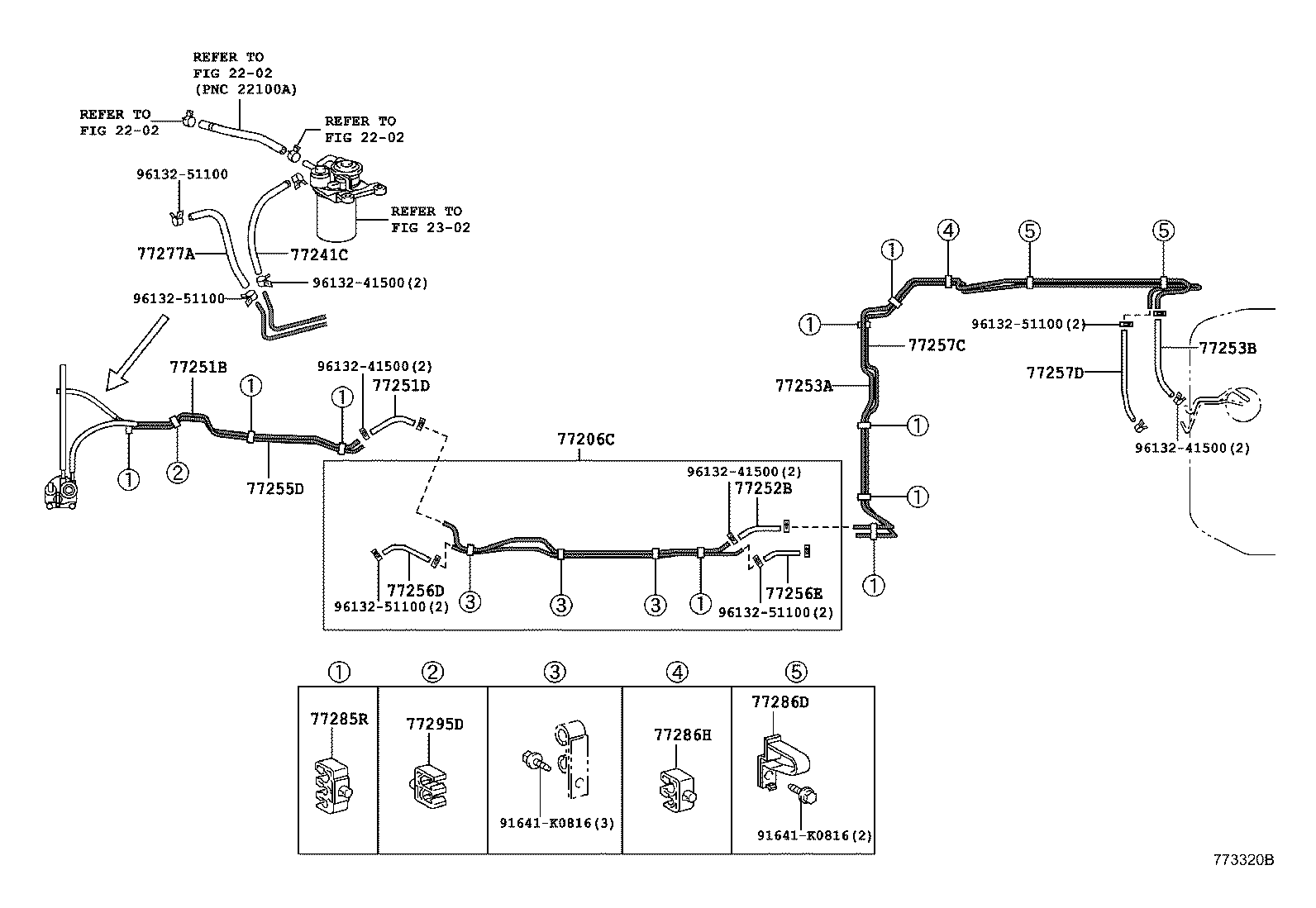

773320B

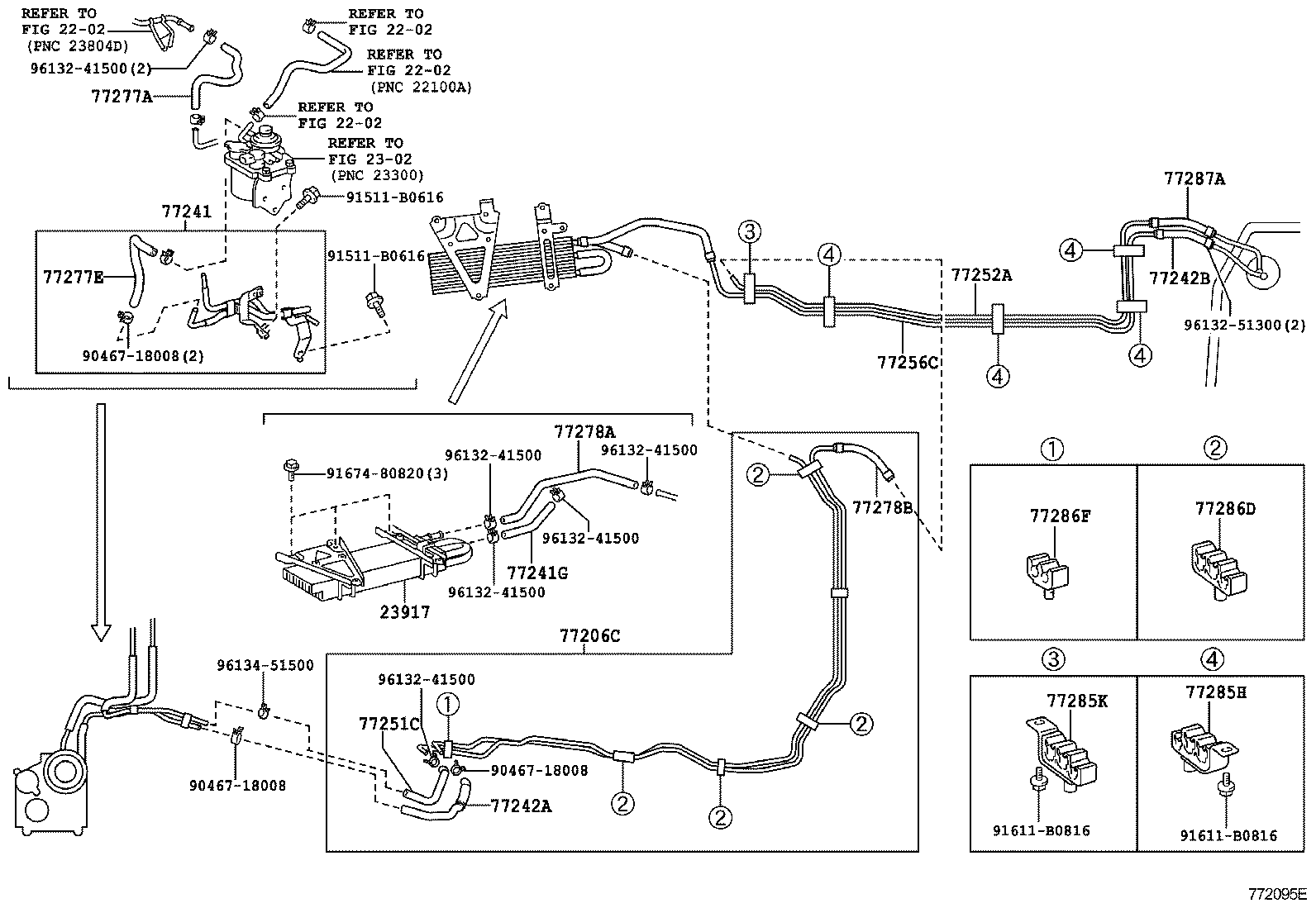

772095E

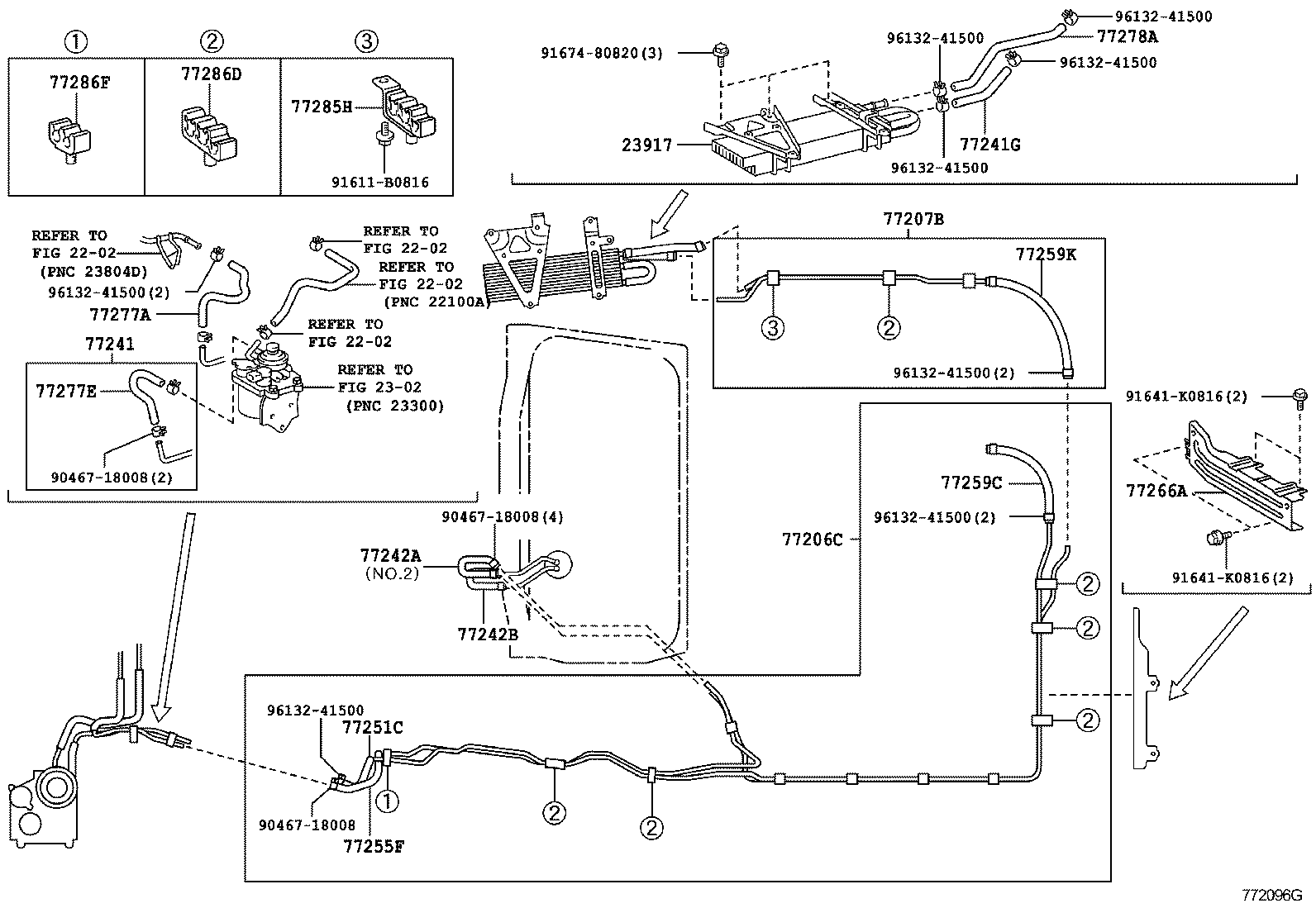

772096G

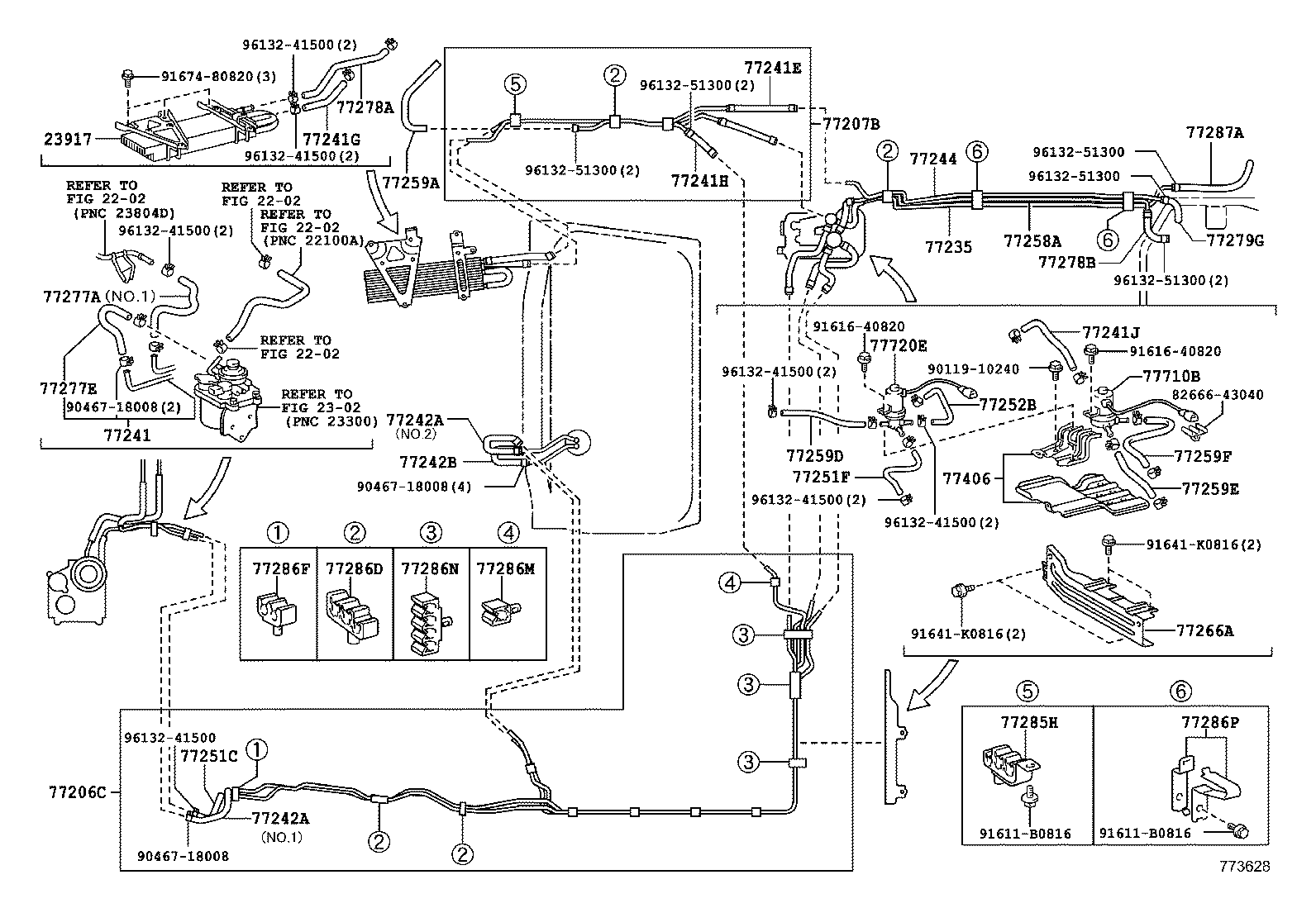

773628

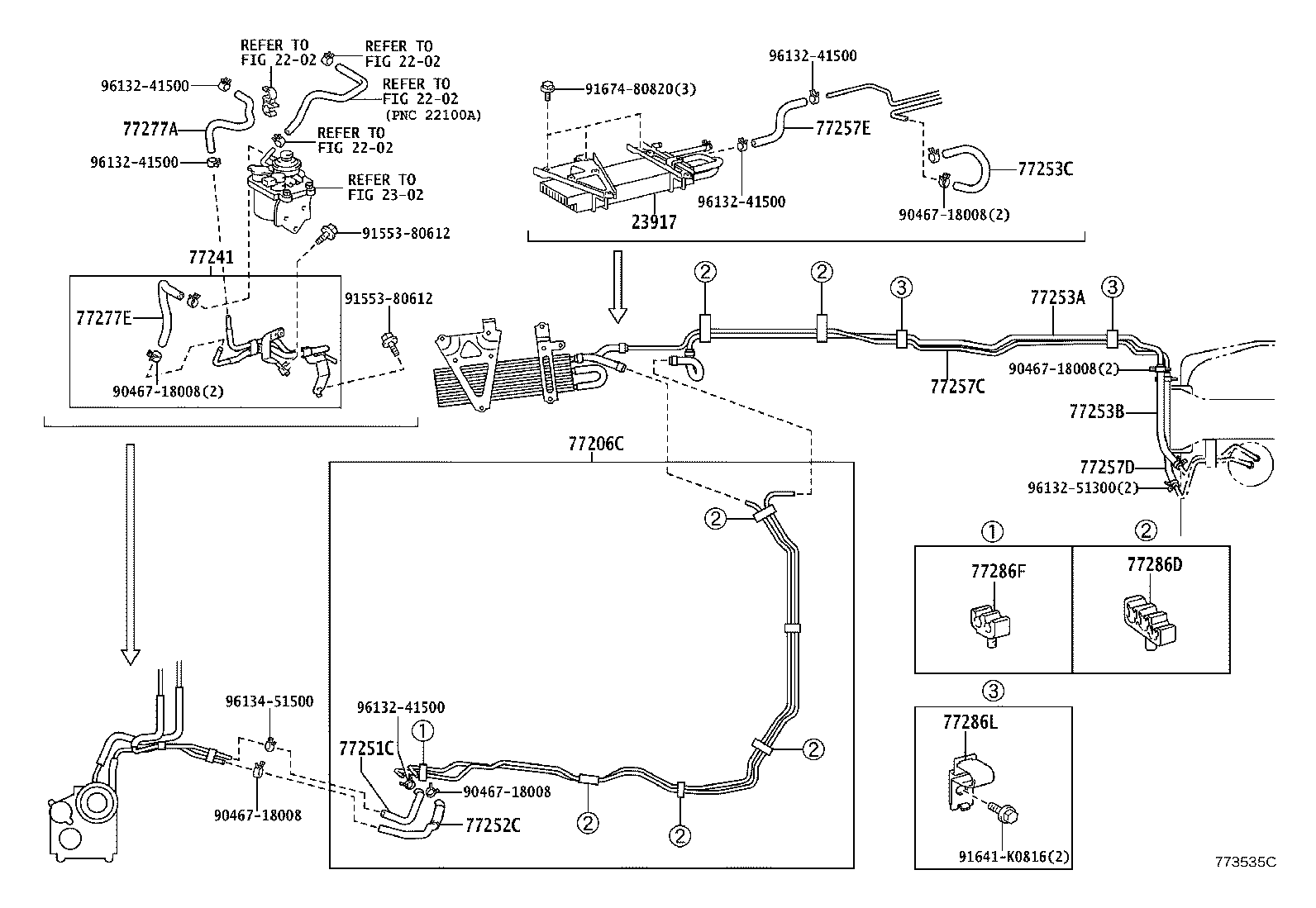

773535C

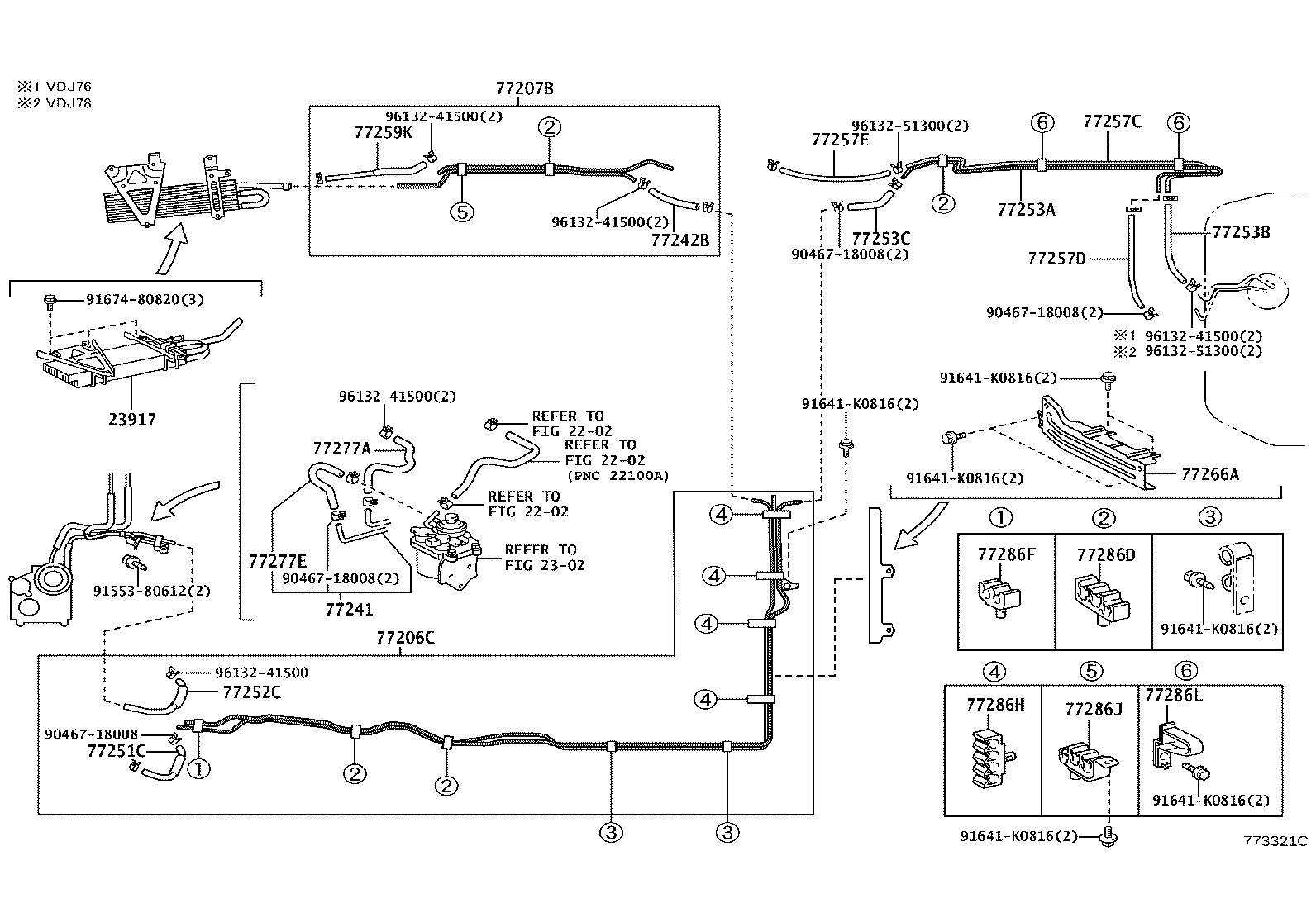

773321C
773321C

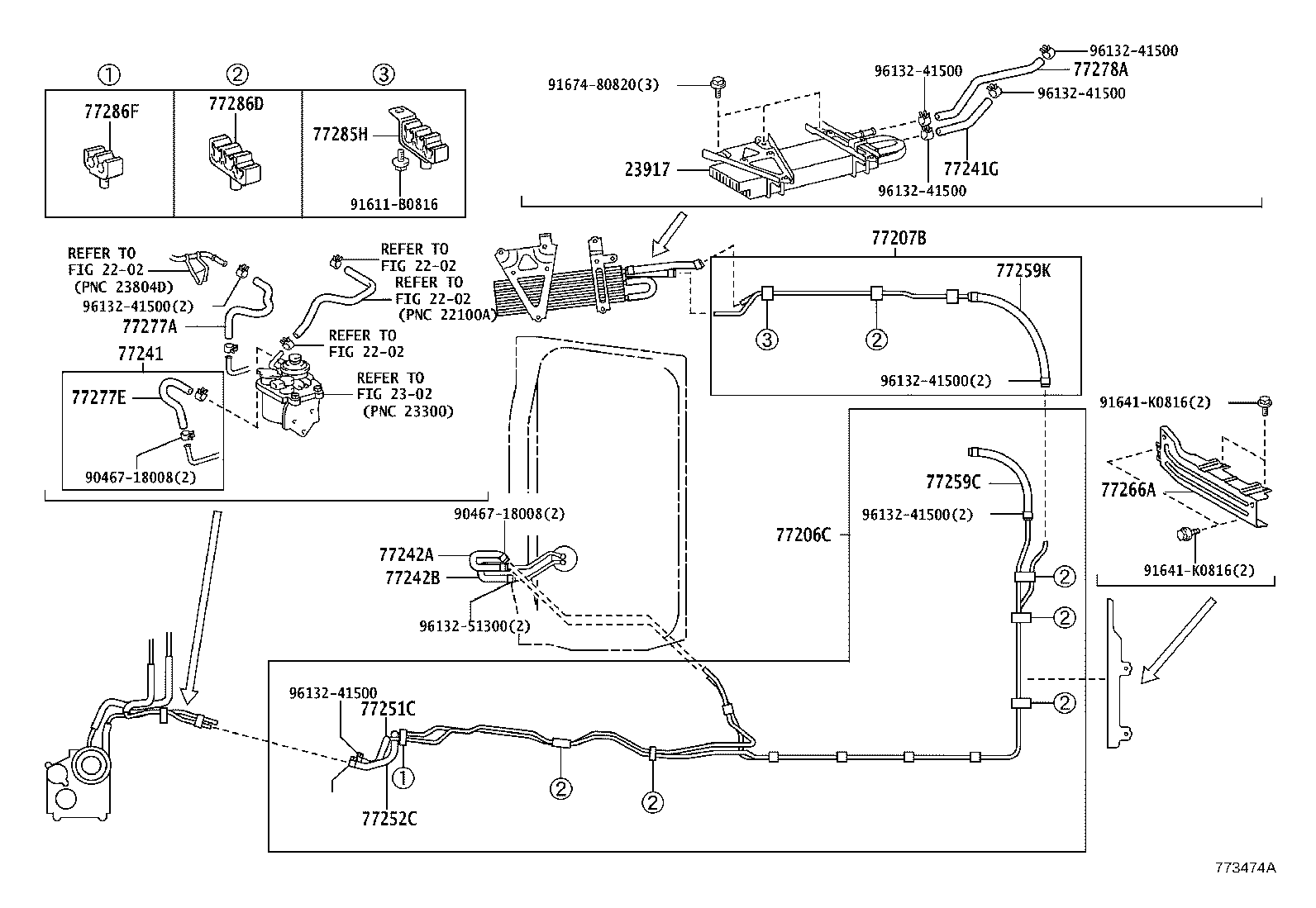

773474A
773474A

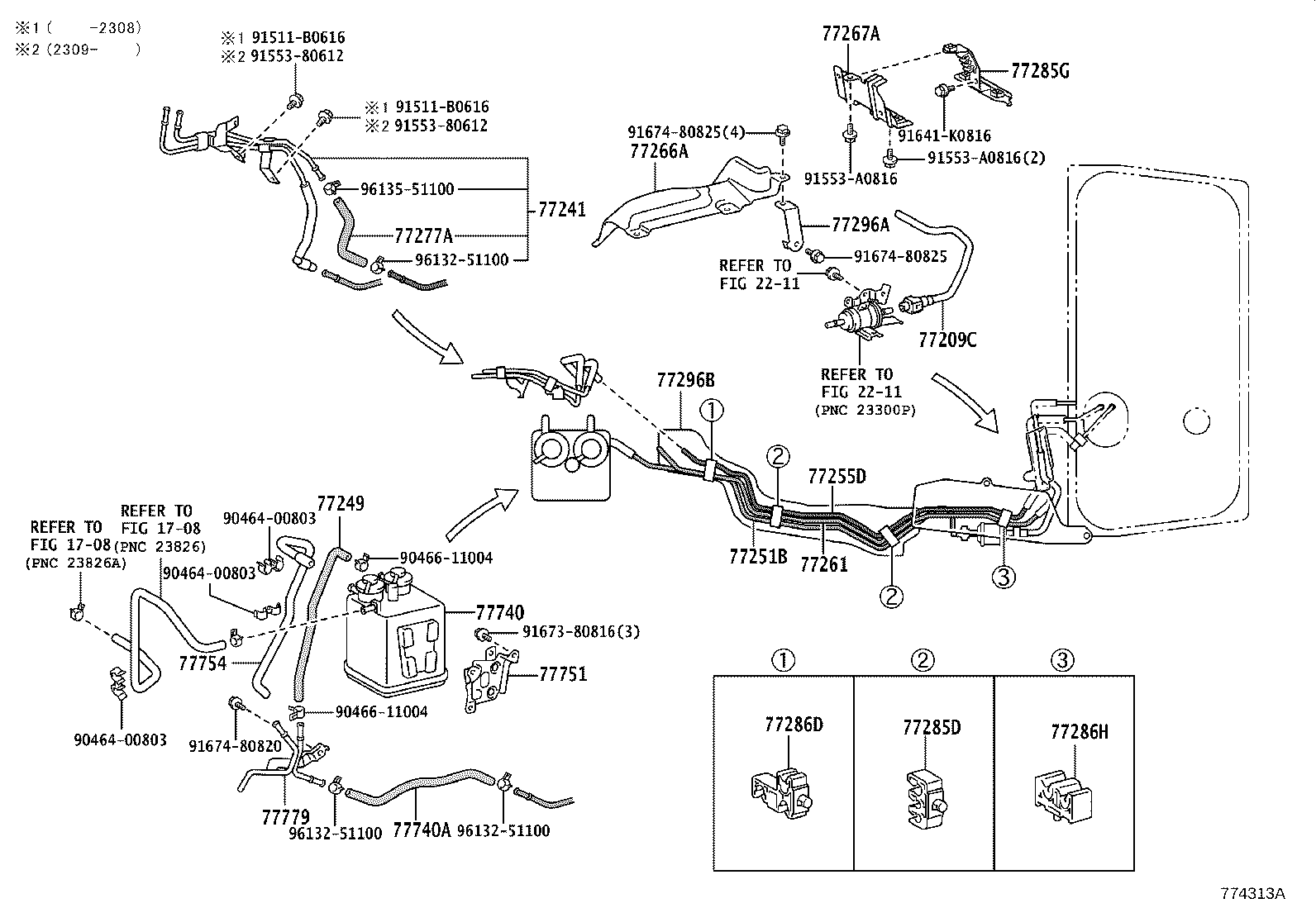

774313A

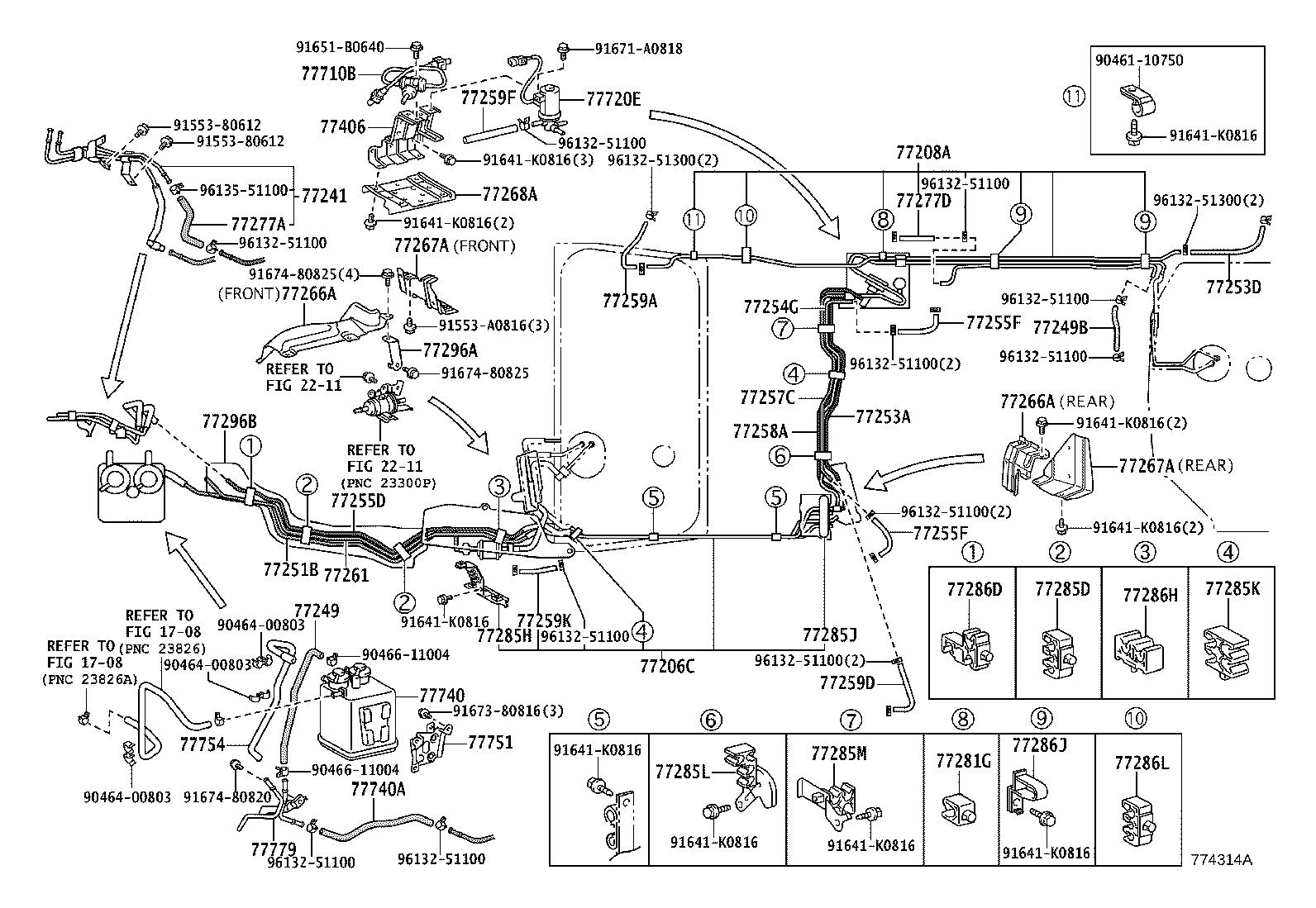

774314A

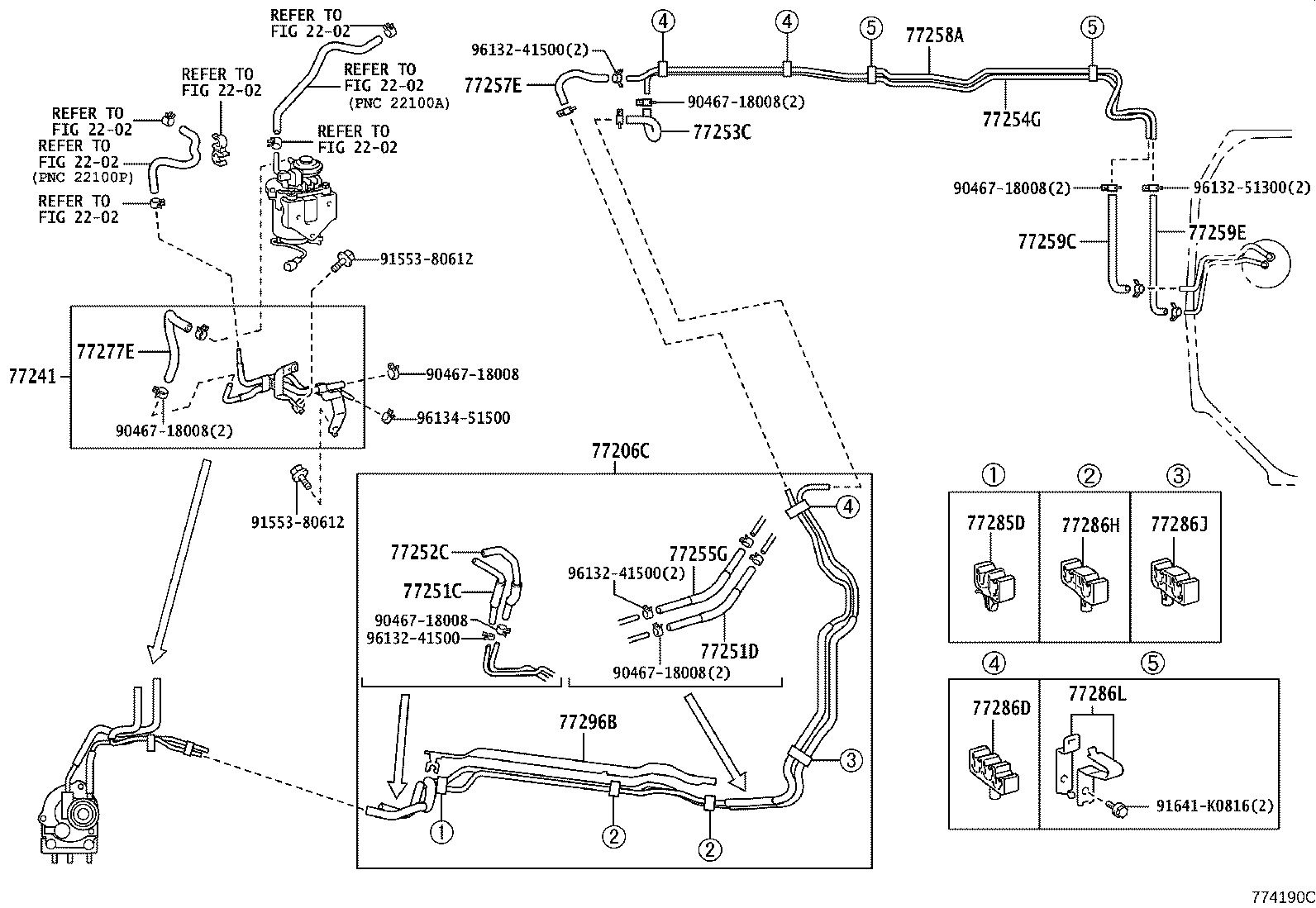

774190C
774190C

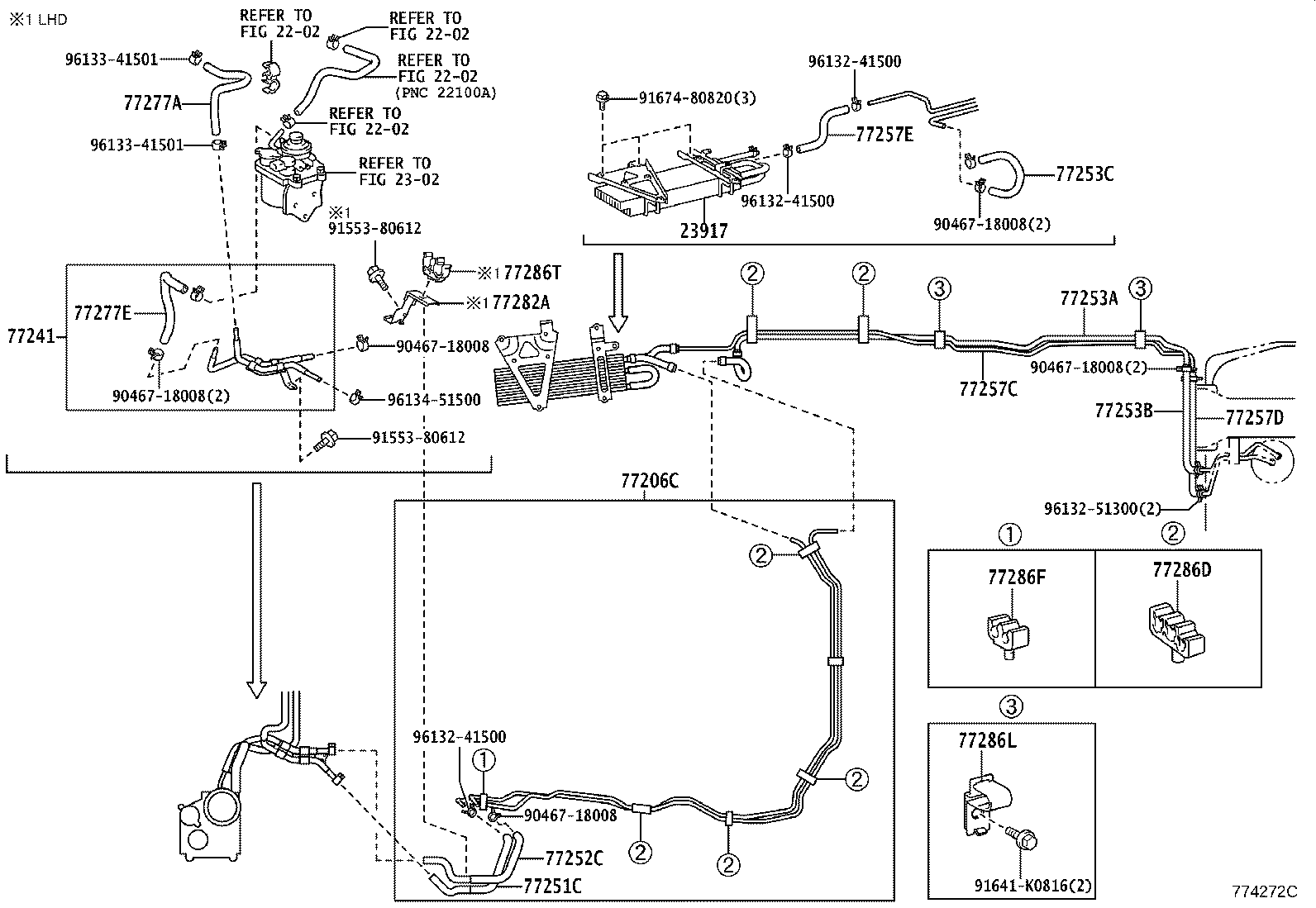

774272C

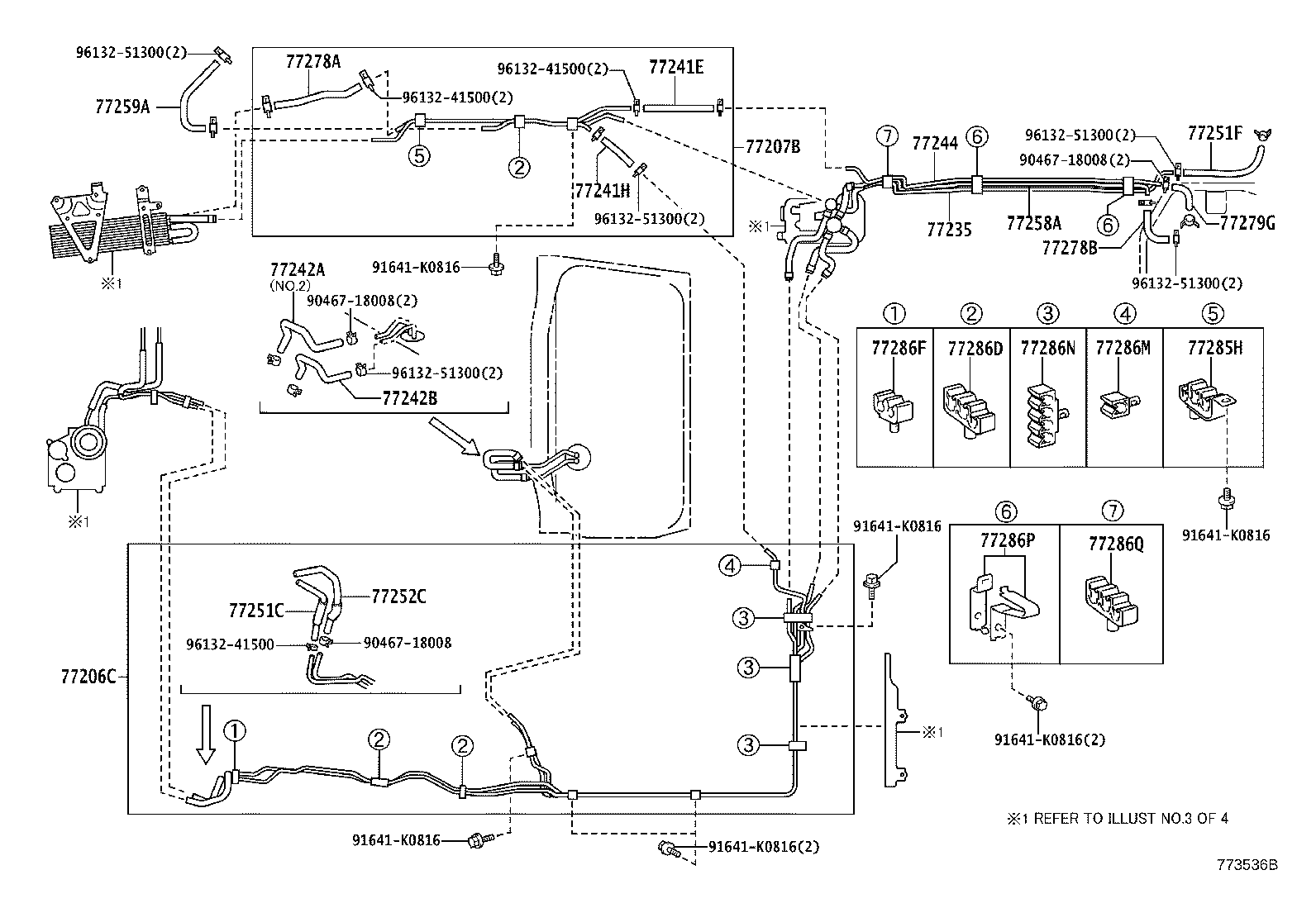

773536B
773536B
774269A

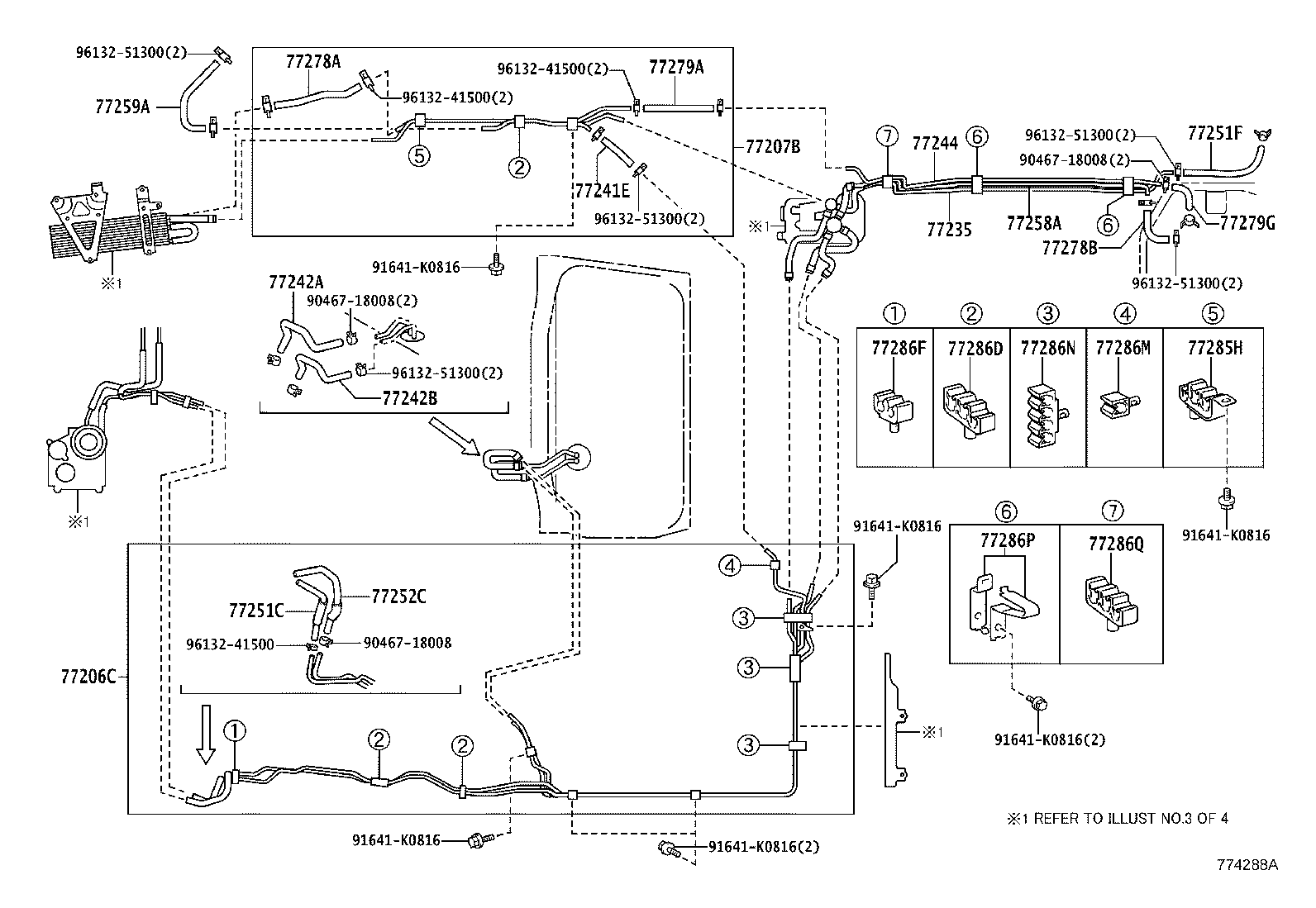

774288A

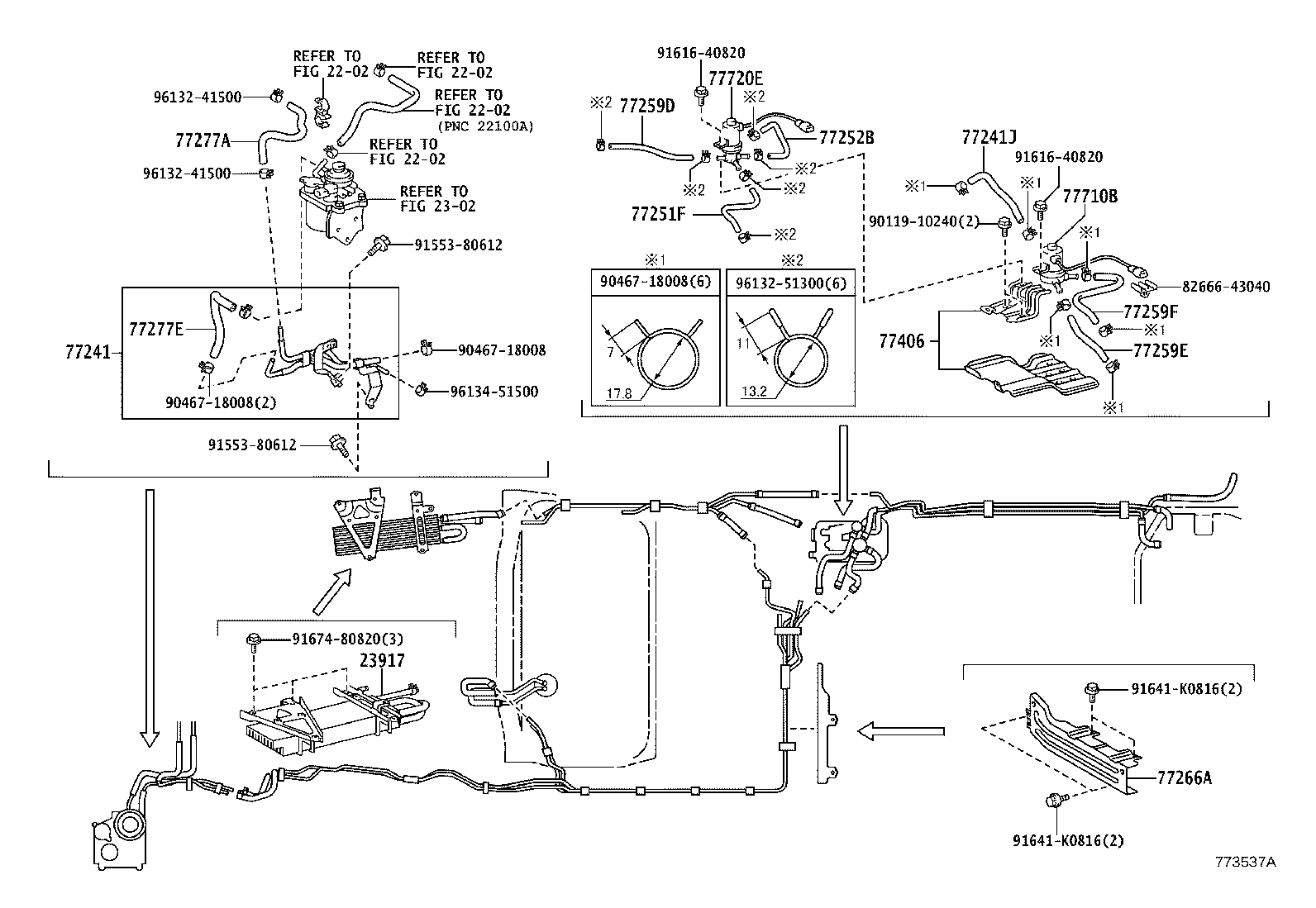

773537A
773537A

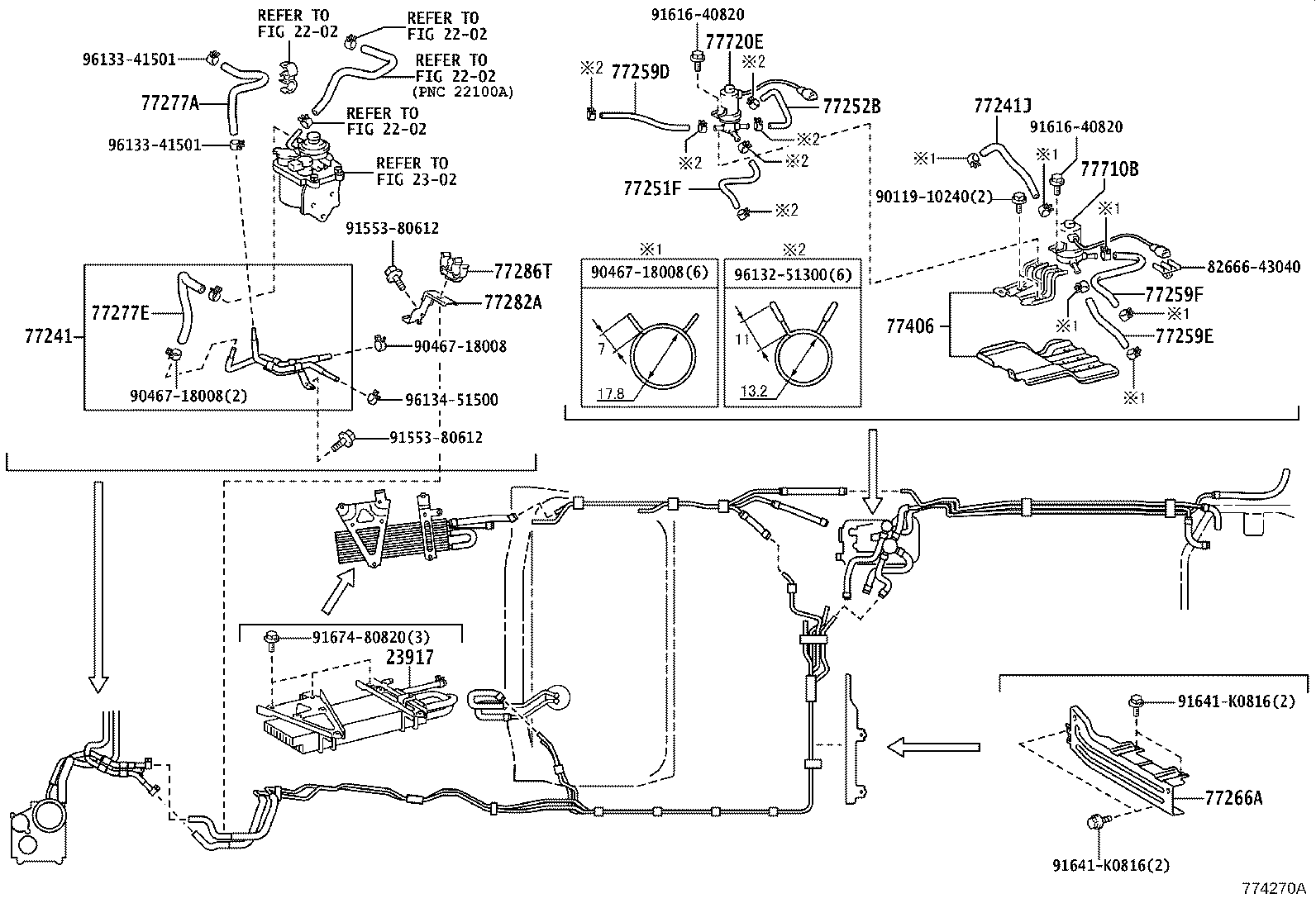

774270A

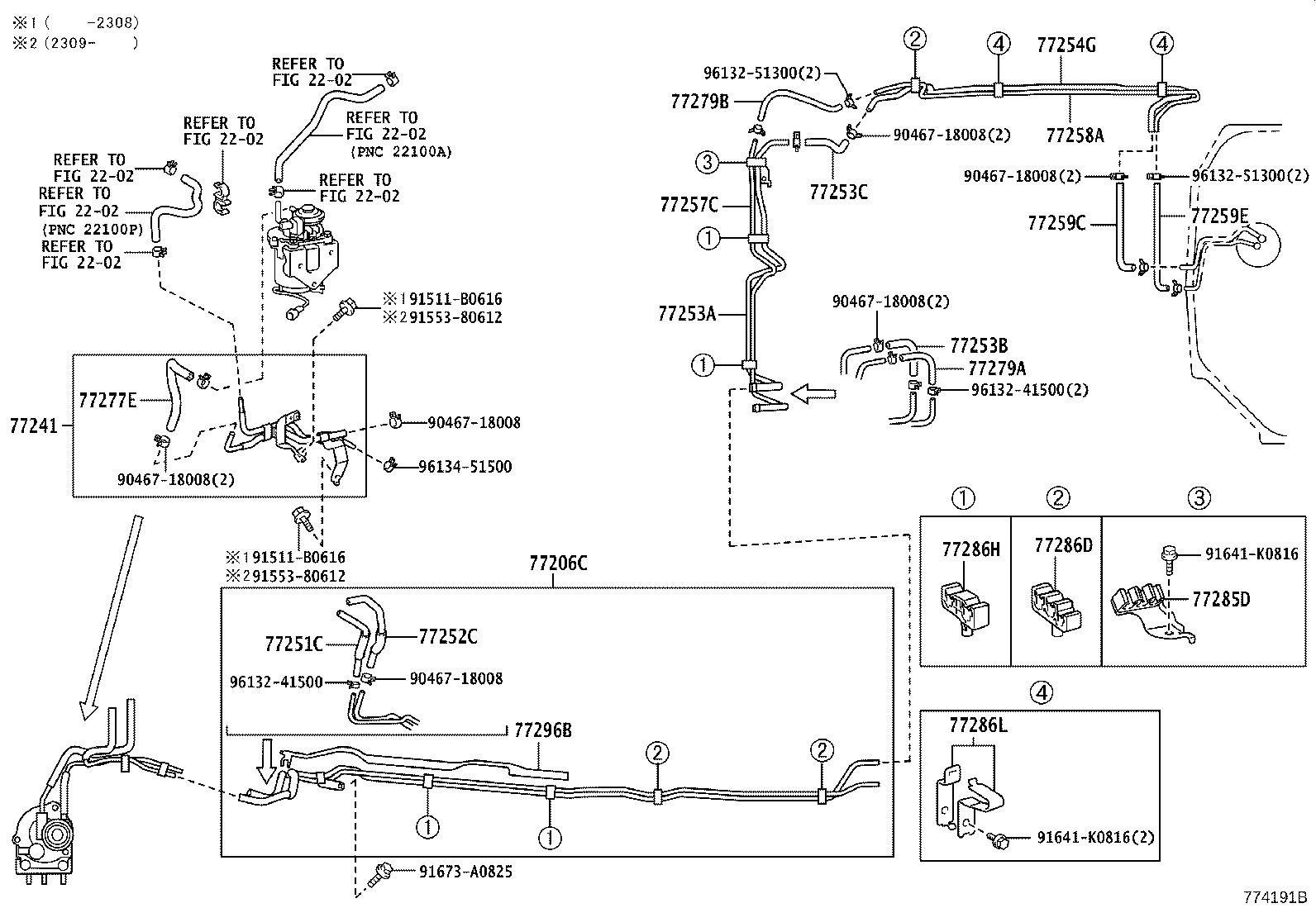

774191B

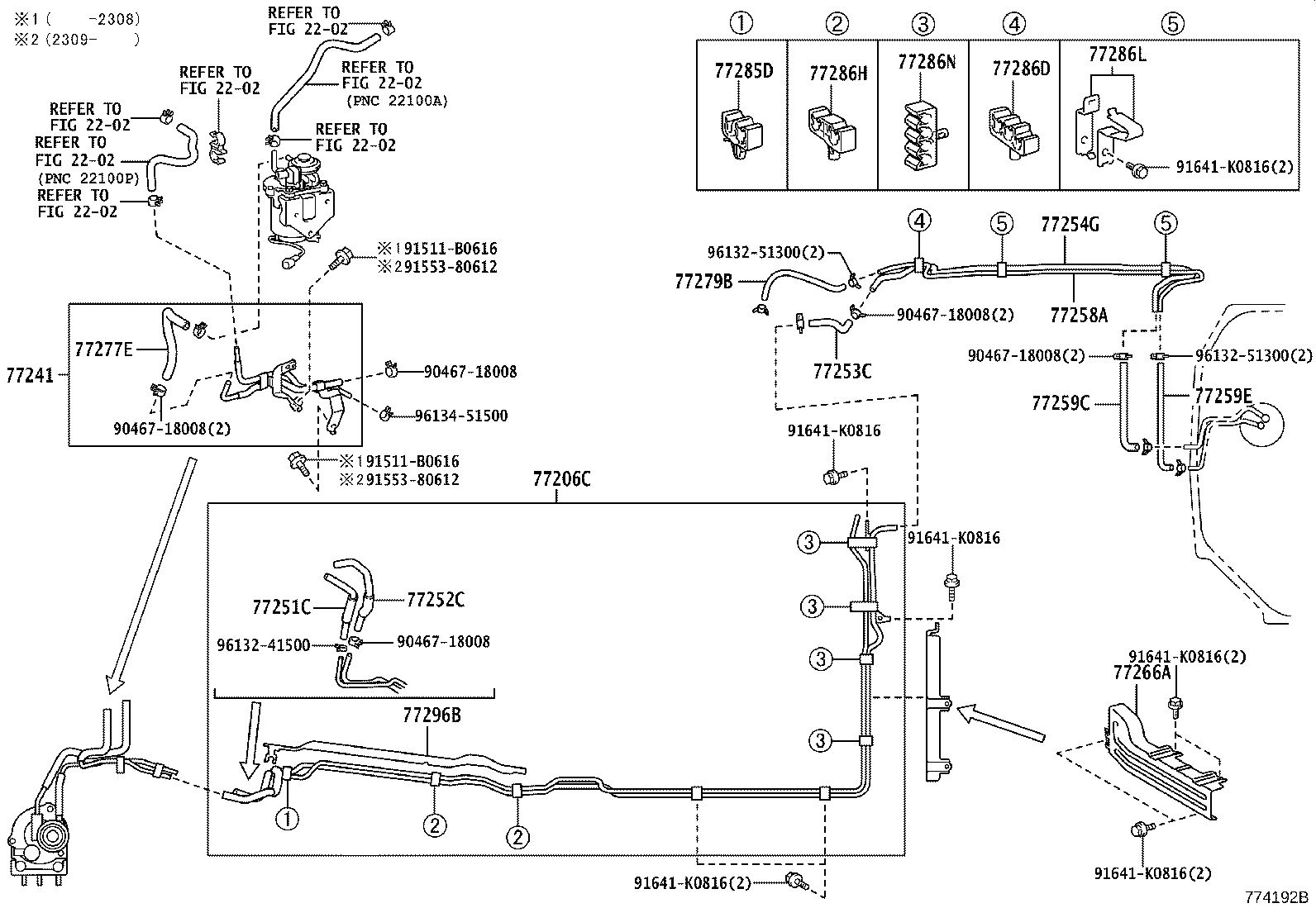

774192B

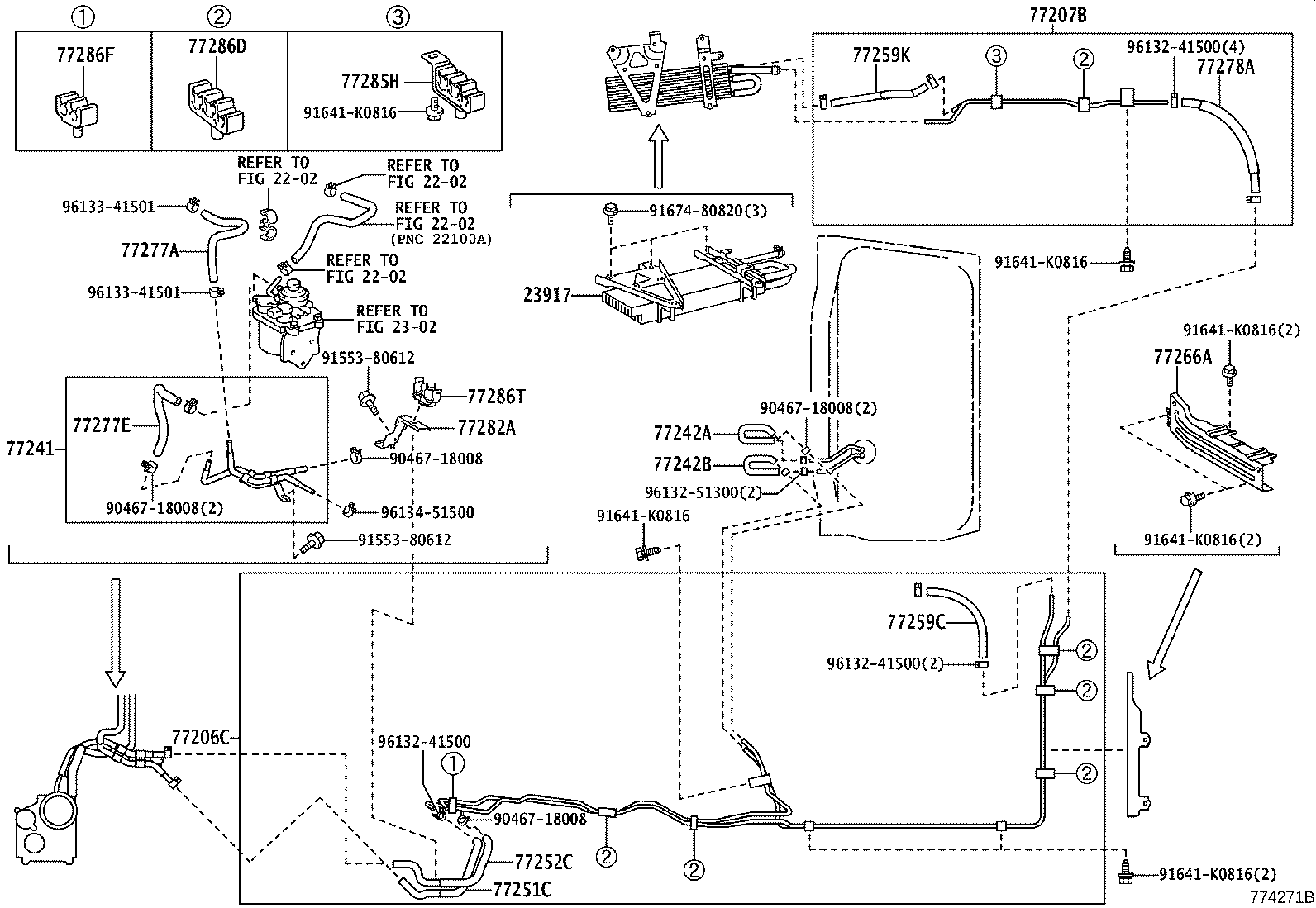

774271B

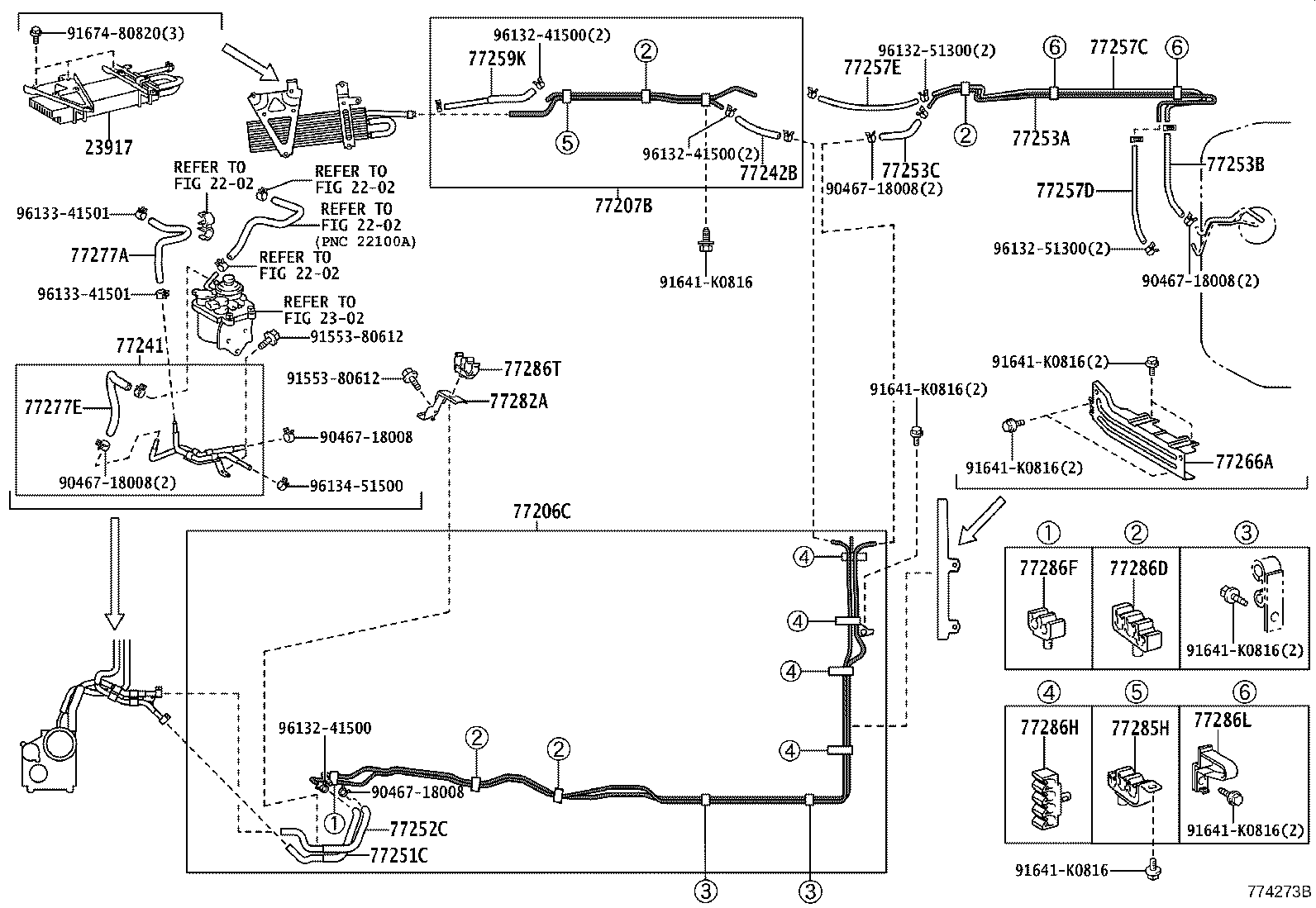

774273B

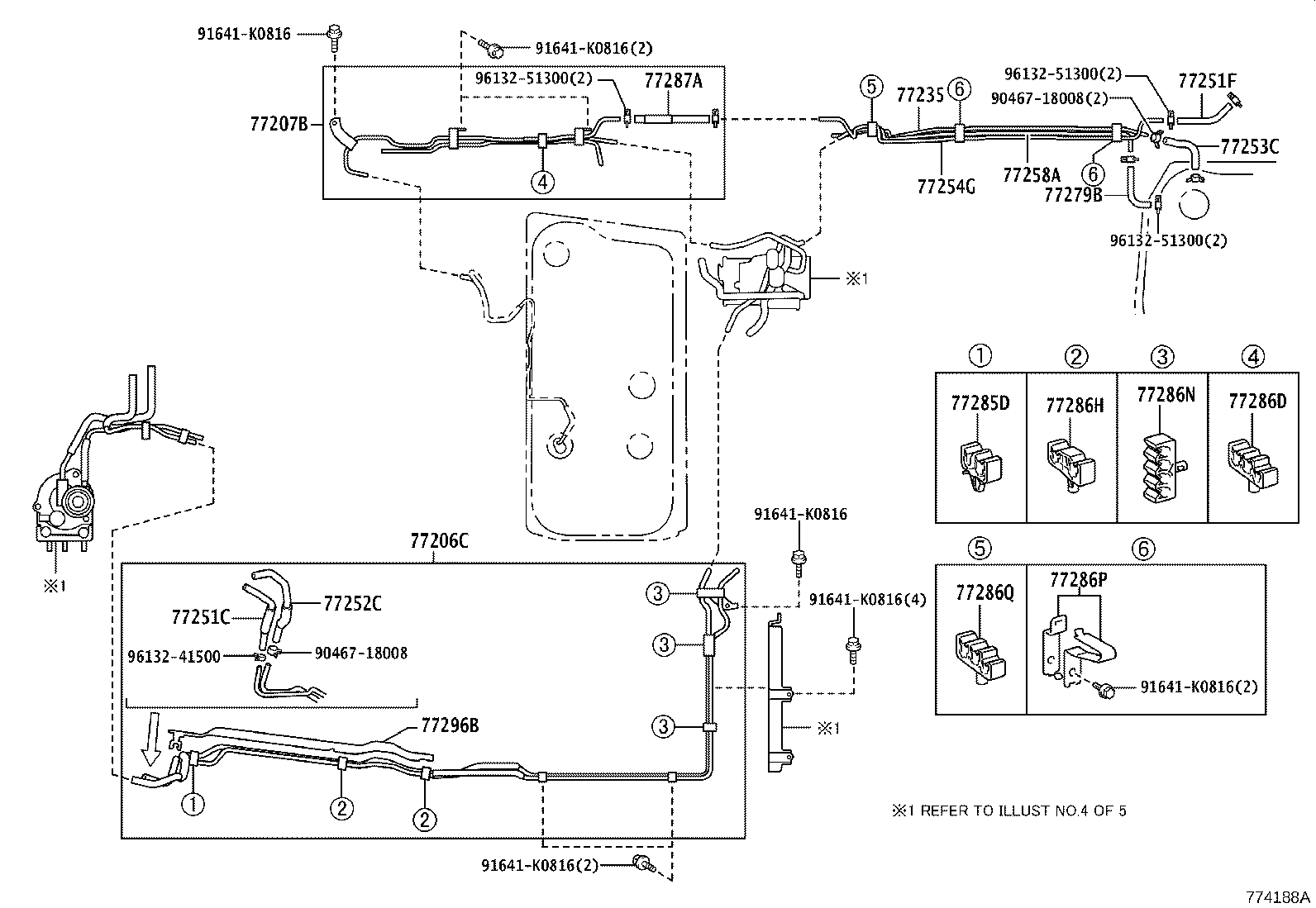

774188A

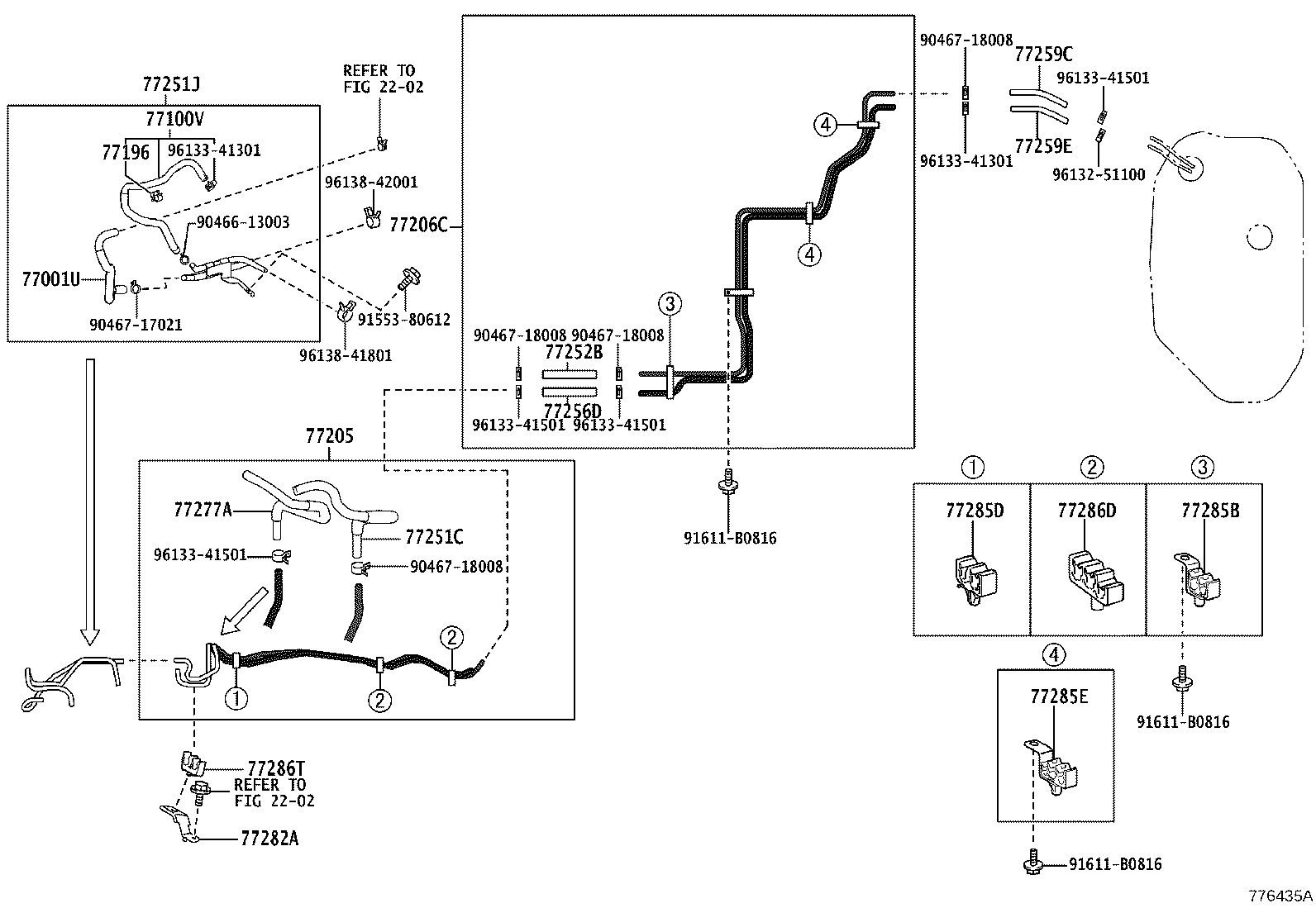

776435A

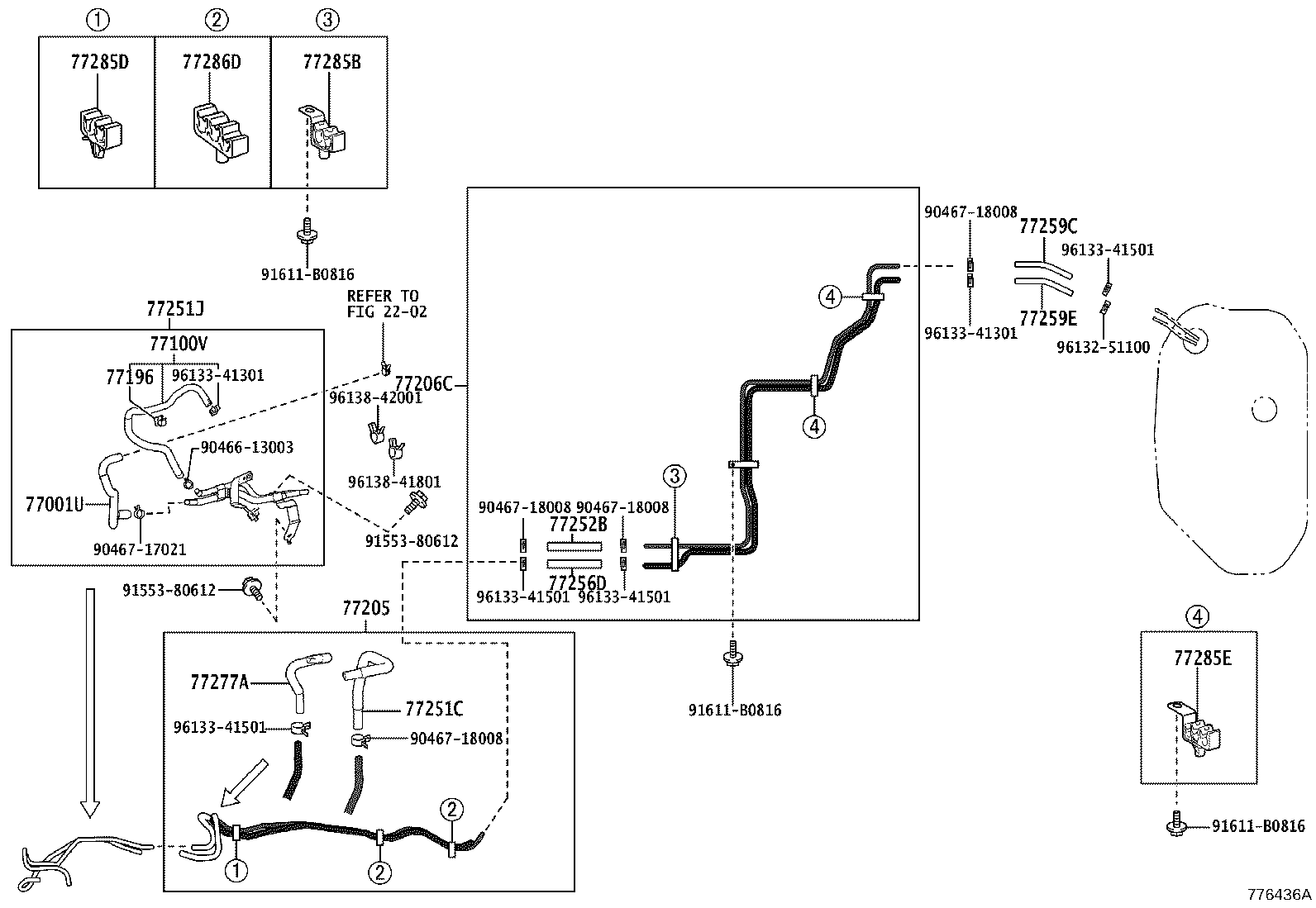

776436A

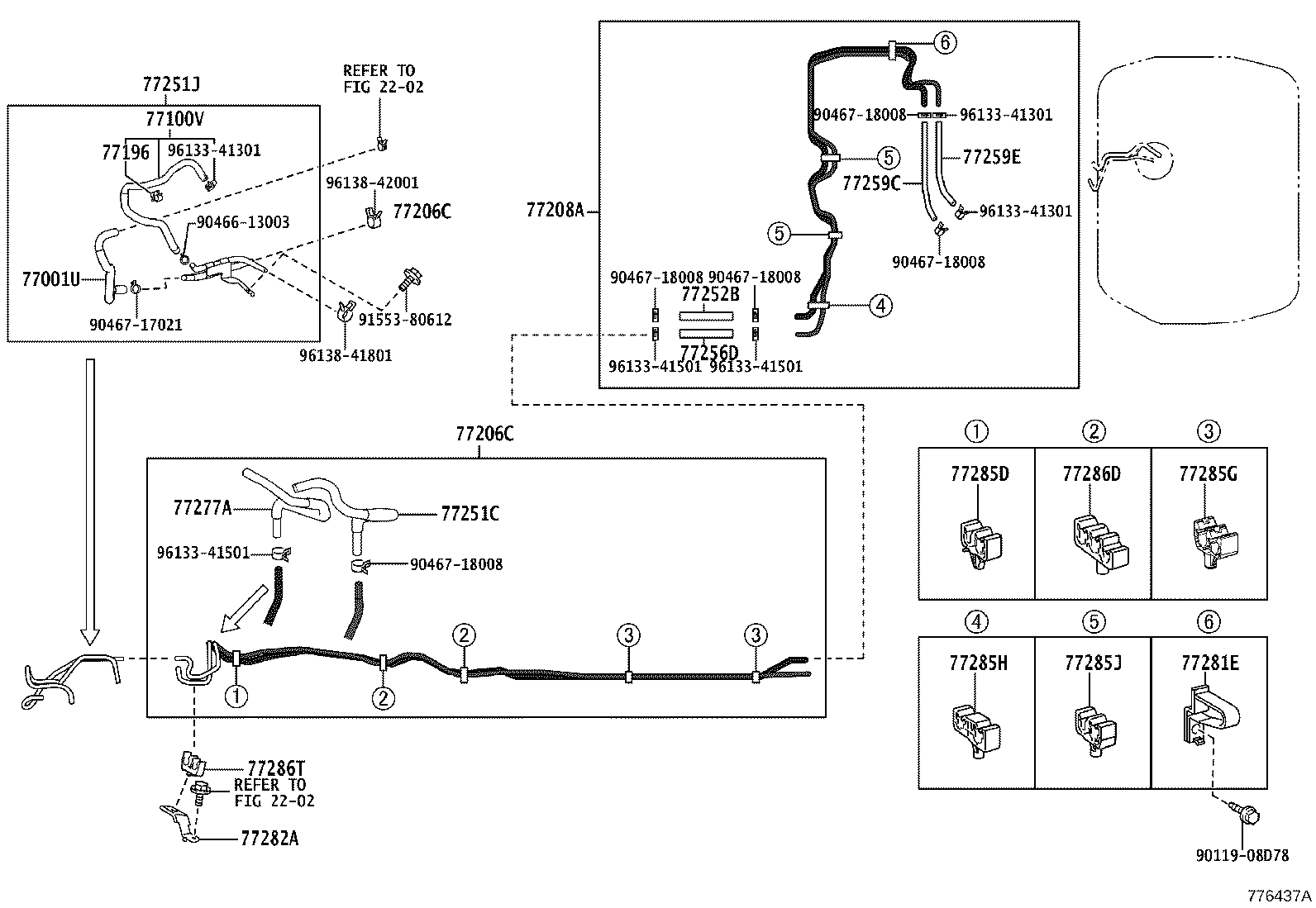

776437A

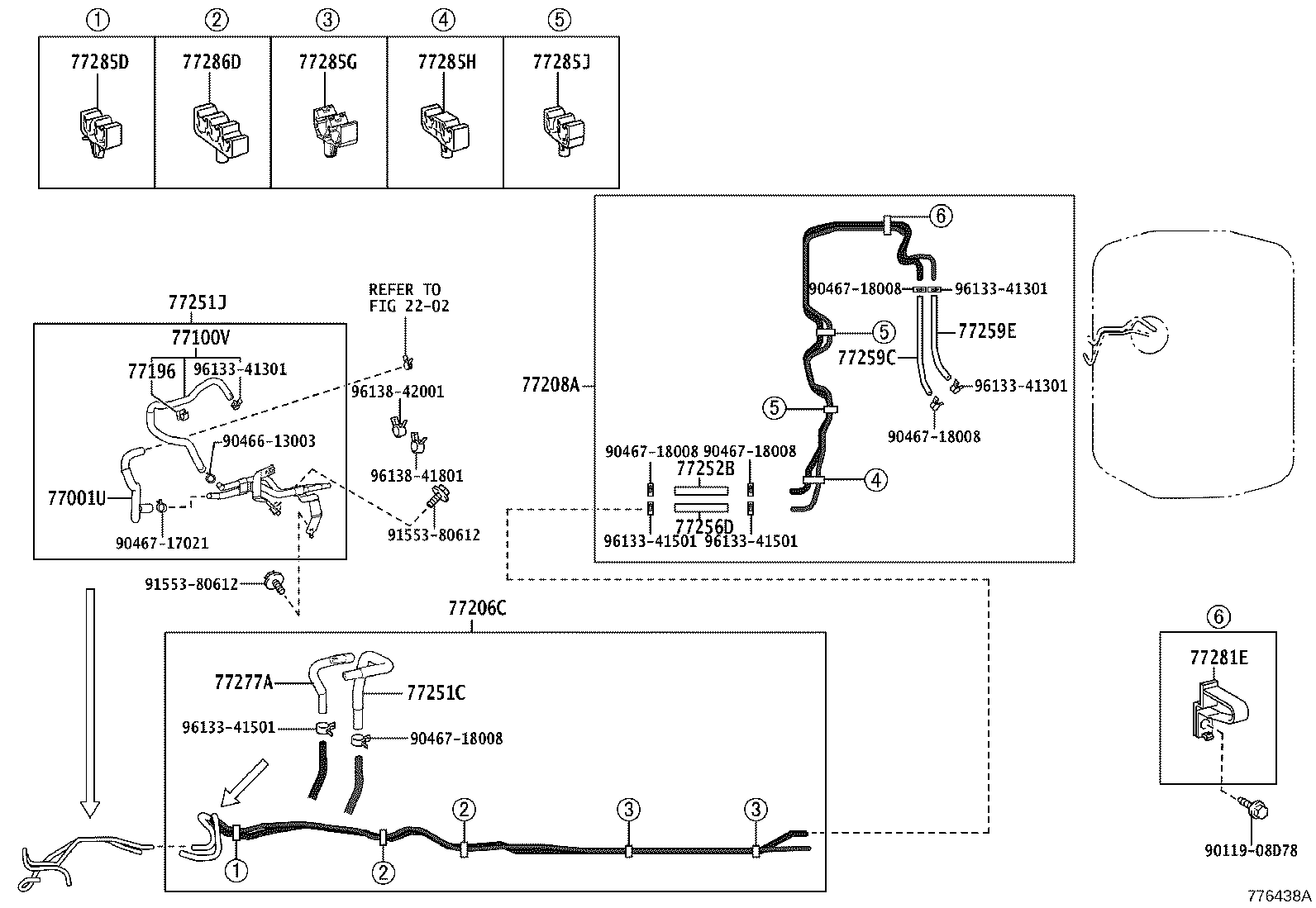

776438A

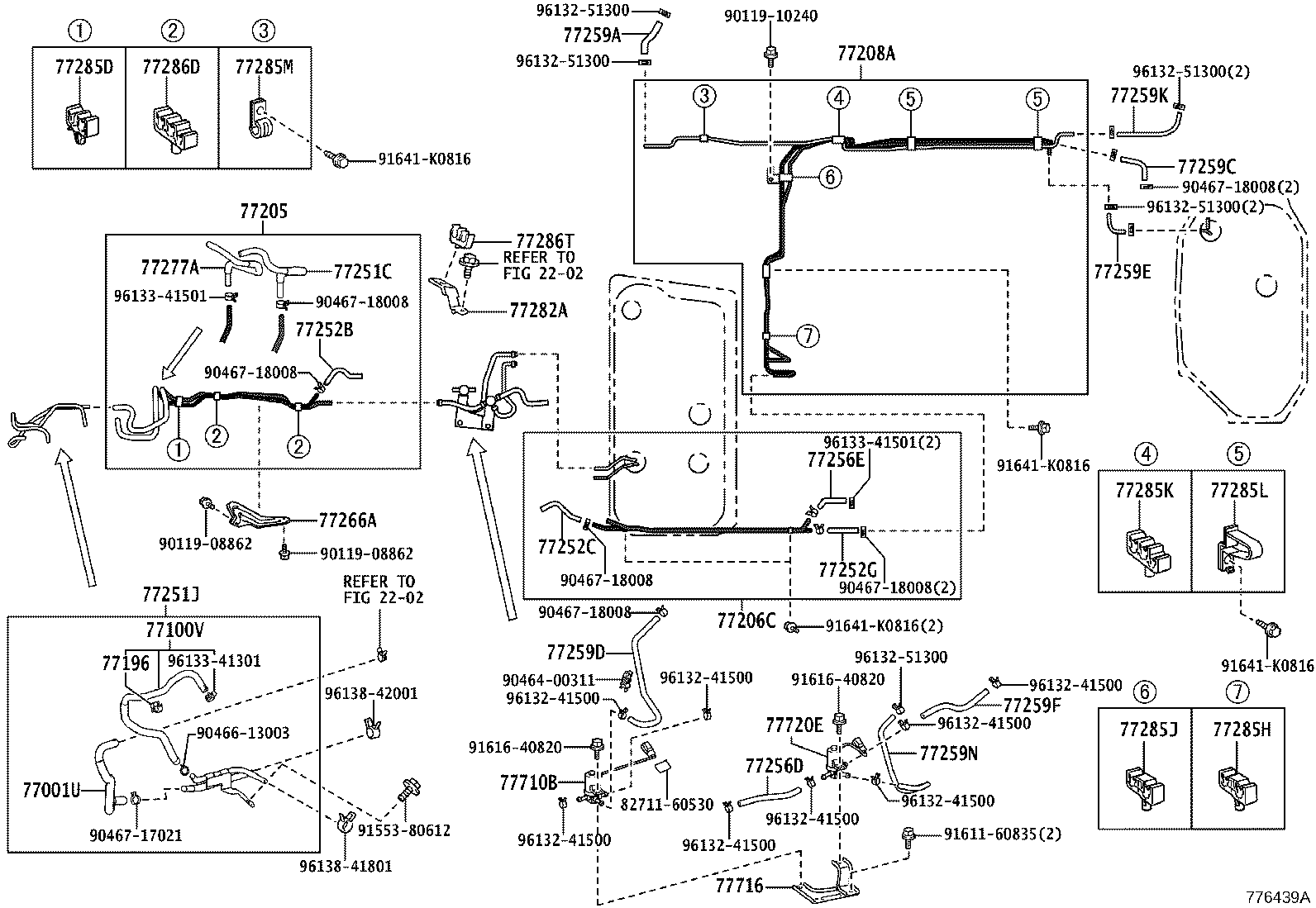

776439A

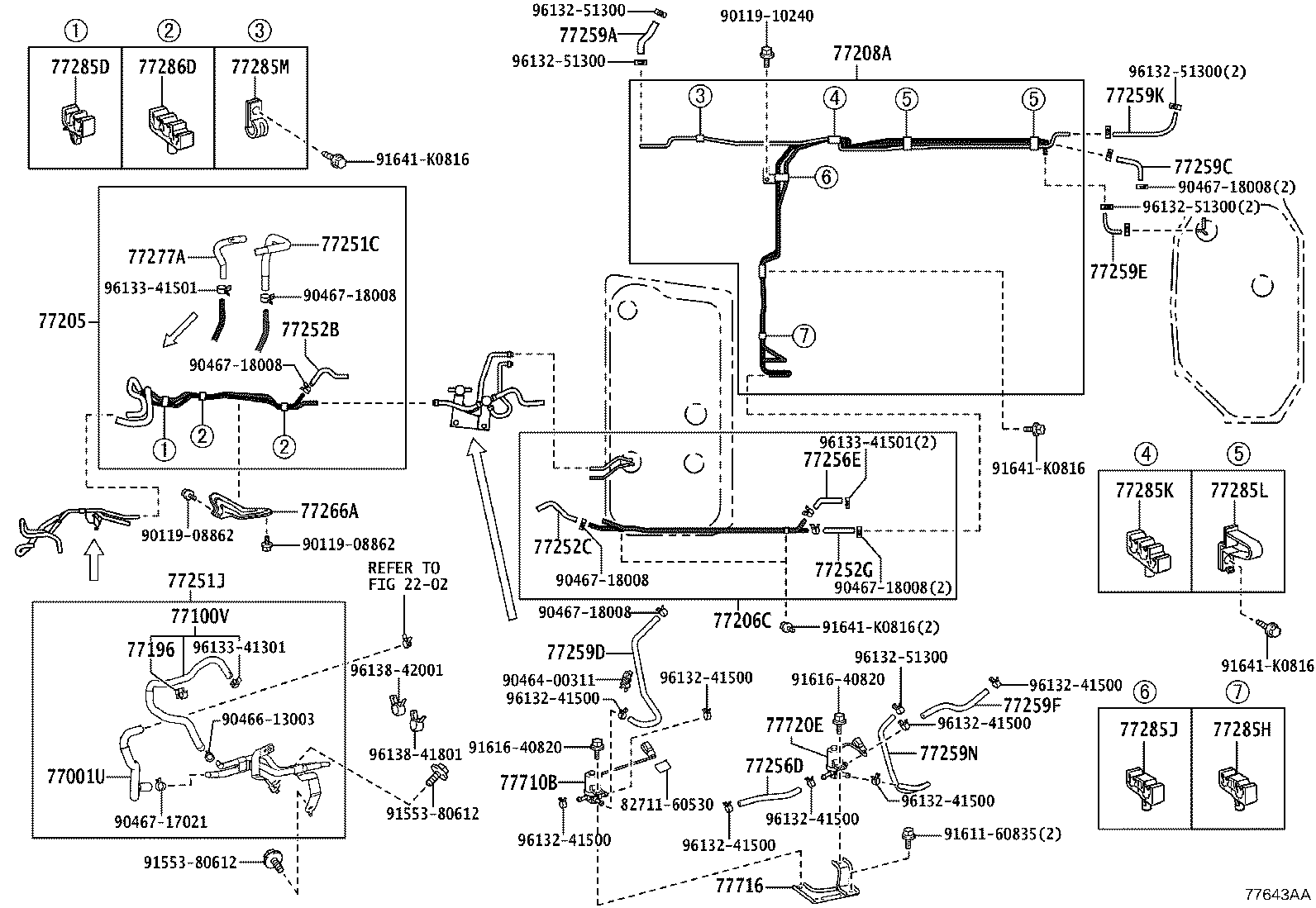

77643AA

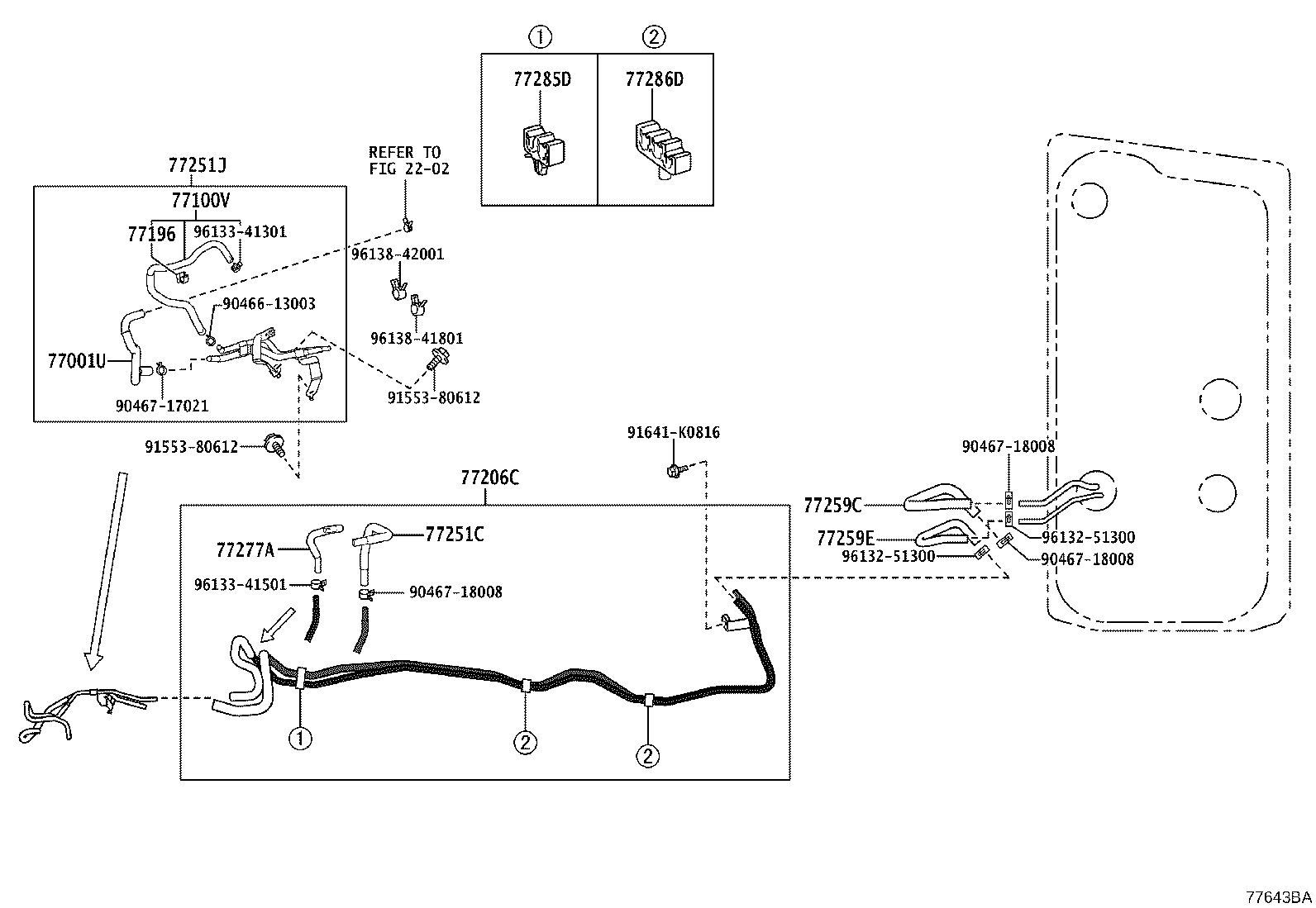

77643BA

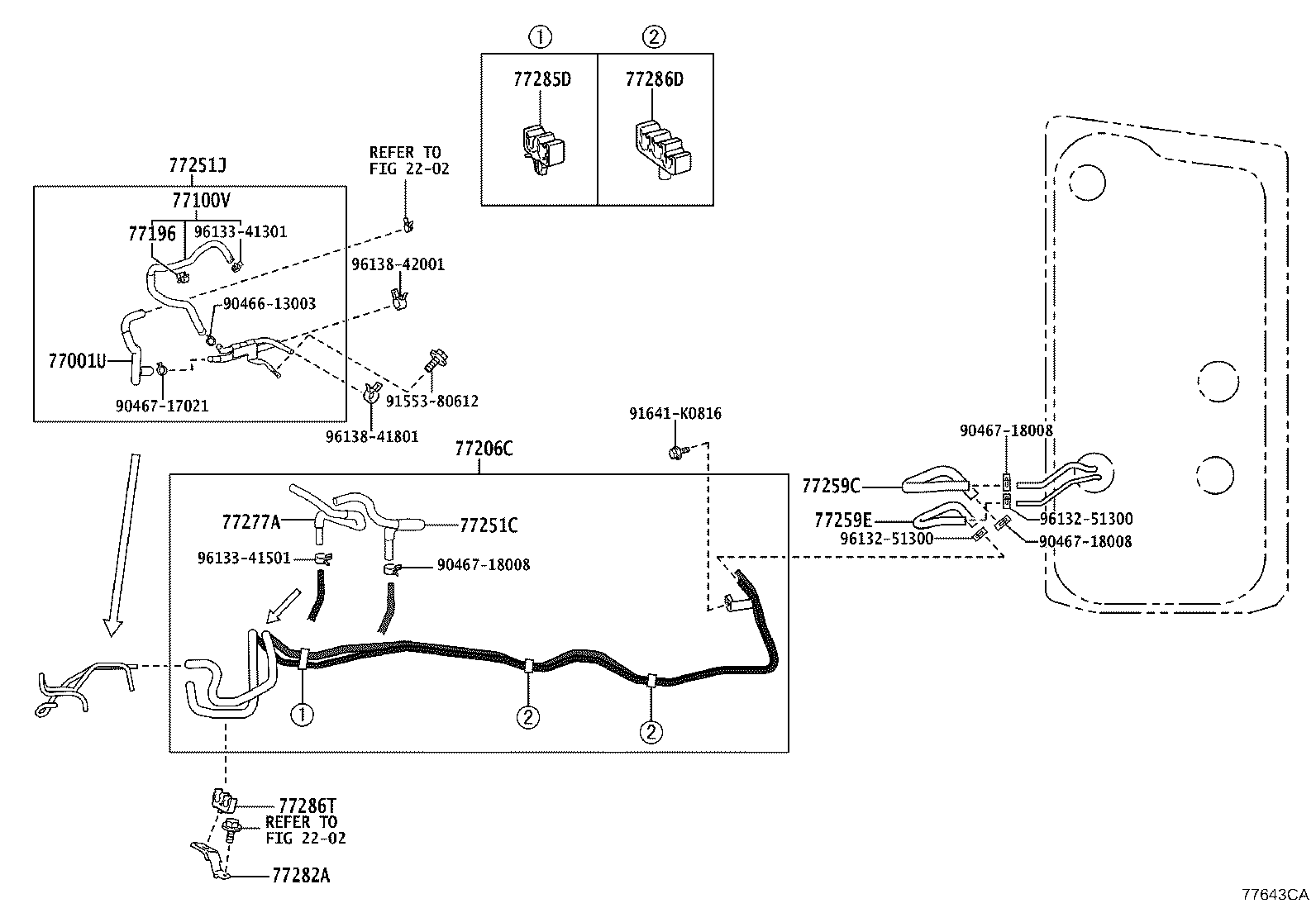

77643CA

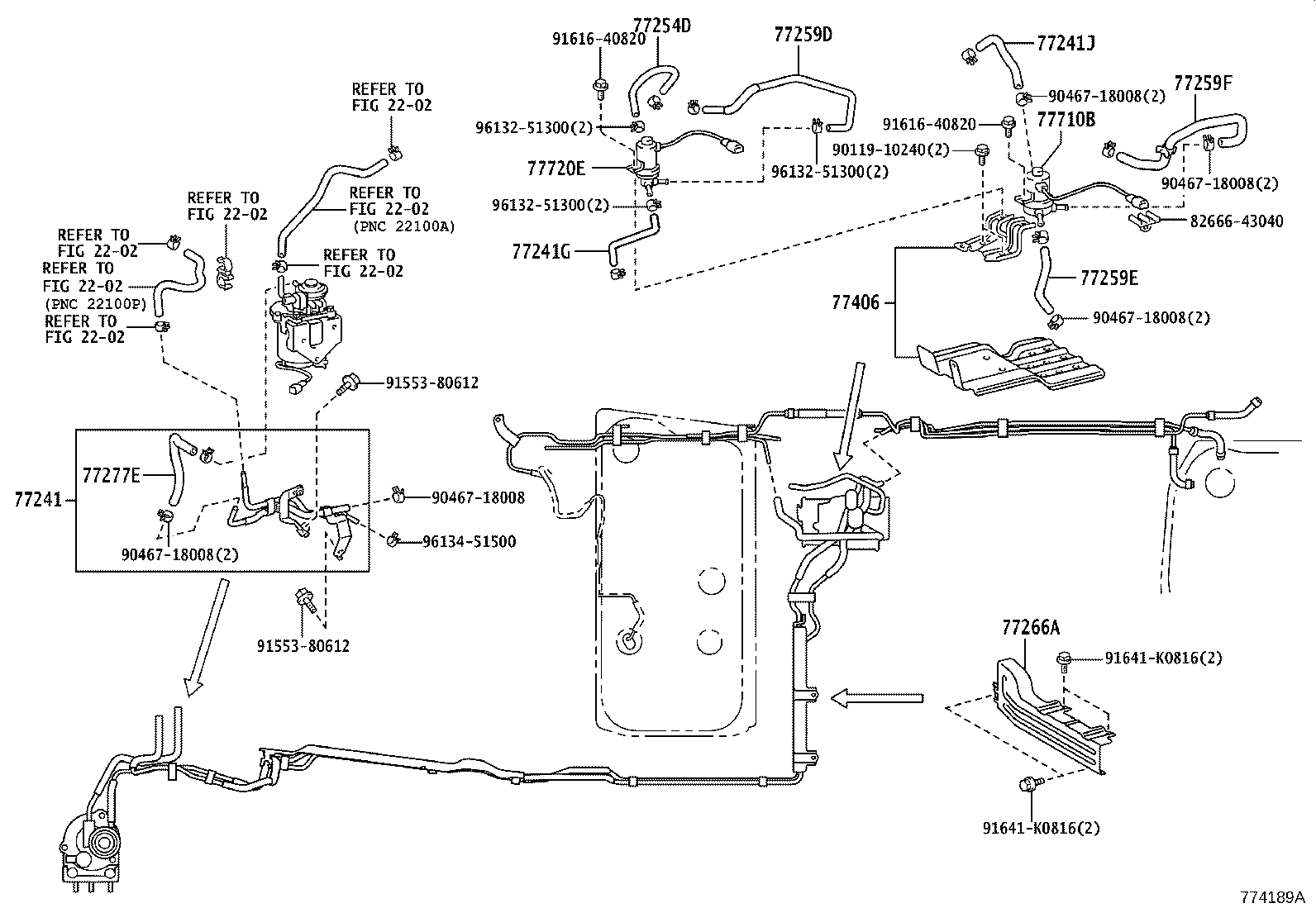

774189A

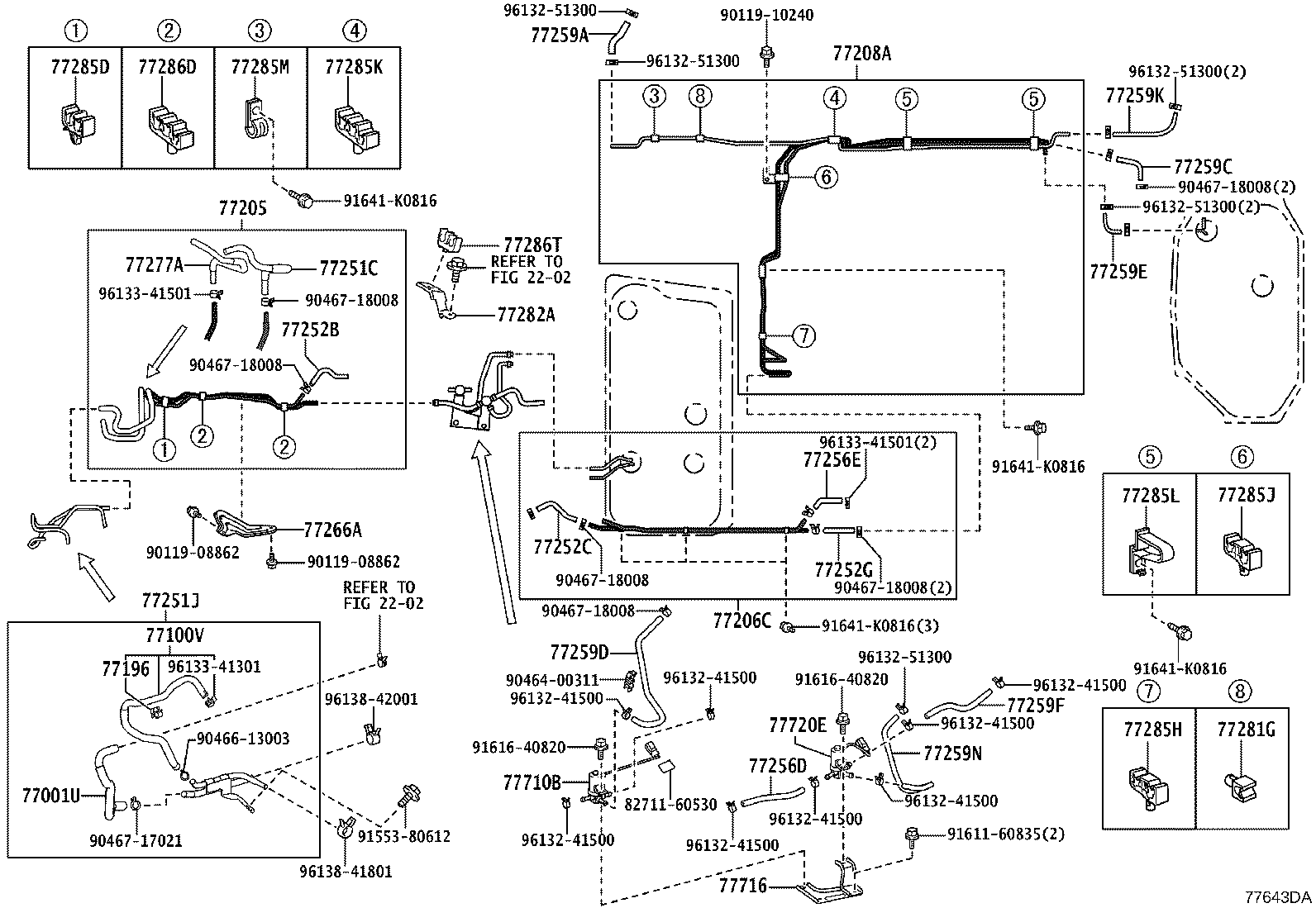

77643DA

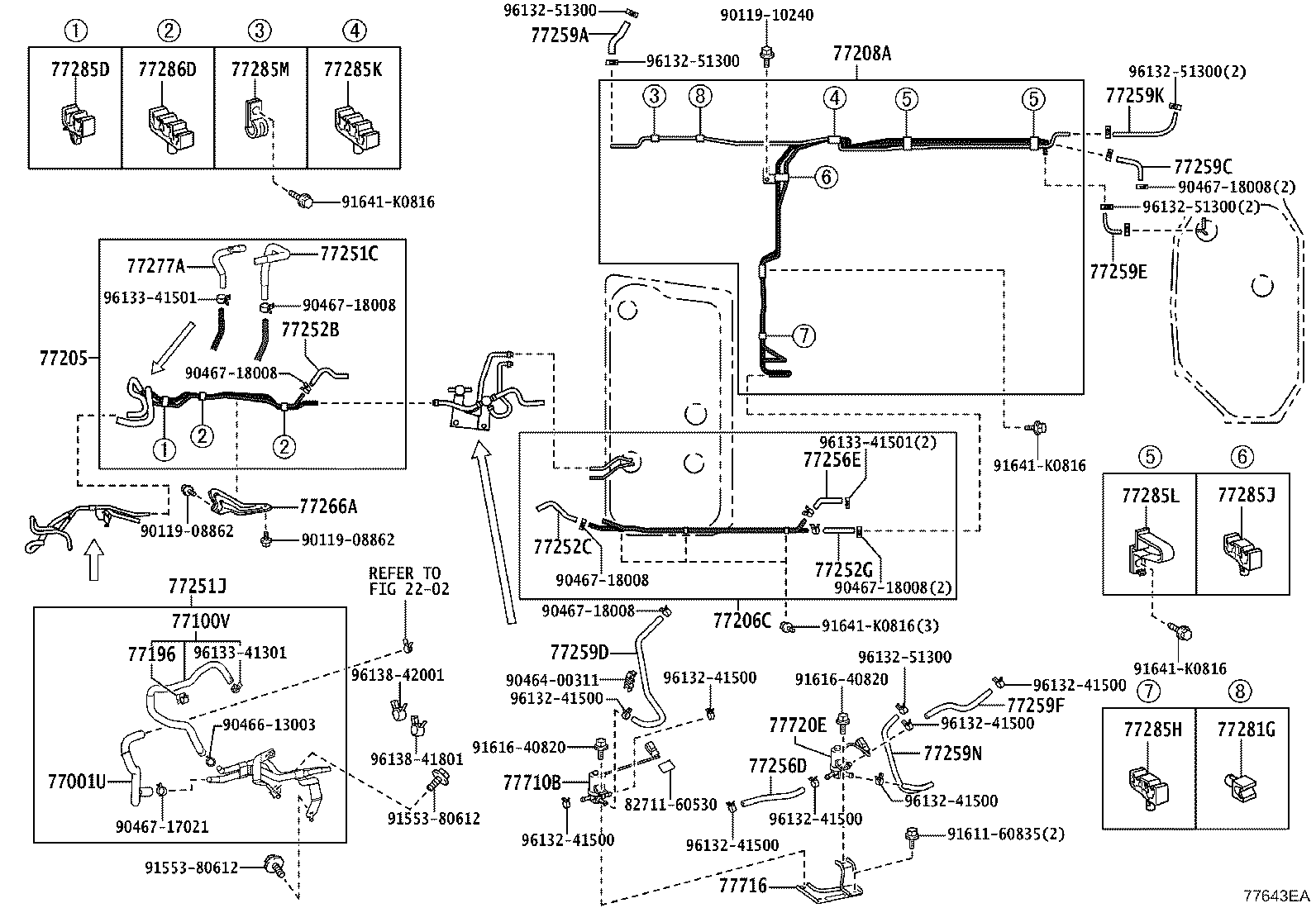

77643EA

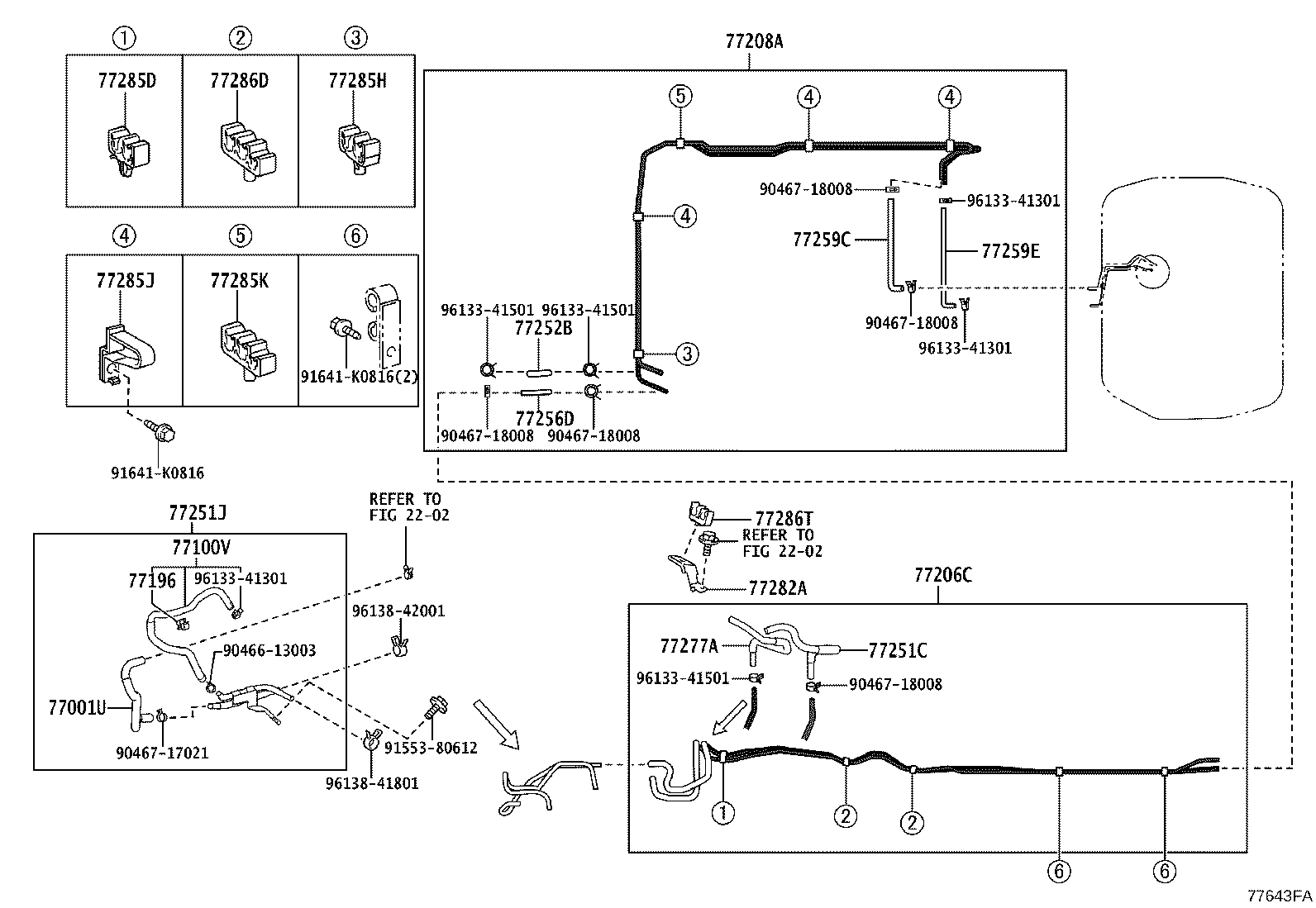

77643FA

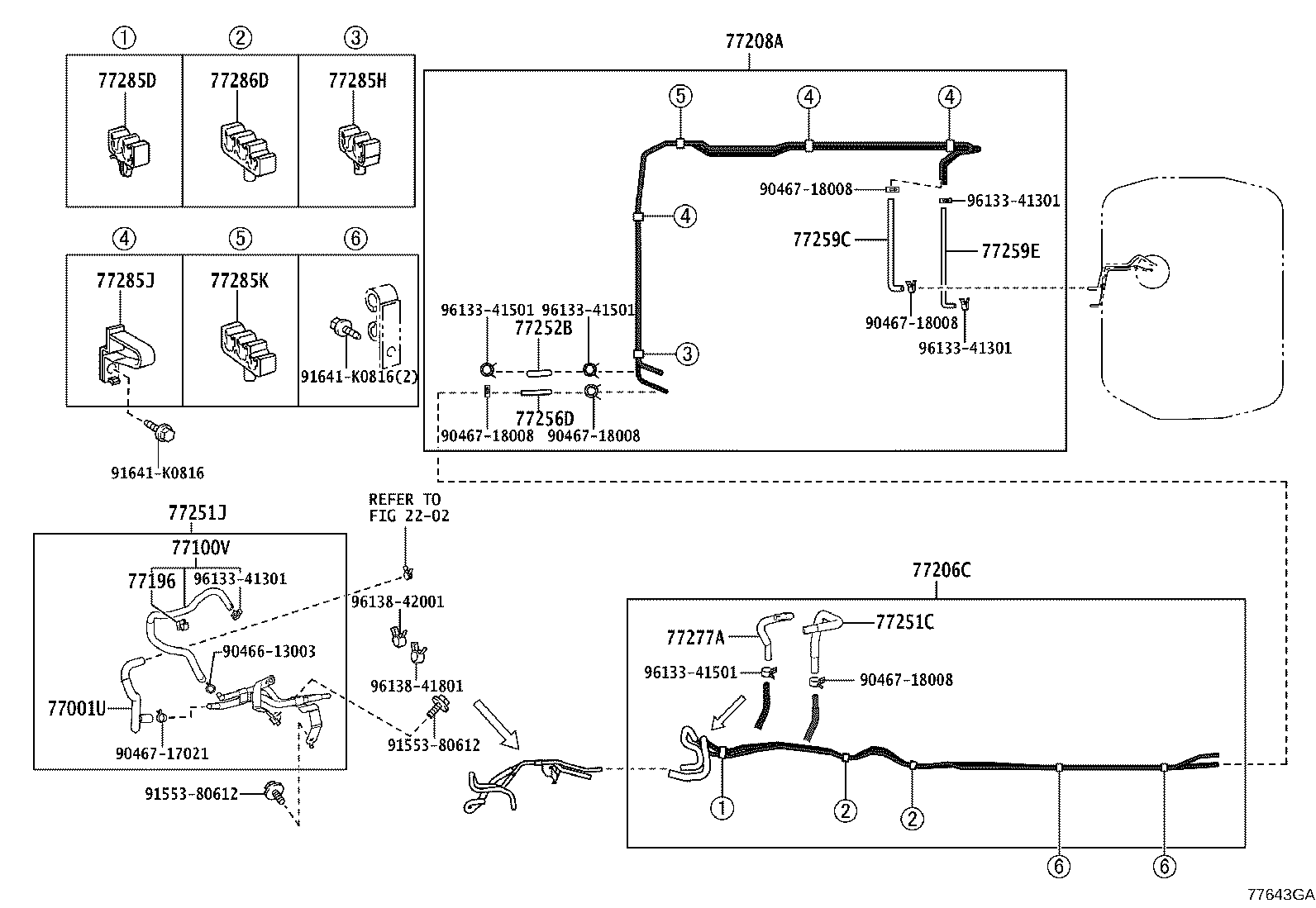

77643GA

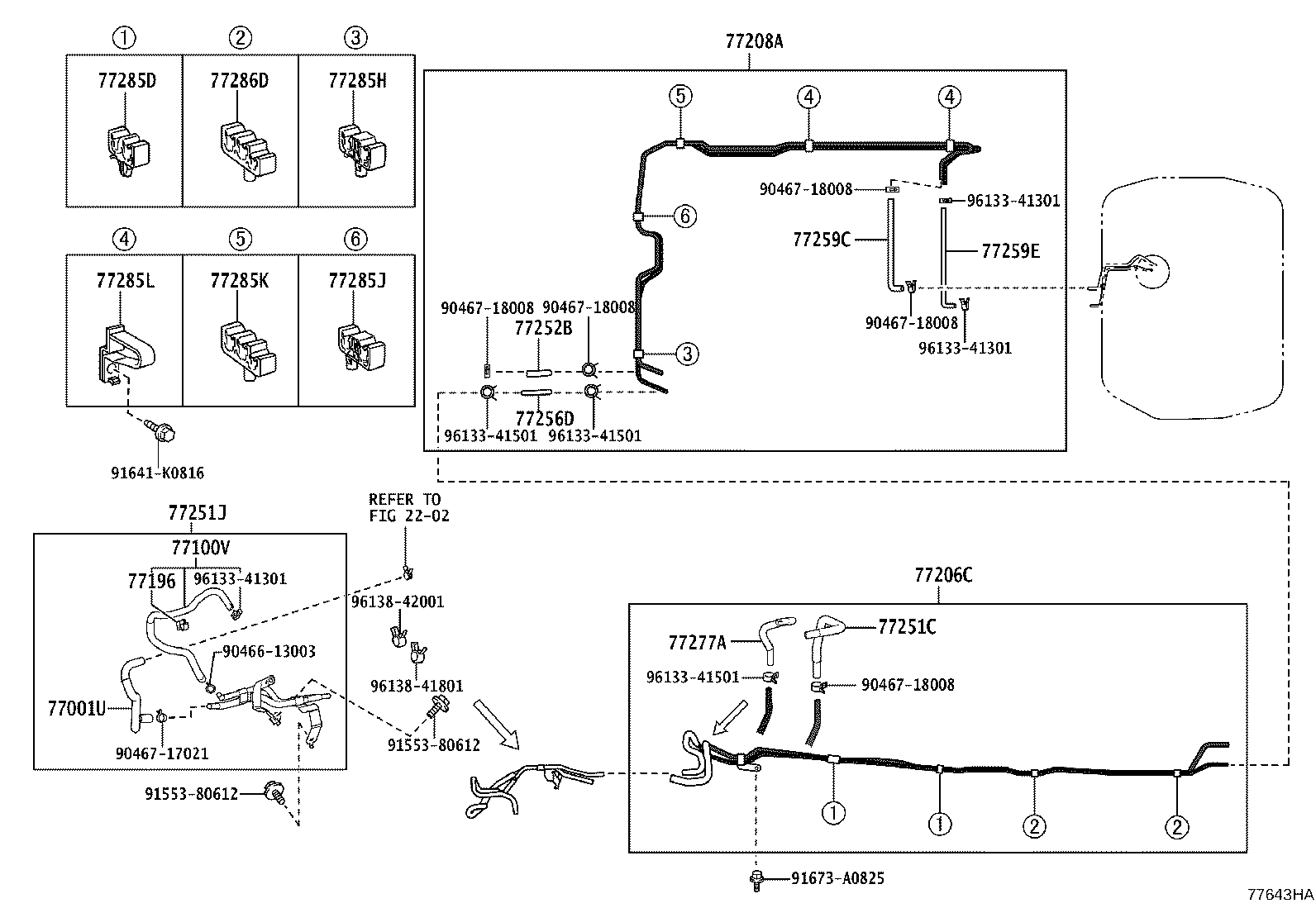

77643HA

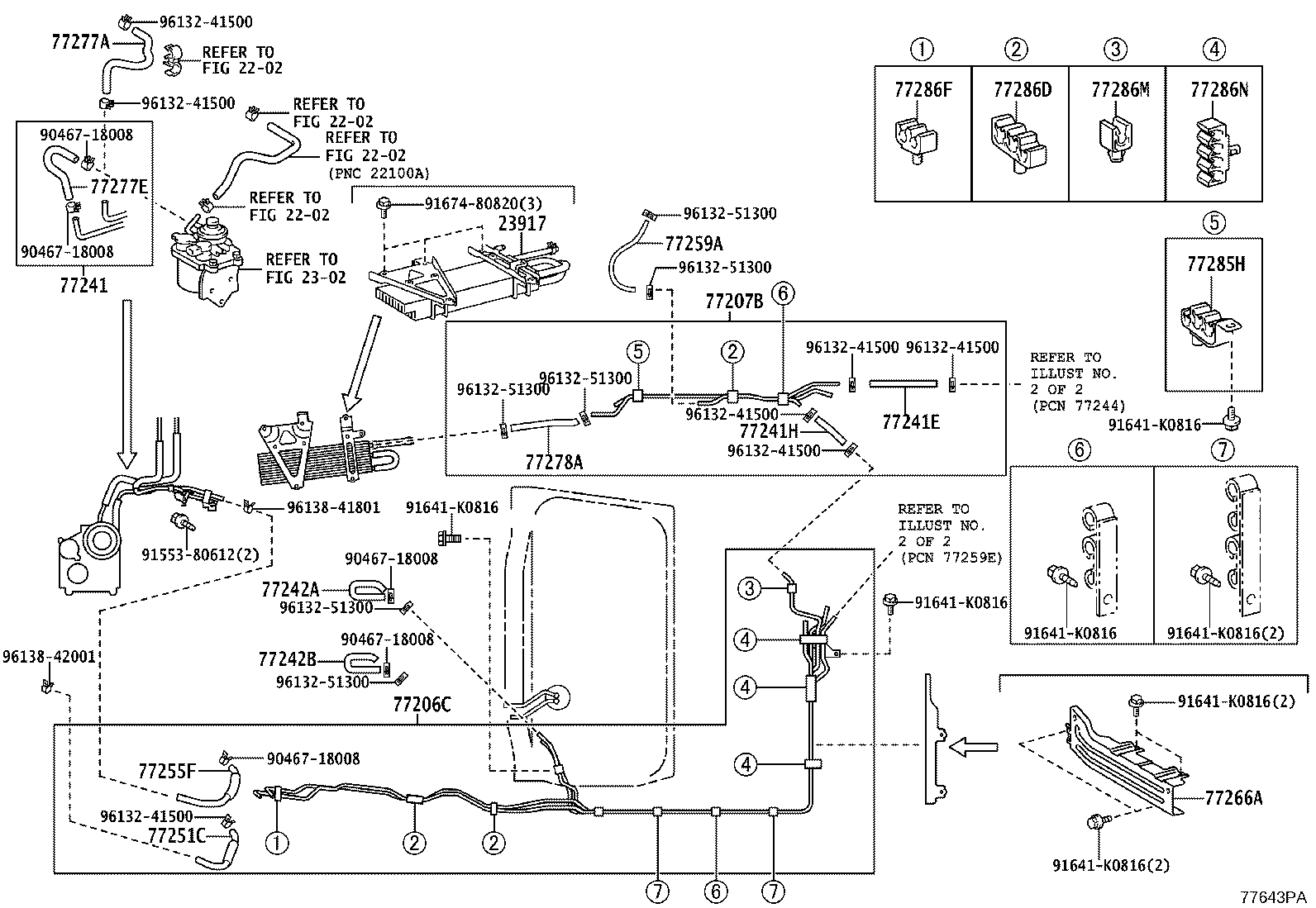

77643PA

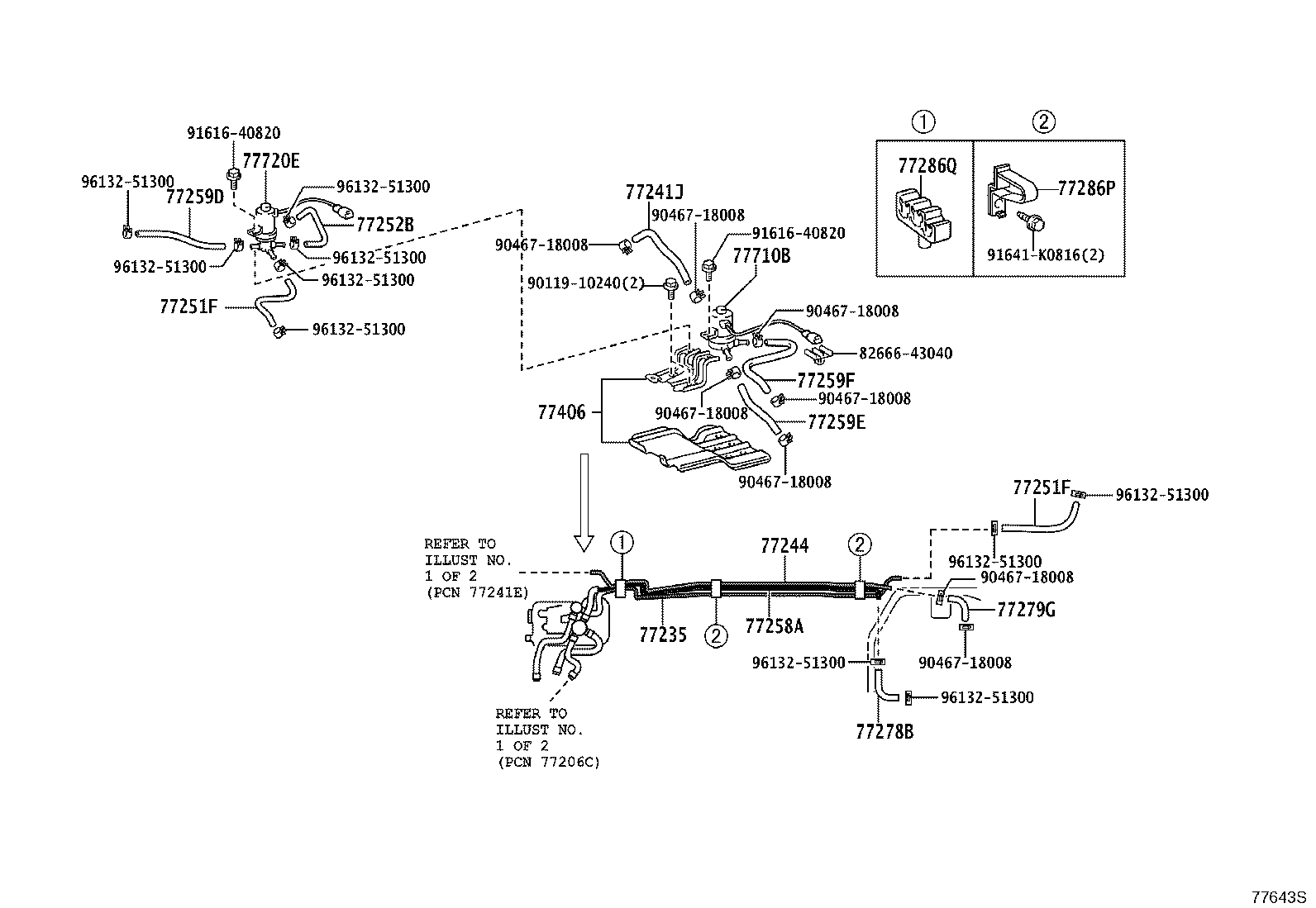

77643S

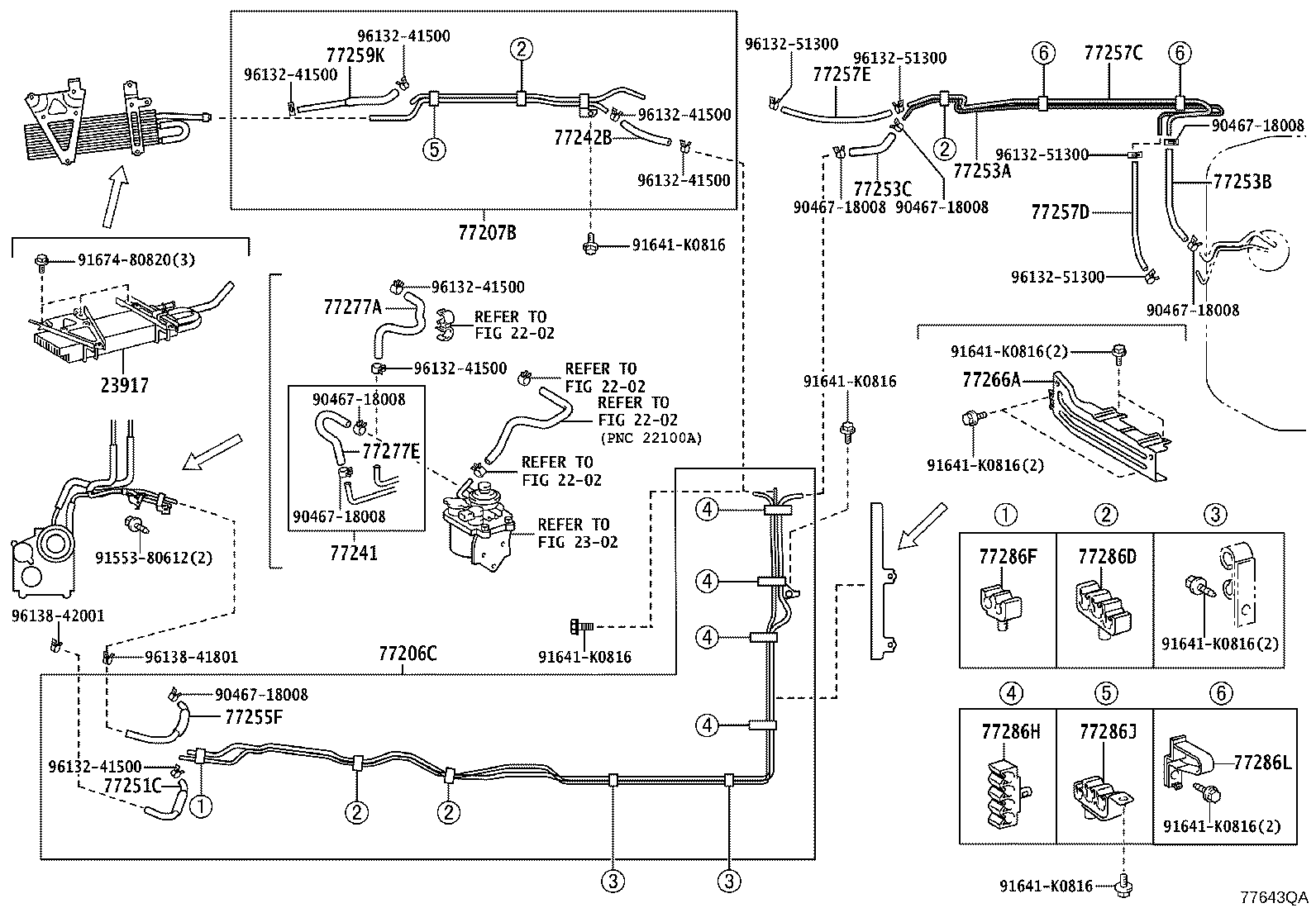

77643QA

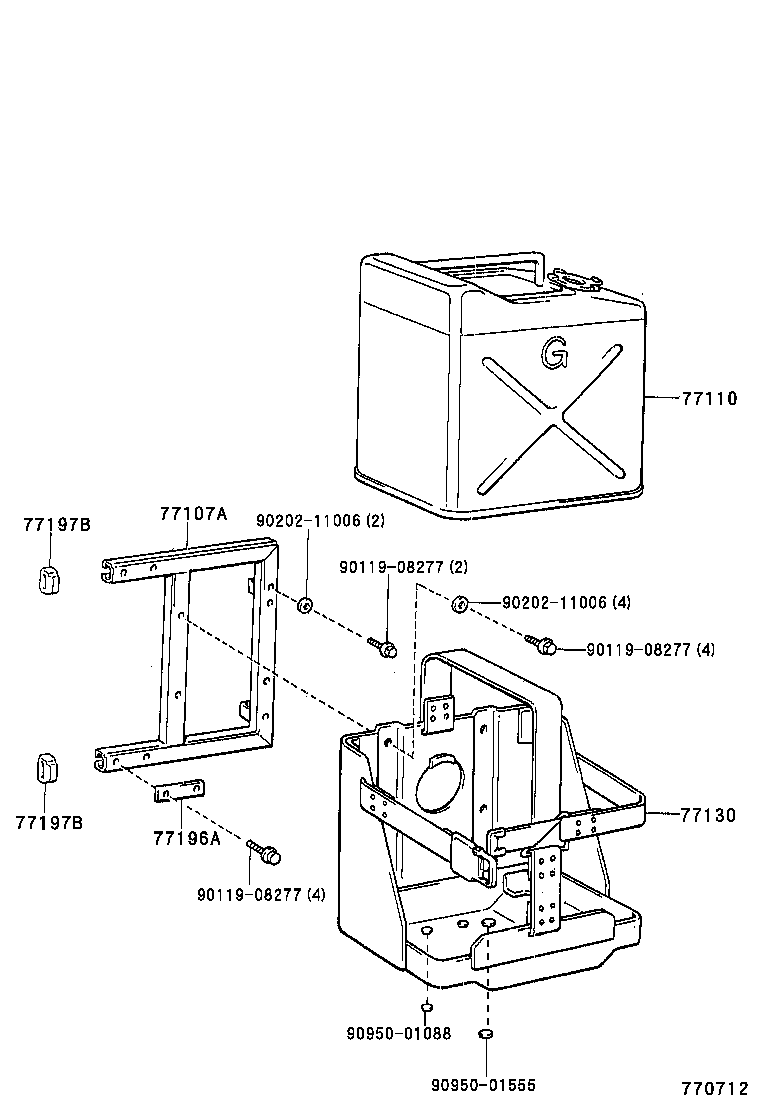

770712
Part groups
| PNC | Description |
|---|---|
| 23217D | Filter, Fuel Pump |
| 23221 | Pump, Fuel |
| 23229A | Clip(FOR FUEL PUMP FILTER) |
| 23239A | Hose |
| 23249A | Rubber, Cushion(FOR FUEL PUMP) |
| 23917 | Cooler, Fuel |
| 58279A | Protector, Fuel Hose |
| 77001U | Hose, Fuel |
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77017 | Tube Sub-assy, Fuel And Evaporation Vent |
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77022C | Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77022D | Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77026A | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77100V | Hose, Fuel |
| 77107A | Carrier Sub-assy, Auxiliary Fuel Tank |
| 77110 | Tank Assy, Auxiliary Fuel |
| 77130 | Bracket Assy, Auxiliary Fuel Tank |
| 77131 | Bracket, Fuel Tank Filler Pipe Support |
| 77133 | Support, Fuel Sub-tank, RH |
| 77134 | Support, Fuel Sub-tank, LH |
| 77135 | Bracket, Check Valve |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77196 | Clamp, Evaporation Vent Tube, NO.1 |
| 77196A | Pad, Auxiliary Fuel Tank Carrier |
| 77197B | Cover, Auxiliary Fuel Tank Carrier |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77202C | Hose, Fuel, NO.3 (FOR BREATHER TUBE) |
| 77203A | Tube Sub-assy, Fuel Suction |
| 77203B | Tube Sub-assy, Fuel Suction |
| 77205 | Tube Sub-assy, Fuel Main |
| 77206A | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77206C | Tube Sub-assy, Fuel Main, NO.2 |
| 77207B | Tube Sub-assy, Fuel Main, NO.3 |
| 77207C | Tube, Fuel Return, NO.1 |
| 77208A | Tube Sub-assy, Fuel Main, NO.4 |
| 77209 | Connector Sub-assy, Fuel Tube |
| 77209C | Tube Sub-assy, Fuel Tank Main |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77235 | Tube, Fuel Tank Breather, NO.1 |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241C | Hose, Fuel, NO.3 (FOR MAIN TUBE, NO.1) |
| 77241E | Hose, Fuel, NO.5 (FOR MAIN TUBE, NO.1) |
| 77241G | Hose, Fuel, NO.6 |
| 77241H | Hose, Fuel, NO.7 |
| 77241J | Hose, Fuel, NO.8 |
| 77241K | Hose, Fuel, NO.9 |
| 77241L | Tube, Fuel Tank Suction |
| 77242A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2) |
| 77242B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2) |
| 77244 | Tube, Fuel Main, NO.4 |
| 77249 | Hose, Fuel Emission |
| 77249B | Hose, Fuel |
| 77251B | Tube, Fuel Main |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77251D | Hose, Fuel, NO.2(FOR FUEL MAIN TUBE) |
| 77251F | Hose, Fuel |
| 77251J | Tube, Fuel Main, NO.1 |
| 77252A | Tube, Fuel Main, NO.2 |
| 77252B | Hose, Fuel, NO.1 (FOR FUEL MAIN NO.2 TUBE) |
| 77252C | Hose, Fuel, NO.2(FOR FUEL MAIN NO.2 TUBE) |
| 77252G | Hose, Fuel, NO.3(FOR FUEL MAIN TUBE NO.2) |
| 77253A | Tube, Fuel Main, NO.3 |
| 77253B | Hose, Fuel, NO.1(FOR FUEL MAIN NO.3 TUBE) |
| 77253C | Hose, Fuel, NO.2(FOR FUEL MAIN NO.3 TUBE) |
| 77253D | Hose, Fuel |
| 77254D | Hose, Fuel |
| 77254G | Tube, Fuel Main, NO.4 |
| 77255D | Tube, Fuel Return |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77255G | Hose, Fuel Return, NO.1 (FOR FUEL RETURN TUBE) |
| 77256C | Tube, Fuel Return, NO.2 |
| 77256D | Hose, Fuel, NO.1 (FOR FUEL RETURN NO.2 TUBE) |
| 77256E | Hose, Fuel, NO.2 (FOR FUEL RETURN NO.2 TUBE) |
| 77257C | Tube, Fuel Return, NO.3 |
| 77257D | Hose, Fuel, NO.1(FOR FUEL RETURN NO.3 TUBE) |
| 77257E | Hose, Fuel, NO.2(FOR FUEL RETURN NO.3 TUBE) |
| 77258A | Tube, Fuel Return, NO.4 |
| 77259A | Hose, Fuel(FOR BREATHER TUBE) |
| 77259C | Hose, Fuel |
| 77259D | Hose, Fuel, NO.1 |
| 77259E | Hose, Fuel |
| 77259F | Hose, Fuel |
| 77259K | Hose, Fuel |
| 77259N | Hose, Fuel, NO.2 |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77261A | Hose, Fuel, NO.1 (FOR FUEL EMISSION TUBE) |
| 77261B | Hose, Fuel, NO.2 (FOR FUEL EMISSION TUBE) |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77262 | Tube, Fuel Emission, NO.2 |
| 77263C | Tube, Fuel Emission, NO.3 |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77268A | Protector, Fuel Tube, NO.3 |
| 77269A | Hose, Fuel Tank Breather |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277C | Hose, Fuel, NO.3(FOR RETURN TUBE, NO.1) |
| 77277D | Hose, Fuel, NO.4 (FOR RETURN TUBE, NO.1) |
| 77277E | Hose, Fuel, NO.5 (FOR RETURN TUBE, NO.1) |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77278A | Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2) |
| 77278B | Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2) |
| 77278E | Hose, Fuel |
| 77279A | Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.3) |
| 77279B | Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.3) |
| 77279C | Hose, Fuel |
| 77279G | Hose, Fuel, NO.2 |
| 77281E | Bracket, Fuel Main Tube, NO.1 |
| 77281G | Clamp, Fuel Hose |
| 77282A | Bracket, Fuel Main Tube, NO.2 |
| 77285B | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285C | Clamp, Fuel Tube, NO.1 (FOR FRONT FUEL MAIN) |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285E | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77285G | Clamp, Fuel Tube, NO.1 |
| 77285H | Clamp, Fuel Tube, NO.1 |
| 77285J | Clamp, Fuel Tube, NO.1 |
| 77285K | Clamp, Fuel Tube, NO.1 |
| 77285L | Clamp, Fuel Tube, NO.1 |
| 77285M | Clamp, Fuel Tube, NO.1 |
| 77285R | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286J | Clamp, Fuel Tube, NO.4 |
| 77286K | Clamp, Fuel Tube, NO.2 |
| 77286L | Clamp, Fuel Tube, NO.5 |
| 77286M | Clamp, Fuel Tube, NO.6 |
| 77286N | Clamp, Fuel Tube, NO.7 |
| 77286P | Clamp, Fuel Tube, NO.8 |
| 77286Q | Clamp, Fuel Tube, NO.9 |
| 77286T | Clamp, Fuel Tube, NO.11 |
| 77287A | Hose, Fuel |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77291 | Packing, Fuel Tank Support, Upper |
| 77292A | Stay, Fuel Tank Fillar Upper Pipe |
| 77293A | Shield, Fuel Tank Filler Pipe, NO.3 |
| 77295C | Grommet, Fuel Tube |
| 77295D | Grommet, Fuel Tube |
| 77295E | Grommet, Fuel Tube |
| 77295F | Grommet, Fuel Hose |
| 77296 | Plate, Fuel Tube Grommet Support |
| 77296A | Plate, Fuel Tube Support, NO.2 |
| 77296B | Support, Fuel Tube Protector, NO.1 |
| 77305A | Lid Sub-assy, Fuel Filler Opening |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77319 | Knob, Fuel Tank Cap |
| 77338A | Bracket, Fuel Tank Cap Lock Control Rod |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77378A | Cover, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77391 | Ring, Fuel Inlet Box |
| 77406 | Protector Sub-assy, Fuel Tube |
| 77411B | Support, Fuel Tube Grommet, NO.1 |
| 77420 | Valve Assy, Fuel Cut Off, NO.2 |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77631 | Bracket, Fuel Tank, NO.1 |
| 77632 | Bracket, Fuel Tank, NO.2 |
| 77675B | Bracket, Fuel Tank Filler Pipe Protector, NO.1 |
| 77676B | Bracket, Fuel Tank Filler Pipe Protector, NO.2 |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77710B | Valve Assy, Fuel Tank Solenoid Main |
| 77716 | Bracket, Fuel Solenoid Valve Main |
| 77720B | Hose, Fuel, NO.1(FOR SAFETY VALVE) |
| 77720E | Valve Assy, Fuel Tank Solenoid Return |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77759A | Hose, Charcoal Canister |
| 77779 | Tube, Charcoal Canister Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
