Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

24 part groups · 7 illustrations

Illustrations

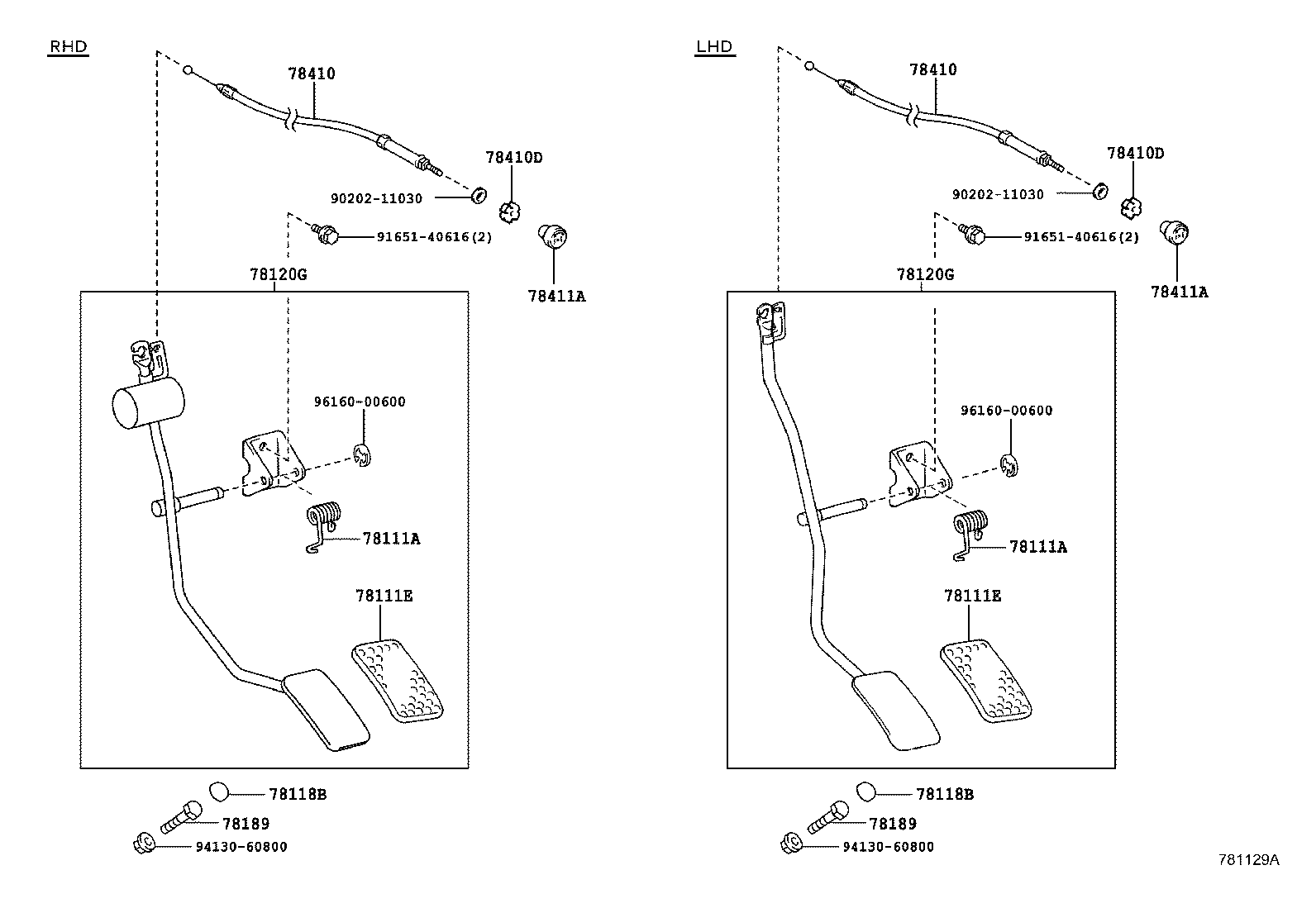

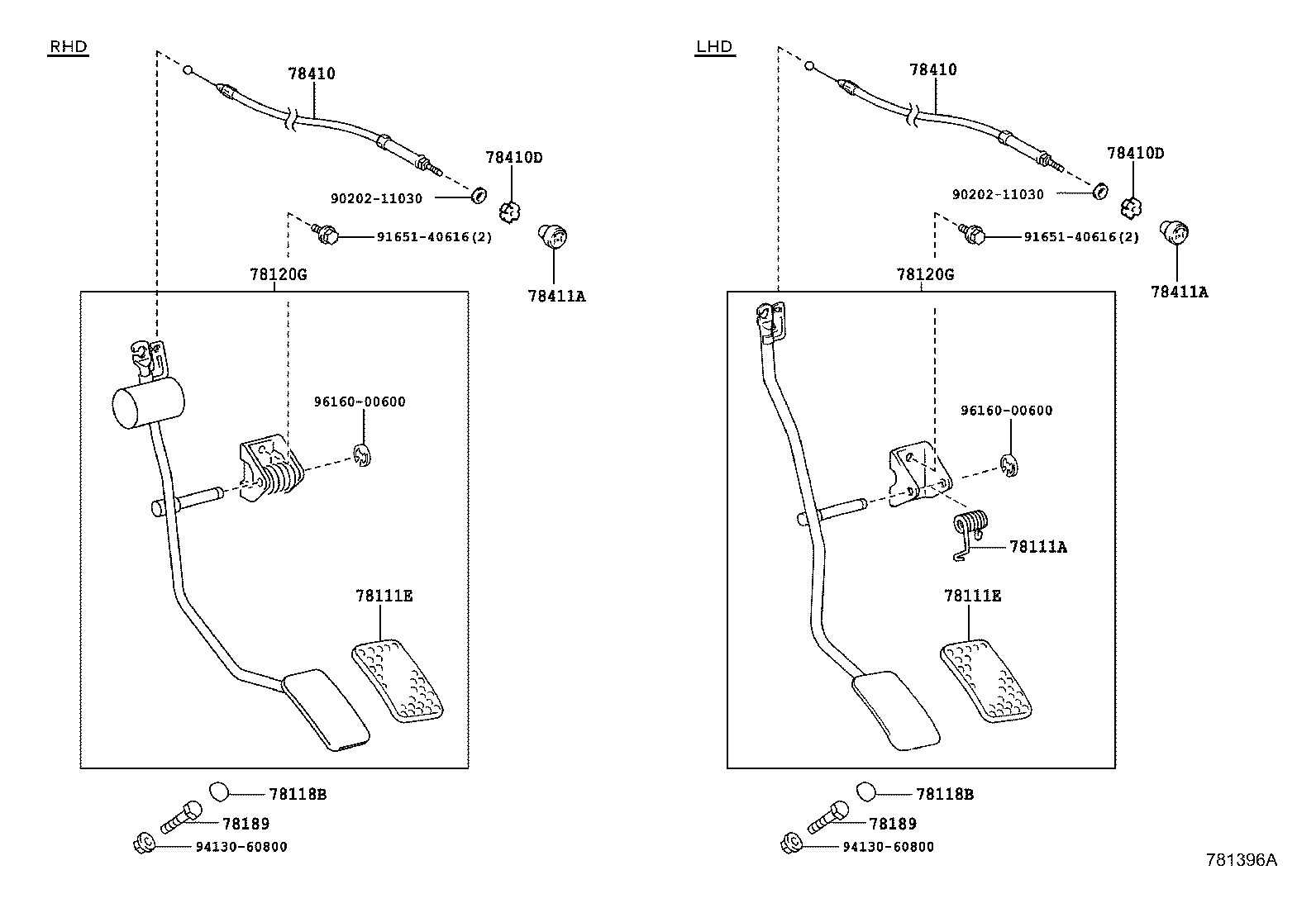

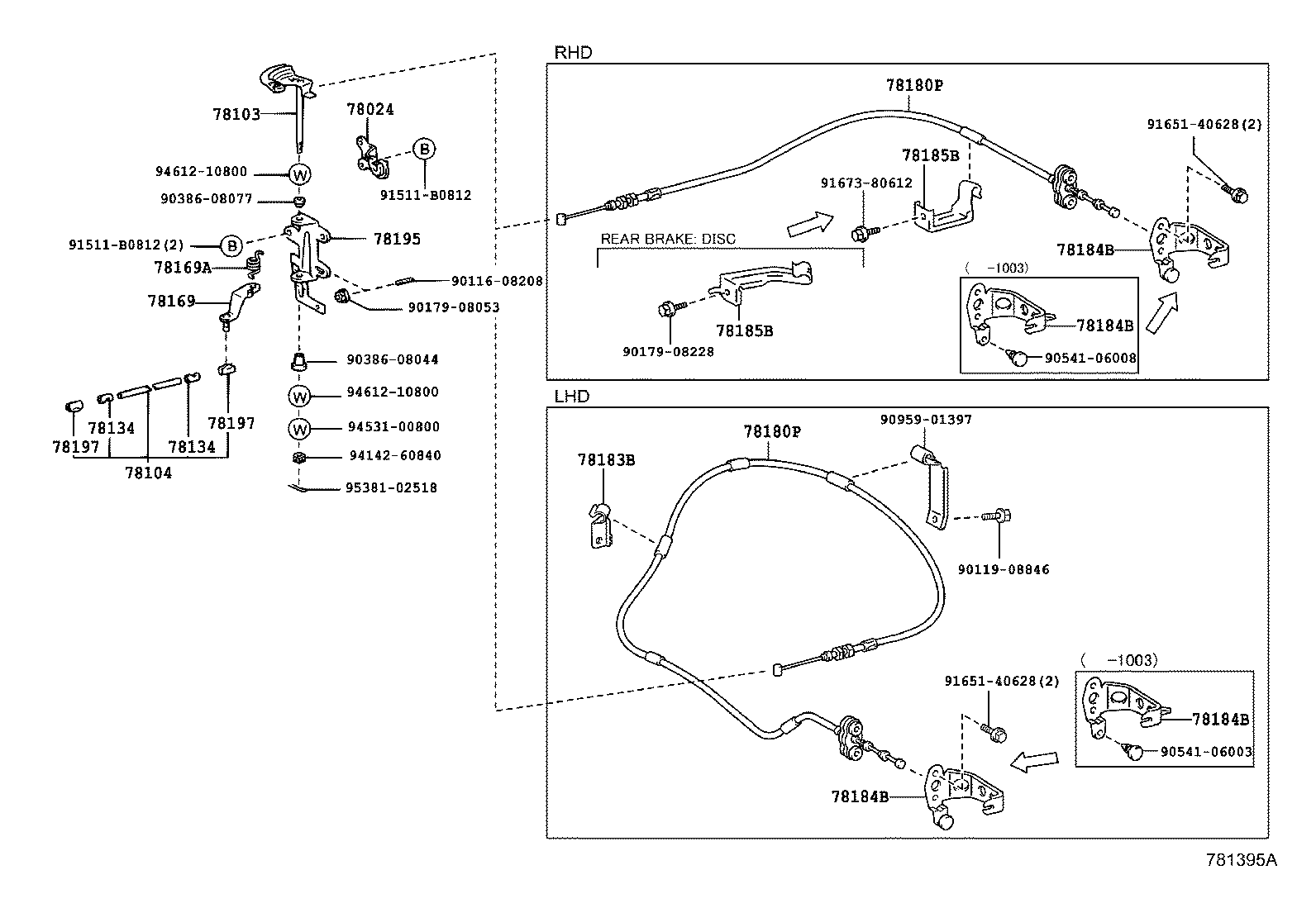

Figure 781133E 781133E 2007-01 → — Figure 781129A 781129A 2007-01 → — Figure 781395A 781395A 2007-01 → — Figure 781396A 781396A 2007-01 → — Figure 781130A 781130A 2007-01 → 2009-07 Figure 781268 781268 2009-07 → — Figure 781268 781268 2009-07 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78110K Rod Assy, Accelerator Pedal(W/SENSOR)
78111A Spring (FOR ACCELERATOR PEDAL)
78111E Pad, Accelerator Pedal
78114A Bracket, Accelerator Pedal Support
78118B Stopper, Accelerator Pedal
78120G Rod Assy, Accelerator Pedal
78134 End, Accelerator Connecting Rod
78169 Hanger, Accelerator Spring
78169A Spring, Clamp, NO.4
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78185B Bracket, Accel Control NO.6 Rod, Rear
78186 Support, Accelerator Control Cable, NO.1
78189 Bolt, Accelerator Pedal Stopper
78194A Support, Accelerator Control Cable, NO.4
78195 Bracket, Accelerator Link
78197 Clip, Accelerator Joint Ball
78410 Cable Assy, Throttle Control
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
