Toyota Land Cruiser

2007-01 → present · chassis FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# · catalogue 781370 · United States

Supported model Data version 2024-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

13 part groups · 4 illustrations

Illustrations

Figure 816979D

816979D 2007-01 → 2023-09

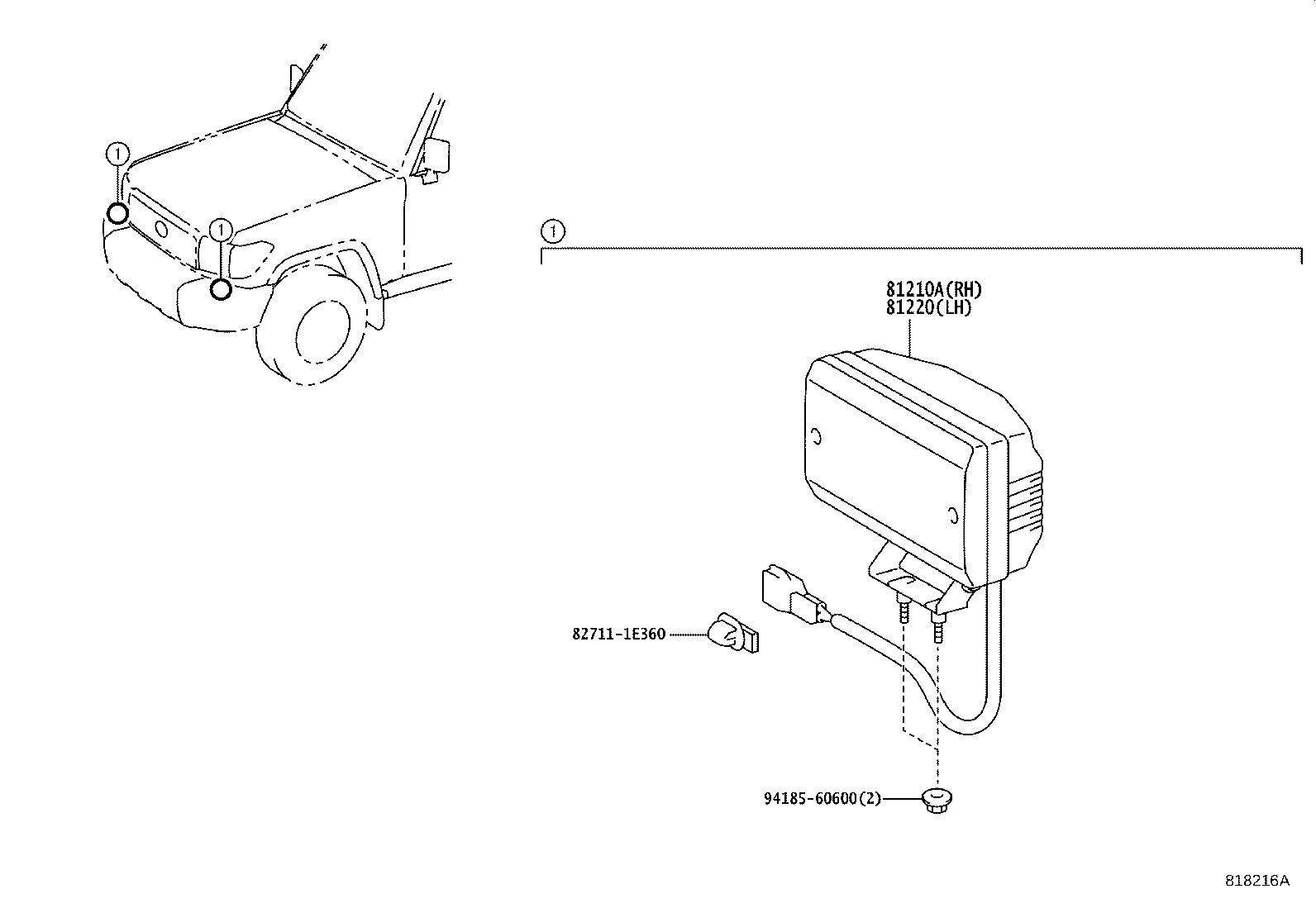

Figure 818216A

818216A 2017-02 → 2017-04

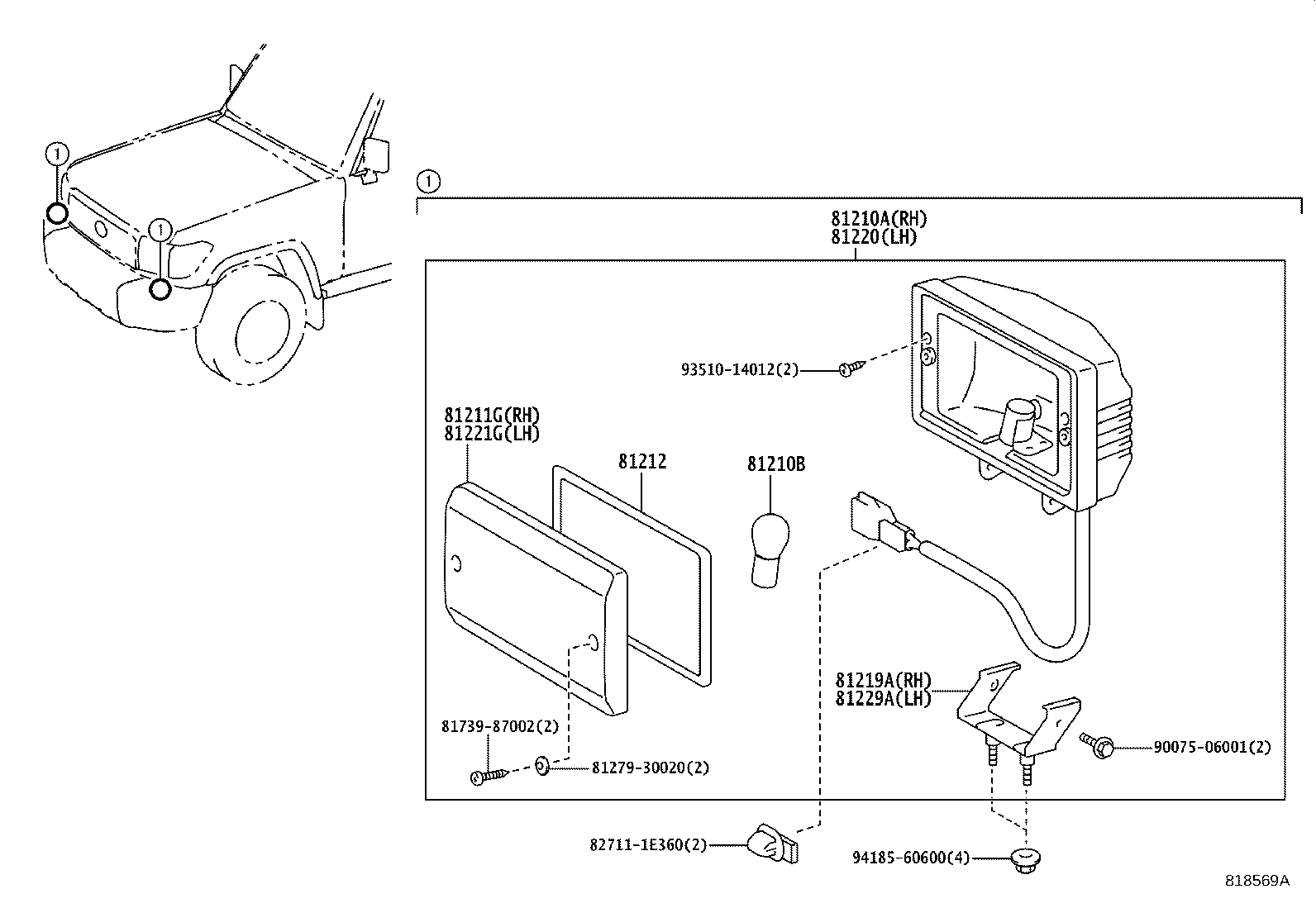

Figure 818569A

818569A 2018-02 → 2019-03

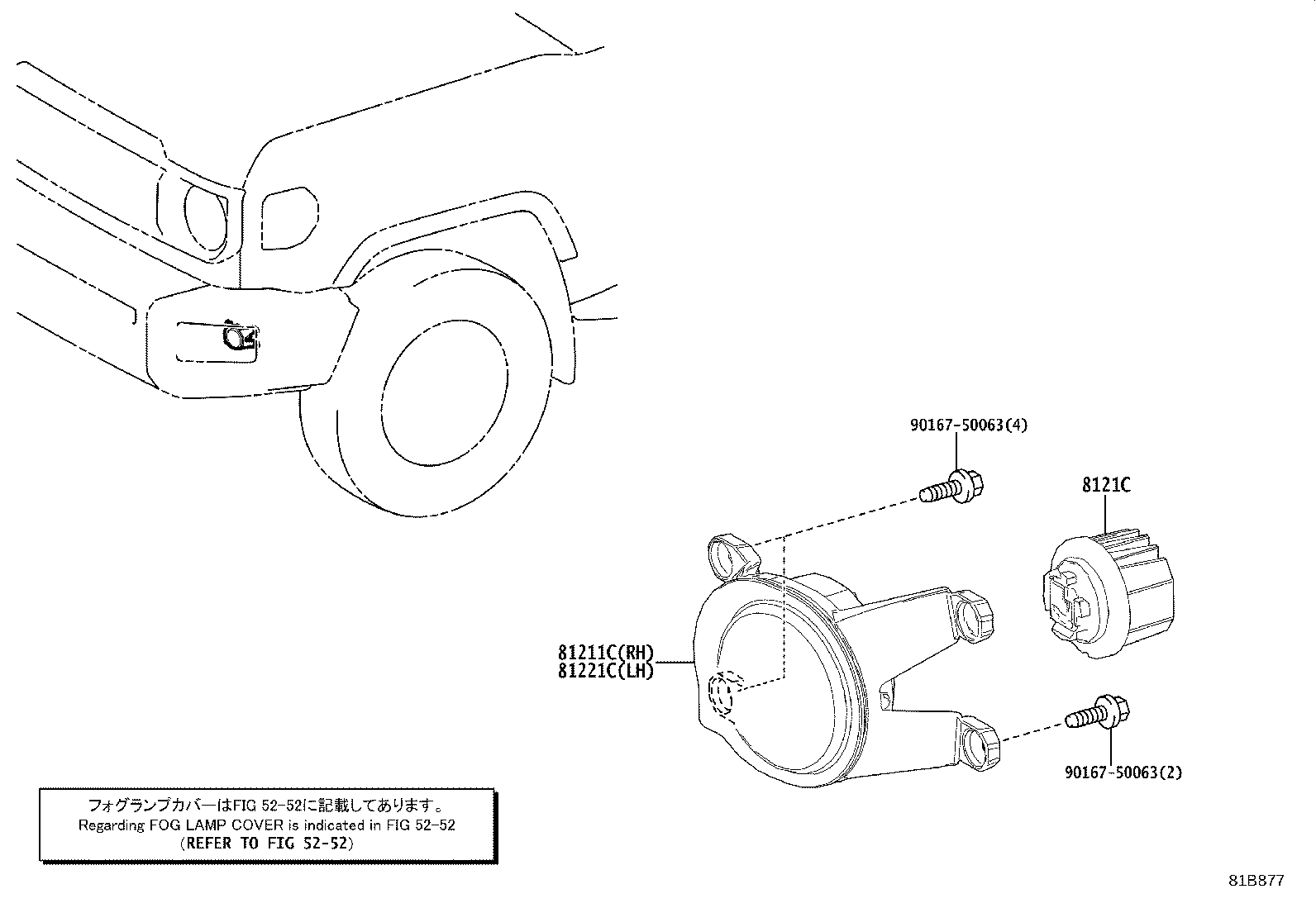

Figure 81B877

81B877 2023-09 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81211G	Lens, Fog Lamp, RH
81212	Gasket, Fog Lamp Lens
81219A	Bracket, Fog Lamp, RH
8121C	Led, Fog Lamp
81220	Lamp Assy, Fog, LH
81221C	Lamp Unit, Fog Lamp, LH
81221G	Lens, Fog Lamp, LH
81229A	Bracket, Fog Lamp, LH
81483B	Protector, Fog Lamp
81484A	Protector, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
